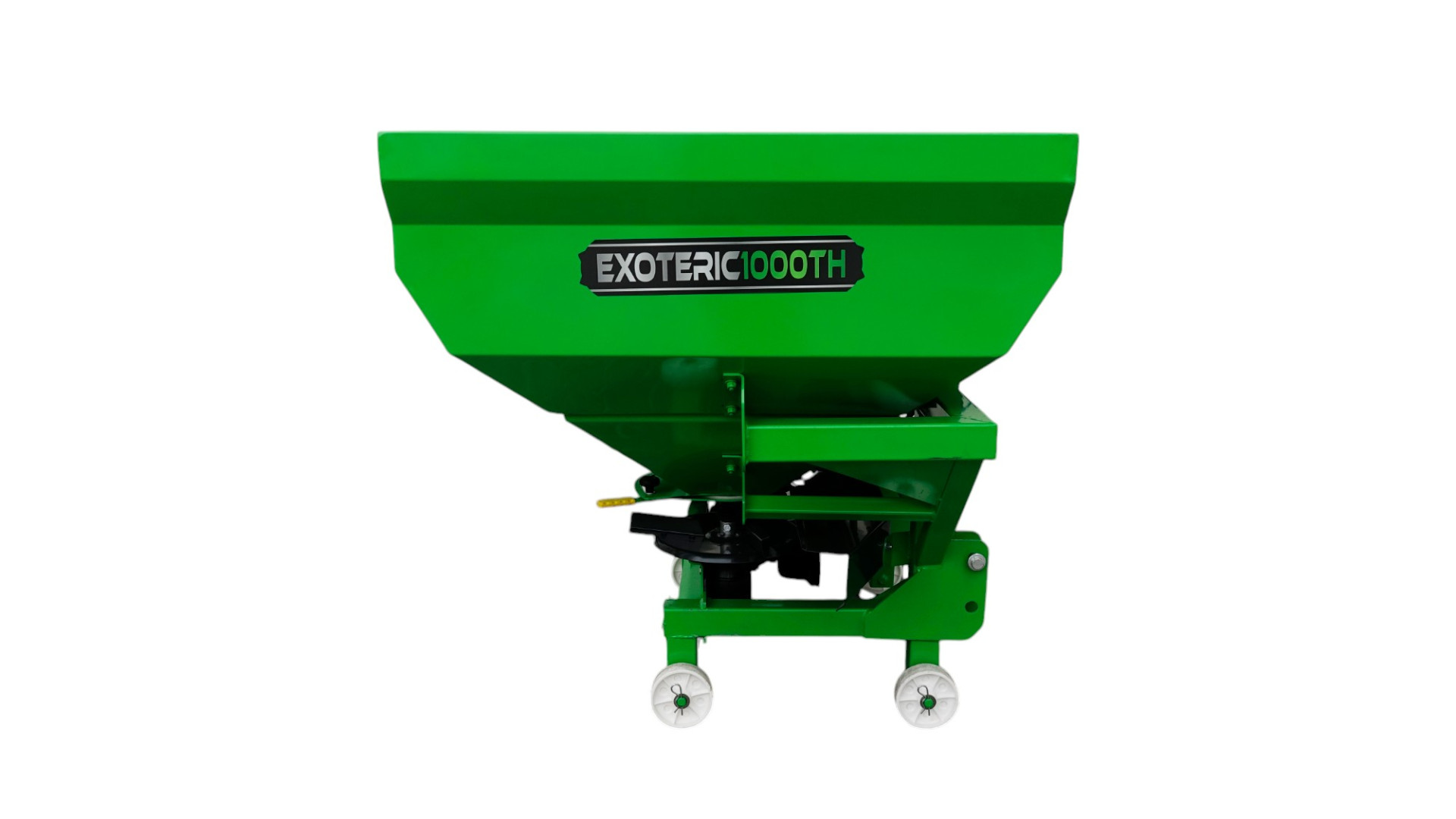

Exoteric Fertilizer Spreader Double Disc

Exoteric Fertilizer Spreader Double Disc

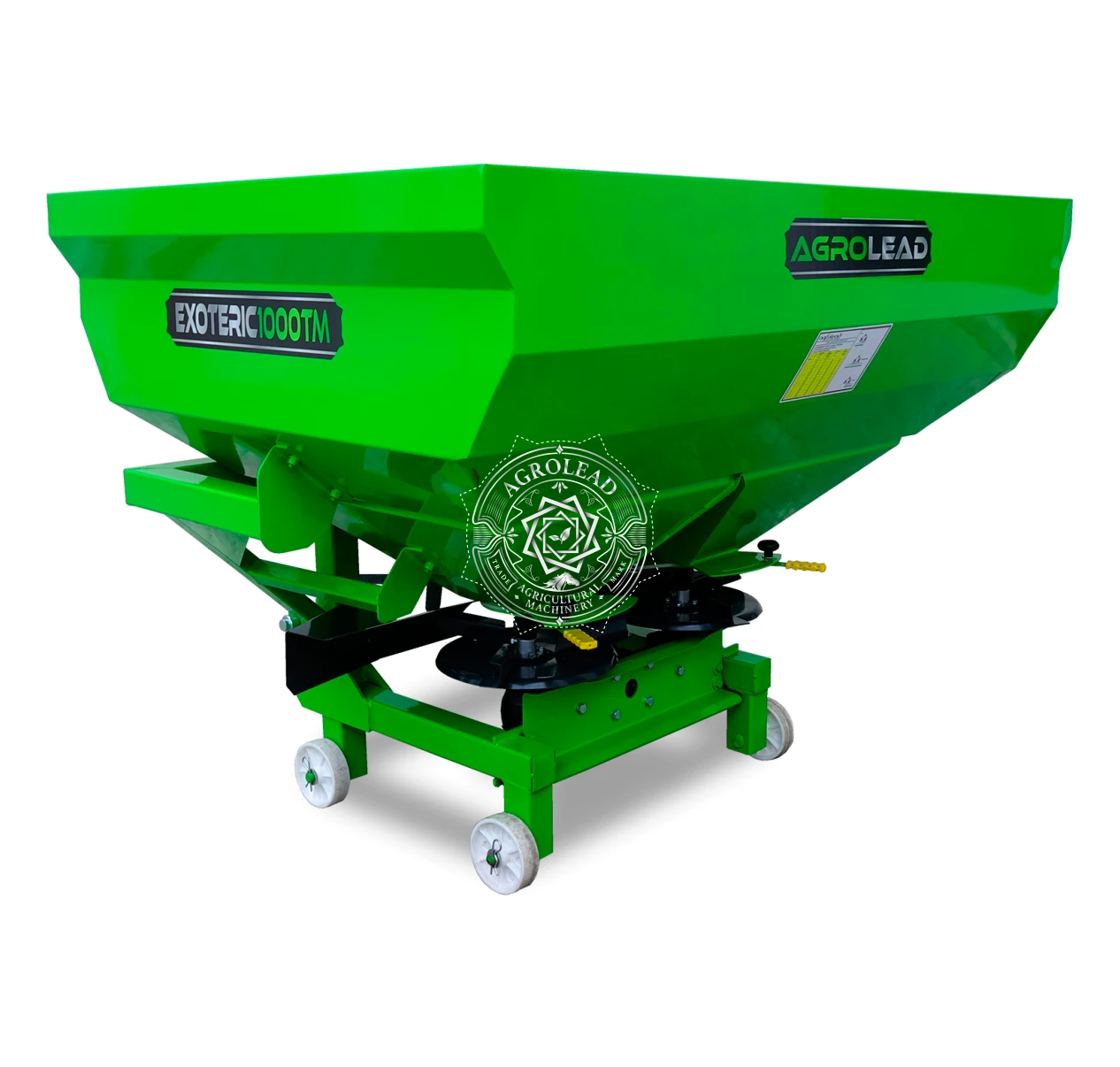

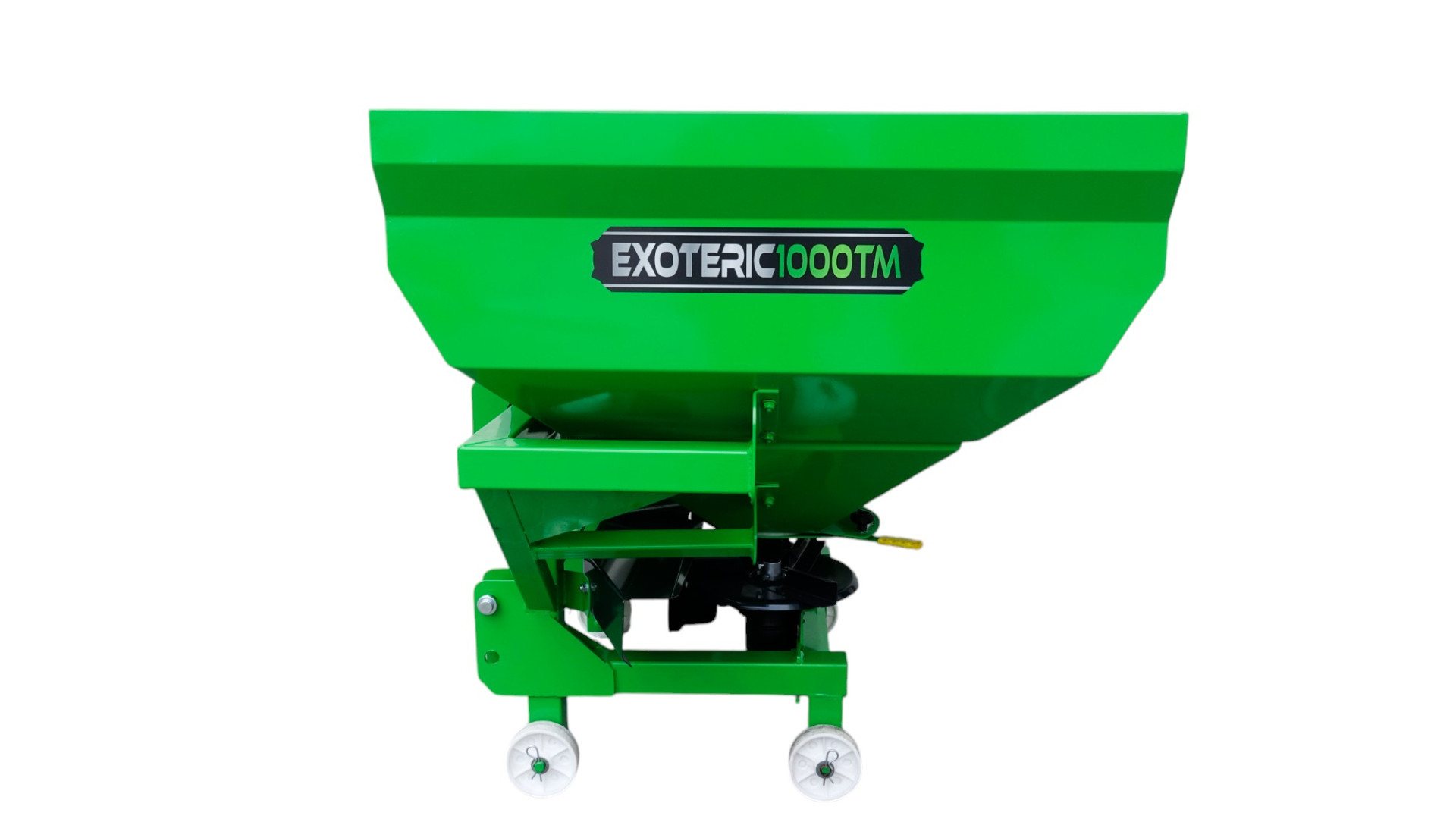

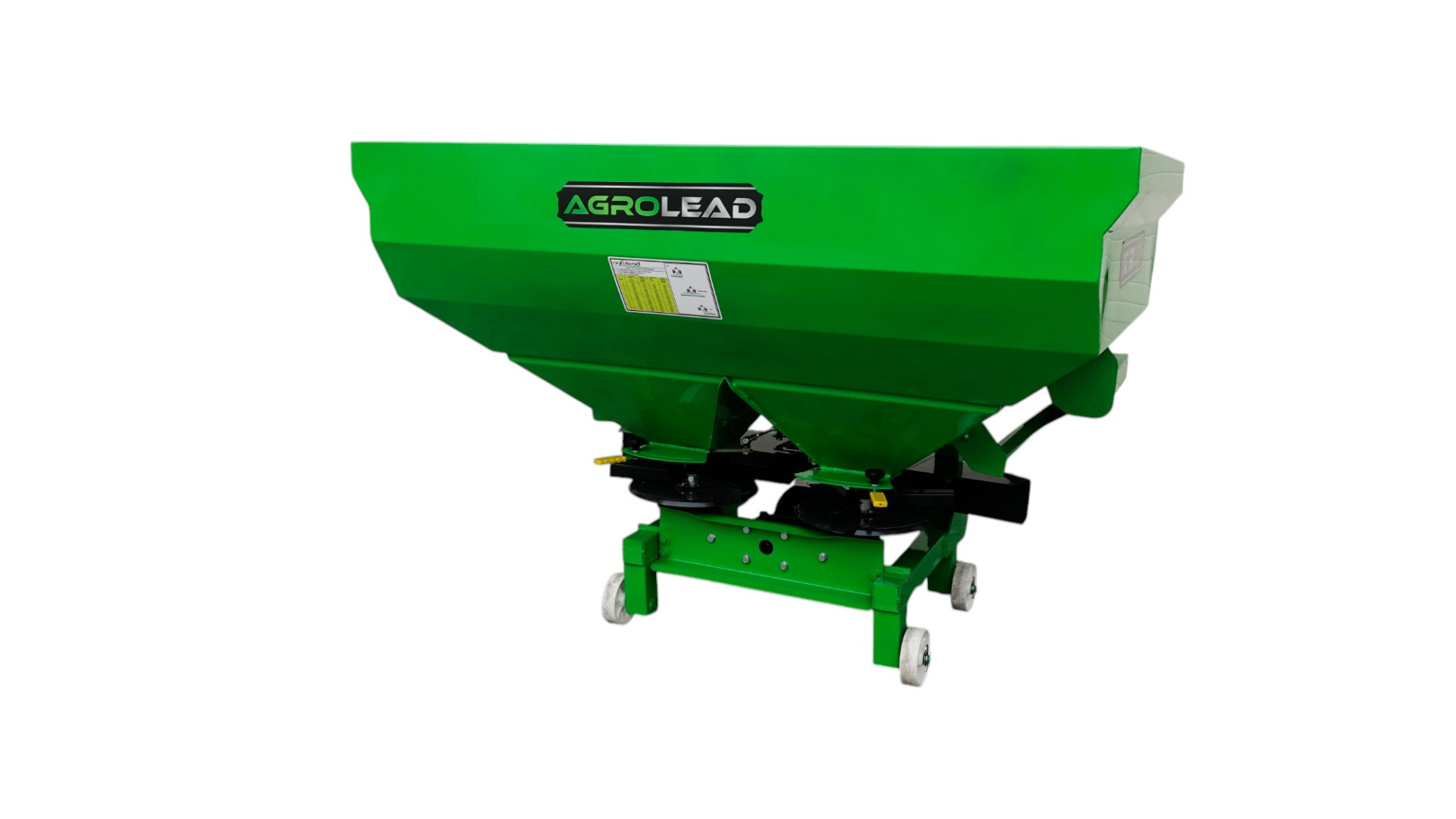

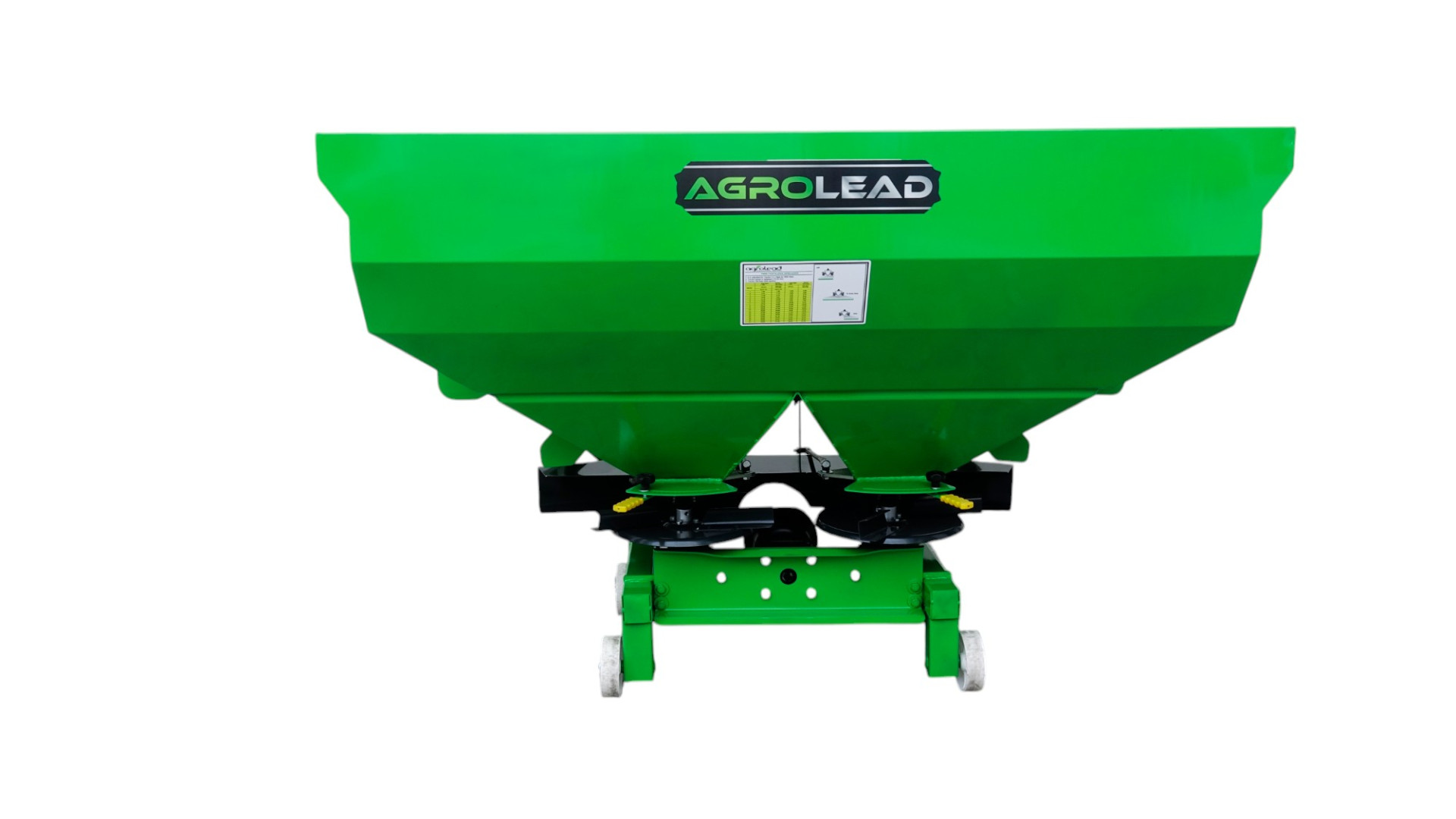

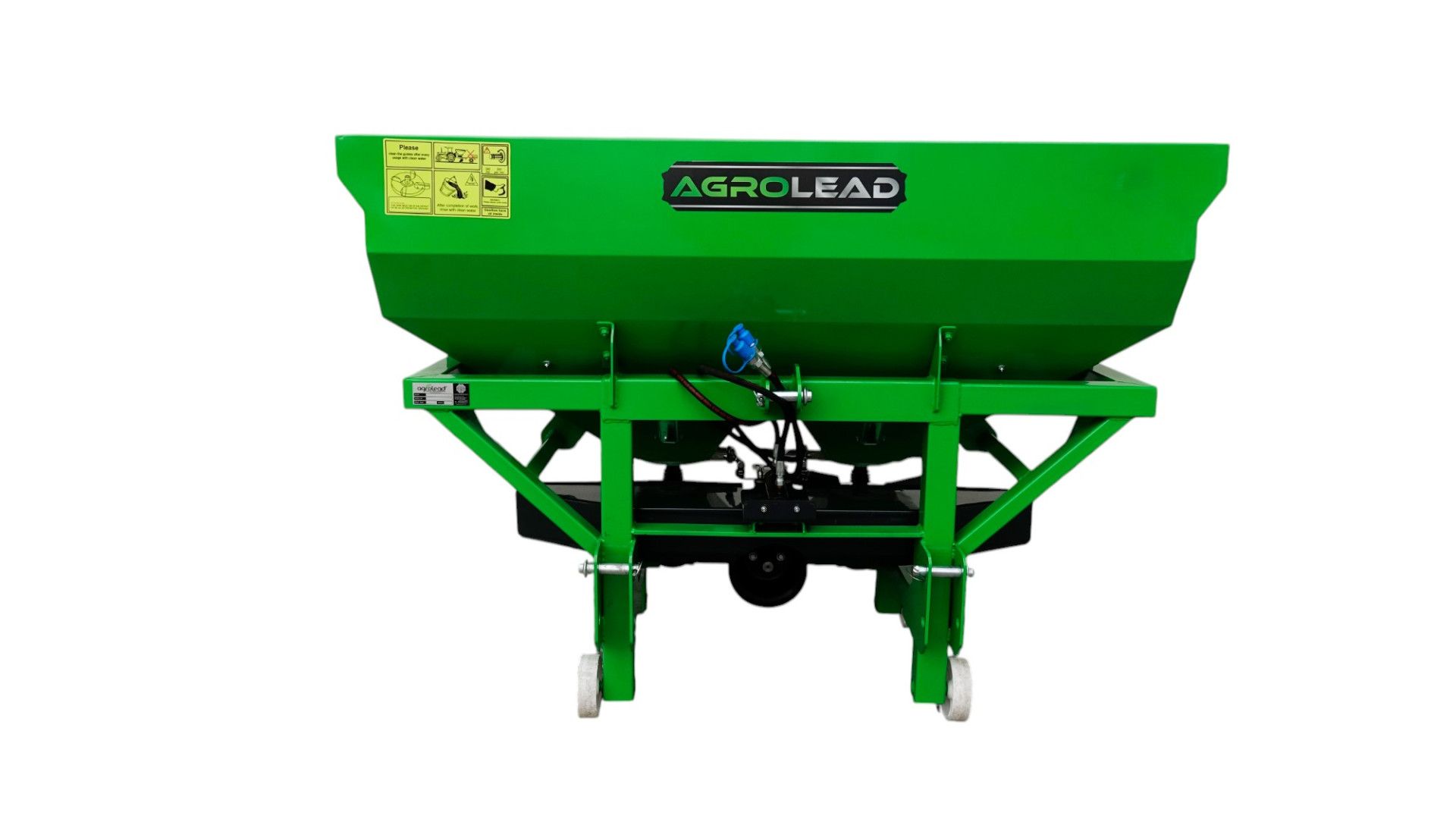

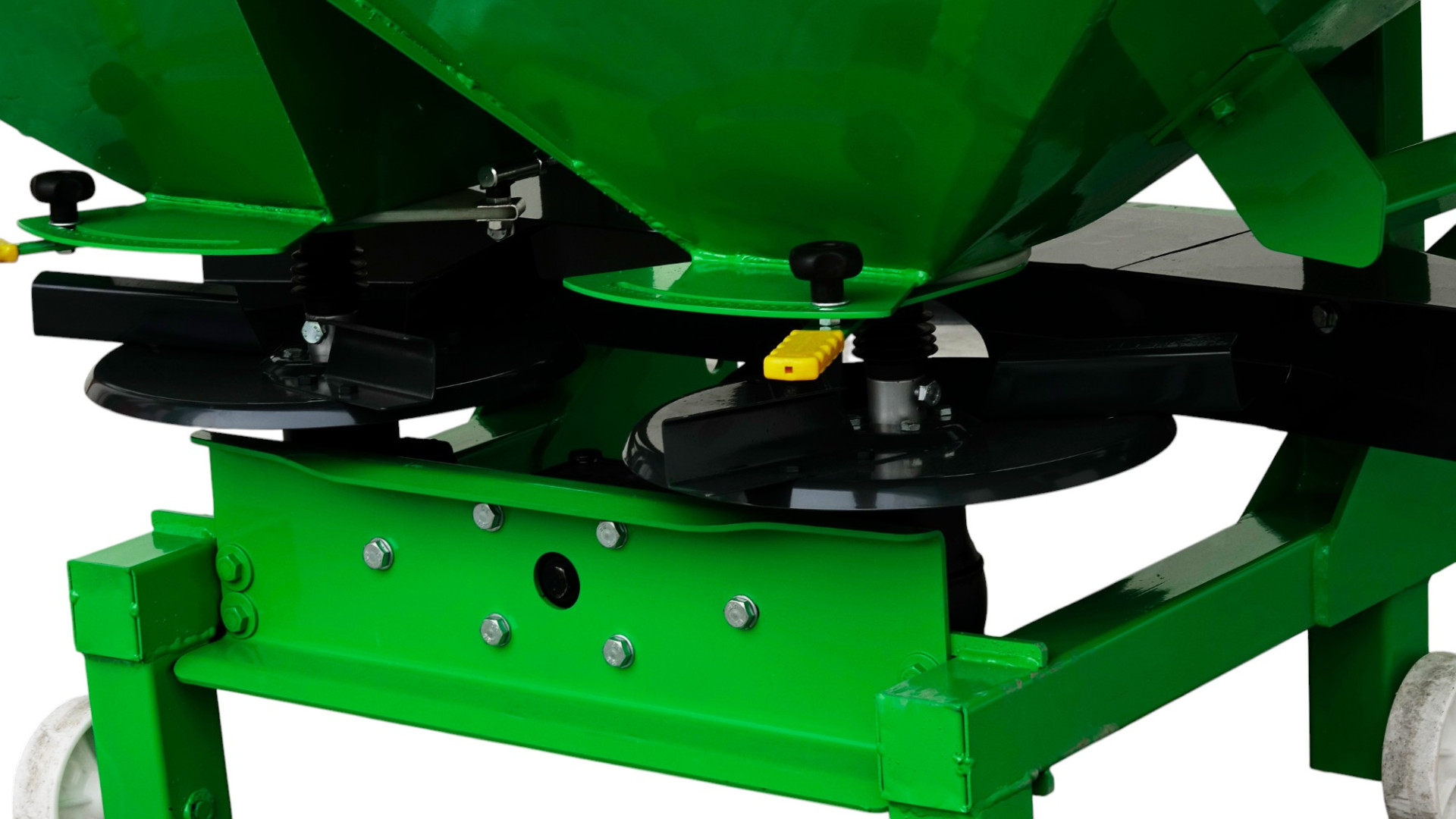

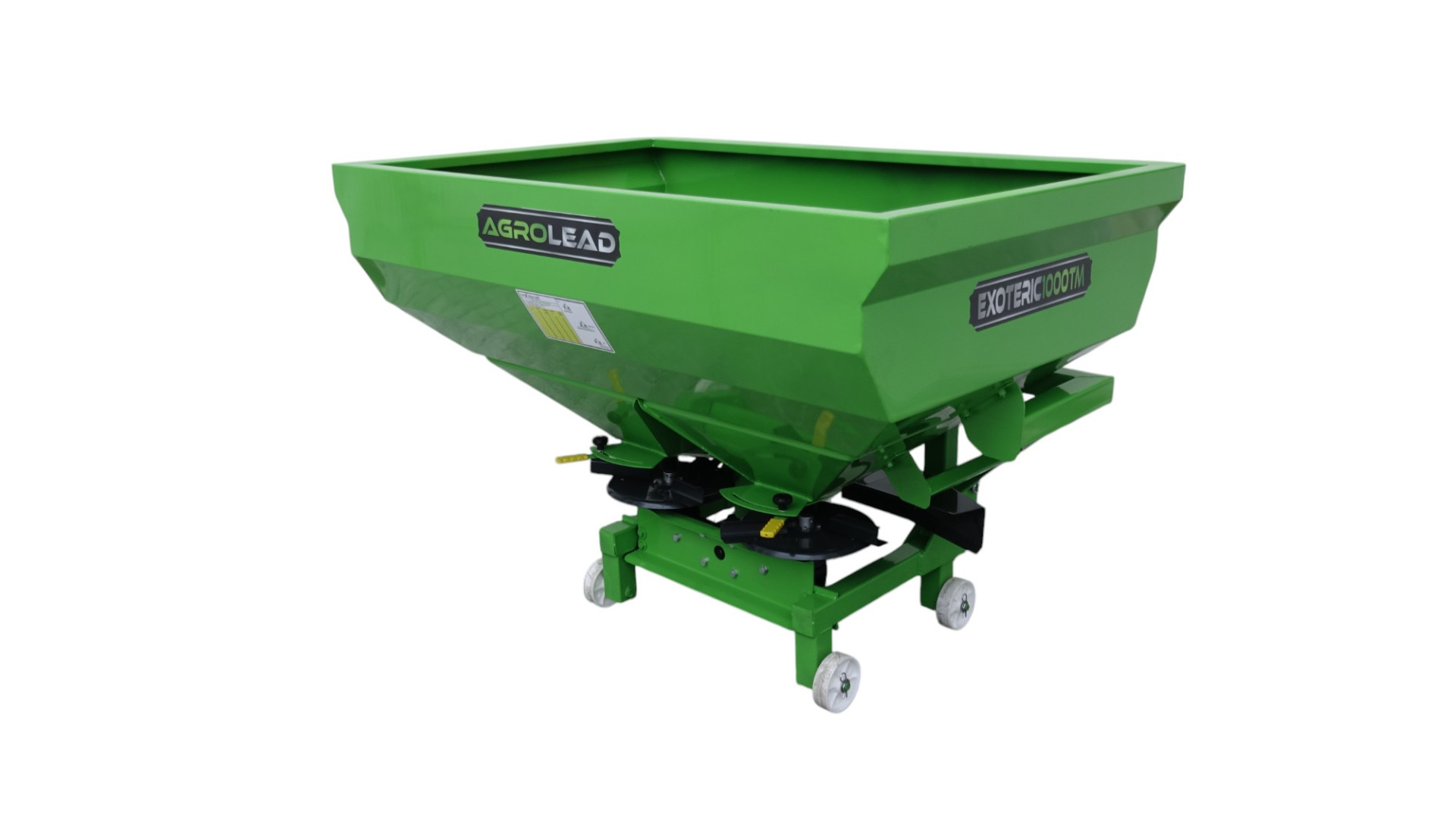

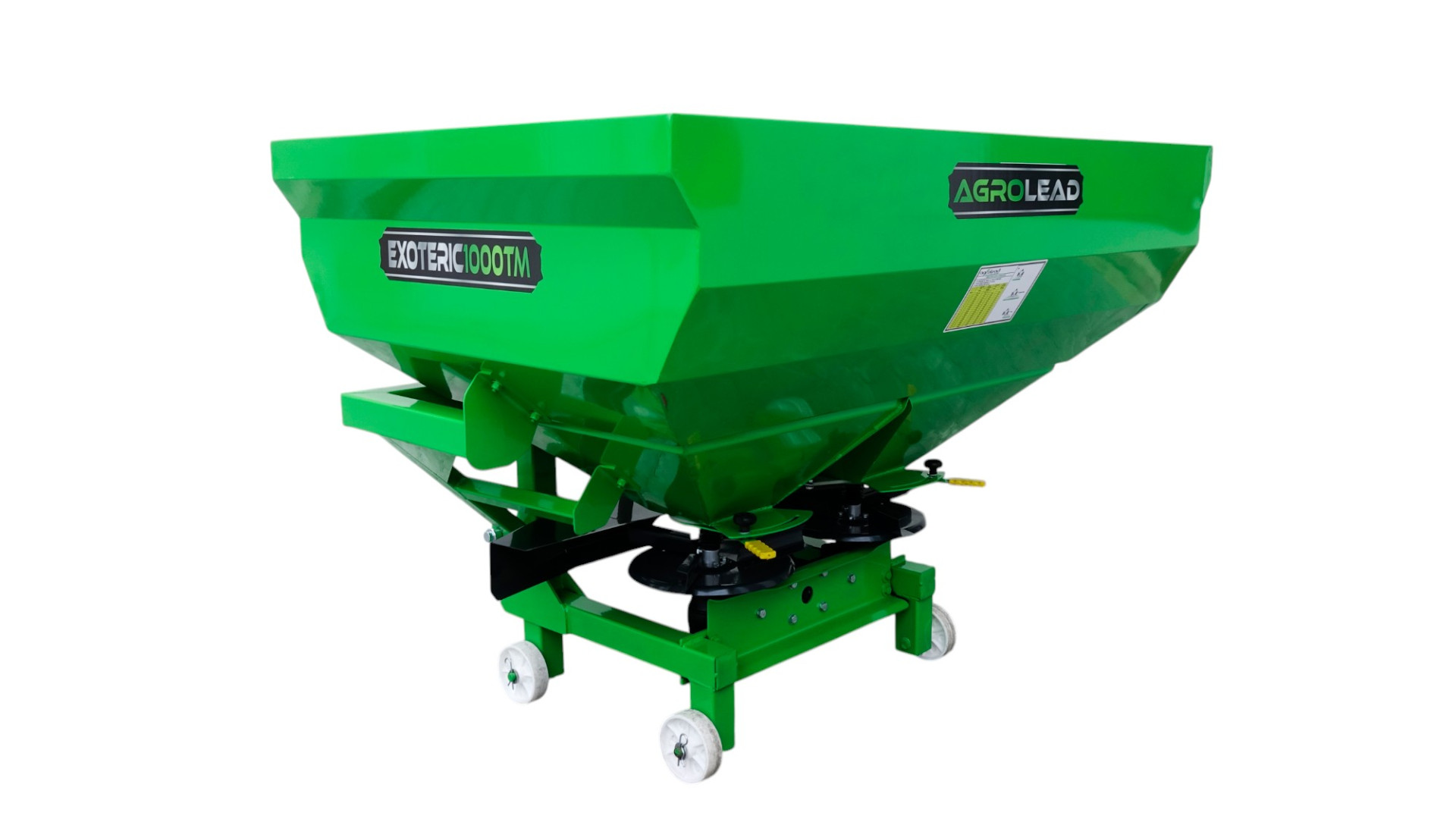

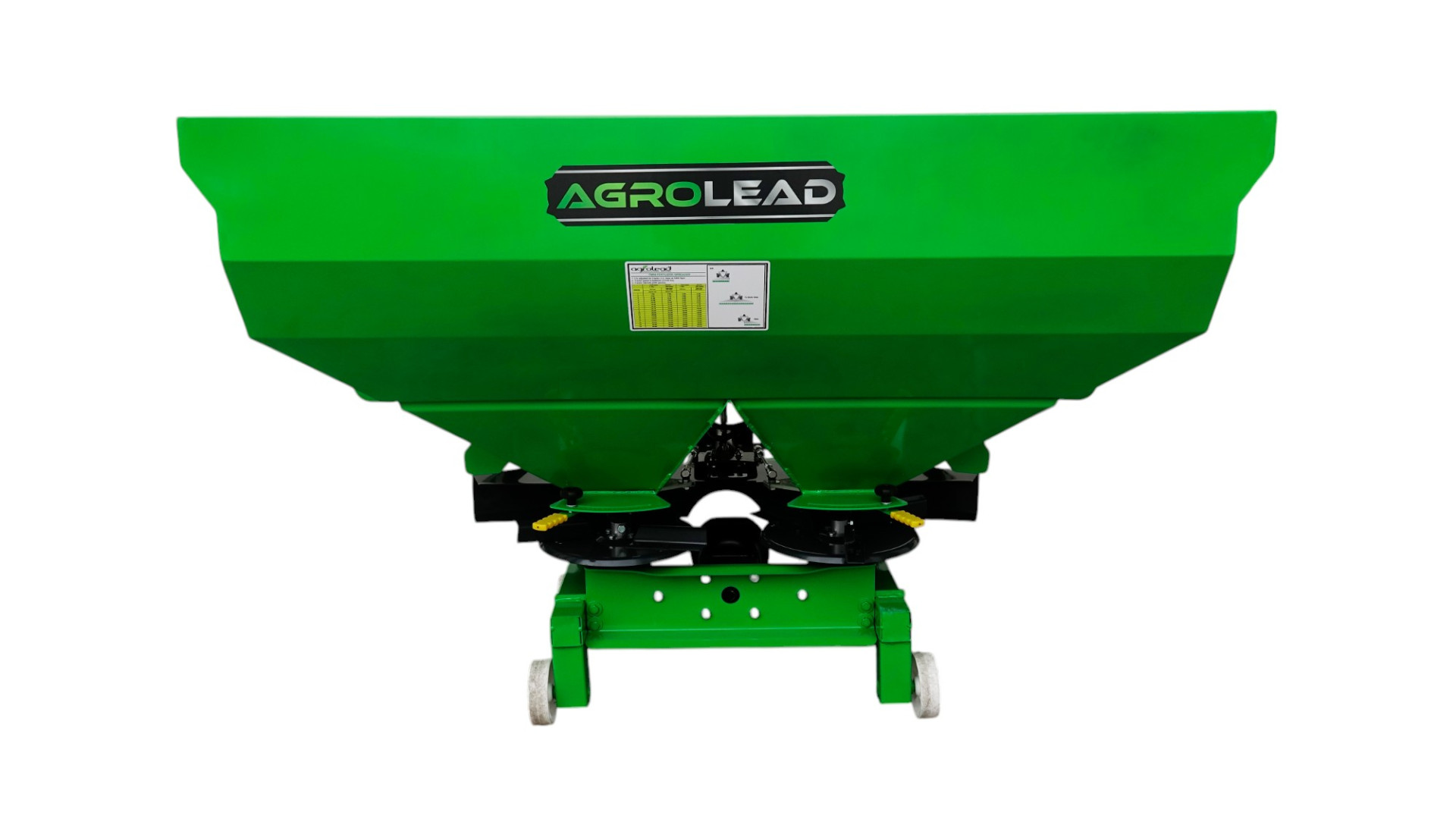

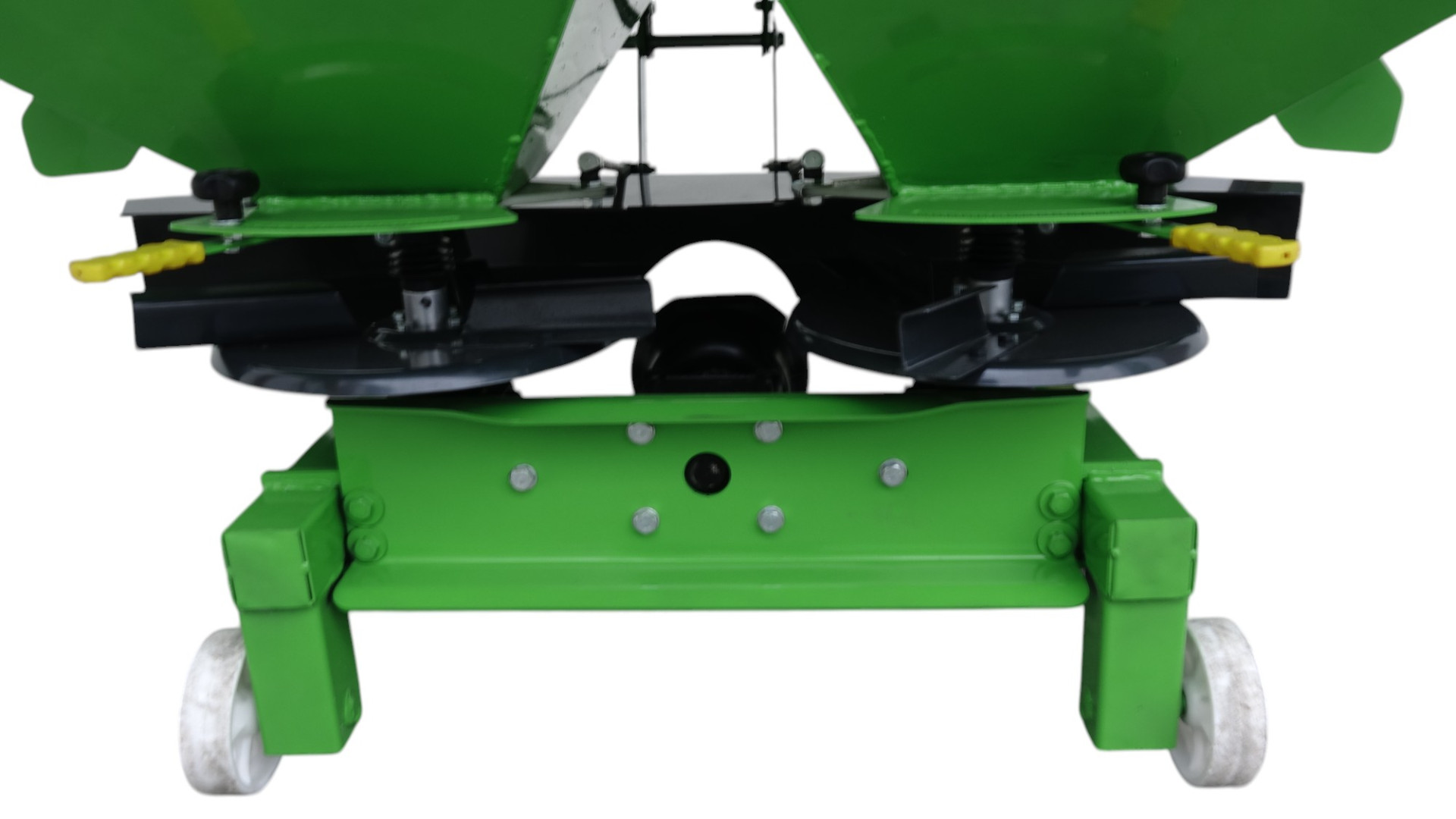

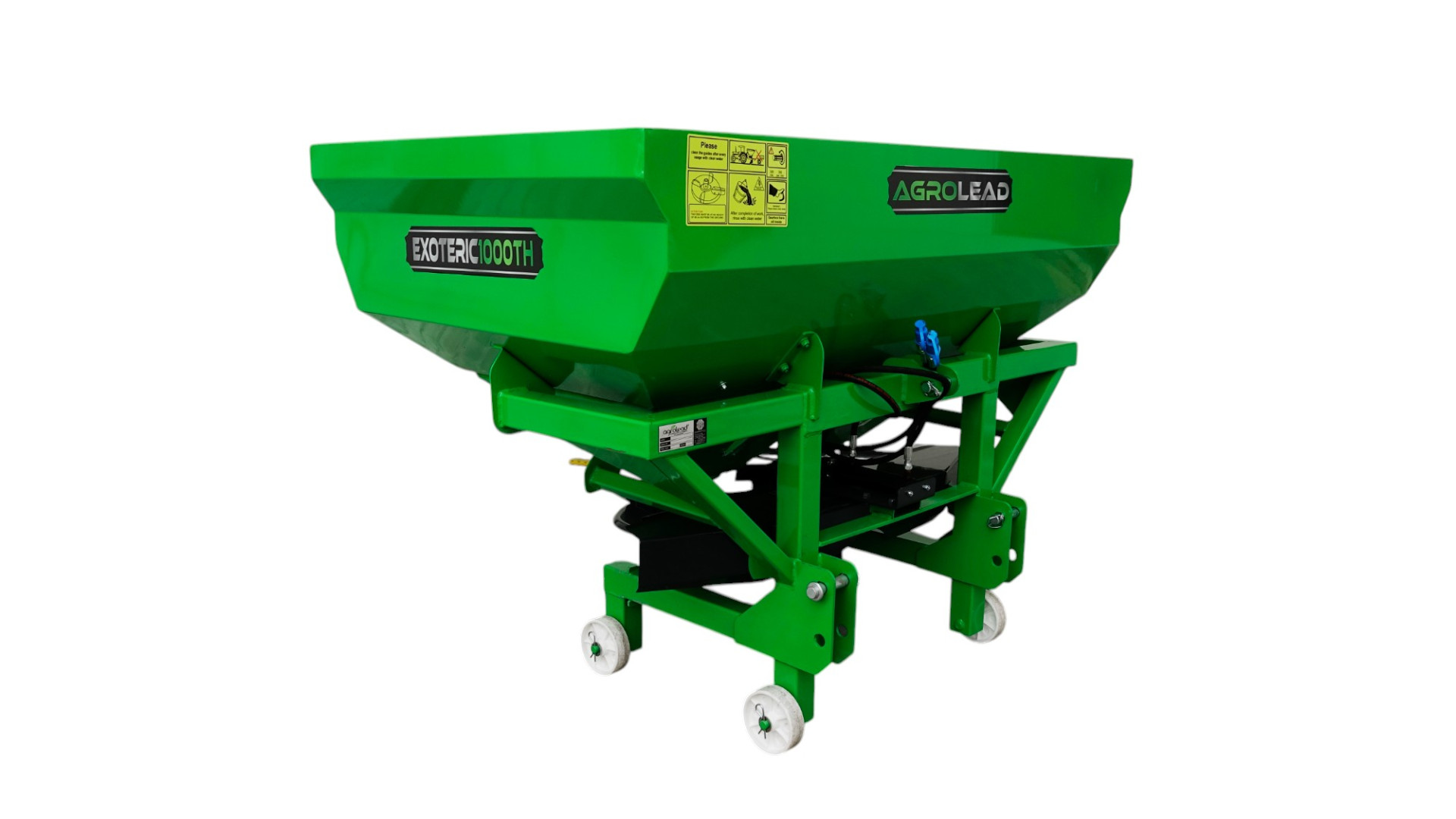

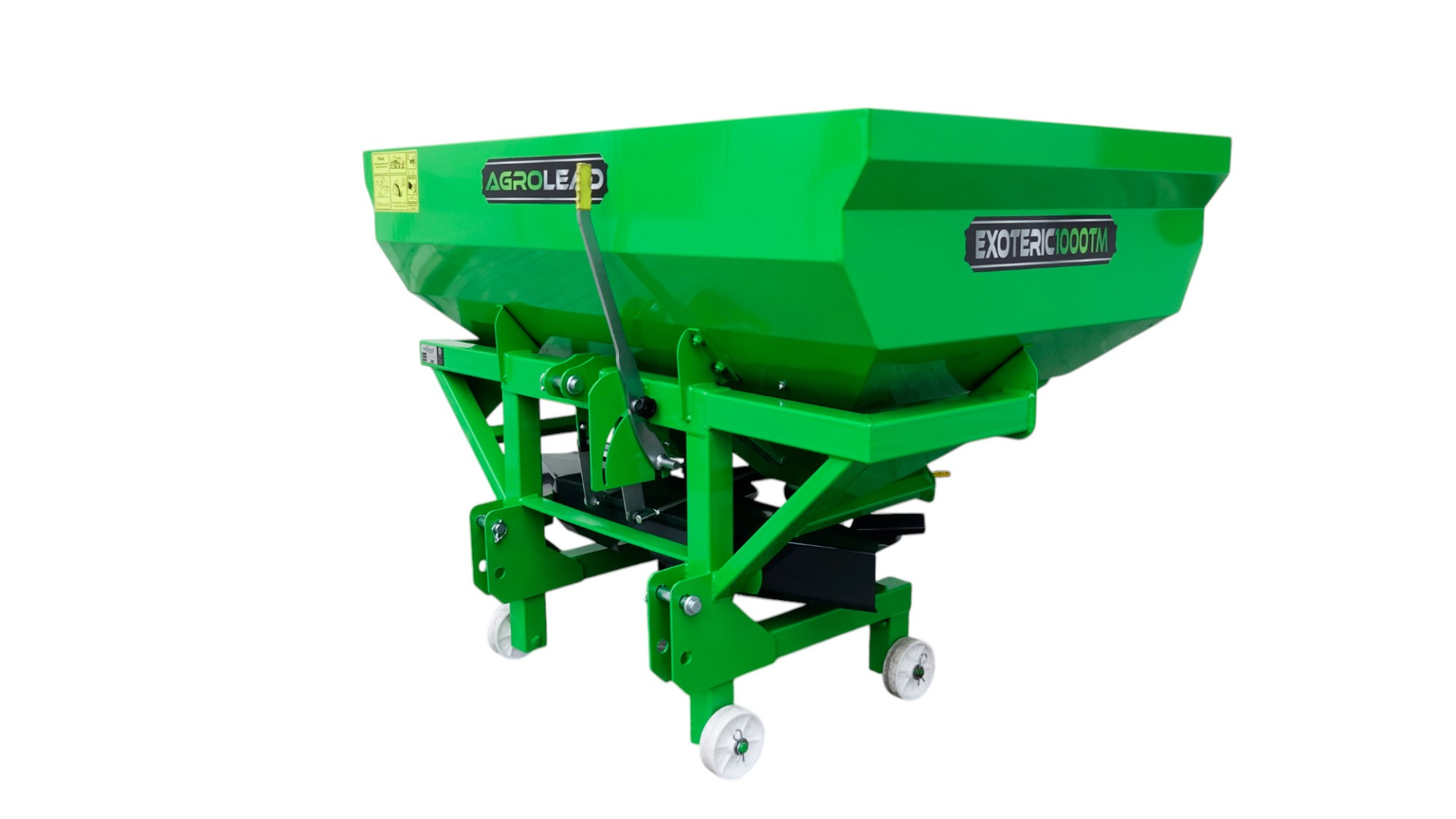

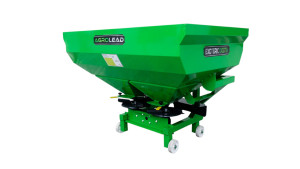

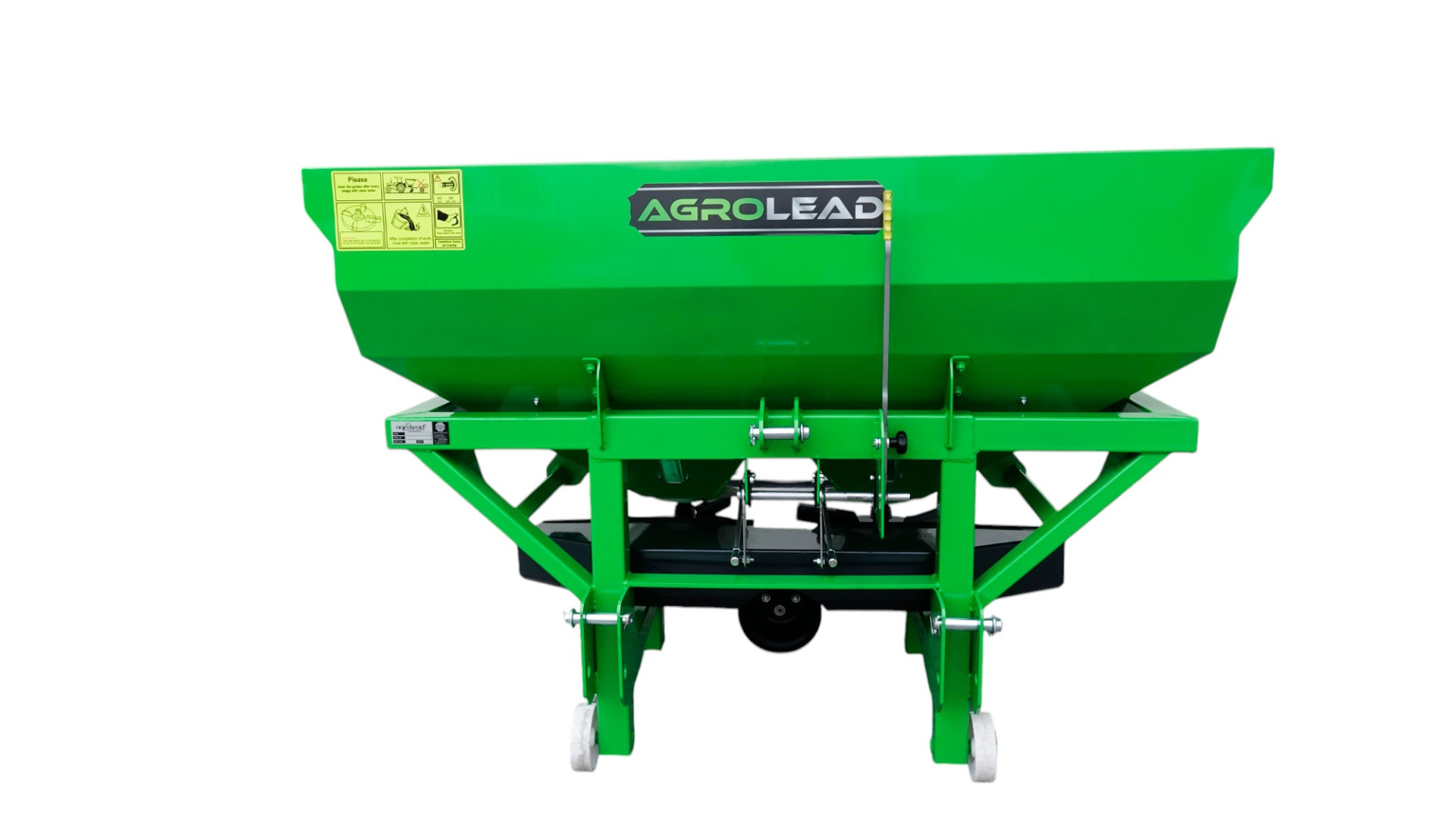

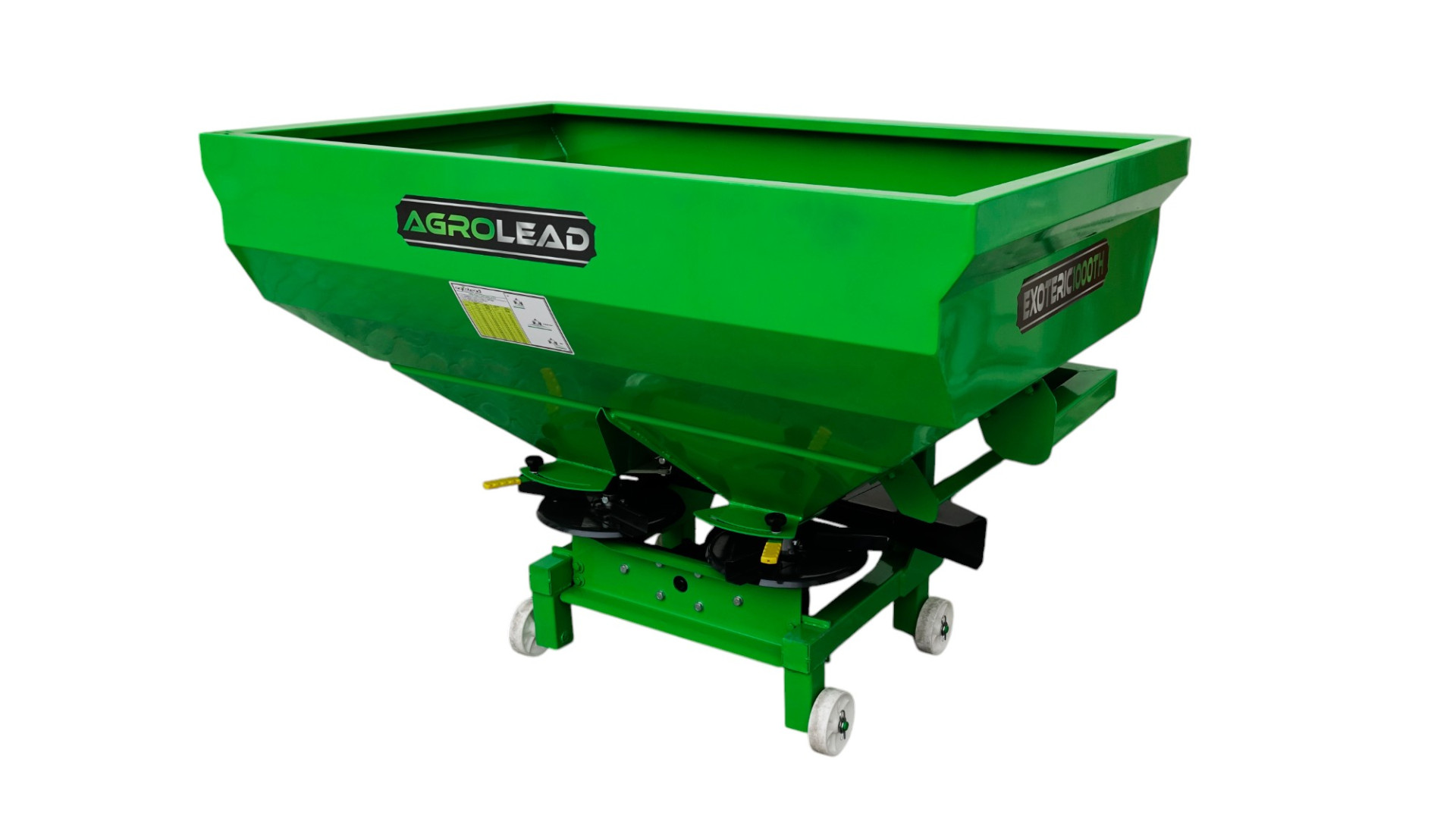

Exoteric TH Mounted Fertilizer Spreaders are manufactured with vertical agitators and connected to the tractor through three-point linkage system The machine gets its driving power with the help of a shaft connected to the tractor power take-off.Due to the gearbox, machine transmits the movement it receives from the pto to the discs and performs the fertilizer spreading process with the centrifugal force formed on the discs. The smashers duty is to avoid the fertilizer to become limp and flowing continuously. Exoteric Spreaders are used before and after crop planting with the purpose of increasing soil and crop yield. Exoteric TH Models are in a range from 600 lt to 1500 lt with double disc equipped. Also machine is offered with hydraulic dosage control as a standard but mechanic controlling is available too, if requested. Inox disc set and  inox protectors are optional features of our machine.

TECHNICAL SPECIFICATIONSUNITMODEL
EXOTERIC 600THEXOTERIC 800THEXOTERIC 1000THEXOTERIC 1200THEXOTERIC 1500TH
Capacitylt600800100012001500
Number Of Discpcs22222
Working Widthmt18-2418-2418-2418-2418-24
Rotation of Discsrpm540-720540-720540-720540-720540-720
Working Speedkm/h15-2015-2015-2015-2015-20
Dosage AdjustmentctrlHydraulicHydraulicHydraulicHydraulicHydraulic
Inox DisctypeOptionalOptionalOptionalOptionalOptional
Inox ProtectortypeOptionalOptionalOptionalOptionalOptional
Widthmm11251125108011501120
Lengthmm17051705180018001800
Heightmm11601230130013701430
Weightkg210220225230235
Required Powerhp6070808590
TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt1000
Number Of Discpcs2
Working Widthmt18-24
Rotation of Discsrpm540-720
Working Speedkm/h15-20
Dosage AdjustmentctrlHydraulic
Inox DisctypeOptional
Inox ProtectortypeOptional
Widthmm1080
Lengthmm1800
Heightmm1300
Weightkg225
Required Powerhp80
TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt1200
Number Of Discpcs2
Working Widthmt18-24
Rotation of Discsrpm540-720
Working Speedkm/h15-20
Dosage AdjustmentctrlHydraulic
Inox DisctypeOptional
Inox ProtectortypeOptional
Widthmm1150
Lengthmm1800
Heightmm1370
Weightkg230
Required Powerhp85
TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt1500
Number Of Discpcs2
Working Widthmt18-24
Rotation of Discsrpm540-720
Working Speedkm/h15-20
Dosage AdjustmentctrlHydraulic
Inox DisctypeOptional
Inox ProtectortypeOptional
Widthmm1120
Lengthmm1800
Heightmm1430
Weightkg235
Required Powerhp90
TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt600
Number Of Discpcs2
Working Widthmt18-24
Rotation of Discsrpm540-720
Working Speedkm/h15-20
Dosage AdjustmentctrlHydraulic
Inox DisctypeOptional
Inox ProtectortypeOptional
Widthmm1125
Lengthmm1705
Heightmm1160
Weightkg210
Required Powerhp60
TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt800
Number Of Discpcs2
Working Widthmt18-24
Rotation of Discsrpm540-720
Working Speedkm/h15-20
Dosage AdjustmentctrlHydraulic
Inox DisctypeOptional
Inox ProtectortypeOptional
Widthmm1125
Lengthmm1705
Heightmm1230
Weightkg220
Required Powerhp70
