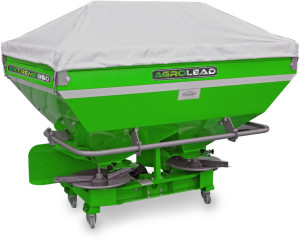

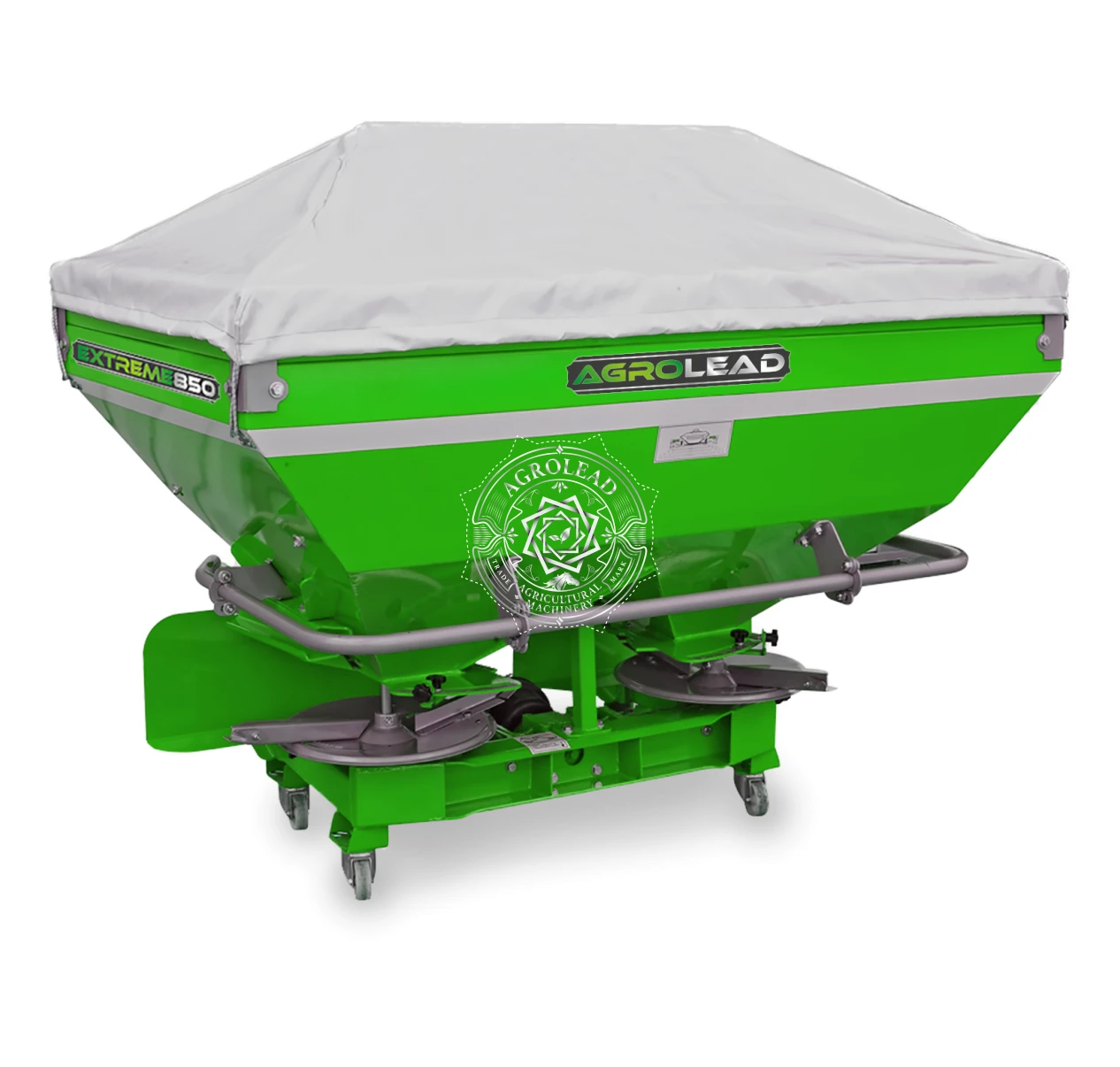

Extreme Fertilizer Spreader

Extreme Fertilizer Spreader

Extreme Series Mounted Fertilizer Spreaders are manufactured with vertical agitators and connected to the tractor through three-point linkage system. Main hopper of Extreme spreaders is of 650 lt and the capacity of the fertilizer tank can be increased up to 1200 lt with sideboards. Extreme Series fertilizer spreaders are made in double hydraulic system as standard. Thanks to the hydraulic control stick, the fertilizer spreading is done easily from the tractor cabin and the unnecessary fertilizer consuming is avoided by closing it swiftly. Spreading width of the machine can range between 10-24 m; however, these adjustments must be performed by changing the angle and the length of the wings on the disk depending on the fertilizer types. The fertilizer tank is halved by a separator sheet in reverse V shape at the bottom and the mixer in it is located vertically where the fertilizer flow is provided uninterruptedly.

TECHNICAL SPECIFICATIONSUNITMODEL
EXTREME 850EXTREME 1000EXTREME 1200
Capacitylt85010001200
Number of Discpcs222
Working Widthmt18-2418-2418-24
Thrower Palletspcs222
Disc Rotationrpm720720720
Working Speedkm/h8-148-148-14
Heightmm141016301740
Widthmm120016301630
Lengthmm182018201820
Weightkg220282300
Required Powerhp254555
TECHNICAL SPECIFICATIONSUNITEXTREME 1000
Capacitylt1000
Number of Discpcs2
Working Widthmt18-24
Thrower Palletspcs2
Disc Rotationrpm720
Working Speedkm/h8-14
Heightmm1630
Widthmm1630
Lengthmm1820
Weightkg282
Required Powerhp45
TECHNICAL SPECIFICATIONSUNITEXTREME 1200
Capacitylt1200
Number of Discpcs2
Working Widthmt18-24
Thrower Palletspcs2
Disc Rotationrpm720
Working Speedkm/h8-14
Heightmm1740
Widthmm1630
Lengthmm1820
Weightkg300
Required Powerhp55
TECHNICAL SPECIFICATIONSUNITEXTREME 850
Capacitylt850
Number of Discpcs2
Working Widthmt18-24
Thrower Palletspcs2
Disc Rotationrpm720
Working Speedkm/h8-14
Heightmm1410
Widthmm1200
Lengthmm1820
Weightkg220
Required Powerhp25
