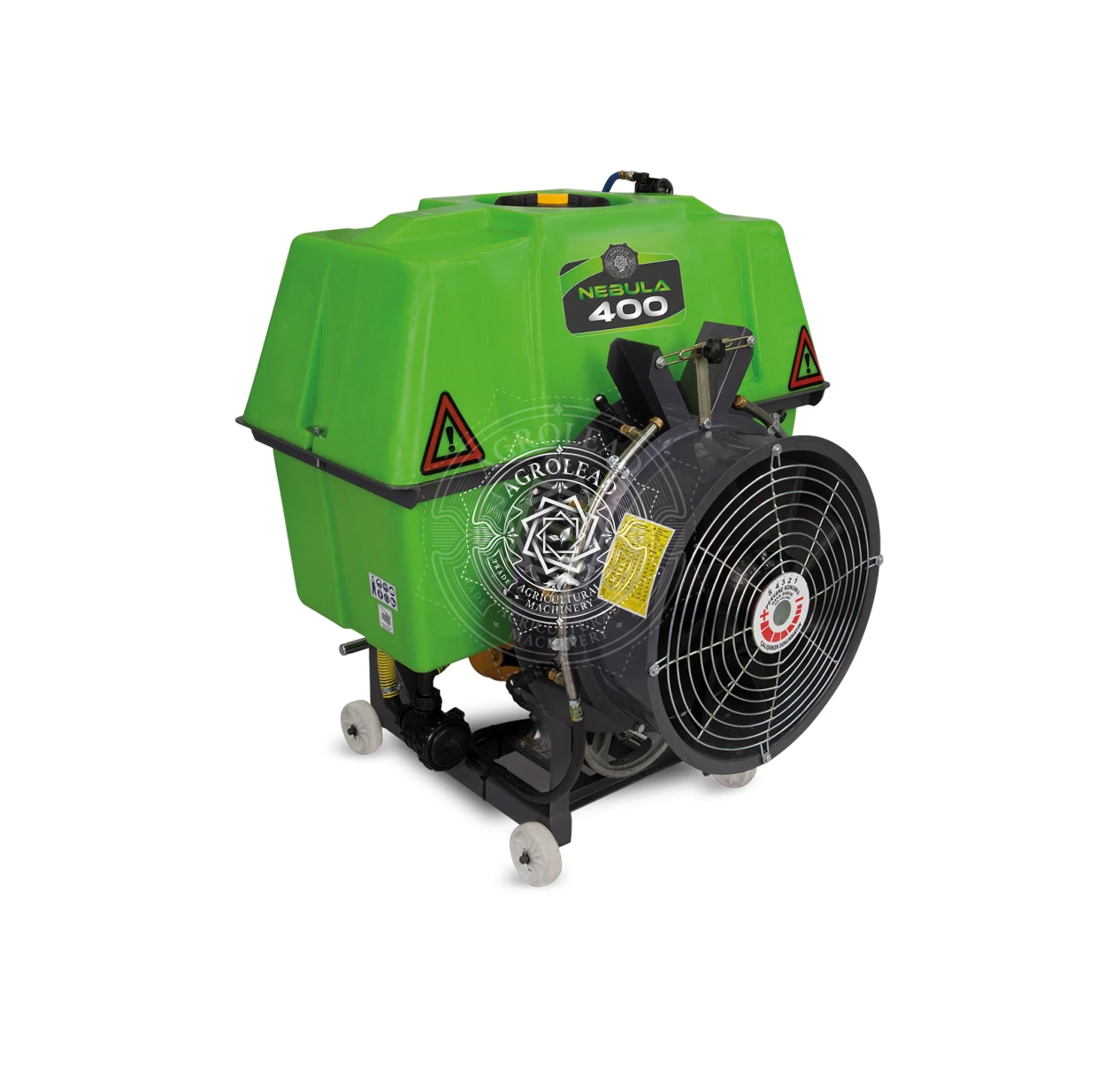

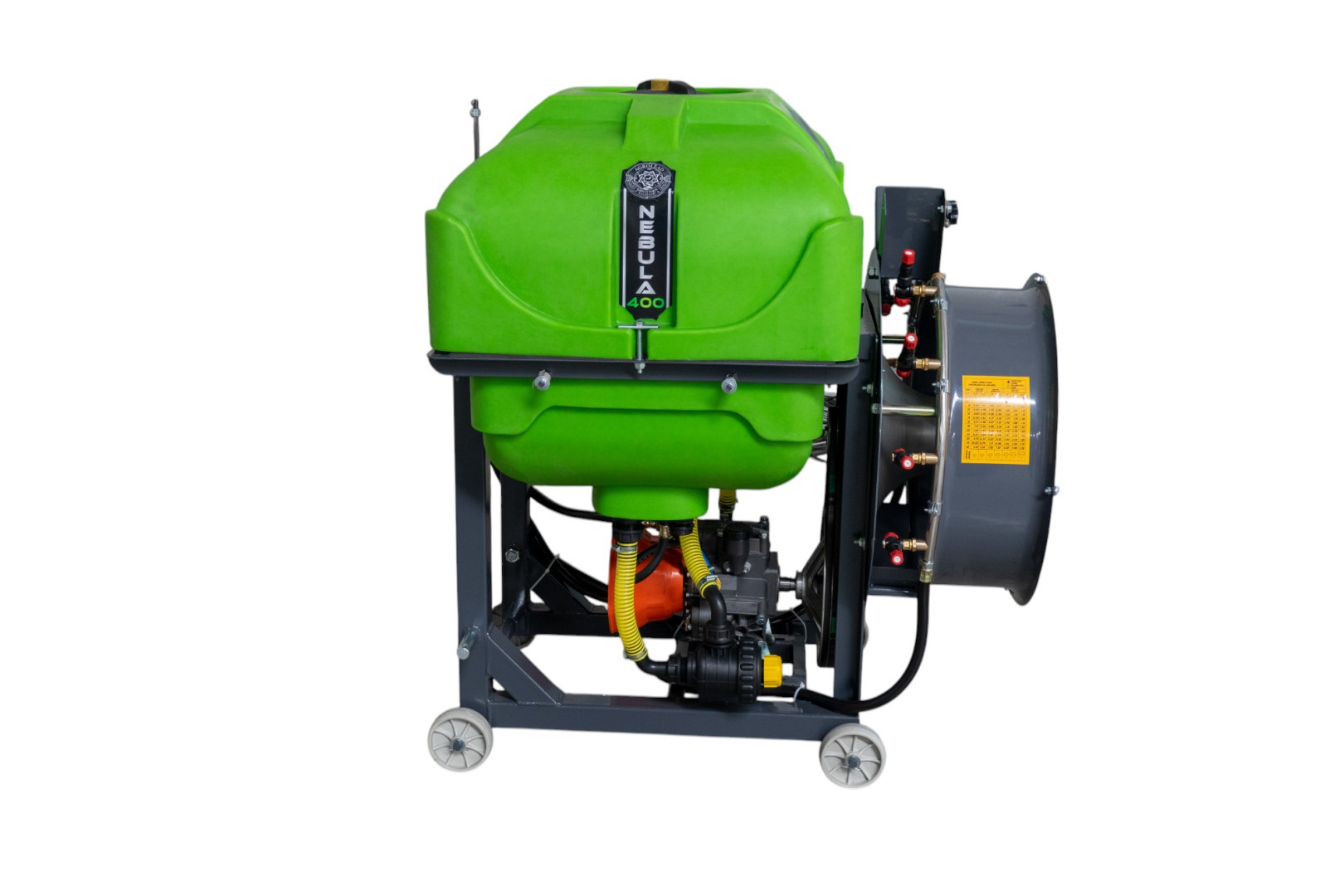

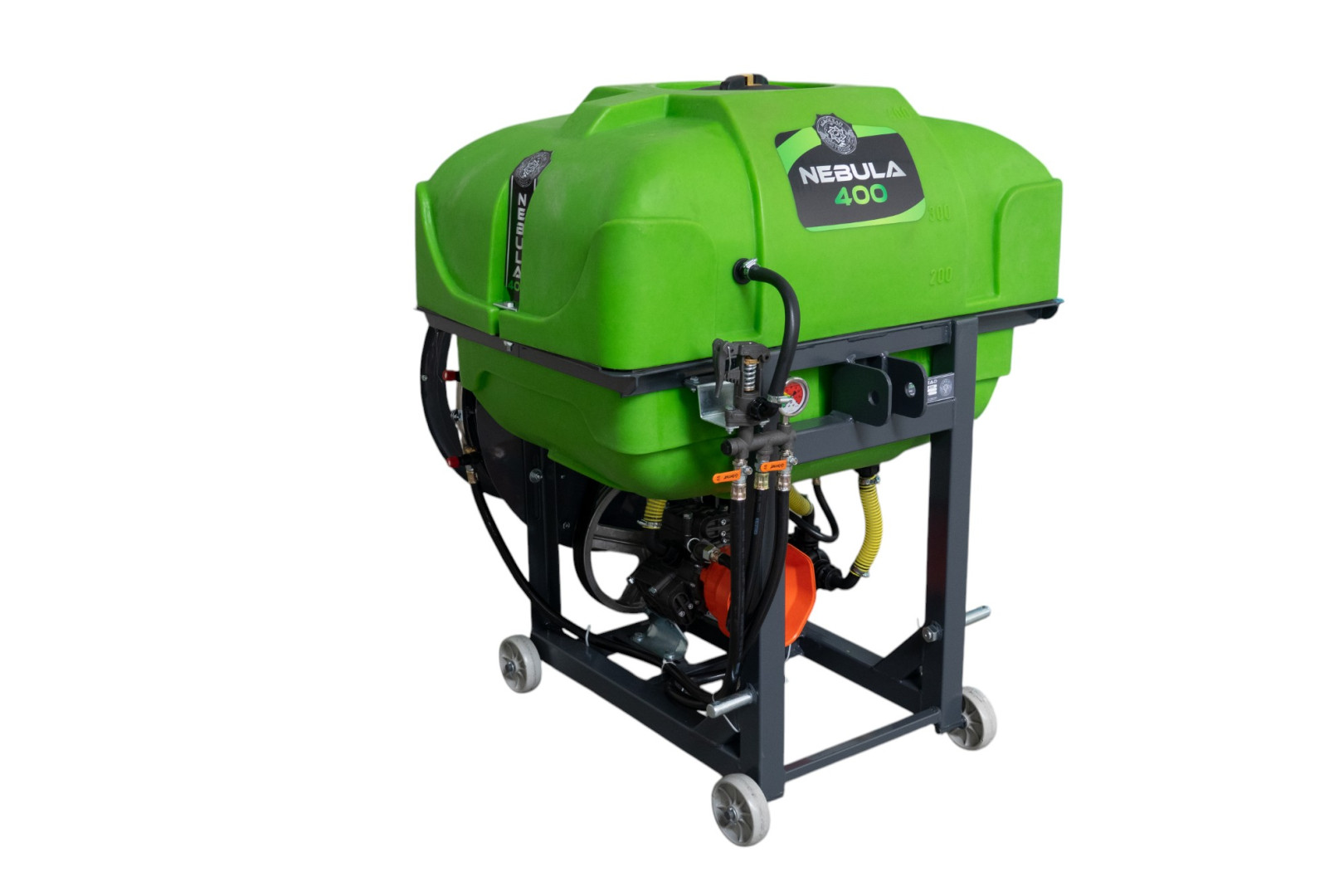

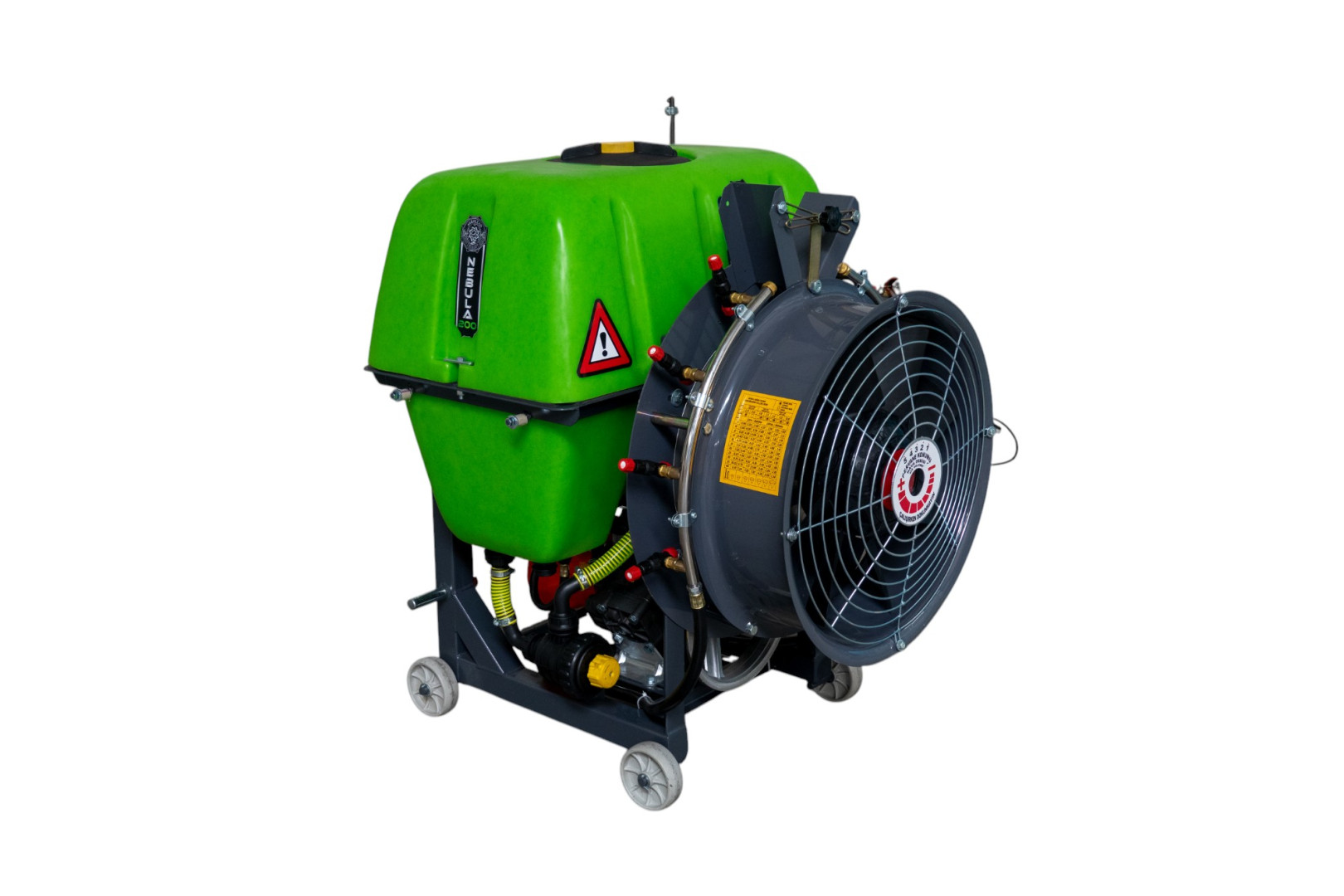

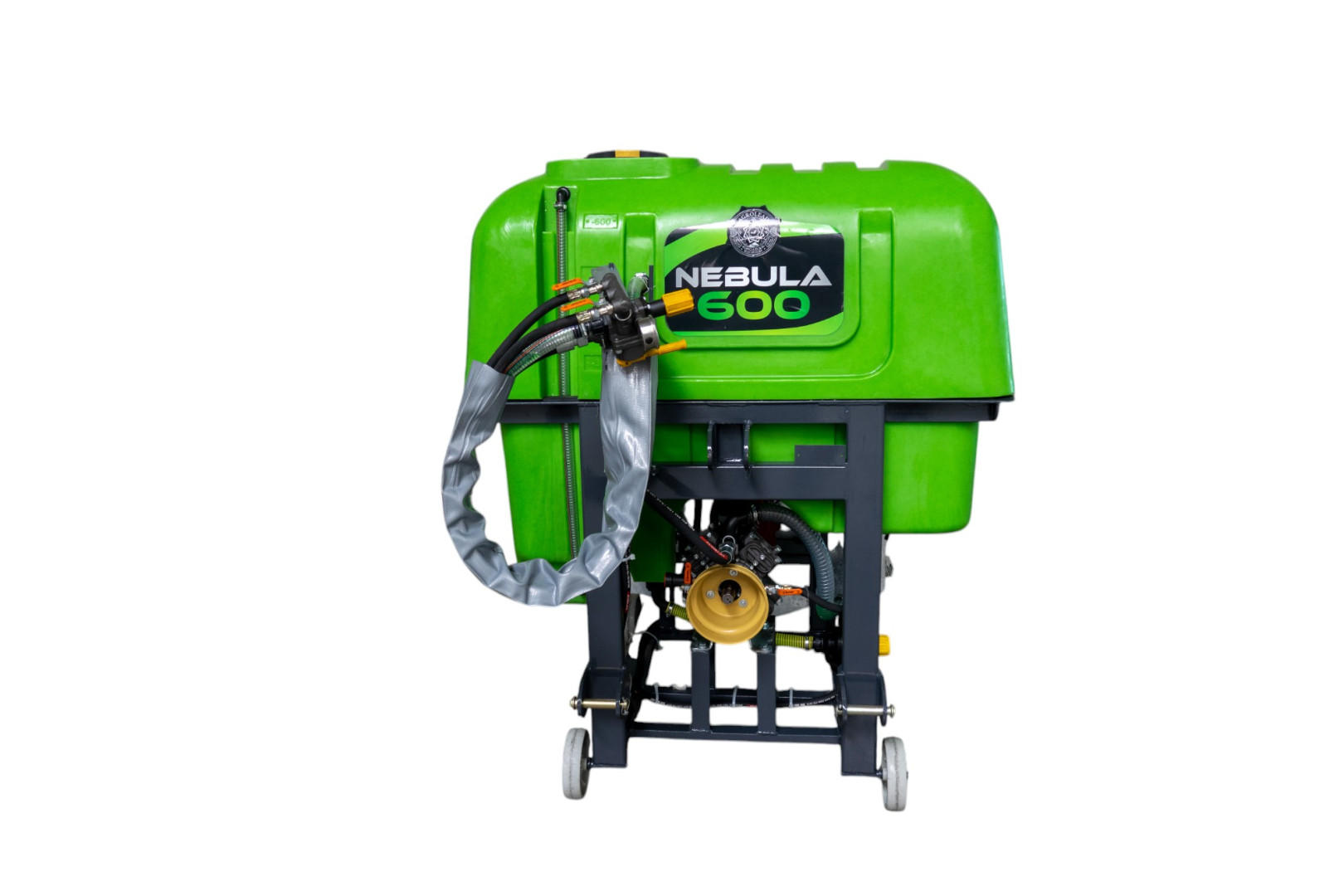

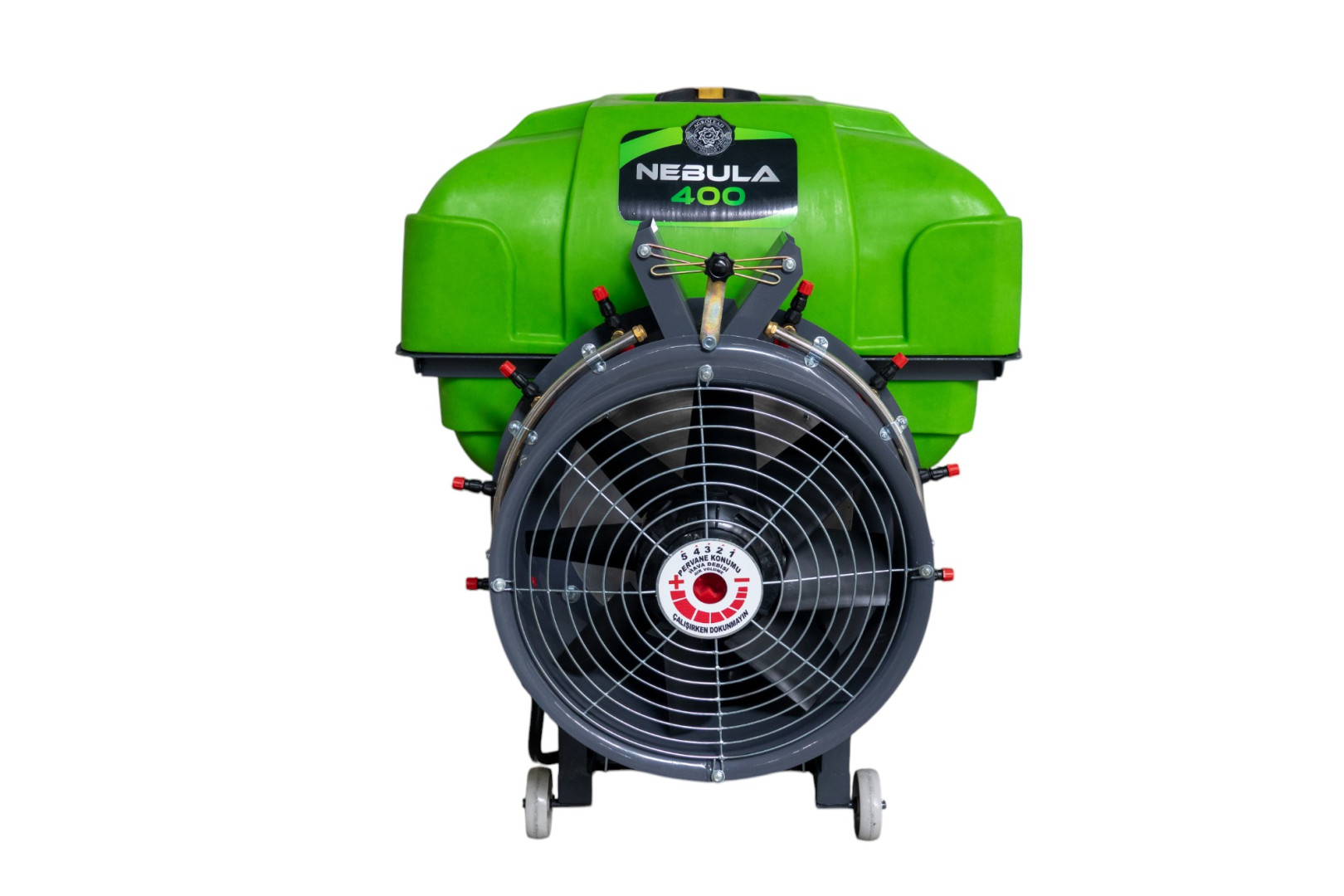

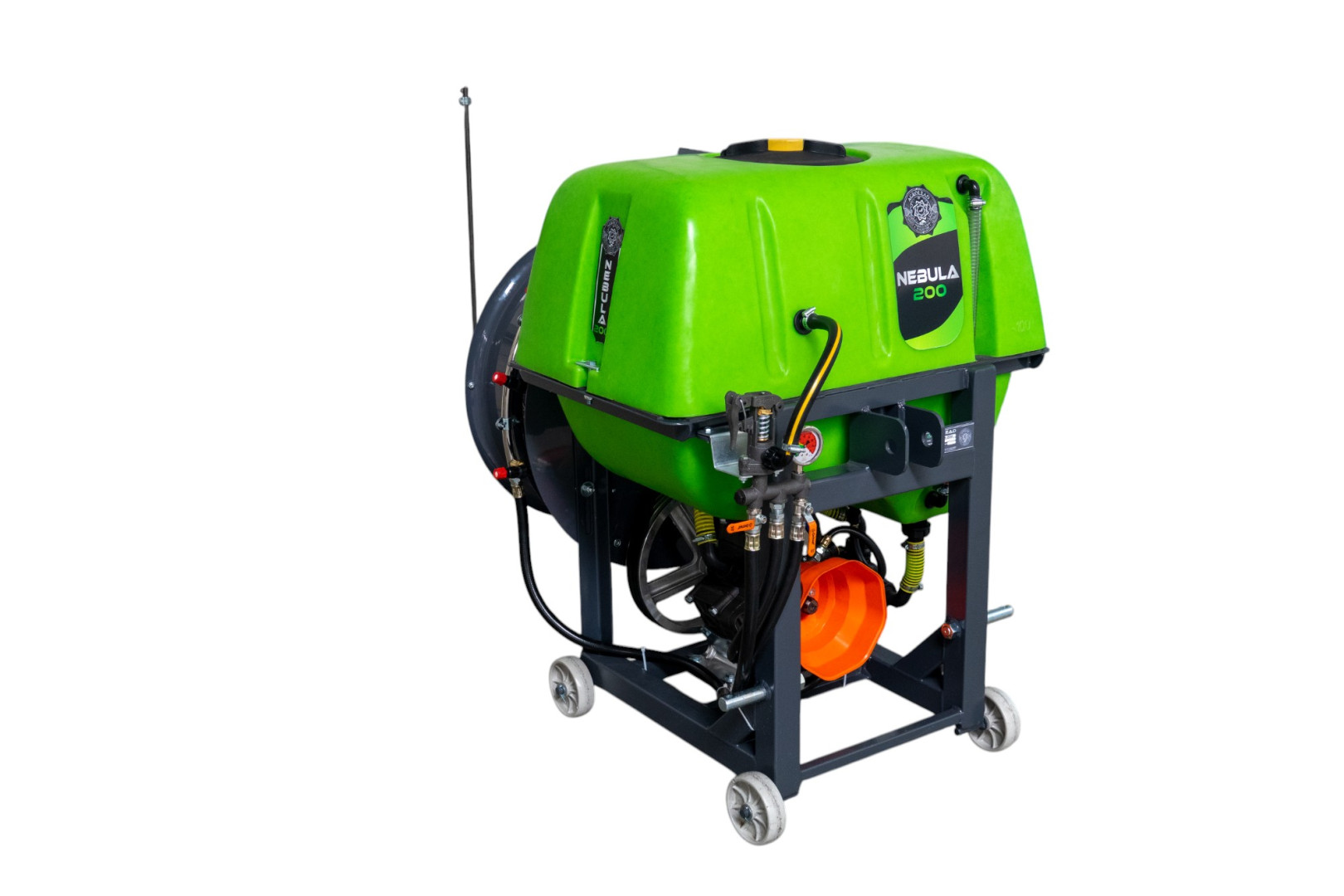

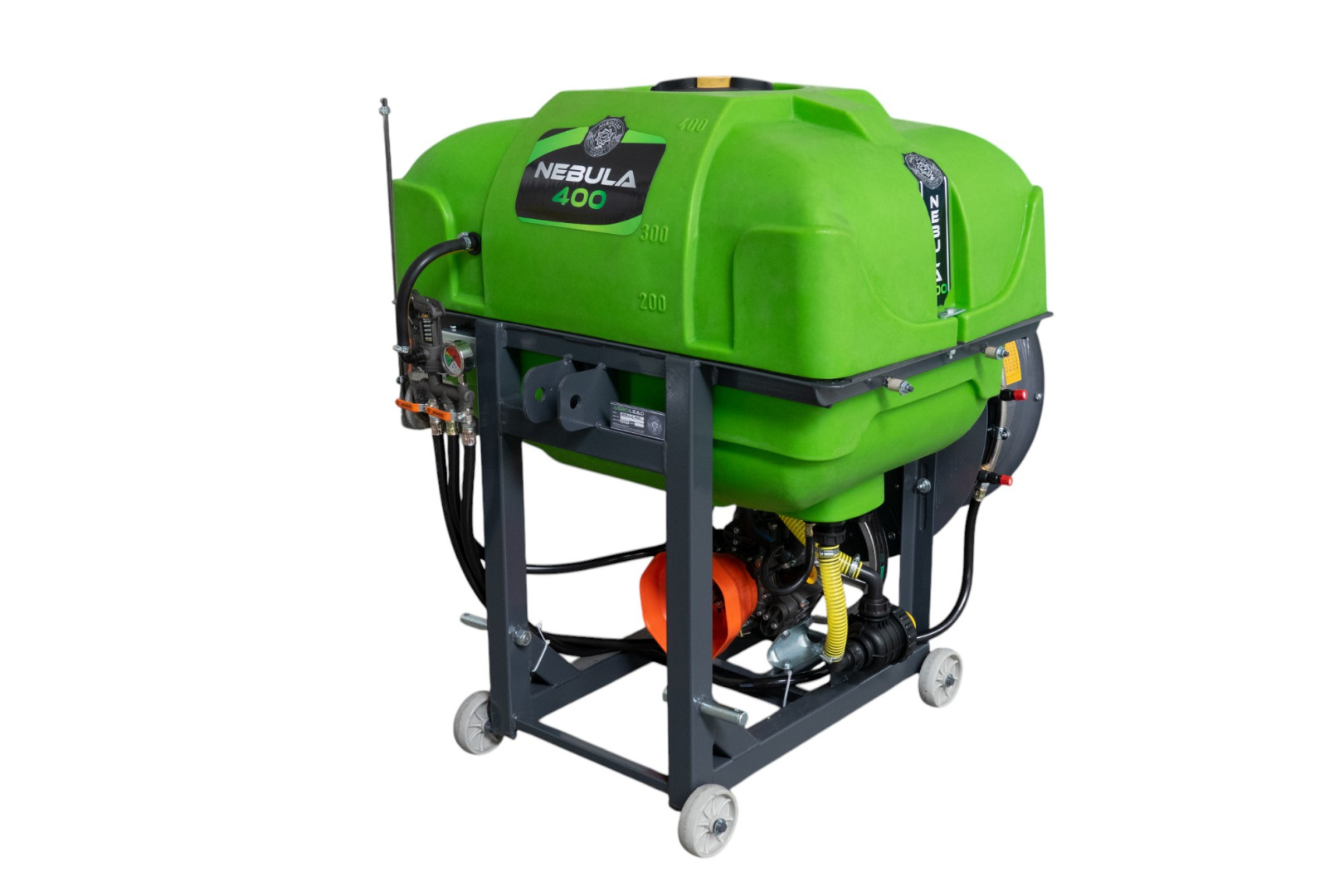

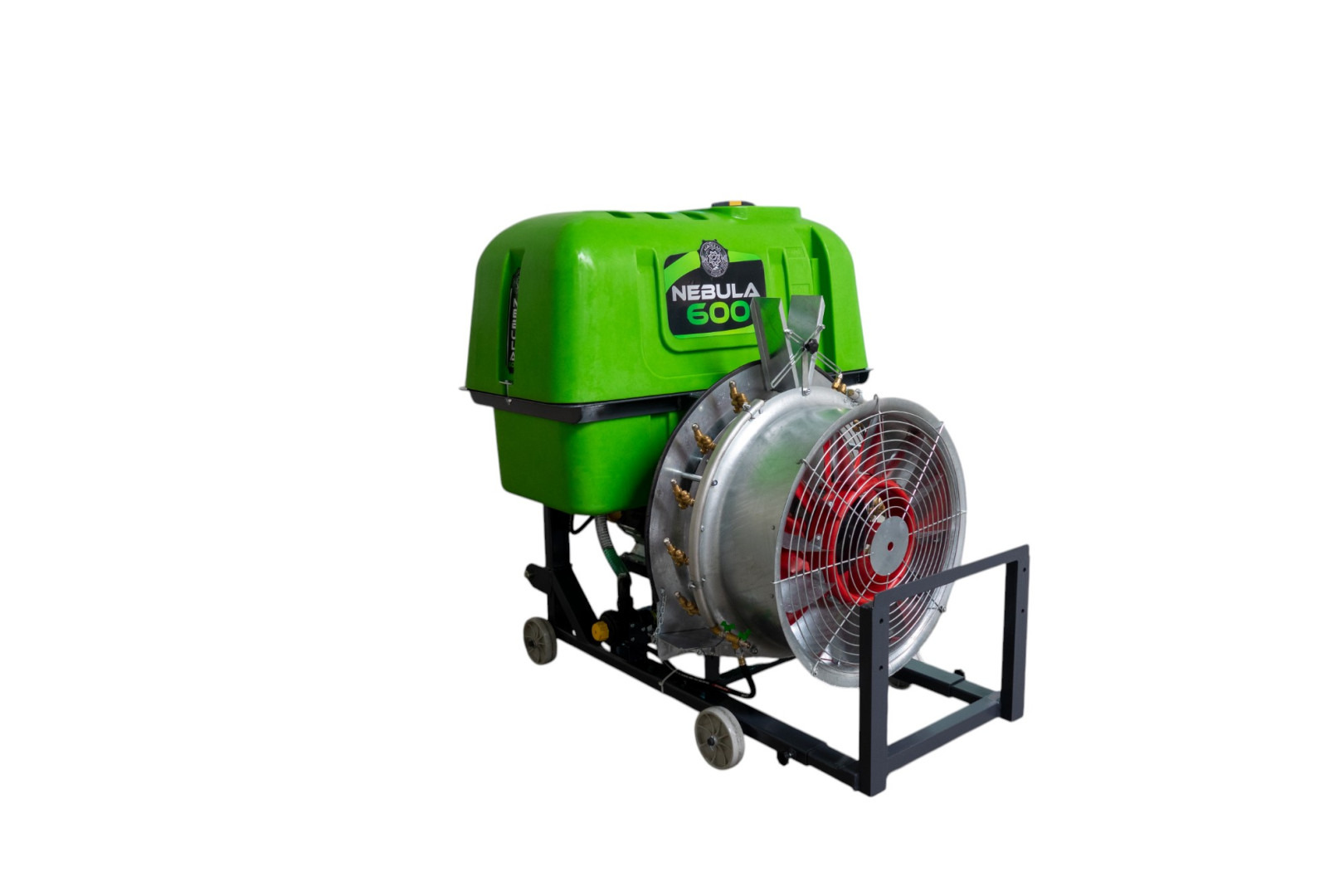

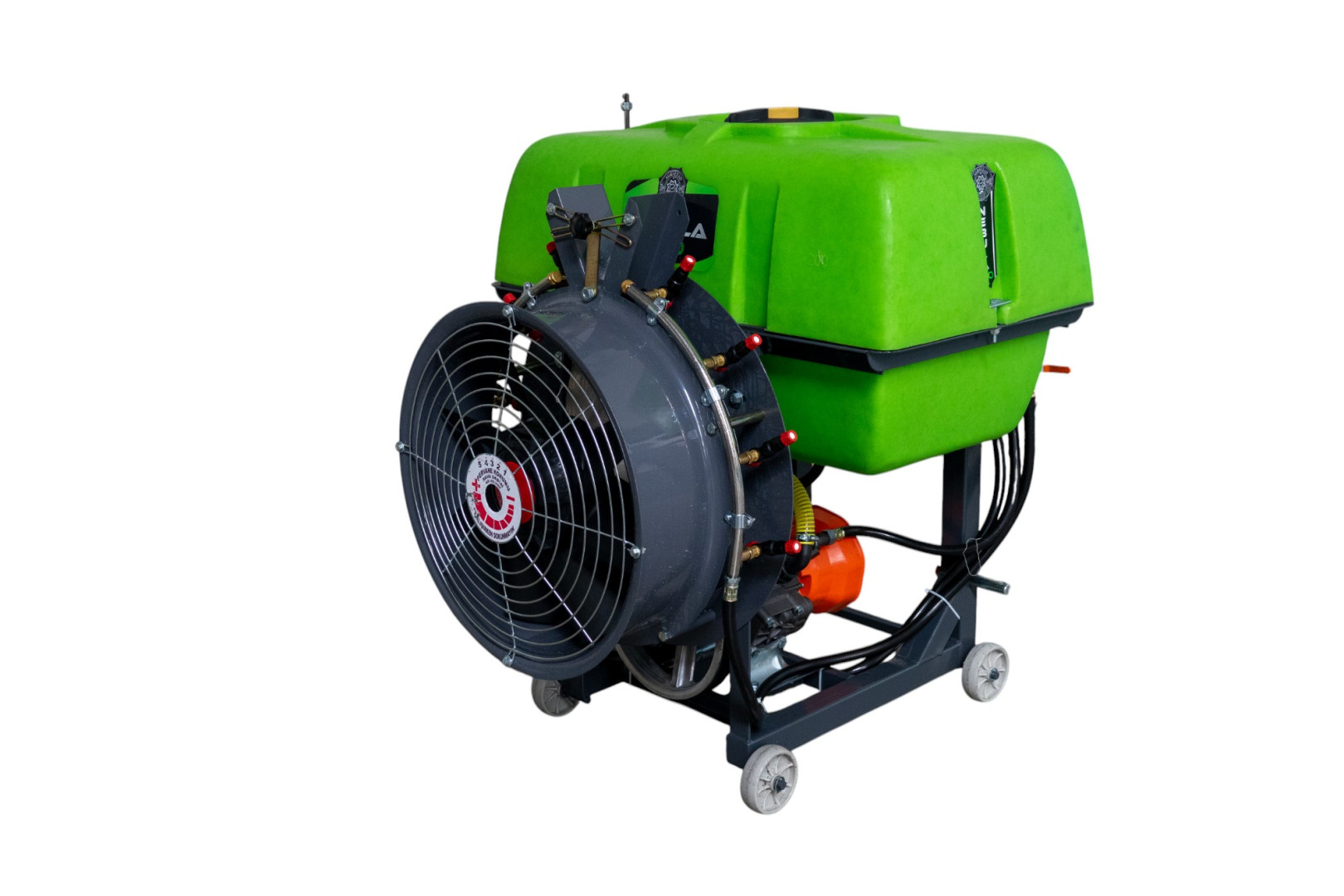

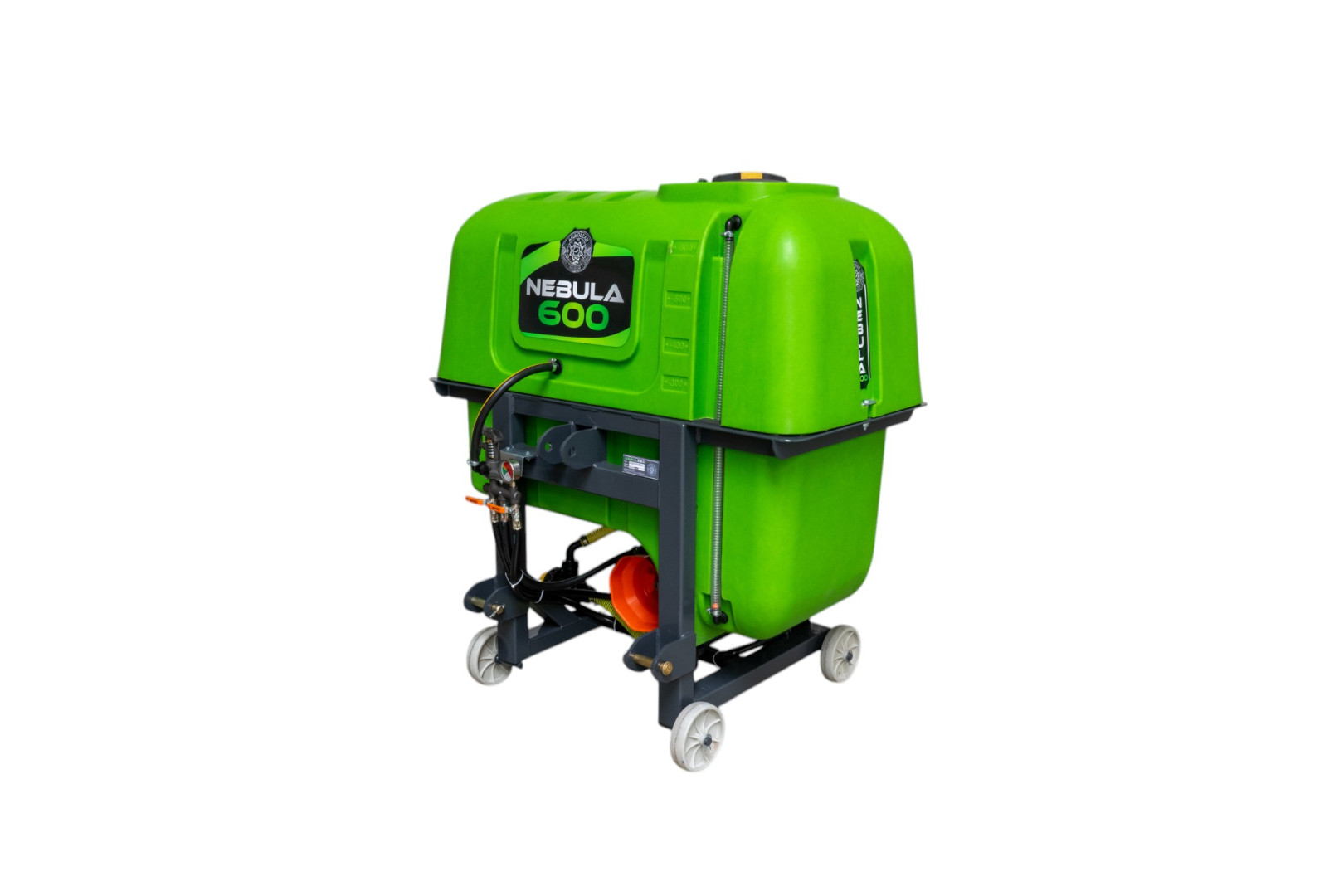

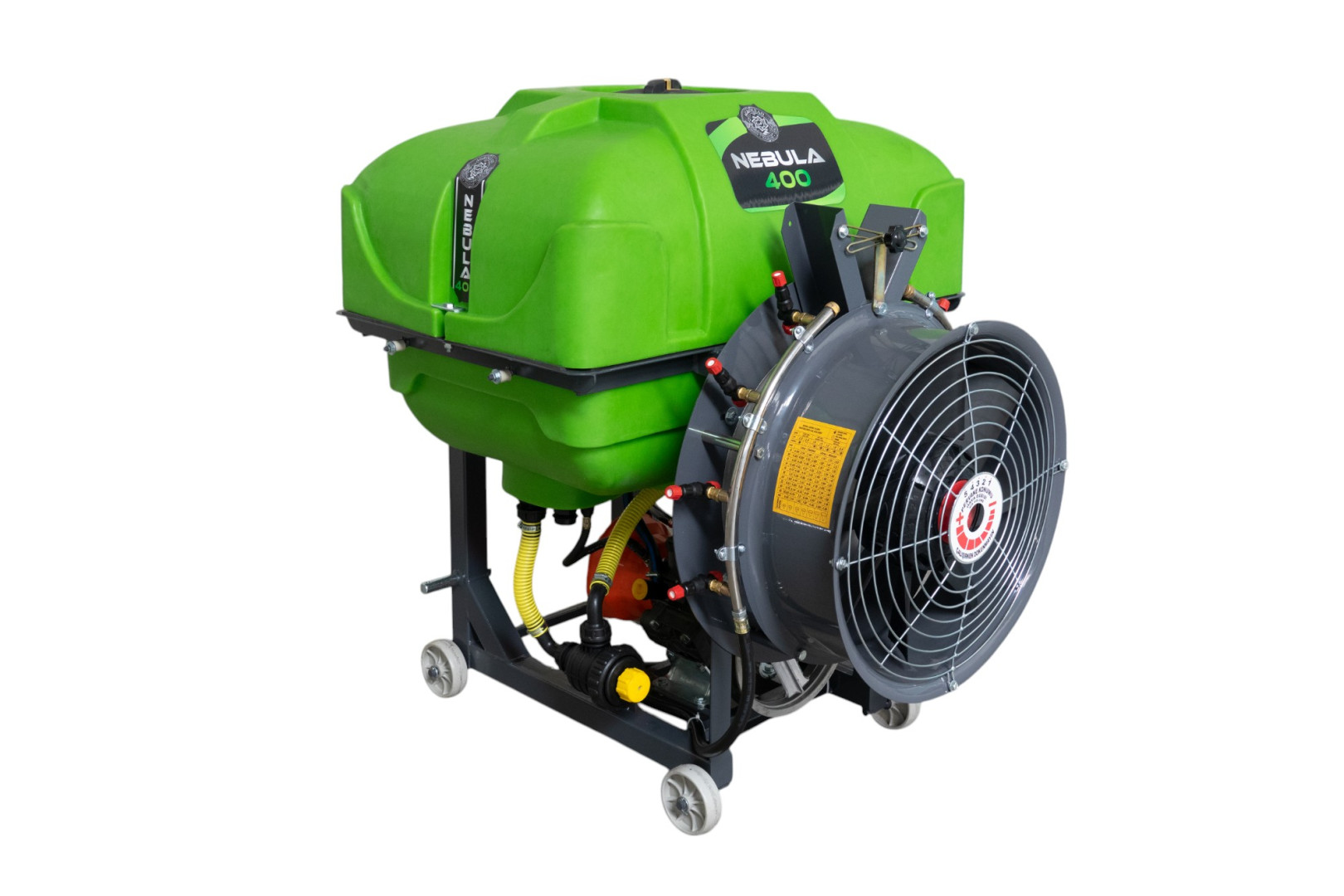

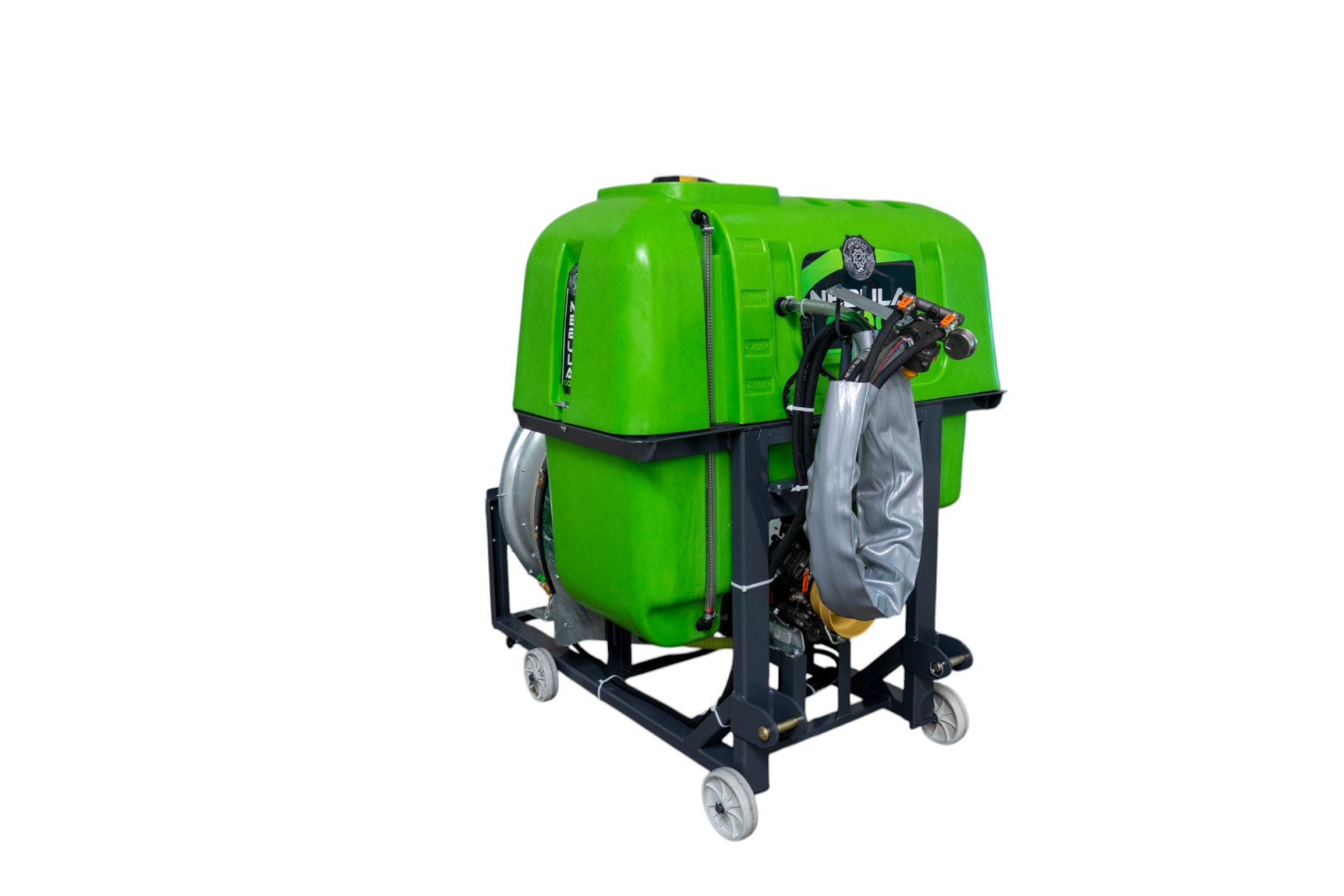

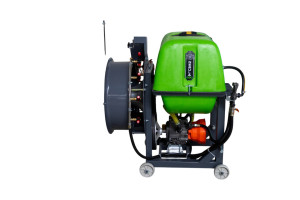

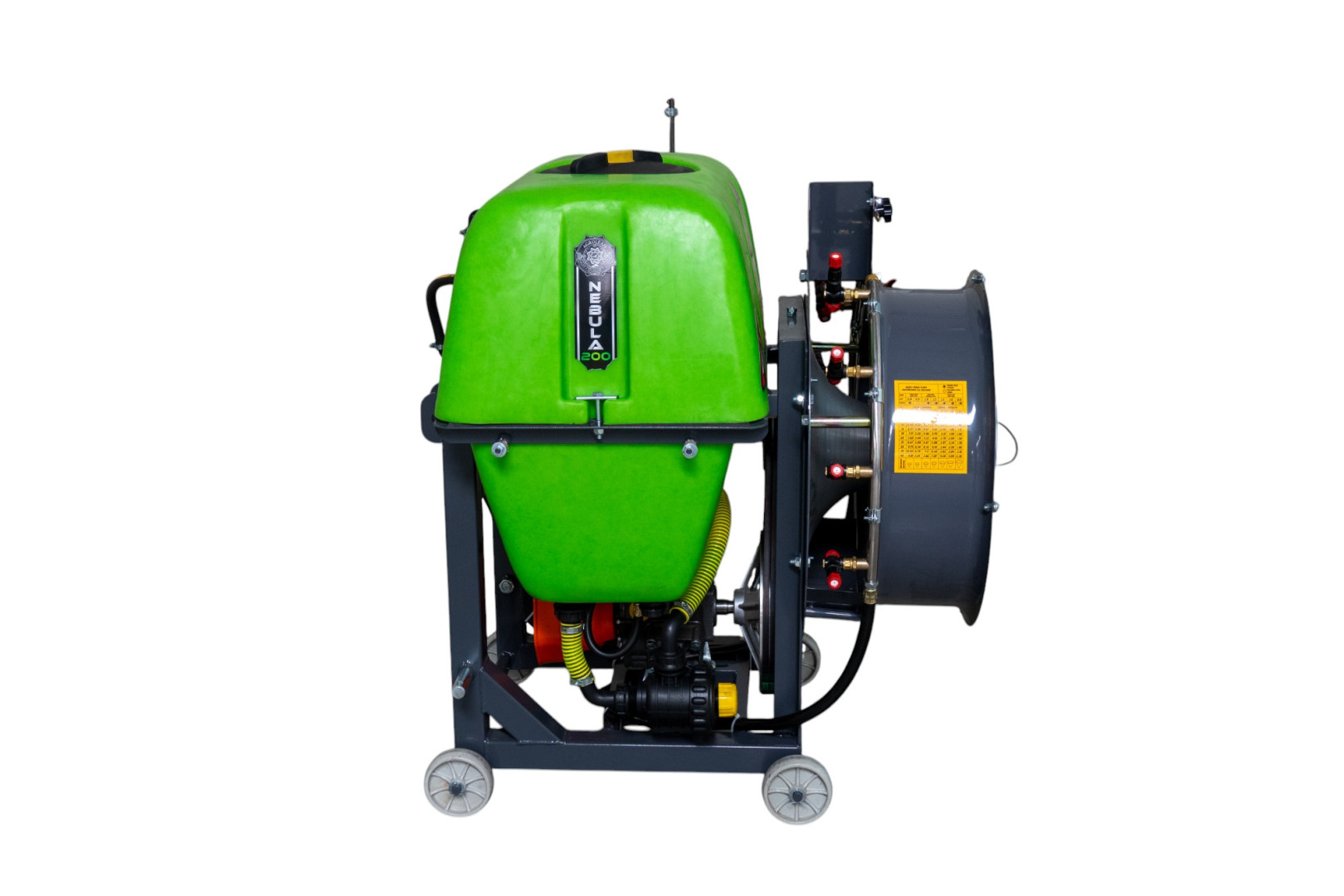

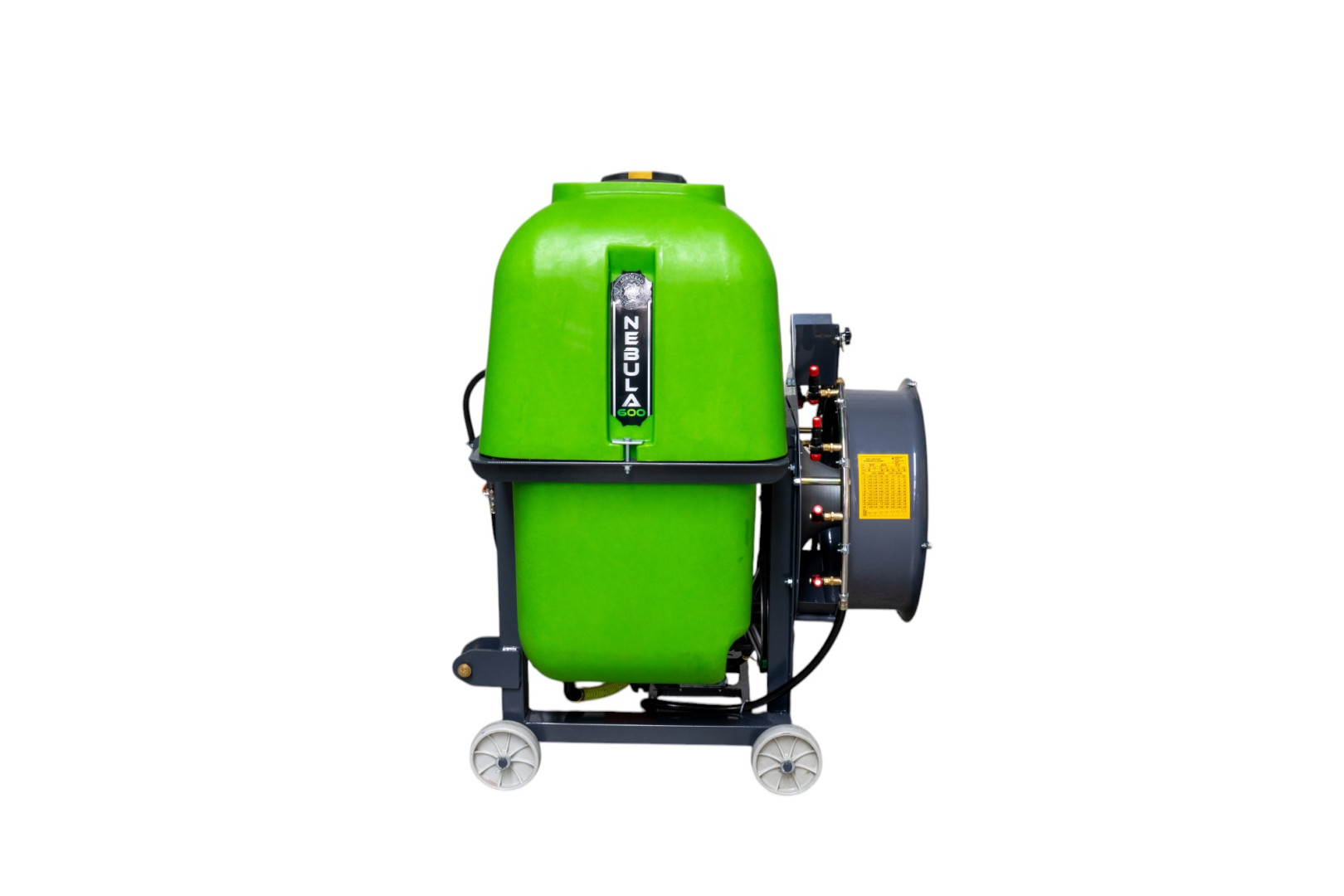

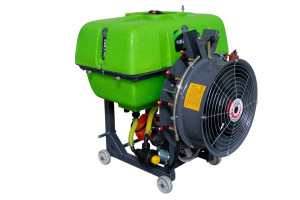

Nebula Turbo Mistblowers

Nebula Turbo Mistblowers

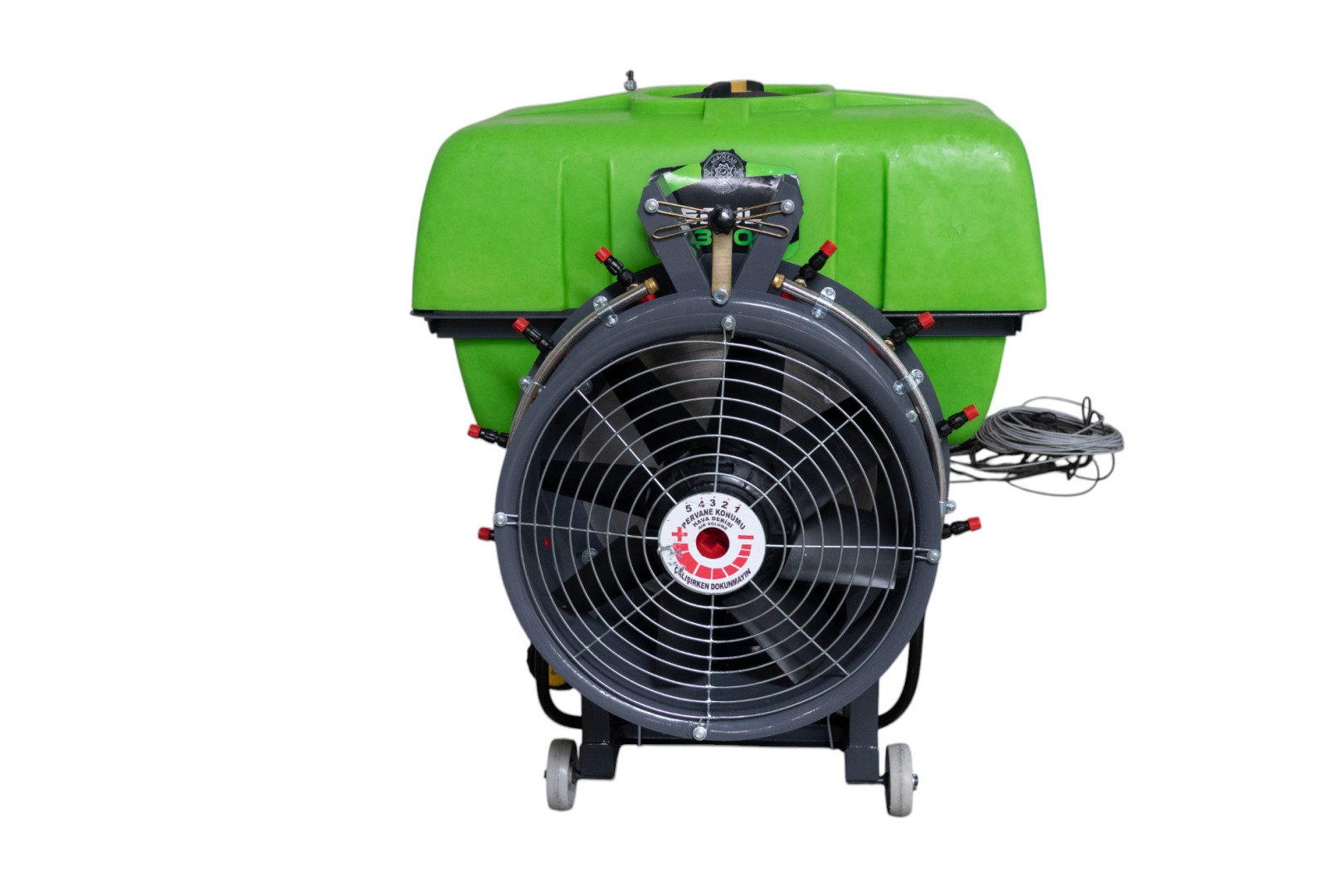

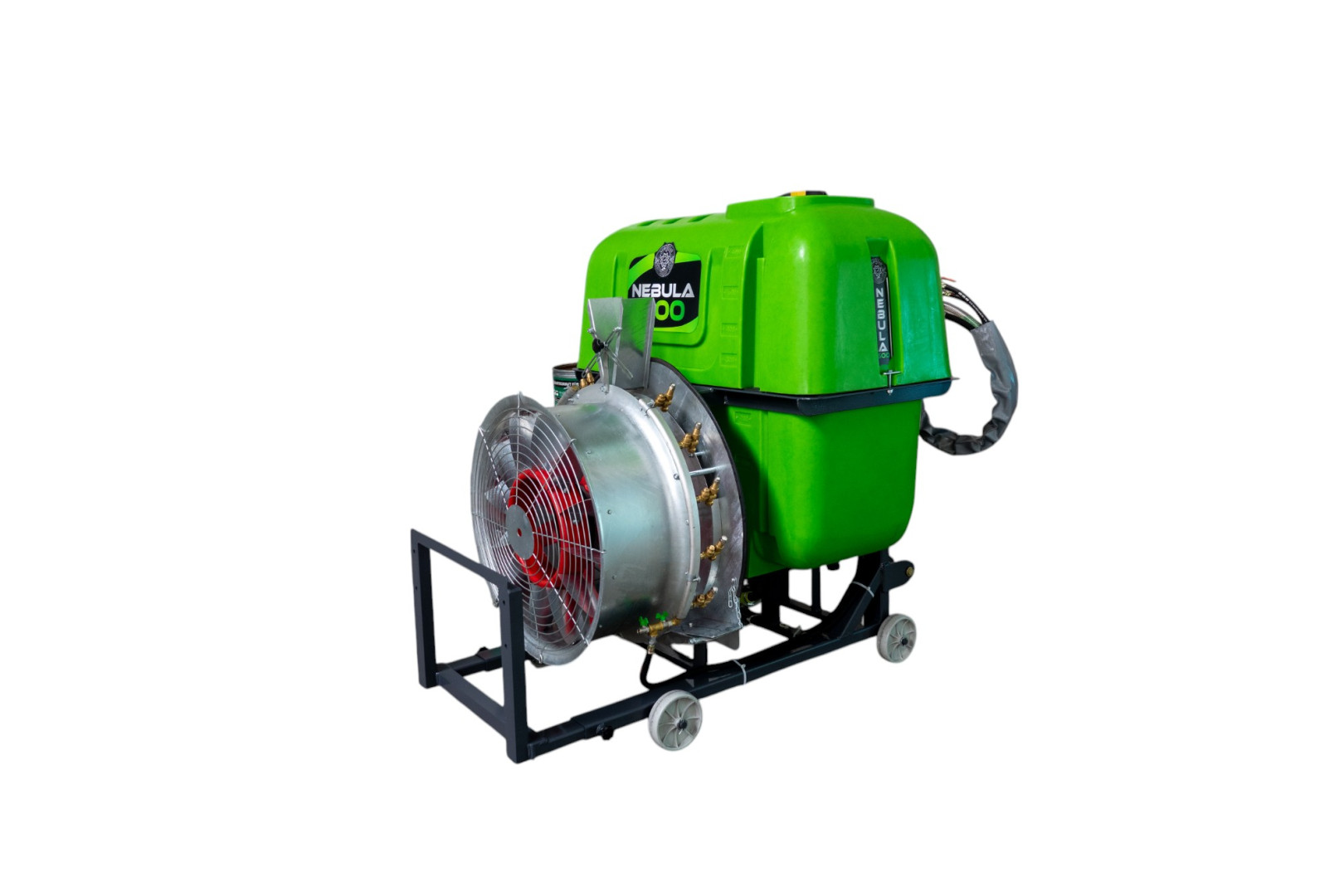

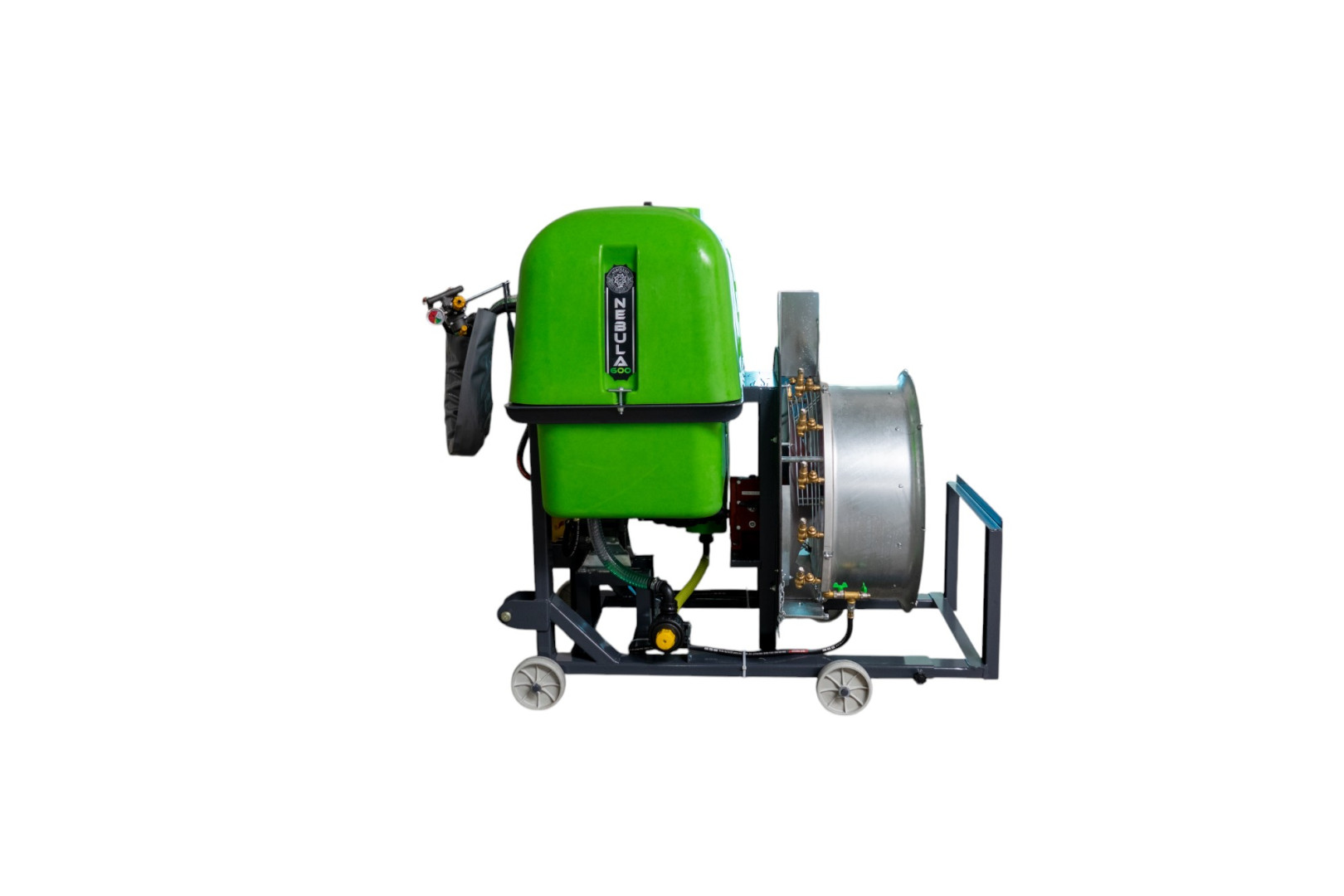

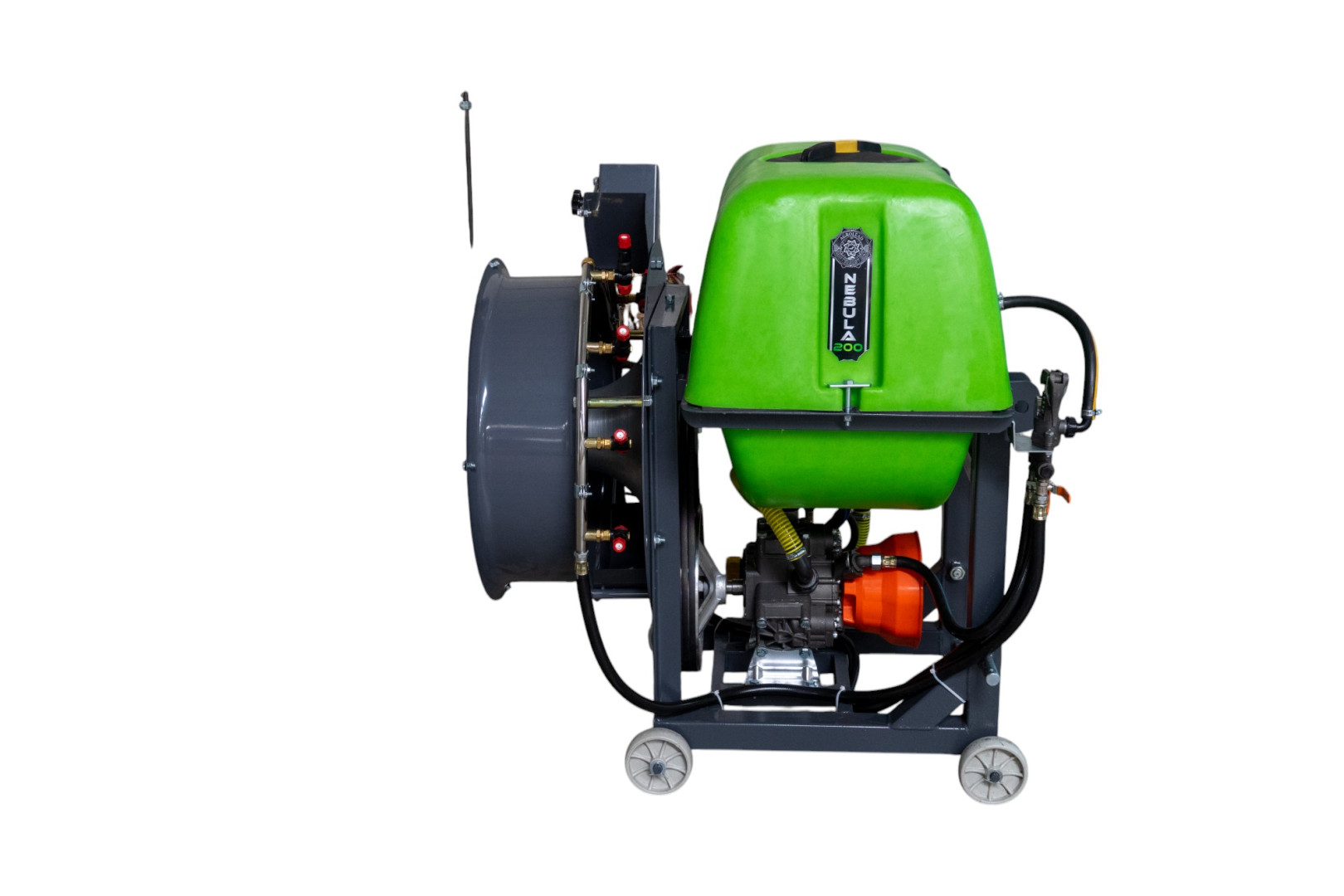

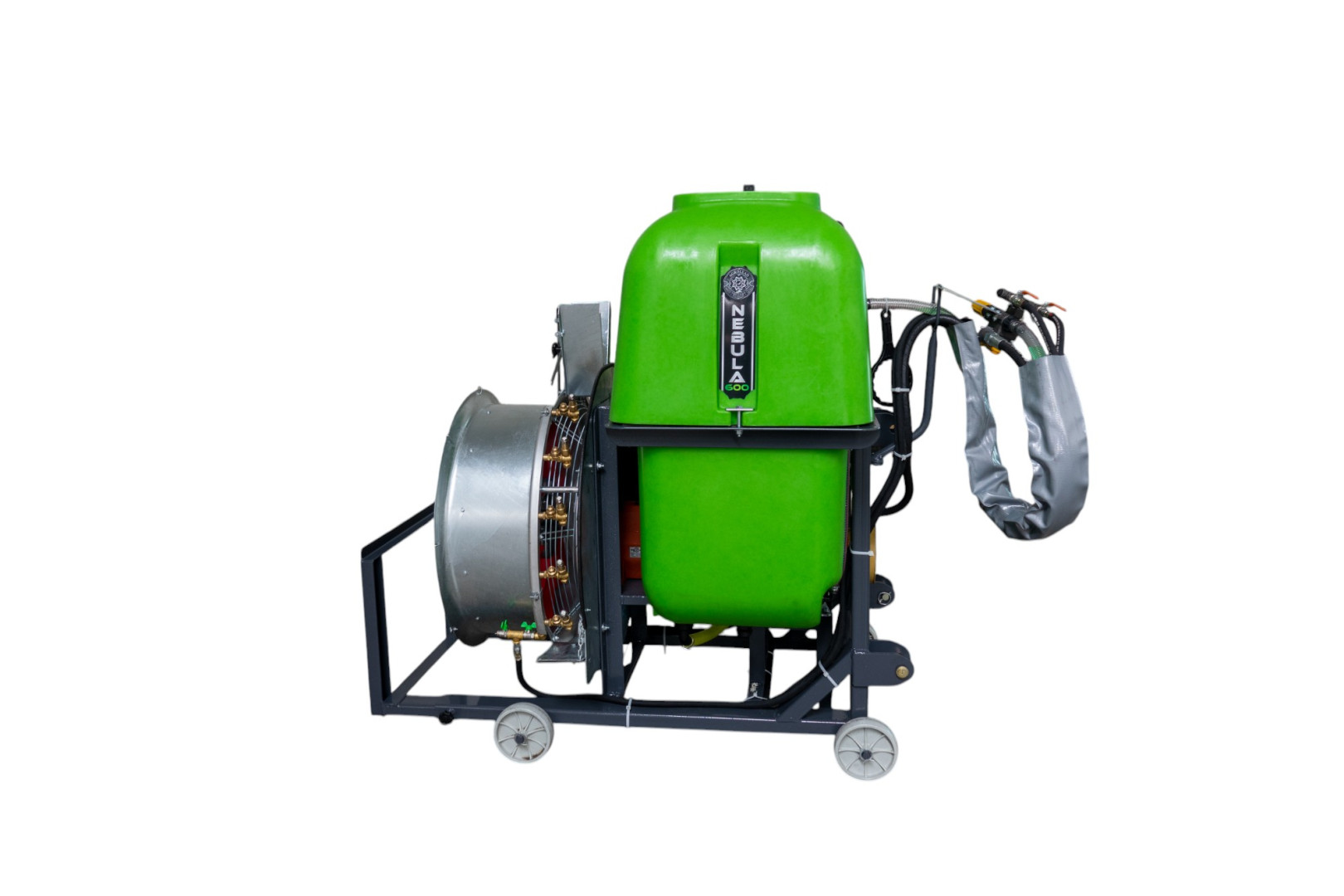

Tractor mounted mist blowers Nebula for professional use were designed with an aim to deliver accurate and efficient spray application and by taking into account the need to reduce adverse environmental impacts. They are designed for fruit producers that require sophisticated machines with particular emphasis on quality and outstanding spraying results.These machines are conceived for treatments with products for the phytosanitary protection in vineyards, orchards, olive groves, greenhouses, and different size fields A robust frame of the mist blower made from high-quality materials ensures a long service life. Its structural design ensures a short barycentre distance between the tractor and mist blower, efficient spray mixing, complete drainage of the tank and easy cleaning process.

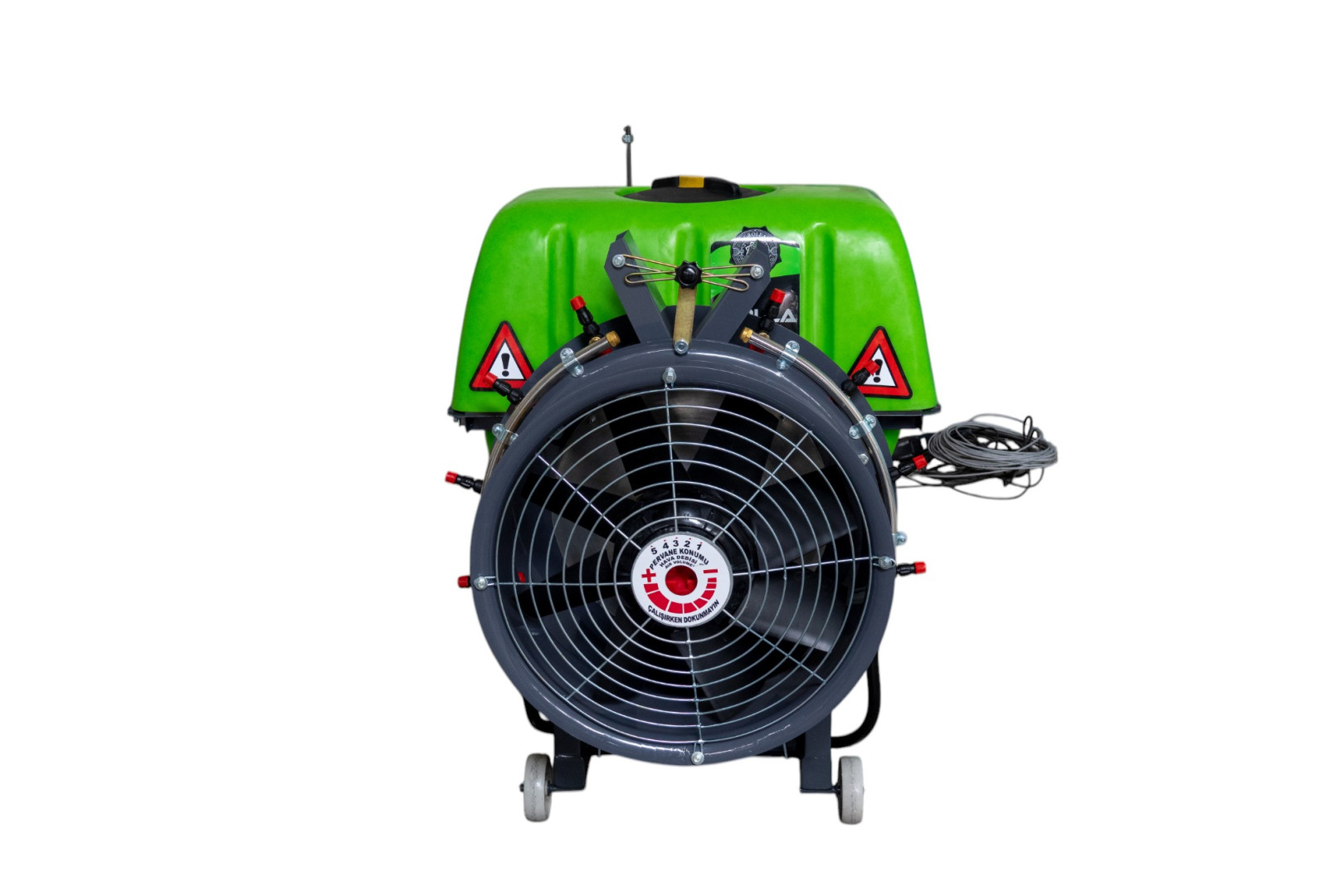

Nebula Mistblowers are operated by power take-off from tractor conveys pressuring chemical liquid to nozzles on fan. Fan is also operated with power take off and it sends pressured air out. Pressured chemical liquid is sprayed by adjustable nozzles around the fan by air circulation and any kind of tree can be disinfected. Fans are operated by V-belt pulley model with one speed or two speed transmissions. Also there is a  Atomization is possible on right or left sides by remote control. Modern sand blasting and  powder coating methods provides an effective protection of the frame of our all kind of sprayers.

TECHNICAL SPECIFICATIONSUNITMODEL
NEBULA 200NEBULA 300NEBULA 400NEBULA 500NEBULA 600NEBULA 800NEBULA 1000
Capacitylt2003004005006008001000
Pumplt80808080105105105
Flow Ratel/min75757575100100100
Pressurebar50505050505050
Pto Rpmrpm540540540540540540540
Fan Diametercm60-7560-7560-7560-7575-8575-8575-85
Fan Flow Ratem³/h54000540005400054000540005400054000
Power Take-offtypeV-Belt Pulley or TransmissionV-Belt Pulley or TransmissionV-Belt Pulley or TransmissionV-Belt Pulley or TransmissionV-Belt Pulley or TransmissionV-Belt Pulley or TransmissionV-Belt Pulley or Transmission
Injectorpcs8888121212
Widthmm900110012001100140015001500
Lengthmm800120012001250140014501450
Heightmm1200125013001500140016001800
Weightkg120140160160180220250
TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt1000
Pumplt105
Flow Ratel/min100
Pressurebar50
Pto Rpmrpm540
Fan Diametercm75-85
Fan Flow Ratem³/h54000
Power Take-offtypeV-Belt Pulley or Transmission
Injectorpcs12
Widthmm1500
Lengthmm1450
Heightmm1800
Weightkg250

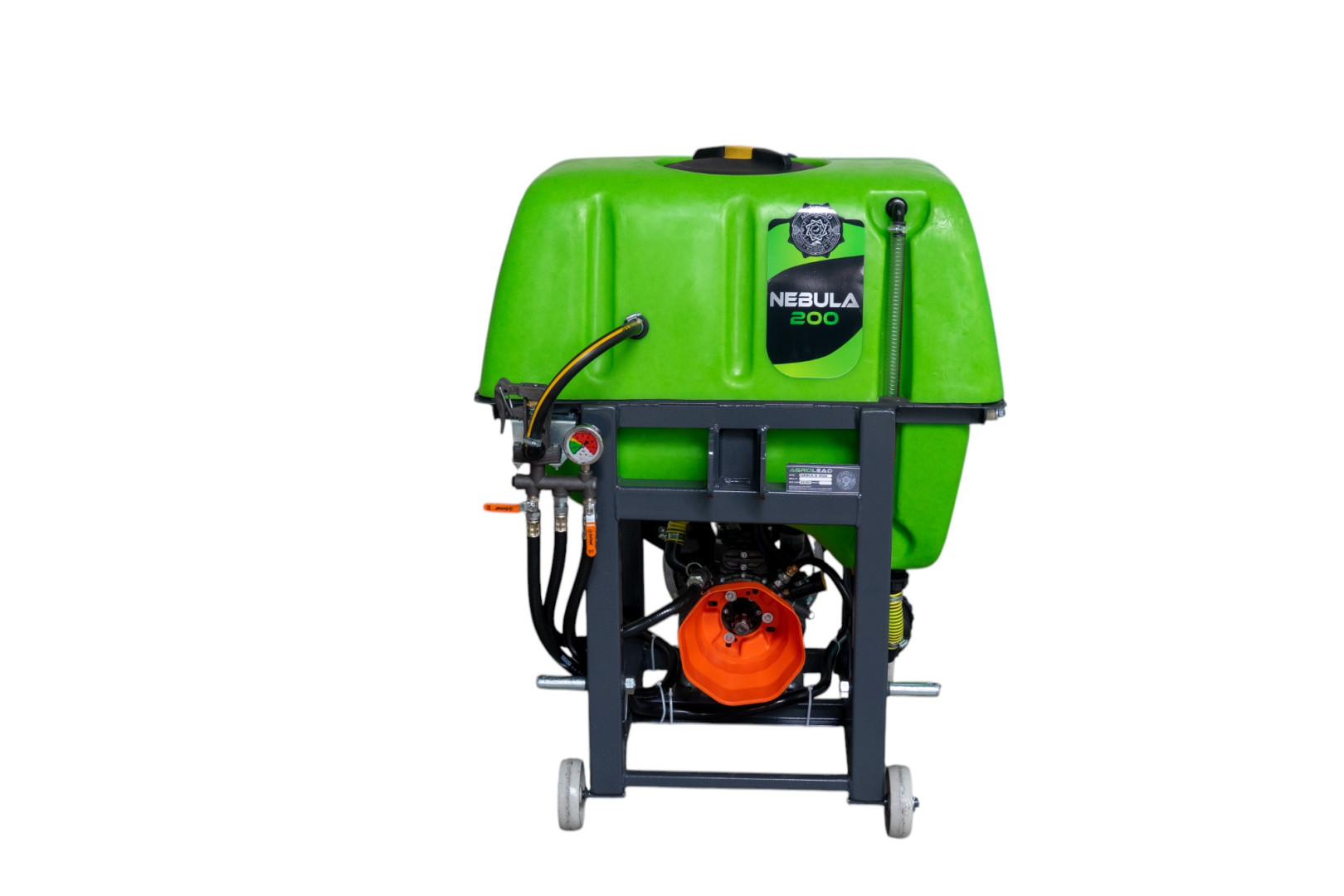

TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt200
Pumplt80
Flow Ratel/min75
Pressurebar50
Pto Rpmrpm540
Fan Diametercm60-75
Fan Flow Ratem³/h54000
Power Take-offtypeV-Belt Pulley or Transmission
Injectorpcs8
Widthmm900
Lengthmm800
Heightmm1200
Weightkg120

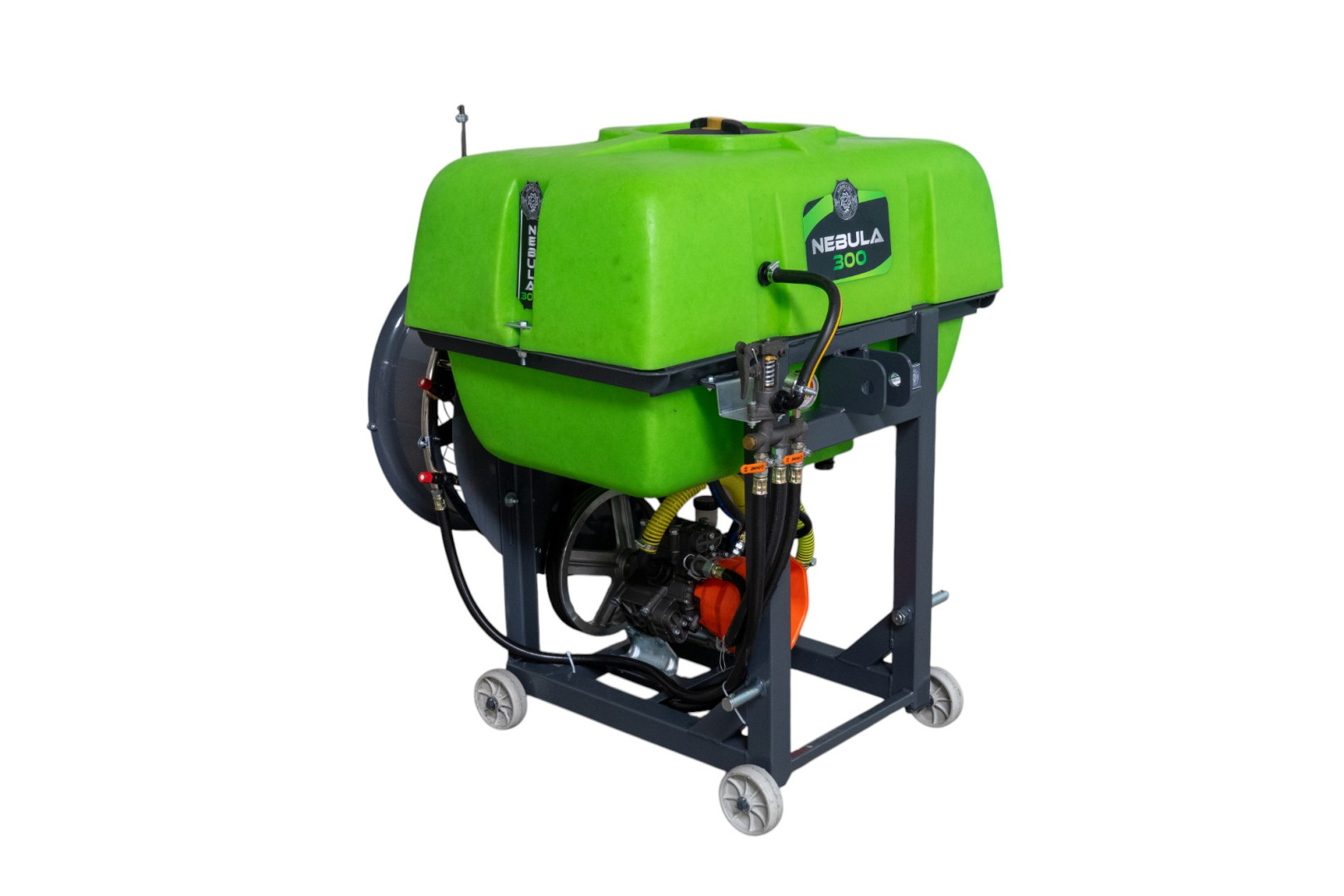

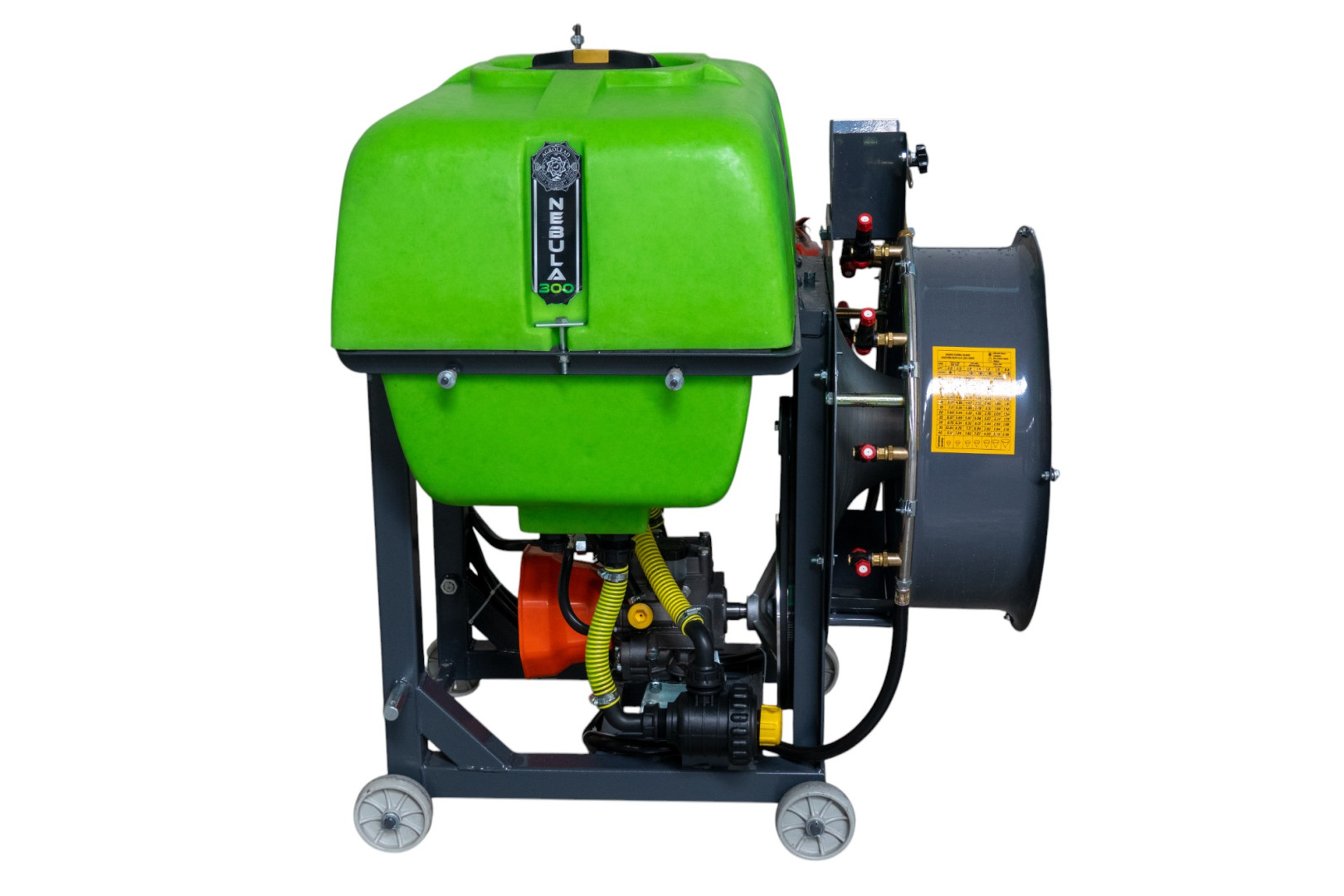

TECHNICAL SPECIFICATIONSUNITMODEL

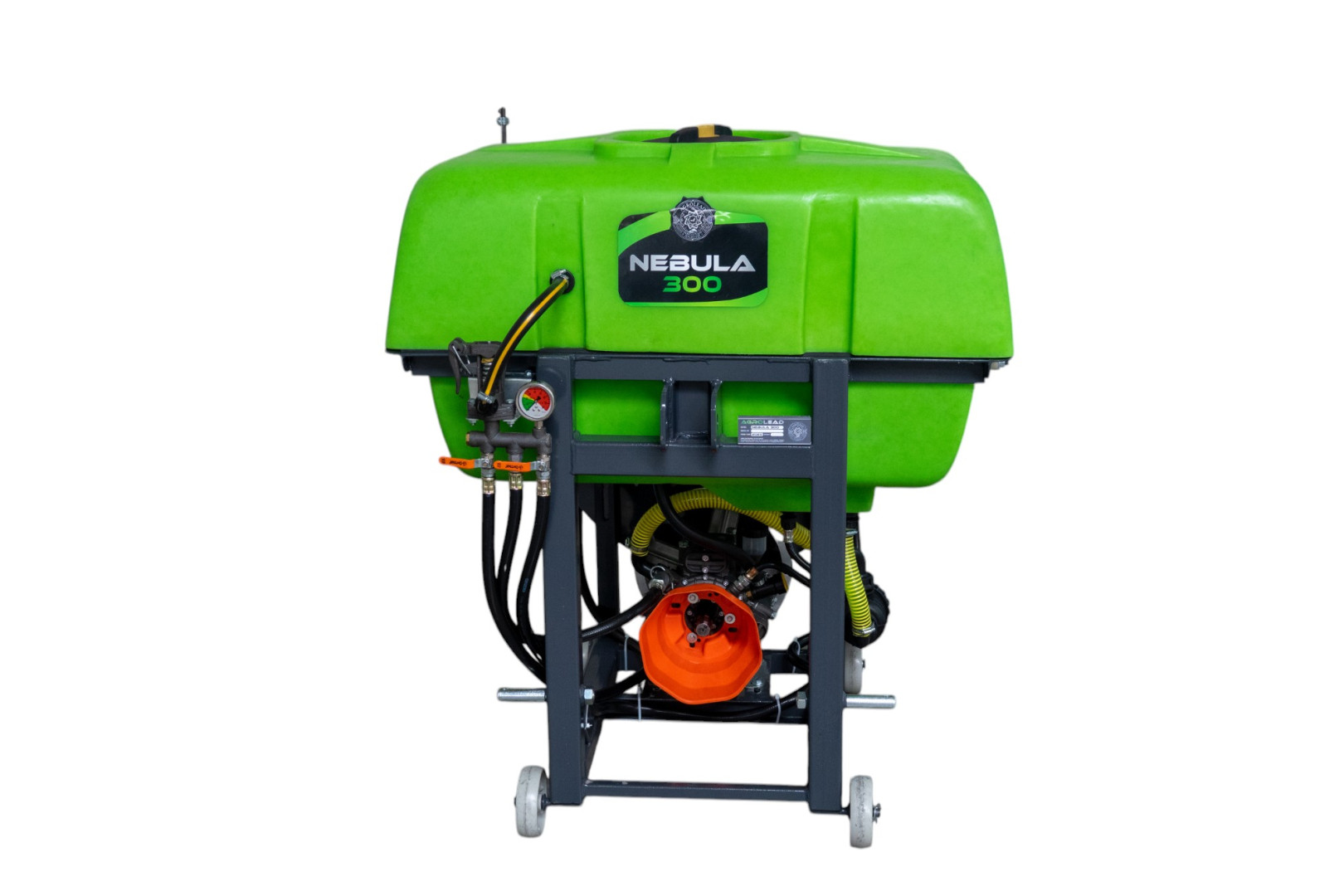

Capacitylt300
Pumplt80
Flow Ratel/min75
Pressurebar50
Pto Rpmrpm540
Fan Diametercm60-75
Fan Flow Ratem³/h54000
Power Take-offtypeV-Belt Pulley or Transmission
Injectorpcs8
Widthmm1100
Lengthmm1200
Heightmm1250
Weightkg140

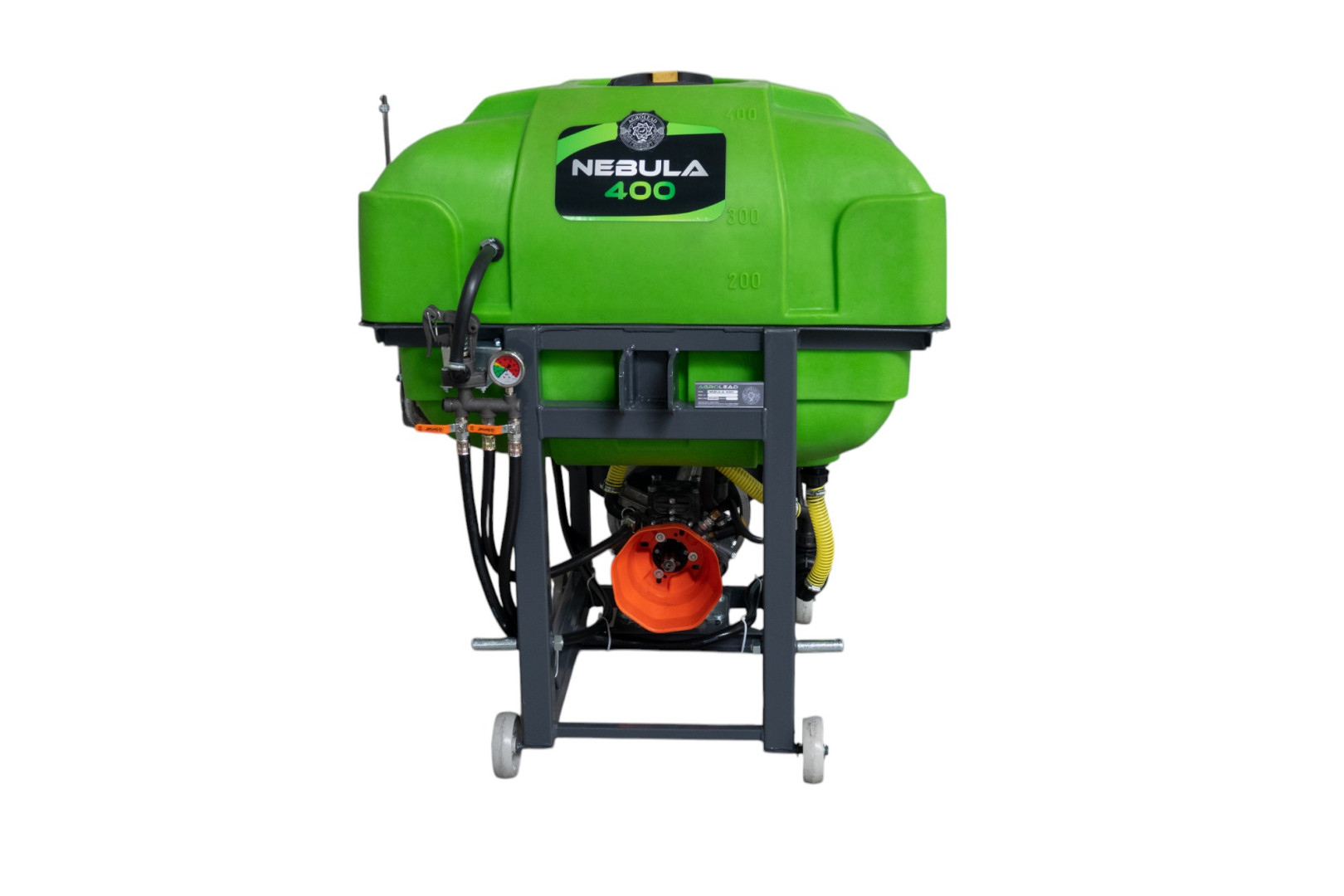

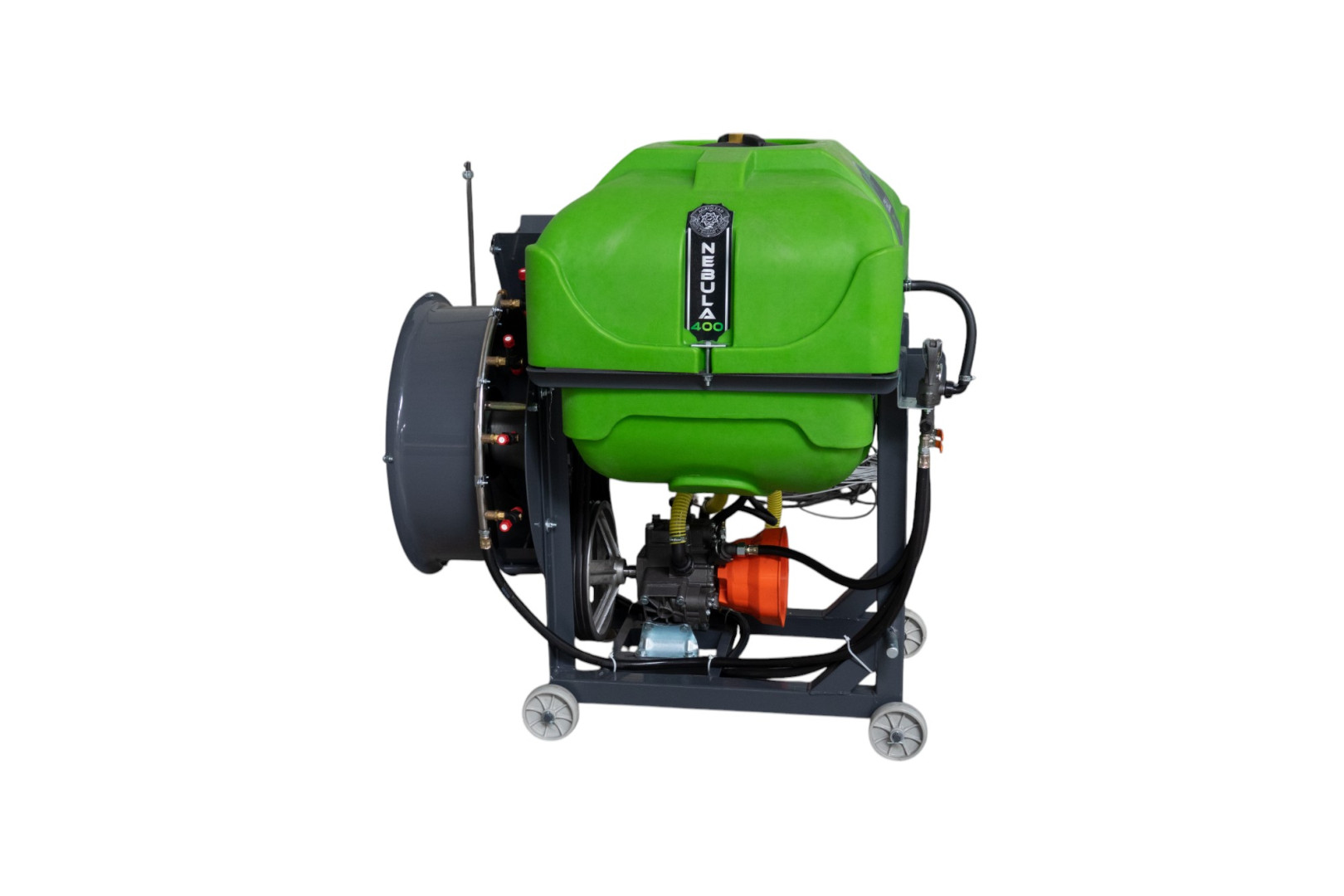

TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt400
Pumplt80
Flow Ratel/min75
Pressurebar50
Pto Rpmrpm540
Fan Diametercm60-75
Fan Flow Ratem³/h54000
Power Take-offtypeV-Belt Pulley or Transmission
Injectorpcs8
Widthmm1200
Lengthmm1200
Heightmm1300
Weightkg160
TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt500
Pumplt80
Flow Ratel/min75
Pressurebar50
Pto Rpmrpm540
Fan Diametercm60-75
Fan Flow Ratem³/h54000
Power Take-offtypeV-Belt Pulley or Transmission
Injectorpcs8
Widthmm1100
Lengthmm1250
Heightmm1500
Weightkg160

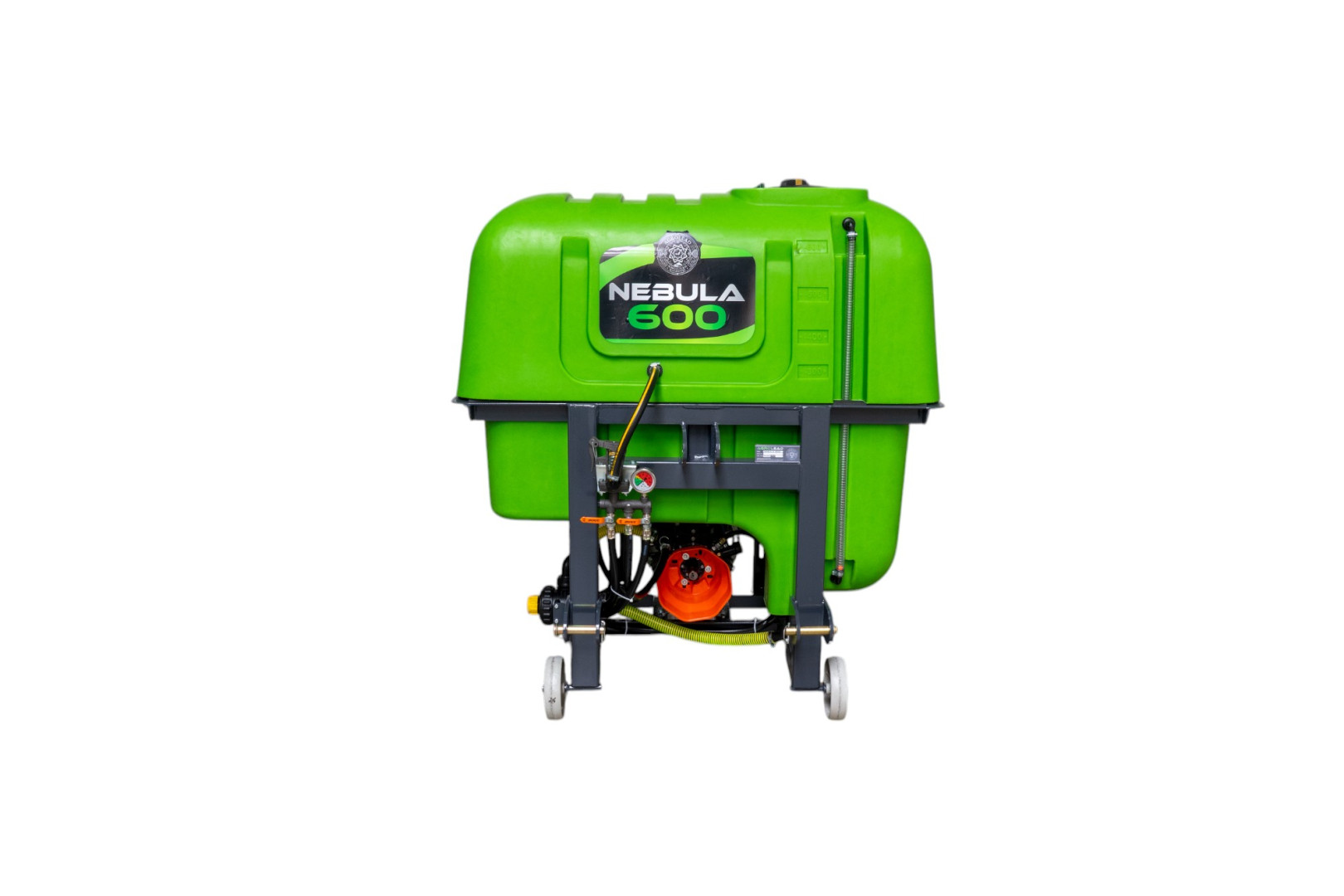

TECHNICAL SPECIFICATIONSUNITMODEL

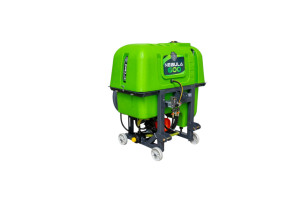

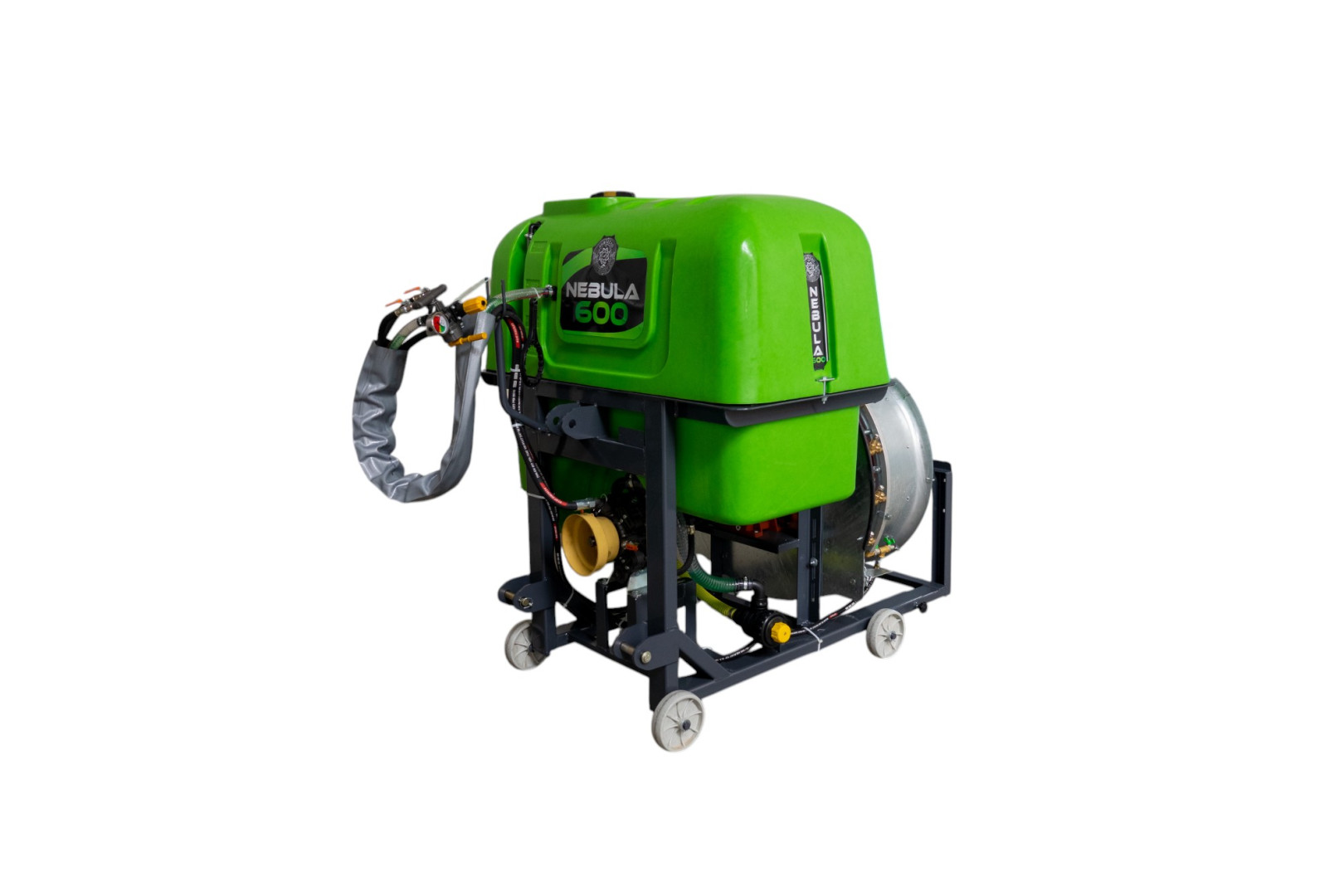

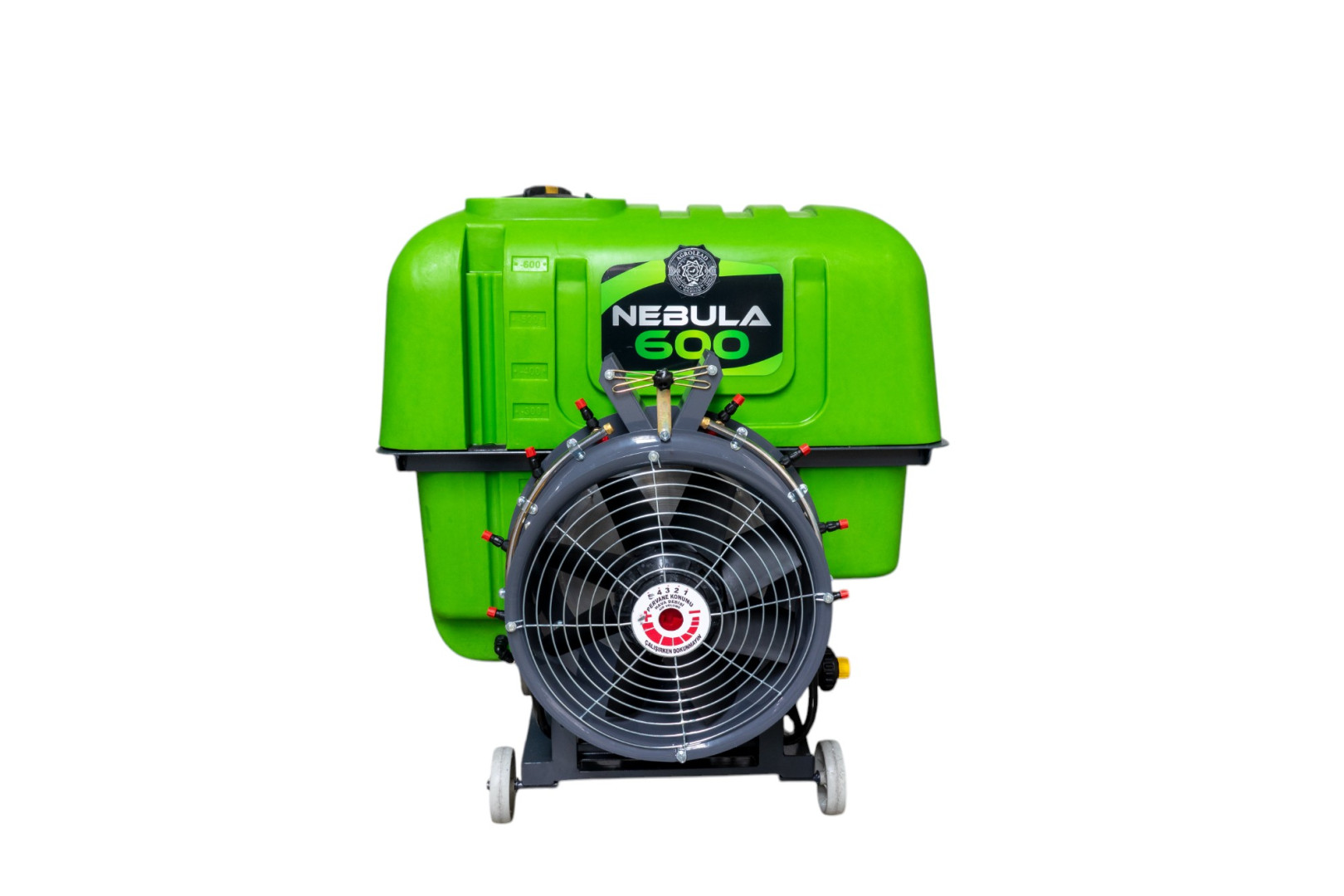

Capacitylt600
Pumplt105
Flow Ratel/min100
Pressurebar50
Pto Rpmrpm540
Fan Diametercm75-85
Fan Flow Ratem³/h54000
Power Take-offtypeV-Belt Pulley or Transmission
Injectorpcs12
Widthmm1400
Lengthmm1400
Heightmm1400
Weightkg180
TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt800
Pumplt105
Flow Ratel/min100
Pressurebar50
Pto Rpmrpm540
Fan Diametercm75-85
Fan Flow Ratem³/h54000
Power Take-offtypeV-Belt Pulley or Transmission
Injectorpcs12
Widthmm1500
Lengthmm1450
Heightmm1600
Weightkg220
