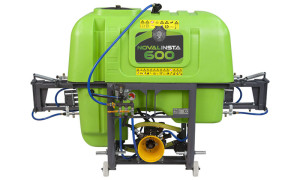

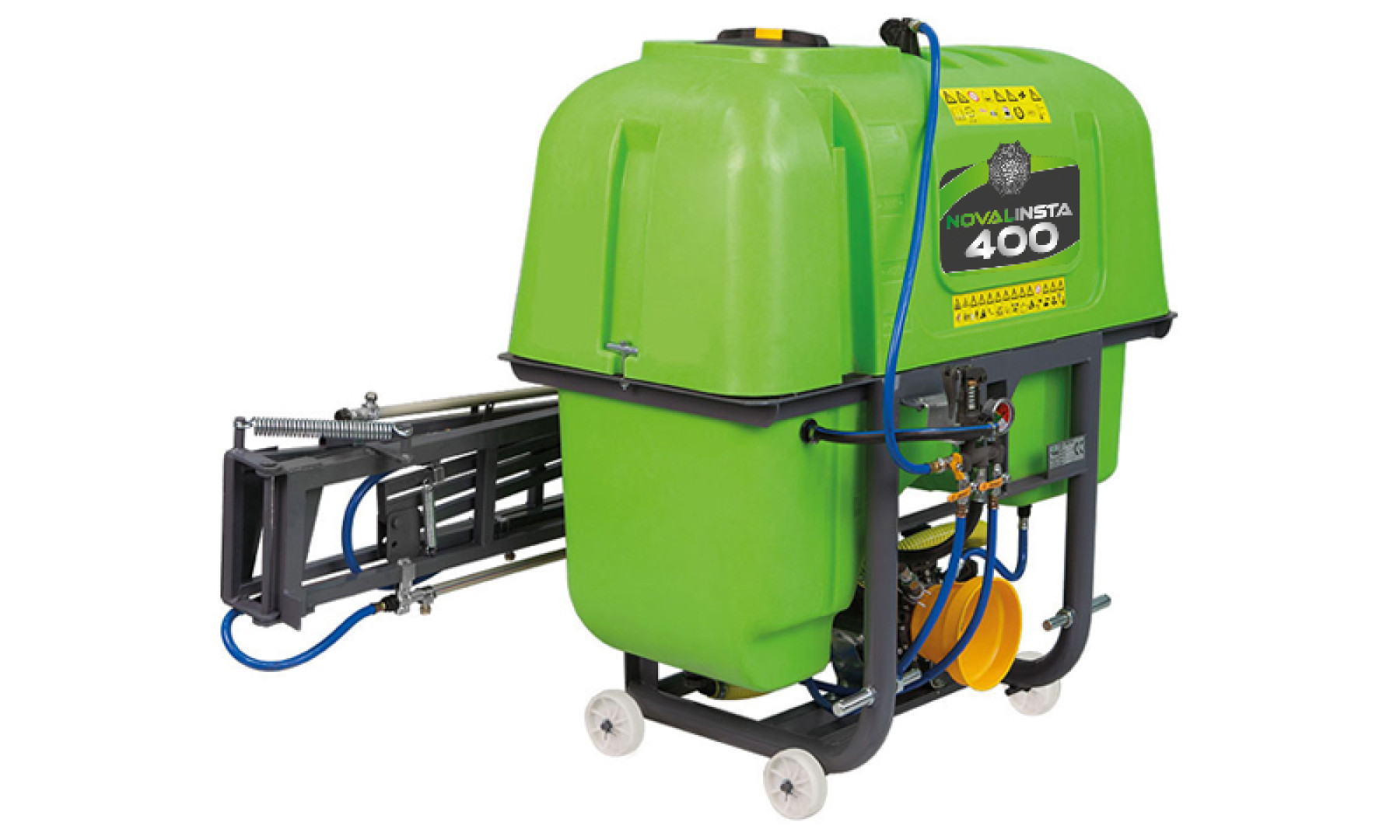

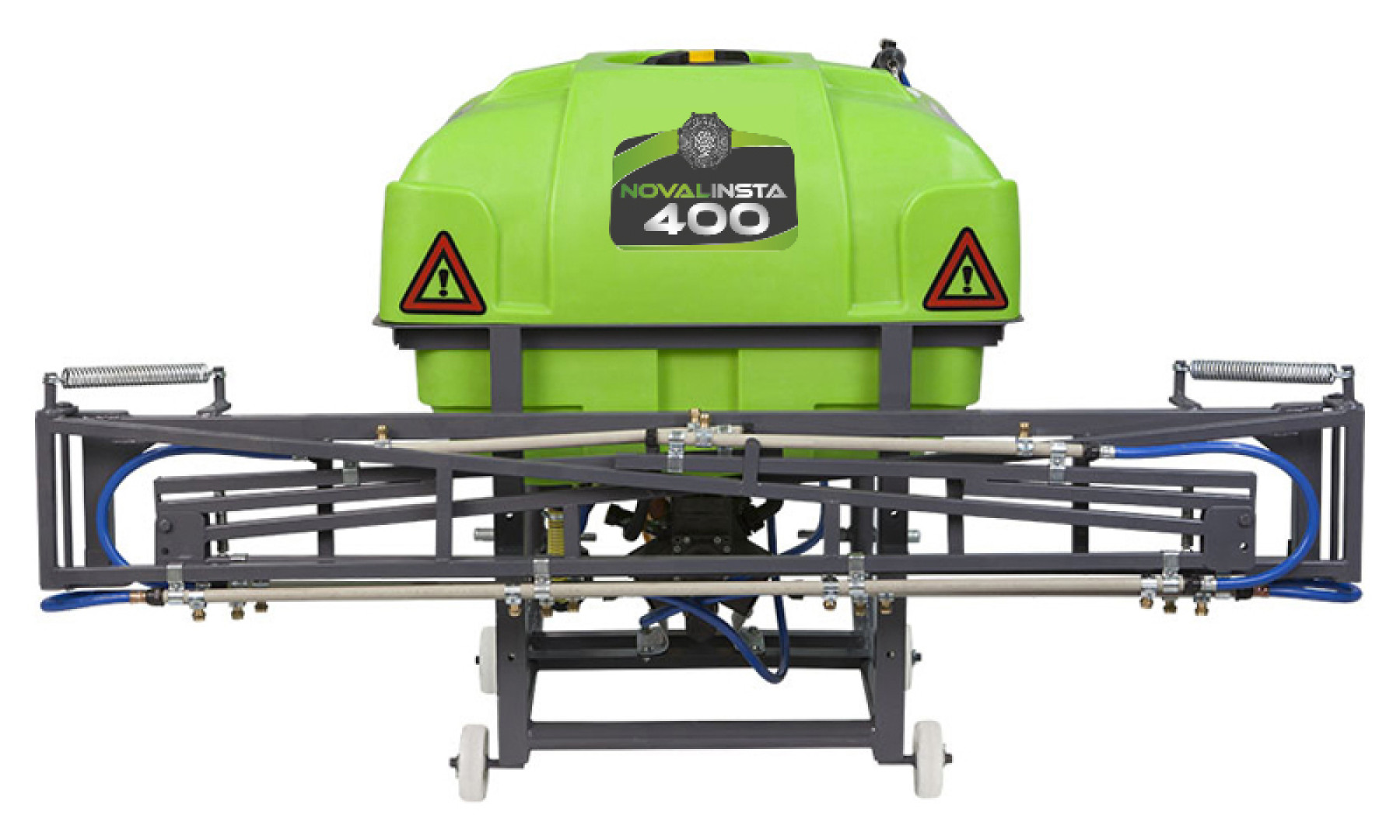

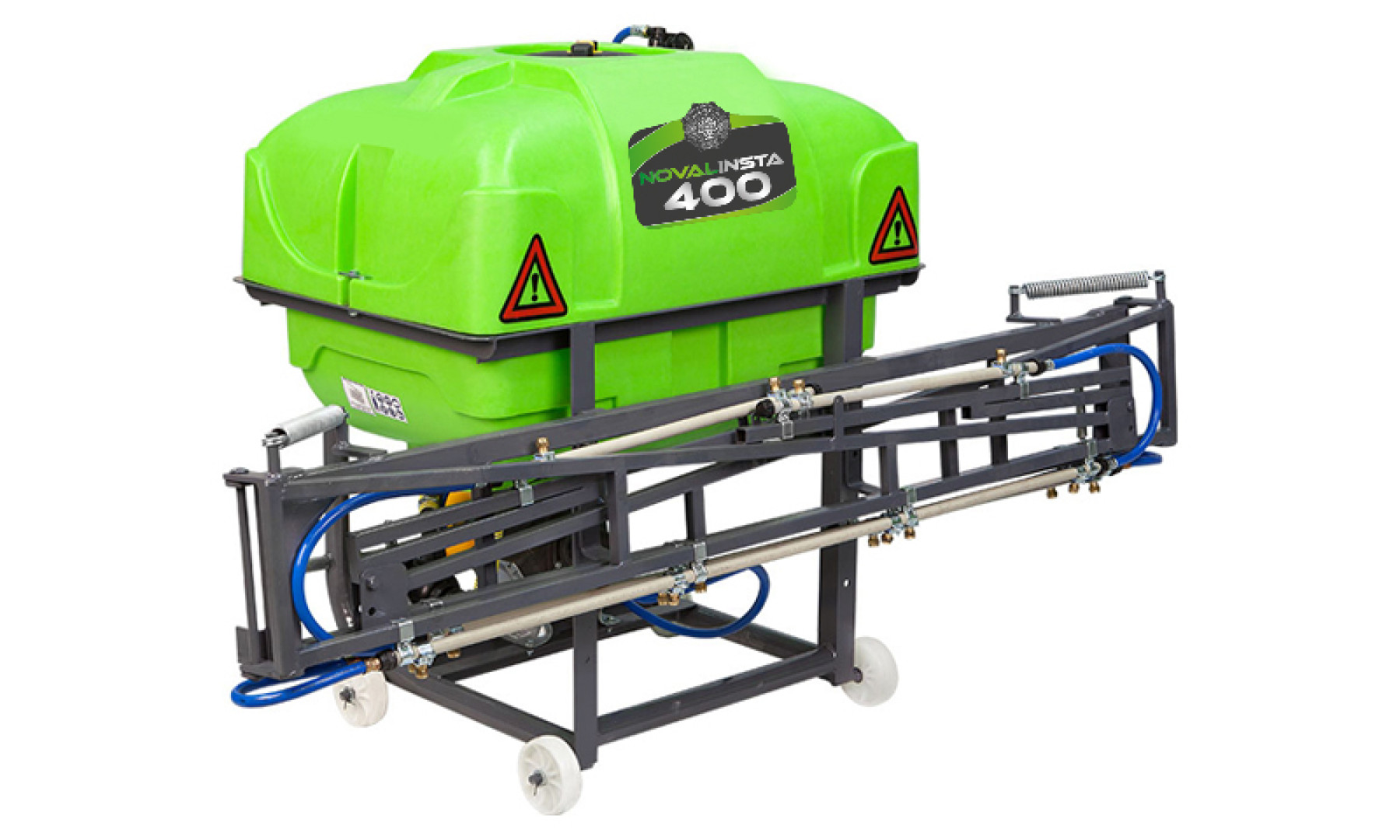

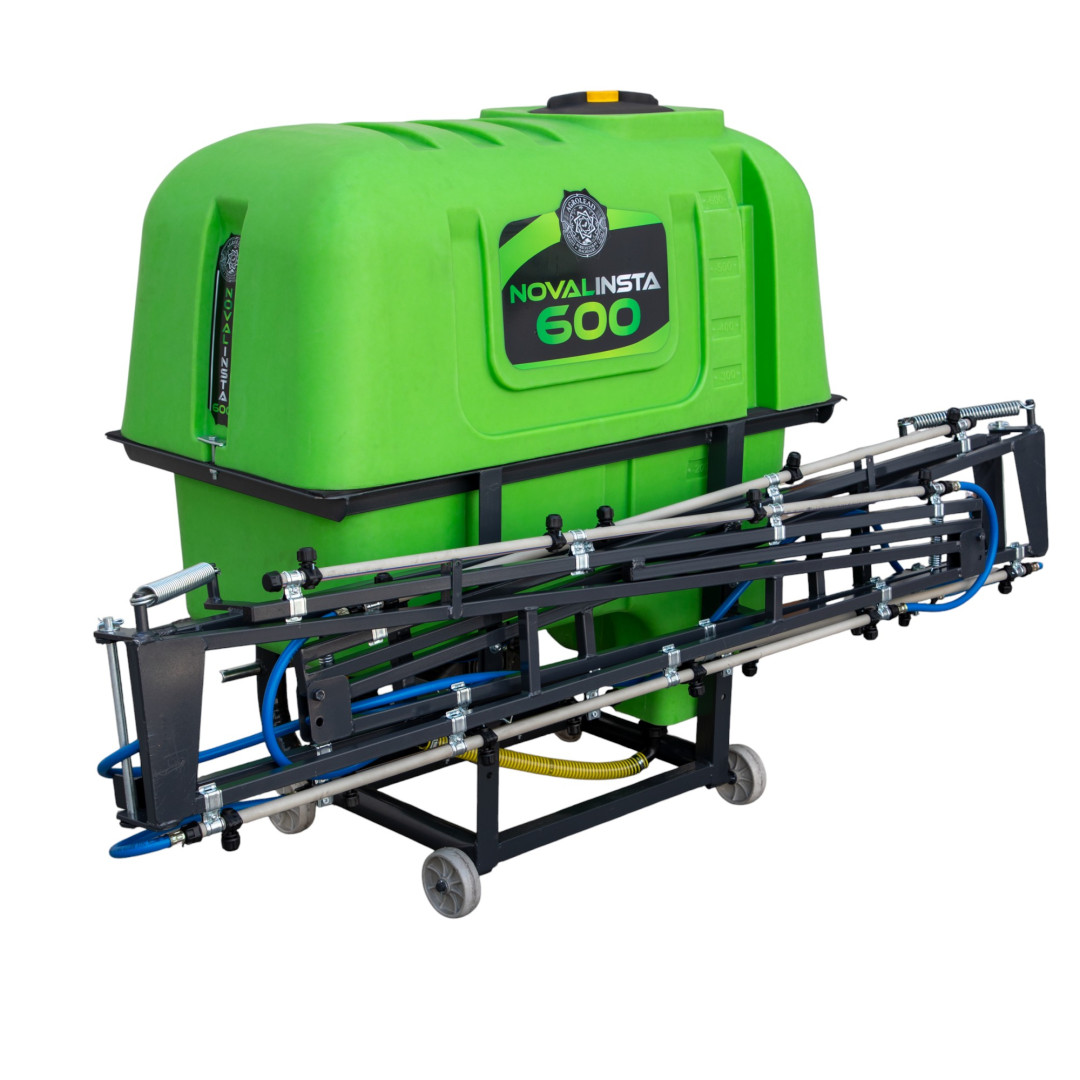

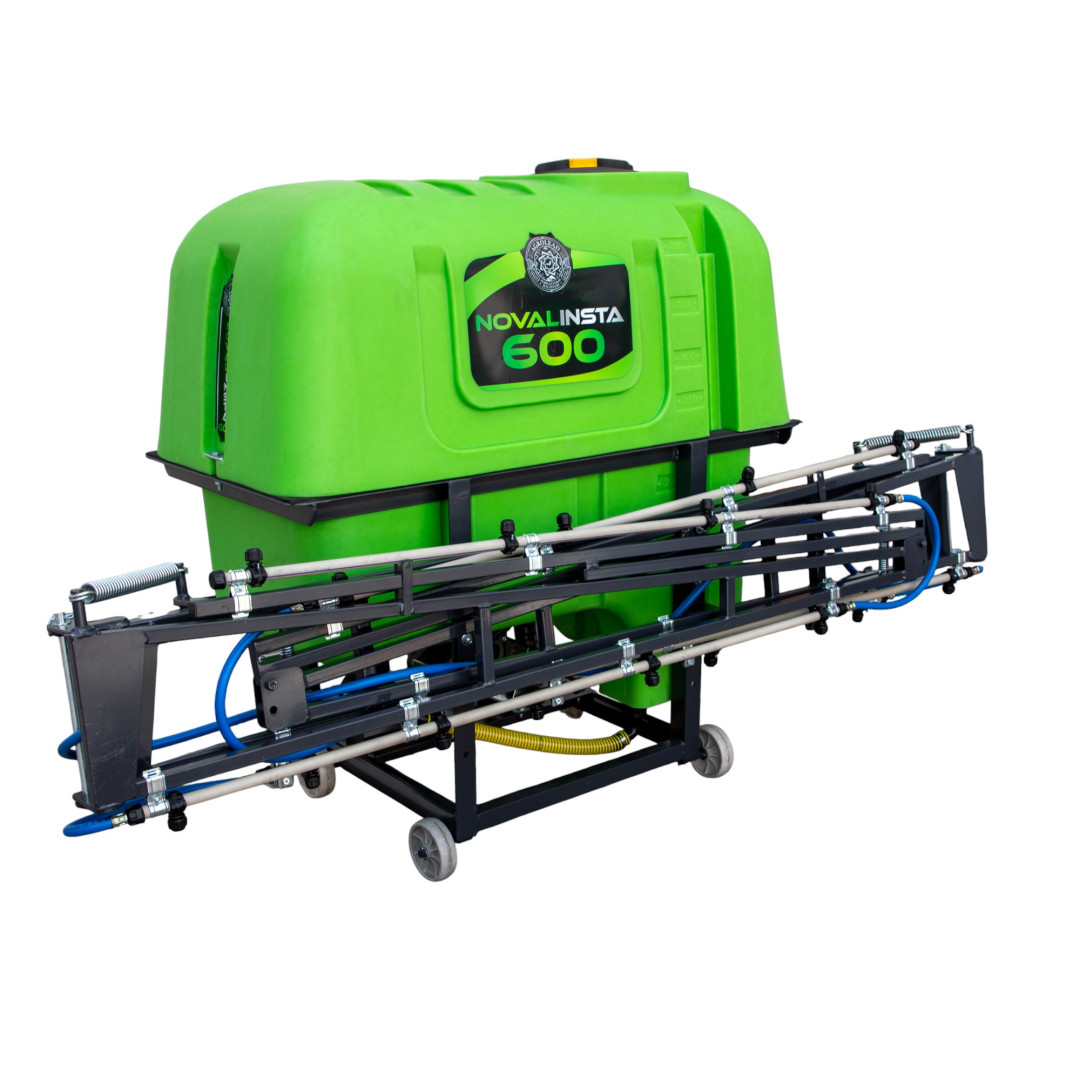

Noval Insta Field Sprayers

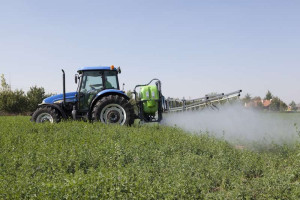

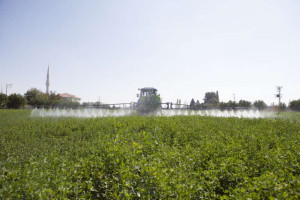

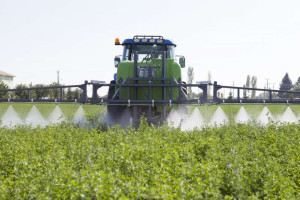

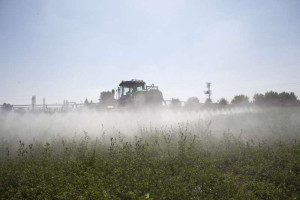

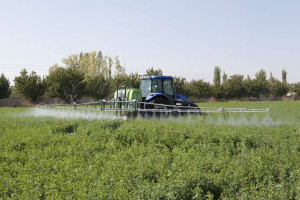

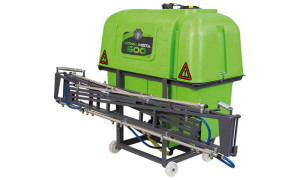

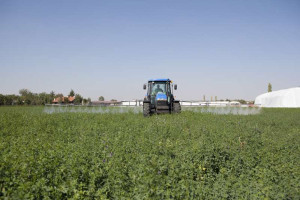

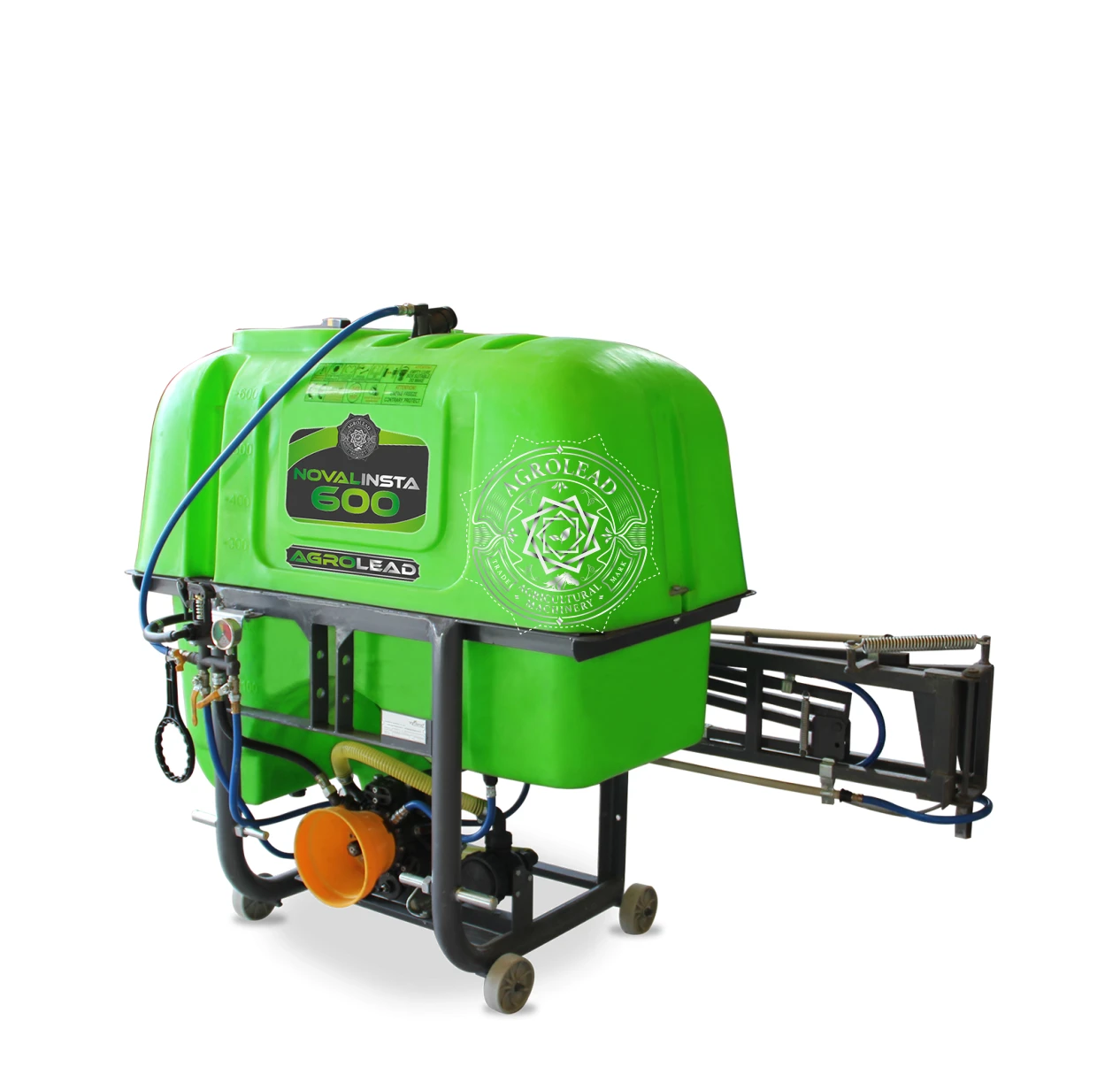

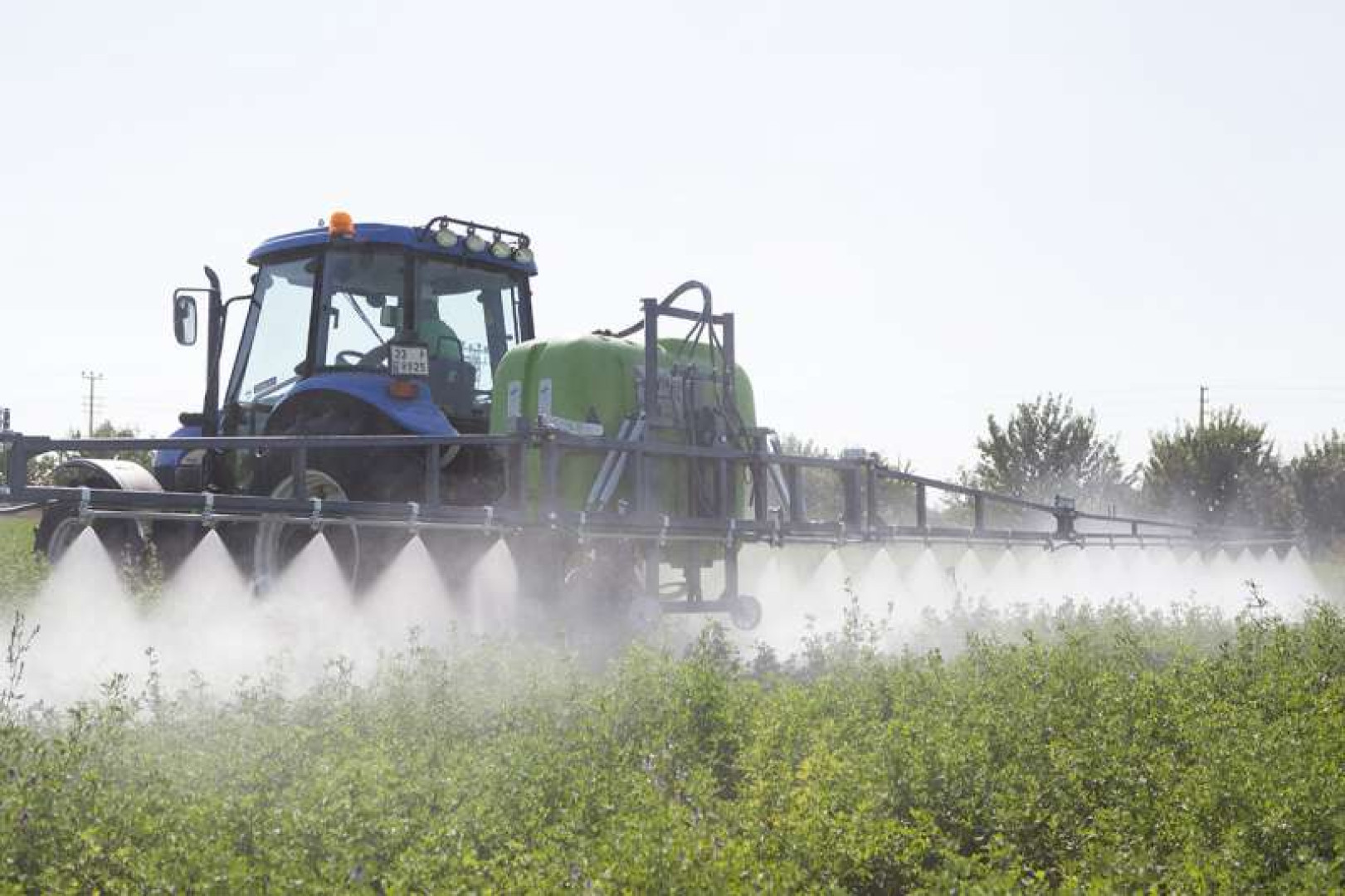

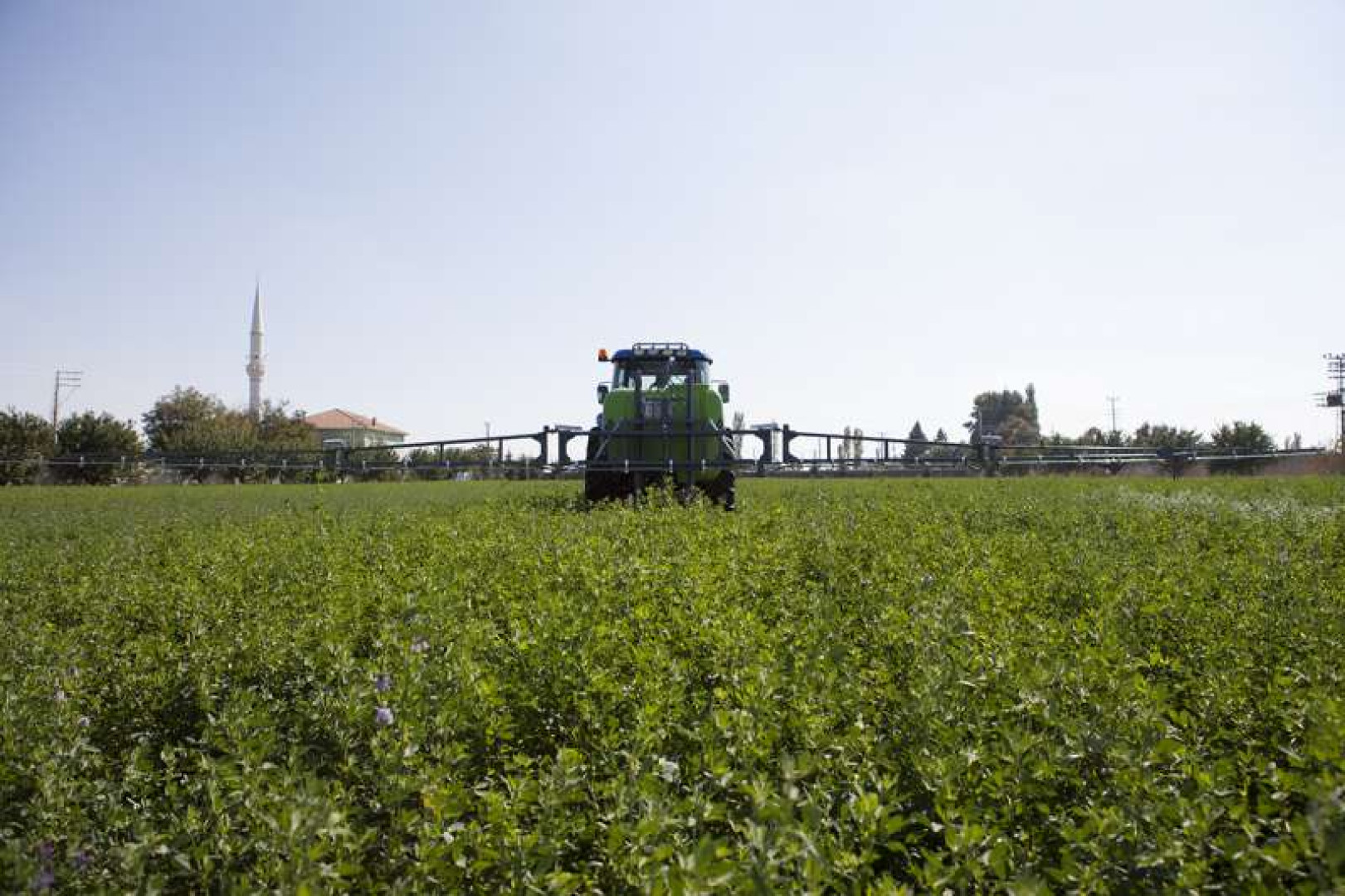

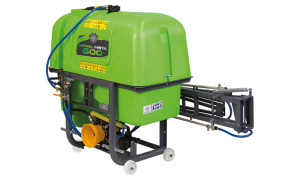

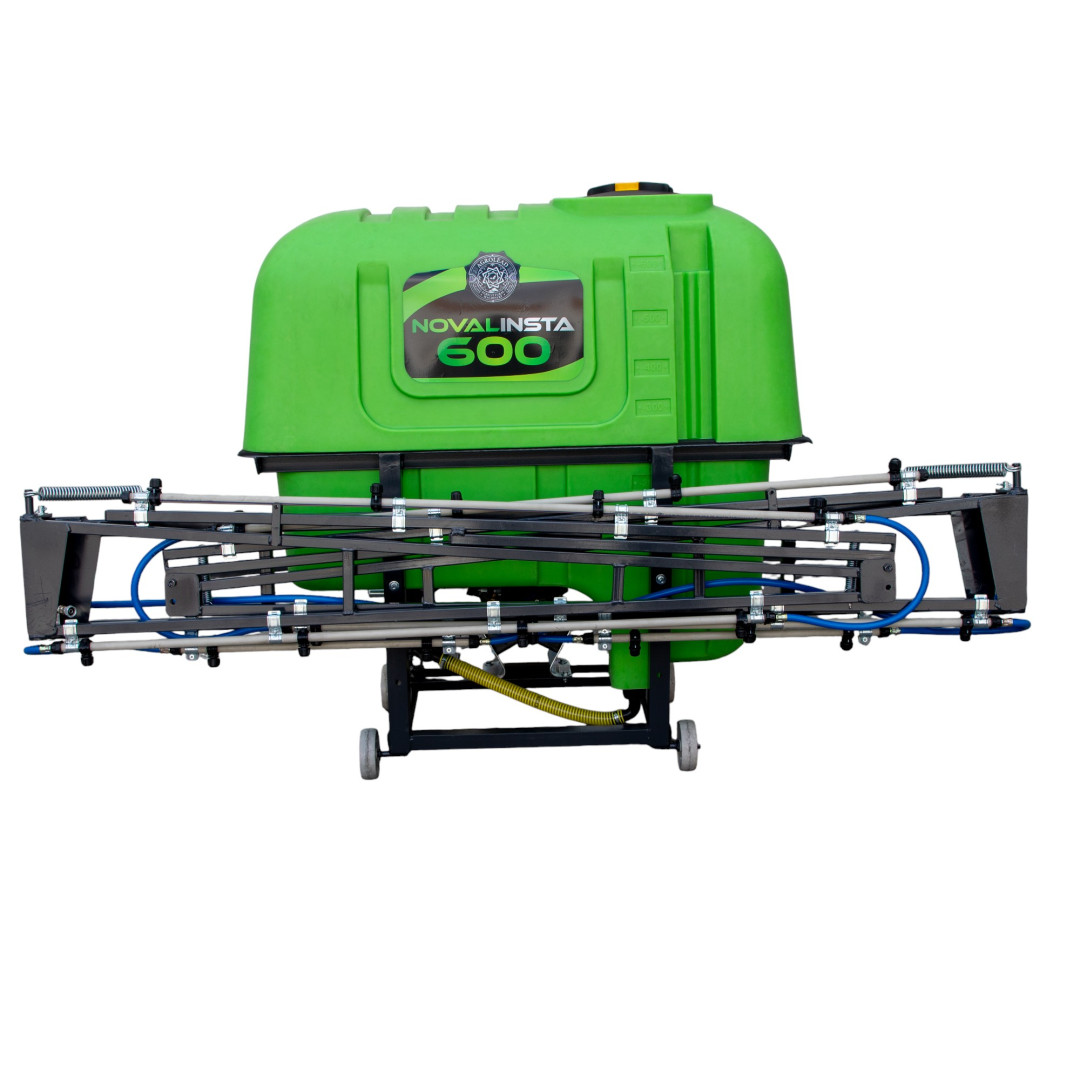

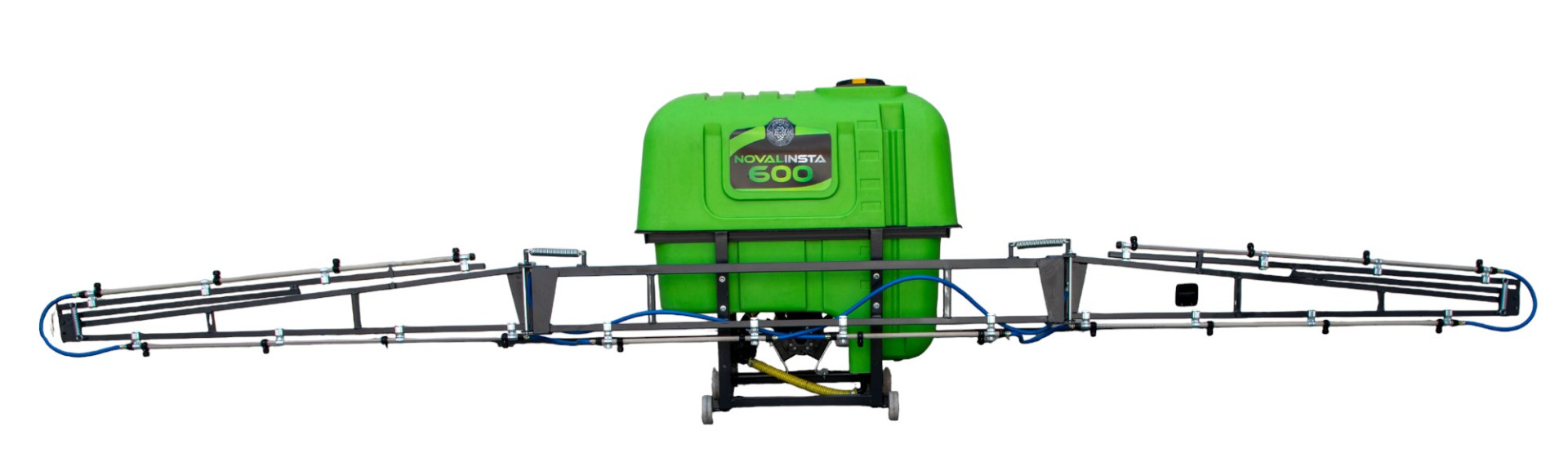

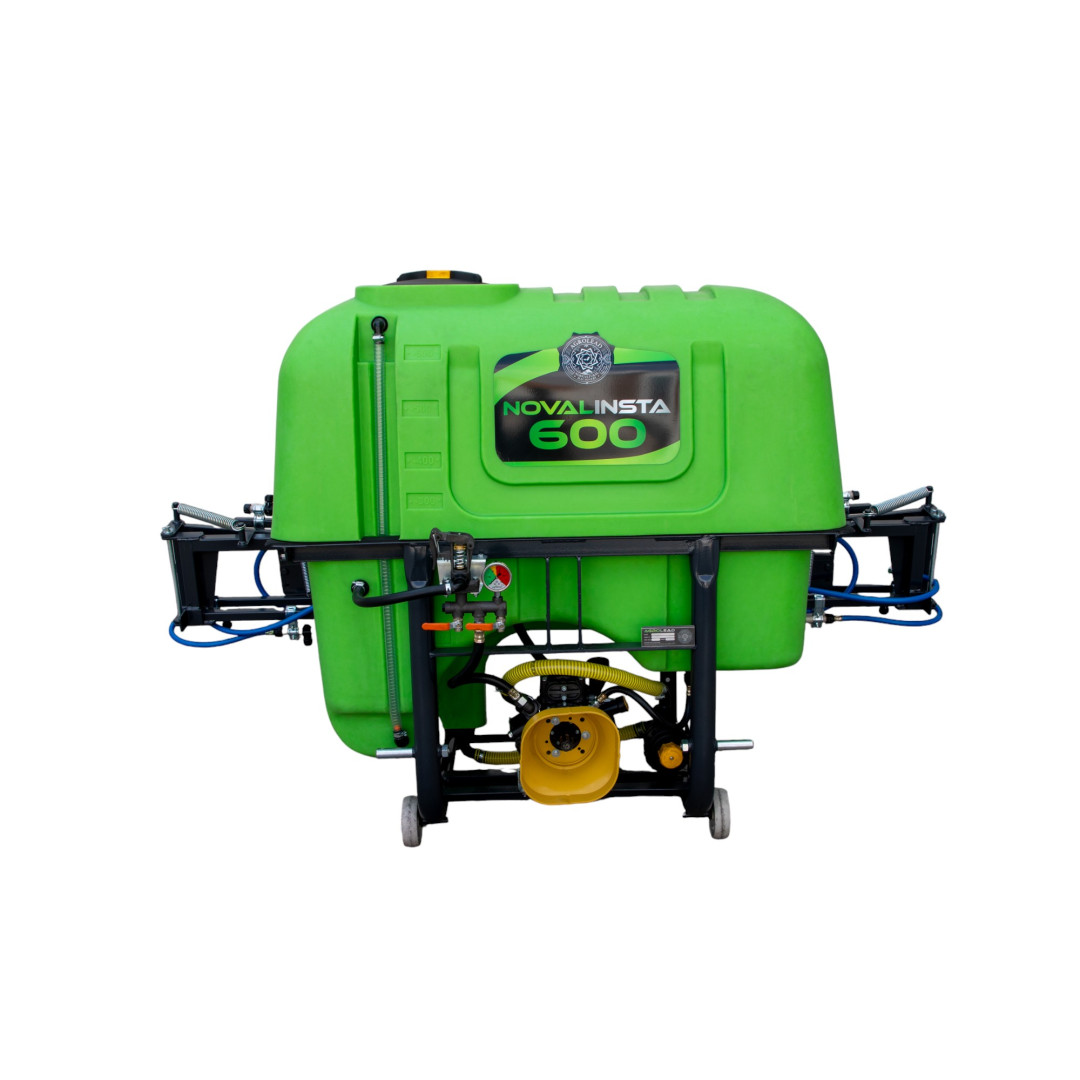

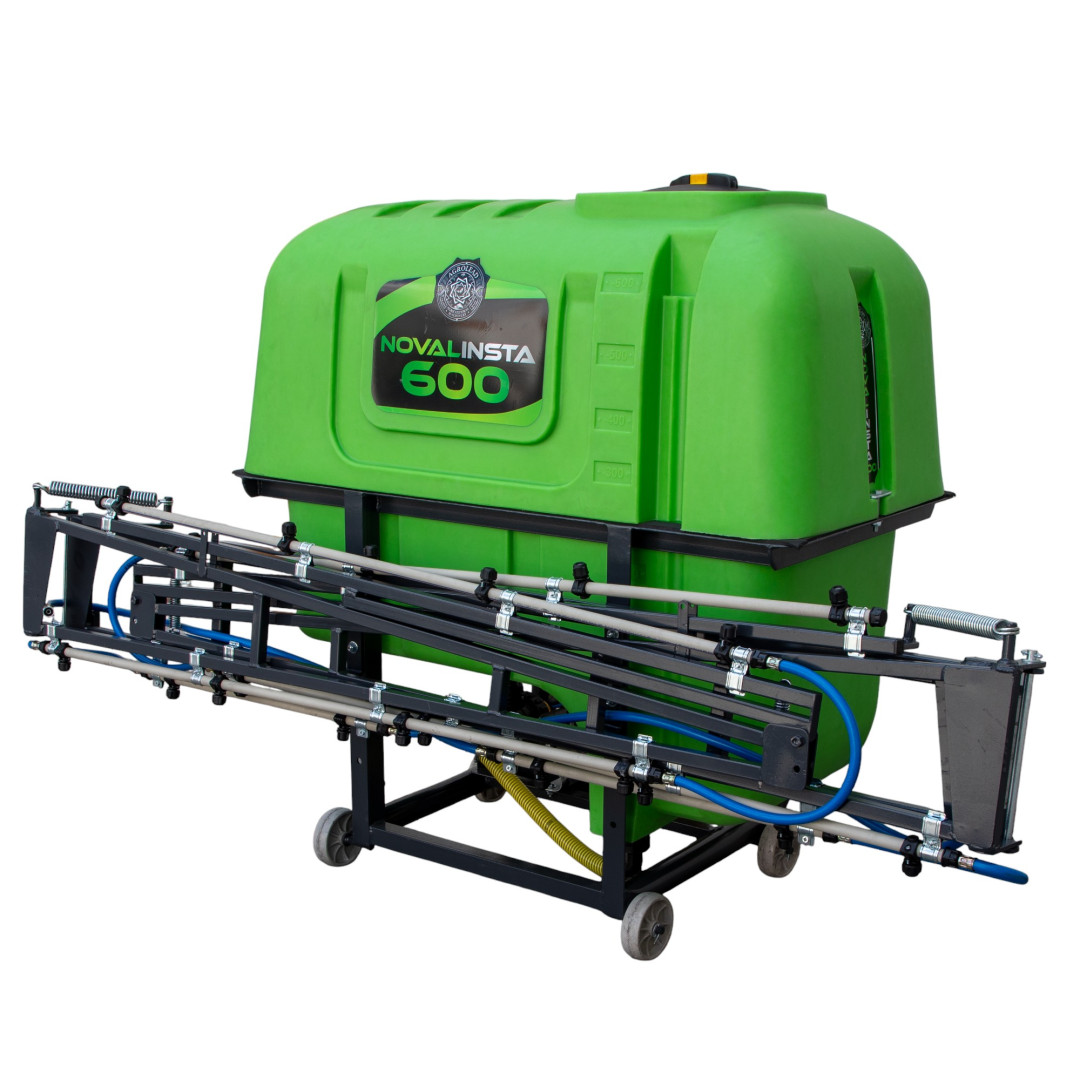

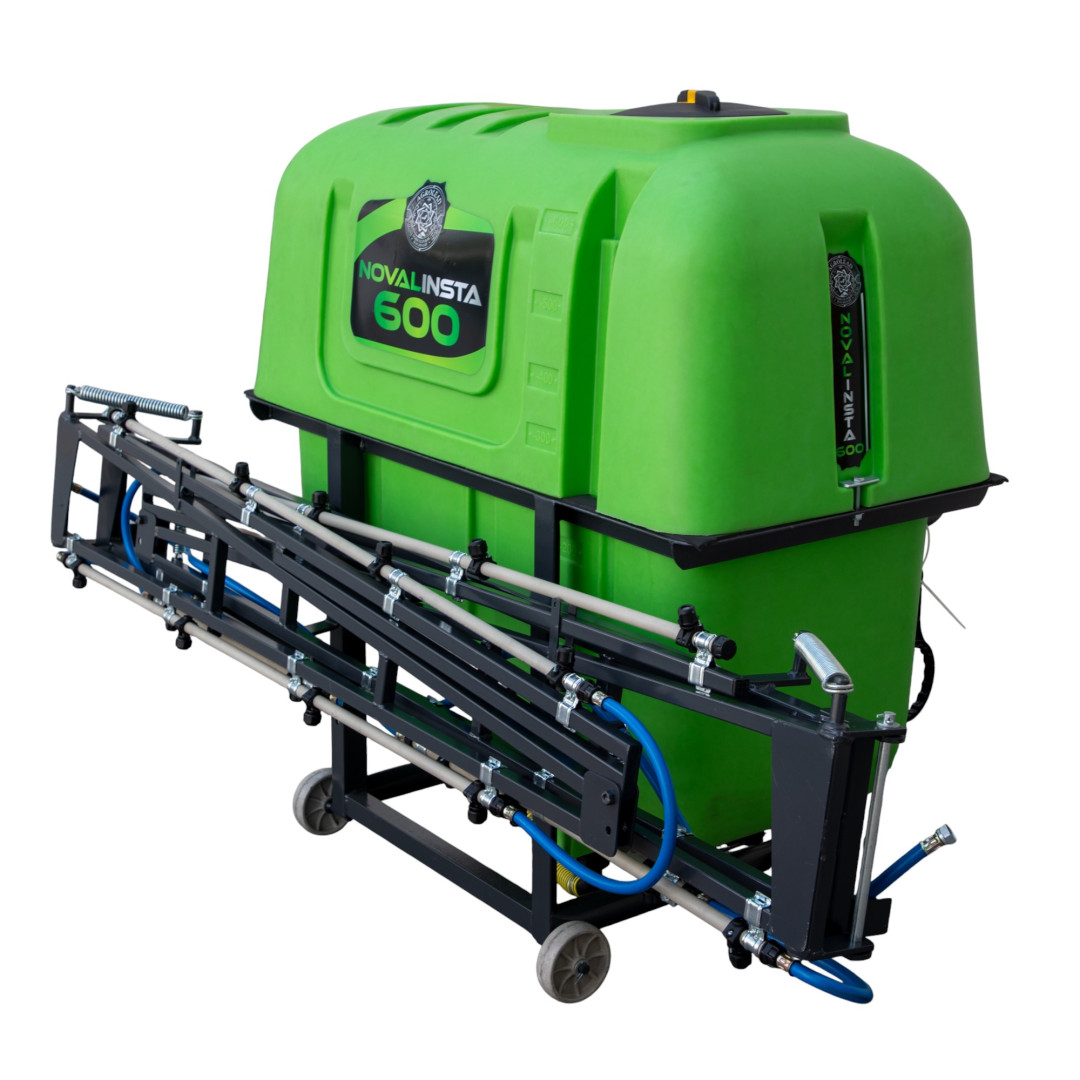

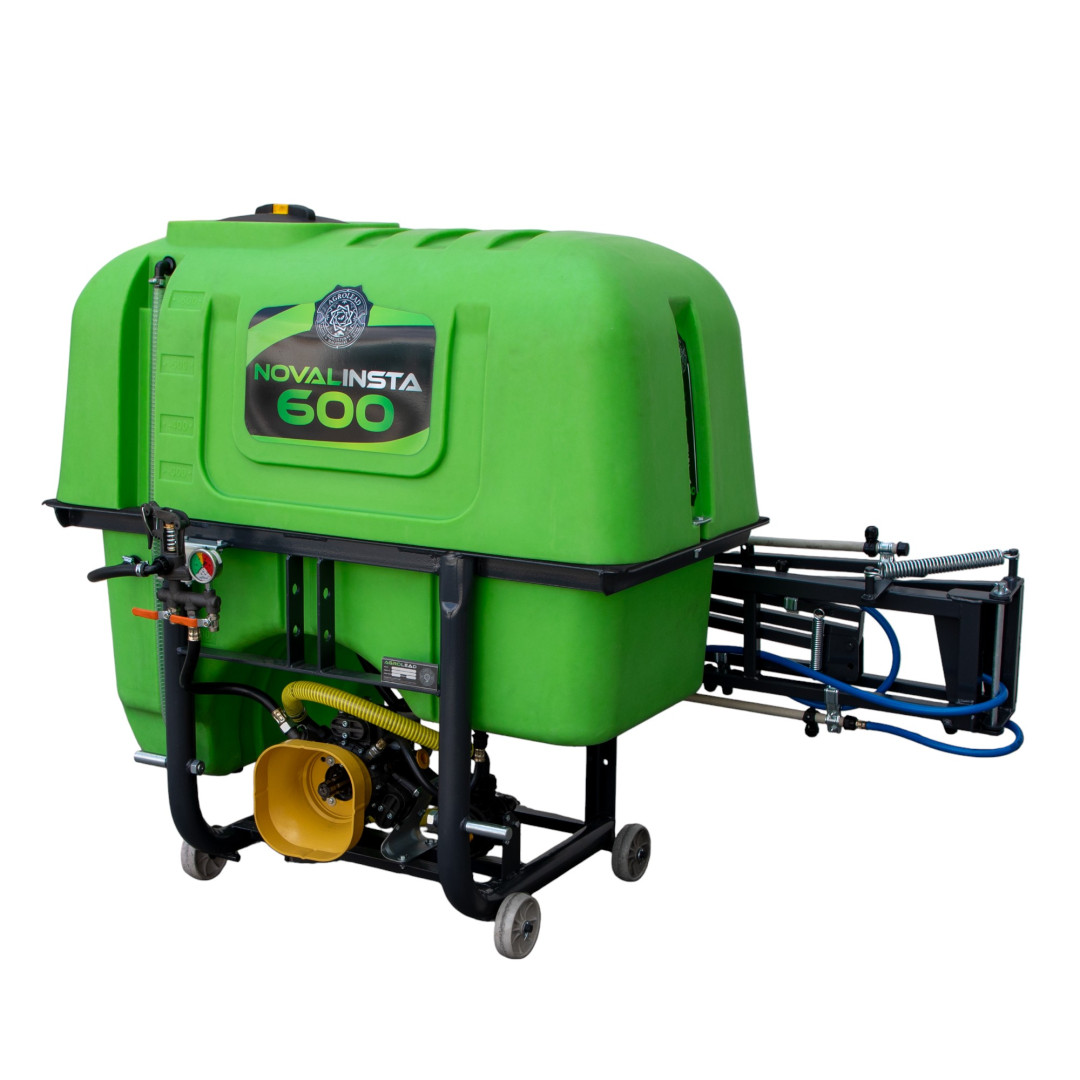

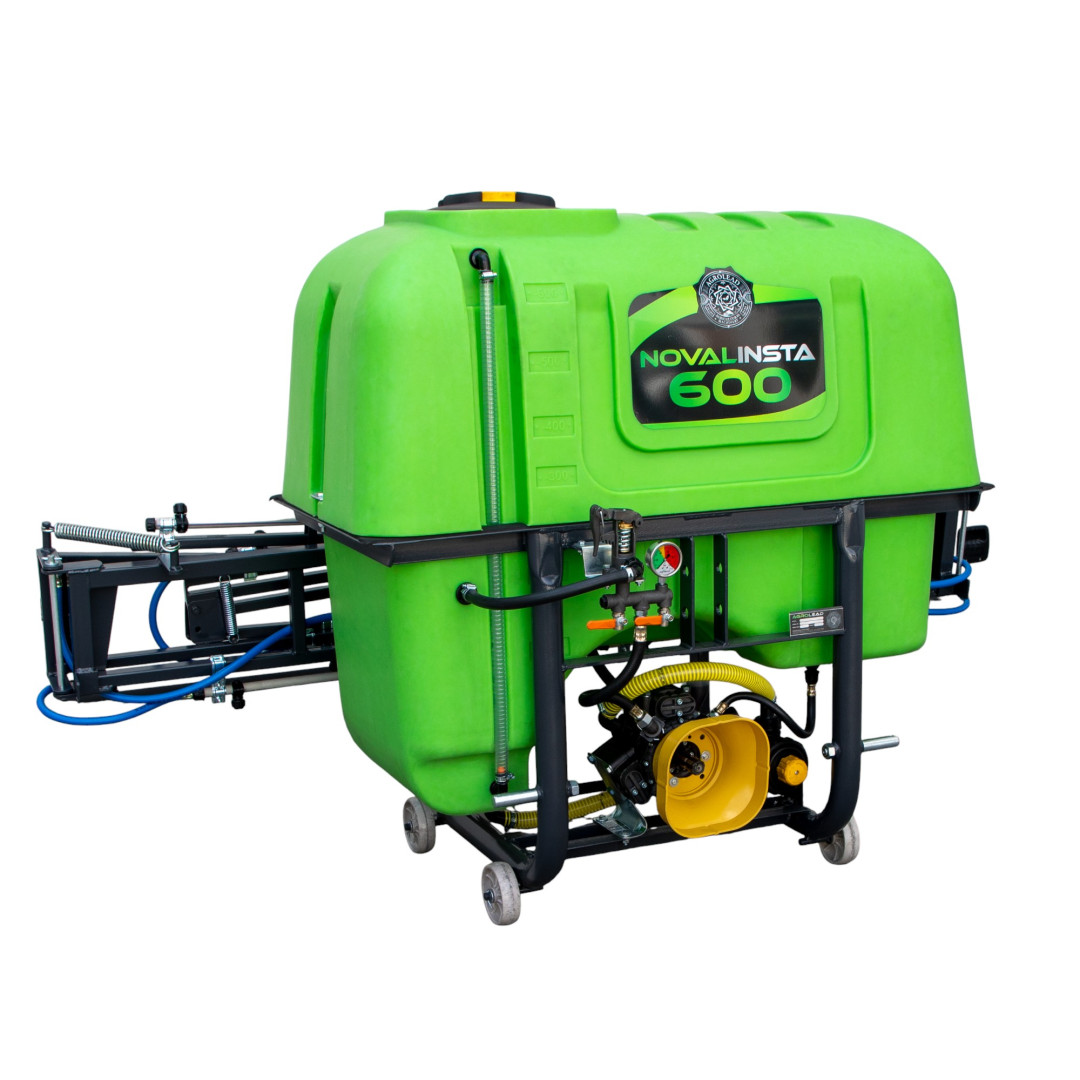

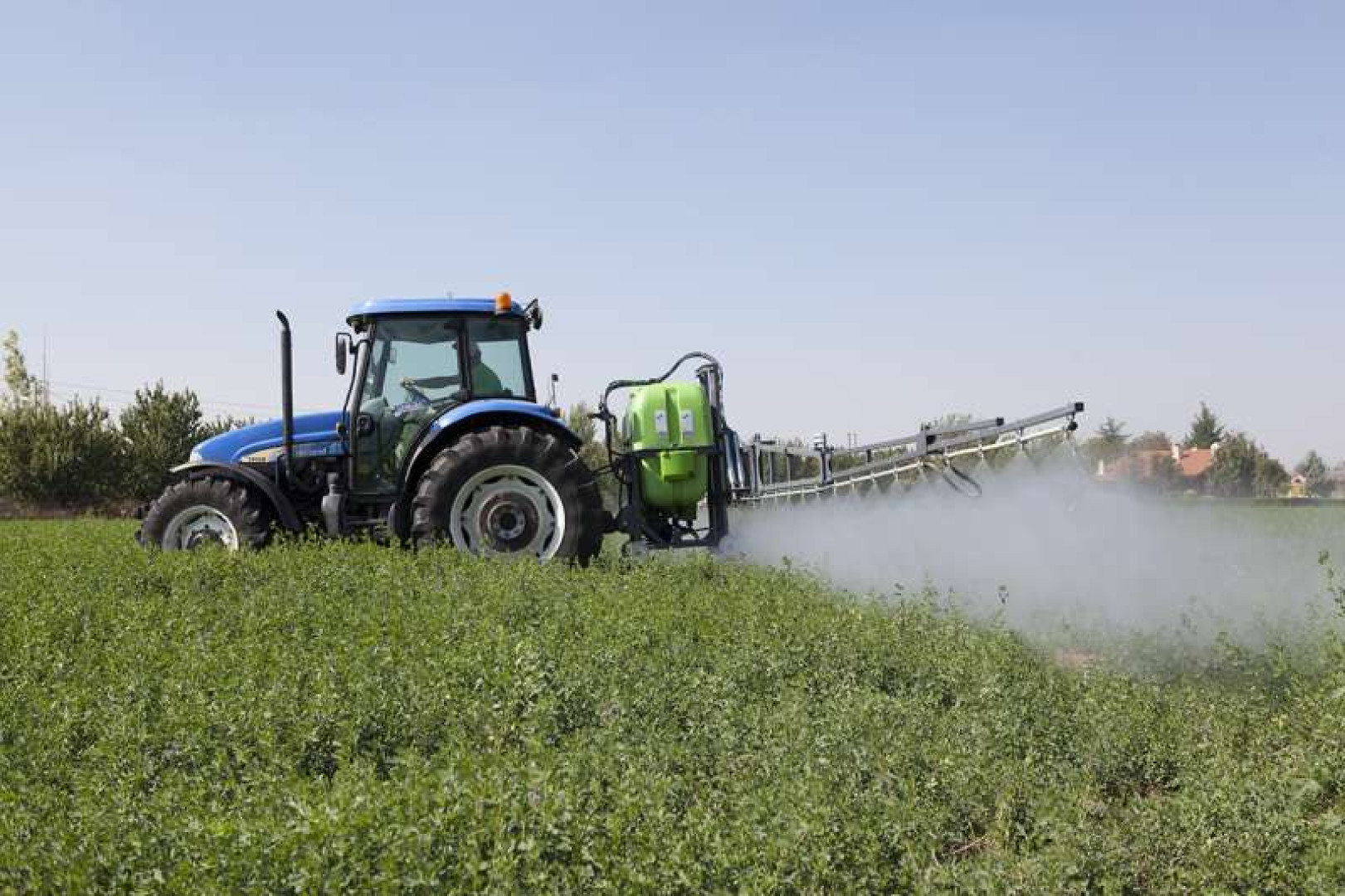

NOVAL INSTA Tractor Mounted Type Sprayers are developed to meet the different requirements of plant protection treatments. Noval Insta is attached to the tractor by 3 point-linkage system and takes the power from tractor through PTO Shaft. These sprayers were designed for spraying small areas of agricultural land. Due to their light design they are also suitable for small tractors. A robust frame of the sprayer made from high-quality steel ensures a long service life. Its structural design ensures a short barycentre distance between the tractor and machine, a well-stirred spraying agent mixture, drainage of the tank and a simple cleaning process. They consist of high-quality components resistant to aggressive chemical agents. Cost-effective and efficient spraying is guaranteed. Extremely versatile and suitable, according to the applications, to operate in open-field cultivations, sprayer and distribute herbicides among the plant rows.The availability of mechanical and hydraulic lateral spraying booms, brass or plastic anti-drip nozzles , together with different options, allow our sprayers to suit the requirement of the single users in the specific treatments.Modern sand blasting and powder coating methods provides an effective protection of the frame of our all kind of sprayers.

TECHNICAL SPECIFICATIONS	UNIT	MODEL
TECHNICAL SPECIFICATIONS	UNIT	NOVAL INSTA 100	NOVAL INSTA 300	NOVAL INSTA 400	NOVAL INSTA 500	NOVAL INSTA 600	NOVAL INSTA 800
Capacity	lt	1000	300	400	500	600	800
Pump	lt	80	80	80	80	80	80
Flow Rate	lt/min	80	80	80	80	80	80
Pressure	bar	50	50	50	50	50	50
Pto Rpm	rev/min	540	540	540	540	540	540
Width	mm	1000	840	850	850	750	1000
Length	mm	1500	1150	1150	1150	1350	1500
Height	mm	1700	1100	1200	1300	1420	1500
Weight	kg	230	100	115	130	150	210
Boom Length	mt	12	6	8	9	10	12
Boom Type	type	Lateral	Lateral	Lateral	Lateral	Lateral	Lateral

TECHNICAL SPECIFICATIONS	UNIT	MODEL
Capacity	lt	1000
Pump	lt	80
Flow Rate	lt/min	80
Pressure	bar	50
Pto Rpm	rev/min	540
Width	mm	1000
Length	mm	1500
Height	mm	1700
Weight	kg	230
Boom Length	mt	12
Boom Type	type	Lateral

TECHNICAL SPECIFICATIONS	UNIT	MODEL
Capacity	lt	300
Pump	lt	80
Flow Rate	lt/min	80
Pressure	bar	50
Pto Rpm	rev/min	540
Width	mm	840
Length	mm	1150
Height	mm	1100
Weight	kg	100
Boom Length	mt	6
Boom Type	type	Lateral

TECHNICAL SPECIFICATIONS	UNIT	MODEL
Capacity	lt	400
Pump	lt	80
Flow Rate	lt/min	80
Pressure	bar	50
Pto Rpm	rev/min	540
Width	mm	850
Length	mm	1150
Height	mm	1200
Weight	kg	115
Boom Length	mt	8
Boom Type	type	Lateral

TECHNICAL SPECIFICATIONS	UNIT	MODEL
Capacity	lt	500
Pump	lt	80
Flow Rate	lt/min	80
Pressure	bar	50
Pto Rpm	rev/min	540
Width	mm	850
Length	mm	1150
Height	mm	1300
Weight	kg	130
Boom Length	mt	9
Boom Type	type	Lateral

TECHNICAL SPECIFICATIONS	UNIT	MODEL
Capacity	lt	600
Pump	lt	80
Flow Rate	lt/min	80
Pressure	bar	50
Pto Rpm	rev/min	540
Width	mm	750
Length	mm	1350
Height	mm	1420
Weight	kg	150
Boom Length	mt	10
Boom Type	type	Lateral

TECHNICAL SPECIFICATIONS	UNIT	MODEL
Capacity	lt	800
Pump	lt	80
Flow Rate	lt/min	80
Pressure	bar	50
Pto Rpm	rev/min	540
Width	mm	1000
Length	mm	1500
Height	mm	1500
Weight	kg	210
Boom Length	mt	12
Boom Type	type	Lateral
