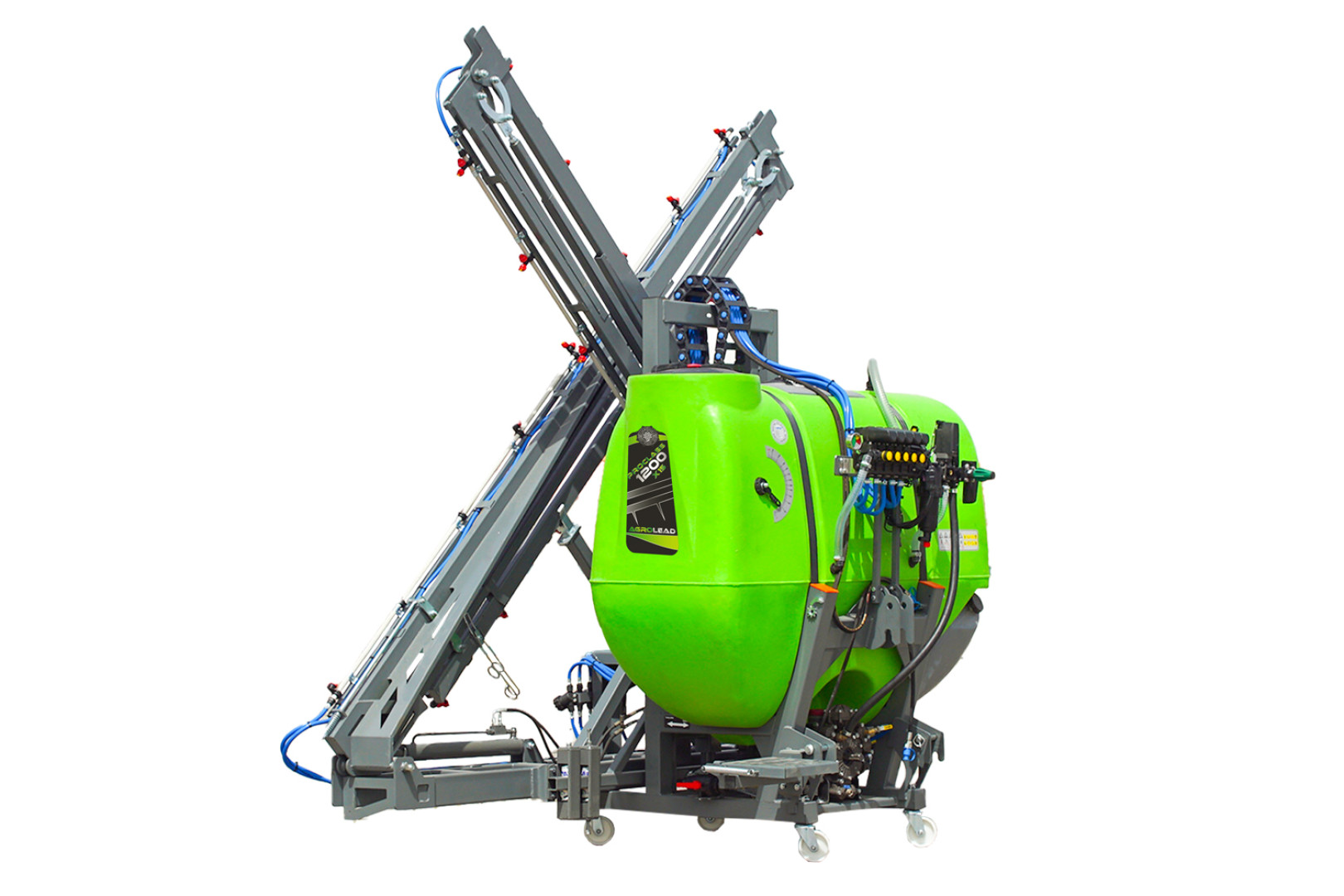

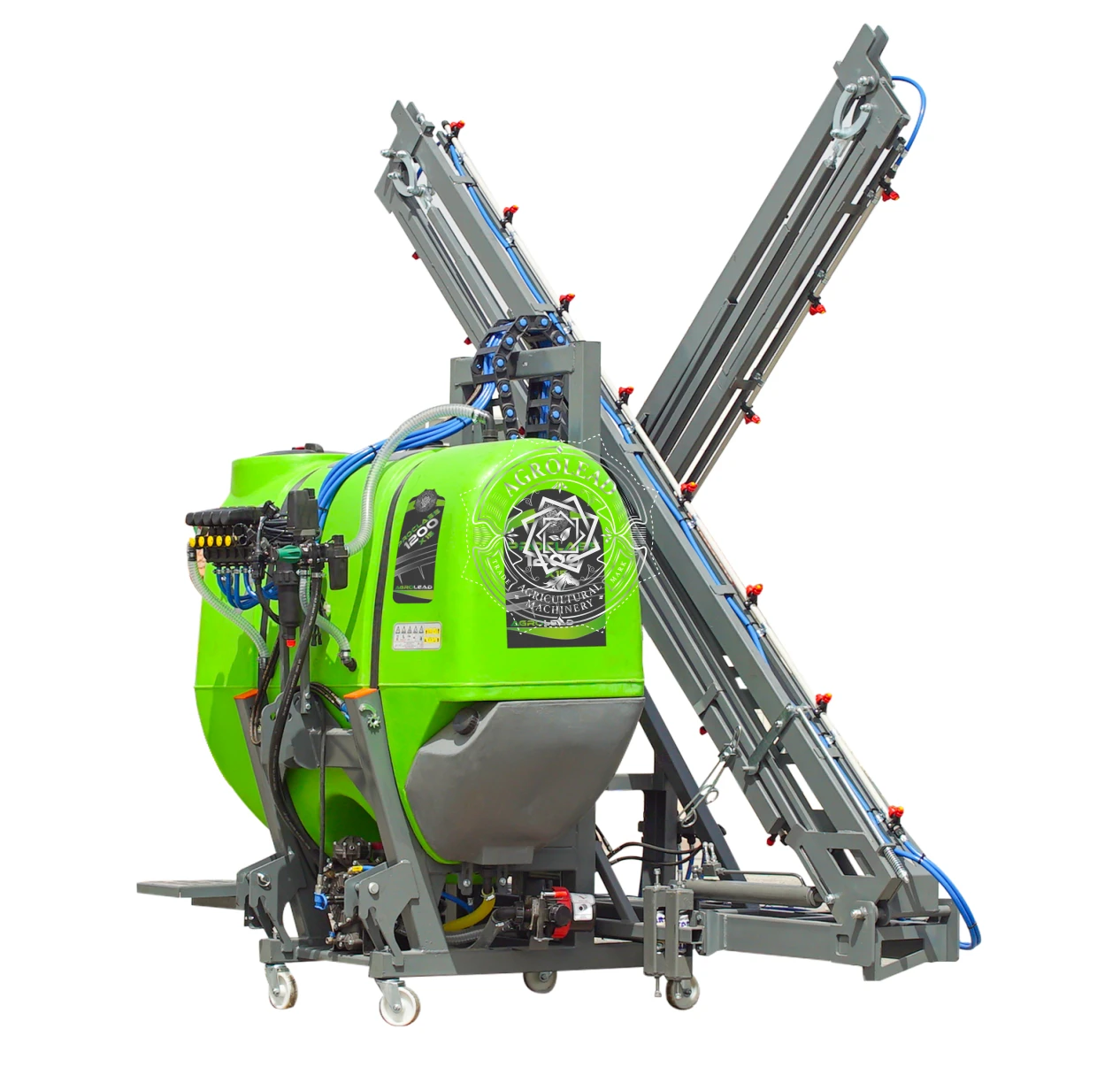

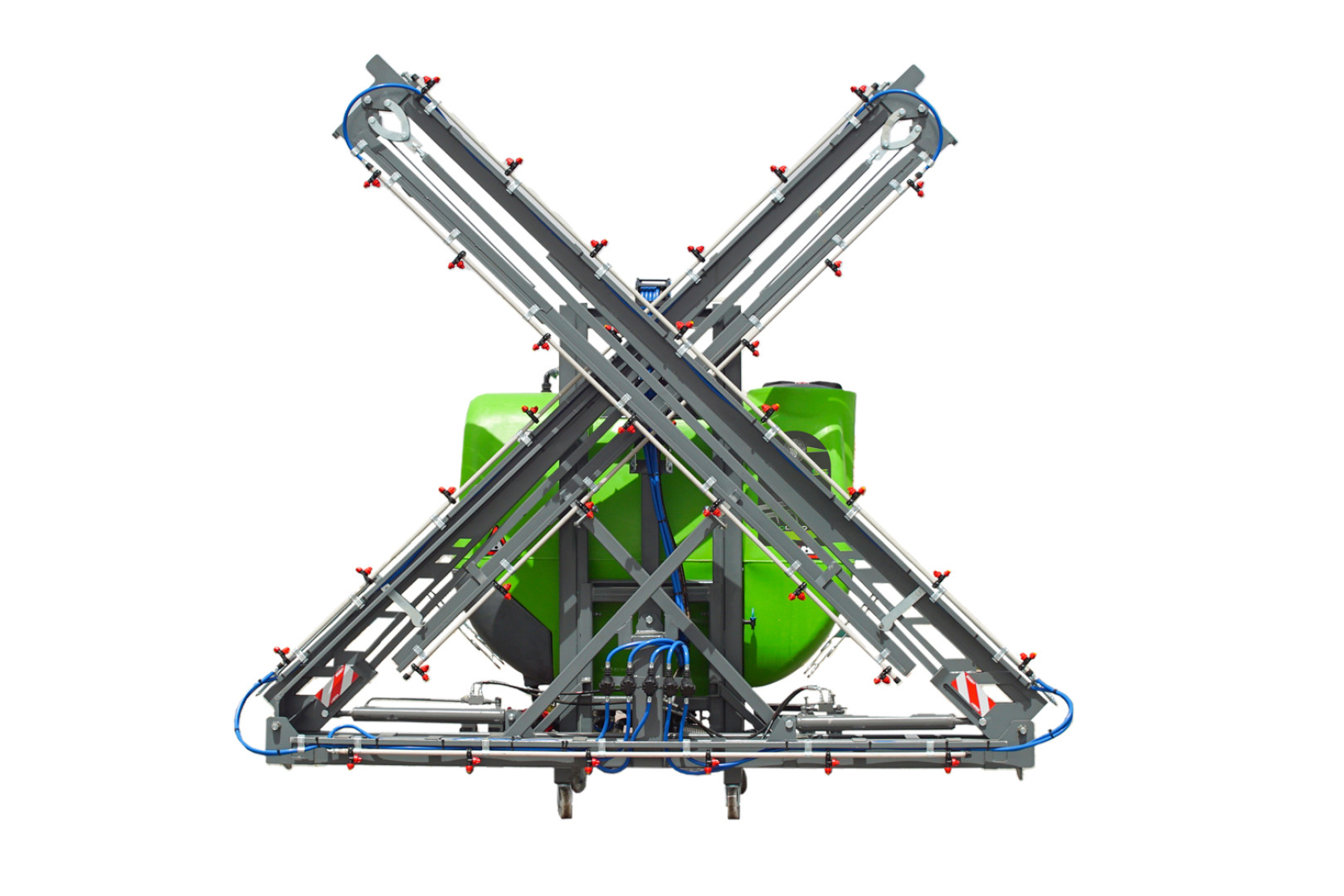

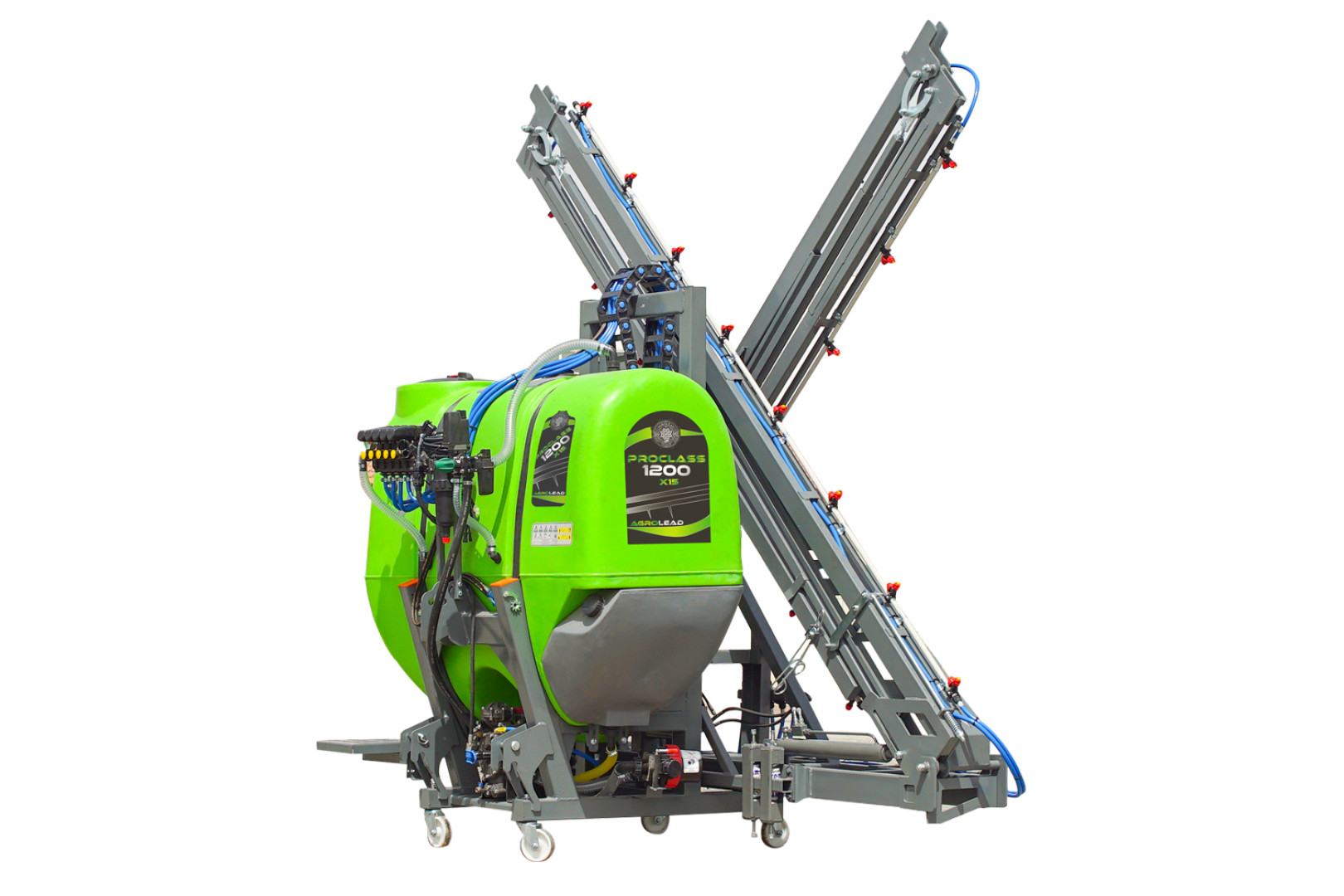

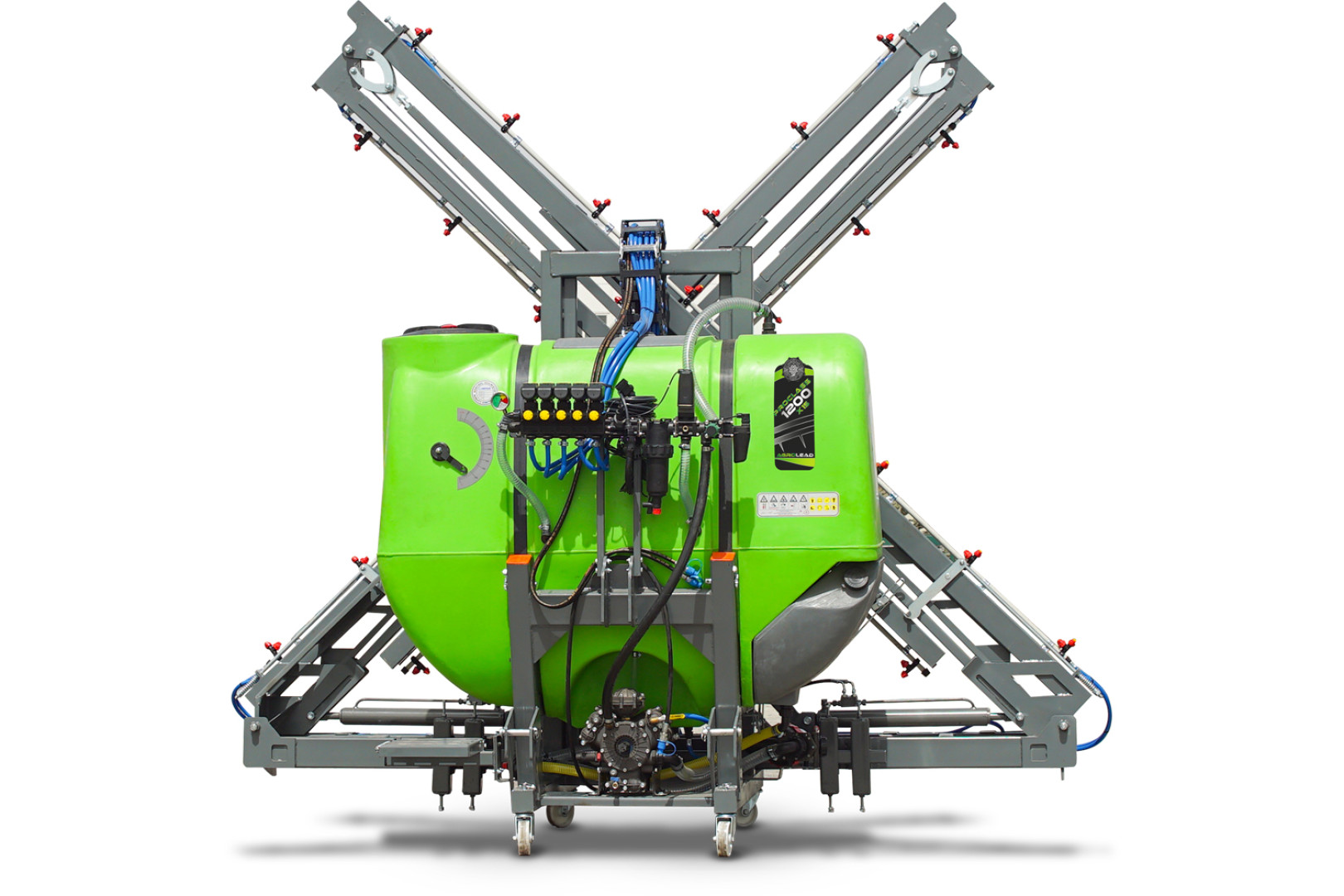

Proclass Field Sprayer

New desing with latest technology, maximum field coverage, easy use and eco-friendly are some of top specification of Proclass Mounted Field sprayers. Our main aim is giving our farmers perfect crop protection in short spraying time without loosing time on fields. Reinforced and certified chasiss applied with sand-blasting,welded with a hightech robots that creates resistance. Electrostatic coat painting with high corrosion protection provides solidity to our chassis. UV protected polyethylene main tank comes with acid proof treatment. Standard hand washing tank and clean water tank is equipped with the main tank. Good weight distribution of the machine, favorable centre of gravity. Smooth tank walls prevents any residual inside, Clean water tank helps to flushing and diluting residual quantities. Tank can be equipped and designed with various options to meet the needs of the operator. Proclass models are produced as 600,800,1000,1200 lt tank capacity.The availability of several mechanical and hydraulic spraying booms together with different equipments and option that allow our sprayers to suit the requirement of the single users in the specific treatments.

TECHNICAL SPECIFICATIONS	UNIT	MODEL
TECHNICAL SPECIFICATIONS	UNIT	PROCLASS 600	PROCLASS 800	PROCLASS 1000	PROCLASS 1200
Capacity	lt	600	800	1000	1200
Pump	lt	105	105	105	105
Flow Rate	lt/min	105	105	105	105
Pressure	bar	50	50	50	50
Pto Rpm	rev/min	540	540	540	540
Rinsing Tank	feature	Standard	Standard	Standard	Standard
Width	mm	156	173	173	173
Length	mm	110	116	122	122
Height	mm	220	220	220	220
Weight	kg	350	375	385	396
Boom Length	mt	12/15/16/18	12/15/16/18	12/15/16/18	12/15/16/18
Boom Type	type	Lateral / X Cross / U Folding	Lateral / X Cross / U Folding	Lateral / X Cross / U Folding	Lateral / X Cross / U Folding

TECHNICAL SPECIFICATIONS	UNIT	MODEL
Capacity	lt	1000
Pump	lt	105
Flow Rate	lt/min	105
Pressure	bar	50
Pto Rpm	rev/min	540
Rinsing Tank	feature	Standard
Width	mm	173
Length	mm	122
Height	mm	220
Weight	kg	385
Boom Length	mt	12/15/16/18
Boom Type	type	Lateral / X Cross / U Folding

TECHNICAL SPECIFICATIONS	UNIT	MODEL
Capacity	lt	1200
Pump	lt	105
Flow Rate	lt/min	105
Pressure	bar	50
Pto Rpm	rev/min	540
Rinsing Tank	feature	Standard
Width	mm	173
Length	mm	122
Height	mm	220
Weight	kg	396
Boom Length	mt	12/15/16/18
Boom Type	type	Lateral / X Cross / U Folding

TECHNICAL SPECIFICATIONS	UNIT	MODEL
Capacity	lt	600
Pump	lt	105
Flow Rate	lt/min	105
Pressure	bar	50
Pto Rpm	rev/min	540
Rinsing Tank	feature	Standard
Width	mm	156
Length	mm	110
Height	mm	220
Weight	kg	350
Boom Length	mt	12/15/16/18
Boom Type	type	Lateral / X Cross / U Folding

TECHNICAL SPECIFICATIONS	UNIT	MODEL
Capacity	lt	800
Pump	lt	105
Flow Rate	lt/min	105
Pressure	bar	50
Pto Rpm	rev/min	540
Rinsing Tank	feature	Standard
Width	mm	173
Length	mm	116
Height	mm	220
Weight	kg	375
Boom Length	mt	12/15/16/18
Boom Type	type	Lateral / X Cross / U Folding
