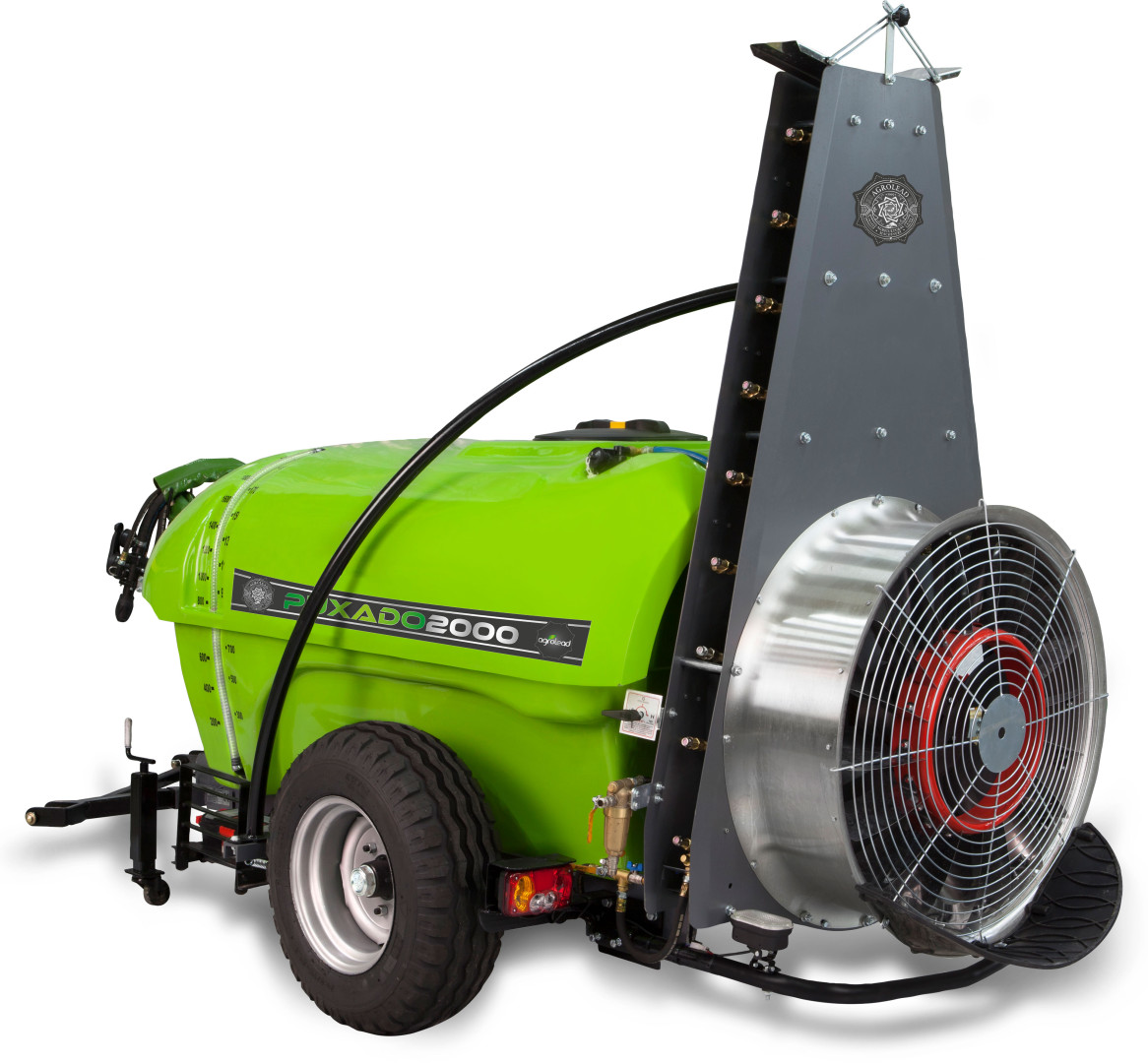

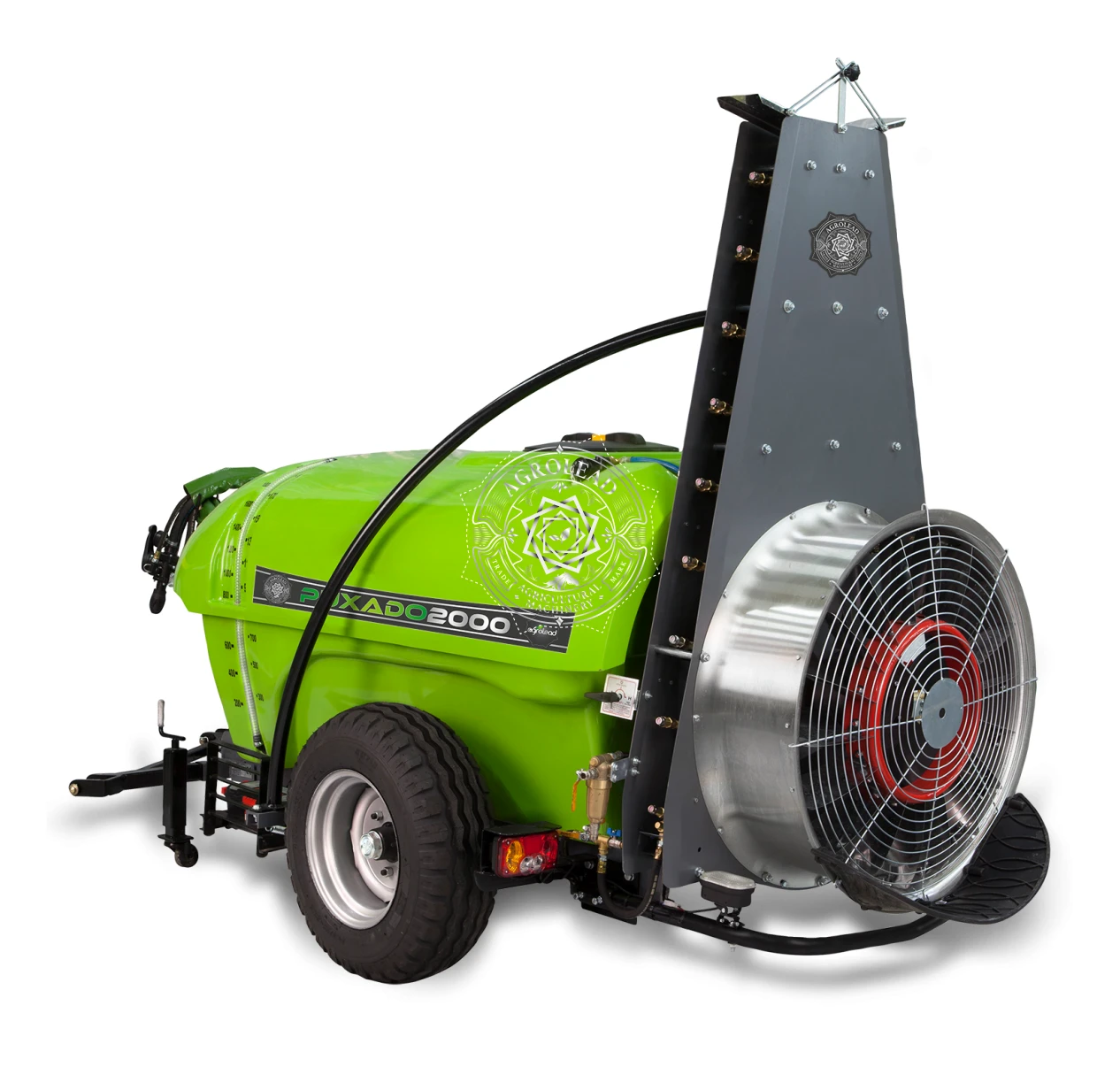

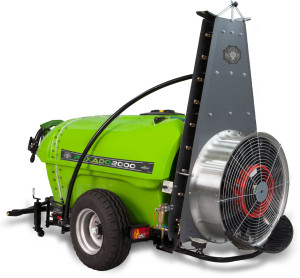

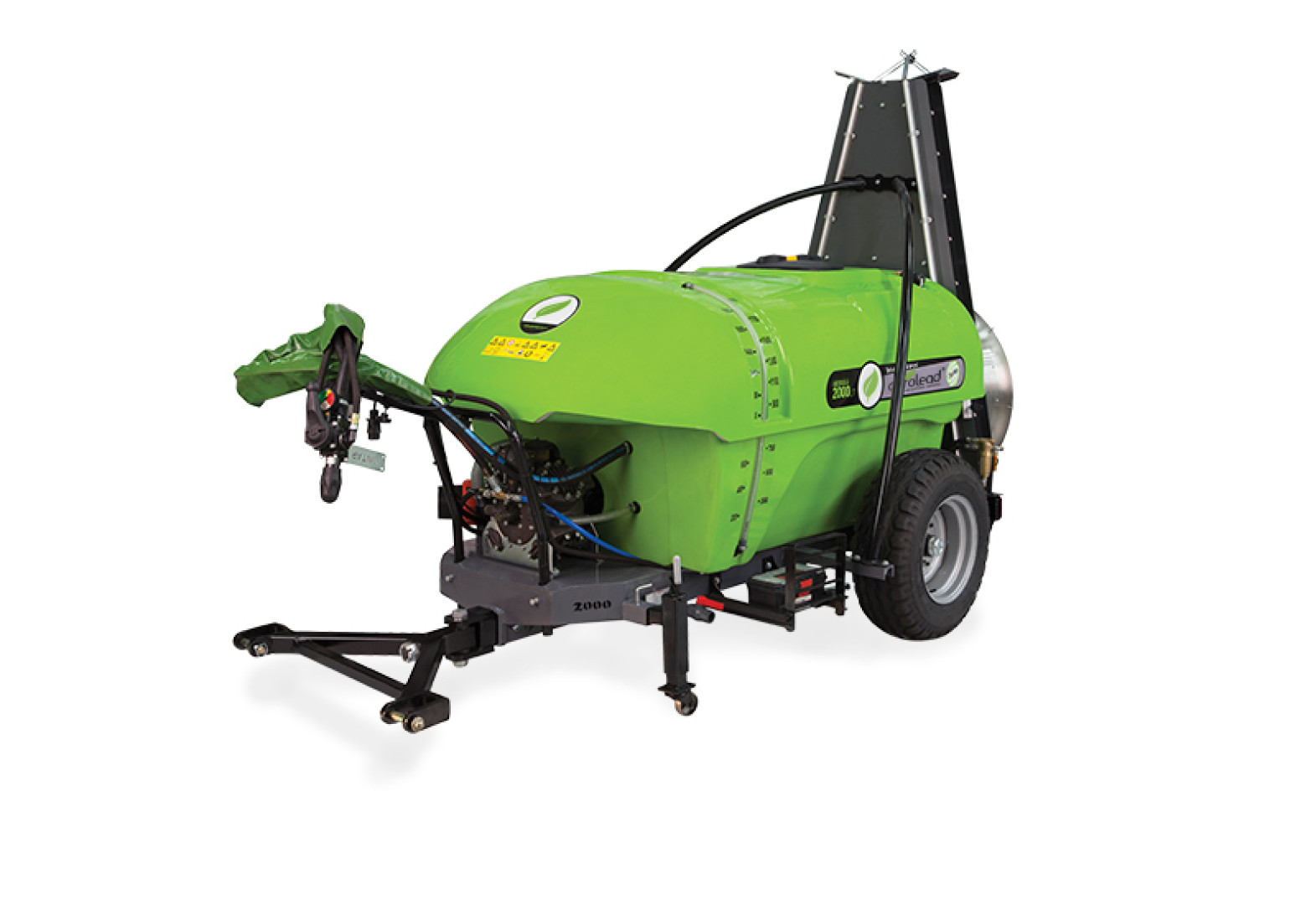

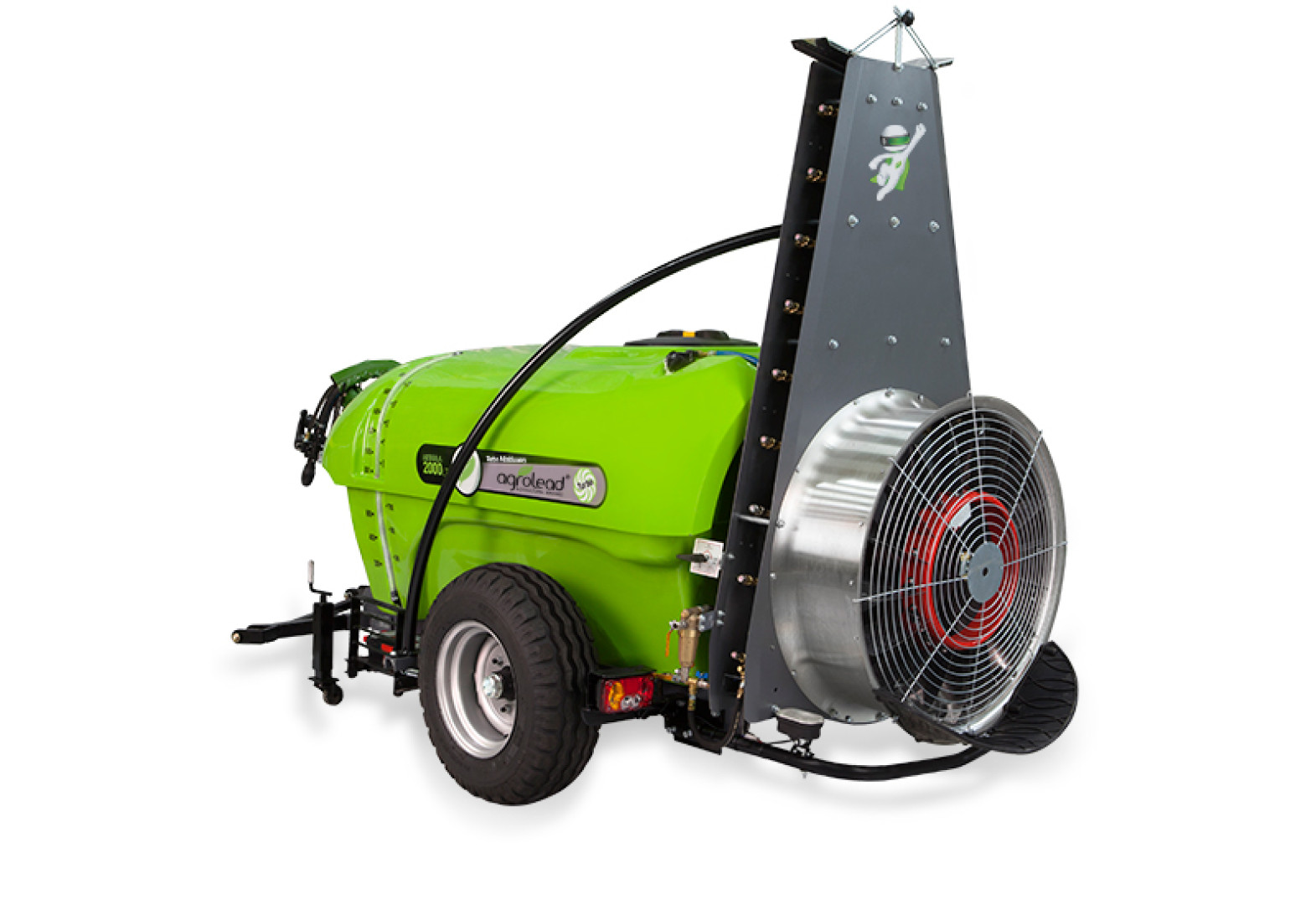

Puxado Linear Fan Air Blast Sprayer

Puxado Linear Fan Air Blast Sprayer

Puxado Linear Tower produces equalized air pressure from top to bottom of the tower creating an even distribution of spray throughout the tree canopy. This allows for simple, same tip calibration rather than the multiple tips required by traditional air blast sprayers that need higher flow tips to reach to the top of the trees from ground level. Puxado air blast sprayers are designed specifically to eliminate the waste from drift and runoff associated with traditional air blast sprayers. Puxado sprayers are used for combating with undesirable pests and bacterias in trees. Model has 850 and 900 mm front intake fan, which are compitable with 2-3 mts air tower, robust and efficient. We offer Puxado models as 1000, 1200, 1600,2000, 3000 lt capacities with 105 or 145 lts pump according to the chosen air tower. There is no bare areas and no wasteful chemical runoff. Modern sand blasting and powder coating methods provides an effective protection of the frame.

TECHNICAL SPECIFICATIONSUNITMODEL
PUXADO 1000PUXADO 1600PUXADO 2000
Capacitylt100016002000
Pumplt105140140
Flow Ratel/min105140140
Pressurebar505050
Pto Rpmrpm540540540
Fan Diametercm859090
Fan Flow Ratem³/h540006600066000
Injectorpcs101414
Widthmm152013001450
Lengthmm129037503750
Heightmm150013301330
Weightkg240485490
TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt1000
Pumplt105
Flow Ratel/min105
Pressurebar50
Pto Rpmrpm540
Fan Diametercm85
Fan Flow Ratem³/h54000
Injectorpcs10
Widthmm1520
Lengthmm1290
Heightmm1500
Weightkg240
TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt1600
Pumplt140
Flow Ratel/min140
Pressurebar50
Pto Rpmrpm540
Fan Diametercm90
Fan Flow Ratem³/h66000
Injectorpcs14
Widthmm1300
Lengthmm3750
Heightmm1330
Weightkg485
TECHNICAL SPECIFICATIONSUNITMODEL
Capacitylt2000
Pumplt140
Flow Ratel/min140
Pressurebar50
Pto Rpmrpm540
Fan Diametercm90
Fan Flow Ratem³/h66000
Injectorpcs14
Widthmm1450
Lengthmm3750
Heightmm1330
Weightkg490
