Verro Fertilizer Spreader

Verro Fertilizer Spreader

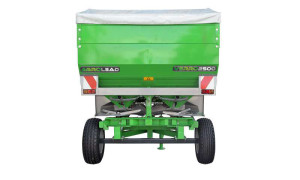

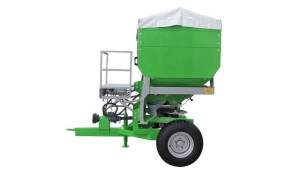

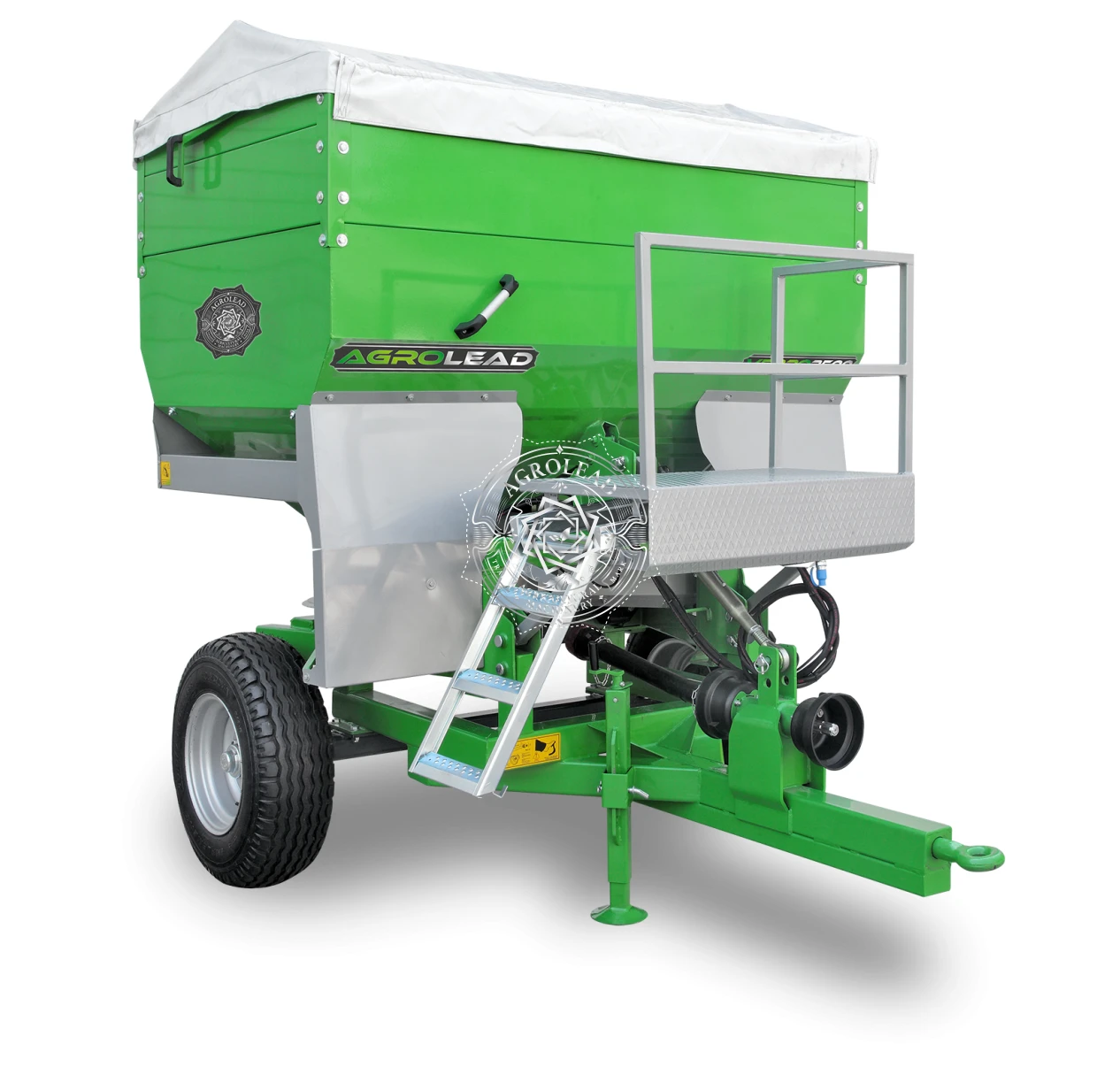

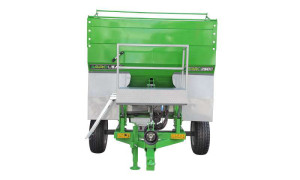

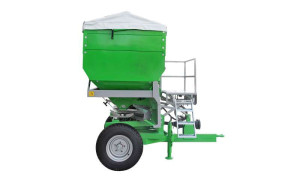

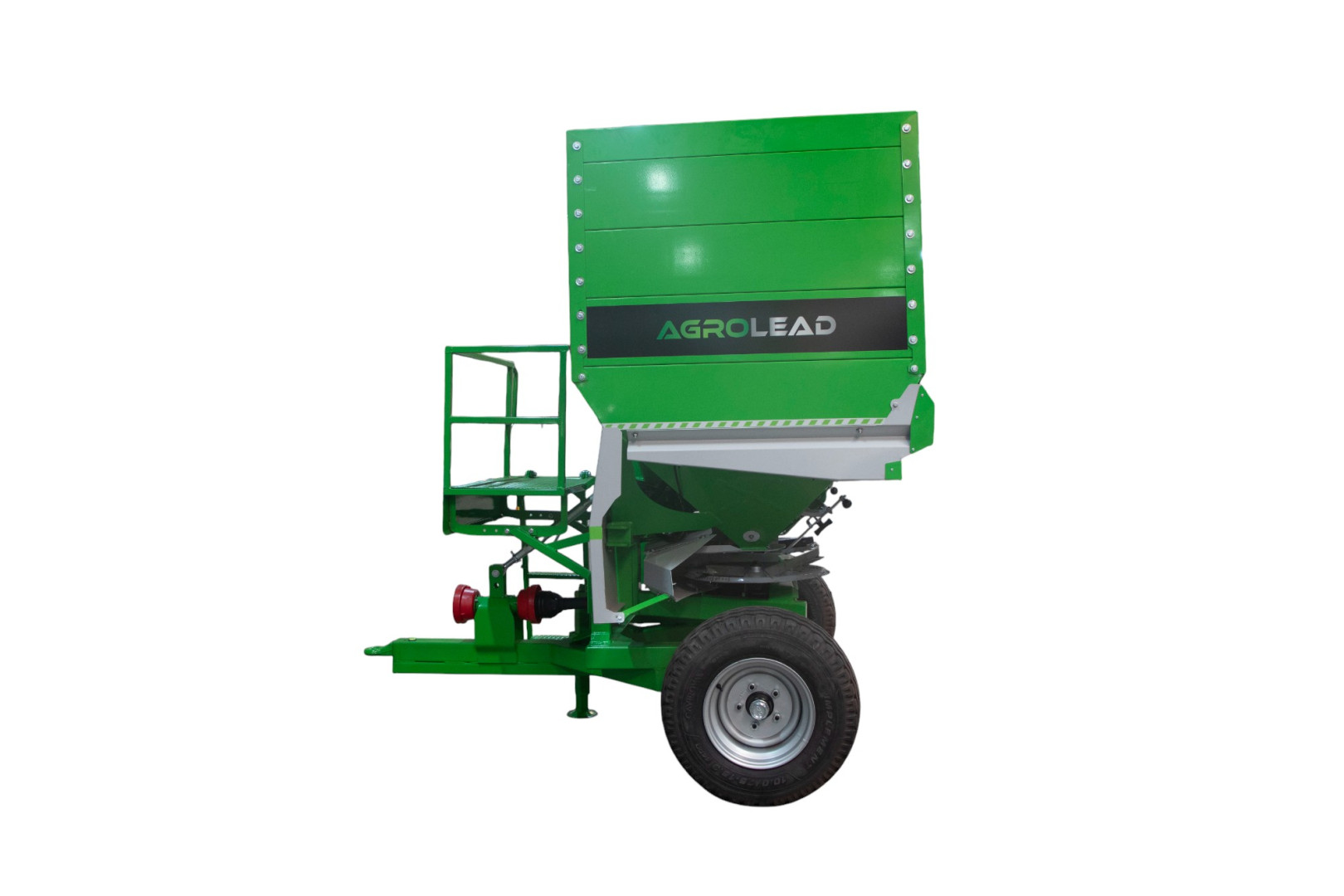

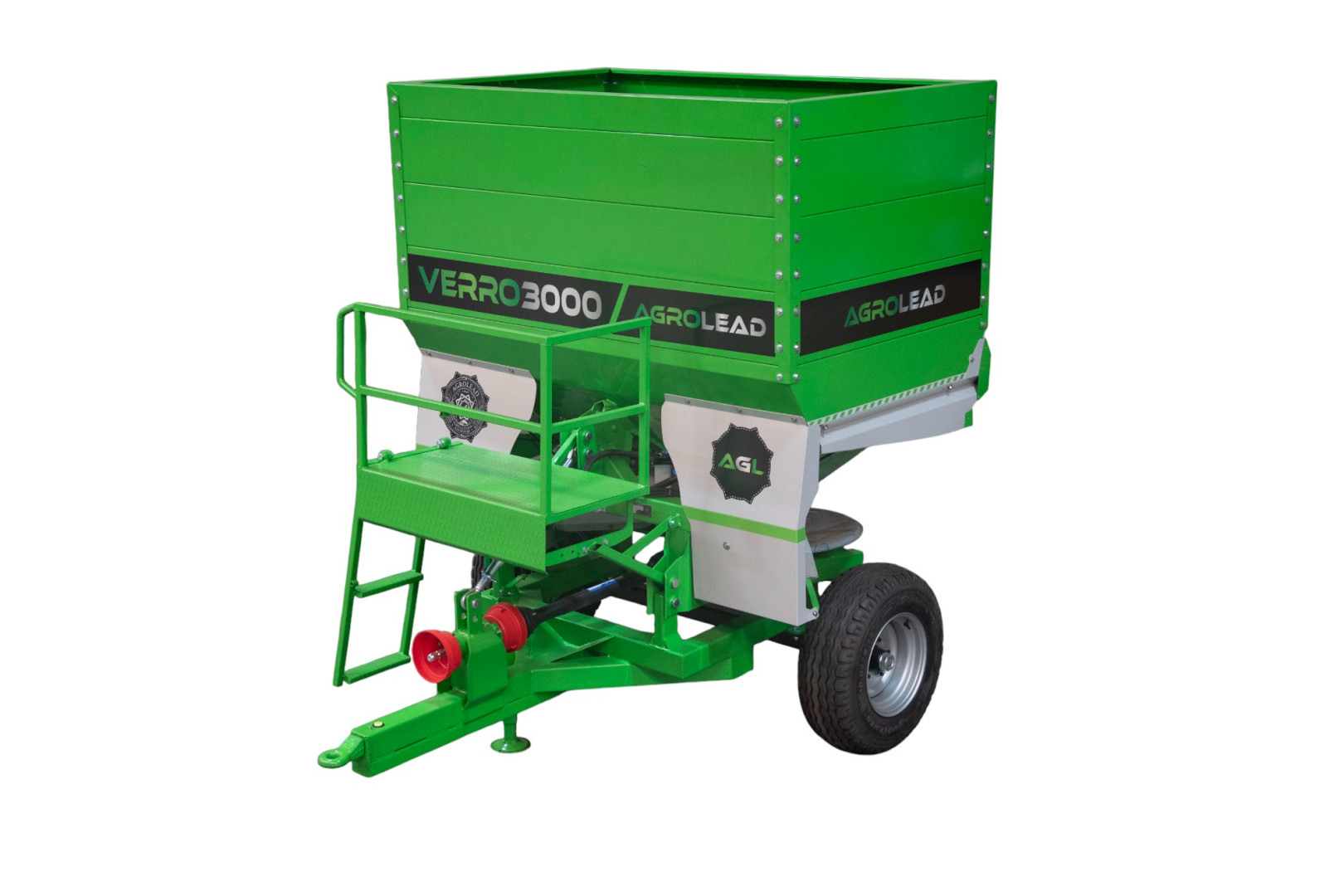

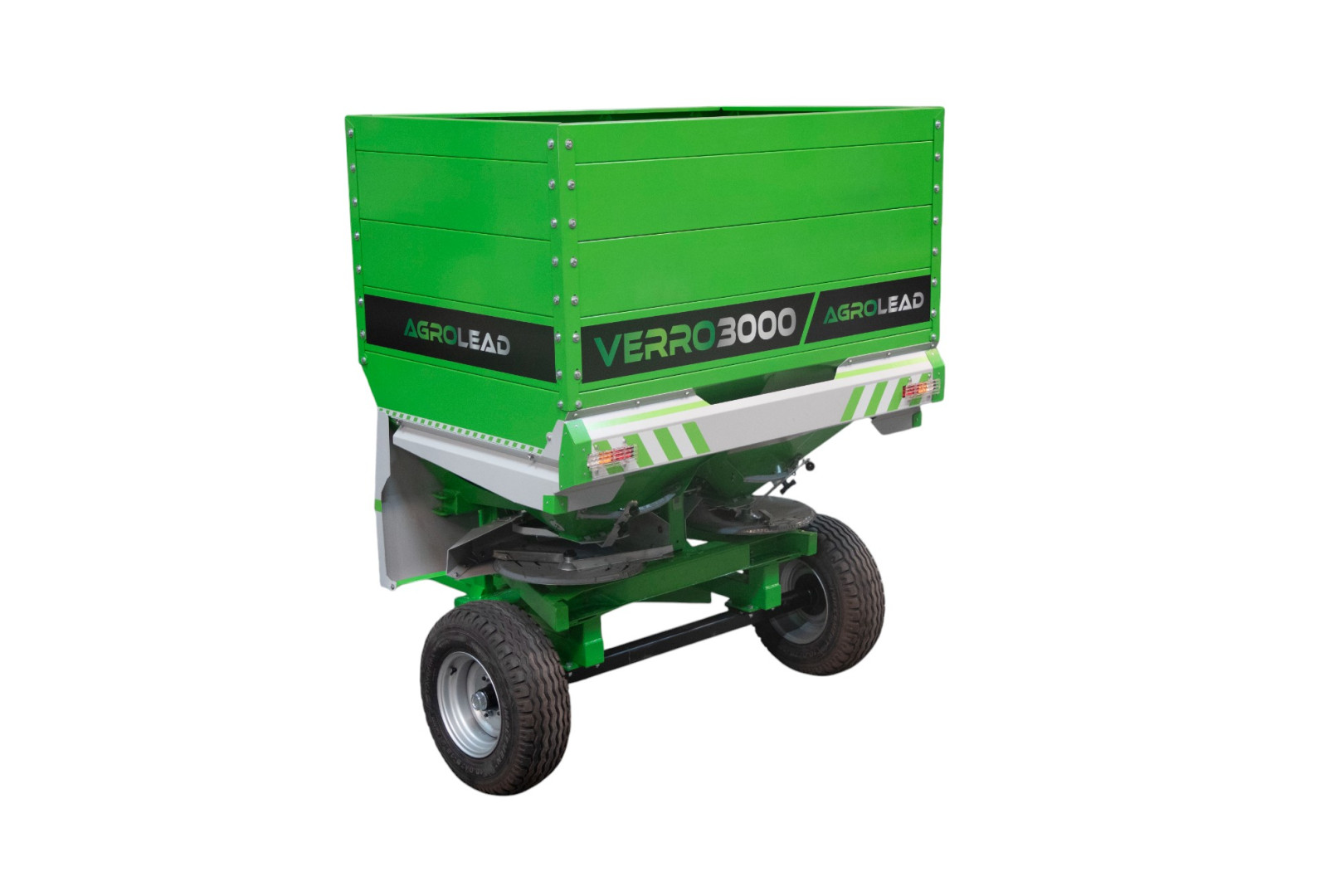

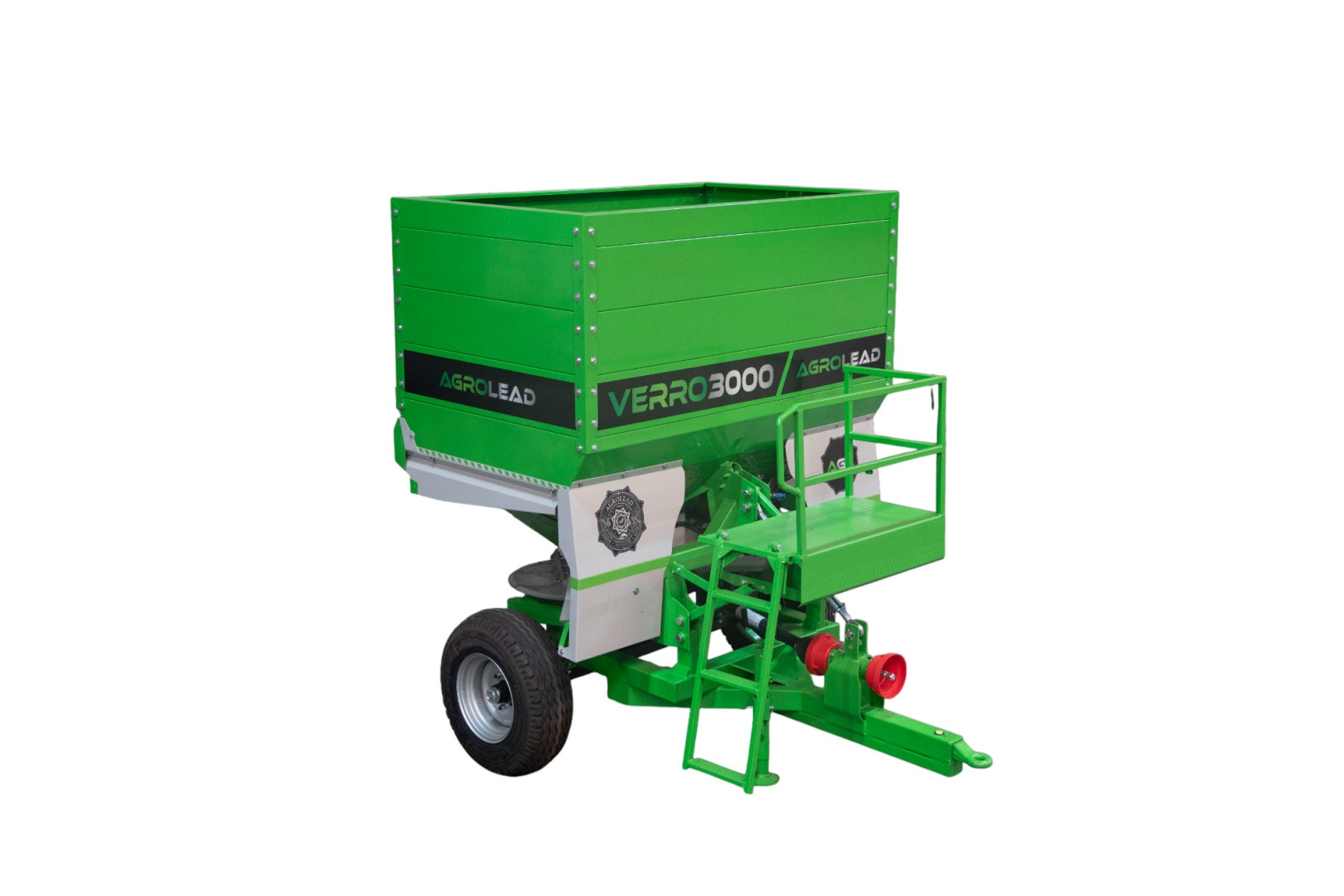

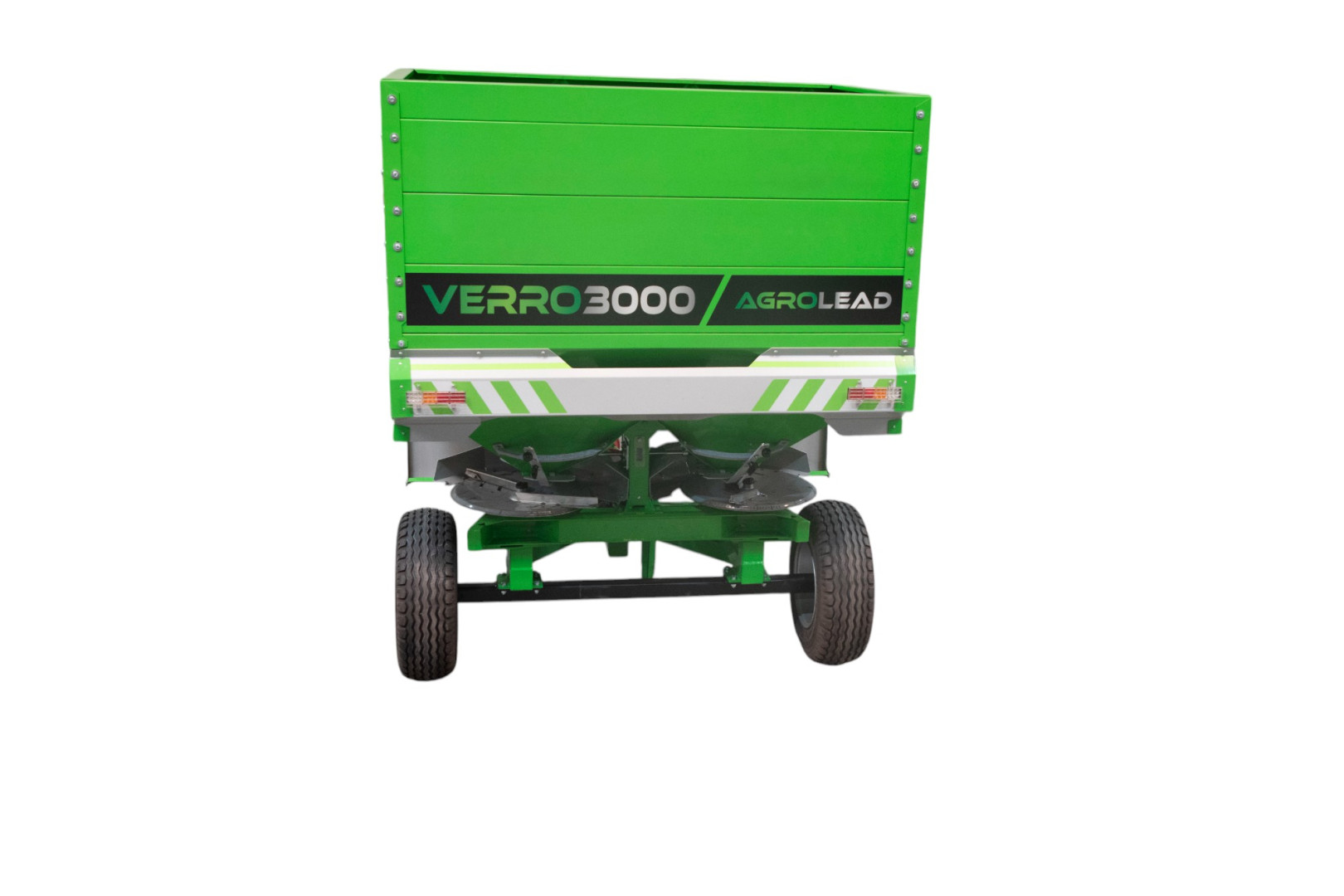

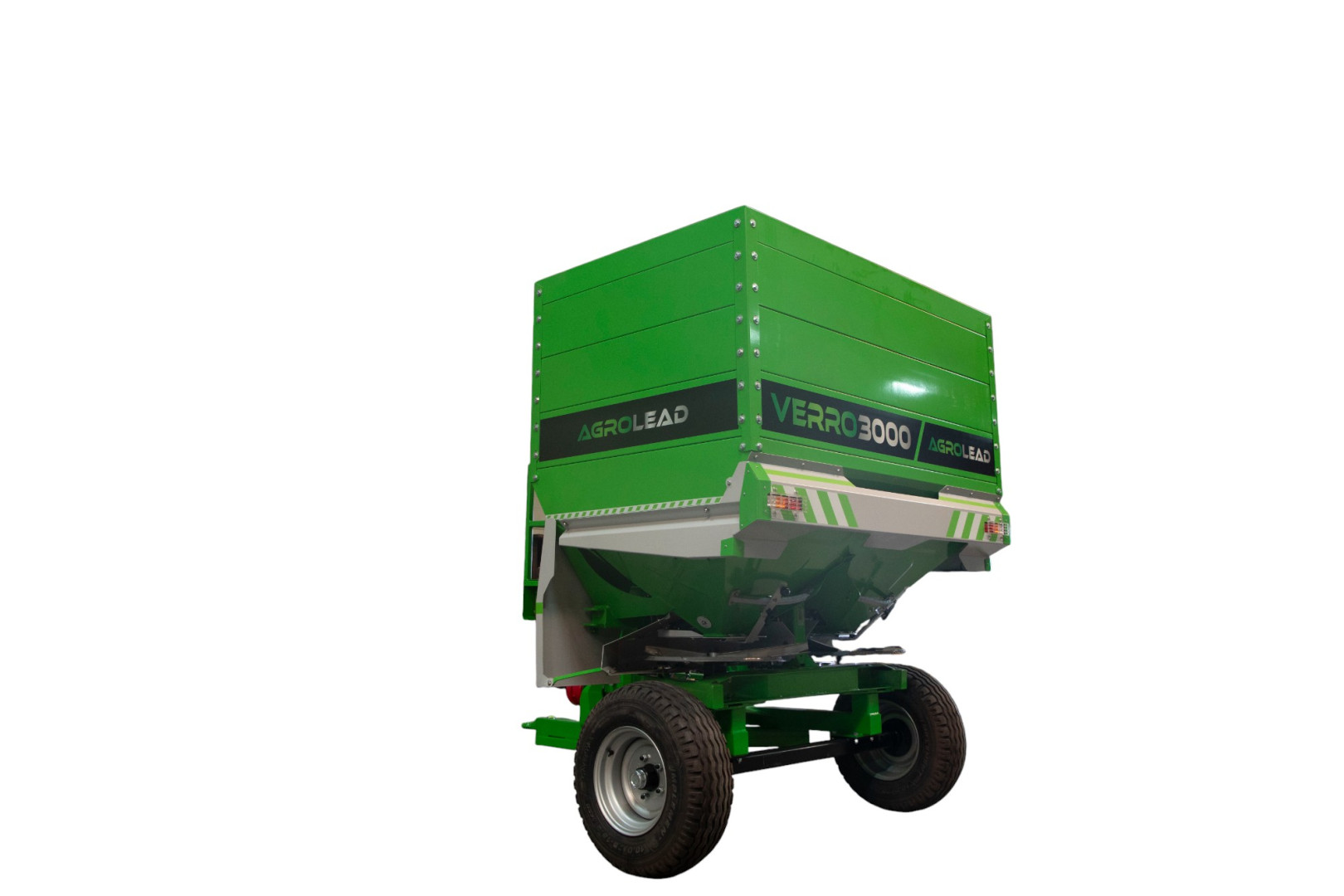

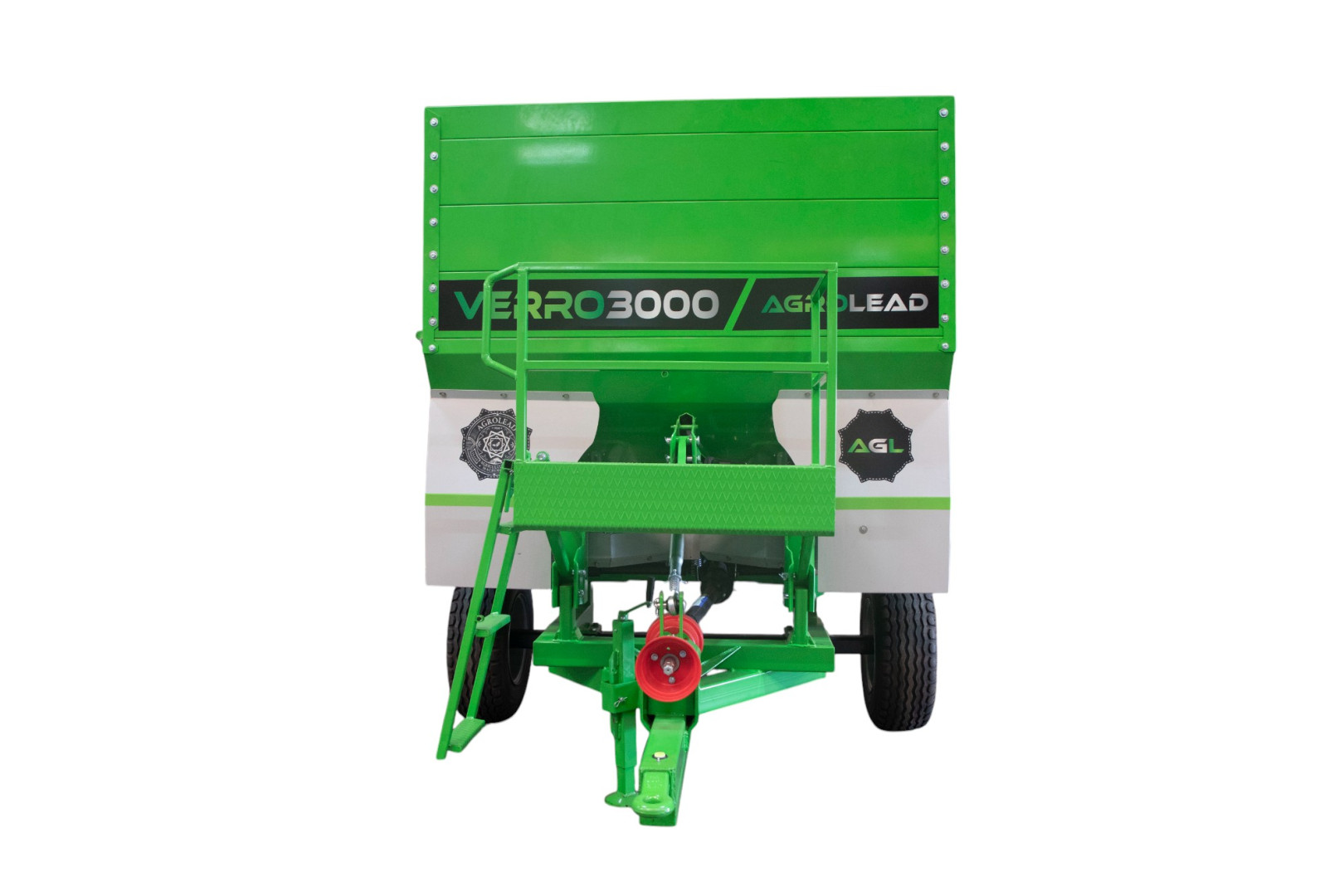

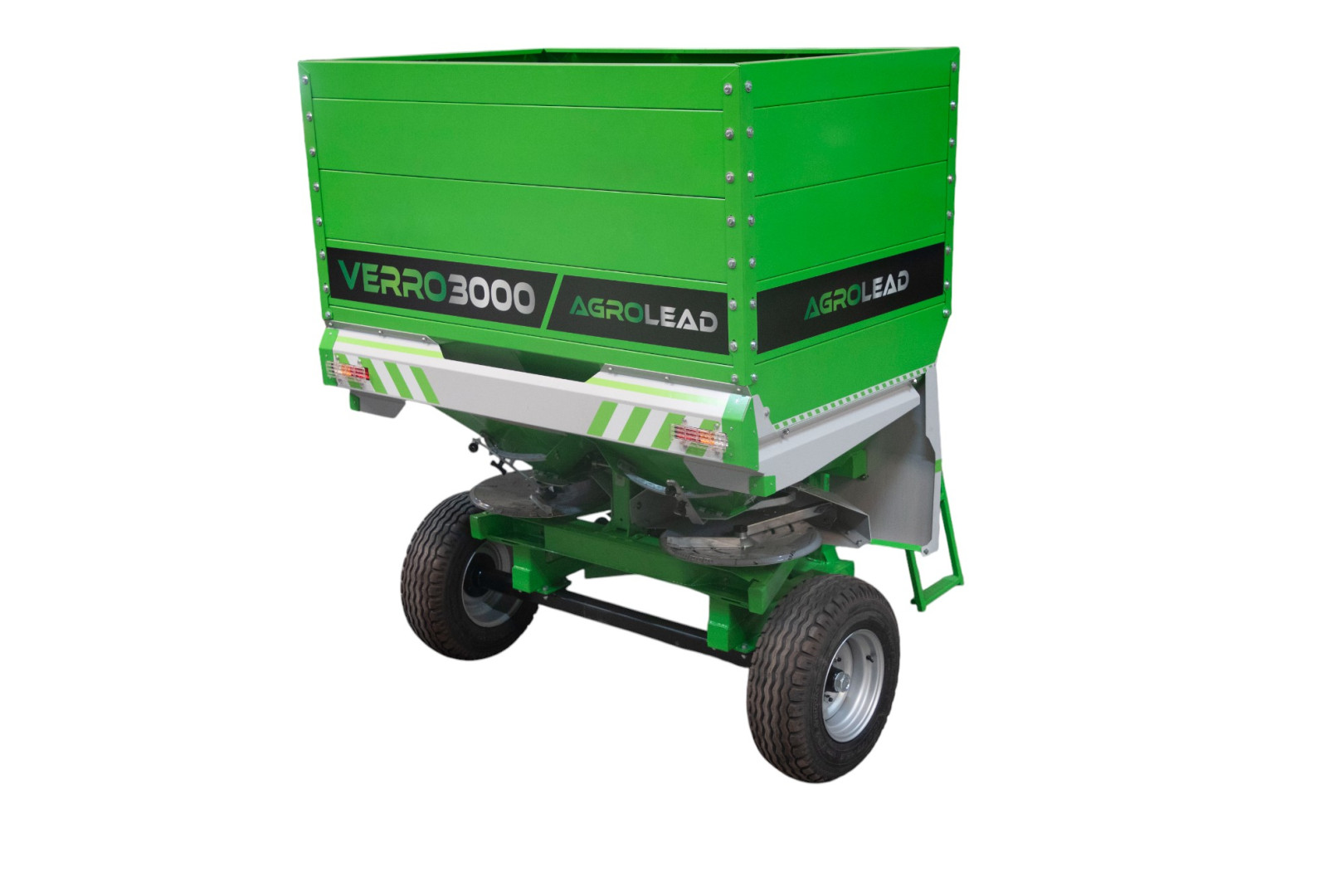

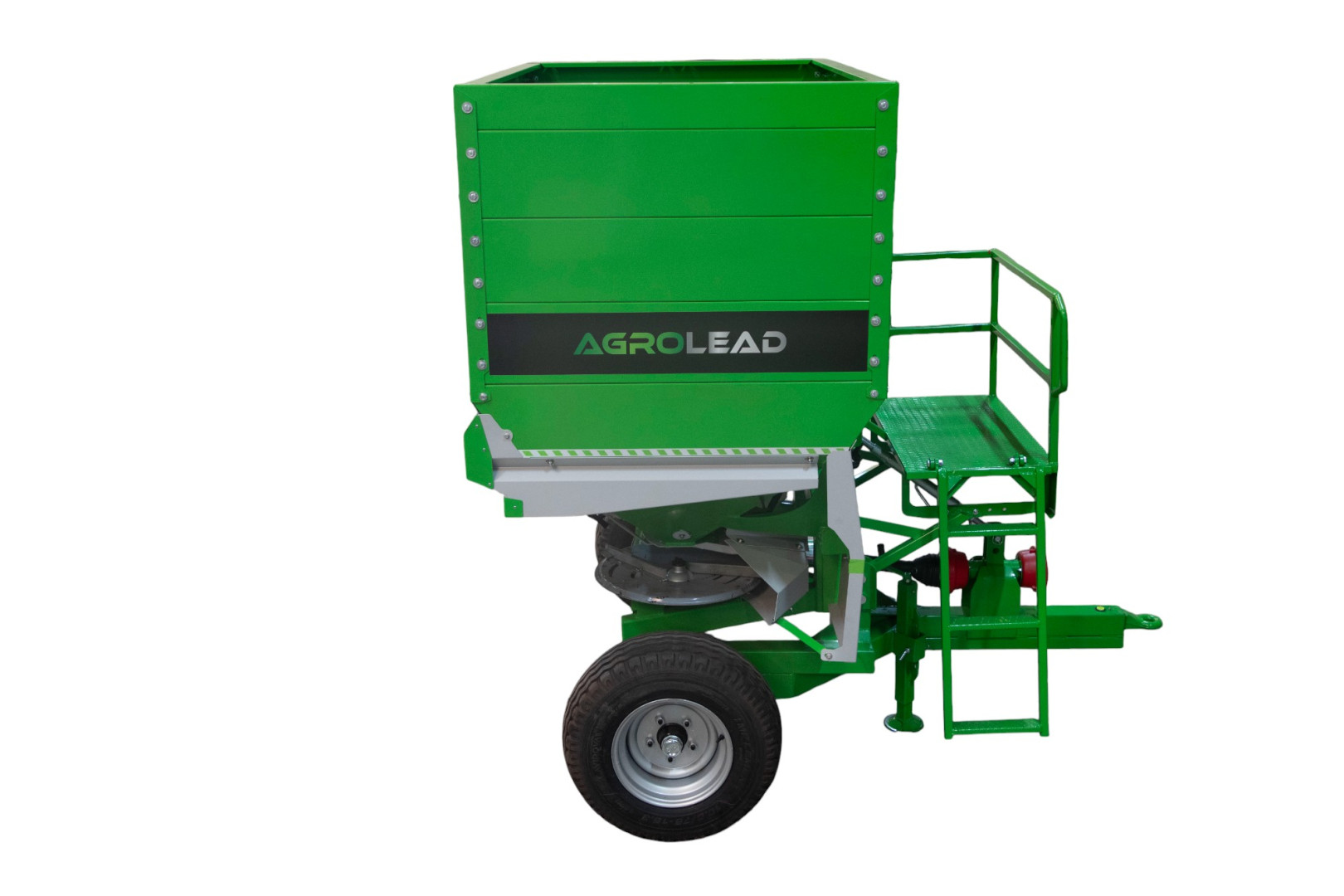

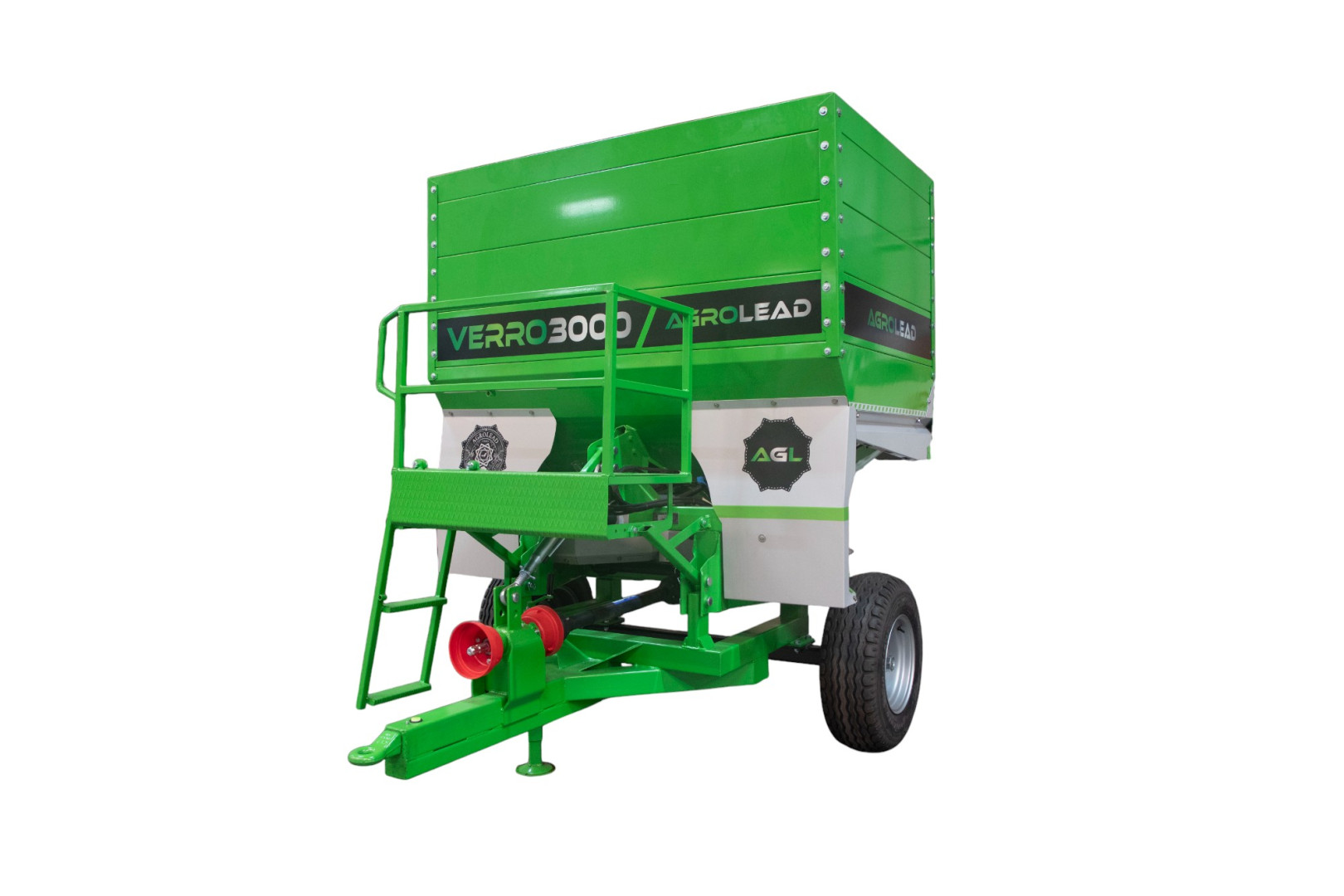

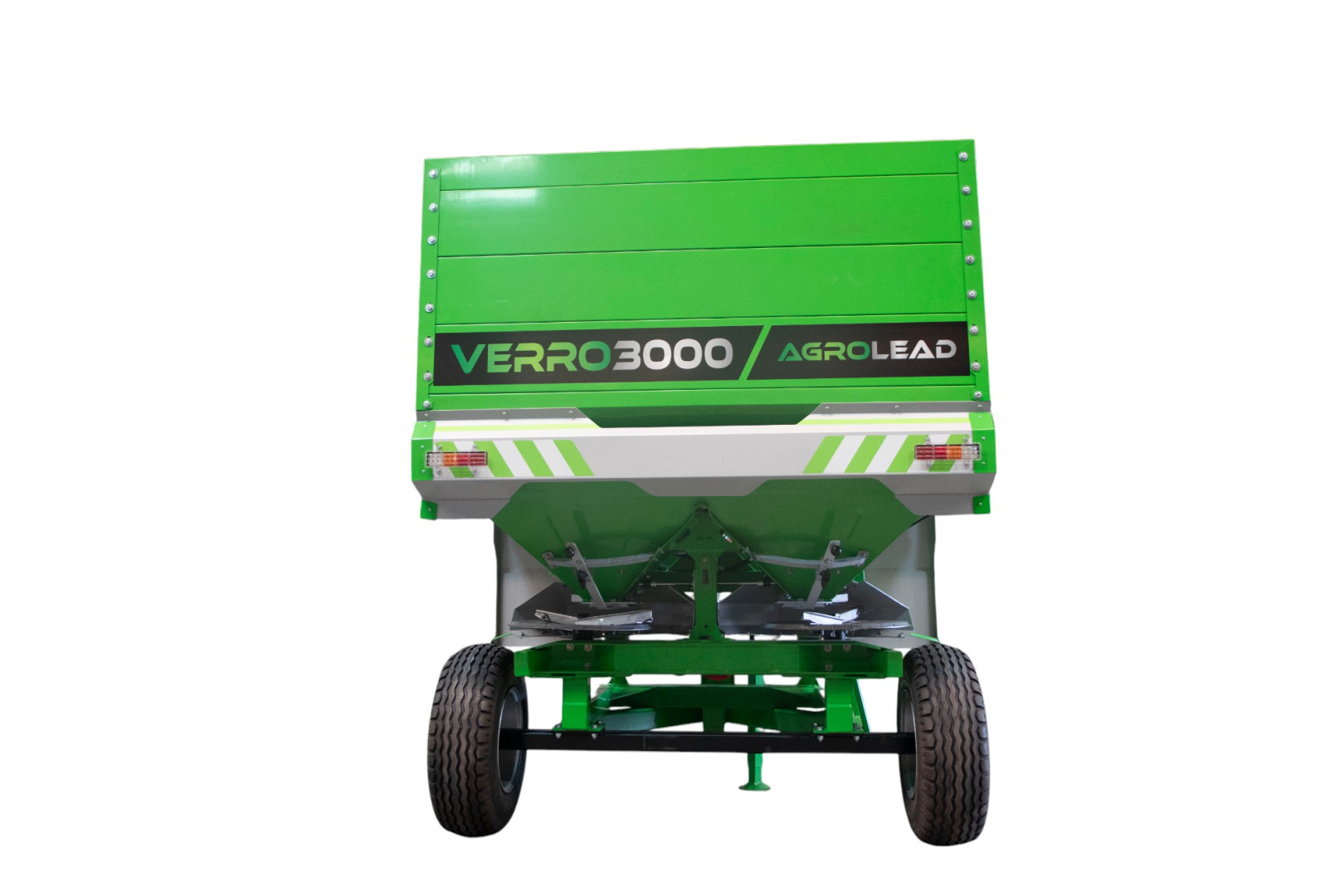

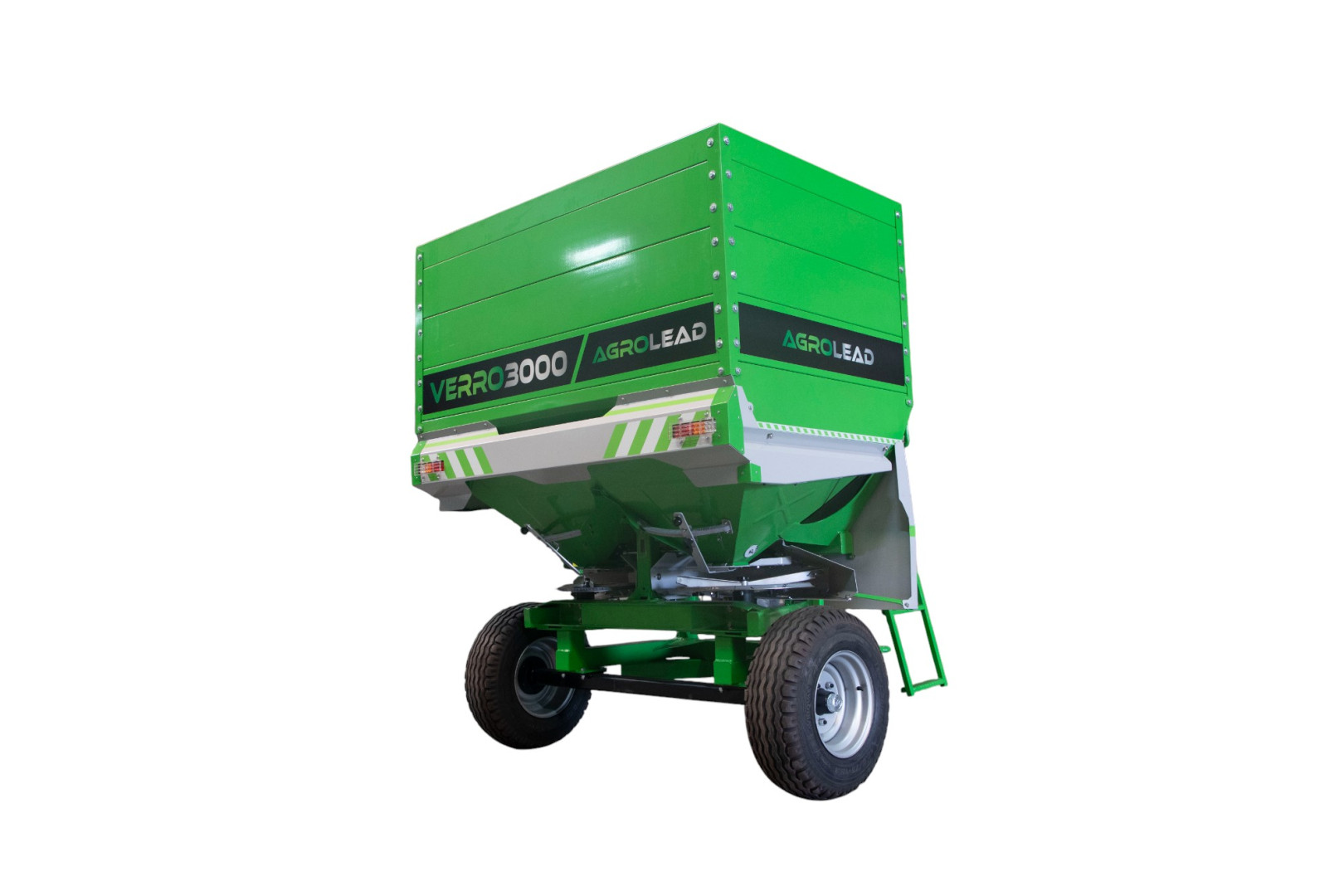

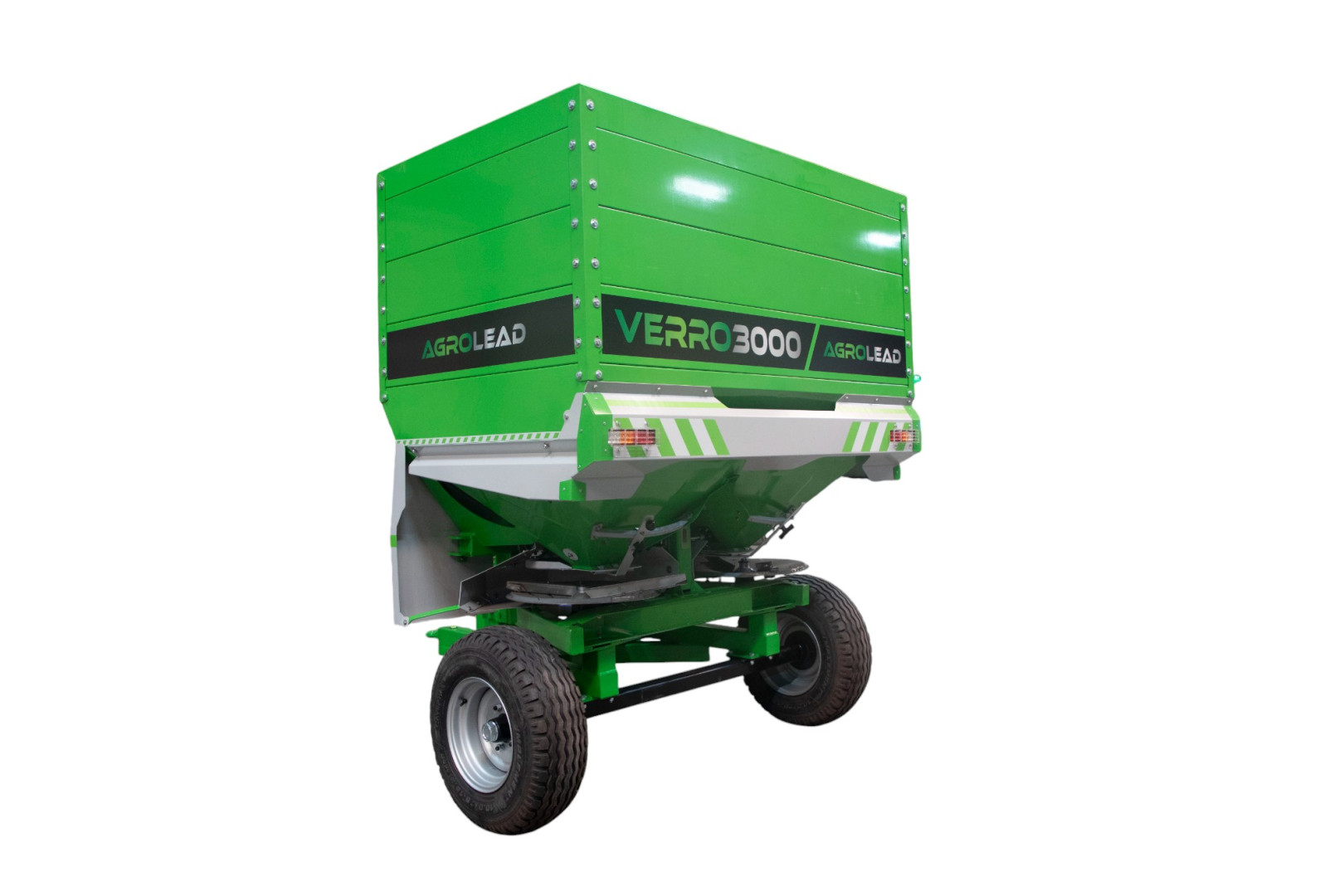

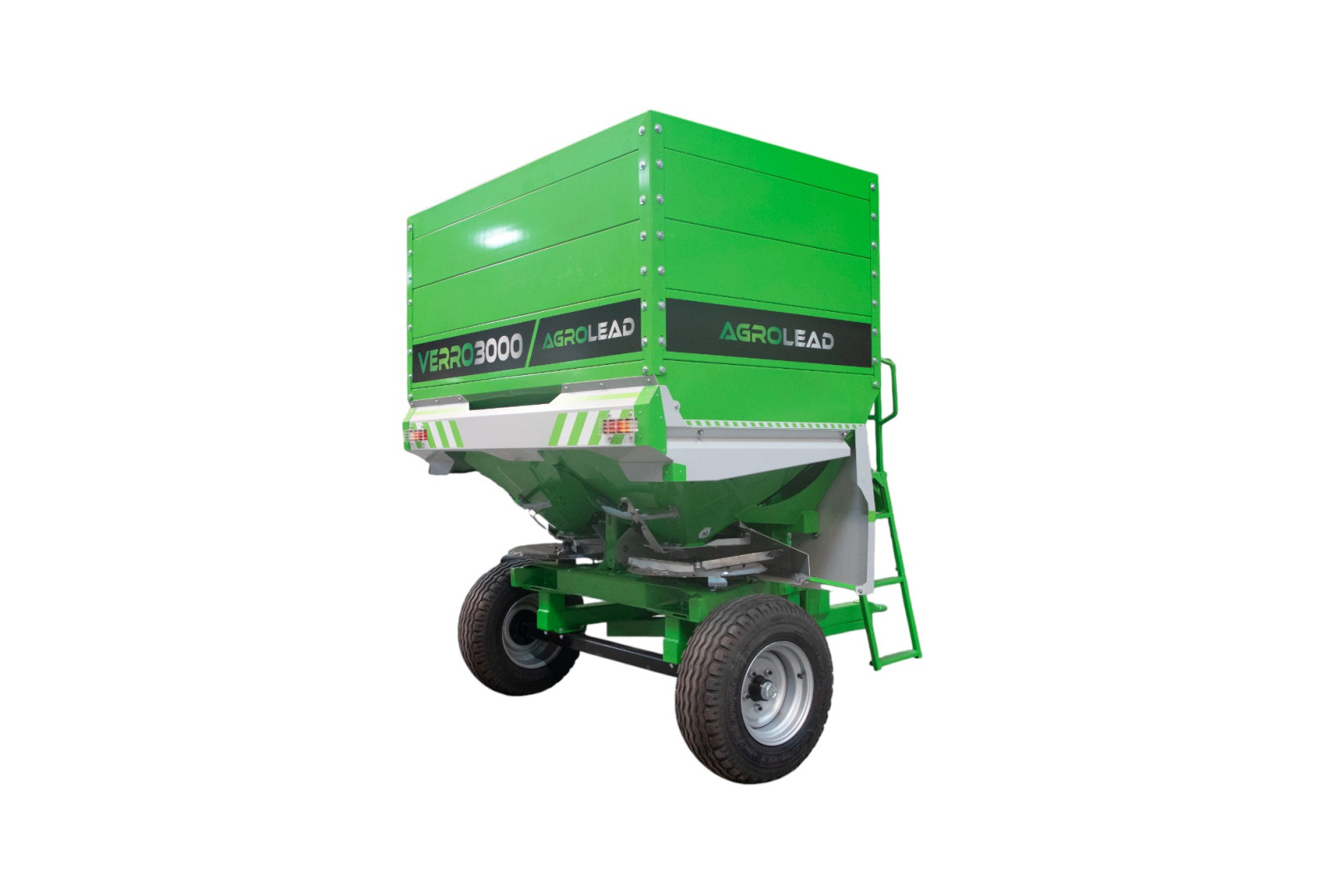

Verro Trailed Fertilizer Spreader are produced for professional purposes and powered by tractor take-off . Model is formed as single axle trailing with 900 lt main tank, however the capacity of the models are increased thrugh sideboards up to 3500 lt. Axles can be produced as twin axle and main tank can be produced as x-large tank if required. Dosage of the fertilizer are hydraulically controlled in Verro Spreaders. Thanks to this feature, fertilizers are easily and quickly spreaded at the beginning of the border through control from the tractor cabin. Thus unnecessary fertilizer consumption is prevented. Fertilizer tank is divided in two pieces with opposite V shaped separative that is under the tank and the mixer shaft in the fertilizer tank is located in a horizontal position and rotates with low rev. These inox mixer shafts never powder the fertilizer during operation. By this way, distrubition of the fertilizer into the field is more homogeneous and fluidal. Despite the erosion caused by the chemical fertilizers you have used, all parts that come into contact with the fertilizer are made of inox material.


Three different disc options are adapted to this machine. Spreading width of the discs are 10-16 / 18-24 / 24-36 mt. Machine is equipped with 18-24 mt as standard. The settings of angle and wing length on the disc must be changed in the light of fertilizer chart. We offer you limiter apparatus to prevent unnecessary fertilizer application beyond the borders of your area or on the bottom of the fences when fertilizing.

TECHNICAL SPECIFICATIONSUNITMODEL
VERRO 2000VERRO 2500VERRO 2500 TWVERRO 3000 TWVERRO 3500 TW
Capacitylt20002500250030003500
AxletypeSingleSingleDoubleDoubleDouble
Standard Working Widthmt16-2416-2416-2416-2416-24
Optional Working Widthmt10-16 / 24-2610-16 / 24-2610-16 / 24-2610-16 / 24-2610-16 / 24-26
Disc SettypeInoxInoxInoxInoxInox
Dispenser on Discpcs22222
Disc Rotationrpm720720720720720
Working Speedkm/h15-2015-2015-2015-2015-20
Dosage AdjustmentctrlHydraulicHydraulicHydraulicHydraulicHydraulic
Heightmm22402280233023702390
Widthmm23502350235023502350
Lengthmm22502250244024402440
Weightkg640680800850900
Required Powerhp708090100110
TECHNICAL SPECIFICATIONSUNITVERRO 2000
Capacitylt2000
AxletypeSingle
Standard Working Widthmt16-24
Optional Working Widthmt10-16 / 24-26
Disc SettypeInox
Dispenser on Discpcs2
Disc Rotationrpm720
Working Speedkm/h15-20
Dosage AdjustmentctrlHydraulic
Heightmm2240
Widthmm2350
Lengthmm2250
Weightkg640
Required Powerhp70

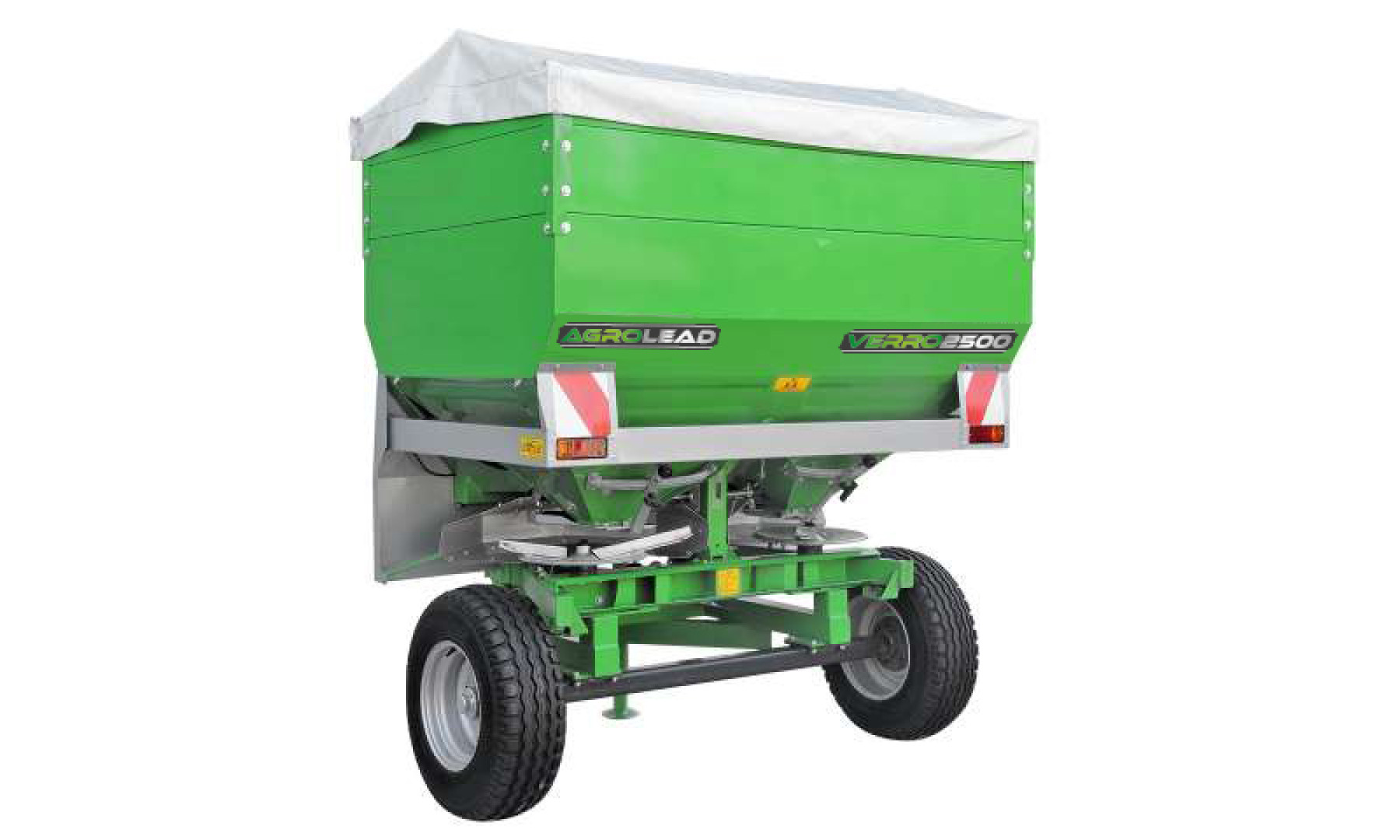

TECHNICAL SPECIFICATIONSUNITVERRO 2500
Capacitylt2500
AxletypeSingle
Standard Working Widthmt16-24
Optional Working Widthmt10-16 / 24-26
Disc SettypeInox
Dispenser on Discpcs2
Disc Rotationrpm720
Working Speedkm/h15-20
Dosage AdjustmentctrlHydraulic
Heightmm2280
Widthmm2350
Lengthmm2250
Weightkg680
Required Powerhp80
TECHNICAL SPECIFICATIONSUNITVERRO 2500 TW
Capacitylt2500
AxletypeDouble
Standard Working Widthmt16-24
Optional Working Widthmt10-16 / 24-26
Disc SettypeInox
Dispenser on Discpcs2
Disc Rotationrpm720
Working Speedkm/h15-20
Dosage AdjustmentctrlHydraulic
Heightmm2330
Widthmm2350
Lengthmm2440
Weightkg800
Required Powerhp90
TECHNICAL SPECIFICATIONSUNITVERRO 3000 TW
Capacitylt3000
AxletypeDouble
Standard Working Widthmt16-24
Optional Working Widthmt10-16 / 24-26
Disc SettypeInox
Dispenser on Discpcs2
Disc Rotationrpm720
Working Speedkm/h15-20
Dosage AdjustmentctrlHydraulic
Heightmm2370
Widthmm2350
Lengthmm2440
Weightkg850
Required Powerhp100
TECHNICAL SPECIFICATIONSUNITVERRO 3500 TW
Capacitylt3500
AxletypeDouble
Standard Working Widthmt16-24
Optional Working Widthmt10-16 / 24-26
Disc SettypeInox
Dispenser on Discpcs2
Disc Rotationrpm720
Working Speedkm/h15-20
Dosage AdjustmentctrlHydraulic
Heightmm2390
Widthmm2350
Lengthmm2440
Weightkg900
Required Powerhp110
