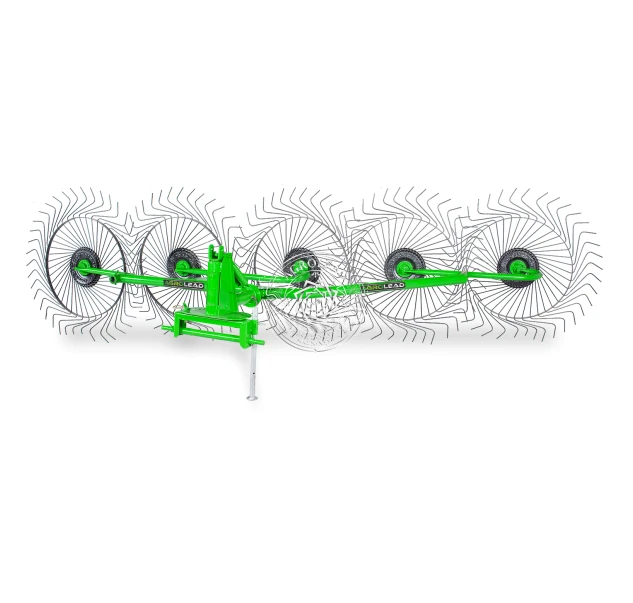

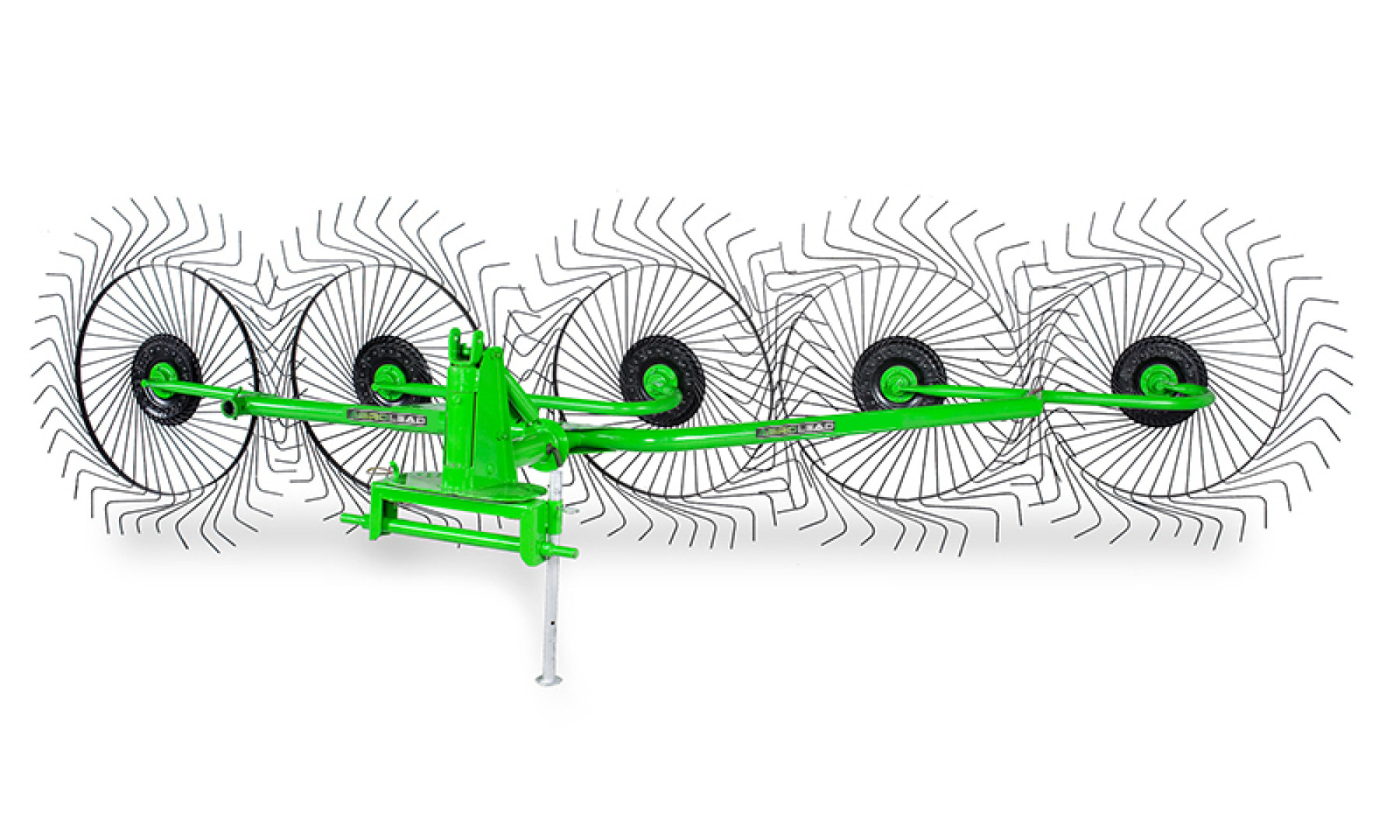

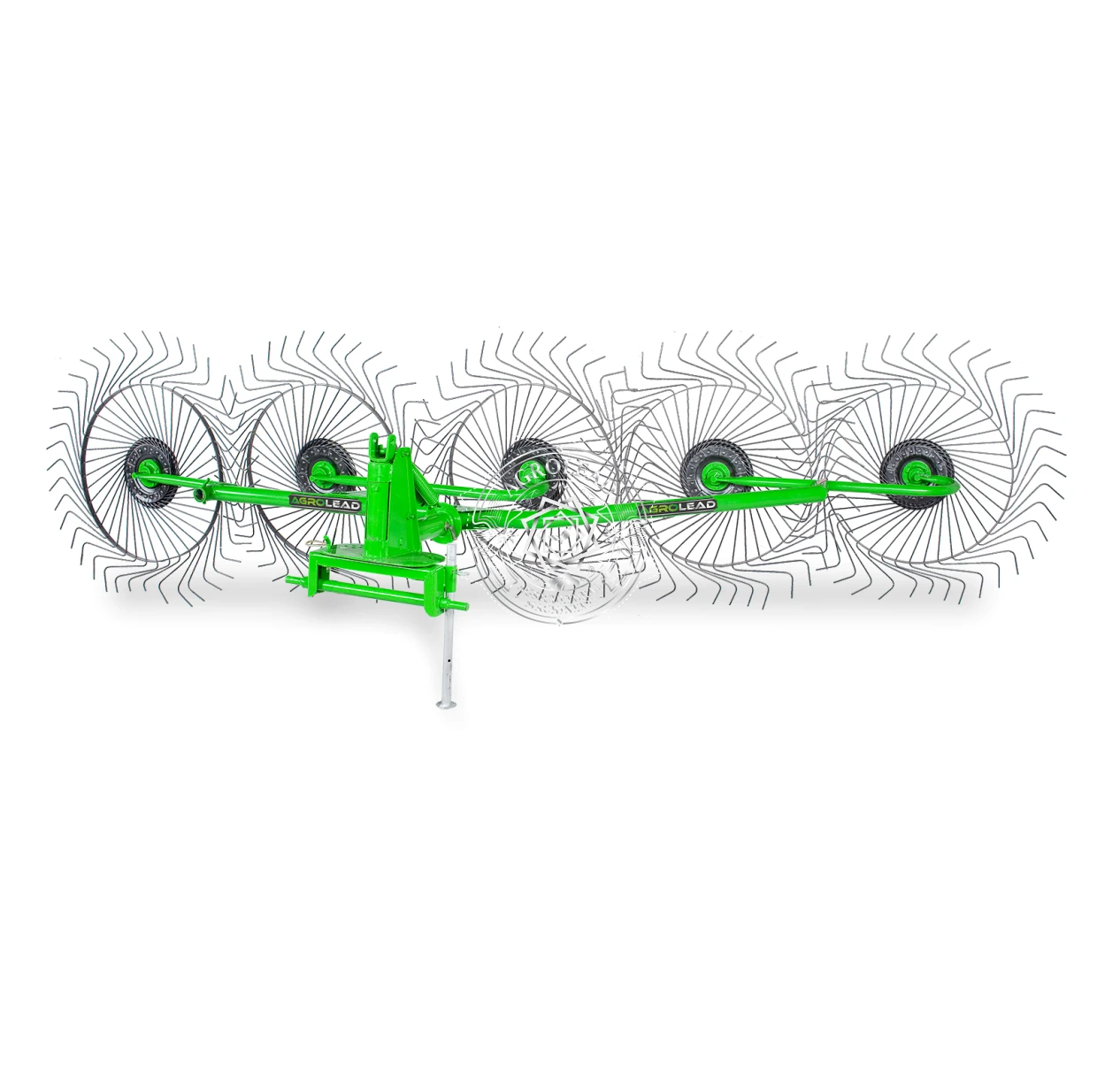

Sun Rose Hay Rake

Sun Rose Hay Rake

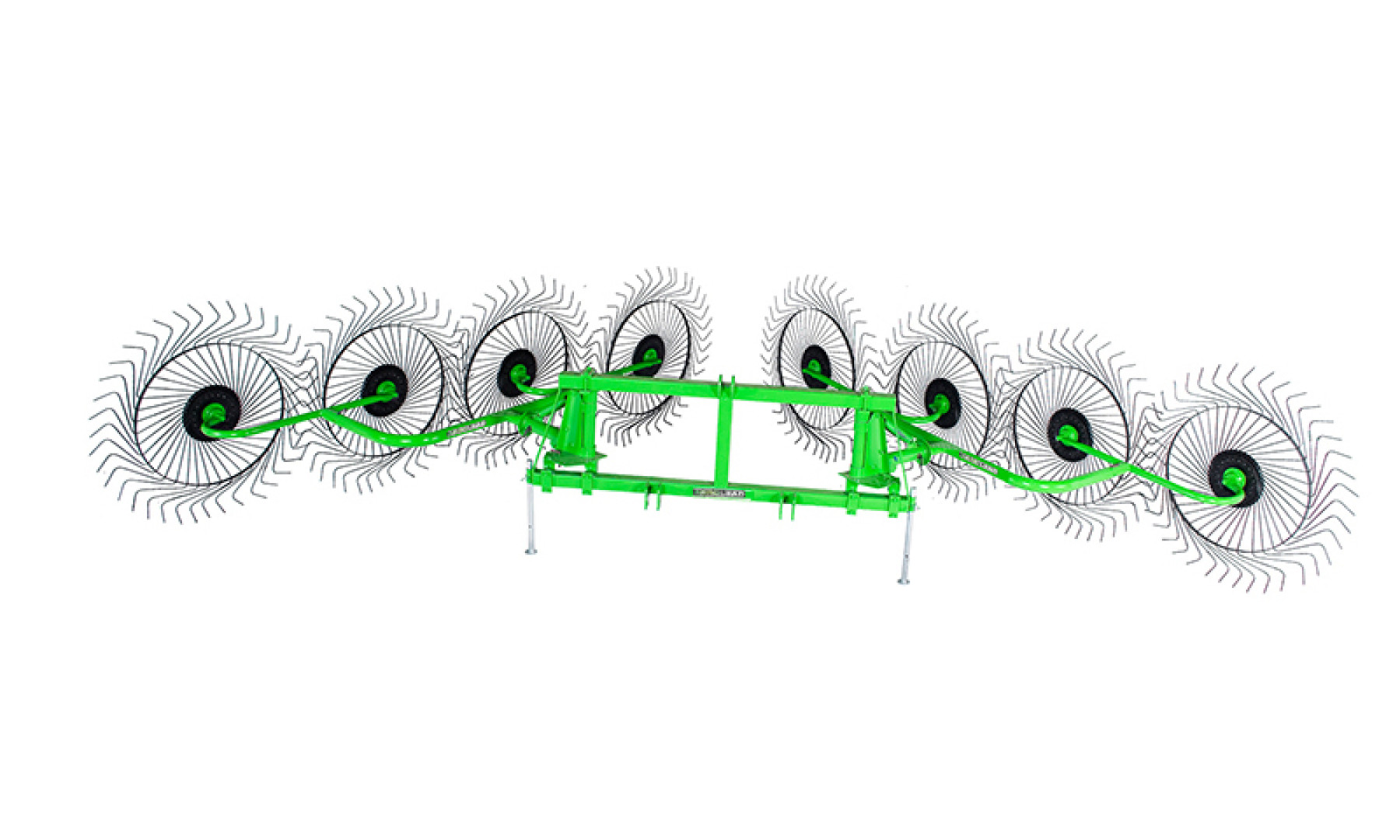

Sun Rose Side Delivery Rakes allow you to rake, turn and spread the grass without using the pto of the tractor. They also allow the formation of swath lateral with low power tractors too and they are available in versions with 4,5,8,10 discs. The head attachment on the 3 point linkage of the tractor is fitted with springs. Sun Rose, thanks to its low weight, is ideal for small size tractors and is ideal for use in sloping terrain. It provides a lot of time and labor saving. Our machine offers an excellent performance on each kind of fields and it helps farmers to make work easier than previous. Hay Rake is used for separating the green herb over the field to ventilate them to dry in a short time. It can be used to collect the cut plant stalks (barley, wheat stalks) together to put this in a standard row and by this way the plant stalks return to the economy and obtained extra gain.

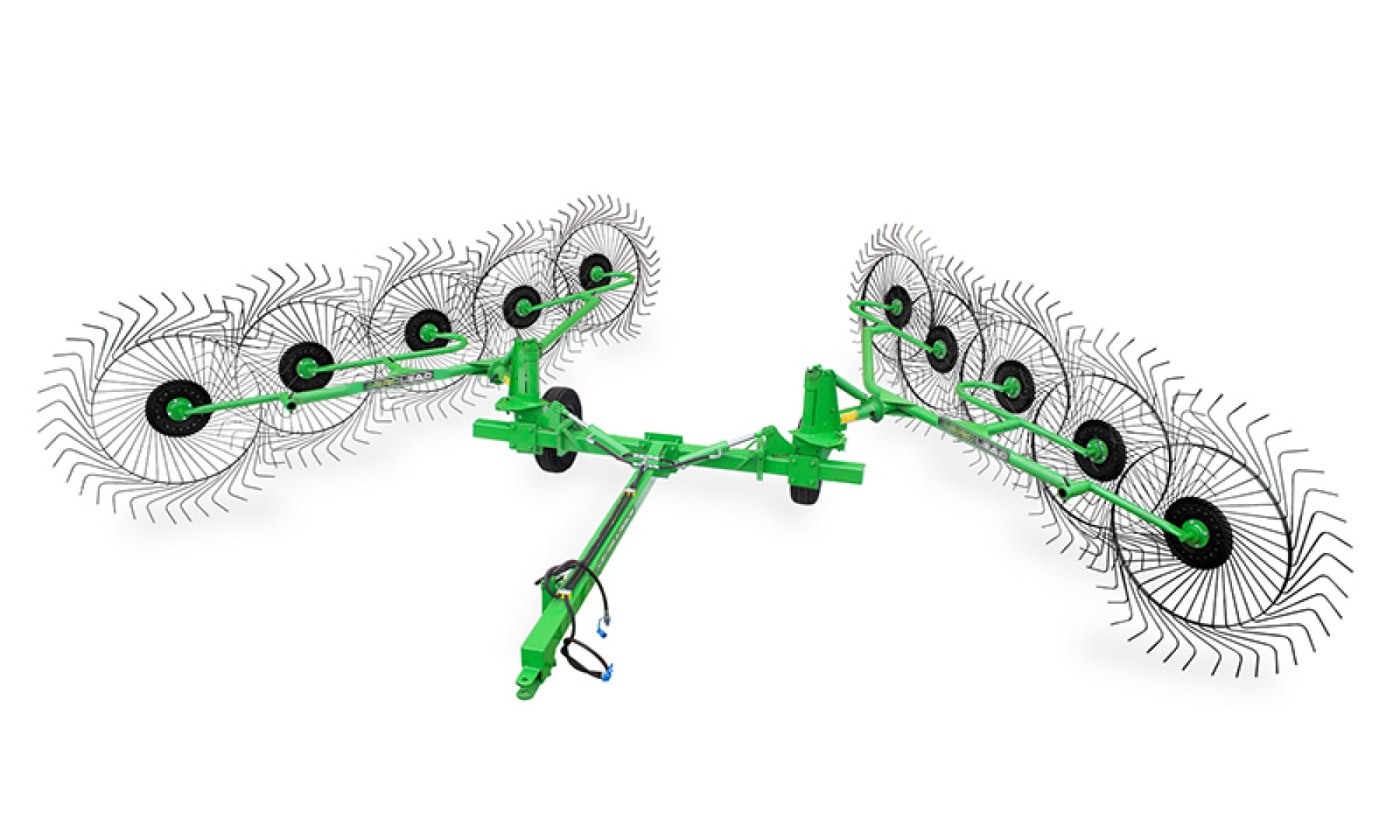

We also offer Sun Rose Hay Rake as trailed model with the name Sun Rose 10T. This hydraulic foldable and trailed version meets every needs and reaches large working widths with medium power tractors.

TECHNICAL SPECIFICATIONSUNITMODEL
SUN ROSE 4SUN ROSE 5SUN ROSE 8SUN ROSE 10SUN ROSE 10T
Number of Drumspcs4581010
Lengthmm40005300670076007600
Widthmm21002300300041004100
Working Widthcm220-260330-350520-610520-700520-700
Number of Springspcs160200320400400
Weightkg160190360590590
Required Powerhp3040505050
TECHNICAL SPECIFICATIONSUNITSUN ROSE 10
Number of Drumspcs10
Lengthmm7600
Widthmm4100
Working Widthcm520-700
Number of Springspcs400
Weightkg590
Required Powerhp50
TECHNICAL SPECIFICATIONSUNITSUN ROSE 10T
Number of Drumspcs10
Lengthmm7600
Widthmm4100
Working Widthcm520-700
Number of Springspcs400
Weightkg590
Required Powerhp50
TECHNICAL SPECIFICATIONSUNITSUN ROSE 4
Number of Drumspcs4
Lengthmm4000
Widthmm2100
Working Widthcm220-260
Number of Springspcs160
Weightkg160
Required Powerhp30
TECHNICAL SPECIFICATIONSUNITSUN ROSE 5
Number of Drumspcs5
Lengthmm5300
Widthmm2300
Working Widthcm330-350
Number of Springspcs200
Weightkg190
Required Powerhp40
TECHNICAL SPECIFICATIONSUNITSUN ROSE 8
Number of Drumspcs8
Lengthmm6700
Widthmm3000
Working Widthcm520-610
Number of Springspcs320
Weightkg360
Required Powerhp50
