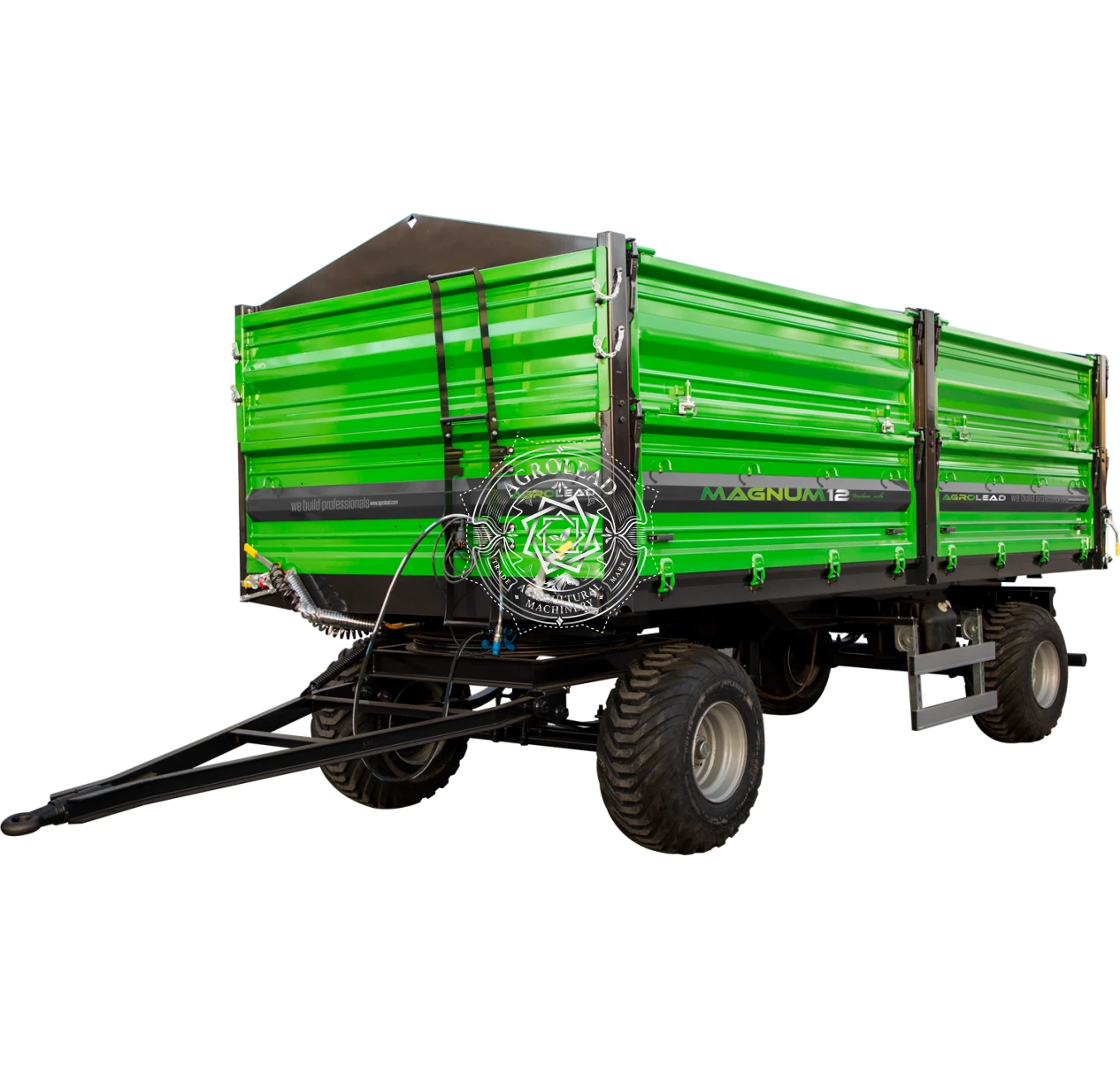

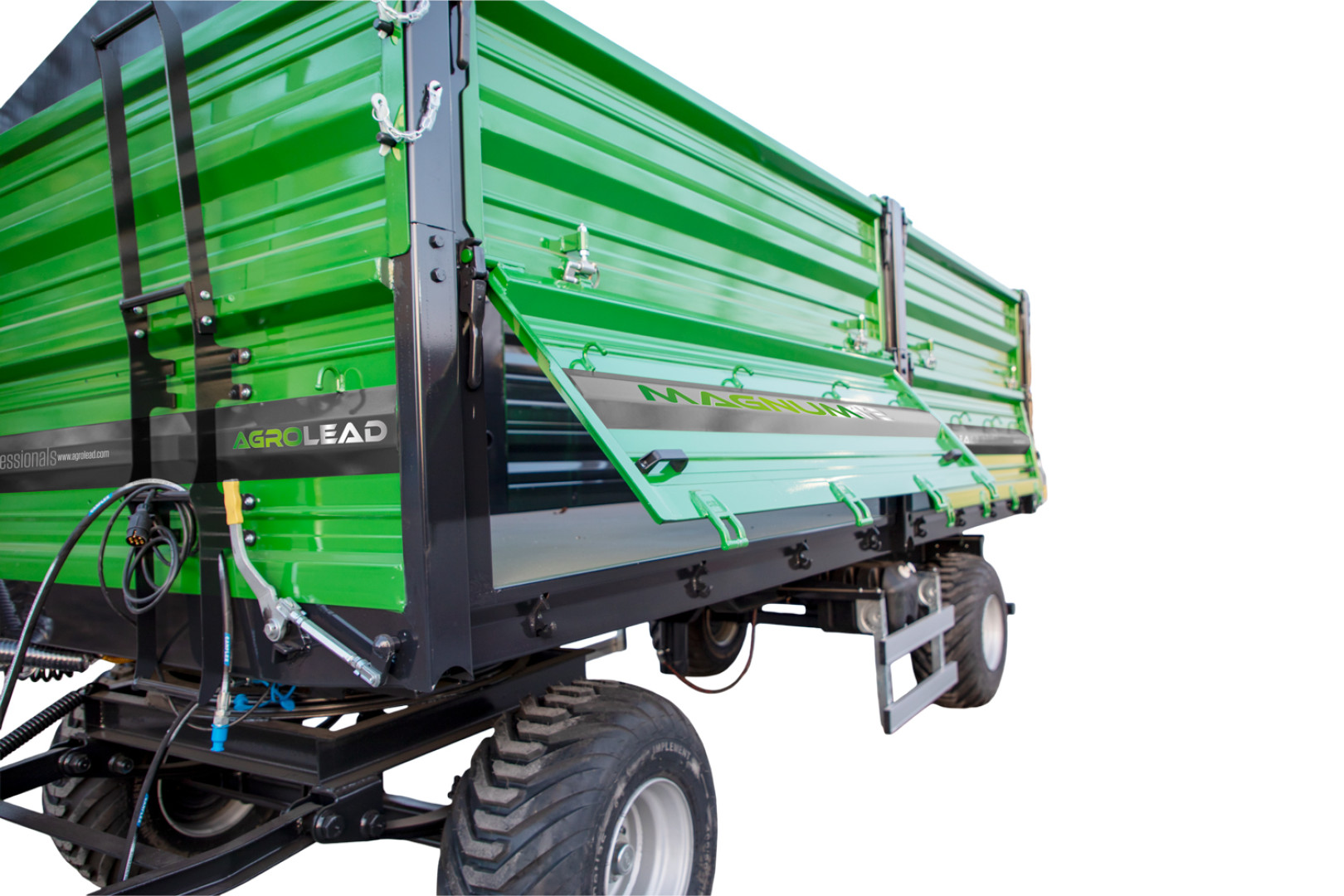

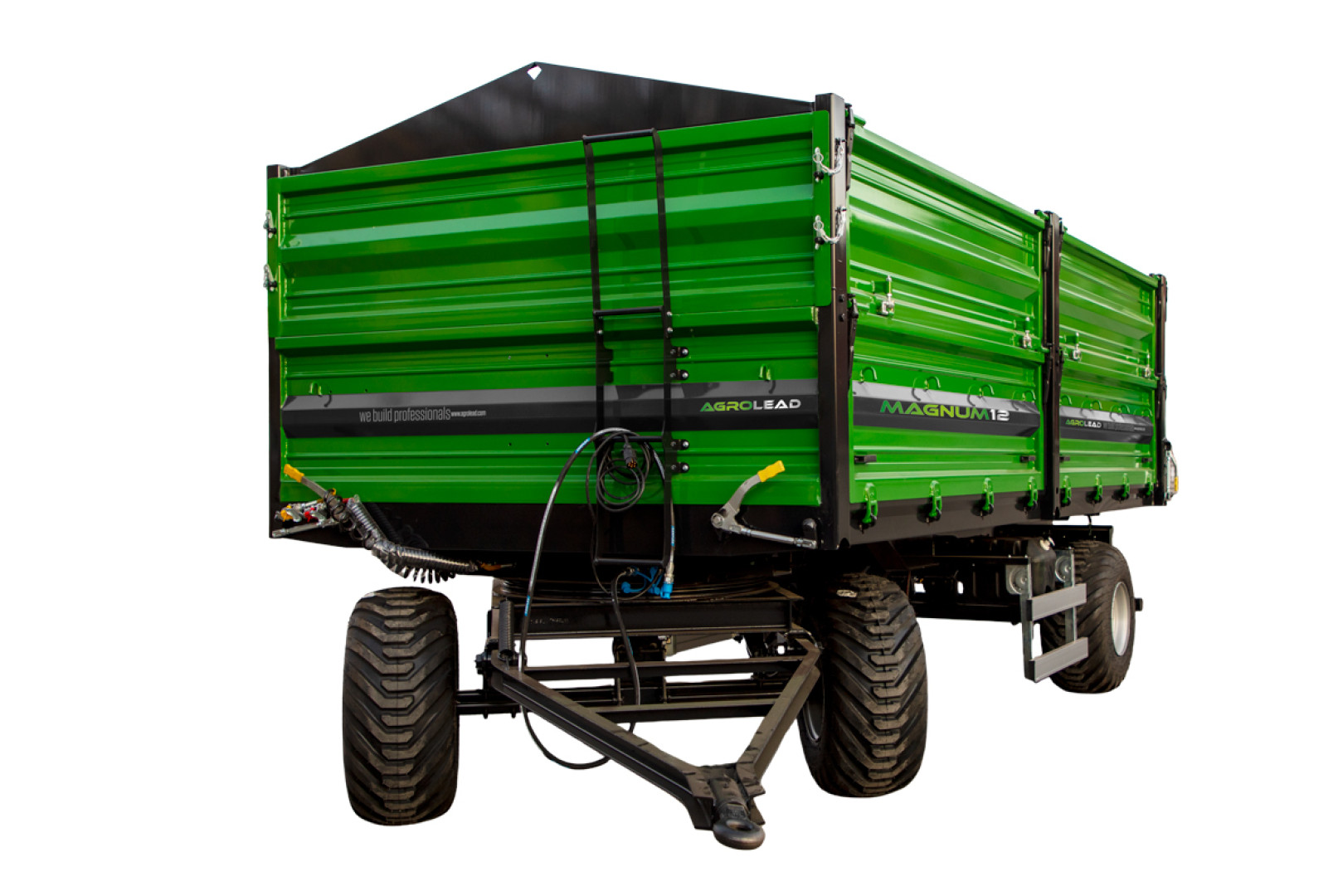

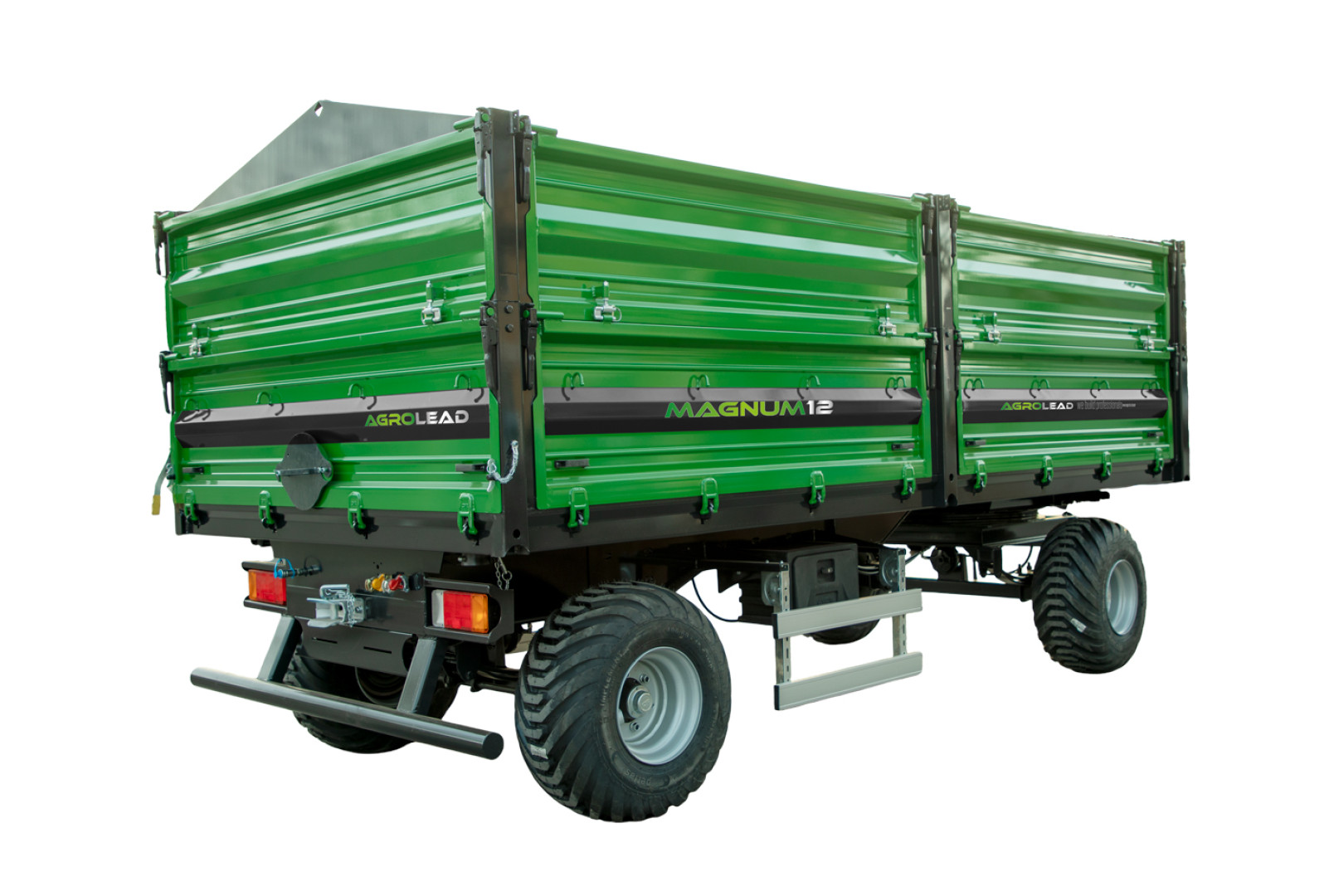

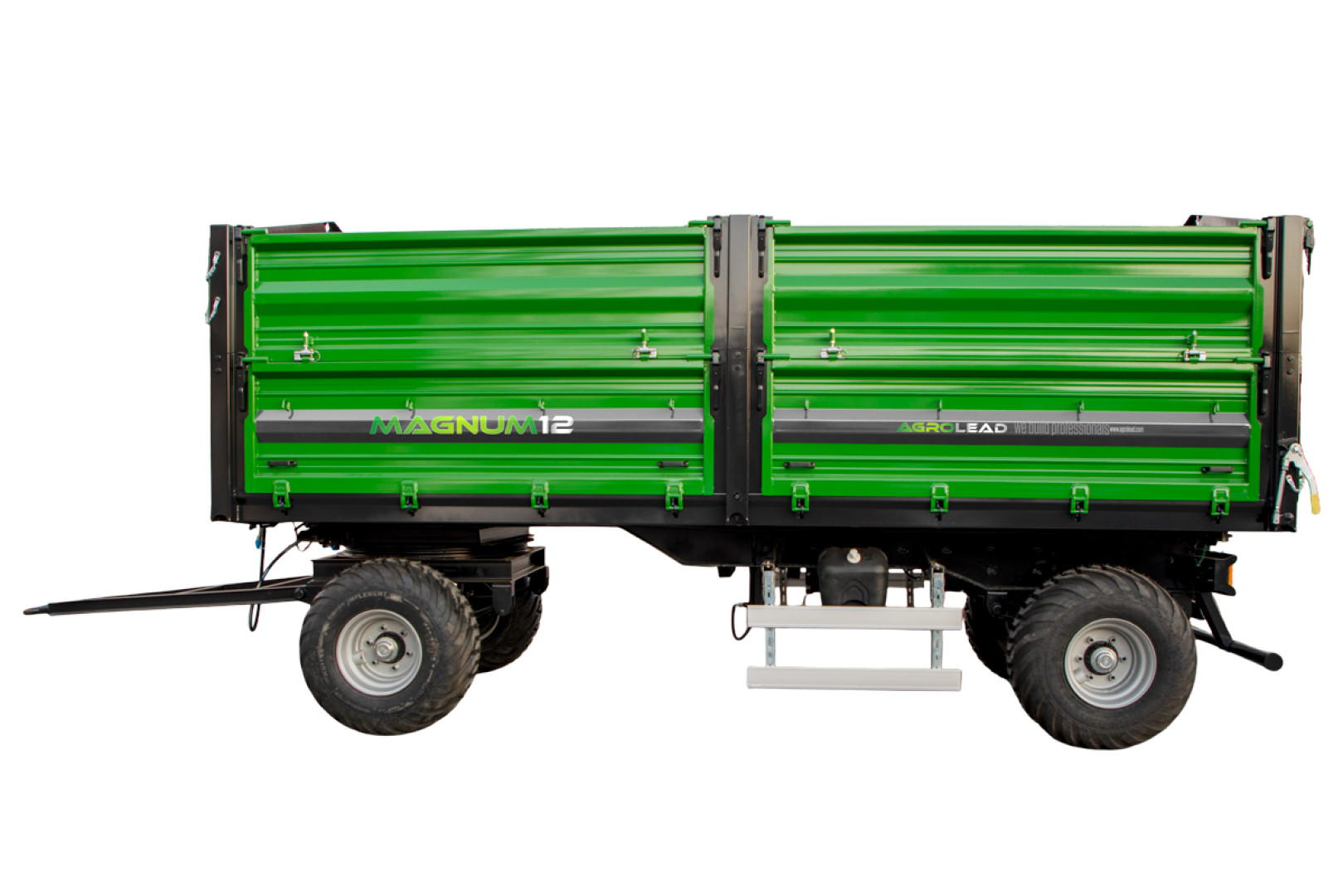

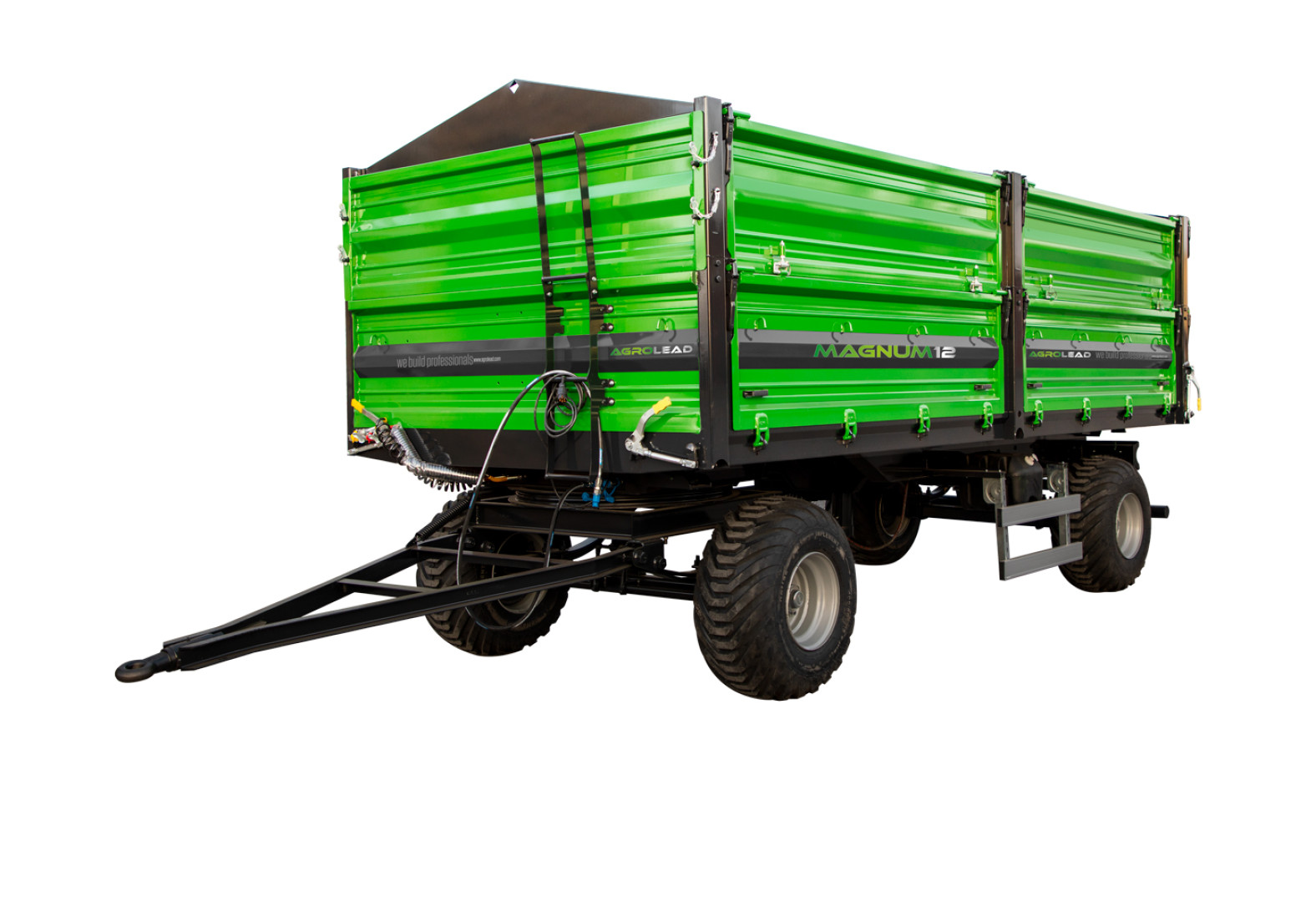

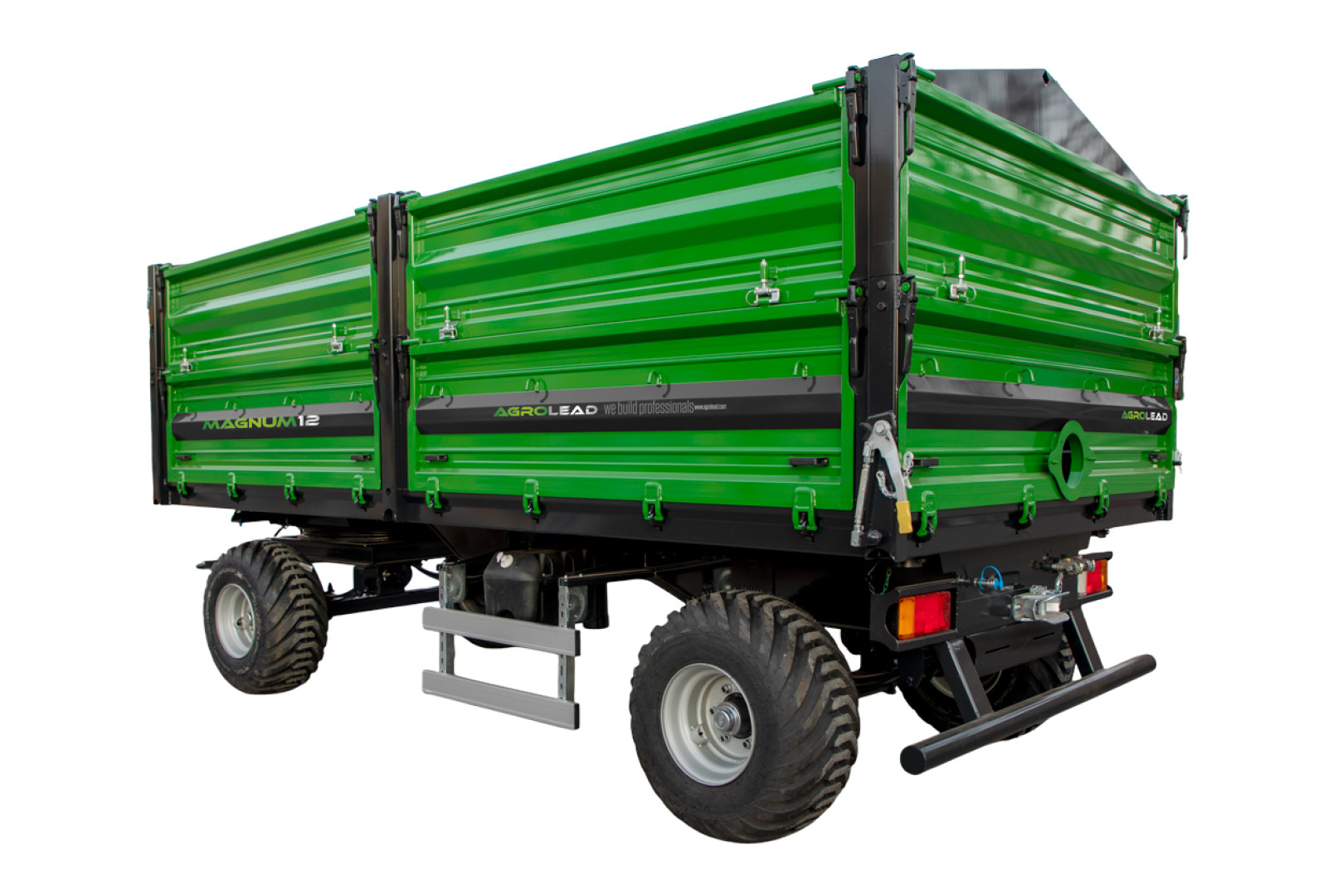

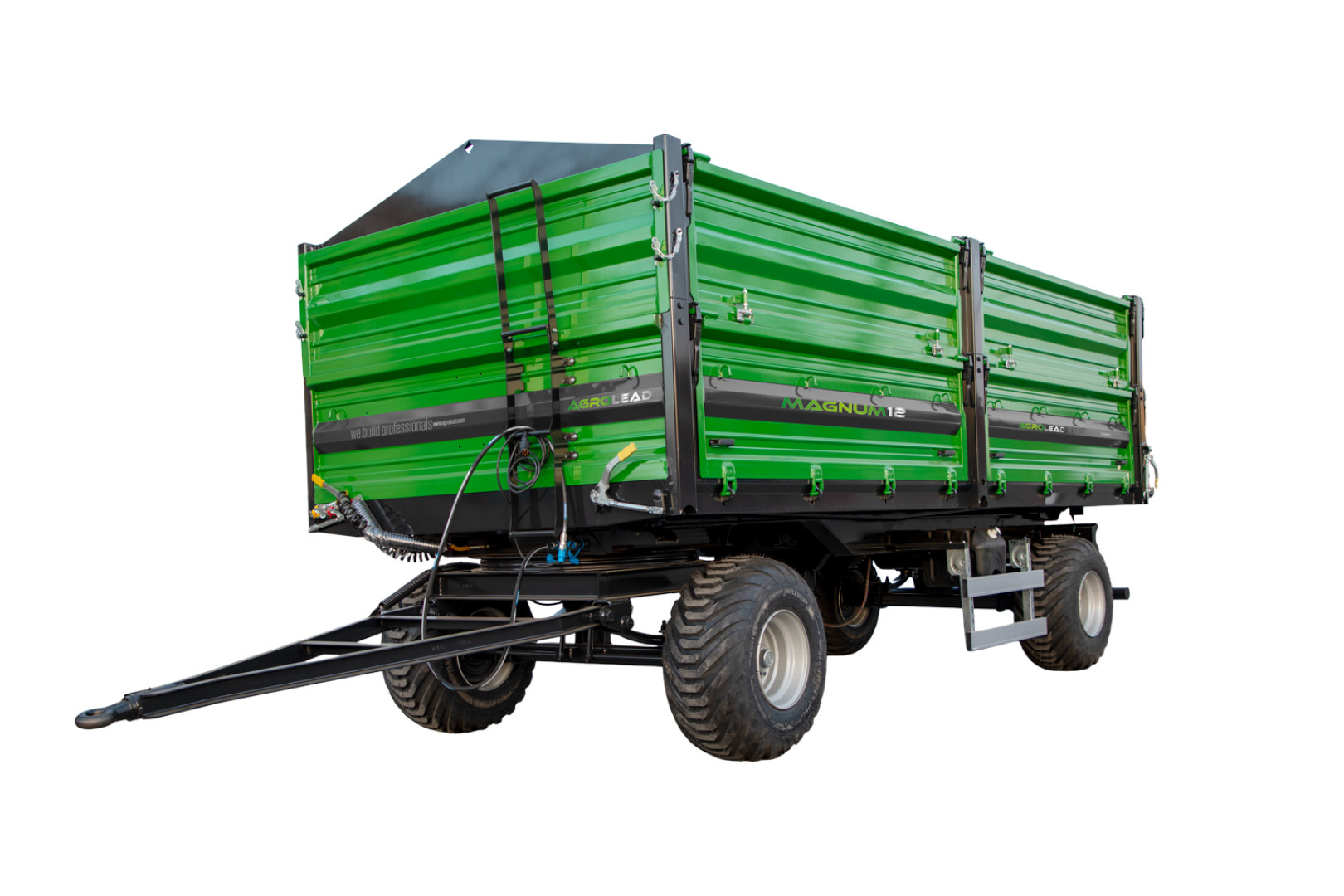

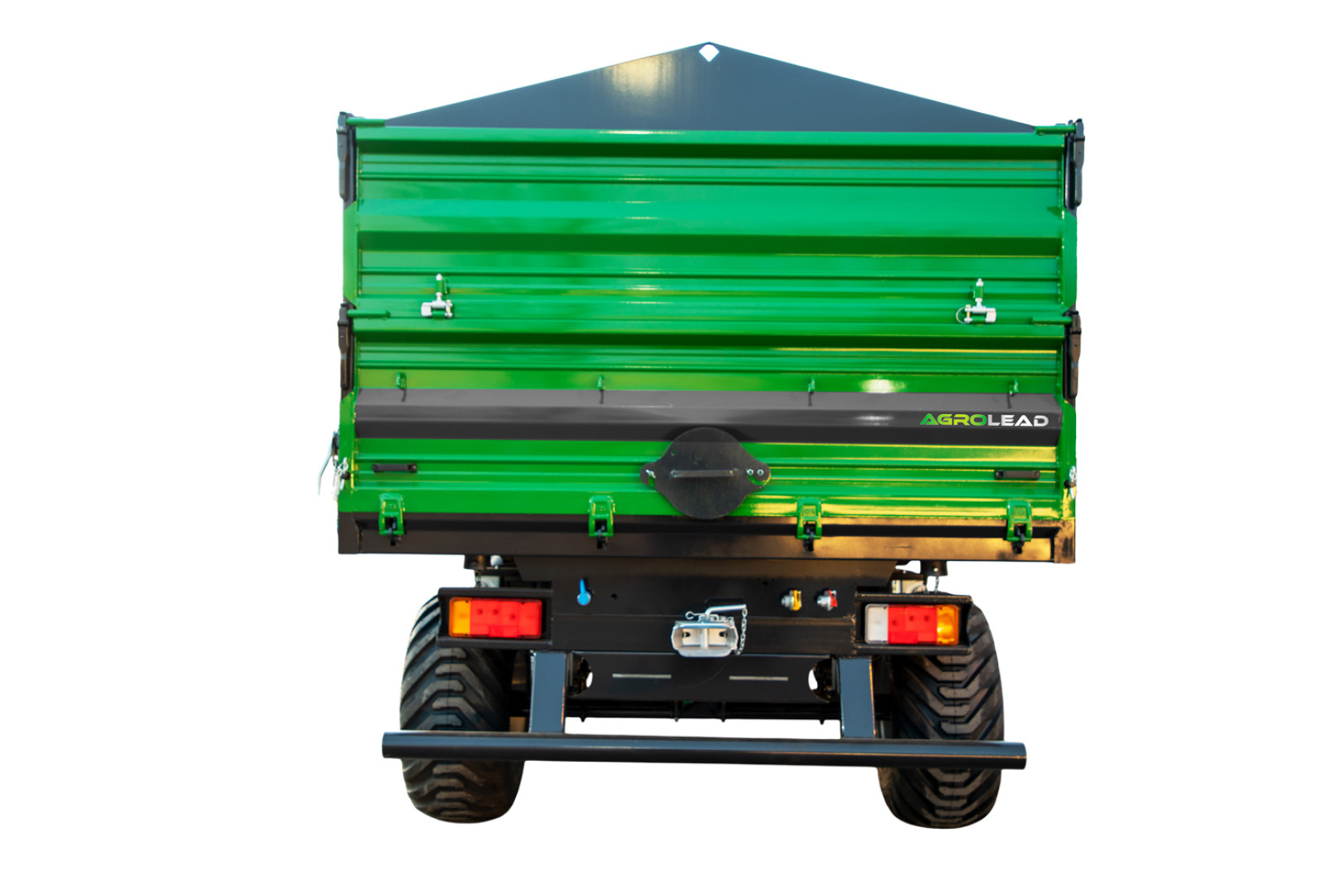

Magnum Double Axle Agriculture trailers are reflection of needs and understanding for the customer. While designing we demonstrated commitment by taking into consideration users’ needs on which a valuable product was built. Our modern trailers are intended for transport of various materials, in particular agricultural produce where precise tightness is required. Our innovative trailers are marked by: well-equipped standard versions, high loading capacity of box-bodies, long life using period.

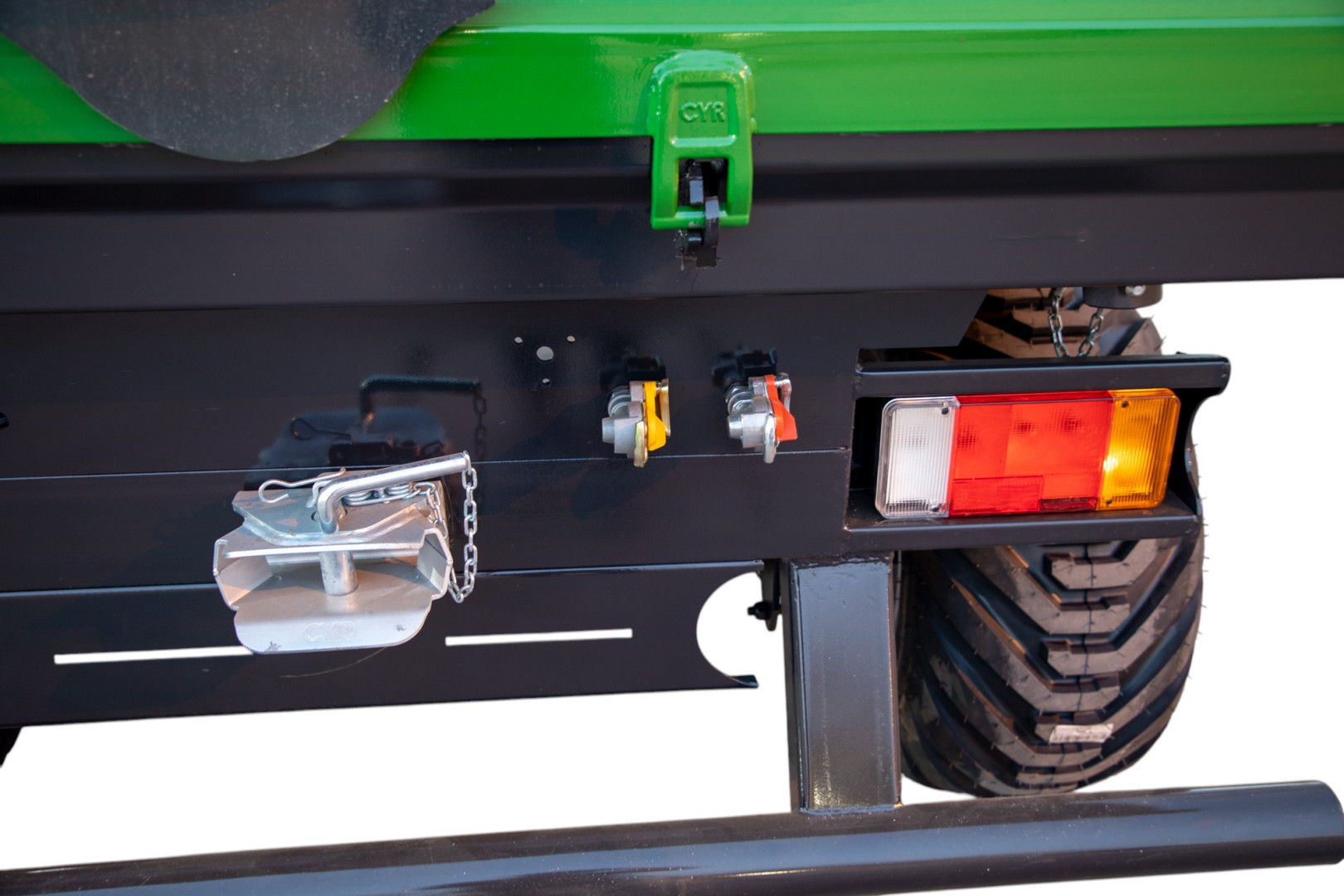

Magnum Double Axle Agricultural Trailers are produced with 3-way tipping and air circuit brake system as standard. Payload capacites are designed as 8,10,12,14 ton. Tarpaulin, ladder, additional trailer preparation, central locking handle for improvement of locking ergonomics, wheel chocks, protection against other vehicles, water tank, plastic mudgards are other standard features of our modern trailers.
| TECHNICAL SPECIFICATIONS | UNIT | MODEL | |||
|---|---|---|---|---|---|
| MAGNUM 8 | MAGNUM 10 | MAGNUM 12 | MAGNUM 14 | ||
| Capacity | ton | 8 | 10 | 12 | 14 |
| Axle | Type | Double | Double | Double | Double |
| Length | cm | 450 | 480 | 450 | 480 |
| Width | cm | 250 | 210 | 250 | 210 |
| Height | cm | 50+50 | 65+65 | 65+65 | 70+70 |
| Weight | kg | 2600 | 2900 | 3200 | 3600 |
| Tyre Dimensions | inch | 12,5/80 | 400-600/15.3 | 400-600/15.3 | 500-50/15.3 |
| Ground Clearance | cm | 95 | 95 | 95 | 95 |
| TECHNICAL SPECIFICATIONS | UNIT | MAGNUM 10 |
|---|---|---|
| Capacity | ton | 10 |
| Axle | Type | Double |
| Length | cm | 480 |
| Width | cm | 210 |
| Height | cm | 65+65 |
| Weight | kg | 2900 |
| Tyre Dimensions | inch | 400-600/15.3 |
| Ground Clearance | cm | 95 |
| TECHNICAL SPECIFICATIONS | UNIT | MAGNUM 12 |
|---|---|---|
| Capacity | ton | 12 |
| Axle | Type | Double |
| Length | cm | 450 |
| Width | cm | 250 |
| Height | cm | 65+65 |
| Weight | kg | 3200 |
| Tyre Dimensions | inch | 400-600/15.3 |
| Ground Clearance | cm | 95 |
| TECHNICAL SPECIFICATIONS | UNIT | MAGNUM 14 |
|---|---|---|
| Capacity | ton | 14 |
| Axle | Type | Double |
| Length | cm | 480 |
| Width | cm | 210 |
| Height | cm | 70+70 |
| Weight | kg | 3600 |
| Tyre Dimensions | inch | 500-50/15.3 |
| Ground Clearance | cm | 95 |
| TECHNICAL SPECIFICATIONS | UNIT | MAGNUM 8 |
|---|---|---|
| Capacity | ton | 8 |
| Axle | Type | Double |
| Length | cm | 450 |
| Width | cm | 250 |
| Height | cm | 50+50 |
| Weight | kg | 2600 |
| Tyre Dimensions | inch | 12,5/80 |
| Ground Clearance | cm | 95 |
