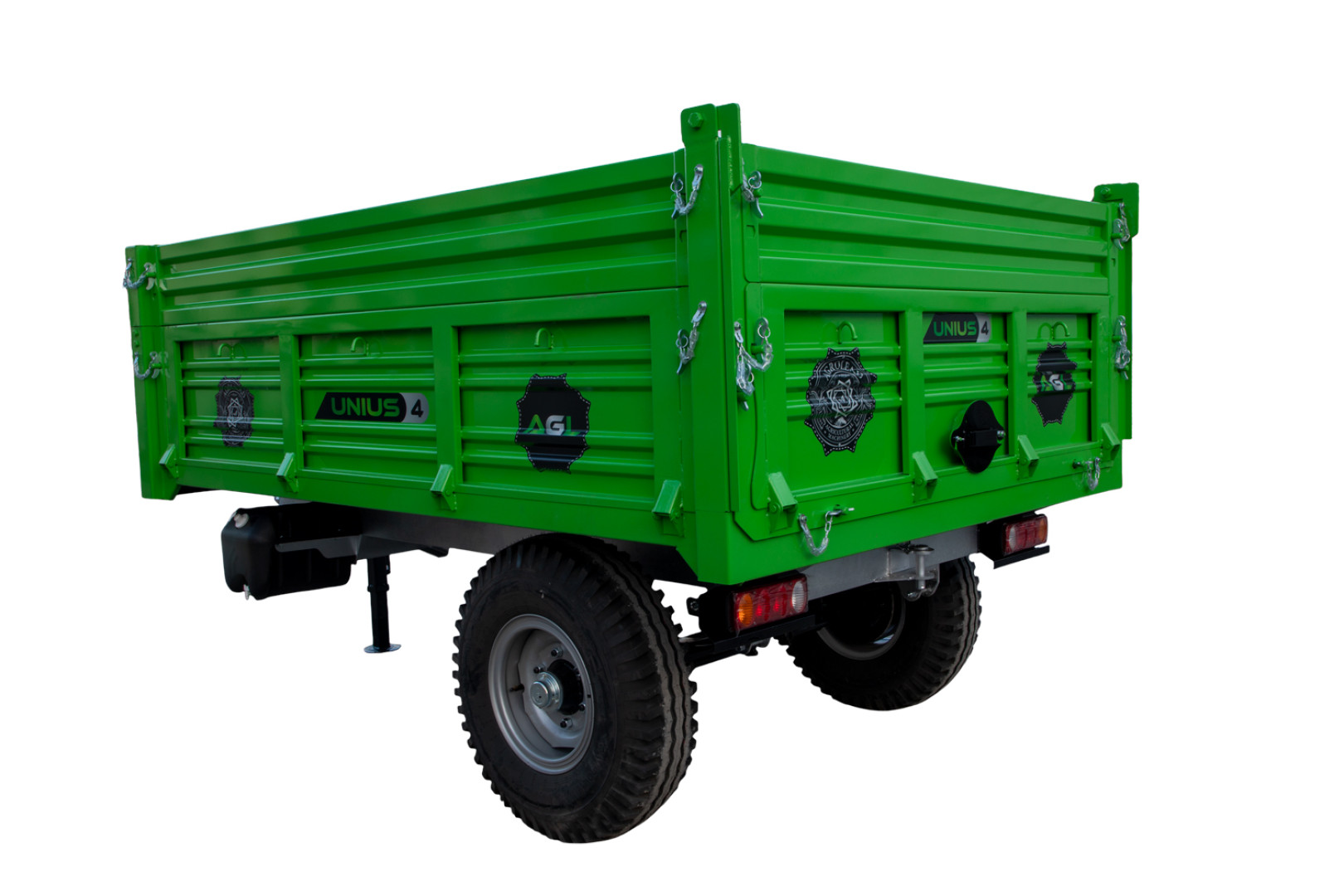

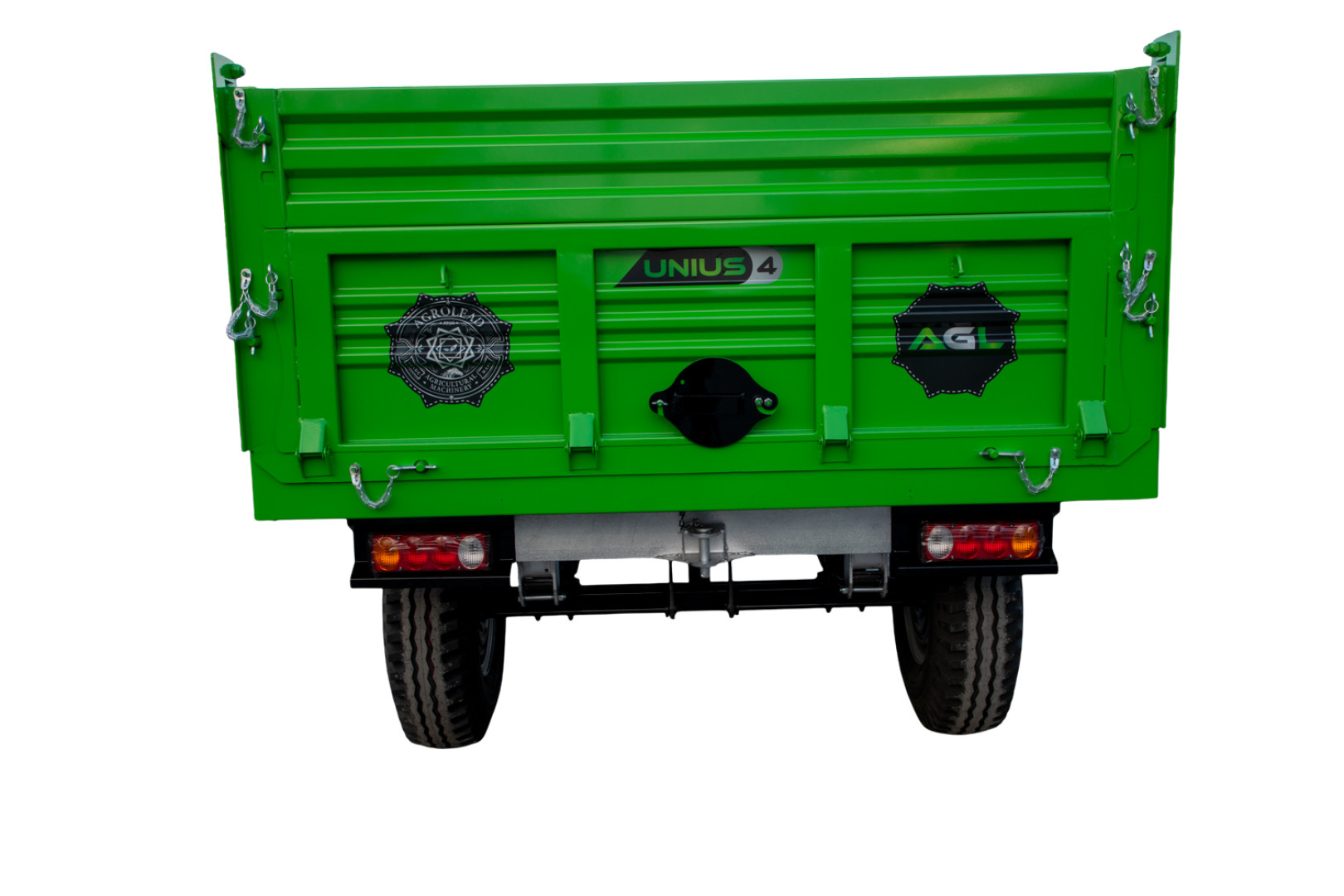

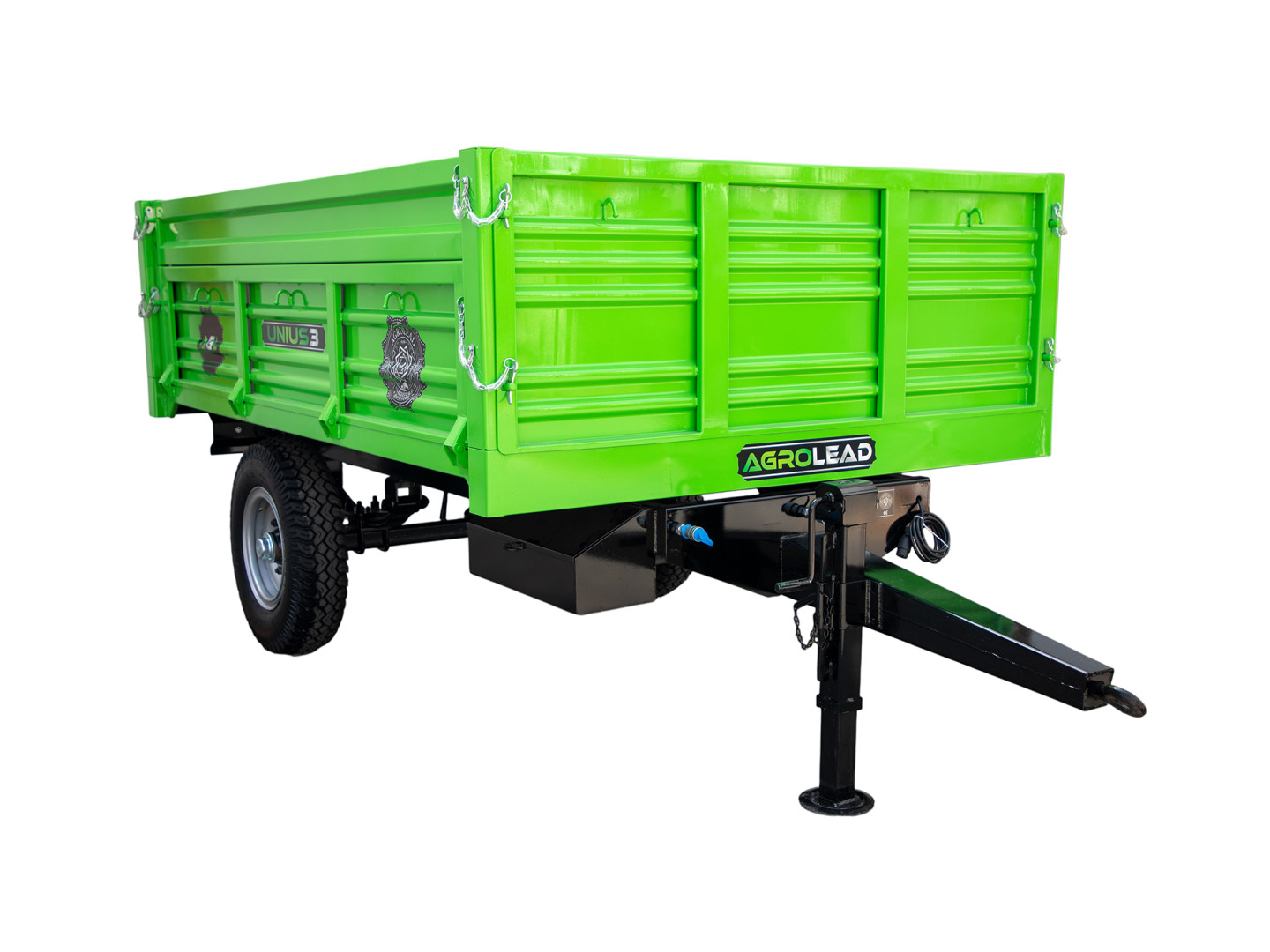

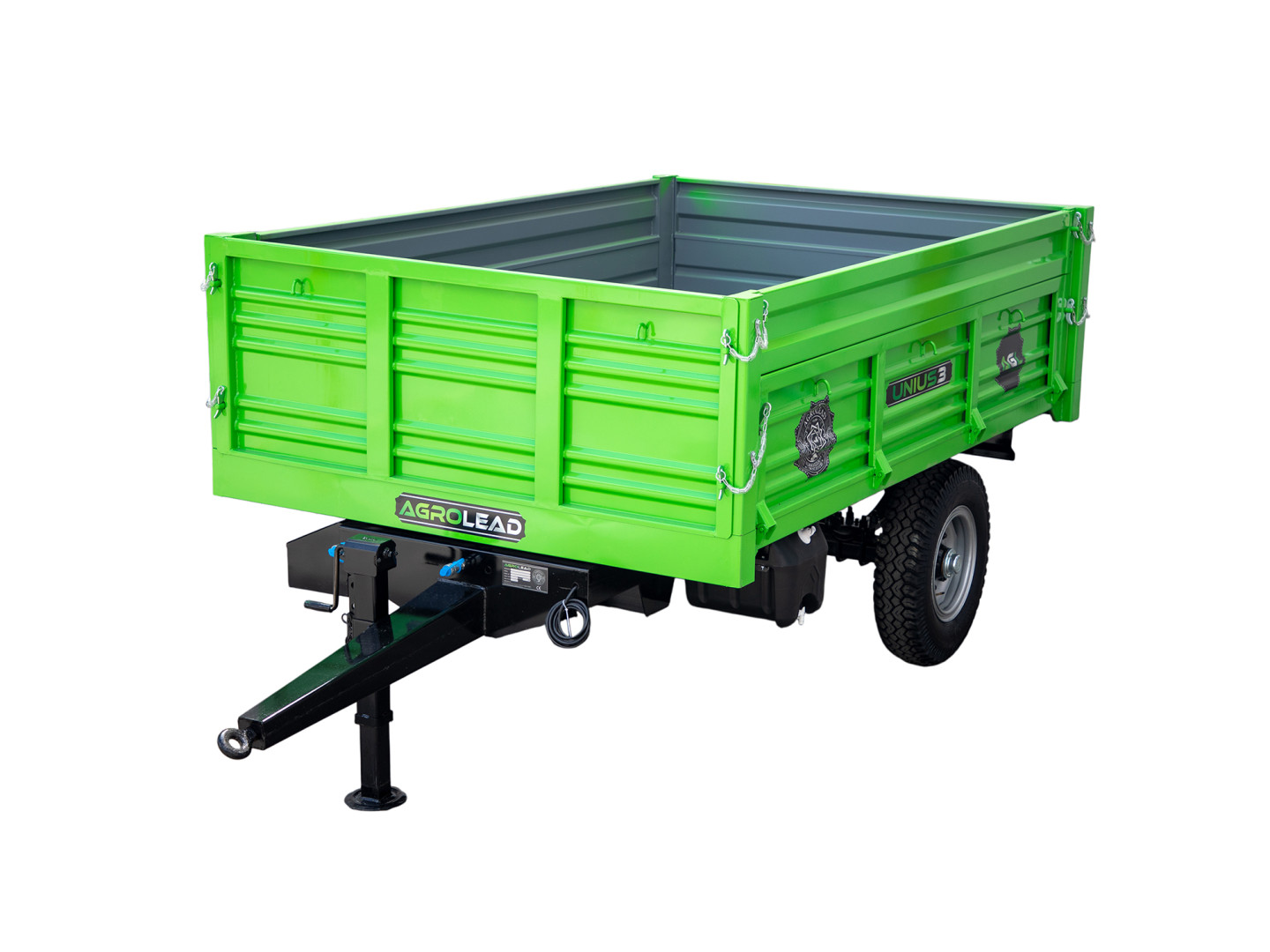

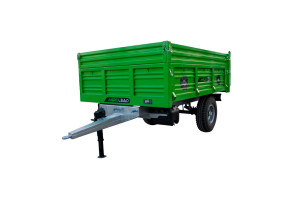

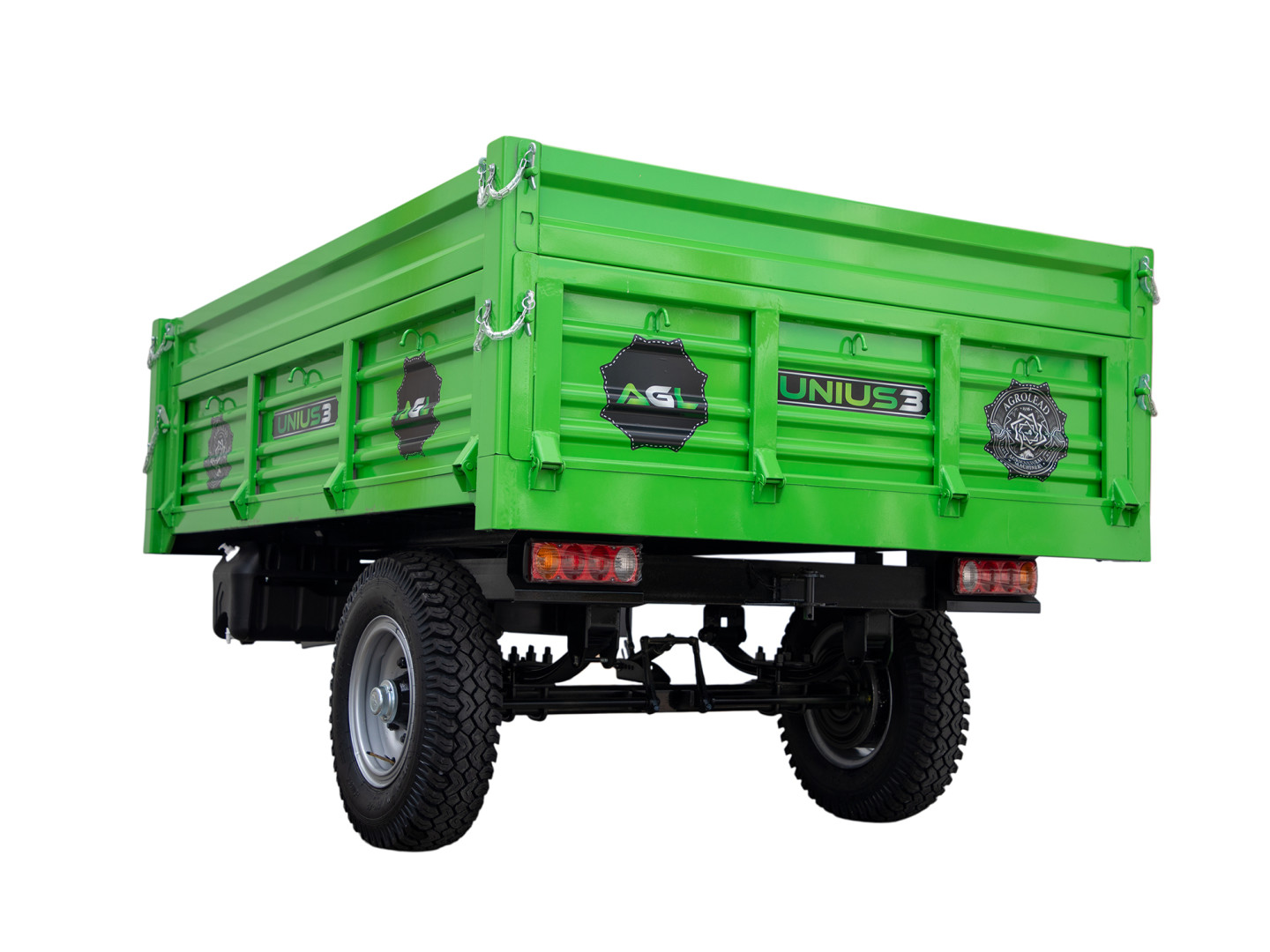

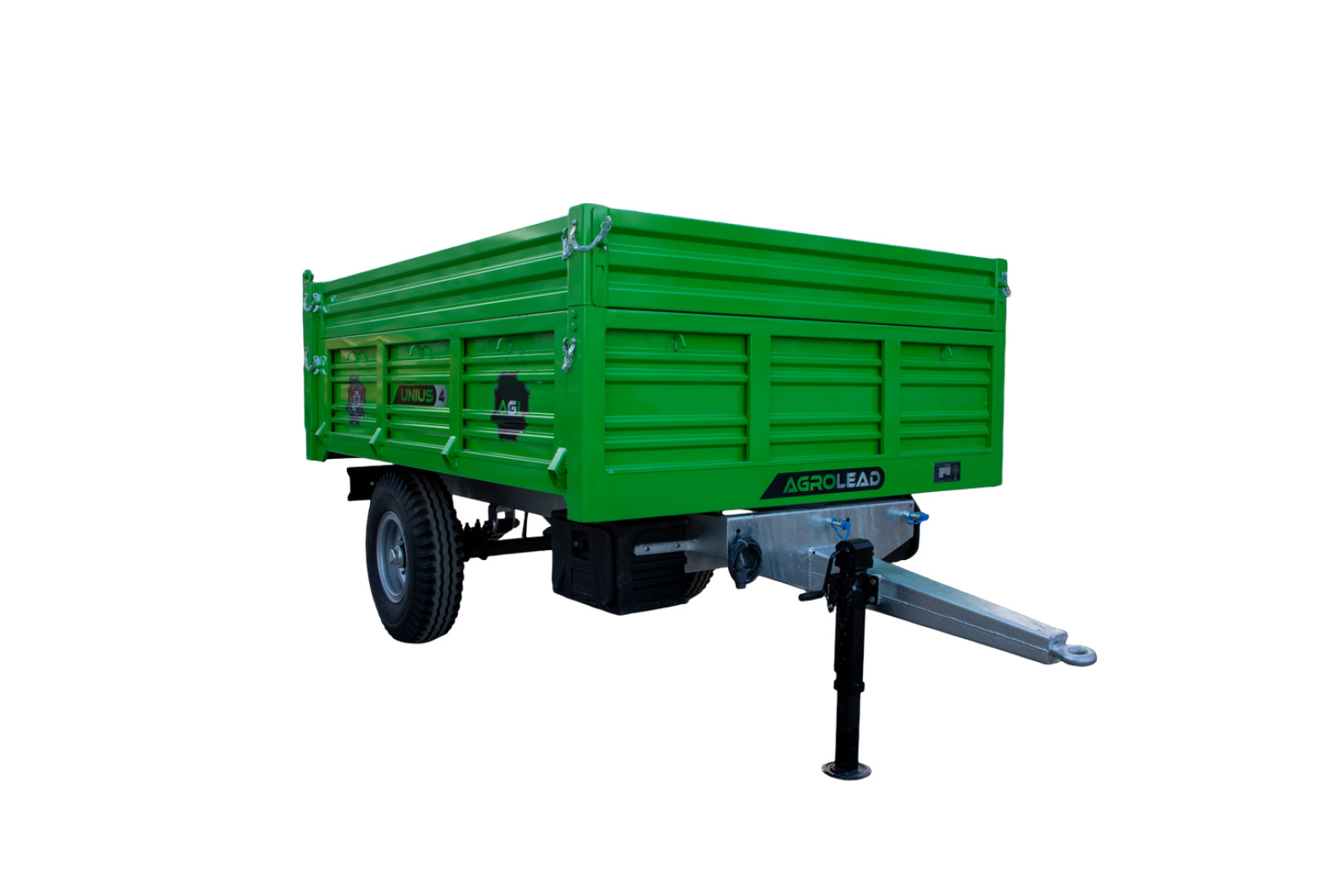

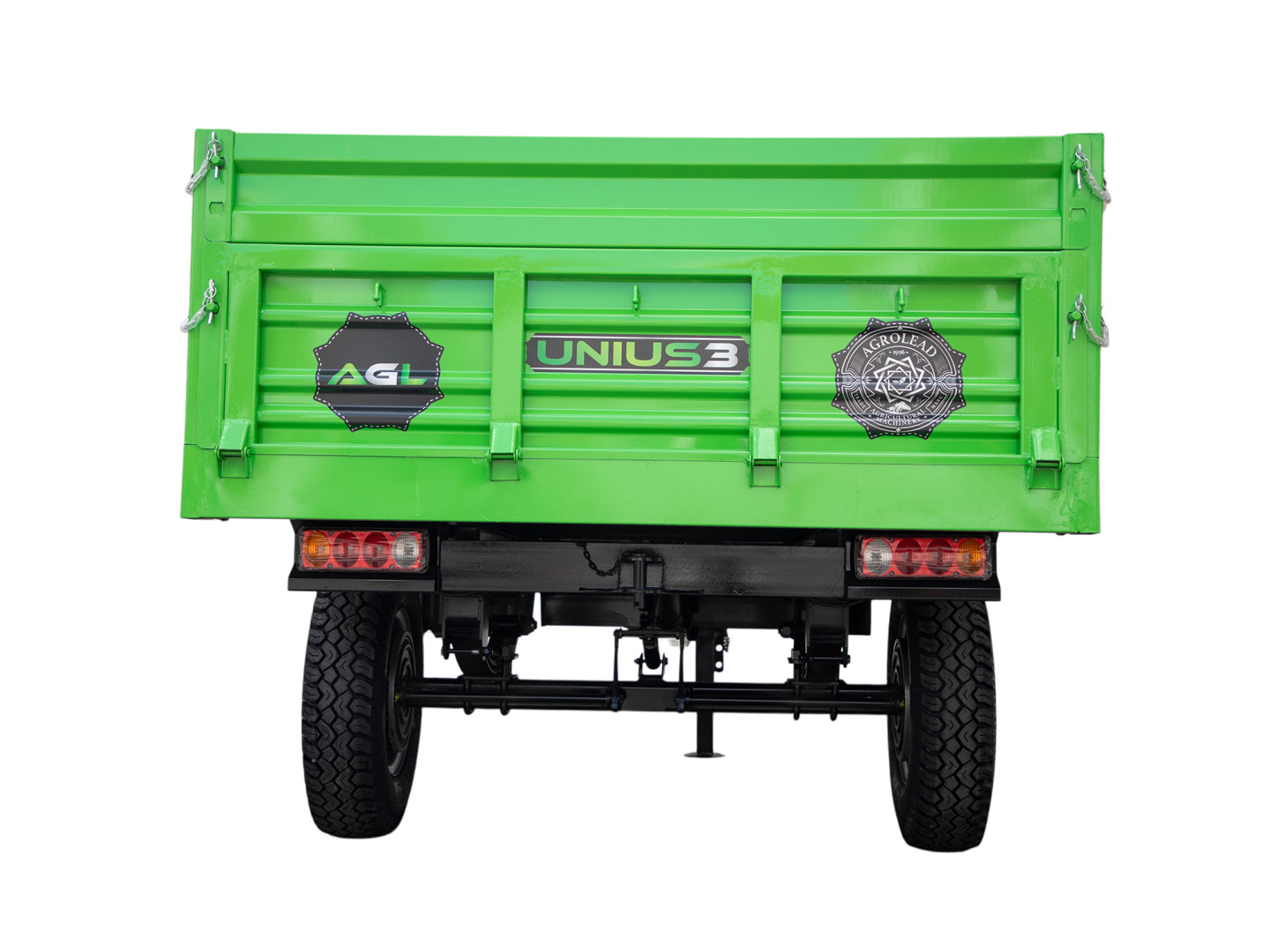

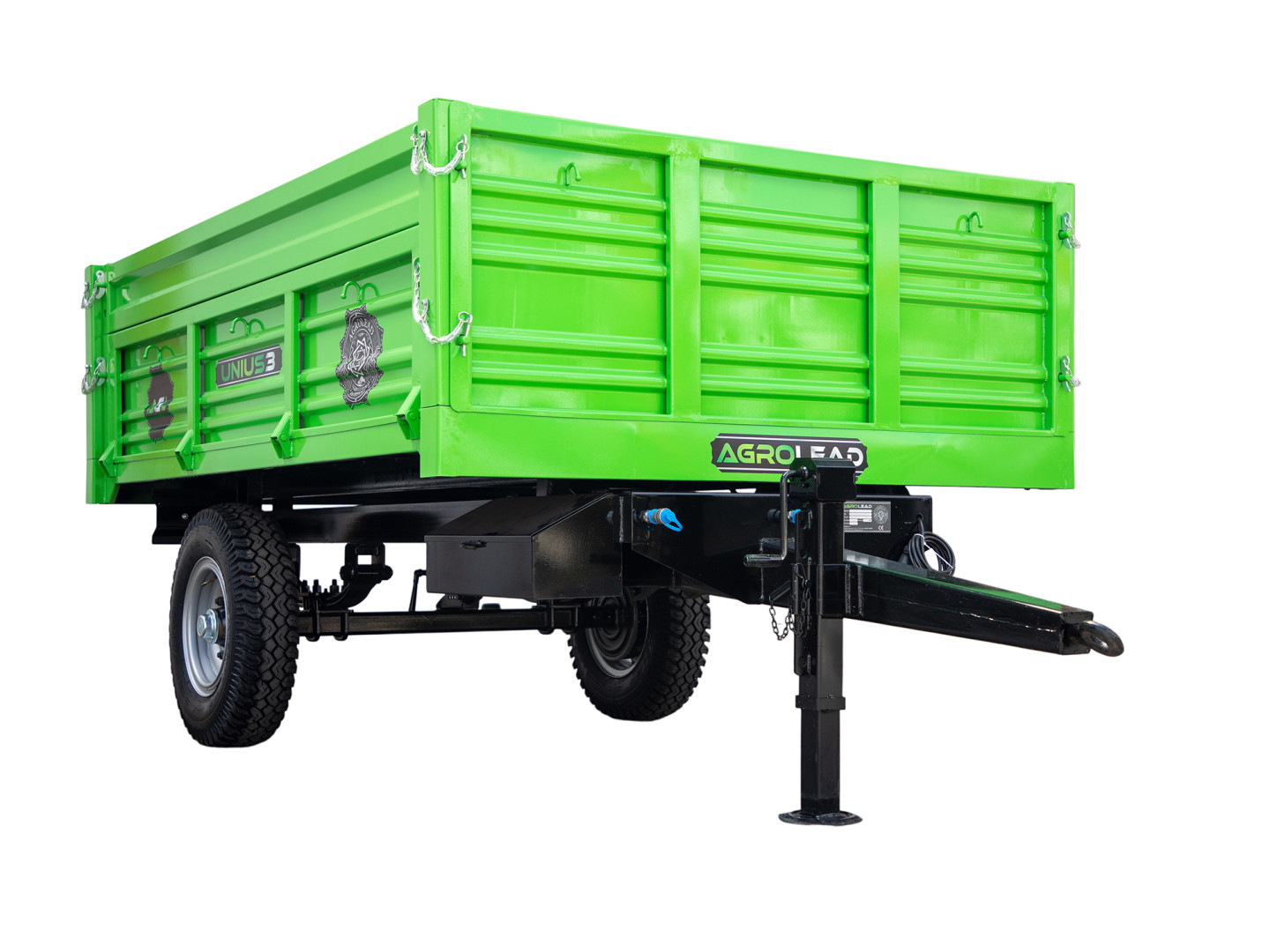

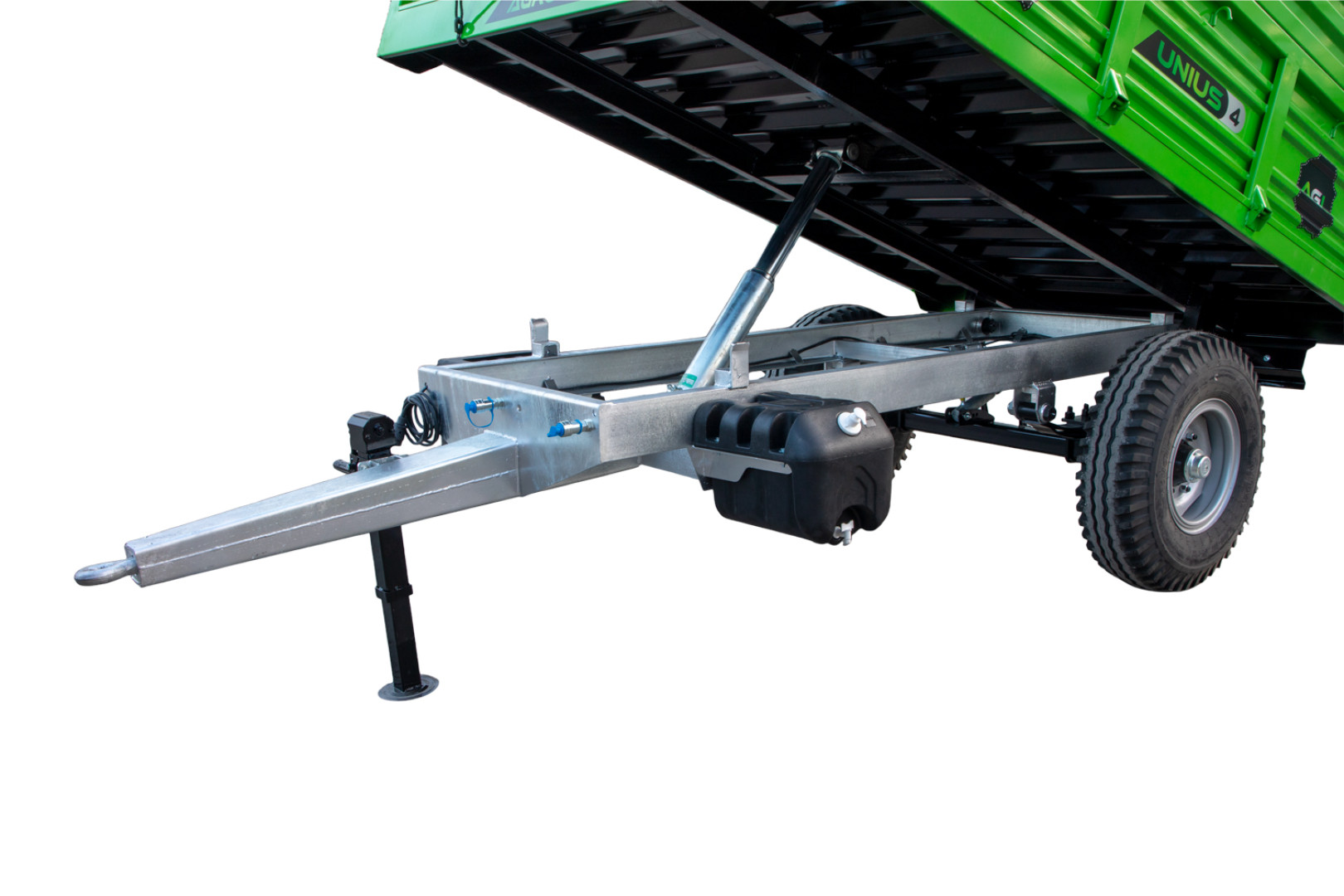

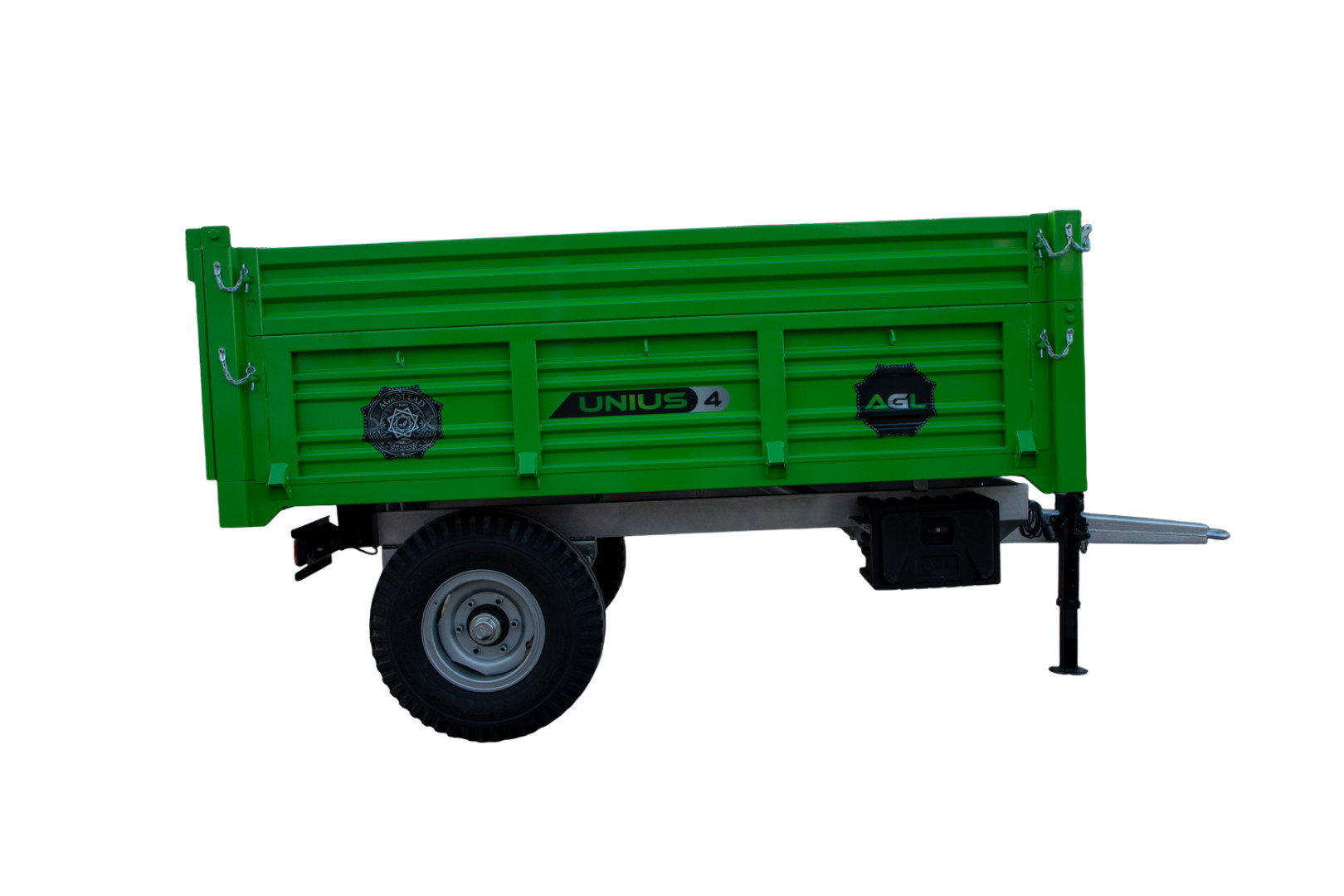

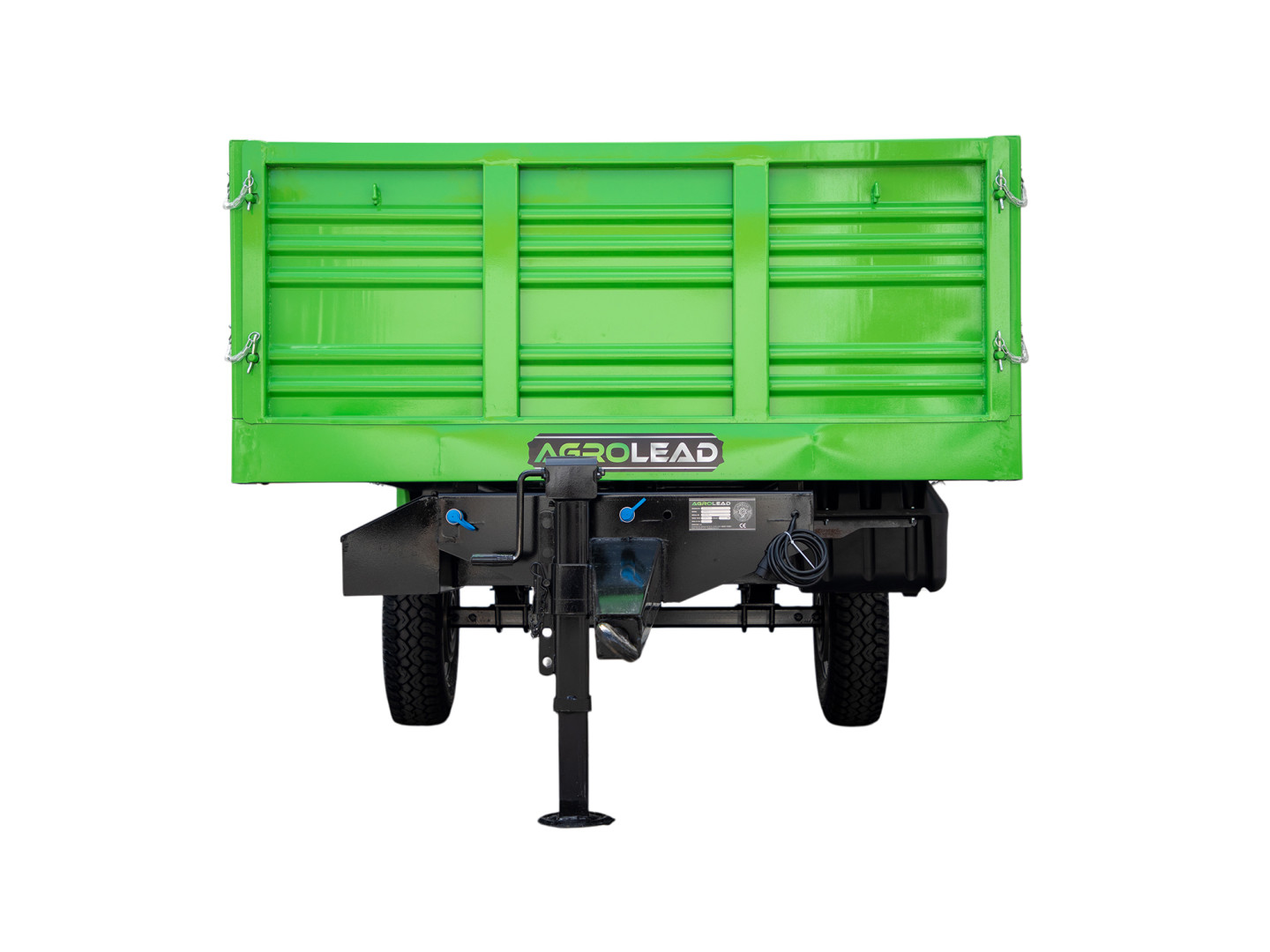

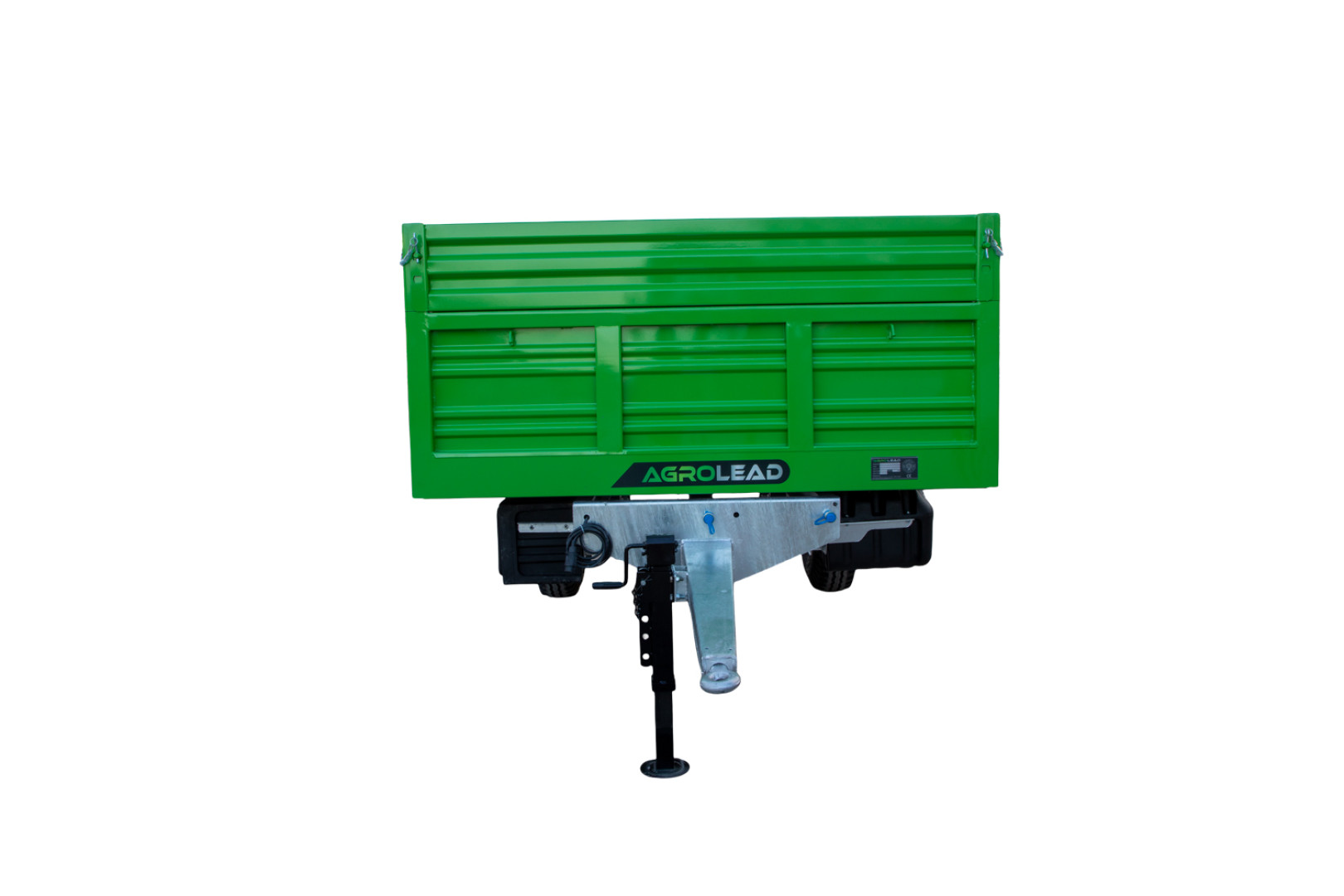

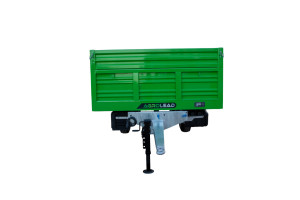

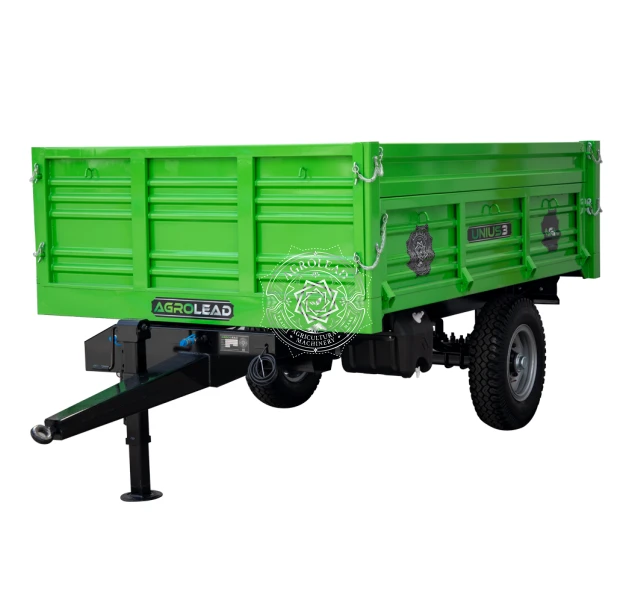

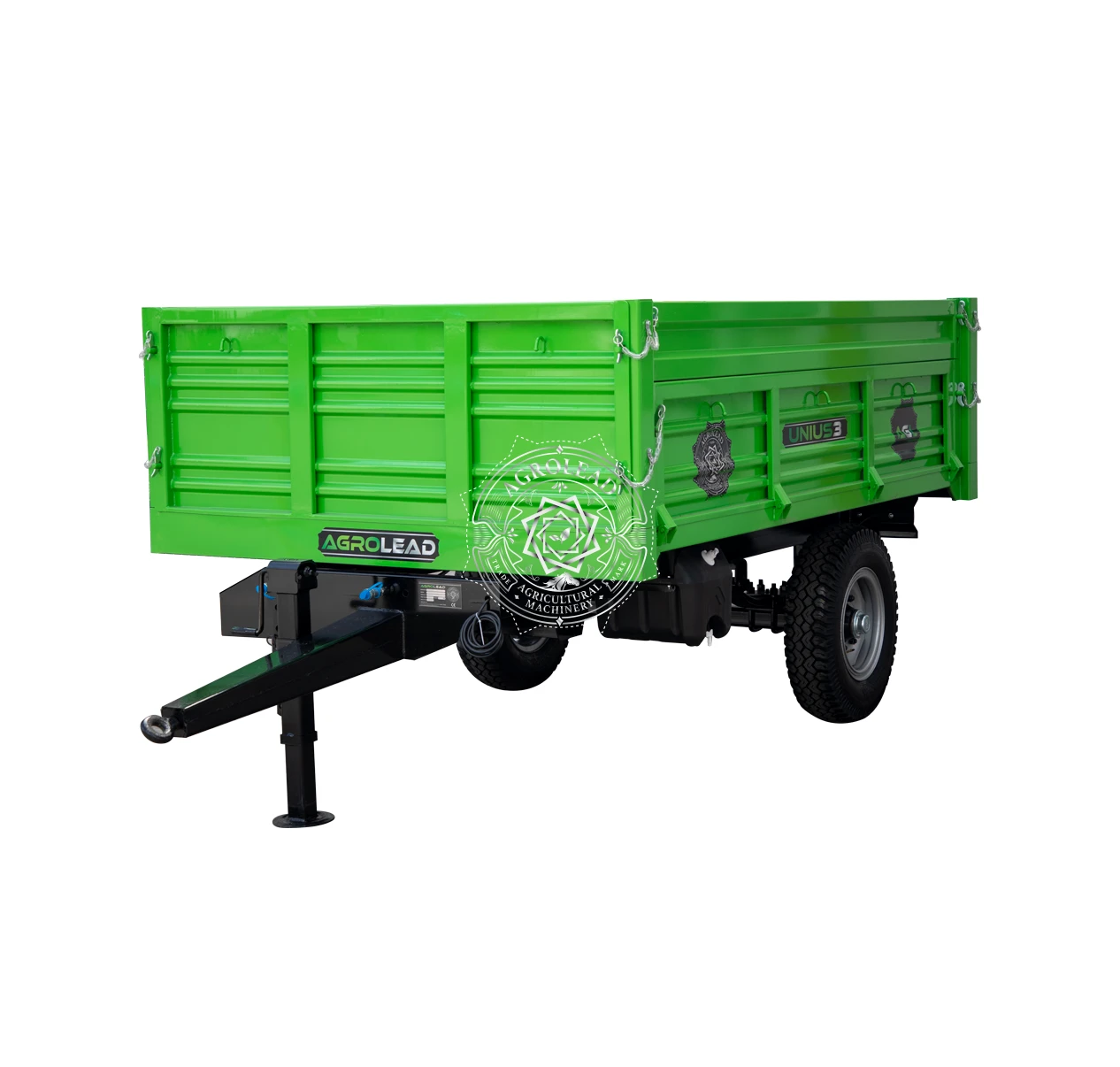

Unius Single Axle Agricultural Trailers are intended for transport of various materials, in particular agricultural produce where precise tightness is required. Unius trailers are manufactured as rear tipping standard and equipped with hydraulic brake system. We also offer 3-way tipping, air circuit brake system as options. Payload capacities are from 2,5 ton up to 5 ton. Standard features of Unius trailers are as listed below ;
*Reinforced 3 mm Steel Flooring
*2,0 mm Sideboards
*St-52 Quality Steel Axle
*Hydraulic Brake

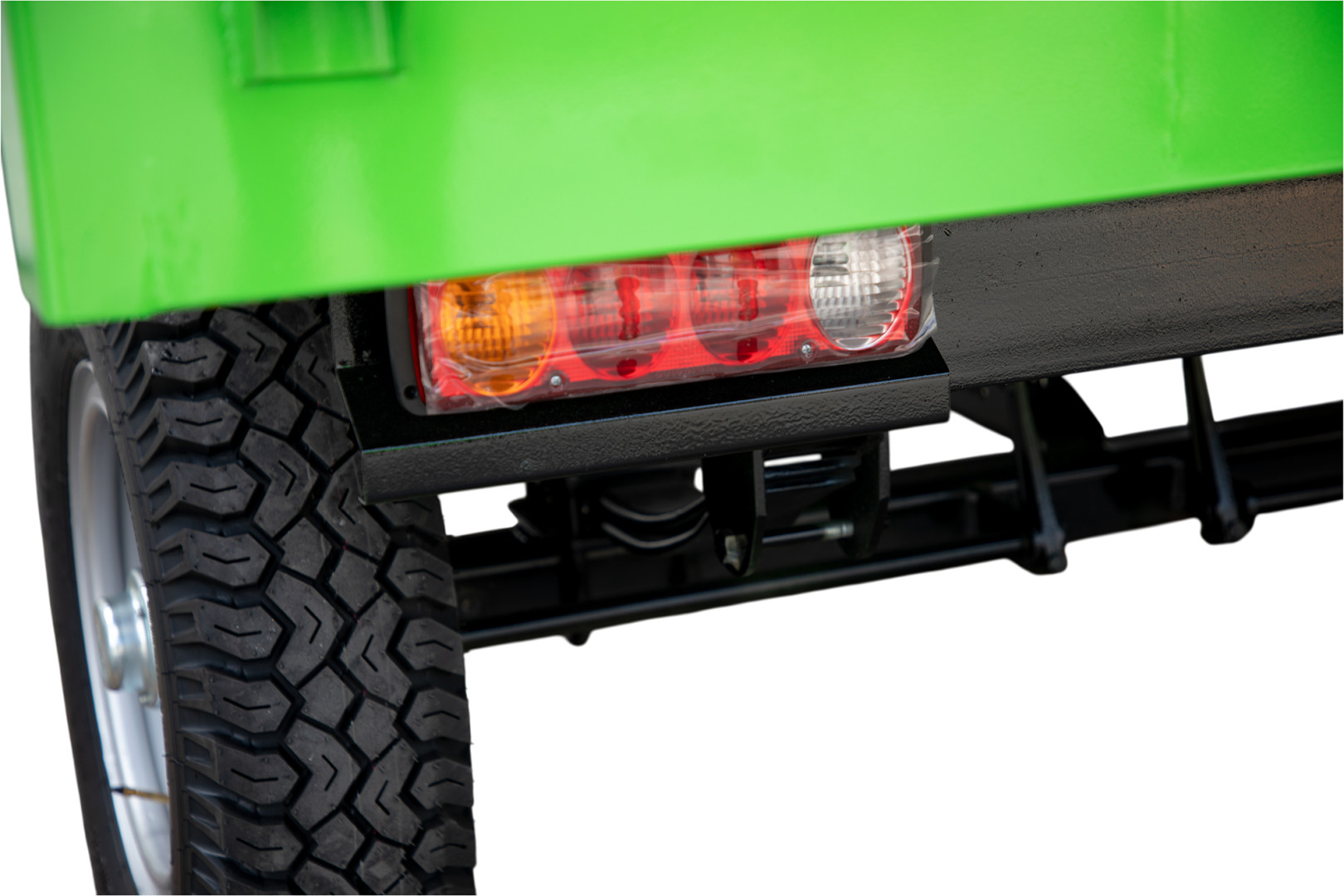

*12V Electrical System And Lamp
*Steel-Casting Drum-Brake
*Rear or Right-Left Damper System

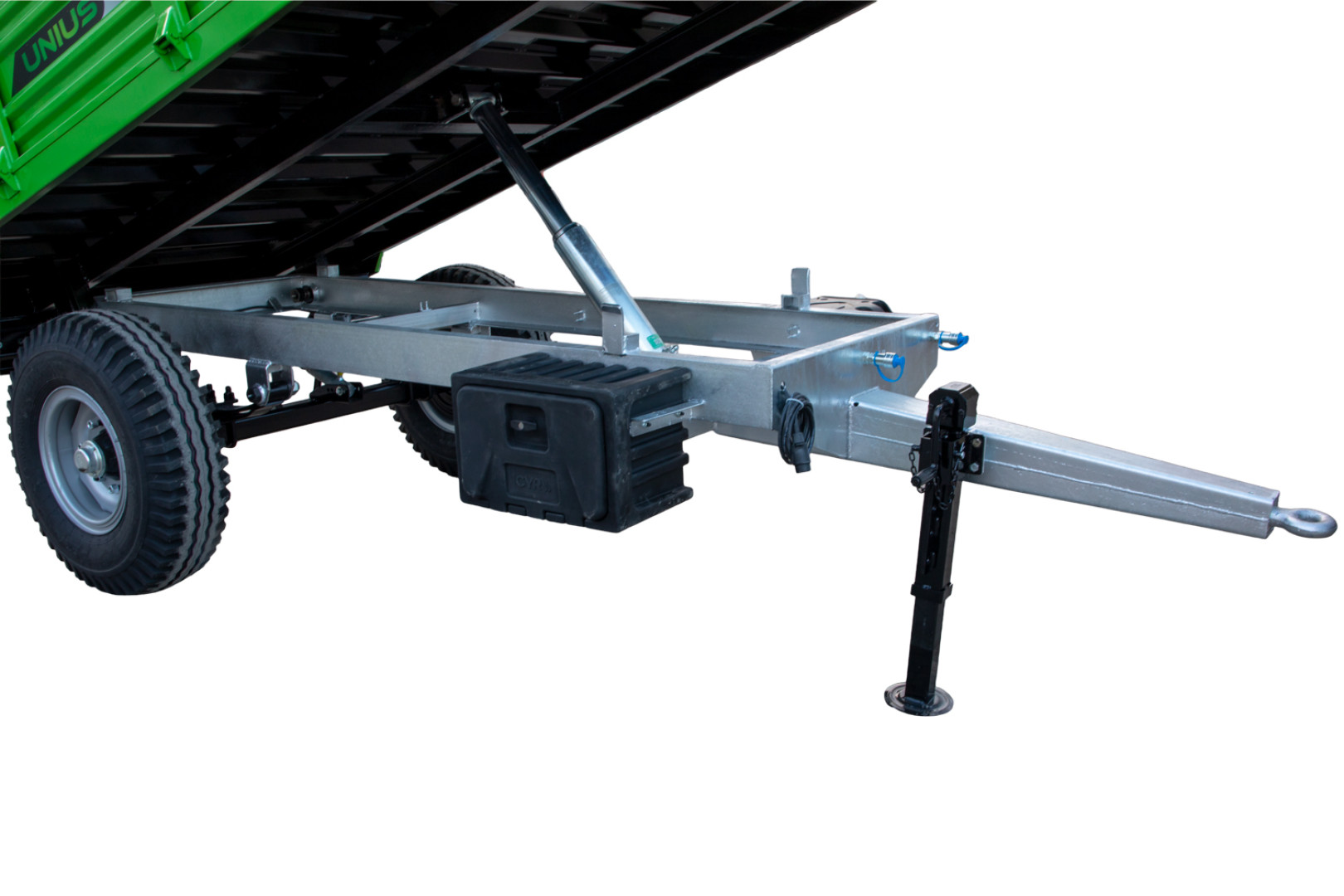

*Jack With Transmission
*Water Tank
*Tool-Box

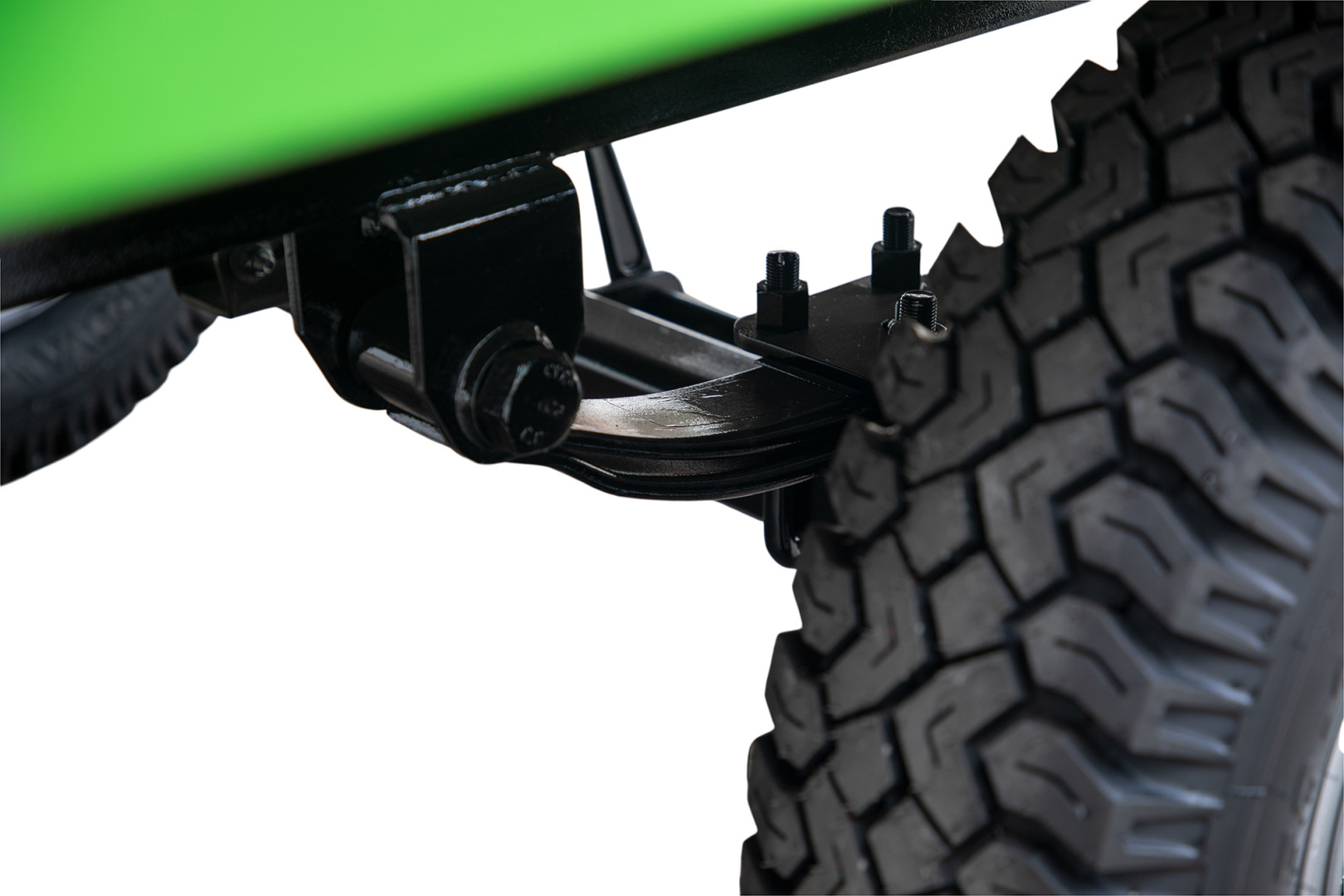

*Leaf Spring Suspension
| TECHNICAL SPECIFICATIONS | UNIT | MODEL | ||||
|---|---|---|---|---|---|---|
| UNIUS 2,5 | UNIUS 3 | UNIUS 3,5 | UNIUS 4 | UNIUS 5 | ||
| Capacity | ton | 2,5 | 3 | 3,5 | 4 | 5 |
| Axle | type | Single | Single | Single | Single | Single |
| Width | cm | 170 | 190 | 190 | 200 | 210 |
| Length | cm | 270 | 300 | 300 | 330 | 350 |
| Height | cm | 40+25 | 40+25 | 40+25 | 40+25 | 60+30 |
| Weight | kg | 1000 | 1200 | 1400 | 1500 | 1650 |
| Tyre Dimensions | inch | 7.50/16 | 7.50/16 | 900/16 | 900/16 | 12,5-80/15.3 |
| Ground Clearance | cm | 90 | 90 | 90 | 90 | 90 |
| TECHNICAL SPECIFICATIONS | UNIT | UNIUS 2,5 |
|---|---|---|
| Capacity | ton | 2,5 |
| Axle | type | Single |
| Width | cm | 170 |
| Length | cm | 270 |
| Height | cm | 40+25 |
| Weight | kg | 1000 |
| Tyre Dimensions | inch | 7.50/16 |
| Ground Clearance | cm | 90 |
| TECHNICAL SPECIFICATIONS | UNIT | UNIUS 3 |
|---|---|---|
| Capacity | ton | 3 |
| Axle | type | Single |
| Width | cm | 190 |
| Length | cm | 300 |
| Height | cm | 40+25 |
| Weight | kg | 1200 |
| Tyre Dimensions | inch | 7.50/16 |
| Ground Clearance | cm | 90 |
| TECHNICAL SPECIFICATIONS | UNIT | UNIUS 3,5 |
|---|---|---|
| Capacity | ton | 3,5 |
| Axle | type | Single |
| Width | cm | 190 |
| Length | cm | 300 |
| Height | cm | 40+25 |
| Weight | kg | 1400 |
| Tyre Dimensions | inch | 900/16 |
| Ground Clearance | cm | 90 |
| TECHNICAL SPECIFICATIONS | UNIT | UNIUS 4 |
|---|---|---|
| Capacity | ton | 4 |
| Axle | type | Single |
| Width | cm | 200 |
| Length | cm | 330 |
| Height | cm | 40+25 |
| Weight | kg | 1500 |
| Tyre Dimensions | inch | 900/16 |
| Ground Clearance | cm | 90 |
| TECHNICAL SPECIFICATIONS | UNIT | UNIUS 5 |
|---|---|---|
| Capacity | ton | 5 |
| Axle | type | Single |
| Width | cm | 210 |
| Length | cm | 350 |
| Height | cm | 60+30 |
| Weight | kg | 1650 |
| Tyre Dimensions | inch | 12,5-80/15.3 |
| Ground Clearance | cm | 90 |
