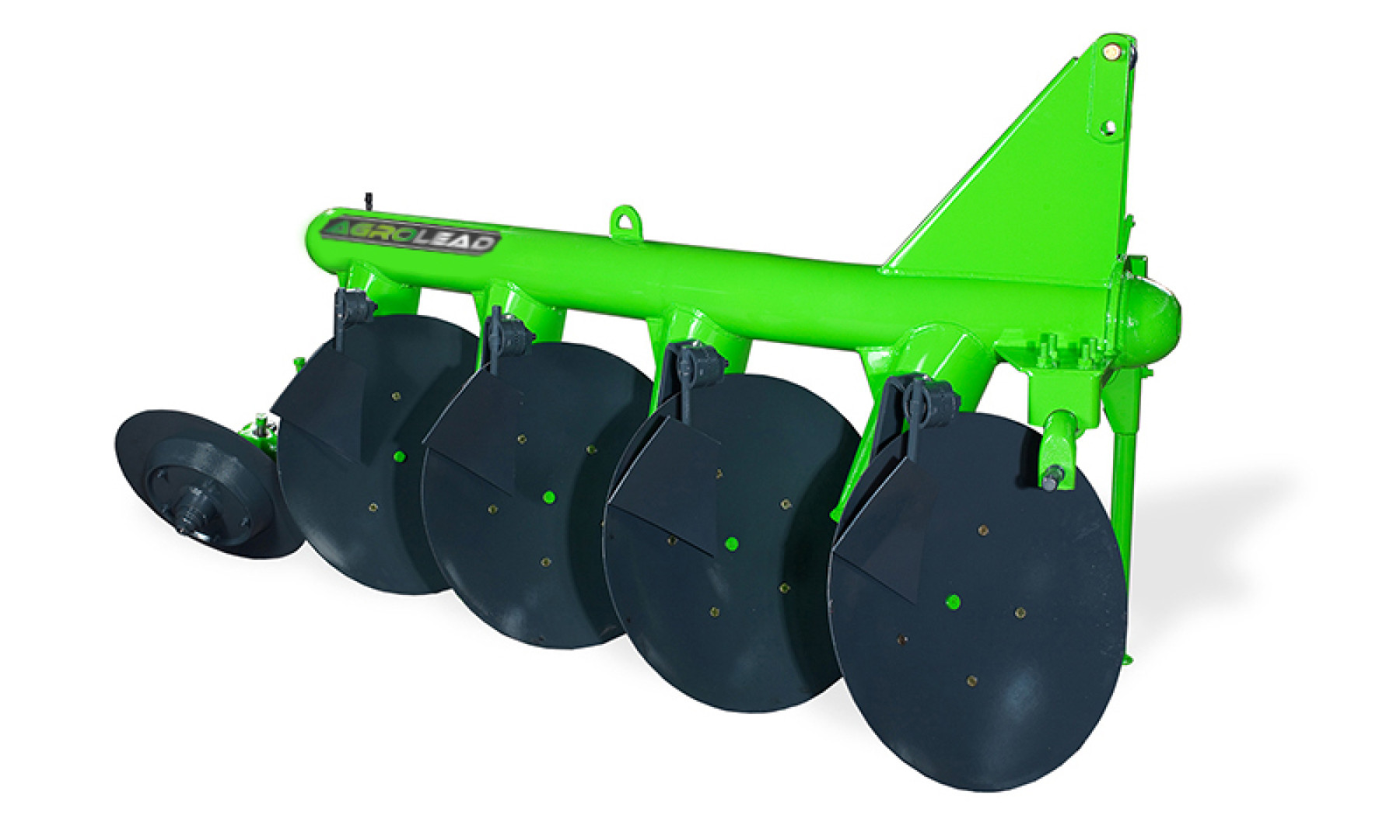

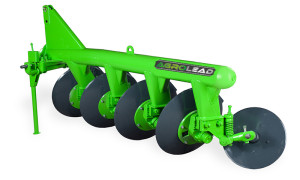

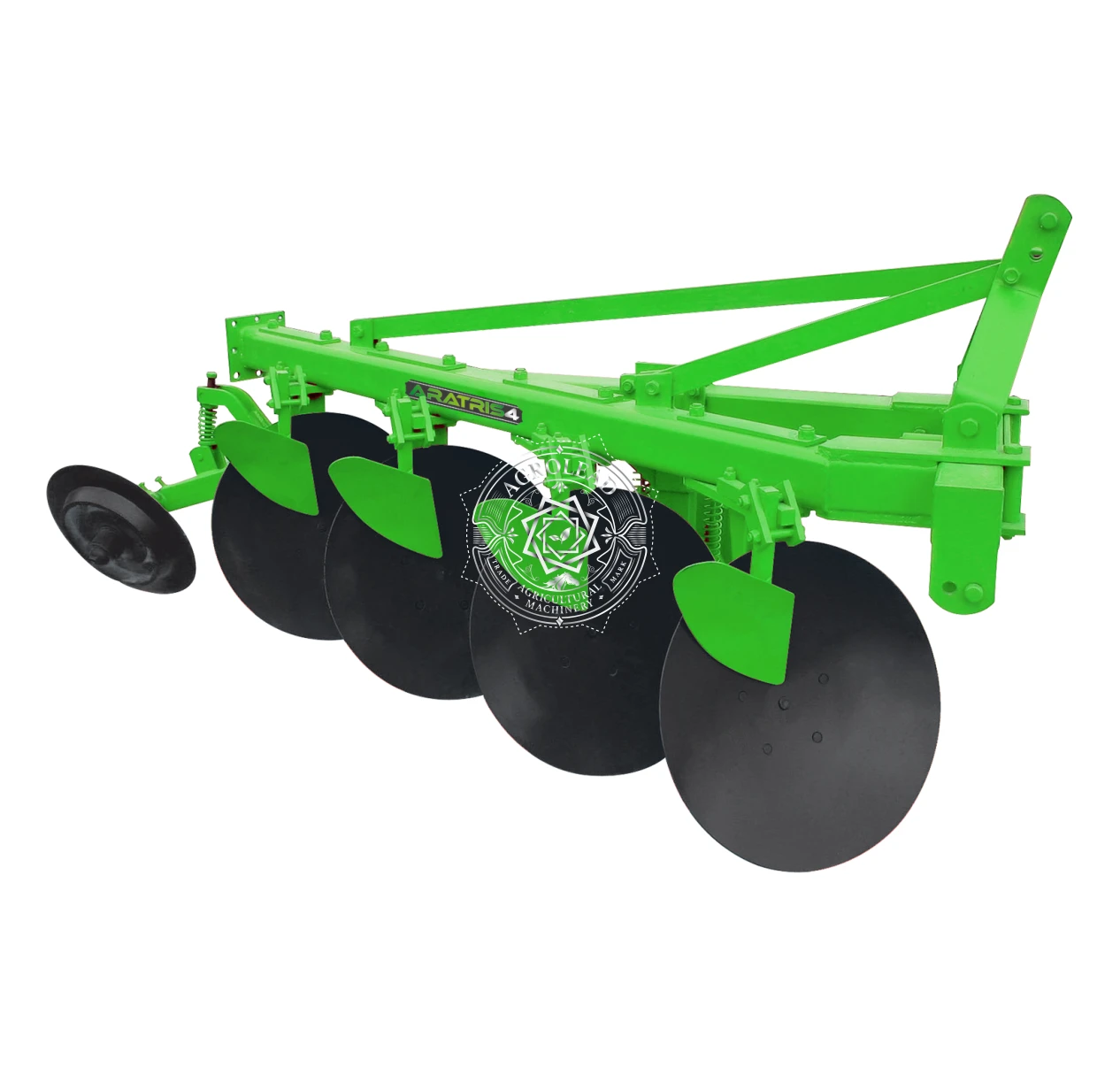

Aratri Disc Plough

Aratri Disc Ploughs designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing.Beside this, they are used to open the new fields and to process the stony areas, can be used at rocky and rooted lands. It is specially useful in hard and dry trashy land conditions and in soils where scouring is a major problem.Aratri Disc Ploughs are ranging from 2,3,4,5 and 6 furrows. While processing, it prevents the occurrence of the big holes and mudding the upper part of furrows. There is no possibility to stop up because of grass, helves and farm fertilizer. Its’ special design allows to easier By these features, the damage that may occur in disc ploughs and tractor can be prevented. The exposure time of plough chassis and discs are rather long. Particulary the discs are boron steel from Turkey, 52-55 Rhe hardness, Ø660 or Ø710 mm and are adjustable to get the maximum performance from the tractor.

TECHNICAL SPECIFICATIONS	UNIT	MODEL
TECHNICAL SPECIFICATIONS	UNIT	ARATRI 266	ARATRI 366	ARATRI 466	ARATRI 566
Number of Discs	pcs	2	3	4	5
Total Length	mm	1155	2130	2520	2910
Total Width	mm	1115	1265	1420	1520
Total Height	mm	1235	1235	1235	1235
Working Depth	cm	25	25	25	25
Working Width	cm	66	99	132	165
Space of Discs	cm	53	53	53	53
Dia. of disc	mm	660	660	660	660
Required Power	hp	35-40	55-60	70-80	85-90
Total Weight	kg	310	400	470	540

TECHNICAL SPECIFICATIONS	UNIT	ARATRI 266
Number of Discs	pcs	2
Total Length	mm	1155
Total Width	mm	1115
Total Height	mm	1235
Working Depth	cm	25
Working Width	cm	66
Space of Discs	cm	53
Dia. of disc	mm	660
Required Power	hp	35-40
Total Weight	kg	310

TECHNICAL SPECIFICATIONS	UNIT	ARATRI 366
Number of Discs	pcs	3
Total Length	mm	2130
Total Width	mm	1265
Total Height	mm	1235
Working Depth	cm	25
Working Width	cm	99
Space of Discs	cm	53
Dia. of disc	mm	660
Required Power	hp	55-60
Total Weight	kg	400

TECHNICAL SPECIFICATIONS	UNIT	ARATRI 466
Number of Discs	pcs	4
Total Length	mm	2520
Total Width	mm	1420
Total Height	mm	1235
Working Depth	cm	25
Working Width	cm	132
Space of Discs	cm	53
Dia. of disc	mm	660
Required Power	hp	70-80
Total Weight	kg	470

TECHNICAL SPECIFICATIONS	UNIT	ARATRI 566
Number of Discs	pcs	5
Total Length	mm	2910
Total Width	mm	1520
Total Height	mm	1235
Working Depth	cm	25
Working Width	cm	165
Space of Discs	cm	53
Dia. of disc	mm	660
Required Power	hp	85-90
Total Weight	kg	540
