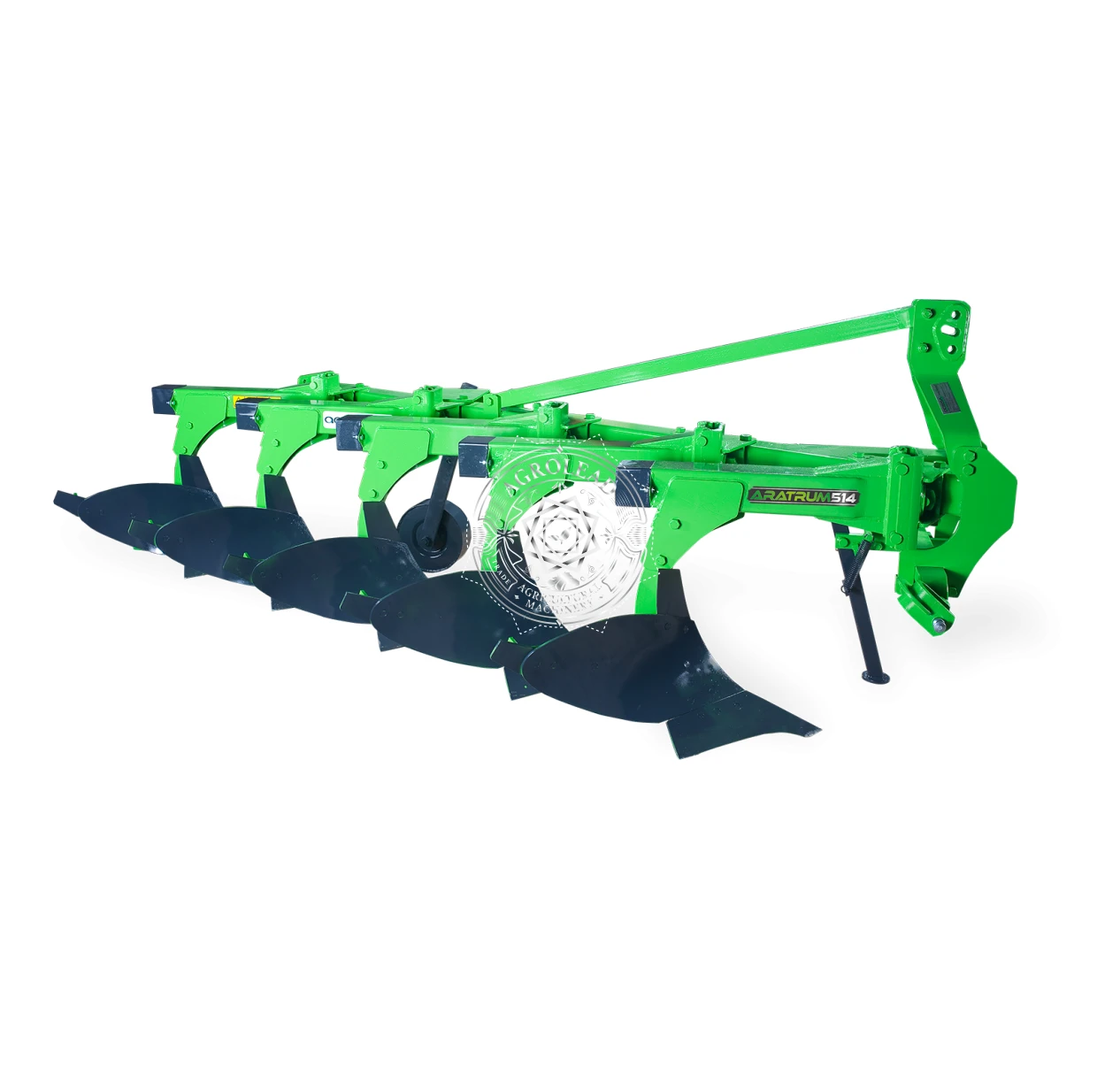

Aratrum Full-Automatic Conventional Plough With Spring Safety provide non-stop ploughing in rocky and rooted areas. Thanks to its’ automatic springs, it can easily disengage from roughness. Rising ability up to 100% than ploughing depth, offers an easier usage. It is adjusting screw, adjustable spring pressure feature; comprehensive usage choice with width adjustment opportunity, safety pin against to overloading, and various types of plough body and shares alternatives plough offers a unique performance in all types of areas.
| TECHNICAL SPECIFICATIONS | UNIT | MODEL | |||
|---|---|---|---|---|---|
| ARATRUM 314 | ARATRUM 414 | ARATRUM 514 | ARATRUM 614 | ||
| Number of Furrow | pcs | 3 | 4 | 5 | 6 |
| Working Width | cm | 90-105-120 | 120-140-160 | 150-175-200 | 180-210-240 |
| Working Depth | cm | 28 | 28 | 28 | 28 |
| Frame Depth | cm | 75 | 75 | 75 | 75 |
| Frame Height | cm | 75 | 75 | 75 | 75 |
| Required Power | hp | 60-75 | 70-85 | 80-100 | 95-125 |
| Total Weight | kg | 580 | 750 | 900 | 1150 |
| Body Size | inch | 14 | 14 | 14 | |
| TECHNICAL SPECIFICATIONS | UNIT | ARATRUM 314 |
|---|---|---|
| Number of Furrow | pcs | 3 |
| Working Width | cm | 90-105-120 |
| Working Depth | cm | 28 |
| Frame Depth | cm | 75 |
| Frame Height | cm | 75 |
| Required Power | hp | 60-75 |
| Total Weight | kg | 580 |
| TECHNICAL SPECIFICATIONS | UNIT | ARATRUM 414 |
|---|---|---|
| Number of Furrow | pcs | 4 |
| Body Size | inch | 14 |
| Working Width | cm | 120-140-160 |
| Working Depth | cm | 28 |
| Frame Depth | cm | 75 |
| Frame Height | cm | 75 |
| Required Power | hp | 70-85 |
| Total Weight | kg | 750 |
| TECHNICAL SPECIFICATIONS | UNIT | ARATRUM 514 |
|---|---|---|
| Number of Furrow | pcs | 5 |
| Body Size | inch | 14 |
| Working Width | cm | 150-175-200 |
| Working Depth | cm | 28 |
| Frame Depth | cm | 75 |
| Frame Height | cm | 75 |
| Required Power | hp | 80-100 |
| Total Weight | kg | 900 |
| TECHNICAL SPECIFICATIONS | UNIT | ARATRUM 614 |
|---|---|---|
| Number of Furrow | pcs | 6 |
| Body Size | inch | 14 |
| Working Width | cm | 180-210-240 |
| Working Depth | cm | 28 |
| Frame Depth | cm | 75 |
| Frame Height | cm | 75 |
| Required Power | hp | 95-125 |
| Total Weight | kg | 1150 |
