Archer Cultivator

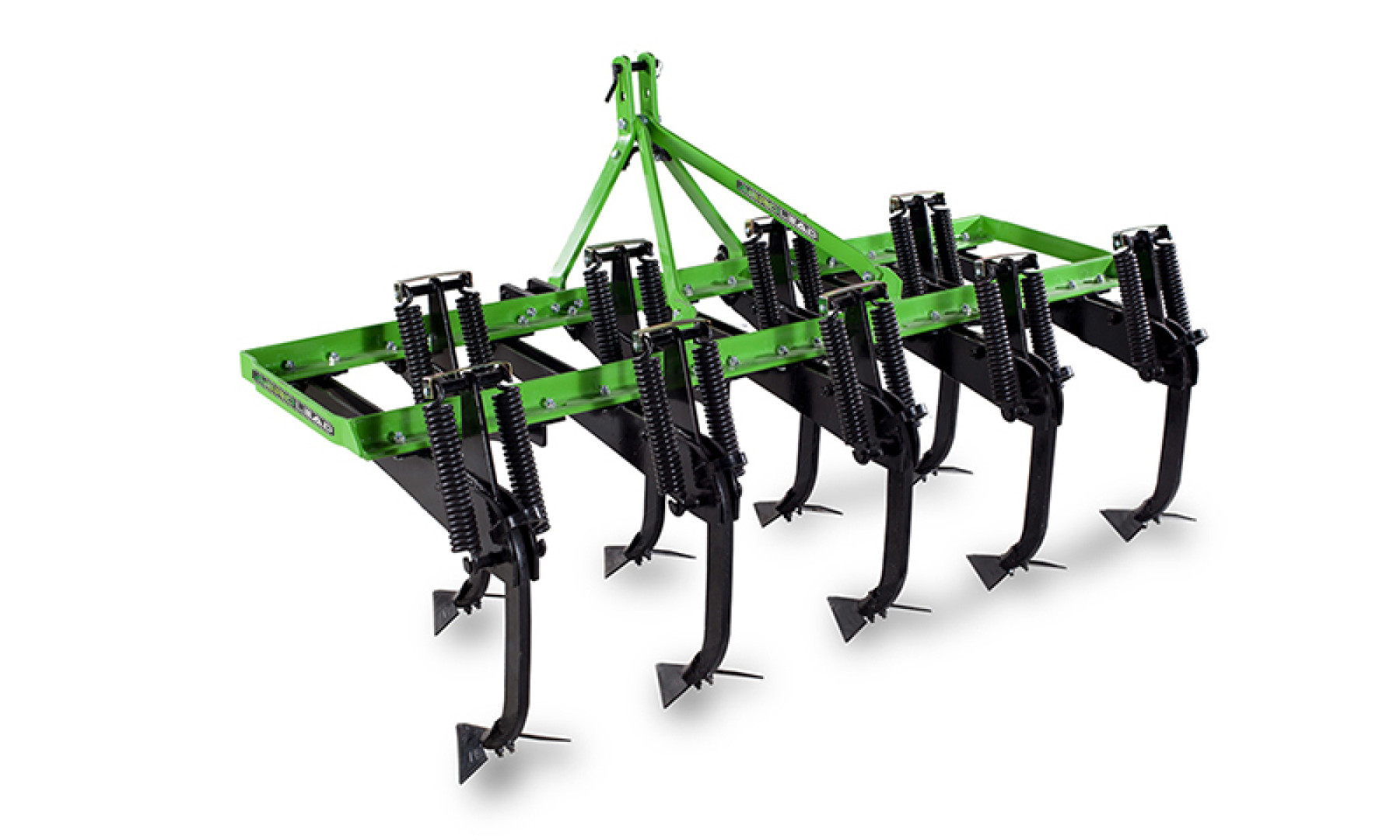

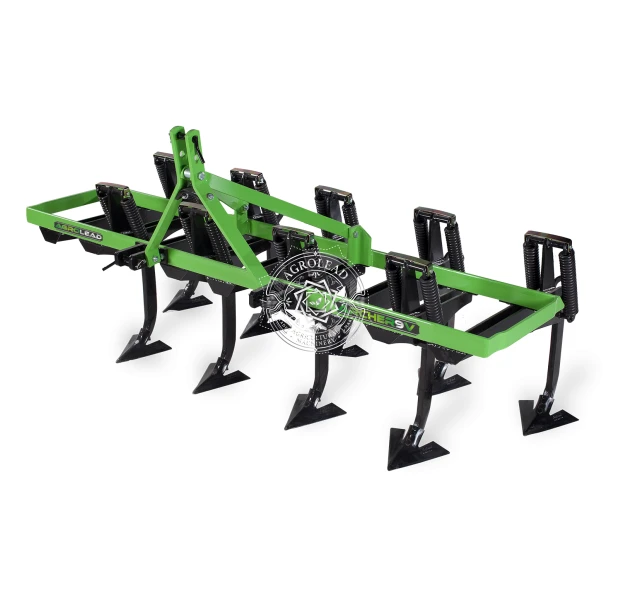

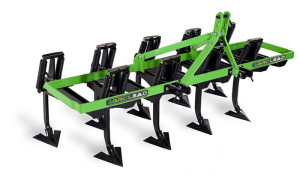

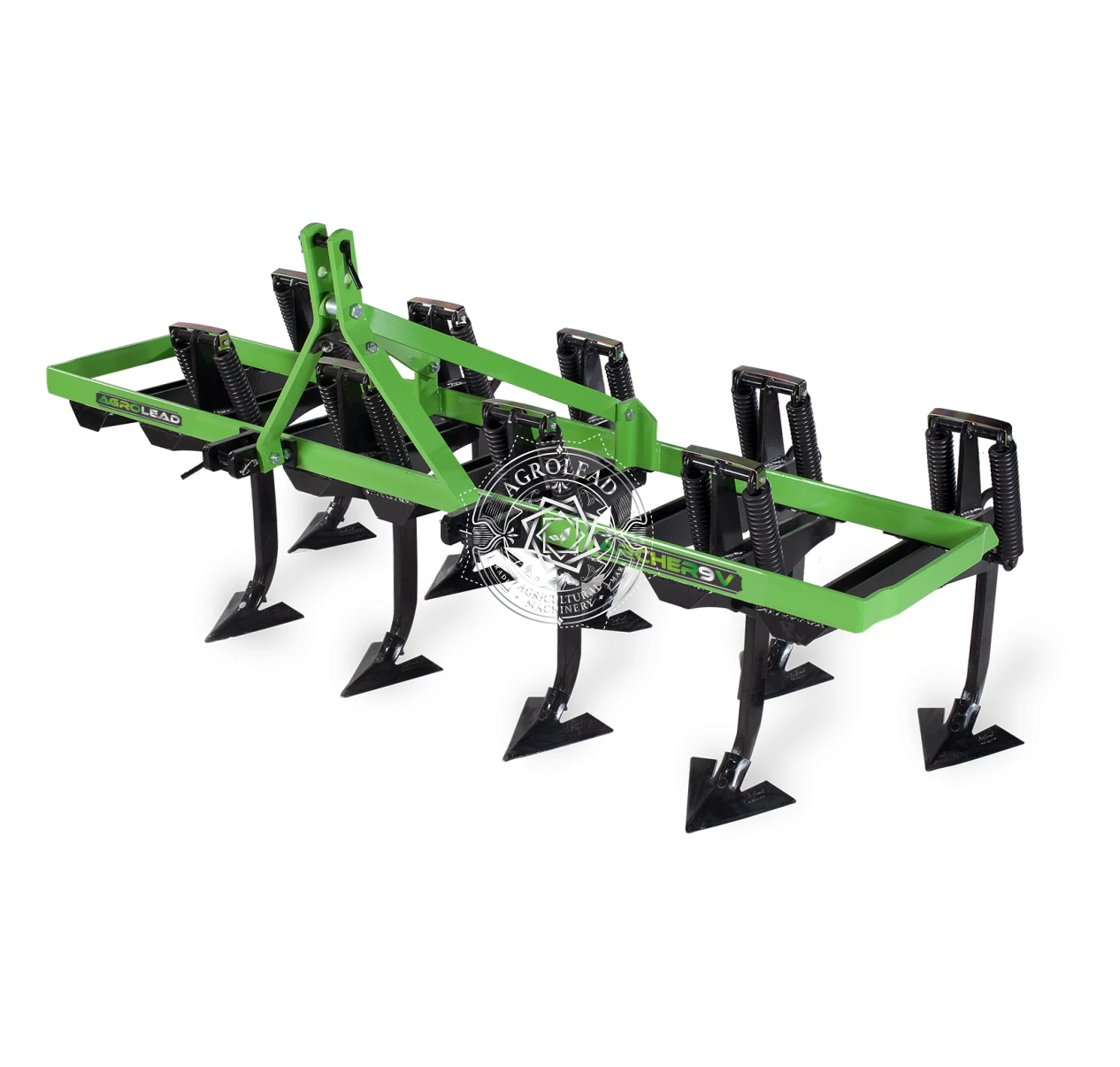

ARCHER cultivators are produced in two different models as vertical and horizontal springs type with 5-7-9-11-13 and 15 tines. They are used for secondary tillage of soil, preparing seed bed, cutting the root crops, improving the distribution of water and preventing the soil from making sole. Cultivator keeps the moisture of soil as it does not process the soil by overturning and it hoes and airs by adjusting the changeable tines distances.

TECHNICAL SPECIFICATIONS	UNIT	MODEL
TECHNICAL SPECIFICATIONS	UNIT	ARCHER 7V	ARCHER 9V	ARCHER 11V	ARCHER 13V	ARCHER 15V
Number Of Tines	pcs.	7	9	11	13	15
Working Width	cm	170	220	270	320	370
Working Depth	cm	30	30	30	30	30
Length	mm	170	207	275	300	370
Width	mm	85	85	85	85	85
Height	mm	118	118	118	118	118
Weight	kg	220	270	320	370	440
Required Power	hp	40	40	50	60	80

TECHNICAL SPECIFICATIONS	UNIT	ARCHER 11V
Number Of Tines	pcs.	11
Working Width	cm	270
Working Depth	cm	30
Length	mm	275
Width	mm	85
Height	mm	118
Weight	kg	320
Required Power	hp	50

TECHNICAL SPECIFICATIONS	UNIT	ARCHER 13V
Number Of Tines	pcs.	13
Working Width	cm	320
Working Depth	cm	30
Length	mm	300
Width	mm	85
Height	mm	118
Weight	kg	370
Required Power	hp	60

TECHNICAL SPECIFICATIONS	UNIT	ARCHER 15V
Number Of Tines	pcs.	15
Working Width	cm	370
Working Depth	cm	30
Length	mm	370
Width	mm	85
Height	mm	118
Weight	kg	440
Required Power	hp	80

TECHNICAL SPECIFICATIONS	UNIT	ARCHER 7V
Number Of Tines	pcs.	7
Working Width	cm	170
Working Depth	cm	30
Length	mm	170
Width	mm	85
Height	mm	118
Weight	kg	220
Required Power	hp	40

TECHNICAL SPECIFICATIONS	UNIT	ARCHER 9V
Number Of Tines	pcs.	9
Working Width	cm	220
Working Depth	cm	30
Length	mm	207
Width	mm	85
Height	mm	118
Weight	kg	270
Required Power	hp	40
