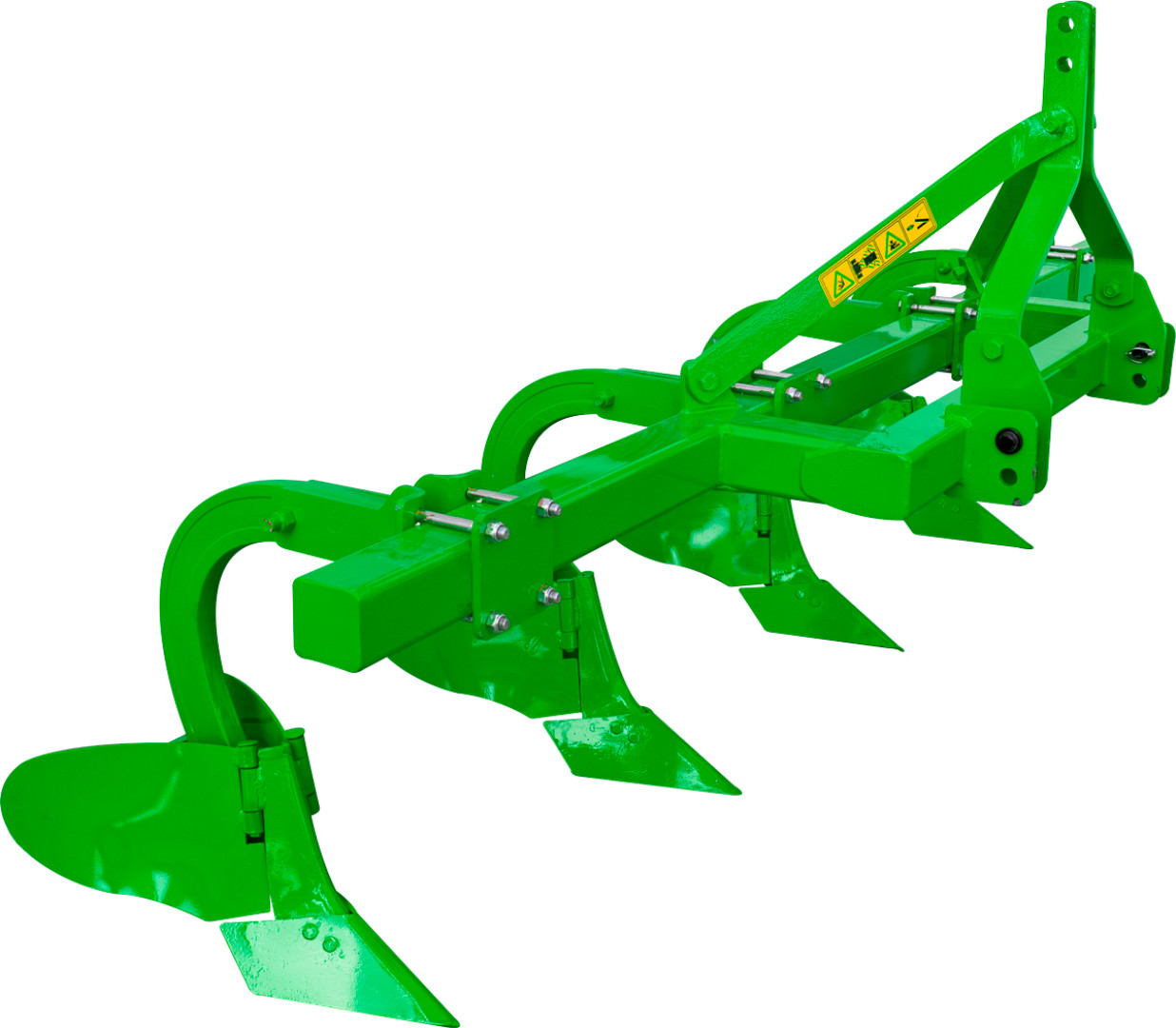

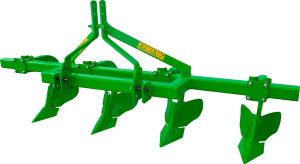

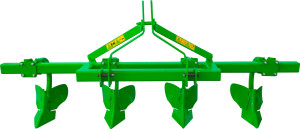

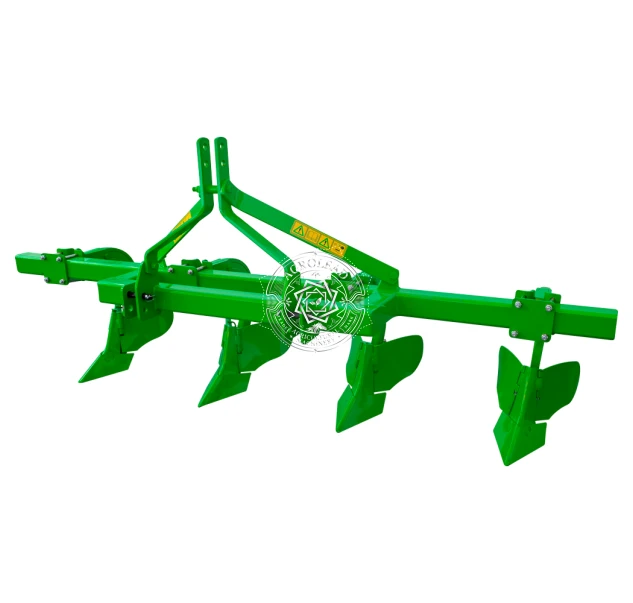

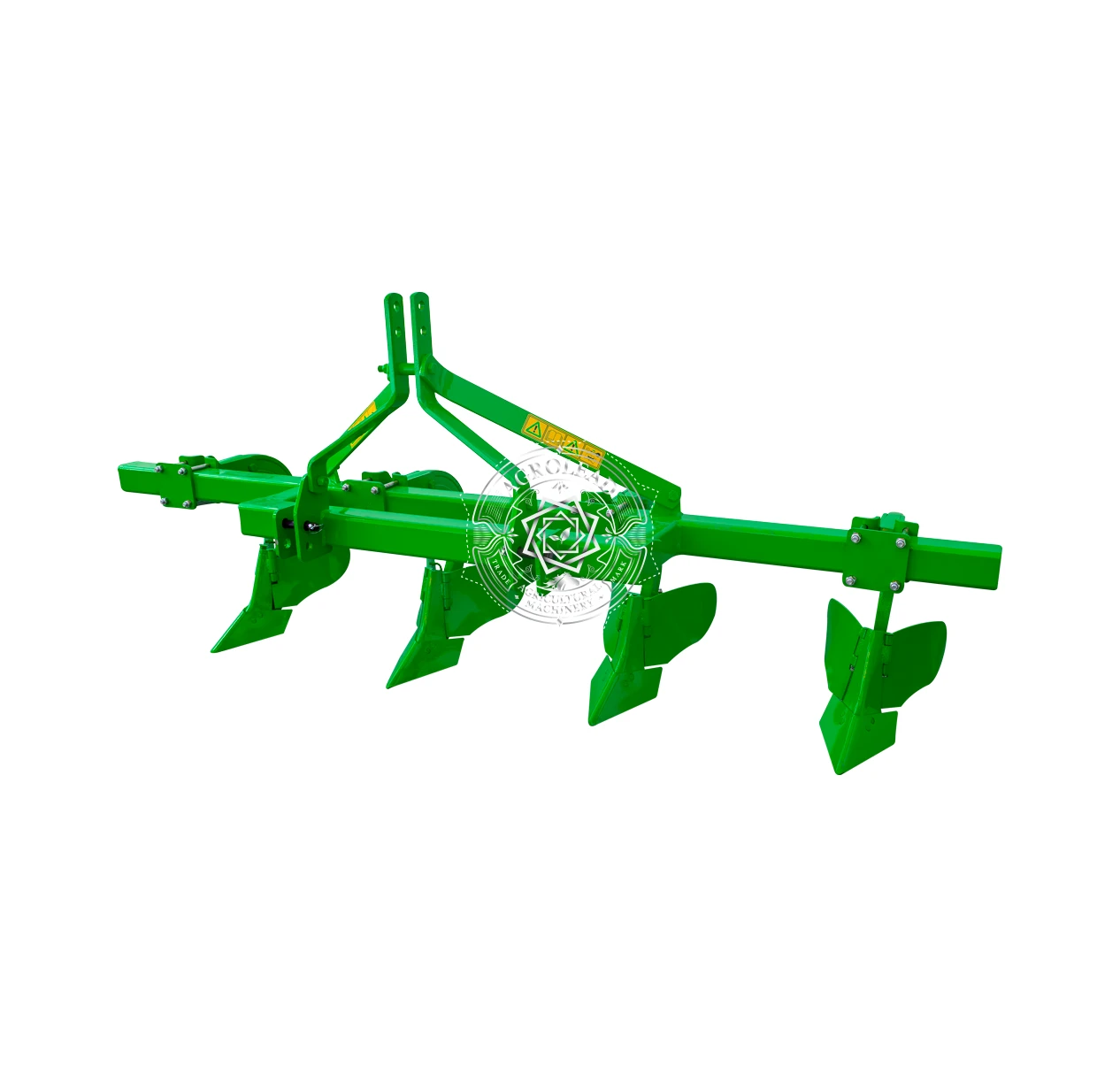

Ferrum Ridger Plough

Ferrum Ridger Plow used in primary tillage is mounted to tractor from 3 Point Linkage system. Therefore transportation to the field can be easily done. Furrow opener is placed over adjustable chassis.It has an opportunity to enter between rows as demanded width due to its adjustable moldboards.The usage aim of the machine is to open furrows between rows and ridging for row-planted seeds such as;corn,sunflower, cotton,etc.

TECHNICAL SPECIFICATIONS	UNIT	MODEL
TECHNICAL SPECIFICATIONS	UNIT	FERRUM 2	FERRUM 3	FERRUM 4	FERRUM 5
Number of Furrows	pcs	2	3	4	5
Distance Betweeen Bodies	cm	60-95	60-95	60-95	60-95
Furrow Bottom Depth	cm	25	25	25	25
Furrow Width	cm	30-40-45	30-40-45	30-40-45	30-40-45
Working Dept (max)	cm	20-35	20-35	20-35	20-35
Width	mm	1300	2100	2900	3700
Length	mm	700	800	800	800
Height	mm	1250	1250	1250	1250
Required Power	hp	40-50	50-60	60-80	80-90
Weight	kg	175	265	365	455

TECHNICAL SPECIFICATIONS	UNIT	FERRUM 2
Number of Furrows	pcs	2
Distance Betweeen Bodies	cm	60-95
Furrow Bottom Depth	cm	25
Furrow Width	cm	30-40-45
Working Dept (max)	cm	20-35
Width	mm	1300
Length	mm	700
Height	mm	1250
Required Power	hp	40-50
Weight	kg	175

TECHNICAL SPECIFICATIONS	UNIT	FERRUM 3
Number of Furrows	pcs	3
Distance Betweeen Bodies	cm	60-95
Furrow Bottom Depth	cm	25
Furrow Width	cm	30-40-45
Working Dept (max)	cm	20-35
Width	mm	2100
Length	mm	800
Height	mm	1250
Required Power	hp	50-60
Weight	kg	265

TECHNICAL SPECIFICATIONS	UNIT	FERRUM 4
Number of Furrows	pcs	4
Distance Betweeen Bodies	cm	60-95
Furrow Bottom Depth	cm	25
Furrow Width	cm	30-40-45
Working Dept (max)	cm	20-35
Width	mm	2900
Length	mm	800
Height	mm	1250
Required Power	hp	60-80
Weight	kg	365

TECHNICAL SPECIFICATIONS	UNIT	FERRUM 5
Number of Furrows	pcs	5
Distance Betweeen Bodies	cm	60-95
Furrow Bottom Depth	cm	25
Furrow Width	cm	30-40-45
Working Dept (max)	cm	20-35
Width	mm	3700
Length	mm	800
Height	mm	1250
Required Power	hp	80-90
Weight	kg	455
