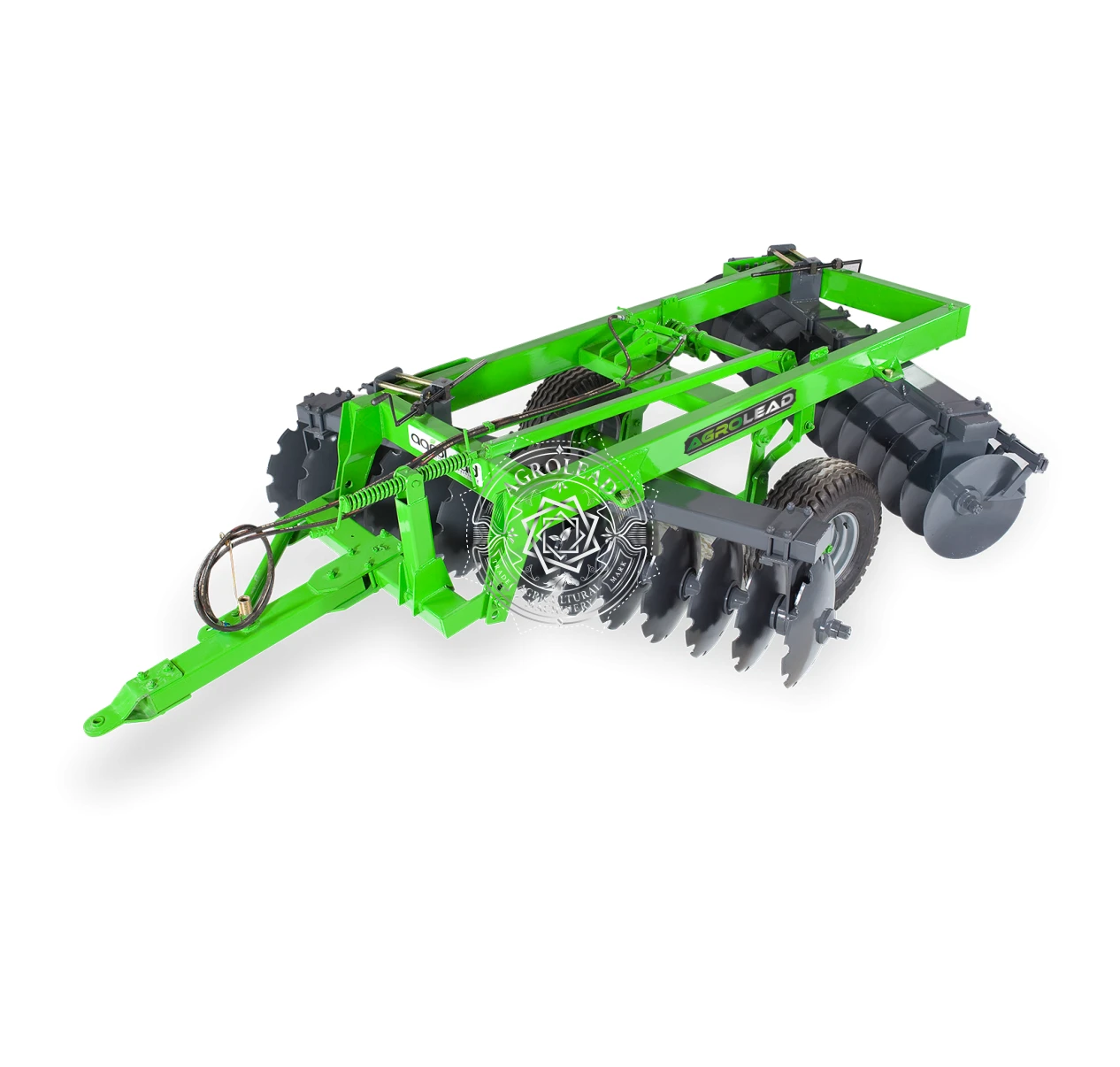

Gobble Goble Disc Harrow

AGROLEAD Gobble Disc Harrow is used for stubble ploughing, chopping the plant that residues before cultivation and very effectively on the heavy soils, which other type of disc harrow cannot operate. It is easy to transport the machine from one field to another one by the assistance of hydraulic lifted wheels on the equipment. On the field, corner turnings become faster by the assistance of the hydraulic lifts that operated from tractor cabin. It is easy to adjust the working depth by the up and down movement of the wheels.

TECHNICAL SPECIFICATIONS	UNIT	MODEL
TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 2056	GOBBLE 2256	GOBBLE 2456	GOBBLE 2656	GOBBLE 2856	GOBBLE 3056	GOBBLE 3256	GOBBLE 3456	GOBBLE 3656
Number of Disc	pcs	20	22	24	26	28	30	32	34	36
Working Width	mm	1910	2120	2330	2540	2540	2960	3170	3380	3590
Working Depth	cm	25	25	25	25	25	25	25	25	25
Disc Diameter	mm	560-4.5	560-4.5	560-4.5	560-4.5	560-4.5	560-4.5	560-4.5	560-4.5	560-4.5
Space of Discs	mm	220	220	220	220	220	220	220	220	220
Pcs of Main Bearings	pcs	8	8	8	8	8	8	8	10	12
Frame (ø)	mm	100x200x6	100x200x6	100x200x6	100x200x6	100x200x6	100x200x6	100x200x6	100x200x6	100x200x6
Lenght	mm	5200	5200	5270	5270	5270	5270	5620	5620	5620
Width	mm	2440	2660	2880	3100	3320	3540	3760	3980	4200
Height	mm	1250	1250	1250	1250	1250	1250	1250	1250	1250
Weight	kg	1700	1750	1800	1860	1930	2010	2130	2280	2420
Required Power	hp	80-90	90-100	100-110	110-120	120-130	130-140	140-150	150-160	160-170

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 2056
Number of Disc	pcs	20
Working Width	mm	1910
Working Depth	cm	25
Disc Diameter	mm	560-4.5
Space of Discs	mm	220
Pcs of Main Bearings	pcs	8
Frame (ø)	mm	100x200x6
Lenght	mm	5200
Width	mm	2440
Height	mm	1250
Weight	kg	1700
Required Power	hp	80-90

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 2256
Number of Disc	pcs	22
Working Width	mm	2120
Working Depth	cm	25
Disc Diameter	mm	560-4.5
Space of Discs	mm	220
Pcs of Main Bearings	pcs	8
Frame (ø)	mm	100x200x6
Lenght	mm	5200
Width	mm	2660
Height	mm	1250
Weight	kg	1750
Required Power	hp	90-100

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 2456
Number of Disc	pcs	24
Working Width	mm	2330
Working Depth	cm	25
Disc Diameter	mm	560-4.5
Space of Discs	mm	220
Pcs of Main Bearings	pcs	8
Frame (ø)	mm	100x200x6
Lenght	mm	5270
Width	mm	2880
Height	mm	1250
Weight	kg	1800
Required Power	hp	100-110

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 2656
Number of Disc	pcs	26
Working Width	mm	2540
Working Depth	cm	25
Disc Diameter	mm	560-4.5
Space of Discs	mm	220
Pcs of Main Bearings	pcs	8
Frame (ø)	mm	100x200x6
Lenght	mm	5270
Width	mm	3100
Height	mm	1250
Weight	kg	1860
Required Power	hp	110-120

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 2856
Number of Disc	pcs	28
Working Width	mm	2540
Working Depth	cm	25
Disc Diameter	mm	560-4.5
Space of Discs	mm	220
Pcs of Main Bearings	pcs	8
Frame (ø)	mm	100x200x6
Lenght	mm	5270
Width	mm	3320
Height	mm	1250
Weight	kg	1930
Required Power	hp	120-130

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 3056
Number of Disc	pcs	30
Working Width	mm	2960
Working Depth	cm	25
Disc Diameter	mm	560-4.5
Space of Discs	mm	220
Pcs of Main Bearings	pcs	8
Frame (ø)	mm	100x200x6
Lenght	mm	5270
Width	mm	3540
Height	mm	1250
Weight	kg	2010
Required Power	hp	130-140

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 3256
Number of Disc	pcs	32
Working Width	mm	3170
Working Depth	cm	25
Disc Diameter	mm	560-4.5
Space of Discs	mm	220
Pcs of Main Bearings	pcs	8
Frame (ø)	mm	100x200x6
Lenght	mm	5620
Width	mm	3760
Height	mm	1250
Weight	kg	2130
Required Power	hp	140-150

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 3456
Number of Disc	pcs	34
Working Width	mm	3380
Working Depth	cm	25
Disc Diameter	mm	560-4.5
Space of Discs	mm	220
Pcs of Main Bearings	pcs	10
Frame (ø)	mm	100x200x6
Lenght	mm	5620
Width	mm	3980
Height	mm	1250
Weight	kg	2280
Required Power	hp	150-160

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 3656
Number of Disc	pcs	36
Working Width	mm	3590
Working Depth	cm	25
Disc Diameter	mm	560-4.5
Space of Discs	mm	220
Pcs of Main Bearings	pcs	12
Frame (ø)	mm	100x200x6
Lenght	mm	5620
Width	mm	4200
Height	mm	1250
Weight	kg	2420
Required Power	hp	160-170
