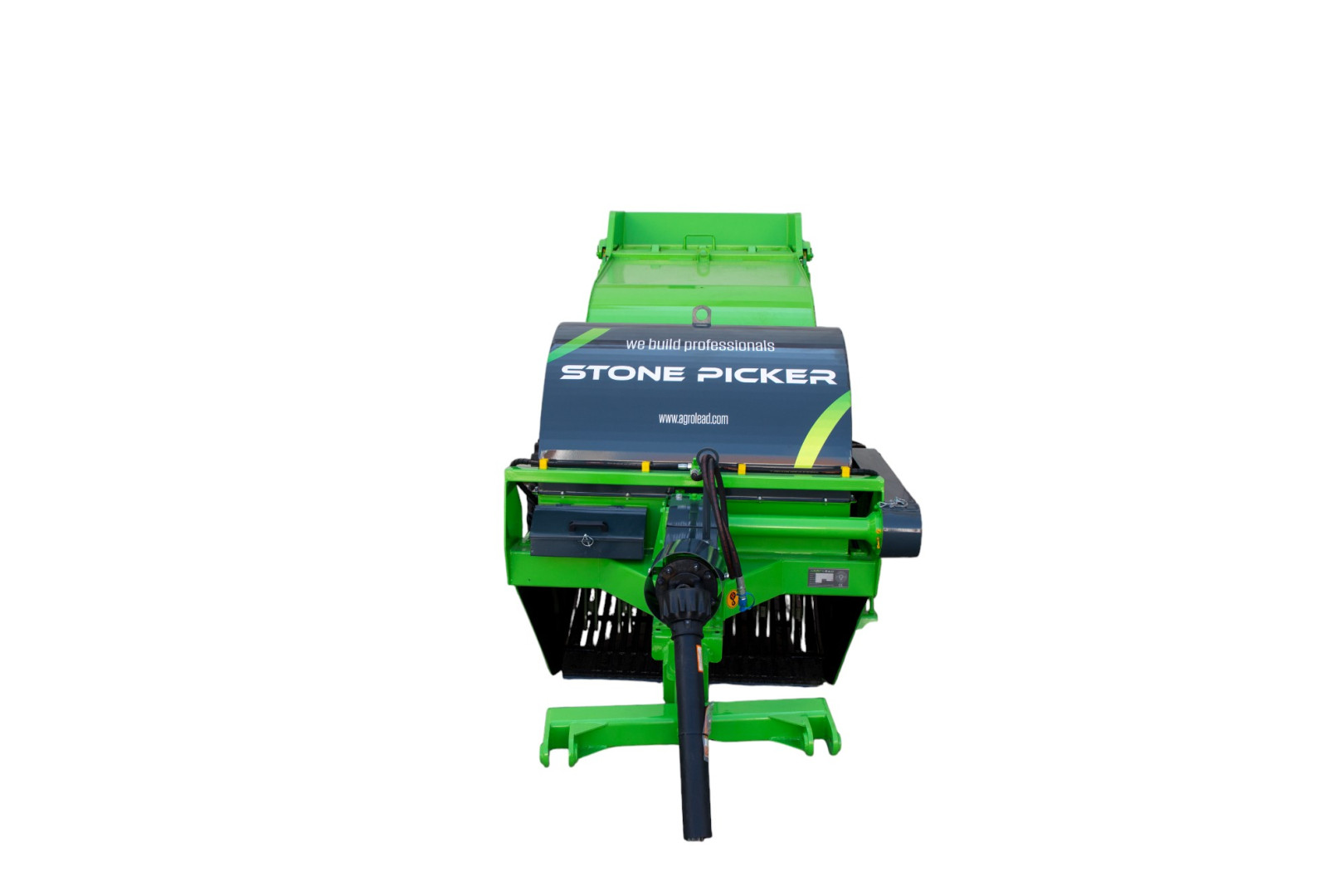

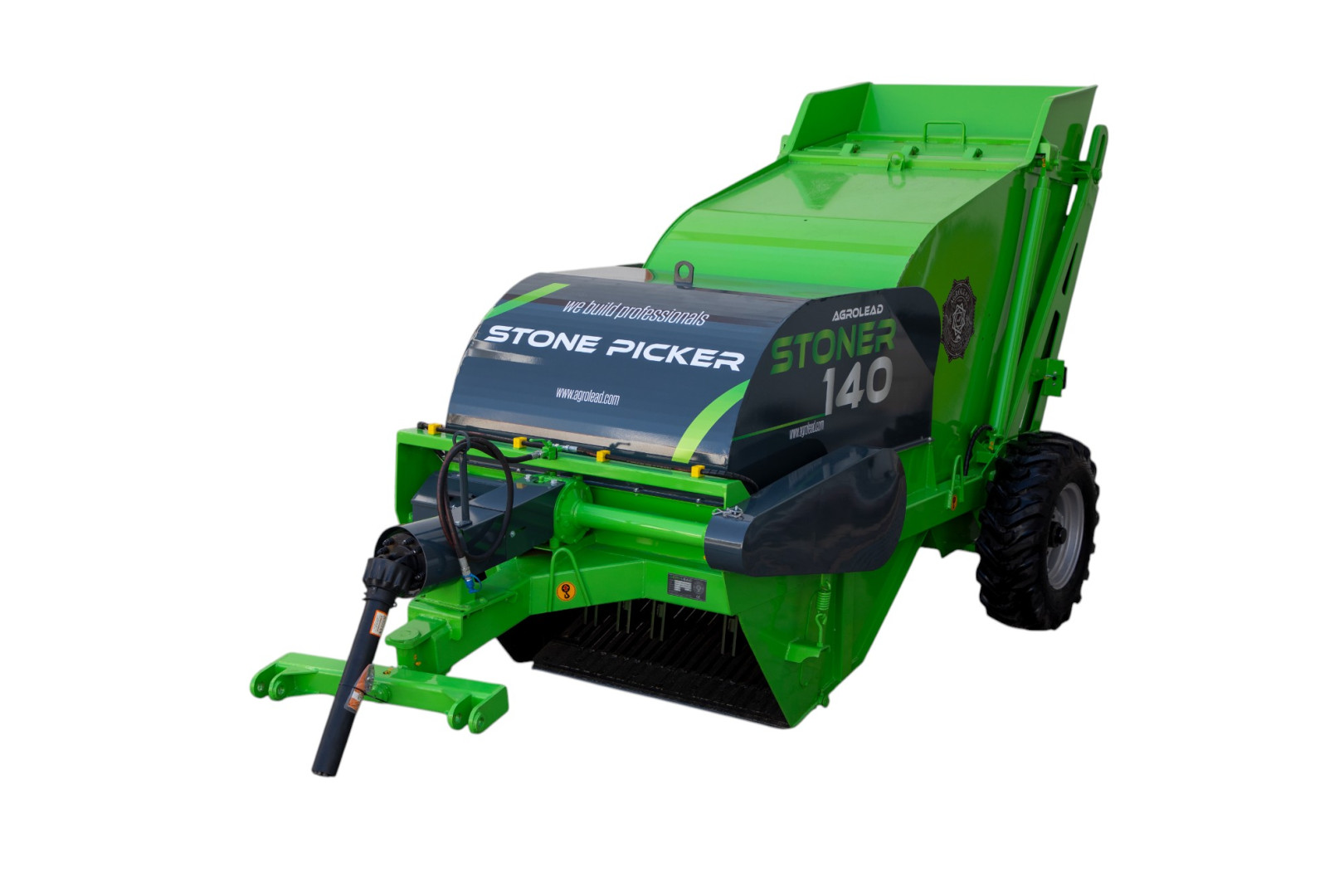

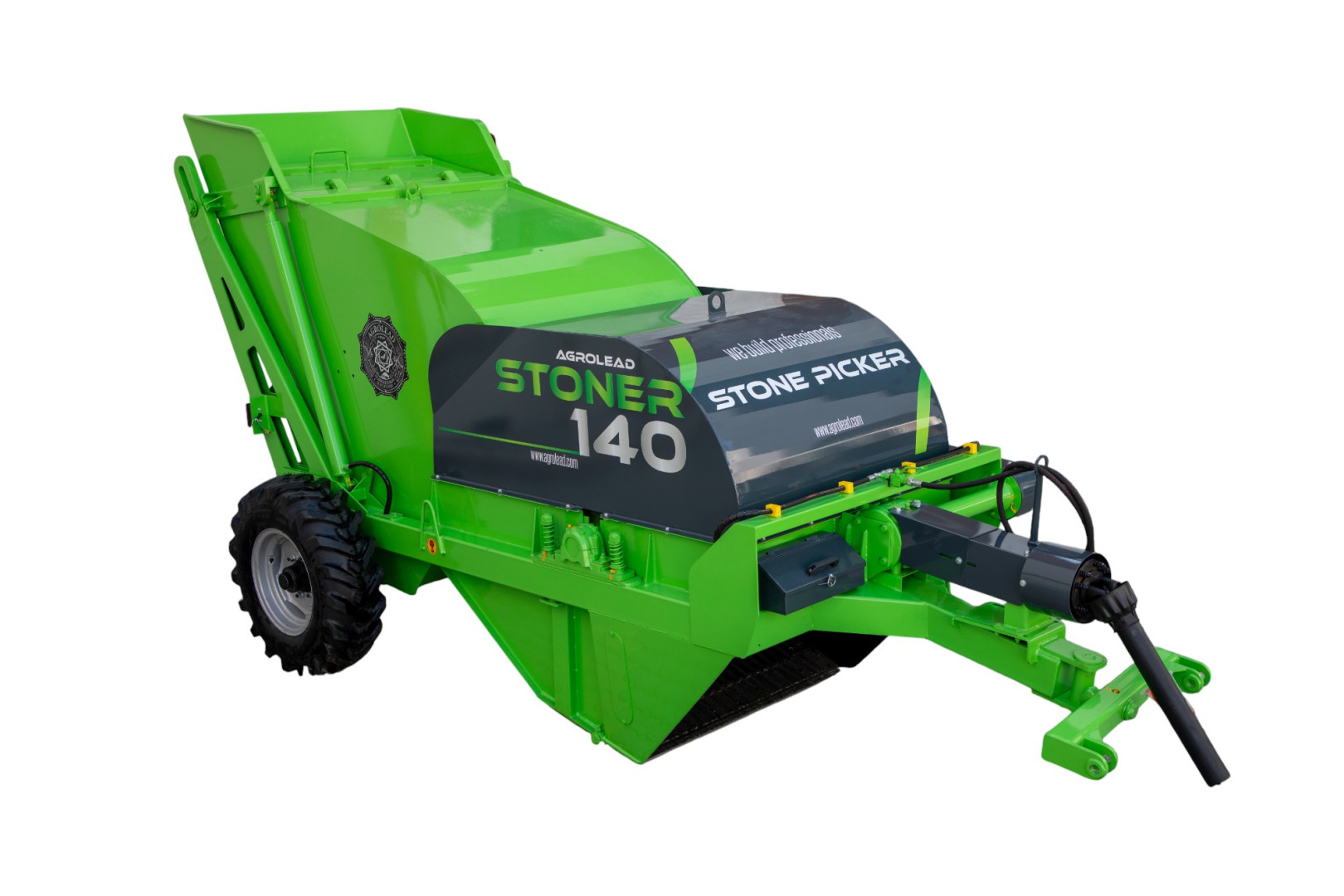

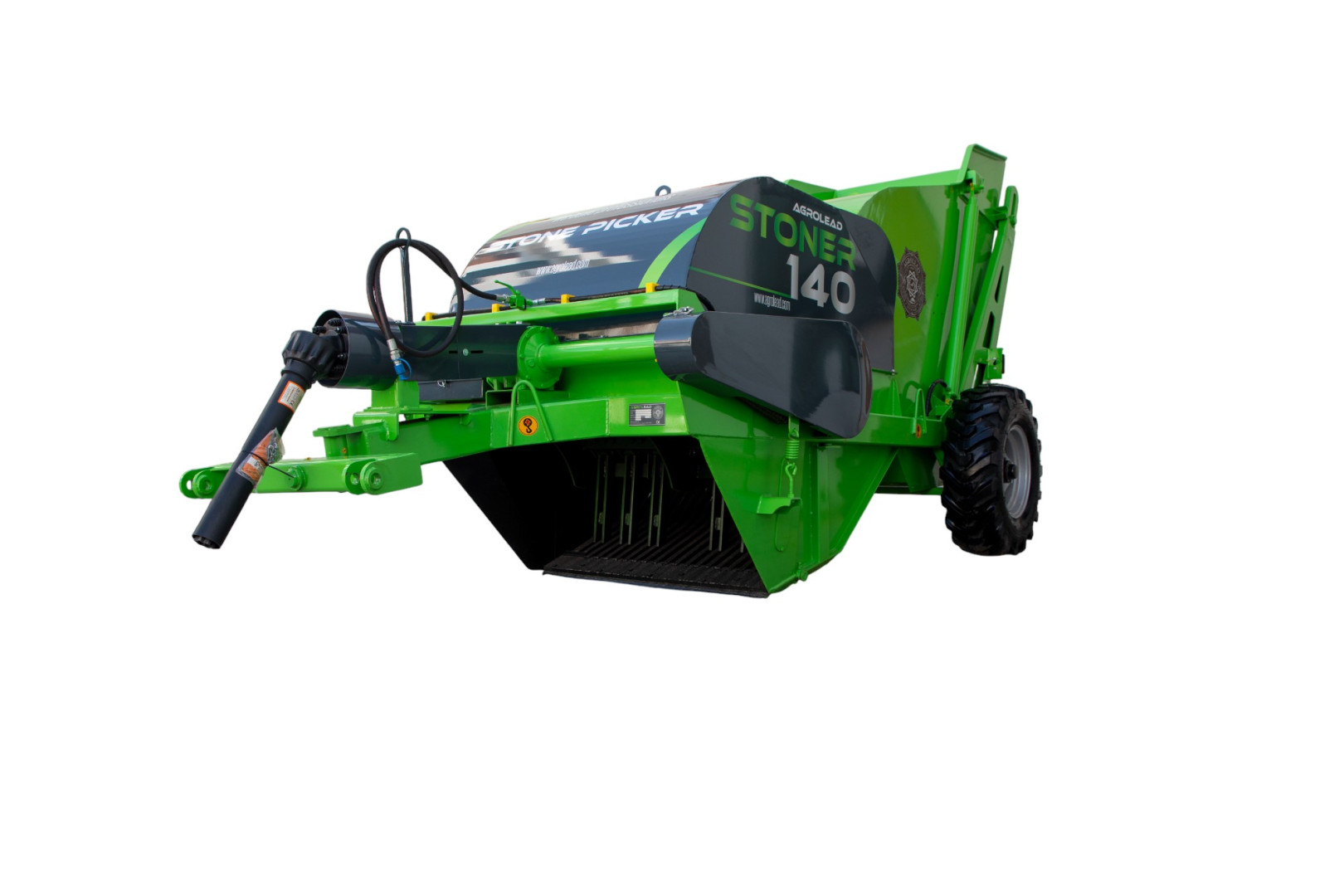

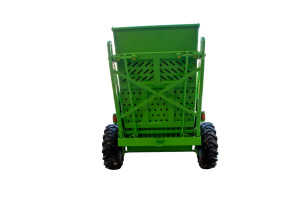

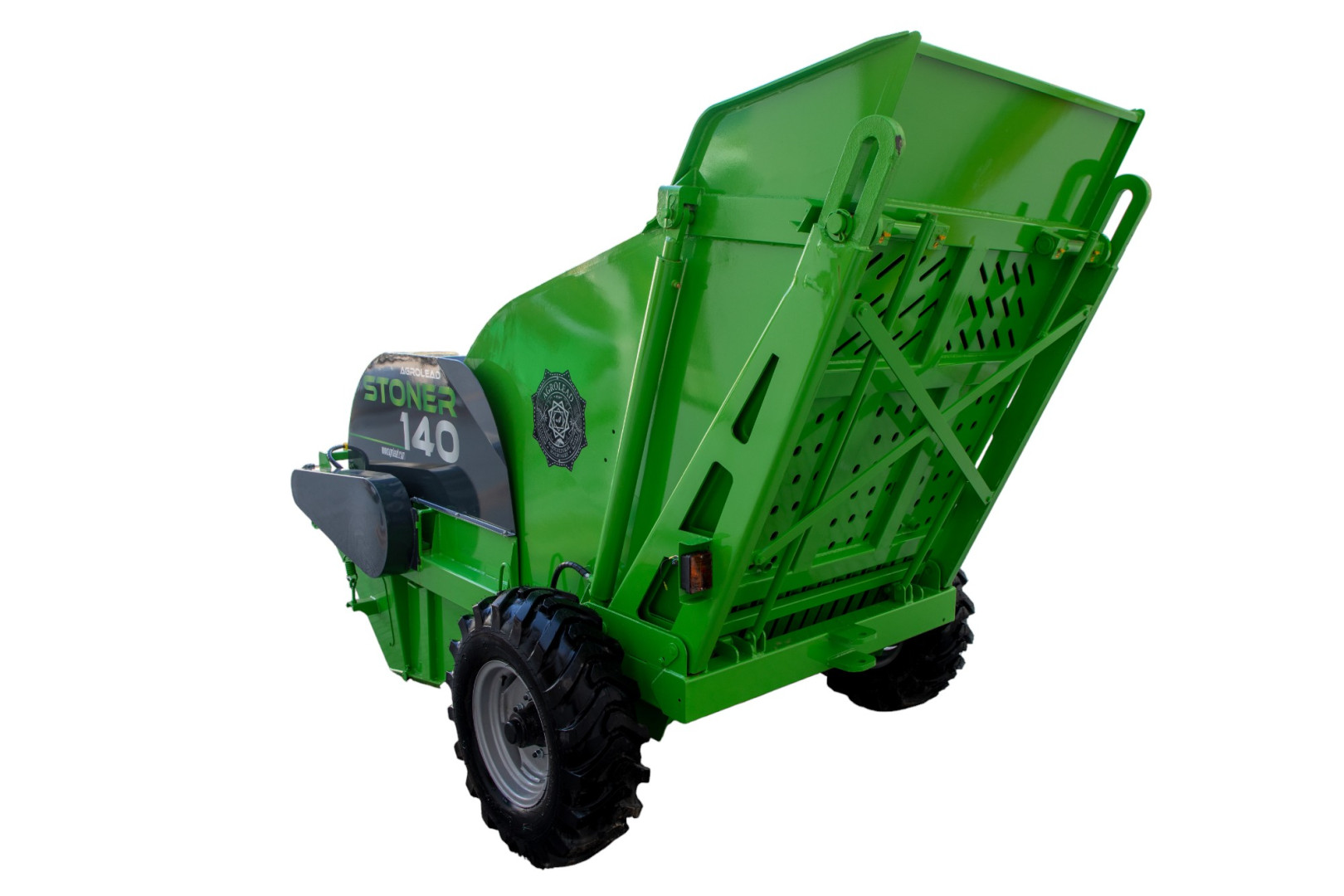

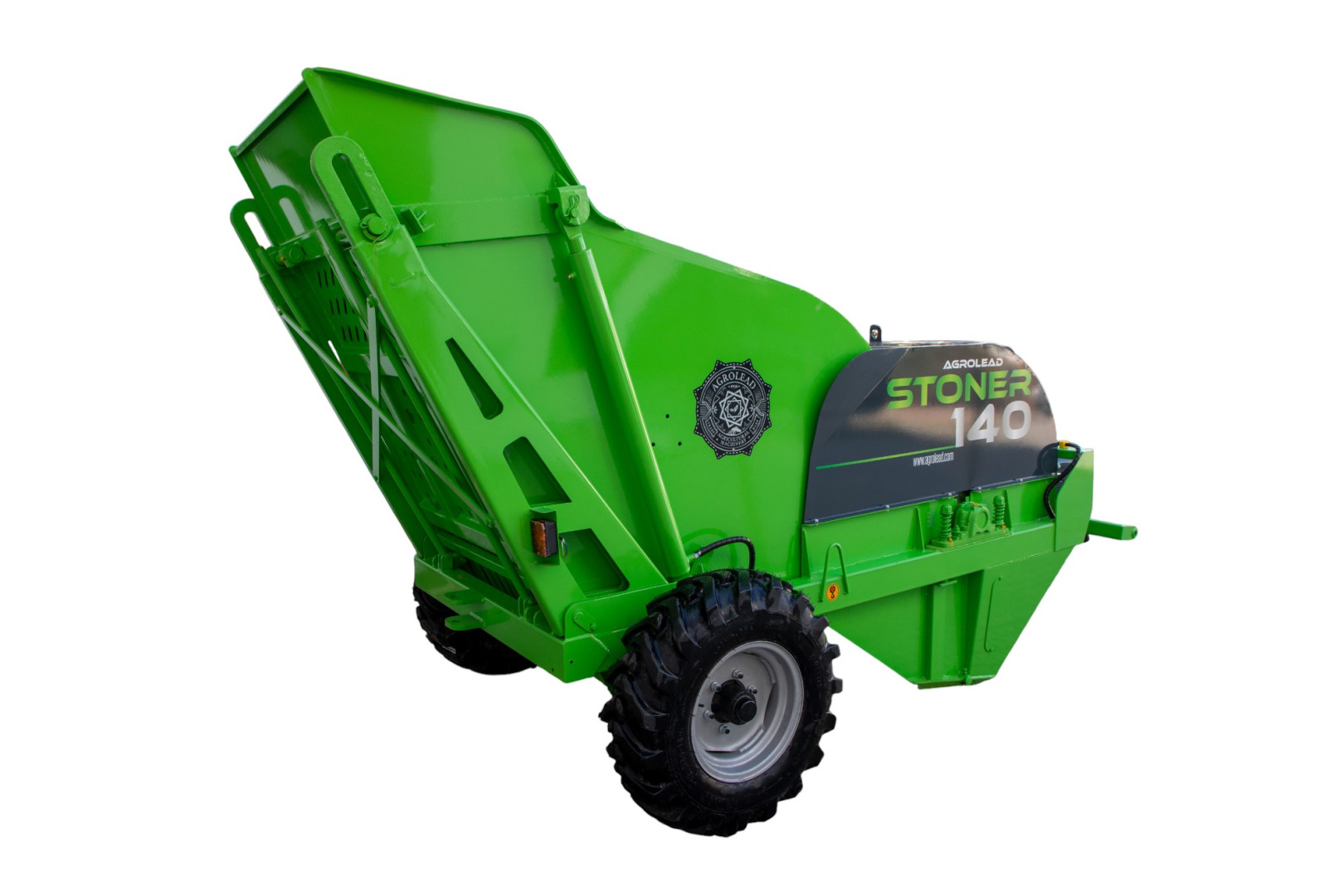

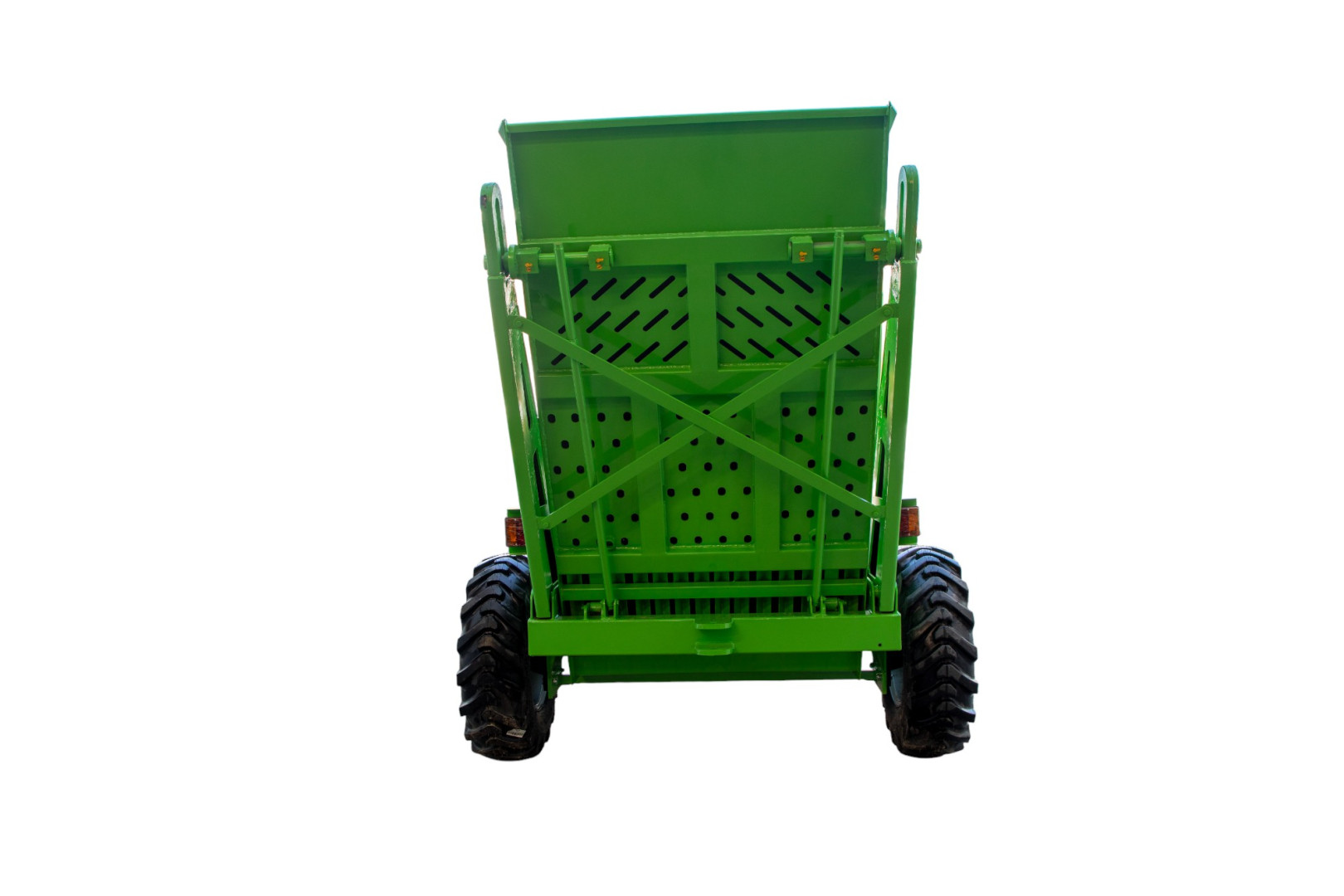

Stoner Stone Picker

Stoner Stone Picker

Stoner Stone Picker machine has been designed to remove and collect stones from cultivated lands. Our Machine specially designed to collect stones on the surface and at a depth of 30cm in the field. Stoner Stone Picker Machines range at 3 different model as their working width’s 140, 175 and 200 cm, collect the stones easily from 3cm size to 40cm, the extra soil and smaller stones go through the sieve and back onto the ground. Thanks to the Hydraulic Unloading System, you can discharge stones directly into a dump trailer, a truck or in the corner of the field.


Stoner Stone Picker Machine is made of high quality material and thanks to its solid structure it will serve you for a long working life. Thanks to the vibrating screen, it provides easy operation even in moist soil. It does not take soil to its store, it easily removes the soil and increases the ability of the tractor without difficulty and thus saves fuel on the tractor.
Newly designed drum system prevents spring breaks and allows long life of parts and easy replacement of worn parts.
This machine can also be used in industrial areas to clean sites and also in cleaning beach sand.

TECHNICAL SPECIFICATIONSUNITMODEL
STONER 140STONER 175STONER 200
Working Widthcm140175200
Working Depthcm30-3530-3530-35
Lengthcm520520520
Widthcm225255280
Heightcm255255255
Storage Heightcm255255260
Stone Size (Min-Max.)cm3*403*403*40
Storage Capacity (Max.)kg450060008500
Required Powerhp50-6560-8080-90
Weightkg318035553850
TECHNICAL SPECIFICATIONSUNITSTONER 140
Working Widthcm140
Working Depthcm30-35
Lengthcm520
Widthcm225
Heightcm255
Storage Heightcm255
Stone Size (Min-Max.)cm3*40
Storage Capacity (Max.)kg4500
Required Powerhp50-65
Weightkg3180
TECHNICAL SPECIFICATIONSUNITSTONER 175
Working Widthcm175
Working Depthcm30-35
Lengthcm520
Widthcm255
Heightcm255
Storage Heightcm255
Stone Size (Min-Max.)cm3*40
Storage Capacity (Max.)kg6000
Required Powerhp60-80
Weightkg3555
TECHNICAL SPECIFICATIONSUNITSTONER 200
Working Widthcm200
Working Depthcm30-35
Lengthcm520
Widthcm280
Heightcm255
Storage Heightcm260
Stone Size (Min-Max.)cm3*40
Storage Capacity (Max.)kg8500
Required Powerhp80-90
Weightkg3850
