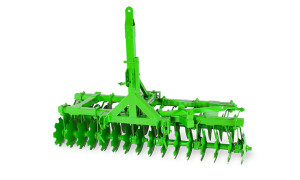

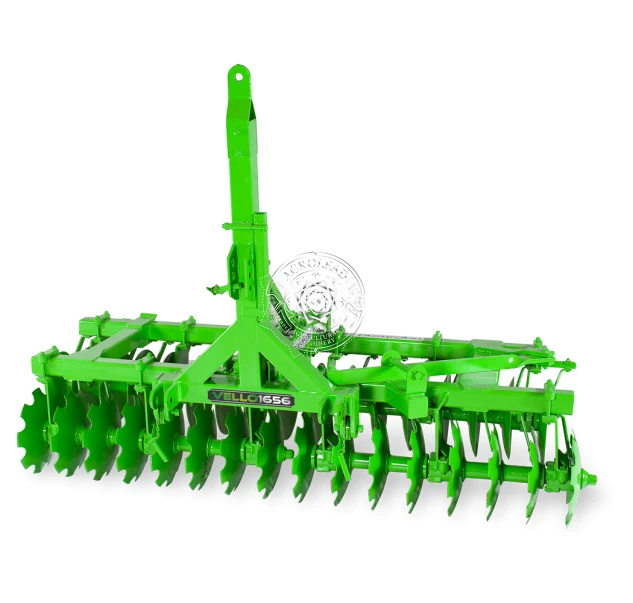

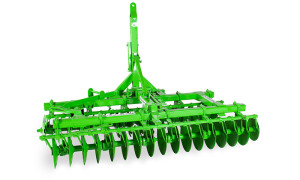

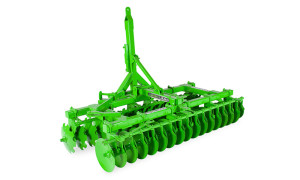

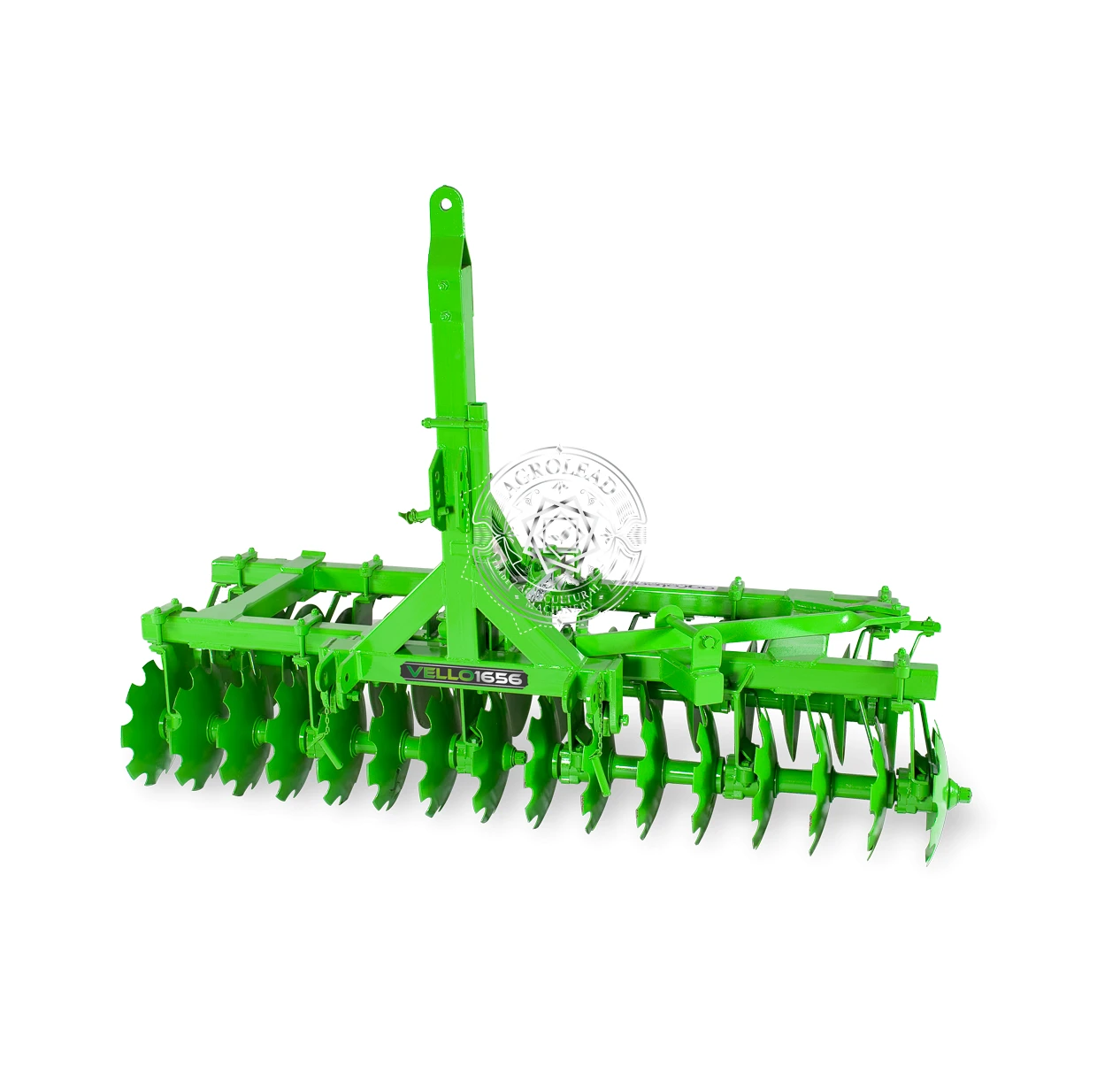

Vello V type Off Set Gobble Disc Harrows are hydraulic and trailed type machines which are used to dissect plant residues (corn, sunflower, wheat etc) and weeds; to break the duff layer; for triplication and matrixing process in a field which is left for fallowing after plowing. It prepares the field directly for planting by harrowless taming without using any other agricultural machine in dry seasons where ploughs can not enter after the harvest and it may be used to tame the soil including intensive humidity as well.
| TECHNICAL SPECIFICATIONS | UNIT | MODEL | ||||
|---|---|---|---|---|---|---|
| VELLO 1656 | VELLO 1856 | VELLO 2056 | VELLO 2256 | VELLO 2456 | ||
| Number Of Disc | pcs | 16 | 18 | 20 | 22 | 24 |
| Disc Diameter | cm | 56x4.5 | 56x4.5 | 56x4.5 | 56x4.5 | 56x4.5 |
| Dist. Between Disc | cm | 22 | 22 | 22 | 22 | 22 |
| No.Of Beds On Crank | pcs | 4 | 6 | 8 | 8 | 8 |
| Working Width | cm | 176 | 198 | 220 | 242 | 264 |
| Total Width | cm | 221 | 243 | 265 | 287 | 309 |
| Total Length | cm | 166 | 166 | 166 | 166 | 166 |
| Total Height | cm | 220 | 220 | 220 | 220 | 220 |
| Frame | mm | 100x100x6 | 100x100x6 | 100x100x6 | 100x100x6 | 100x100x6 |
| Weight 560 mm disc | kg | 835 | 920 | 1050 | 1140 | 1260 |
| Weight 610 mm disc | kg | 870 | 1050 | 1100 | 1190 | 1315 |
| Min. hp | hp | 55-60 | 65-70 | 75-80 | 85-90 | 95-100 |
| TECHNICAL SPECIFICATIONS | UNIT | VELLO 1656 |
|---|---|---|
| Number Of Disc | pcs | 16 |
| Disc Diameter | cm | 56x4.5 |
| Dist. Between Disc | cm | 22 |
| No.Of Beds On Crank | pcs | 4 |
| Working Width | cm | 176 |
| Total Width | cm | 221 |
| Total Length | cm | 166 |
| Total Height | cm | 220 |
| Frame | mm | 100x100x6 |
| Weight 560 mm disc | kg | 835 |
| Weight 610 mm disc | kg | 870 |
| Min. hp | hp | 55-60 |
| TECHNICAL SPECIFICATIONS | UNIT | VELLO 1856 |
|---|---|---|
| Number Of Disc | pcs | 18 |
| Disc Diameter | cm | 56x4.5 |
| Dist. Between Disc | cm | 22 |
| No.Of Beds On Crank | pcs | 6 |
| Working Width | cm | 198 |
| Total Width | cm | 243 |
| Total Length | cm | 166 |
| Total Height | cm | 220 |
| Frame | mm | 100x100x6 |
| Weight 560 mm disc | kg | 920 |
| Weight 610 mm disc | kg | 1050 |
| Min. hp | hp | 65-70 |
| TECHNICAL SPECIFICATIONS | UNIT | VELLO 2056 |
|---|---|---|
| Number Of Disc | pcs | 20 |
| Disc Diameter | cm | 56x4.5 |
| Dist. Between Disc | cm | 22 |
| No.Of Beds On Crank | pcs | 8 |
| Working Width | cm | 220 |
| Total Width | cm | 265 |
| Total Length | cm | 166 |
| Total Height | cm | 220 |
| Frame | mm | 100x100x6 |
| Weight 560 mm disc | kg | 1050 |
| Weight 610 mm disc | kg | 1100 |
| Min. hp | hp | 75-80 |
| TECHNICAL SPECIFICATIONS | UNIT | VELLO 2256 |
|---|---|---|
| Number Of Disc | pcs | 22 |
| Disc Diameter | cm | 56x4.5 |
| Dist. Between Disc | cm | 22 |
| No.Of Beds On Crank | pcs | 8 |
| Working Width | cm | 242 |
| Total Width | cm | 287 |
| Total Length | cm | 166 |
| Total Height | cm | 220 |
| Frame | mm | 100x100x6 |
| Weight 560 mm disc | kg | 1140 |
| Weight 610 mm disc | kg | 1190 |
| Min. hp | hp | 85-90 |
| TECHNICAL SPECIFICATIONS | UNIT | VELLO 2456 |
|---|---|---|
| Number Of Disc | pcs | 24 |
| Disc Diameter | cm | 56x4.5 |
| Dist. Between Disc | cm | 22 |
| No.Of Beds On Crank | pcs | 8 |
| Working Width | cm | 264 |
| Total Width | cm | 309 |
| Total Length | cm | 166 |
| Total Height | cm | 220 |
| Frame | mm | 100x100x6 |
| Weight 560 mm disc | kg | 1260 |
| Weight 610 mm disc | kg | 1315 |
| Min. hp | hp | 95-100 |
