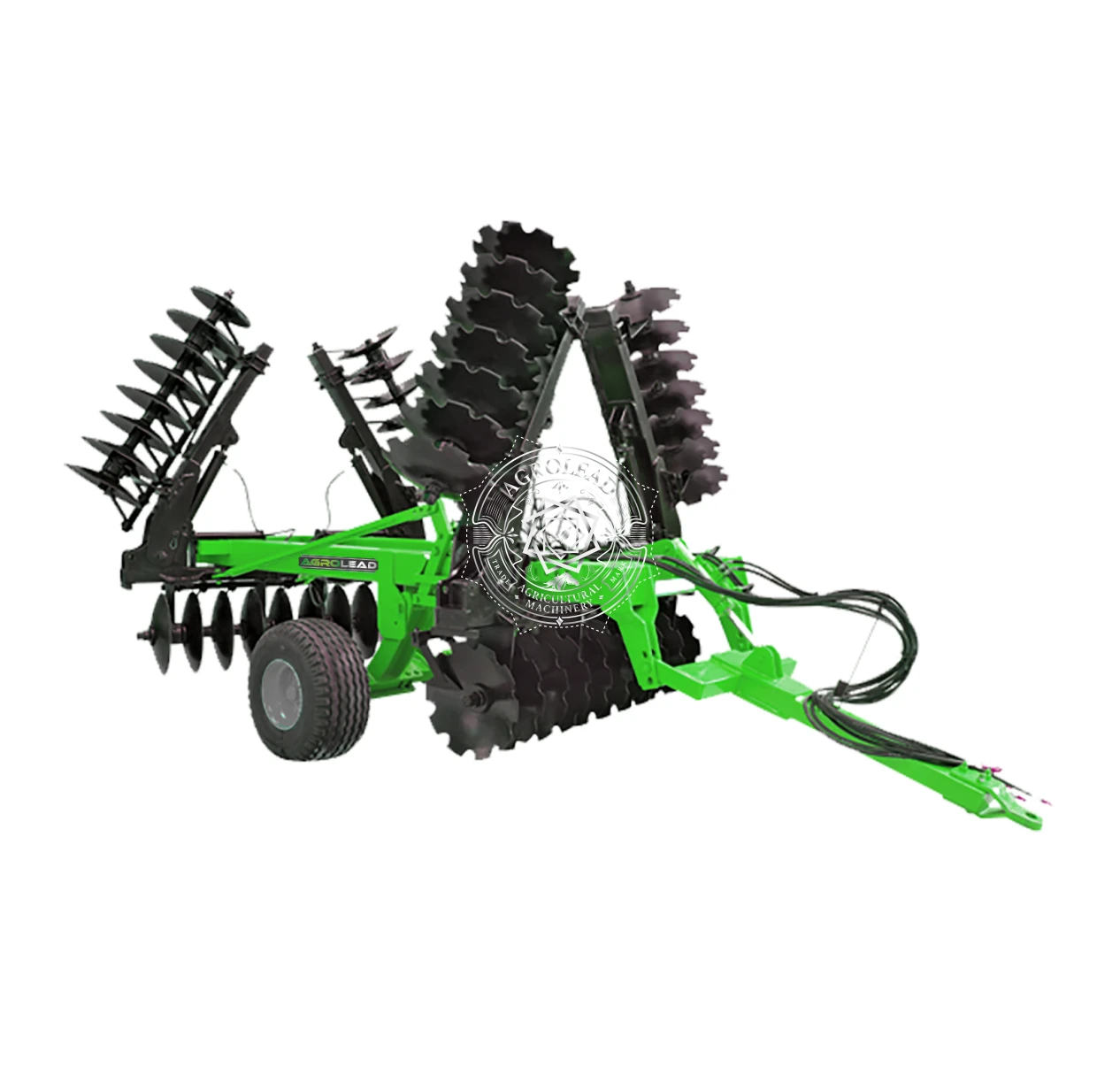

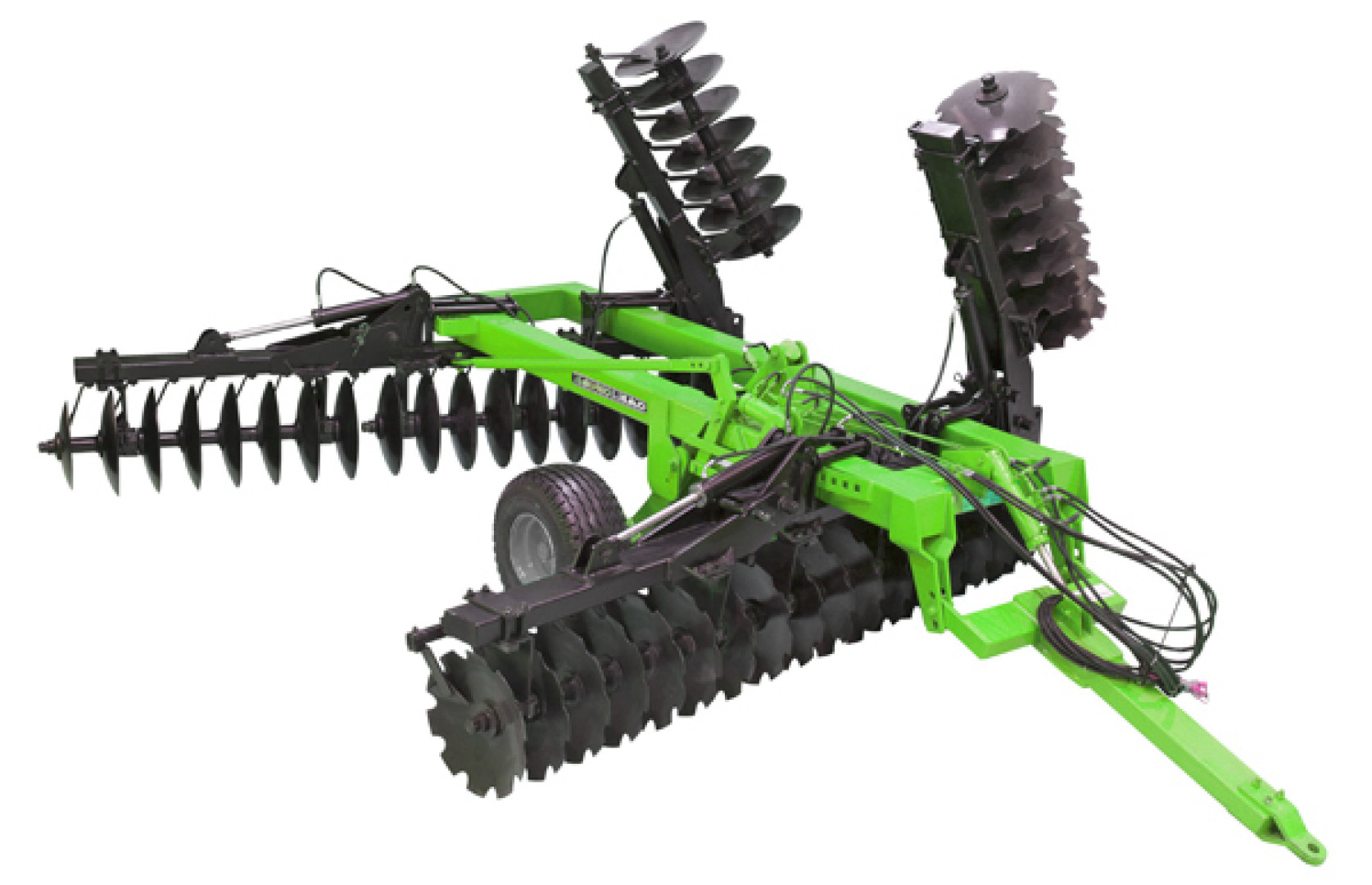

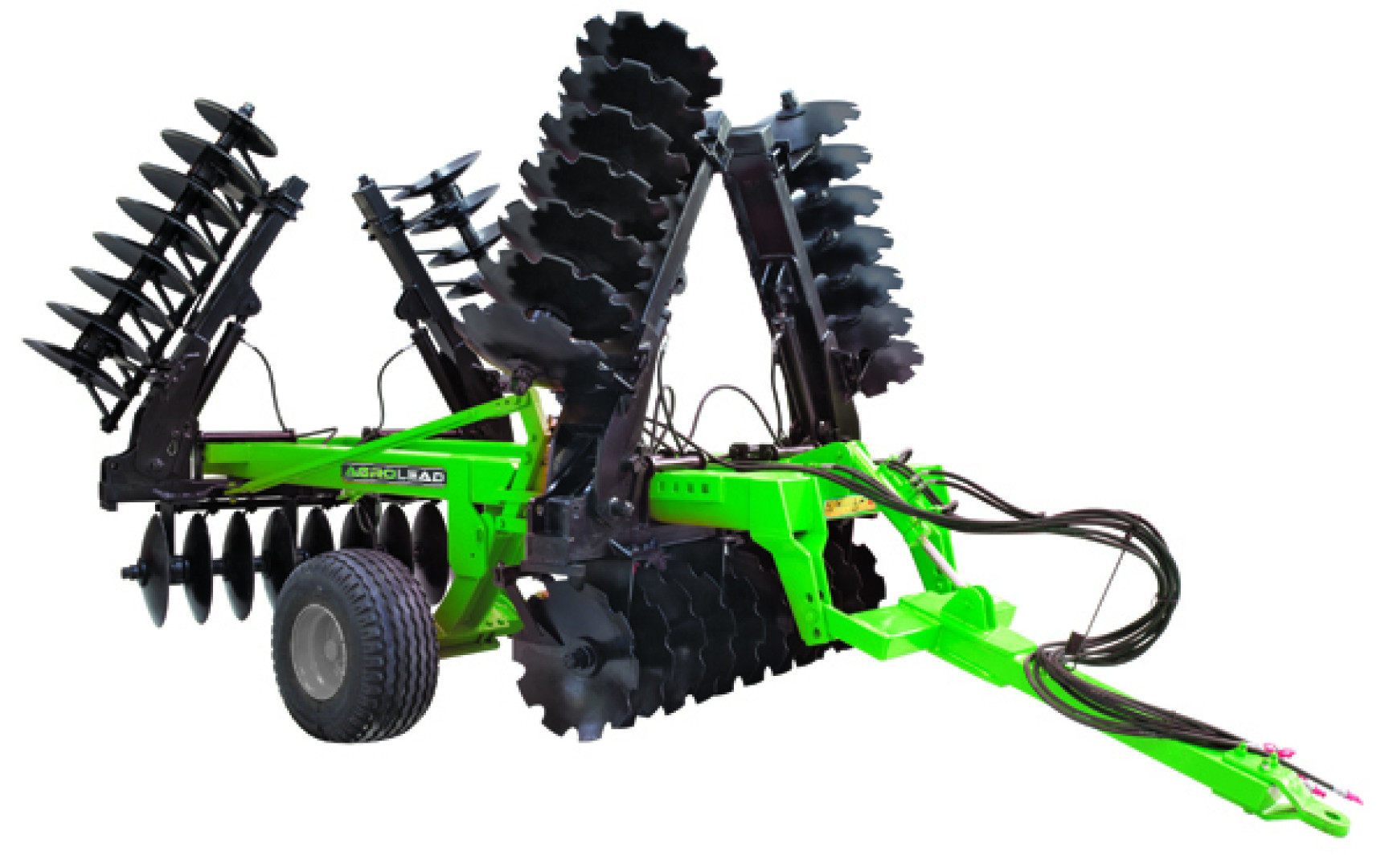

V Tipa Sklopive Offset Goble Diskosne Tanjirače

Naše V tipa sklopive Off Set Goble diskusne tanjirače su proizvedene pod garancijom AGROLEAD. Mogu se lako koristiti u grubim uslovima zemljišta gde je zemlja izgubila vlagu, omogućavajući dublje prodiranje. Naš model se koristi za usitnjavanje zemlje i stabljika suncokreta, pšenice, pirinča itd. Može se koristiti direktno nakon žetve za pripremu polja za setvu u sušnim sezonama kada plugevi nisu pogodna za upotrebu. Diskovi od 610 i 660 mm su opcioni.

TEHNİČKA SPECİFİKACİJA	UNIT	MODEL
TEHNİČKA SPECİFİKACİJA	UNIT	GOBBLE 3661 VF	GOBBLE 4061 VF	GOBBLE 4461 VF	GOBBLE 4861 VF	GOBBLE 5261 VF	GOBBLE 5661 VF	GOBBLE 6061 VF	GOBBLE 6461 VF	GOBBLE 6861 VF	GOBBLE 7261 VF
Disc Number	pcs	36	40	44	48	52	56	60	64	68	72
Disc Diameter	mm	610	610	610	610	610	610	610	610	610	610
Distance Between Discs	cm	22	22	22	22	22	22	22	22	22	22
No of Bed On Crank	pcs	12	16	16	16	16	16	16	20	20	24
Working Width	cm	390	442	478	522	566	610	654	698	742	786
Width	cm	420	464	508	552	596	640	684	728	772	816
Length	cm	594	594	594	594	594	594	594	594	594	594
Height	cm	148	148	148	148	148	148	148	148	148	148
Frame	mm	200x200x8	200x200x8	200x200x8	200x200x8	200x200x8	200x200x8	200x200x10	200x200x10	200x200x10	200x200x10
Weight	kg	3750	4000	4250	4500	4750	5000	5250	5500	5750	6000
Required Power	hp	130	150	170	190	210	230	250	270	290	310

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 3661 VF
Disc Number	pcs	36
Disc Diameter	mm	610
Distance Between Discs	cm	22
No of Bed On Crank	pcs	12
Radna širina	cm	390
Width	cm	420
Length	cm	594
Height	cm	148
Frame	mm	200x200x8
Težina	kg	3750
Potrebna snaga	hp	130

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 4061 VF
Disc Number	pcs	40
Disc Diameter	mm	610
Distance Between Discs	cm	22
No of Bed On Crank	pcs	16
Radna širina	cm	442
Width	cm	464
Length	cm	594
Height	cm	148
Frame	mm	200x200x8
Težina	kg	4000
Potrebna snaga	hp	150

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 4461 VF
Disc Number	pcs	44
Disc Diameter	mm	610
Distance Between Discs	cm	22
No of Bed On Crank	pcs	16
Radna širina	cm	478
Width	cm	508
Length	cm	594
Height	cm	148
Frame	mm	200x200x8
Težina	kg	4250
Potrebna snaga	hp	170

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 4861 VF
Disc Number	pcs	48
Disc Diameter	mm	610
Distance Between Discs	cm	22
No of Bed On Crank	pcs	16
Radna širina	cm	522
Width	cm	552
Length	cm	594
Height	cm	148
Frame	mm	200x200x8
Težina	kg	4500
Potrebna snaga	hp	190

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 5261 VF
Disc Number	pcs	52
Disc Diameter	mm	610
Distance Between Discs	cm	22
No of Bed On Crank	pcs	16
Radna širina	cm	566
Width	cm	596
Length	cm	594
Height	cm	148
Frame	mm	200x200x8
Težina	kg	4750
Potrebna snaga	hp	210

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 5661 VF
Disc Number	pcs	56
Disc Diameter	mm	610
Distance Between Discs	cm	22
No of Bed On Crank	pcs	16
Radna širina	cm	610
Width	cm	640
Length	cm	594
Height	cm	148
Frame	mm	200x200x8
Težina	kg	5000
Potrebna snaga	hp	230

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 6061 VF
Disc Number	pcs	60
Disc Diameter	mm	610
Distance Between Discs	cm	22
No of Bed On Crank	pcs	16
Radna širina	cm	654
Width	cm	684
Length	cm	594
Height	cm	148
Frame	mm	200x200x10
Težina	kg	5250
Potrebna snaga	hp	250

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 6461 VF
Disc Number	pcs	64
Disc Diameter	mm	610
Distance Between Discs	cm	22
No of Bed On Crank	pcs	20
Radna širina	cm	698
Width	cm	728
Length	cm	594
Height	cm	148
Frame	mm	200x200x10
Težina	kg	5500
Potrebna snaga	hp	270

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 6861 VF
Disc Number	pcs	68
Disc Diameter	mm	610
Distance Between Discs	cm	22
No of Bed On Crank	pcs	20
Radna širina	cm	742
Width	cm	772
Length	cm	594
Height	cm	148
Frame	mm	200x200x10
Težina	kg	5750
Potrebna snaga	hp	290

TECHNICAL SPECIFICATIONS	UNIT	GOBBLE 7261 VF
Disc Number	pcs	72
Disc Diameter	mm	610
Distance Between Discs	cm	22
No of Bed On Crank	pcs	24
Radna širina	cm	786
Width	cm	816
Length	cm	594
Height	cm	148
Frame	mm	200x200x10
Težina	kg	6000
Potrebna snaga	hp	310
