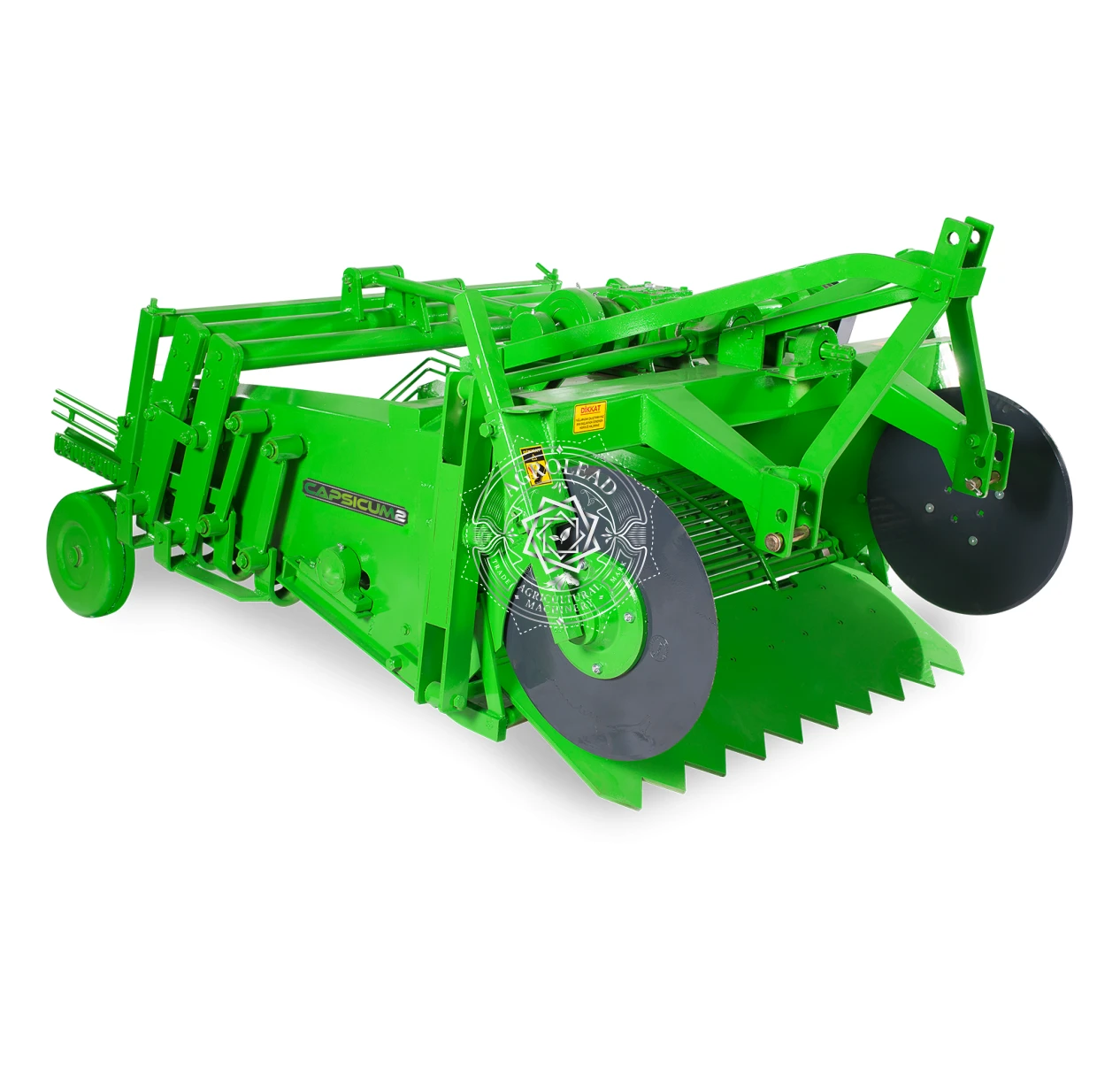

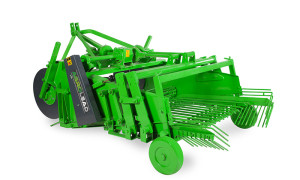

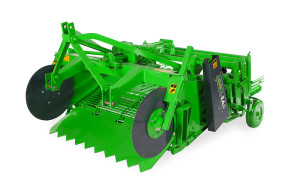

Capsicum Potato Harvester is a suitable machine for harvesting one, two and four rows of potatoes of which distance between 60-70 cm. Capsicum takes its power from tractor take-off system which has a perfect mechanism enabling to sieve the potato-tubers in harsh, soft and normal soil conditions and clean tubers from the soil, put all of them to the sieved soil in order. Working depth of the machine is 25 cm. Higher performance observed in reinforcement speed and between 10-12 accelerator levels. You must lubricate the machine during use.
| TECHNICAL SPECIFICATIONS | UNIT | MODEL | |||
|---|---|---|---|---|---|
| CAPSICUM 1 | CAPSICUM 2F | CAPSICUM 2H | CAPSICUM 4 | ||
| Row Number | pcs | 1 | 2 | 2 | 4 |
| Row Distance | cm | 70 | 70-75 | 70-75 | 75 |
| Working Width | cm | 70 | 140 | 140 | 300 |
| Working Depth | cm | 20-25 | 20-25 | 20-25 | 20-25 |
| Working Capacity | h/h | 0,1 | 0,3 | 0,5 | 0,3 |
| Submerging Angle | (°) | 23 | 23 | 23 | 23 |
| Sieving Area | m² | 1,5 | 1,6 | 1,8 | 2,8 |
| Width | mm | 1300 | 1700 | 1700 | 3000 |
| Length | mm | 2600 | 2450 | 3150 | 2380 |
| Height | mm | 1450 | 1250 | 1400 | 1400 |
| Weight | kg | 435 | 810 | 950 | 1400 |
| Required Power | hp | 35-40 | 60-70 | 60-70 | 70-80 |
| TECHNICAL SPECIFICATIONS | UNIT | CAPSICUM 1 |
|---|---|---|
| Row Number | pcs | 1 |
| Row Distance | cm | 70 |
| Working Width | cm | 70 |
| Working Depth | cm | 20-25 |
| Working Capacity | h/h | 0,1 |
| Submerging Angle | (°) | 23 |
| Sieving Area | m² | 1,5 |
| Width | mm | 1300 |
| Length | mm | 2600 |
| Height | mm | 1450 |
| Weight | kg | 435 |
| Required Power | hp | 35-40 |
| TECHNICAL SPECIFICATIONS | UNIT | CAPSICUM 2F |
|---|---|---|
| Row Number | pcs | 2 |
| Row Distance | cm | 70-75 |
| Working Width | cm | 140 |
| Working Depth | cm | 20-25 |
| Working Capacity | h/h | 0,3 |
| Submerging Angle | (°) | 23 |
| Sieving Area | m² | 1,6 |
| Width | mm | 1700 |
| Length | mm | 2450 |
| Height | mm | 1250 |
| Weight | kg | 810 |
| Required Power | hp | 60-70 |
| TECHNICAL SPECIFICATIONS | UNIT | CAPSICUM 2H |
|---|---|---|
| Row Number | pcs | 2 |
| Row Distance | cm | 70-75 |
| Working Width | cm | 140 |
| Working Depth | cm | 20-25 |
| Working Capacity | h/h | 0,5 |
| Submerging Angle | (°) | 23 |
| Sieving Area | m² | 1,8 |
| Width | mm | 1700 |
| Length | mm | 3150 |
| Height | mm | 1400 |
| Weight | kg | 950 |
| Required Power | hp | 60-70 |
| TECHNICAL SPECIFICATIONS | UNIT | CAPSICUM 4 |
|---|---|---|
| Row Number | pcs | 4 |
| Row Distance | cm | 75 |
| Working Width | cm | 300 |
| Working Depth | cm | 20-25 |
| Working Capacity | h/h | 0,3 |
| Submerging Angle | (°) | 23 |
| Sieving Area | m² | 2,8 |
| Width | mm | 3000 |
| Length | mm | 2380 |
| Height | mm | 1400 |
| Weight | kg | 1400 |
| Required Power | hp | 70-80 |
