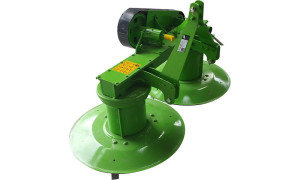

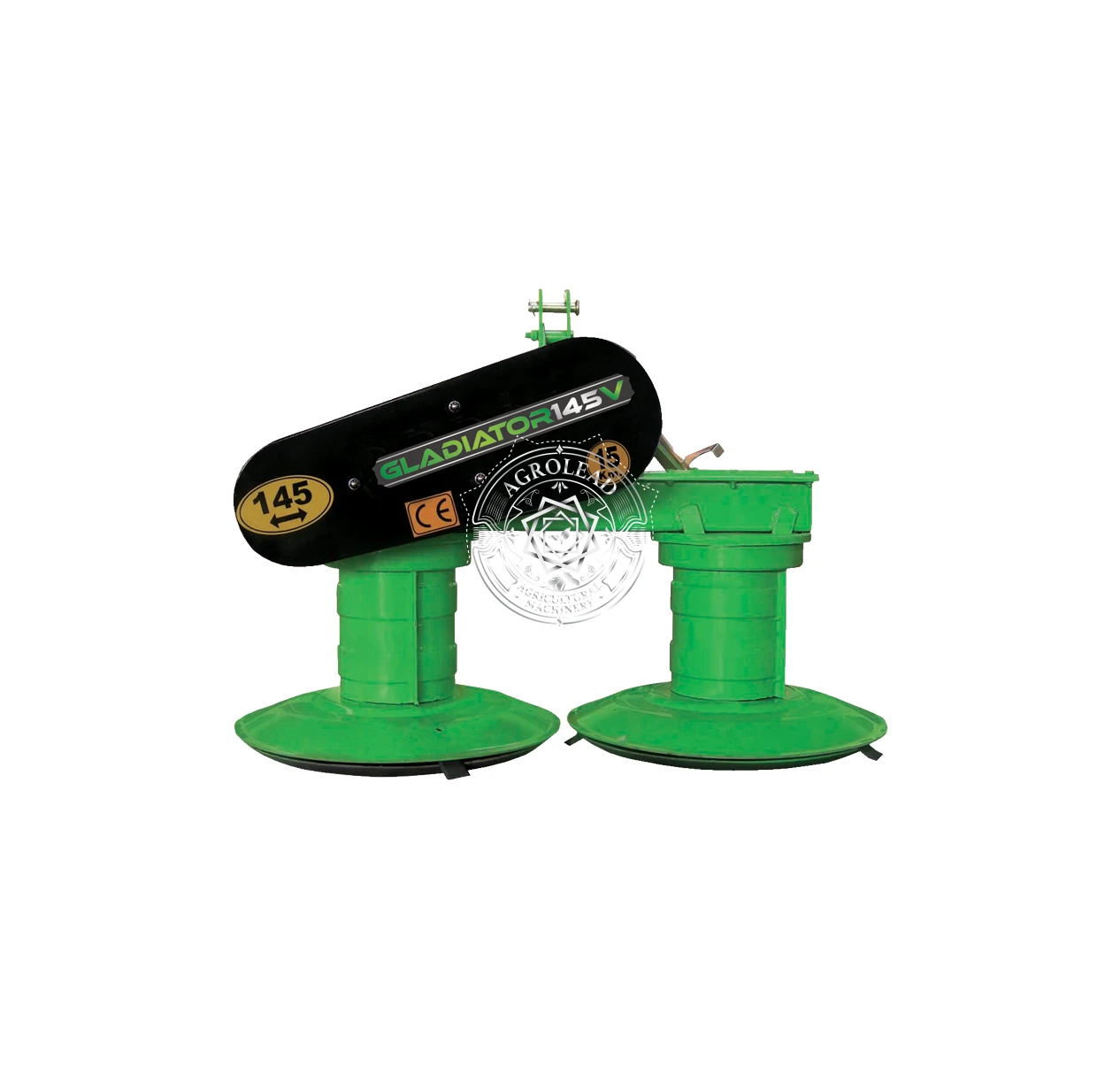

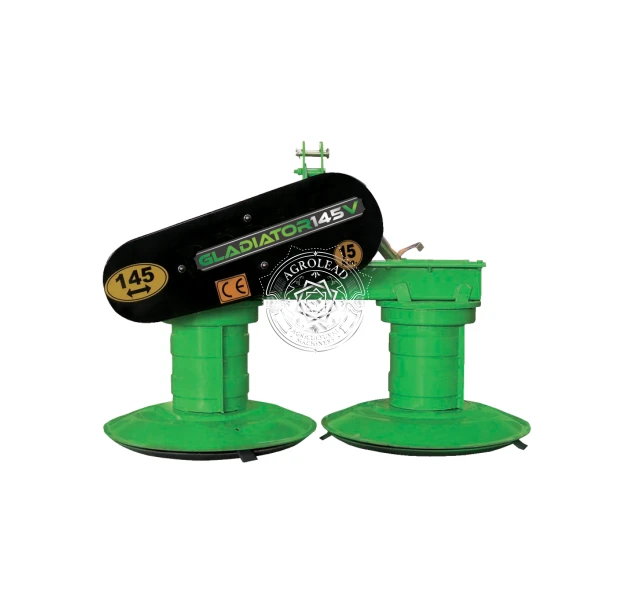

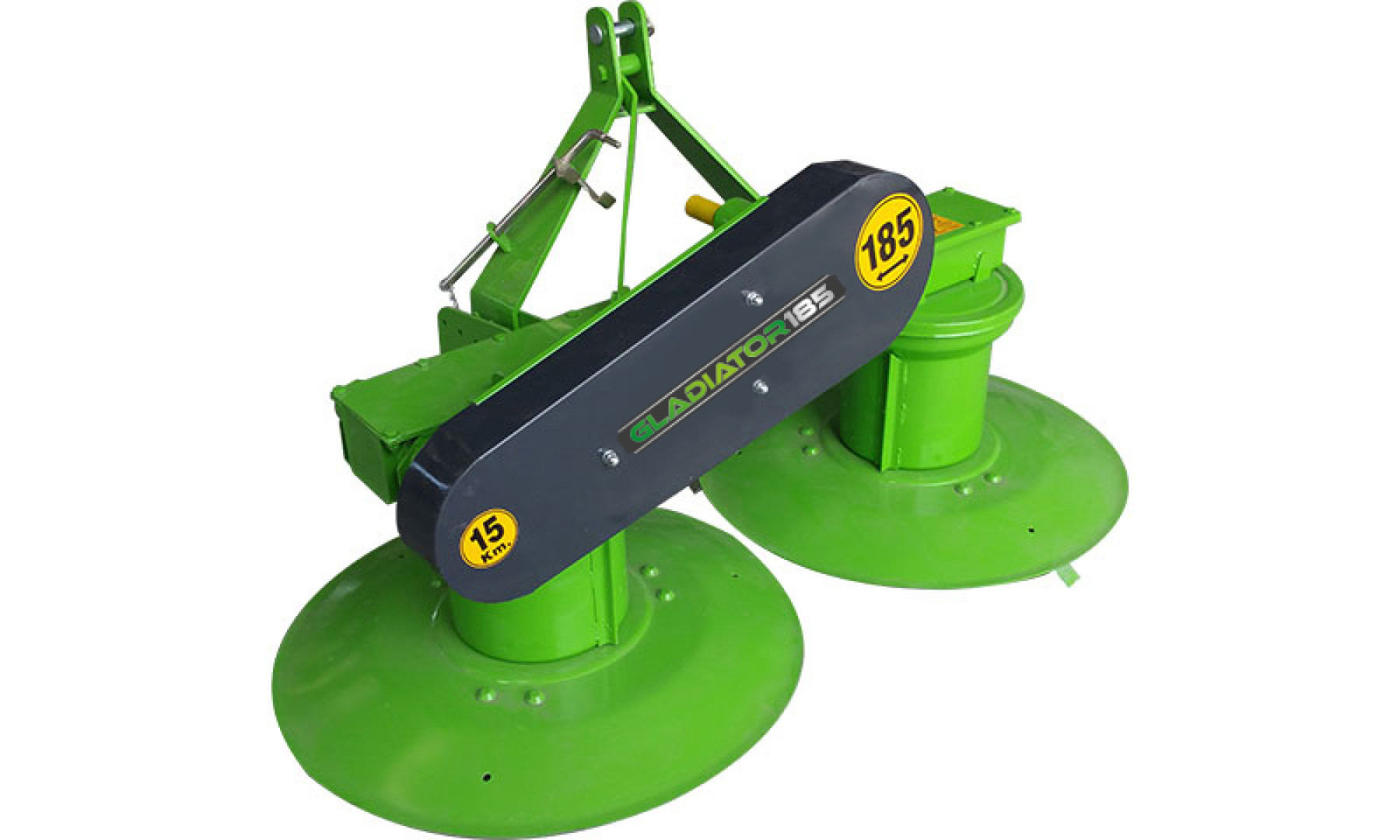

Gladiator Drum Mower Vineyard

AGROLEAD Gladiator Drum Mower chops every type of grass herbs or different pasture plants with a high speed. The discs are very close to the ground, thus it raises the productivity. It crops the herbs in such a way that they can be dried and collected easily. It gets the move from the P.T.O. shaft and makes the chopping by the help of knives turning on the mower.

TECHNICAL SPECIFICATIONS	UNIT	MODEL
TECHNICAL SPECIFICATIONS	UNIT	GLADIATOR 125V	GLADIATOR 145V	GLADIATOR 165V	GLADIATOR 185V	GLADIATOR 250V
Working Width	cm	125	145	165	185	250
Number of Drums	pcs	2	2	2	2	4
Blades on Drums	pcs	6	6	6	6	12
Length	mm	1250	1450	1650	1850	2500
Width	mm	600	600	640	640	640
Height	mm	1000	1000	1000	1000	1000
Drum's Rotatiion	rpm	1920	1920	1920	1920	1920
Pto Rotatiion	rpm	540	540	540	540	540
Weight	kg	210	235	265	295	400
Required Power	hp	25	35	45	60	70

TECHNICAL SPECIFICATIONS	UNIT	GLADIATOR 125V
Working Width	cm	125
Number of Drums	pcs	2
Blades on Drums	pcs	6
Length	mm	1250
Width	mm	600
Height	mm	1000
Drum's Rotatiion	rpm	1920
Pto Rotatiion	rpm	540
Weight	kg	210
Required Power	hp	25

TECHNICAL SPECIFICATIONS	UNIT	GLADIATOR 145V
Working Width	cm	145
Number of Drums	pcs	2
Blades on Drums	pcs	6
Length	mm	1450
Width	mm	600
Height	mm	1000
Drum's Rotatiion	rpm	1920
Pto Rotatiion	rpm	540
Weight	kg	235
Required Power	hp	35

TECHNICAL SPECIFICATIONS	UNIT	GLADIATOR 165V
Working Width	cm	165
Number of Drums	pcs	2
Blades on Drums	pcs	6
Length	mm	1650
Width	mm	640
Height	mm	1000
Drum's Rotatiion	rpm	1920
Pto Rotatiion	rpm	540
Weight	kg	265
Required Power	hp	45

TECHNICAL SPECIFICATIONS	UNIT	GLADIATOR 185V
Working Width	cm	185
Number of Drums	pcs	2
Blades on Drums	pcs	6
Length	mm	1850
Width	mm	640
Height	mm	1000
Drum's Rotatiion	rpm	1920
Pto Rotatiion	rpm	540
Weight	kg	295
Required Power	hp	60

TECHNICAL SPECIFICATIONS	UNIT	GLADIATOR 250V
Working Width	cm	250
Number of Drums	pcs	4
Blades on Drums	pcs	12
Length	mm	2500
Width	mm	640
Height	mm	1000
Drum's Rotatiion	rpm	1920
Pto Rotatiion	rpm	540
Weight	kg	400
Required Power	hp	70
