Gladiator Drum Mower With Conditioner

Gladiator Drum Mower With Conditioner

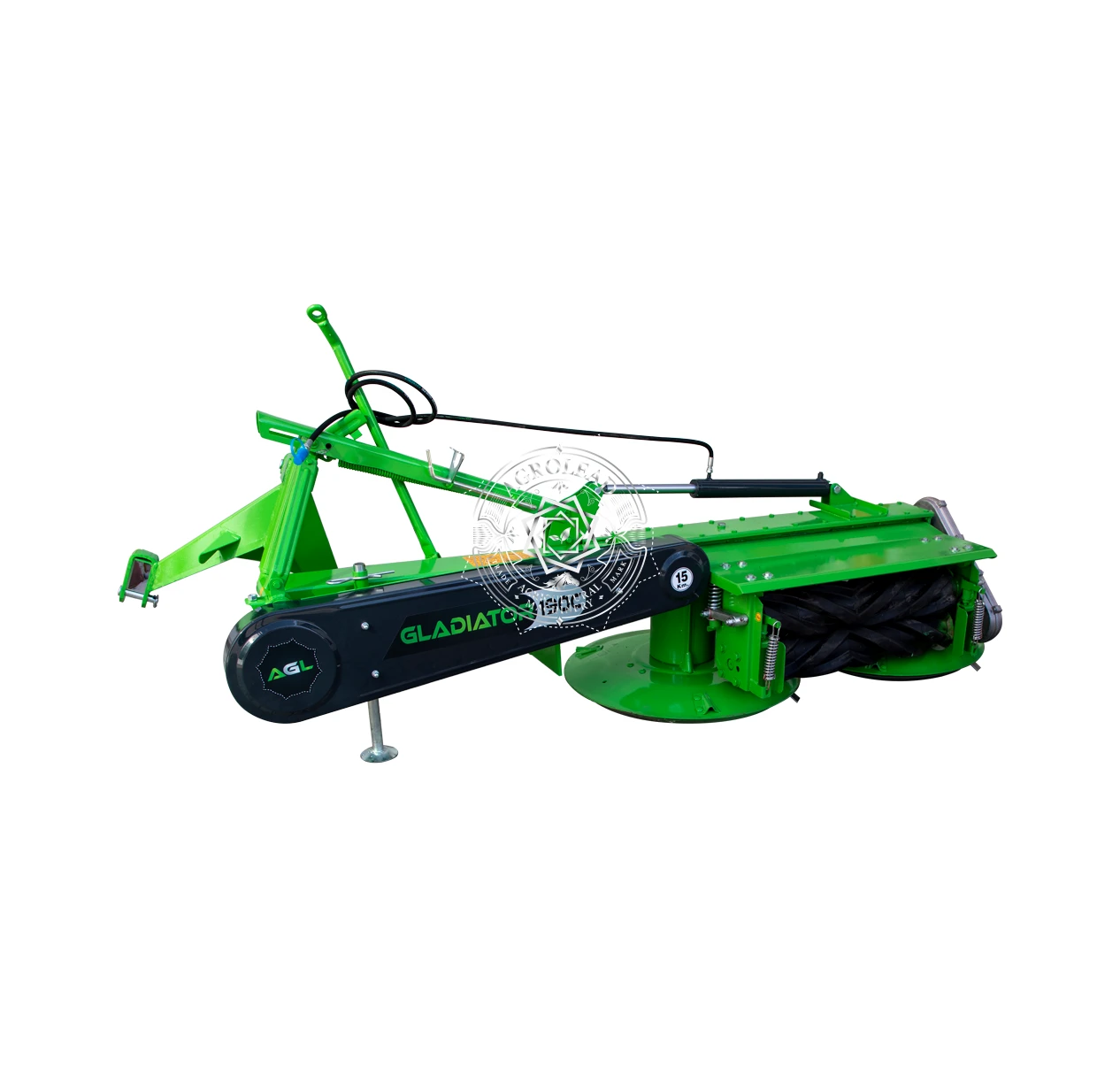

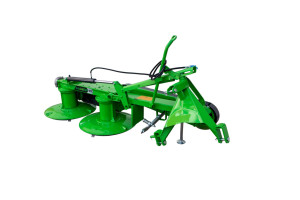

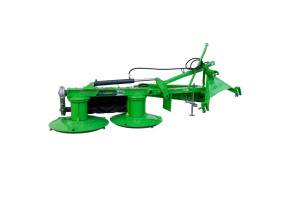

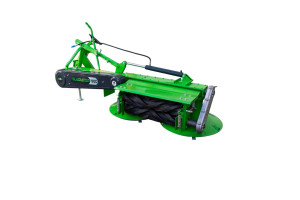

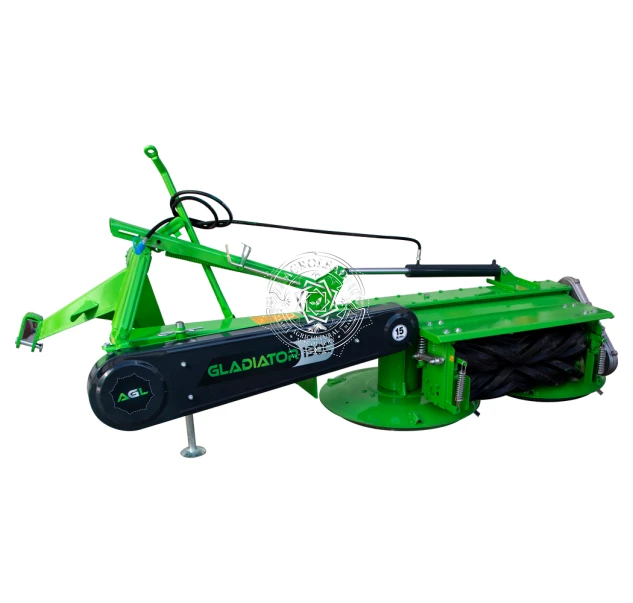

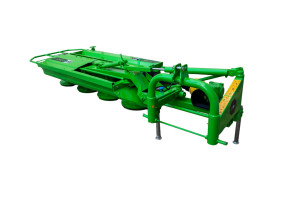

Gladiator Rear Drum Mowers with hydraulic system have been developed with sized 190 and 250 cm, equipped with rubber roller hay conditioner, which speeds up the drying process to produce fodder of excellent quality. The lateral drum mowers optimise fodder collection times, thus improving production rates. In models Gladiator 190C and 250C the most suitable tool can be chosen according to the size of the area to be mown and individual requirements. When you need to reduce drying and haymaking times, the new models of Gladiator C Series, provided with conditioner with rubber rollers, are the best and most effective choice.

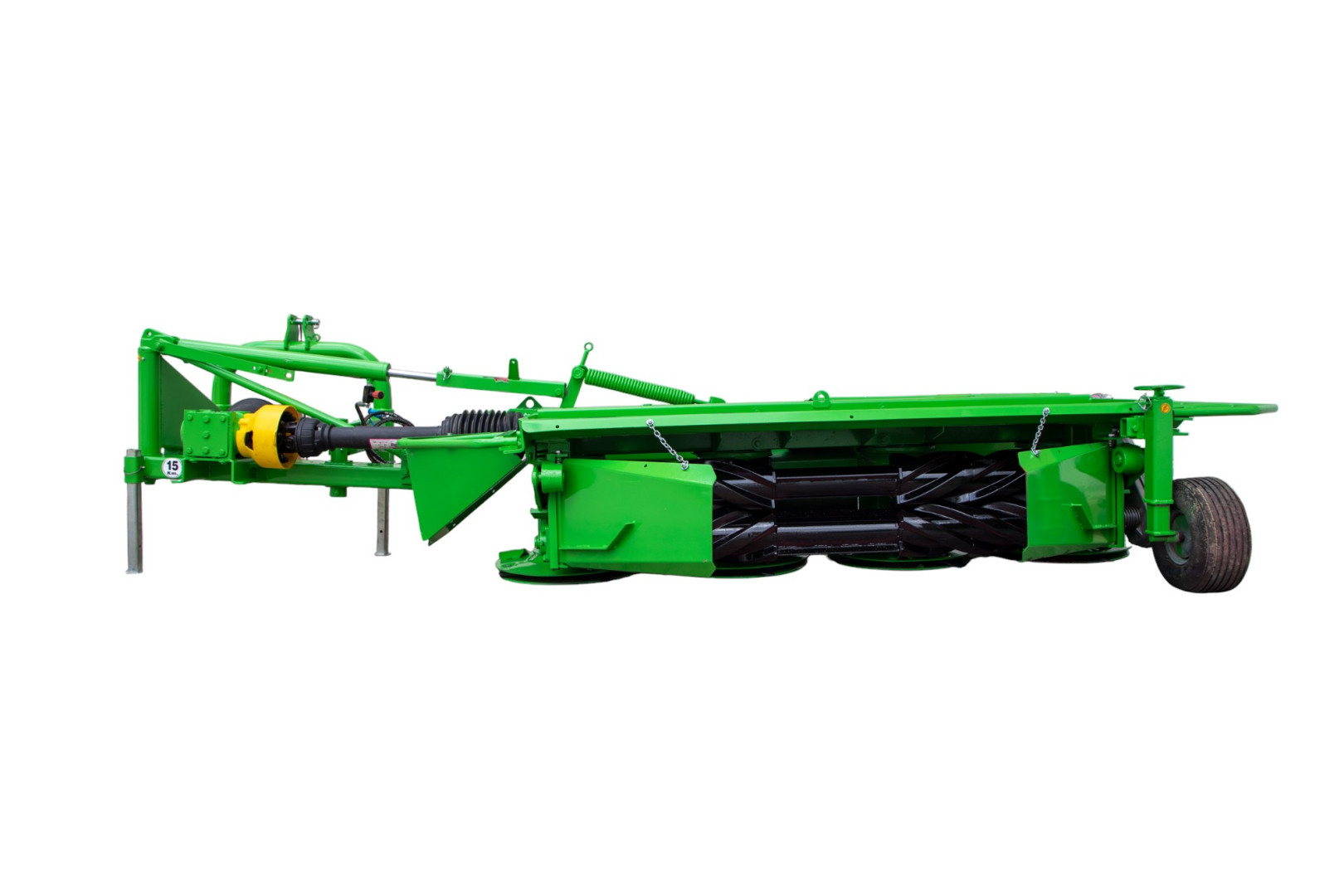

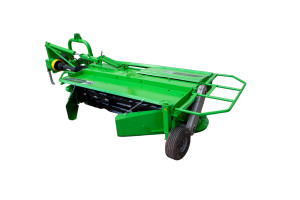

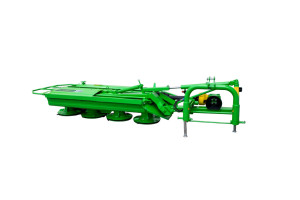

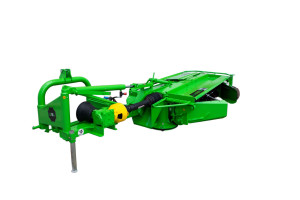

The duty of the conditioner is to press and split the fodder; this opens the outer waxy layer of the stems so that the excess water flows out, thus accelerating the drying process, while maintaining the body and all the nutritional elements. In the 4-drum mowers, the conditioner with helical rubber rollers features a central separator which gives the row a precise form and controls the fodder flow.

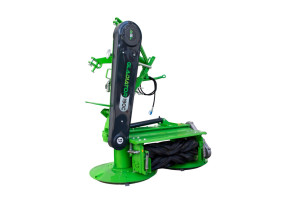

The hydraulic device raises the mower vertically to 90°, providing excellent stability and safety during transport as the mower does not protrude from the profile of the tractor. he combined operation of the central hitch with dual reciprocating movement and the compensation spring allows the mower to adapt to the ground and discharge the weight onto the tractor.

TECHNICAL SPECIFICATIONSUNITMODEL
GLADIATOR 190CGLADIATOR 250C
Working Widthcm190250
Number Of Drumspcs24
Blades on Drumspcs612
ConditionerfeatureAvailableAvailable
Width During on Roadmm20501950
Width During on Fieldmm31803750
Height on Roadmm17003200
Height on Fieldmm10701070
Drum's Rotationrpm19201920
Pto Rpmrpm750750
Weightkg550900
Required Powerhp7080
TECHNICAL SPECIFICATIONSUNITMODEL
Working Widthcm190
Number Of Drumspcs2
Blades on Drumspcs6
ConditionerfeatureAvailable
Width During on Roadmm2050
Width During on Fieldmm3180
Height on Roadmm1700
Height on Fieldmm1070
Drum's Rotationrpm1920
Pto Rpmrpm750
Weightkg550
Required Powerhp70
TECHNICAL SPECIFICATIONSUNITMODEL
Working Widthcm250
Number Of Drumspcs4
Blades on Drumspcs12
ConditionerfeatureAvailable
Width During on Roadmm1950
Width During on Fieldmm3750
Height on Roadmm3200
Height on Fieldmm1070
Drum's Rotationrpm1920
Pto Rpmrpm750
Weightkg900
Required Powerhp80
