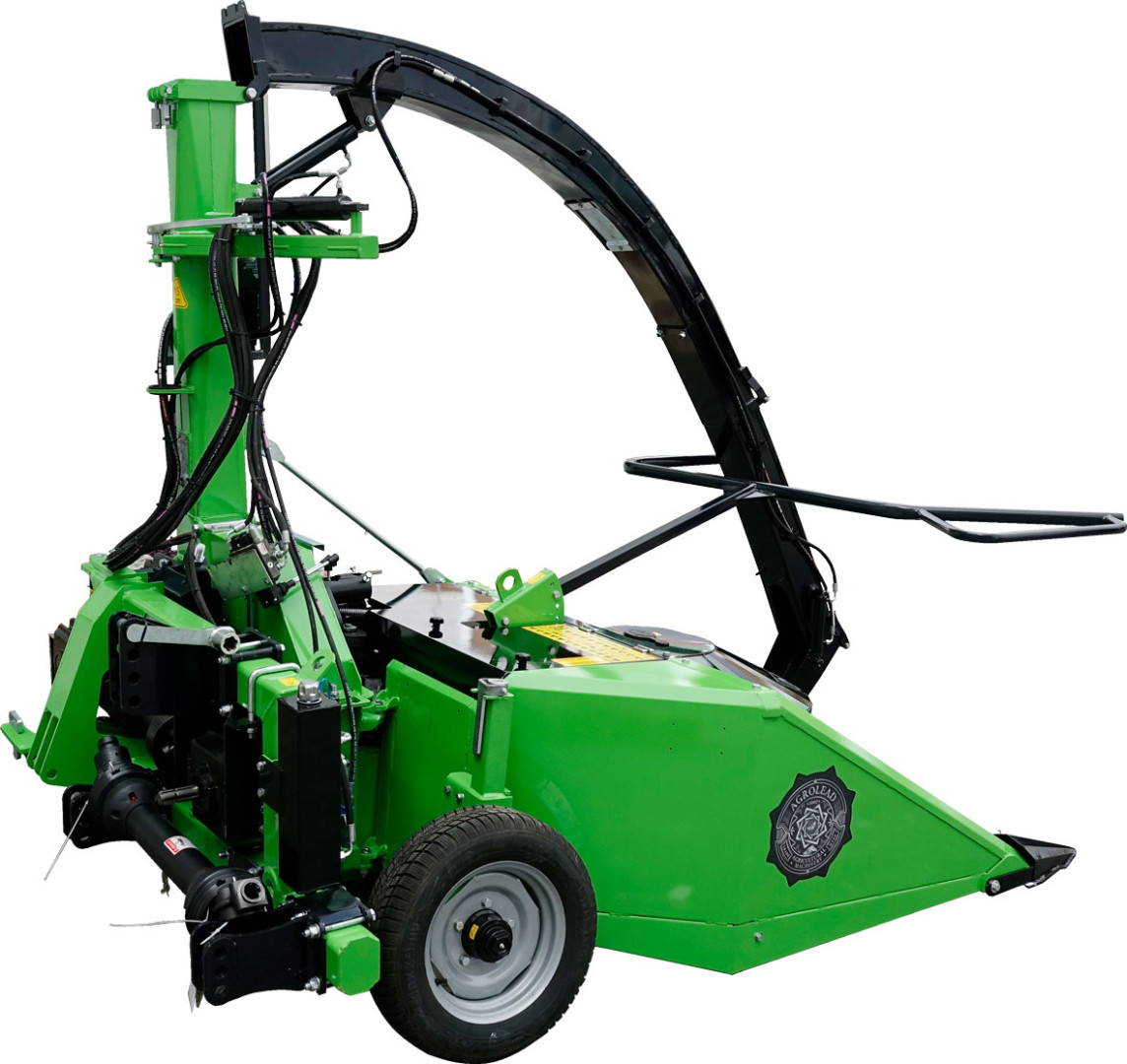

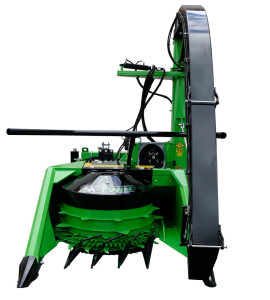

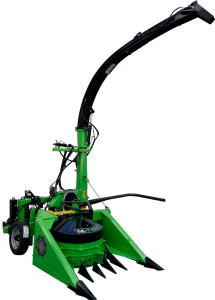

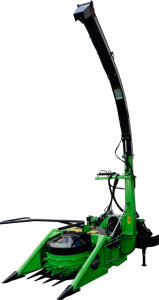

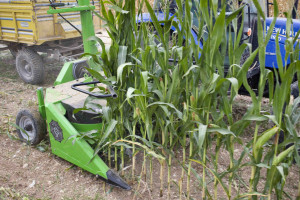

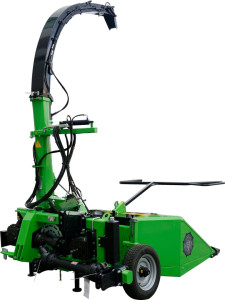

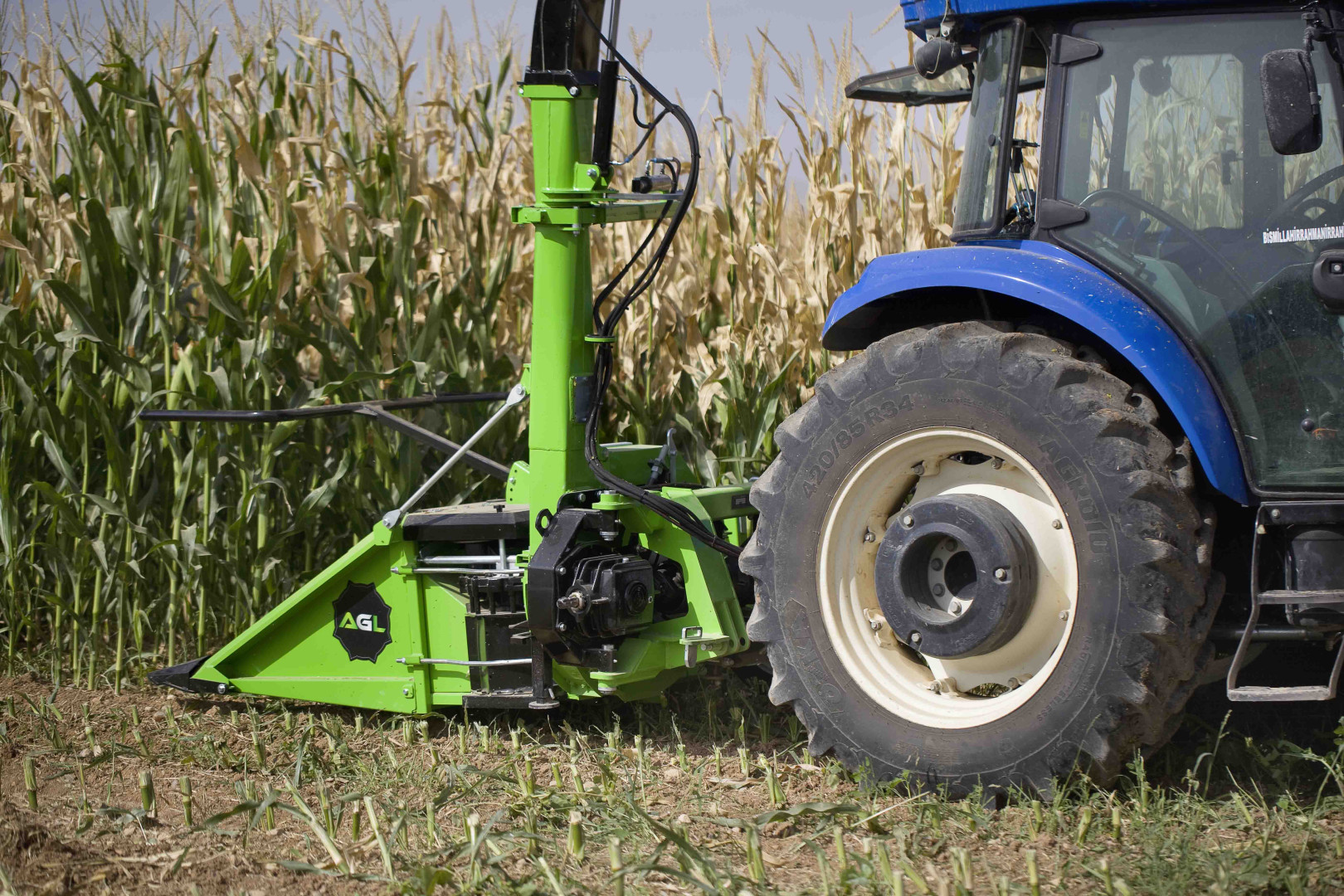

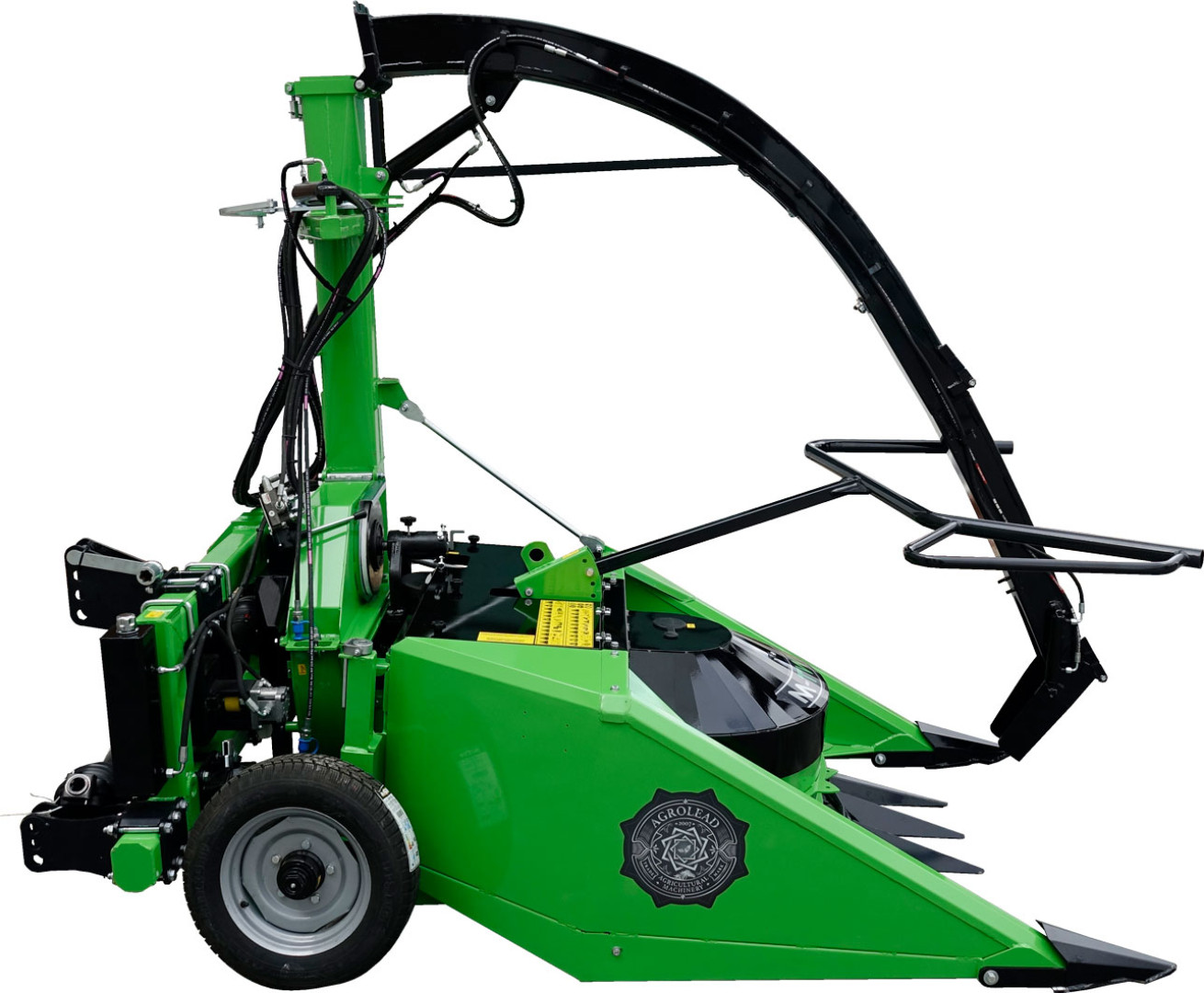

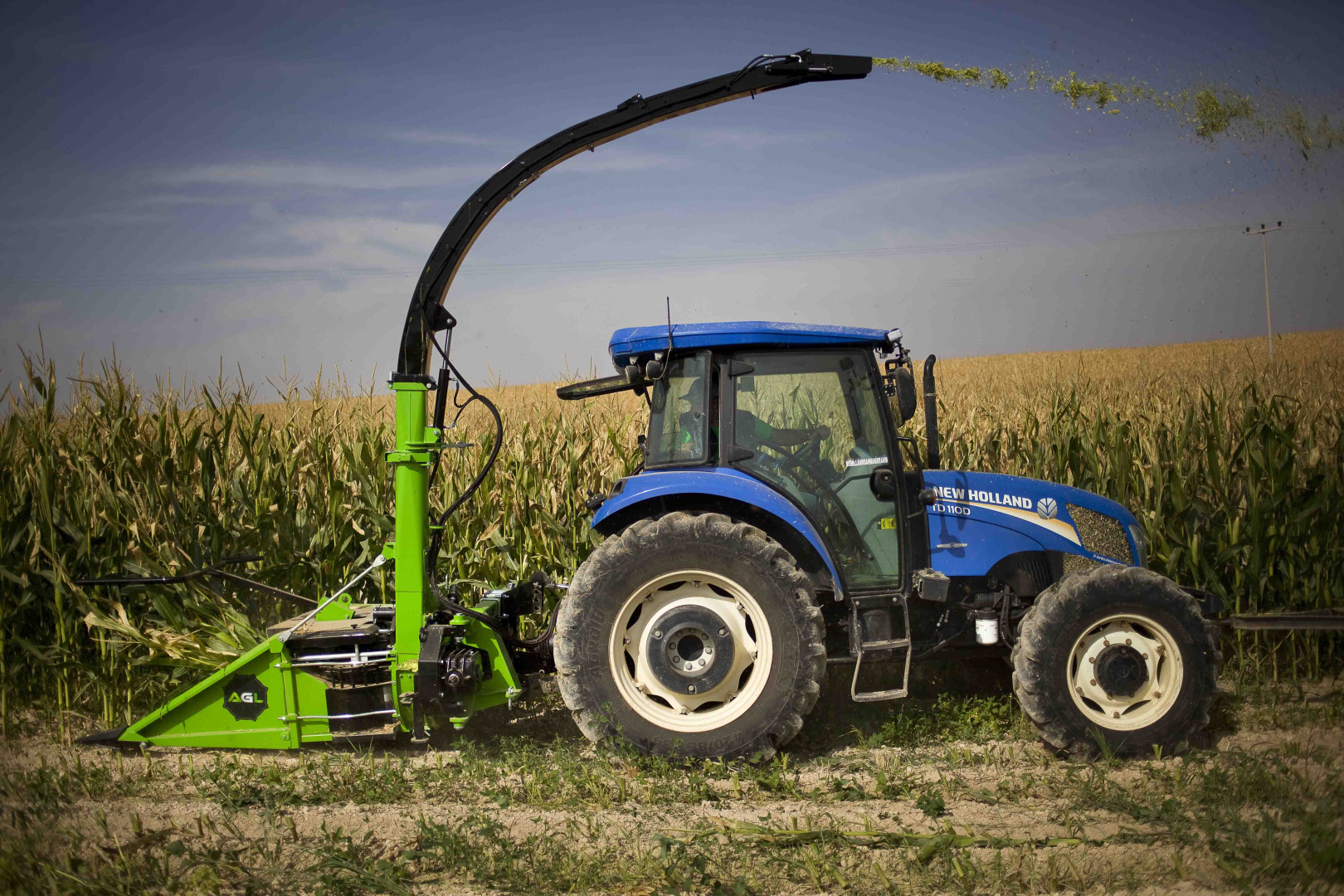

M- Series Maize Harvesters are designed to harvest maize and various feed plants which are taller than 1 meter disregarding the row thanks to the wide reaping rollers unit. M-Series can execute their duty even in hard conditions without tiring your tractor. M-Series machines will handle pits, bumps and all the other extraordinary conditions due to their strong construction.
For perfect cutting quality and long range blowing, row independent model’s flywheel system consistsed of 12 pieces blades and 12 pieces sweeping paddles. Fully balanced operation of the sweeping paddles and the inlet of the hydraulic funnel increases the blowing force.
We offer you 4 different types of corn silage machines, taking into account the land you plant and the size of the tractor you use. M-Series ranging M-Single, M-Twin, M-Triple and M-Quattro that are adaptable to different tractors, offers attachment options to the front, rear and side of the tractor. With transmission RPM 540, 750 and 1000, it enables the most efficient operation. Due to their foldable frames, practical use and functional folding are done quickly. In addition, the fixing of the machines in the desired position is carried out only with the help of the cover, which prevents loss of time and labor costs.
| TECHNICAL SPECIFICATIONS | UNIT | MODEL | |||
|---|---|---|---|---|---|
| M-QUATTRO | M-SINGLE | M-TRIPLE | M-TWIN | ||
| Working Width | cm | 300 | 70 | 210 | 125 |
| Working Capacity | t/h | 80-100 | 50-55 | 70-80 | 40-50 |
| Sweping Paddle Number | pcs | 12 | 6 | 12 | 12 |
| Chopping Knife Number | pcs | 12 | 12 | 12 | 12 |
| Shredding Knife Number | pcs | 12 | 12 | 12 | 12 |
| Fixed Knife Number | pcs | 3 | 1 | 1 | 1 |
| Shredding Size | cm | Adjustable (4,3-33) | 3-10 | Adjustable (3-10) | Adjustable (3-10) |
| Length During Operation | cm | 192 | 238 | 260 | 275 |
| Height During Operation | cm | 437 | 317 | 416 | 413 |
| Width During Operation | cm | 305 | 235 | 411 | 419 |
| Height During Transport | cm | 270 | 211 | 247 | 246 |
| Width During Transport | cm | 305 | 235 | 242 | 198 |
| Folded Height | cm | 270 | 220 | 270 | 250 |
| Weight | kg | 2350 | 600 | 1520 | 1350 |
| Tire Dimensions | incs | 21x8x9 NHS | 16x6,5-8 | 165x70x13 | 165x70x13 |
| Tractor Working Positions | side | Rear-Front (Optional) | Right | Front-Rear | Front(Optional) - Right -Rear |
| Pto Rotation | rpm | 1000 | 540 | 540-1000 | 540-750 |
| Required Power | hp | 135 | 40 | 110 | 75 |
| TECHNICAL SPECIFICATIONS | UNIT | M-QUATTRO |
|---|---|---|
| Working Width | cm | 300 |
| Working Capacity | t/h | 80-100 |
| Sweping Paddle Number | pcs | 12 |
| Chopping Knife Number | pcs | 12 |
| Shredding Knife Number | pcs | 12 |
| Fixed Knife Number | pcs | 3 |
| Shredding Size | cm | Adjustable (4,3-33) |
| Length During Operation | cm | 192 |
| Height During Operation | cm | 437 |
| Width During Operation | cm | 305 |
| Height During Transport | cm | 270 |
| Width During Transport | cm | 305 |
| Folded Height | cm | 270 |
| Weight | kg | 2350 |
| Tire Dimensions | incs | 21x8x9 NHS |
| Tractor Working Positions | side | Rear-Front (Optional) |
| Pto Rotation | rpm | 1000 |
| Required Power | hp | 135 |
| TECHNICAL SPECIFICATIONS | UNIT | M-SINGLE |
|---|---|---|
| Working Width | cm | 70 |
| Working Capacity | t/h | 50-55 |
| Sweping Paddle Number | pcs | 6 |
| Chopping Knife Number | pcs | 12 |
| Shredding Knife Number | pcs | 12 |
| Fixed Knife Number | pcs | 1 |
| Shredding Size | cm | 3-10 |
| Length During Operation | cm | 238 |
| Height During Operation | cm | 317 |
| Width During Operation | cm | 235 |
| Height During Transport | cm | 211 |
| Width During Transport | cm | 235 |
| Folded Height | cm | 220 |
| Weight | kg | 600 |
| Tire Dimensions | incs | 16x6,5-8 |
| Tractor Working Positions | side | Right |
| Pto Rotation | rpm | 540 |
| Required Power | hp | 40 |
| TECHNICAL SPECIFICATIONS | UNIT | M-TRIPLE |
|---|---|---|
| Working Width | cm | 210 |
| Working Capacity | t/h | 70-80 |
| Sweping Paddle Number | pcs | 12 |
| Chopping Knife Number | pcs | 12 |
| Shredding Knife Number | pcs | 12 |
| Fixed Knife Number | pcs | 1 |
| Shredding Size | cm | Adjustable (3-10) |
| Length During Operation | cm | 260 |
| Height During Operation | cm | 416 |
| Width During Operation | cm | 411 |
| Height During Transport | cm | 247 |
| Width During Transport | cm | 242 |
| Folded Height | cm | 270 |
| Weight | kg | 1520 |
| Tire Dimensions | incs | 165x70x13 |
| Tractor Working Positions | side | Front-Rear |
| Pto Rotation | rpm | 540-1000 |
| Required Power | hp | 110 |

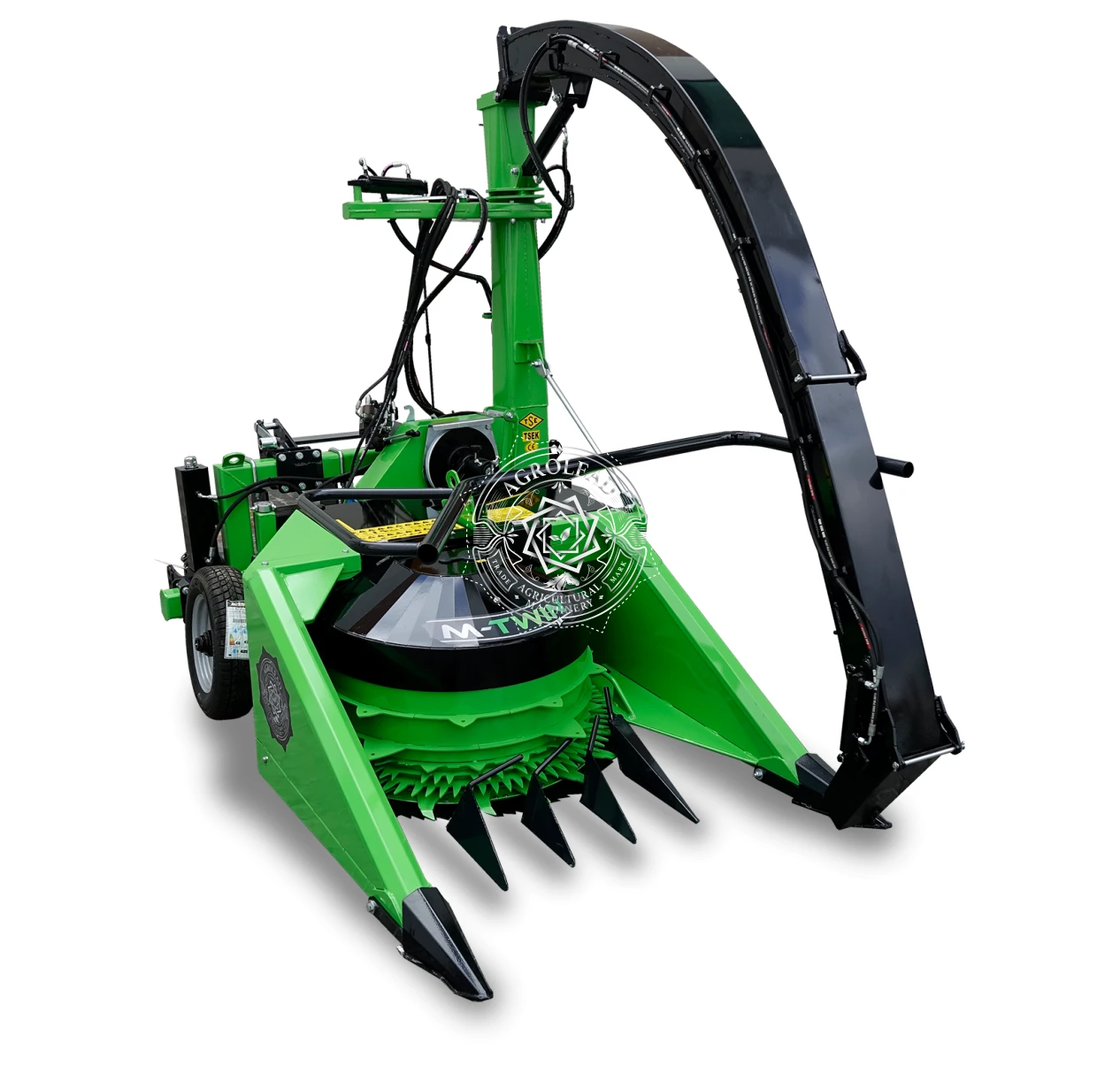

| TECHNICAL SPECIFICATIONS | UNIT | M-TWIN |
|---|---|---|
| Working Width | cm | 125 |
| Working Capacity | t/h | 40-50 |
| Sweping Paddle Number | pcs | 12 |
| Chopping Knife Number | pcs | 12 |
| Shredding Knife Number | pcs | 12 |
| Fixed Knife Number | pcs | 1 |
| Shredding Size | cm | Adjustable (3-10) |
| Length During Operation | cm | 275 |
| Height During Operation | cm | 413 |
| Width During Operation | cm | 419 |
| Height During Transport | cm | 246 |
| Width During Transport | cm | 198 |
| Folded Height | cm | 250 |
| Weight | kg | 1350 |
| Tire Dimensions | incs | 165x70x13 |
| Tractor Working Positions | side | Front(Optional) - Right -Rear |
| Pto Rotation | rpm | 540-750 |
| Required Power | hp | 75 |
