Pasco Forage Harvester

Pasco Forage Harvester

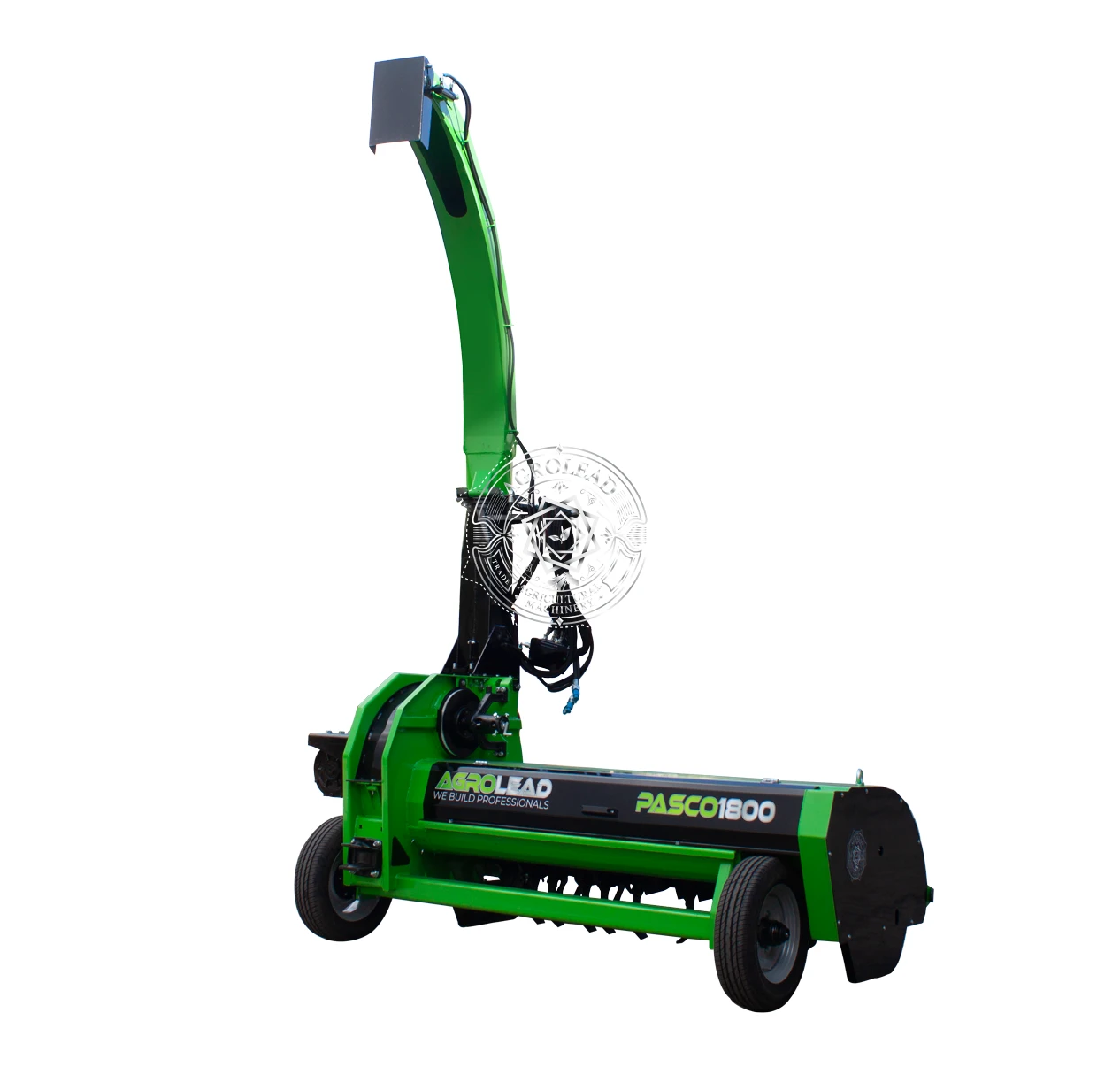

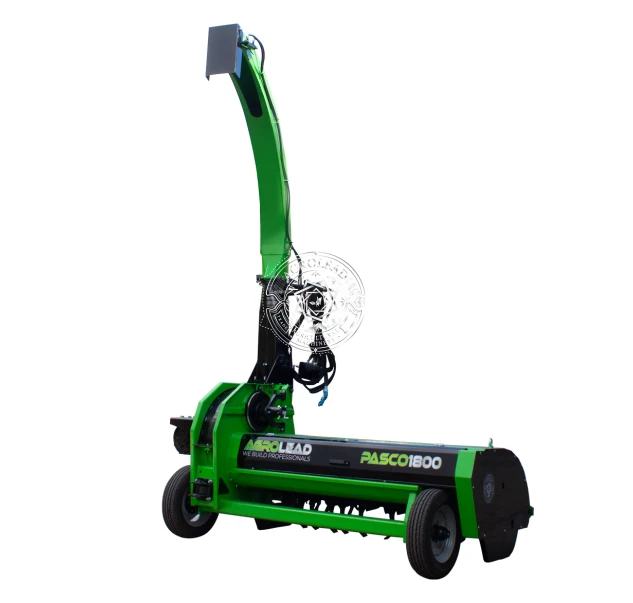

Pasco Forage Harvester Double Chop is used for harvesting every kind of green fodder and grass in order to make silage. The rotor that has 36 floating knives on Pasco 1500, 38 knifes on Pasco 1800 and 56 knifes on Pasco 2100 , picks the grass and deliver to the auger that feeds the flywheel. The flywheel cuts the grass for the second time that results with much shorter chopping length considering the standard forage harvesters. This flywheel also blows the chopped pieces through the chute in order to load them in to the trailer. The floating knives are specially designed in order to prevent the damage to the machine when they hit a hard material like stones in the field. Pasco Double Chop series are used by hitching to the tractor hook and equipped with hydraulic control for chute and deflector direction, durable and patended special knives. It enables fast maintenance and repair due to easy to open flywheel cover.its equivalents.

TECHNICAL SPECIFICATIONSUNITMODEL
PASCO 1500PASCO 1800PASCO 2100
Working Widthmm150018002100
Drum Blade Numberqty364856
Chopper Blade Numberqty101010
Flywheel Numberqty101010
Drum Blade Rotationrpm225022502250
Chopper Disc Rotationrpm225016201620
Pto Rotationrpm540540540
Width During Transportmm254028403140
Height During Transportmm235523552355
Length During Transportmm317031703170
Working Capacityt/h202530
Width During Operationmm253528353135
Height During Operationmm370037003700
Length During Operationmm240024002400
Chopping Size ( Adjustable)mm20-7020-7020-70
Chopping Height ( Adjustable)mm50-15050-15050-150
Tire Dimensionsinch165x70xR13165x70xR13165x70xR13
Weightkg9259751045
Required Powerhp6080100
TECHNICAL SPECIFICATIONSUNITPASCO 1500
Working Widthmm1500
Drum Blade Numberqty36
Chopper Blade Numberqty10
Flywheel Numberqty10
Drum Blade Rotationrpm2250
Chopper Disc Rotationrpm2250
Pto Rotationrpm540
Width During Transportmm2540
Height During Transportmm2355
Length During Transportmm3170
Working Capacityt/h20
Width During Operationmm2535
Height During Operationmm3700
Length During Operationmm2400
Chopping Size ( Adjustable)mm20-70
Chopping Height ( Adjustable)mm50-150
Tire Dimensionsinch165x70xR13
Weightkg925
Required Powerhp60
TECHNICAL SPECIFICATIONSUNITPASCO 1800
Working Widthmm1800
Drum Blade Numberqty48
Chopper Blade Numberqty10
Flywheel Numberqty10
Drum Blade Rotationrpm2250
Chopper Disc Rotationrpm1620
Pto Rotationrpm540
Width During Transportmm2840
Height During Transportmm2355
Length During Transportmm3170
Working Capacityt/h25
Width During Operationmm2835
Height During Operationmm3700
Length During Operationmm2400
Chopping Size ( Adjustable)mm20-70
Chopping Height ( Adjustable)mm50-150
Tire Dimensionsinch165x70xR13
Weightkg975
Required Powerhp80
TECHNICAL SPECIFICATIONSUNITPASCO 2100
Working Widthmm2100
Drum Blade Numberqty56
Chopper Blade Numberqty10
Flywheel Numberqty10
Drum Blade Rotationrpm2250
Chopper Disc Rotationrpm1620
Pto Rotationrpm540
Width During Transportmm3140
Height During Transportmm2355
Length During Transportmm3170
Working Capacityt/h30
Width During Operationmm3135
Height During Operationmm3700
Length During Operationmm2400
Chopping Size ( Adjustable)mm20-70
Chopping Height ( Adjustable)mm50-150
Tire Dimensionsinch165x70xR13
Weightkg1045
Required Powerhp100
