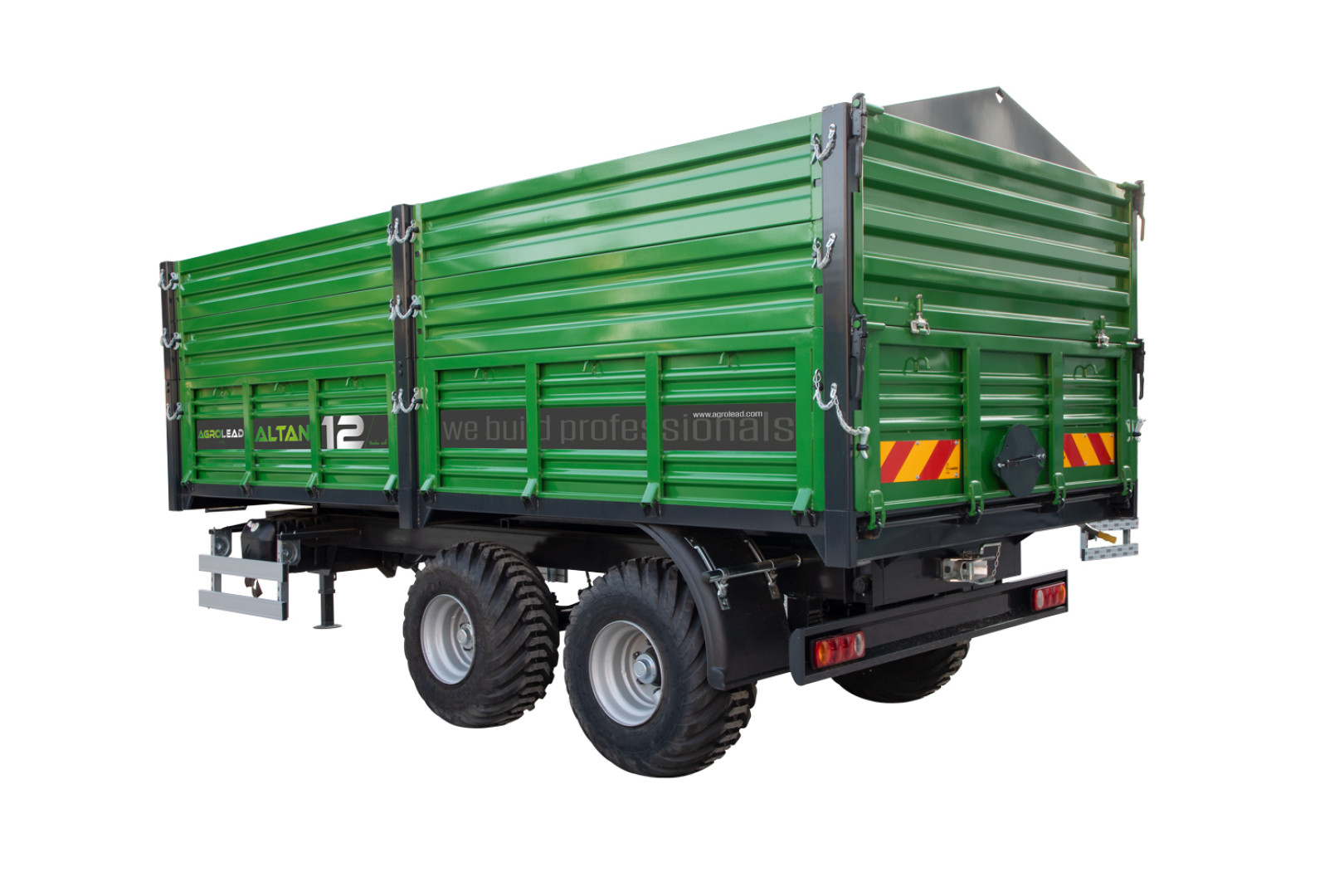

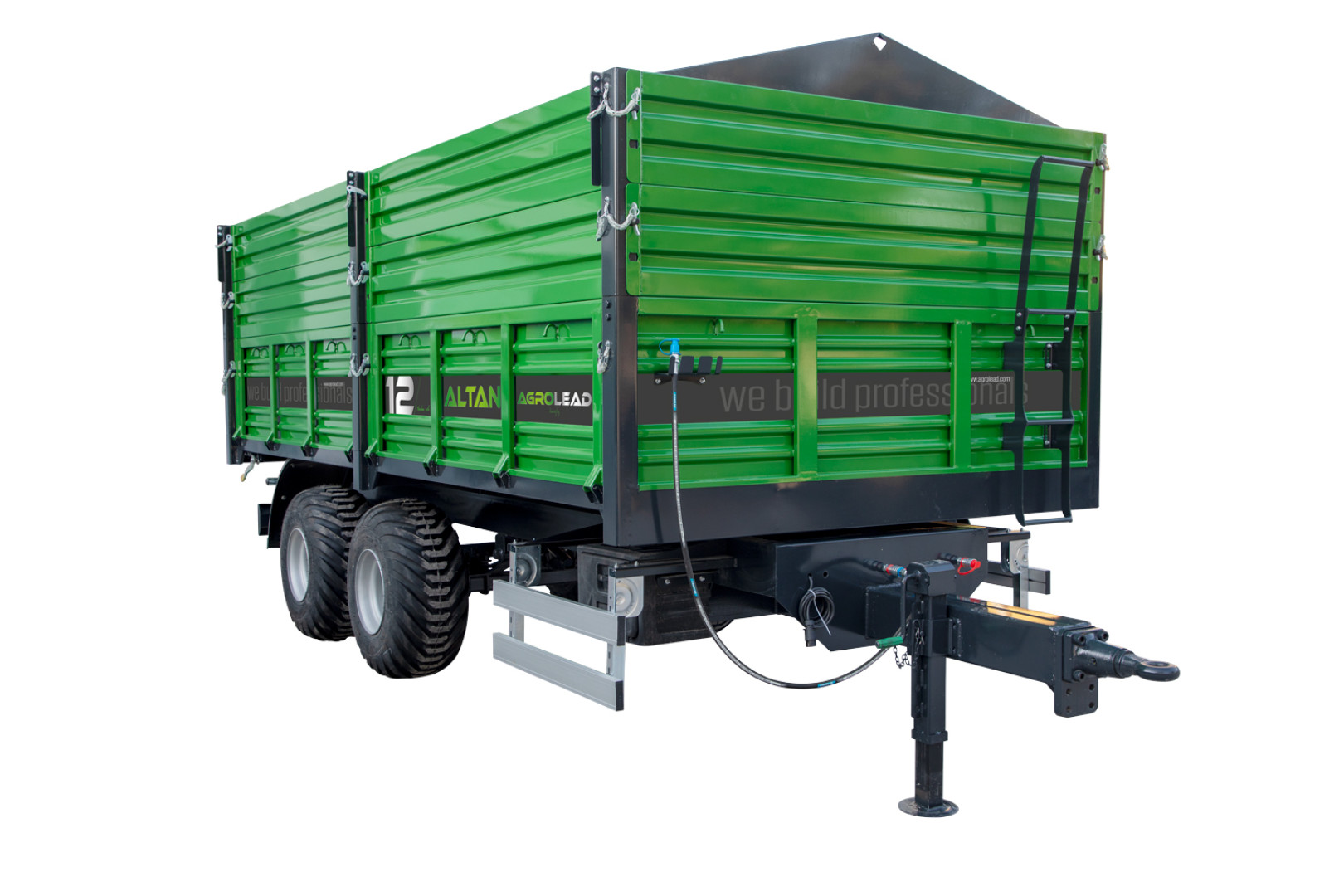

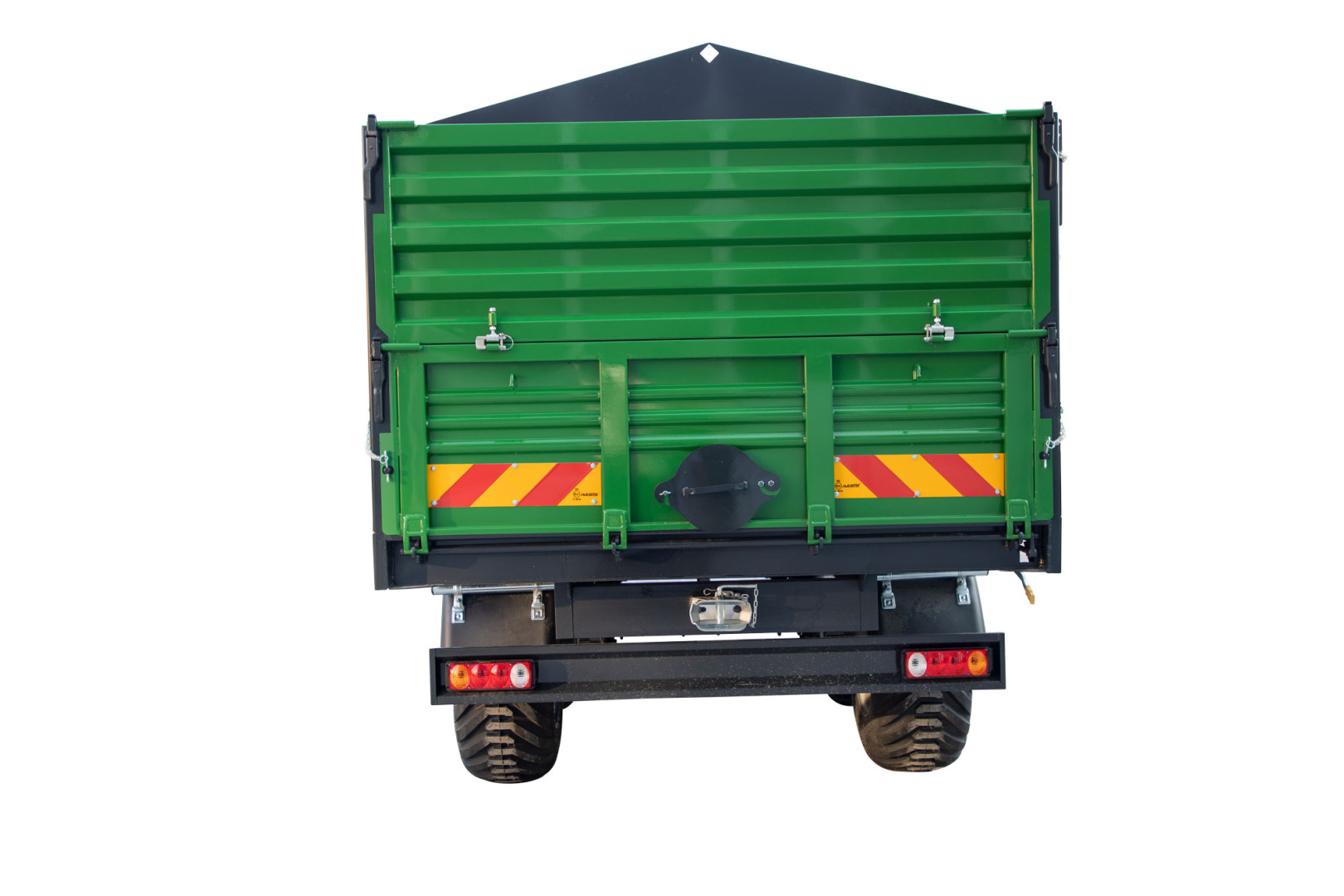

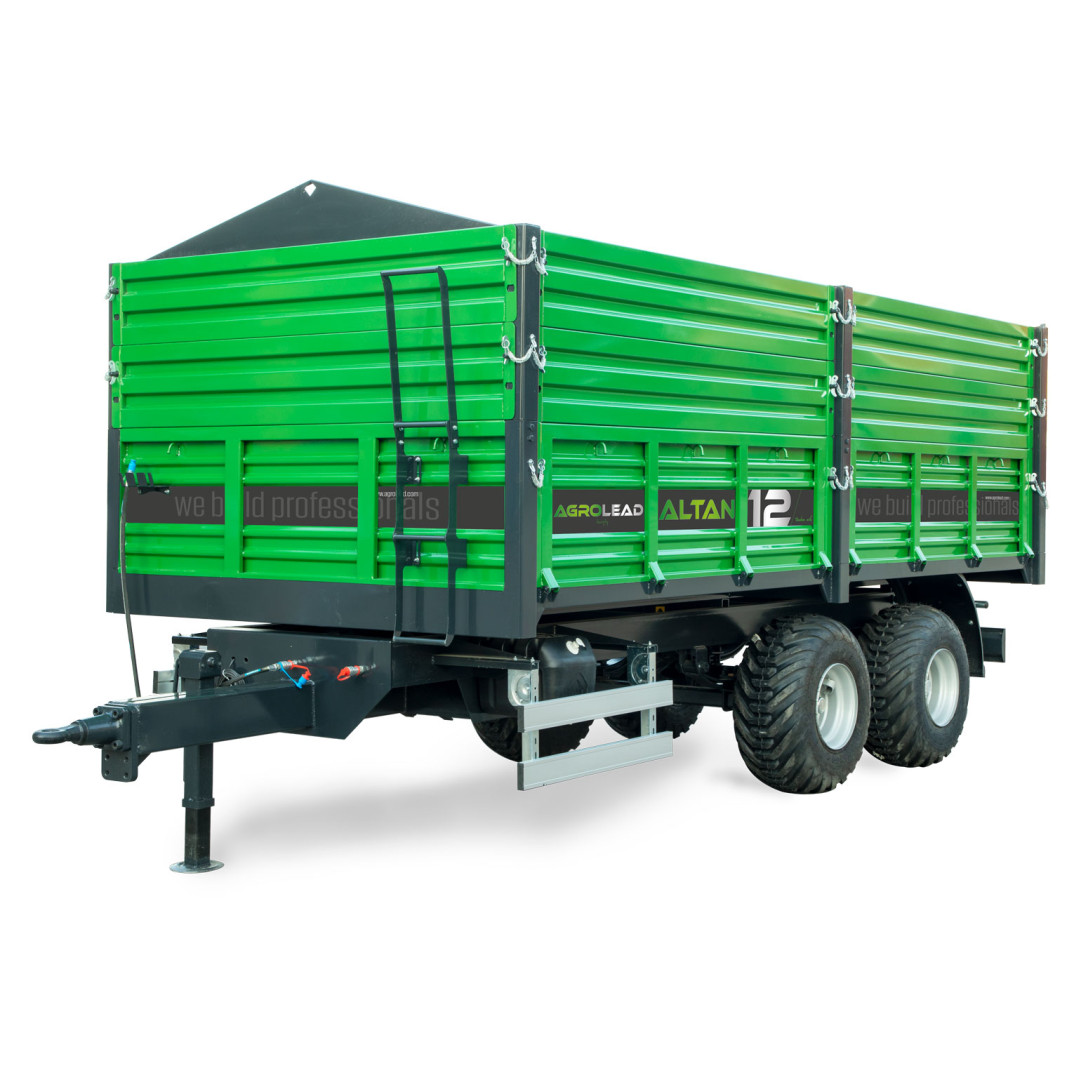

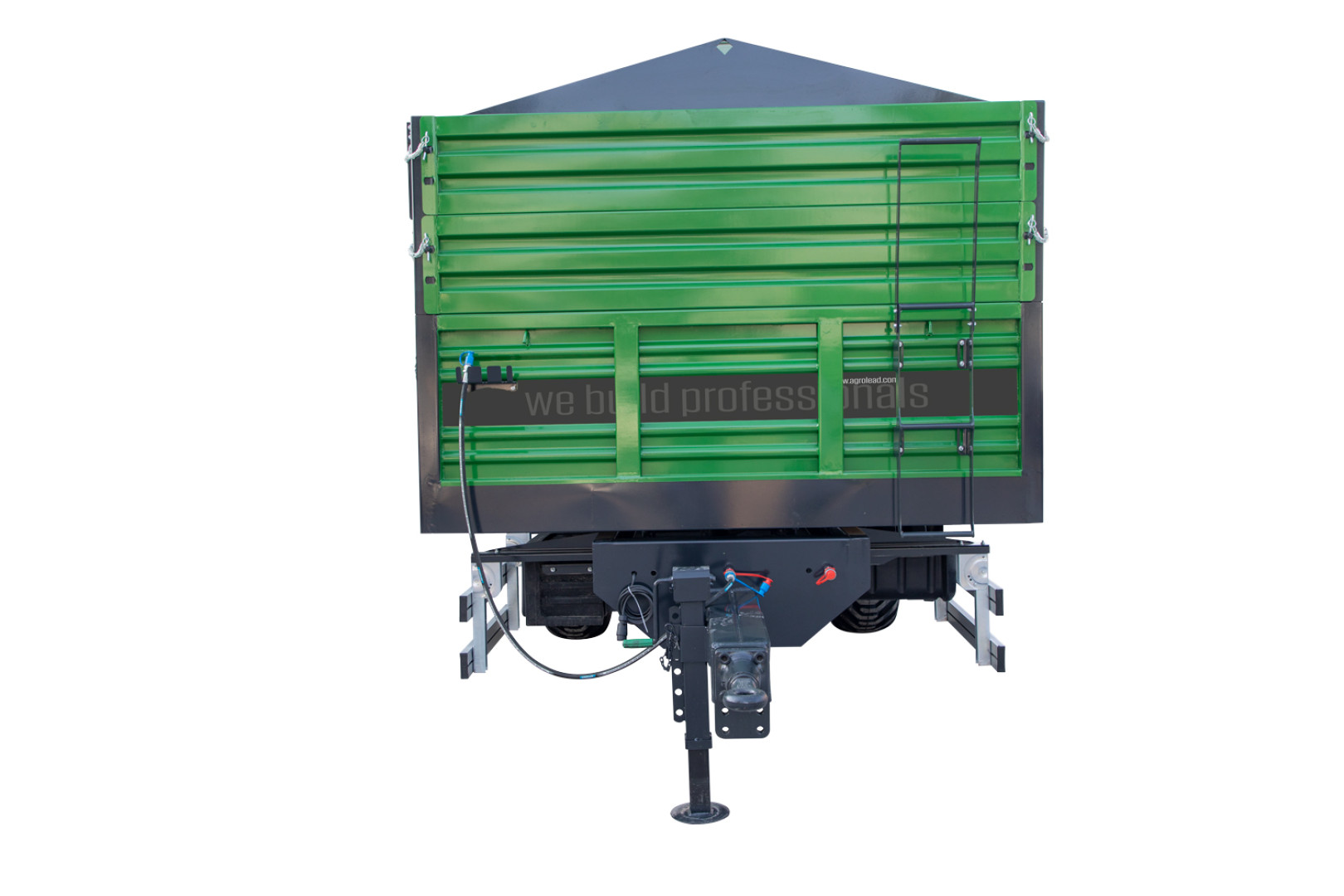

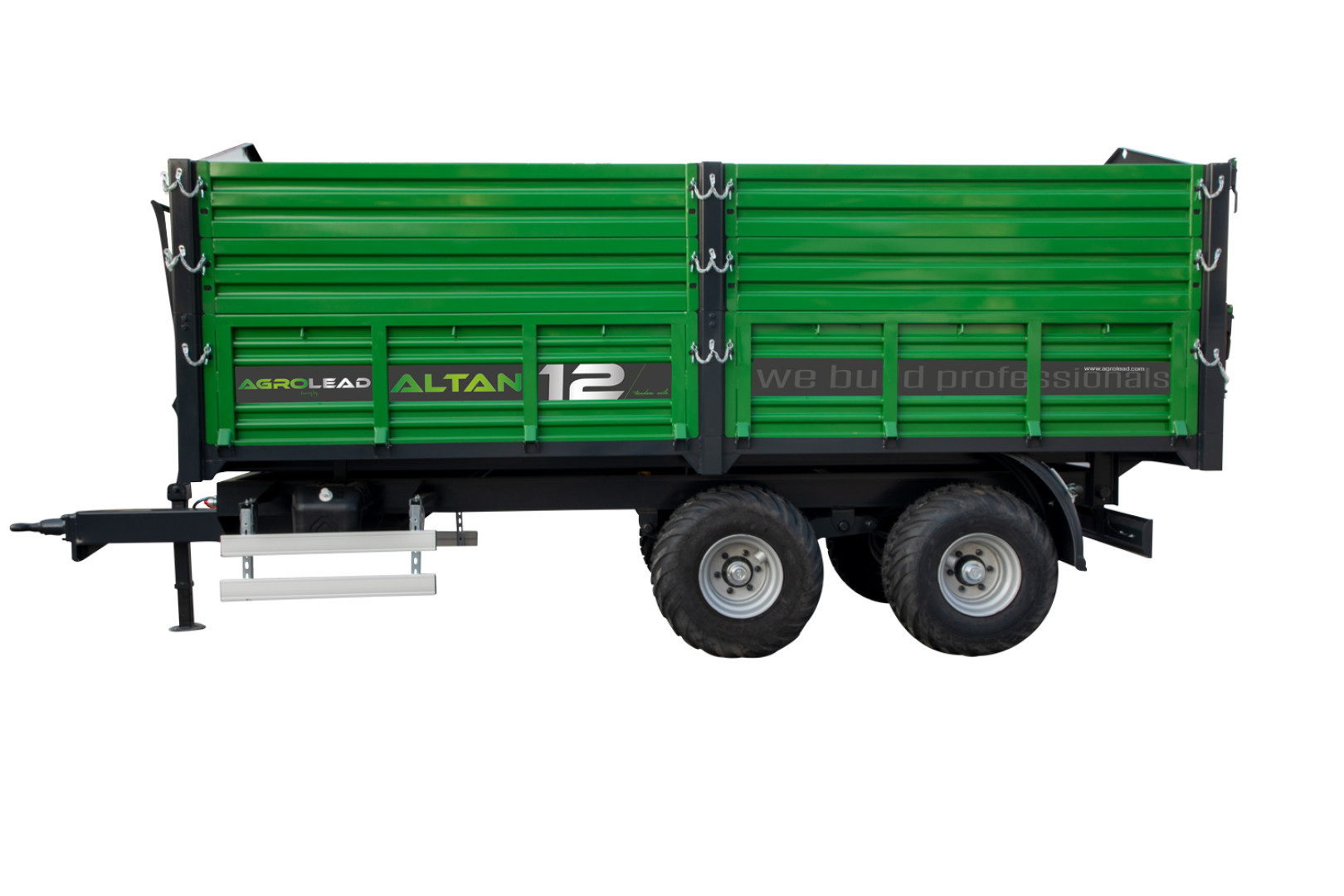

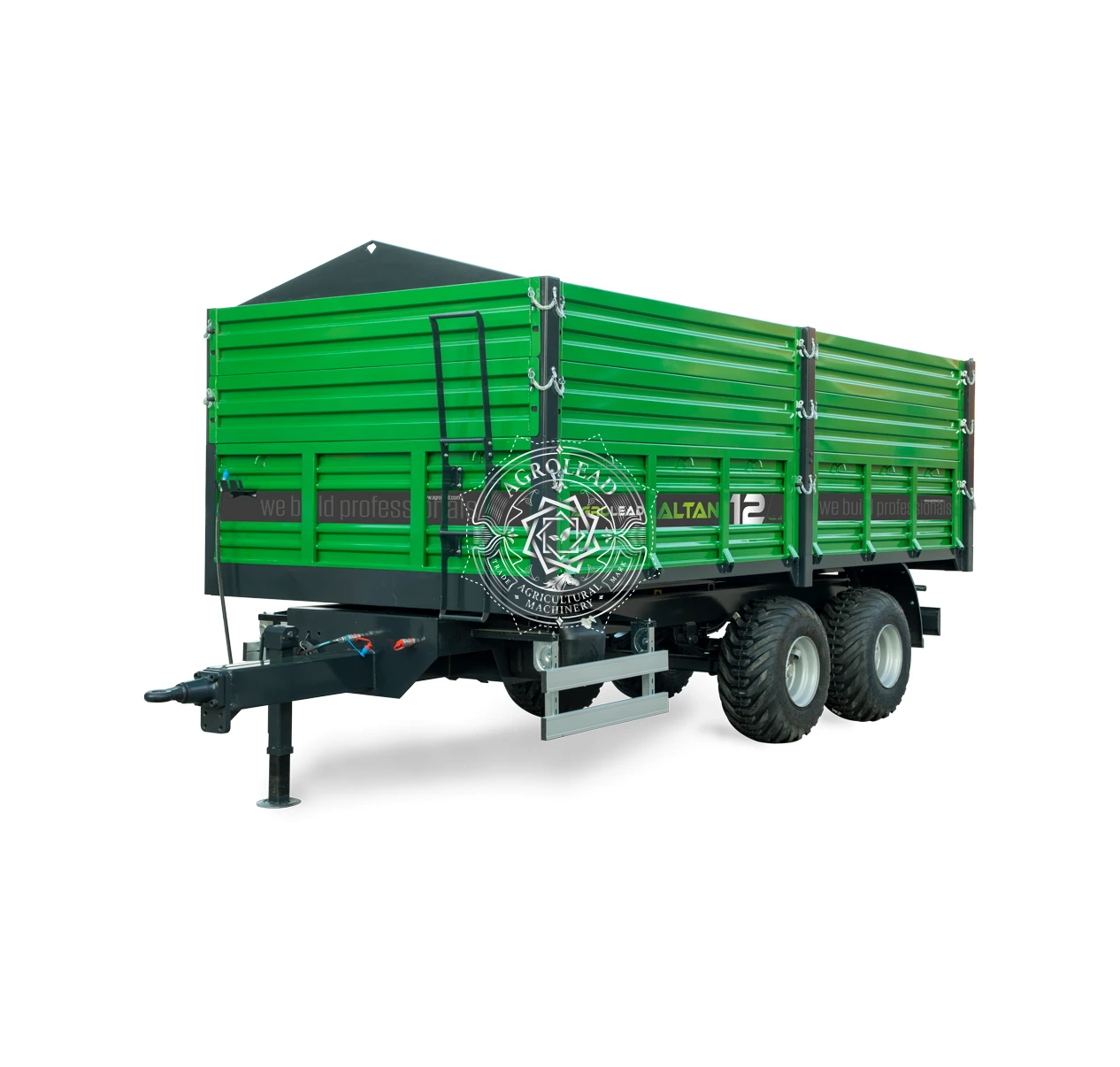

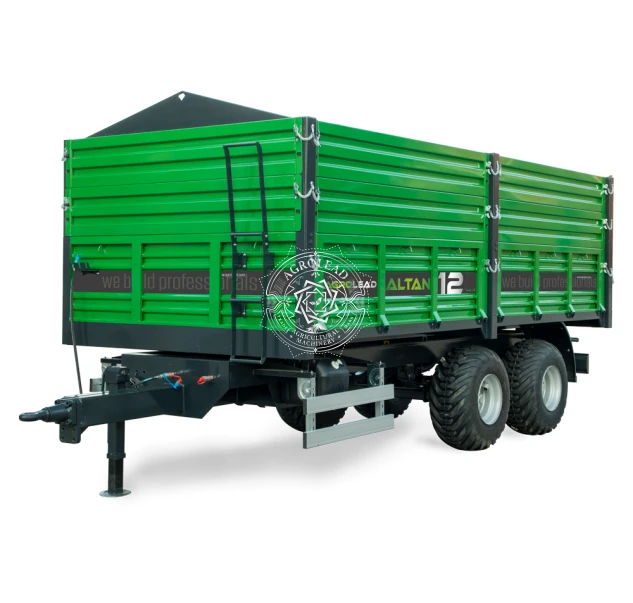

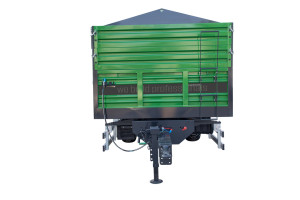

Altan Tandem Axle Euro Trailer

Altan Tandem Axle Euro Trailer

Altan Truck Type Agriculture trailers are reflection of needs and understanding for the customer. While designing we demonstrated commitment by taking into consideration users’ needs on which a valuable product was built. Our modern trailers are intended for transport of various materials, in particular agricultural produce where precise tightness is required. Our innovative trailers are marked by: well-equipped standard versions, high loading capacity of box-bodies, long life using period.

Altan Truck Type Agricultural Trailers are produced with hydraulic rear tipping and hydraulic brake system as standard. Payload capacites vary from 8 ton to 20 ton. Tarpaulin, 3-way tipping feature, air circuit brake systems, hydraulic rear gates, central locking handle with variable length for improvement of locking ergonomics are some optional features of our modern trailers. Some standard features are listed below ;

*Rein-forced 3 mm Steel Flooring

*2,5 mm Sideboards

*St-52 Quality Steel Axle

*Hydraulic Brake

*12V Electrical System And Lamp

*Steel-Casting Drum-Brake

*Rear or Right-Left Damper System

*Jack with transmission

*Water Tank

*Tool Box

TECHNICAL SPECIFICATIONSUNITMODEL
ALTAN 8ALTAN 10ALTAN 12ALTAN 14ALTAN 15ALTAN 20
Capacityton81012141520
AxletypeTandemTandemTandemTandemTandemTandem
Widthcm210210210215215230
Lengthcm450480480500520580
Heightcm60+25+2560+30+3060+35+3560+35+3570+35+3570+40+40
Weightkg260029003200350037004250
Tyre Dimensioninch12,5/80400/600400/600400/600550/50435-R-19,5
Ground Clearancecm105105105105105105
TECHNICAL SPECIFICATIONSUNITALTAN 10
Capacityton10
AxletypeTandem
Widthcm210
Lengthcm480
Heightcm60+30+30
Weightkg2900
Tyre Dimensioninch400/600
Ground Clearancecm105
TECHNICAL SPECIFICATIONSUNITALTAN 12
Capacityton12
AxletypeTandem
Widthcm210
Lengthcm480
Heightcm60+35+35
Weightkg3200
Tyre Dimensioninch400/600
Ground Clearancecm105
TECHNICAL SPECIFICATIONSUNITALTAN 14
Capacityton14
AxletypeTandem
Widthcm215
Lengthcm500
Heightcm60+35+35
Weightkg3500
Tyre Dimensioninch400/600
Ground Clearancecm105
TECHNICAL SPECIFICATIONSUNITALTAN 15
Capacityton15
AxletypeTandem
Widthcm215
Lengthcm520
Heightcm70+35+35
Weightkg3700
Tyre Dimensioninch550/50
Ground Clearancecm105
TECHNICAL SPECIFICATIONSUNITALTAN 20
Capacityton20
AxletypeTandem
Widthcm230
Lengthcm580
Heightcm70+40+40
Weightkg4250
Tyre Dimensioninch435-R-19,5
Ground Clearancecm105
TECHNICAL SPECIFICATIONSUNITALTAN 8
Capacityton8
AxletypeTandem
Widthcm210
Lengthcm450
Heightcm60+25+25
Weightkg2600
Tyre Dimensioninch12,5/80
Ground Clearancecm105
