Molaris Vertical TMR Mixer

Molaris Vertical TMR Mixer

TECHNICAL SPECIFICATIONS	UNIT	MODEL
TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 3	MOLARIS 6	MOLARIS 8	MOLARIS 10	MOLARIS 12	MOLARIS 12D	MOLARIS 14D	MOLARIS 16D	MOLARIS 18D	MOLARIS 20D	MOLARIS 24D	MOLARIS 30T
Volume	m3	3	6	8	10	12	12	14	16	18	20	24	30
Width	mm	1565	2070	2100	2350	2350	2200	2300	2400	2400	2400	2450	2500
Length	mm	3900	4200	5100	5700	5800	6200	6620	7000	7200	7500	7500	9850
Height	mm	2125	2500	2800	2820	3050	2730	2750	2850	2850	2870	3000	3000
Weight	kg	1400	2200	3850	4100	4200	4850	5000	5250	5750	6000	6500	8000
Max. Loaded Weight	kg	2300	4000	6850	7000	7800	7800	9200	10000	11000	12000	14000	17000
Scale System		Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Scale System Sensors	pcs	3	3	3	4	4	4	4	4	6	6	6	6
Helix Number	pcs	1	1	1	1	1	2	2	2	2	2	2	3
Helix Circuit	rpm/min	50	32	30	30	30	30	30	30	30	30	30	30
Helix Blade Number	pcs	4 Big	5 Big	8 Big	9 Big	9 Big	18 Big	18 Big	18 Big	20 Big	20 Big	20 Big	30 Big
Fixed Blade Number	pcs	2	2	2	2	2	2	2	2	2	2	2	2
Required Power	kw/hp	30/40	40/55	55/60	60/80	65/90	70/95	70/95	100/110	100/120	100/120	120/130	130/150
Tyre Dimensions	inch	10.75/15.3	10.75/15.3	10.75/15.3	10.75/15.3	400/60-15.3	400/60-15.3	400/60-15.3	400/60-15.3	400/60-15.3	400/60-15.3	400/60-15.3	400/60-15.3

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 10
Volume	m3	10
Width	mm	2350
Length	mm	5700
Height	mm	2820
Weight	kg	4100
Max. Loaded Weight	kg	7000
Scale System		Optional
Scale System Sensors	pcs	4
Helix Number	pcs	1
Helix Circuit	rpm/min	30
Helix Blade Number	pcs	9 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	60/80
Tyre Dimensions	inch	10.75/15.3

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 12
Volume	m3	12
Width	mm	2350
Length	mm	5800
Height	mm	3050
Weight	kg	4200
Max. Loaded Weight	kg	7800
Scale System		Optional
Scale System Sensors	pcs	4
Helix Number	pcs	1
Helix Circuit	rpm/min	30
Helix Blade Number	pcs	9 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	65/90
Tyre Dimensions	inch	400/60-15.3

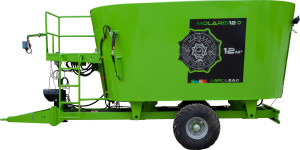

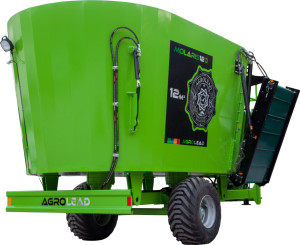

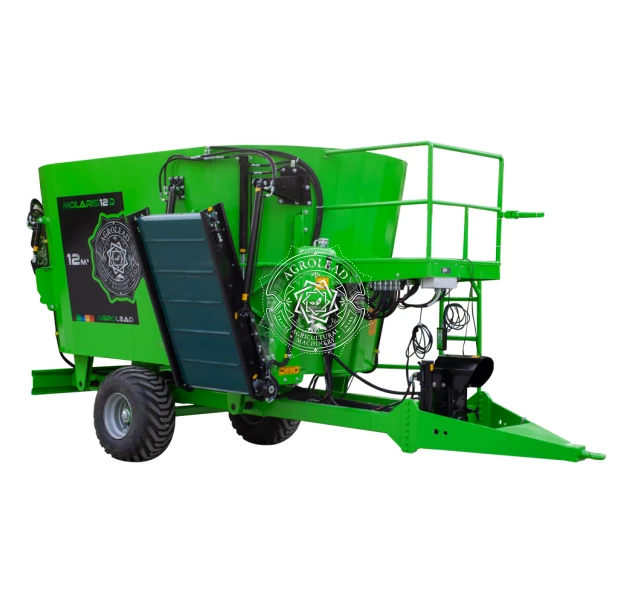

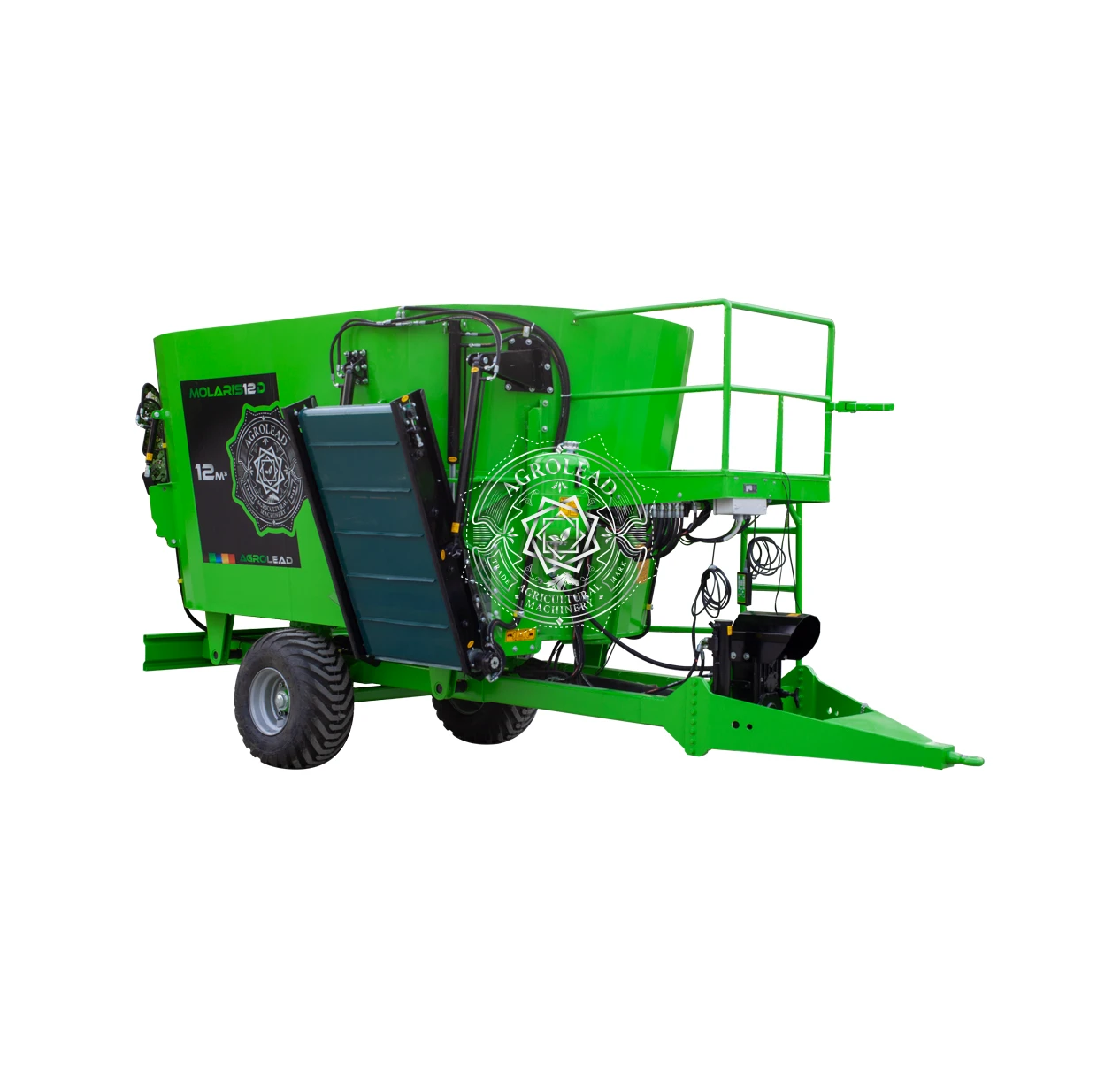

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 12D
Volume	m3	12
Width	mm	2200
Length	mm	6200
Height	mm	2730
Weight	kg	4850
Max. Loaded Weight	kg	7800
Scale System		Optional
Scale System Sensors	pcs	4
Helix Number	pcs	2
Helix Circuit	rpm/min	30
Helix Blade Number	pcs	18 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	70/95
Tyre Dimensions	inch	400/60-15.3

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 14D
Volume	m3	14
Width	mm	2300
Length	mm	6620
Height	mm	2750
Weight	kg	5000
Max. Loaded Weight	kg	9200
Scale System		Optional
Scale System Sensors	pcs	4
Helix Number	pcs	2
Helix Circuit	rpm/min	30
Helix Blade Number	pcs	18 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	70/95
Tyre Dimensions	inch	400/60-15.3

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 16D
Volume	m3	16
Width	mm	2400
Length	mm	7000
Height	mm	2850
Weight	kg	5250
Max. Loaded Weight	kg	10000
Scale System		Optional
Scale System Sensors	pcs	4
Helix Number	pcs	2
Helix Circuit	rpm/min	30
Helix Blade Number	pcs	18 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	100/110
Tyre Dimensions	inch	400/60-15.3

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 18D
Volume	m3	18
Width	mm	2400
Length	mm	7200
Height	mm	2850
Weight	kg	5750
Max. Loaded Weight	kg	11000
Scale System		Optional
Scale System Sensors	pcs	6
Helix Number	pcs	2
Helix Circuit	rpm/min	30
Helix Blade Number	pcs	20 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	100/120
Tyre Dimensions	inch	400/60-15.3

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 20D
Volume	m3	20
Width	mm	2400
Length	mm	7500
Height	mm	2870
Weight	kg	6000
Max. Loaded Weight	kg	12000
Scale System		Optional
Scale System Sensors	pcs	6
Helix Number	pcs	2
Helix Circuit	rpm/min	30
Helix Blade Number	pcs	20 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	100/120
Tyre Dimensions	inch	400/60-15.3

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 24D
Volume	m3	24
Width	mm	2450
Length	mm	7500
Height	mm	3000
Weight	kg	6500
Max. Loaded Weight	kg	14000
Scale System		Optional
Scale System Sensors	pcs	6
Helix Number	pcs	2
Helix Circuit	rpm/min	30
Helix Blade Number	pcs	20 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	120/130
Tyre Dimensions	inch	400/60-15.3

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 3
Volume	m3	3
Width	mm	1565
Length	mm	3900
Height	mm	2125
Weight	kg	1400
Max. Loaded Weight	kg	2300
Scale System		Optional
Scale System Sensors	pcs	3
Helix Number	pcs	1
Helix Circuit	rpm/min	50
Helix Blade Number	pcs	4 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	30/40
Tyre Dimensions	inch	10.75/15.3

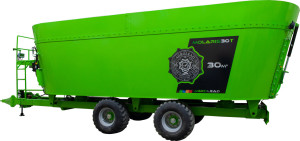

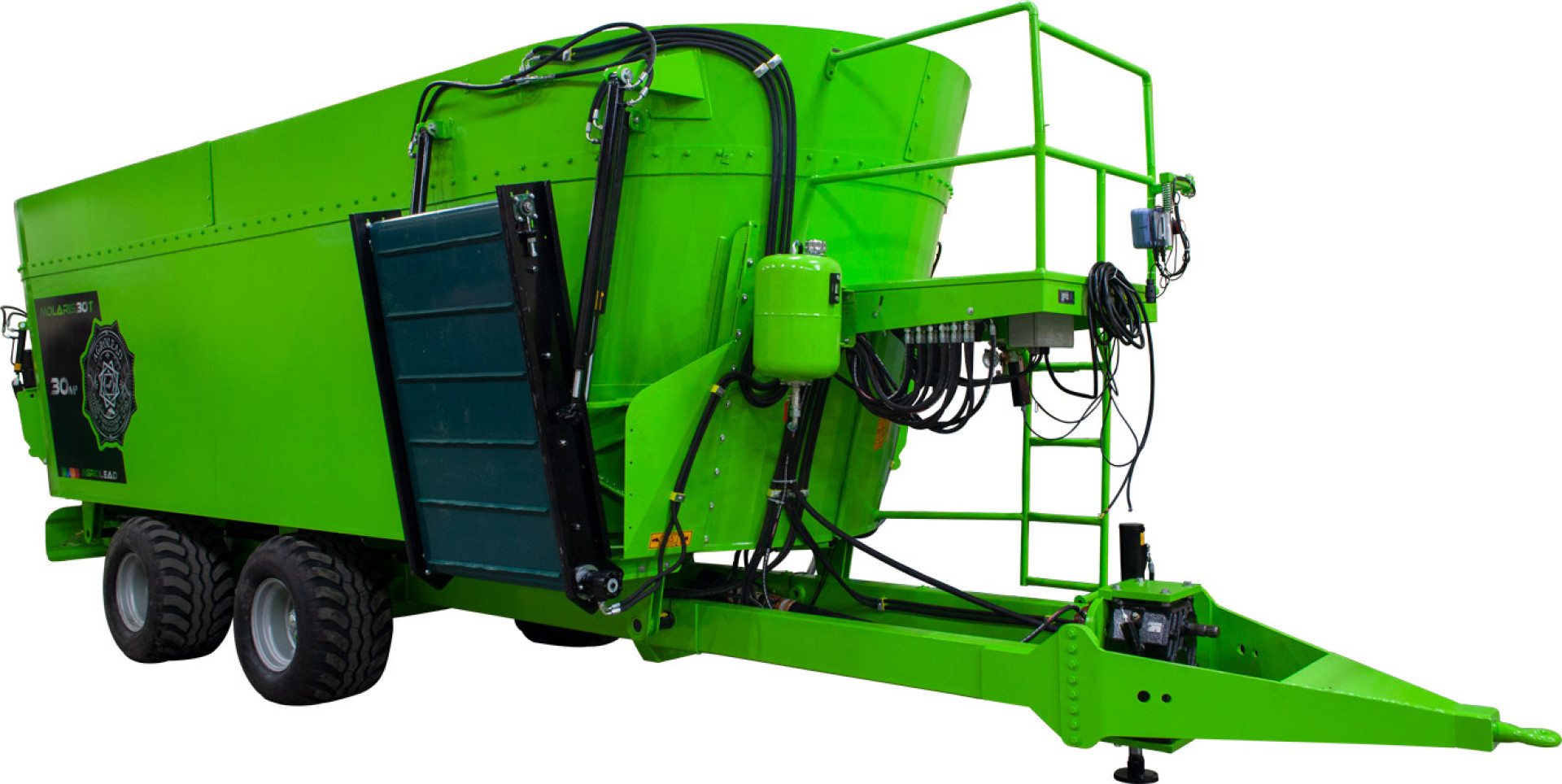

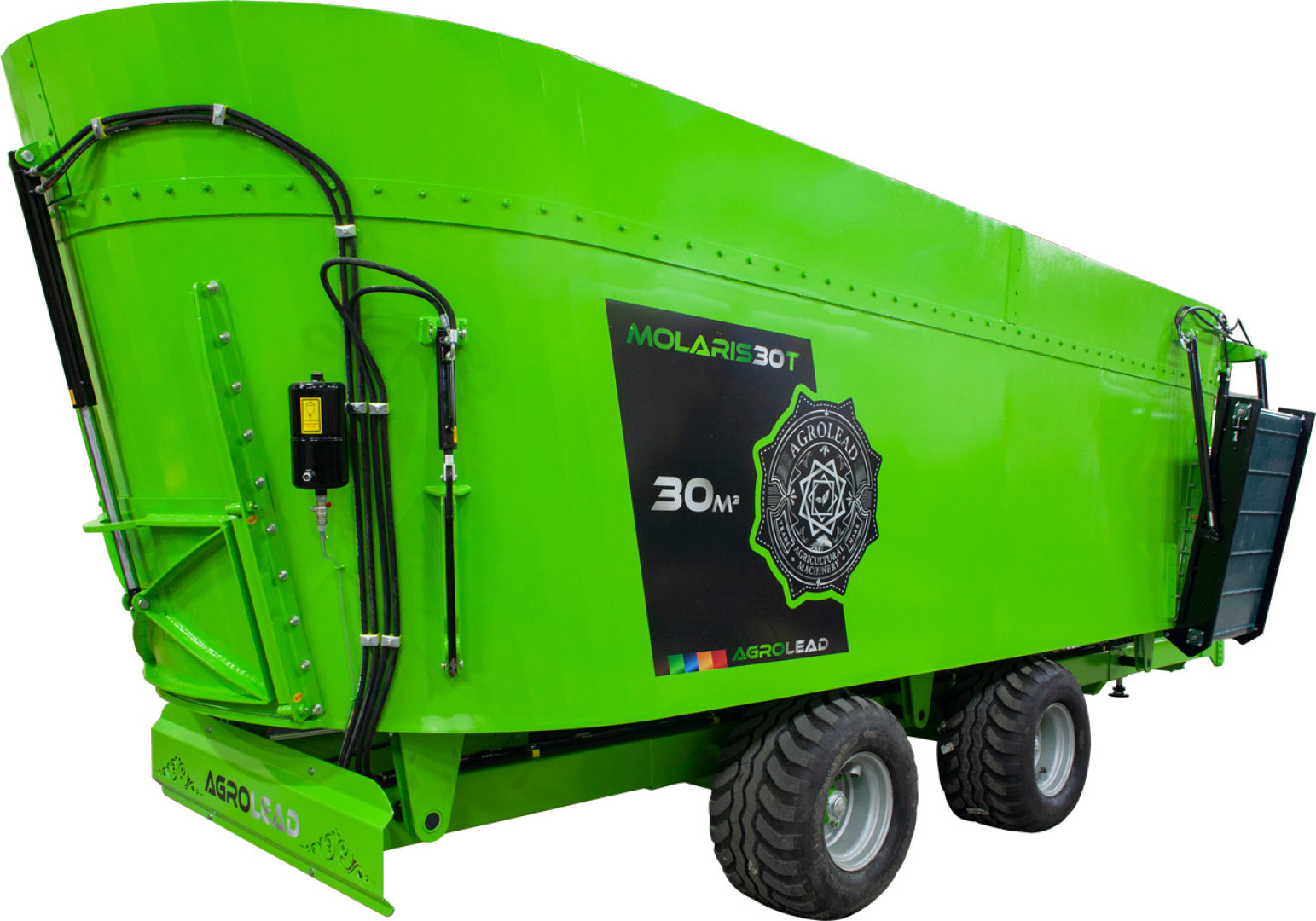

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 30T
Volume	m3	30
Width	mm	2500
Length	mm	9850
Height	mm	3000
Weight	kg	8000
Max. Loaded Weight	kg	17000
Scale System		Optional
Scale System Sensors	pcs	6
Helix Number	pcs	3
Helix Circuit	rpm/min	30
Helix Blade Number	pcs	30 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	130/150
Tyre Dimensions	inch	400/60-15.3

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 6
Volume	m3	6
Width	mm	2070
Length	mm	4200
Height	mm	2500
Weight	kg	2200
Max. Loaded Weight	kg	4000
Scale System		Optional
Scale System Sensors	pcs	3
Helix Number	pcs	1
Helix Circuit	rpm/min	32
Helix Blade Number	pcs	5 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	40/55
Tyre Dimensions	inch	10.75/15.3

TECHNICAL SPECIFICATIONS	UNIT	MOLARIS 8
Volume	m3	8
Width	mm	2100
Length	mm	5100
Height	mm	2800
Weight	kg	3850
Max. Loaded Weight	kg	6850
Scale System		Optional
Scale System Sensors	pcs	3
Helix Number	pcs	1
Helix Circuit	rpm/min	30
Helix Blade Number	pcs	8 Big
Fixed Blade Number	pcs	2
Required Power	kw/hp	55/60
Tyre Dimensions	inch	10.75/15.3
