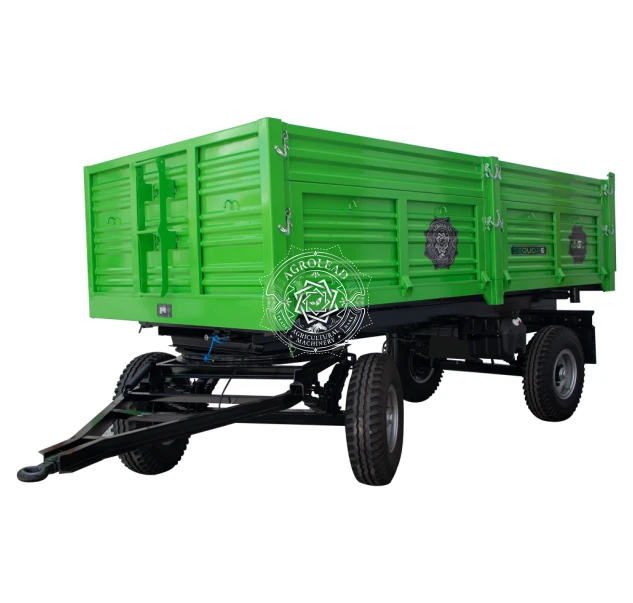

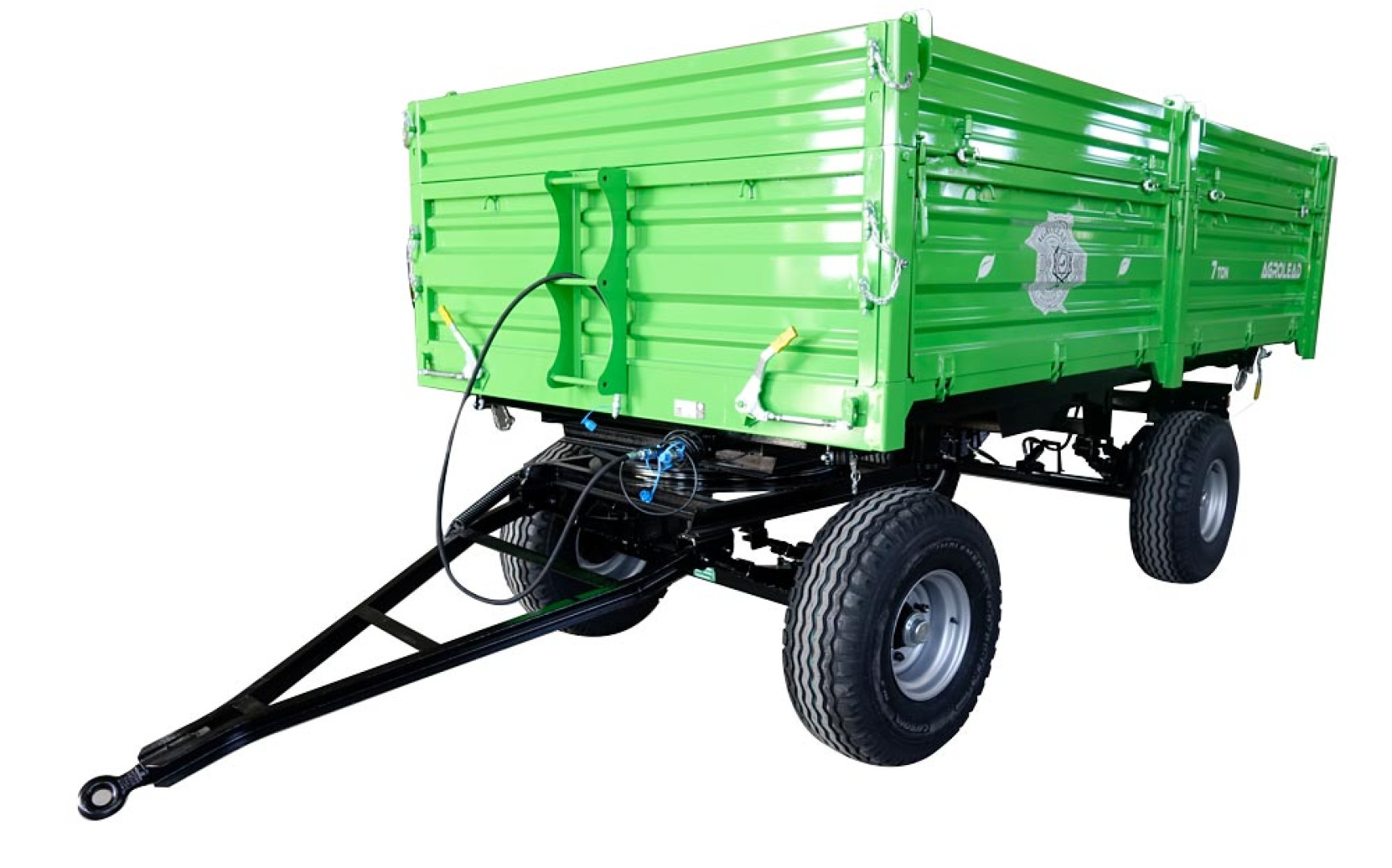

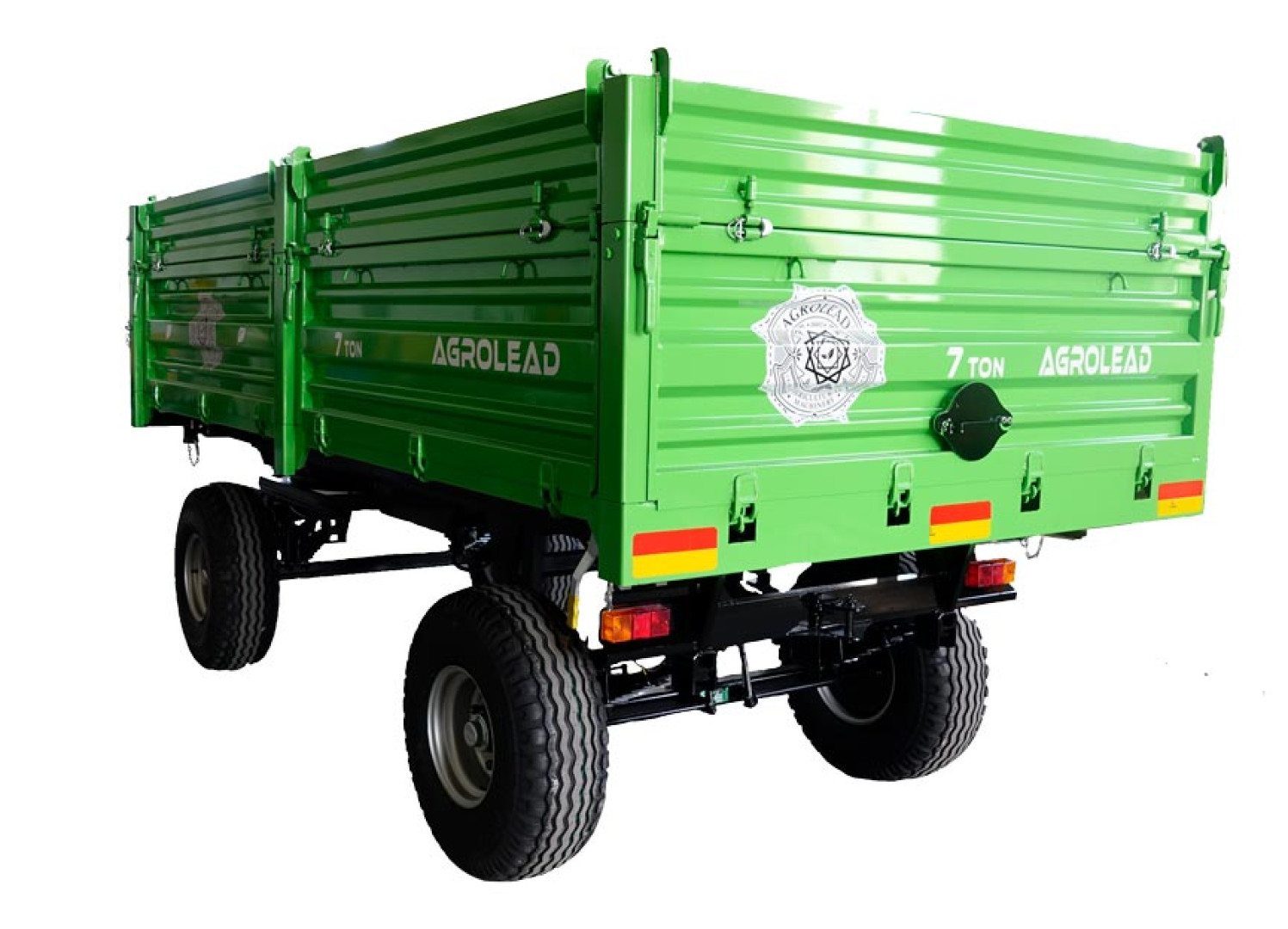

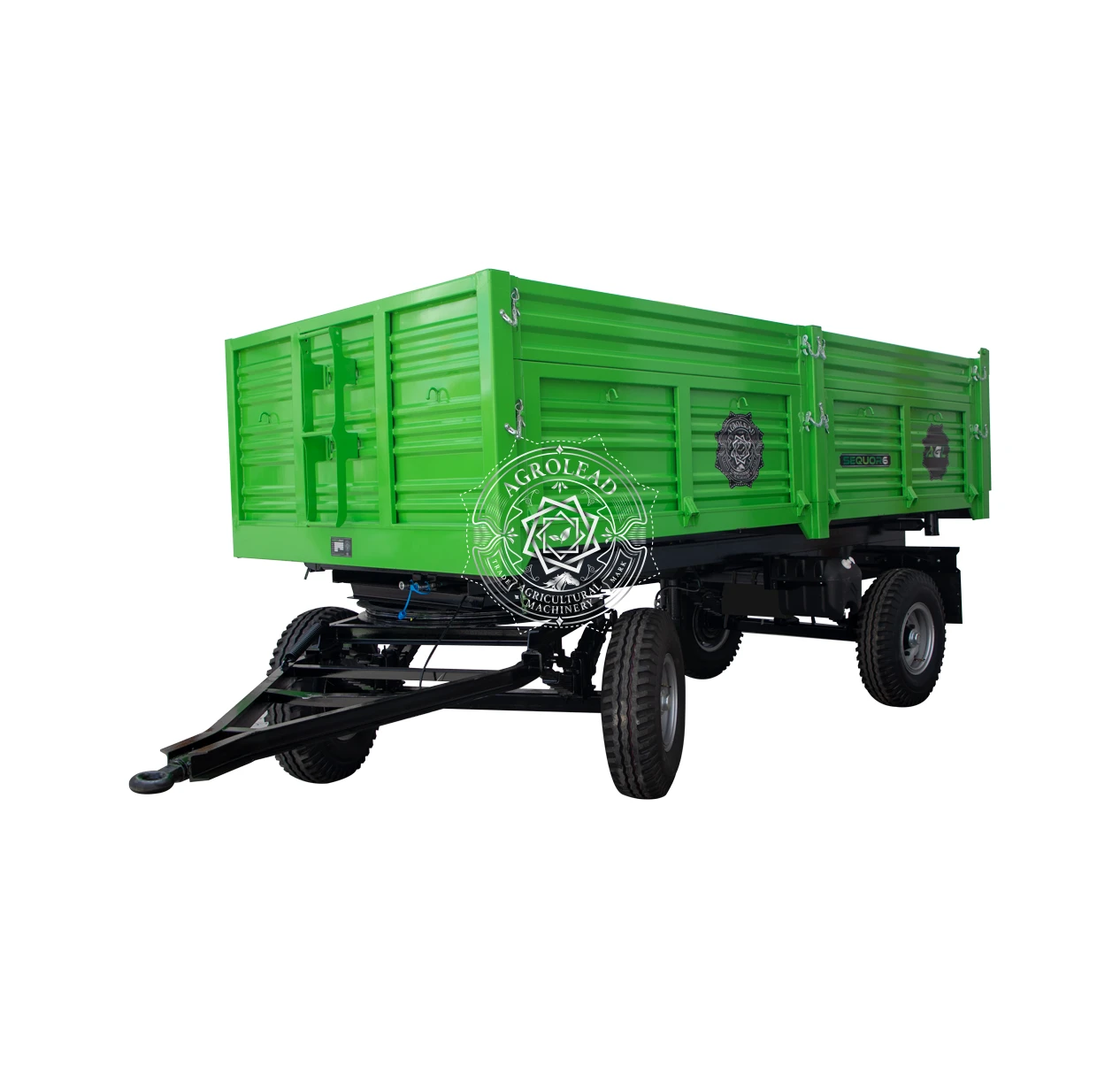

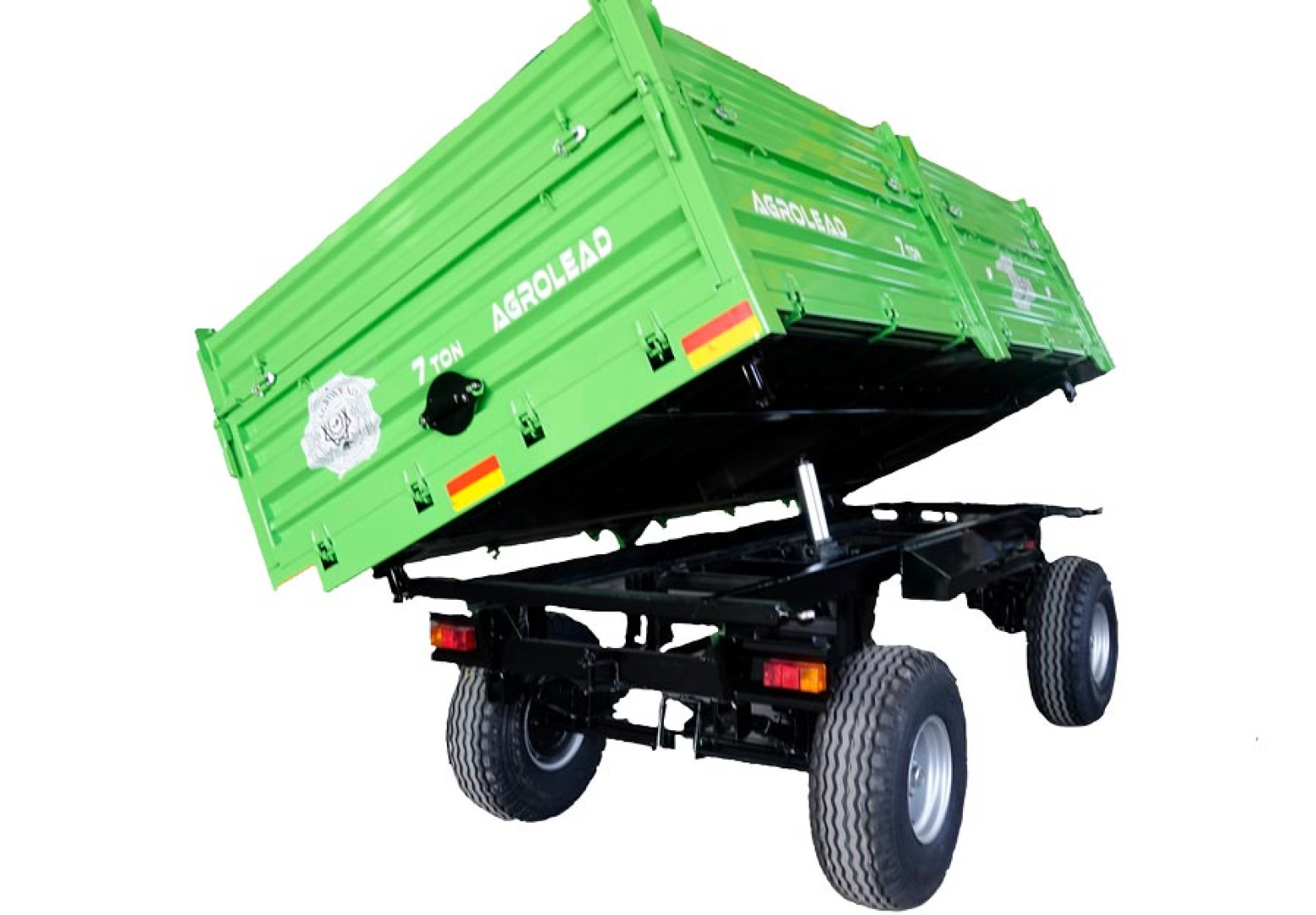

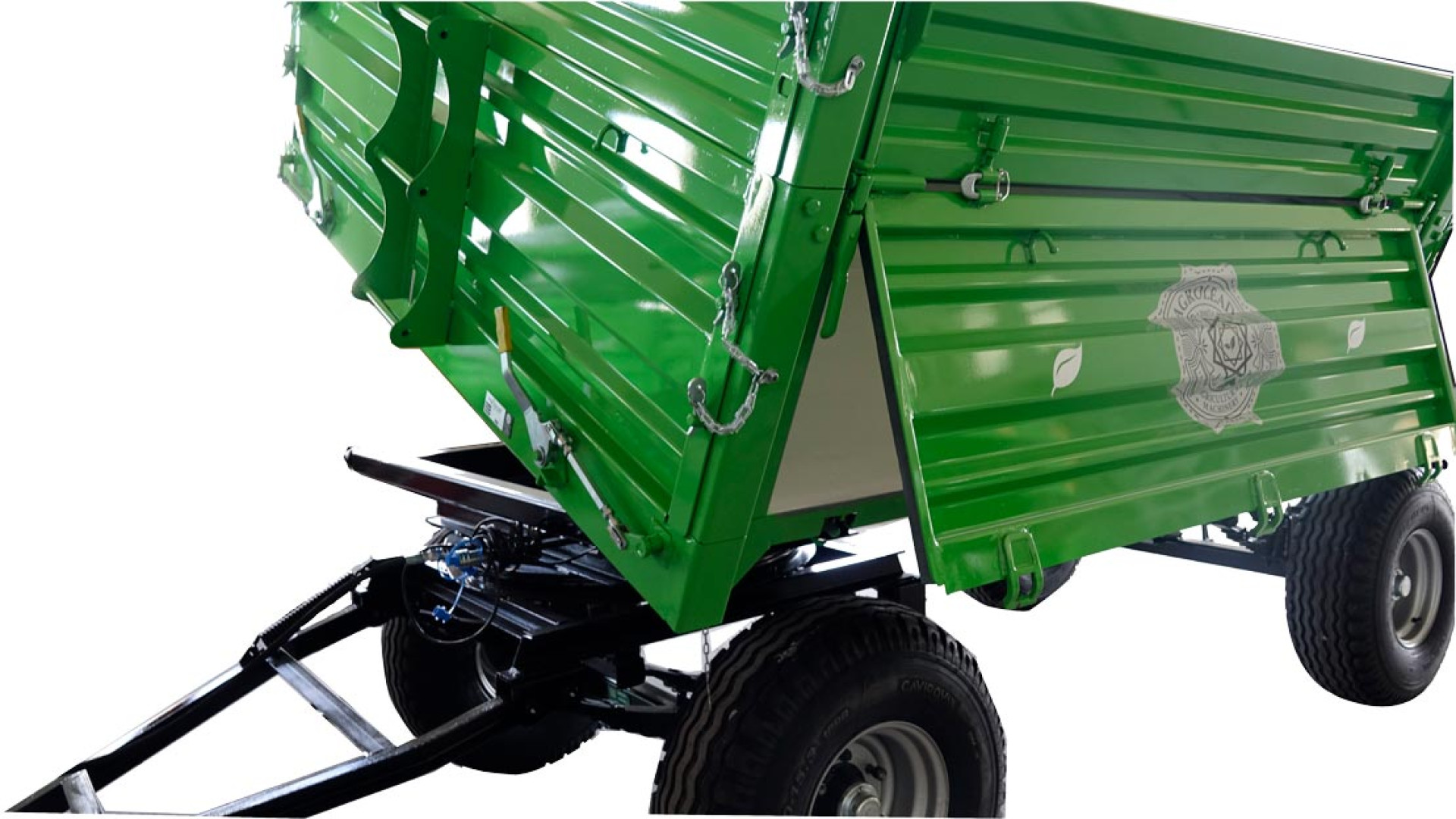

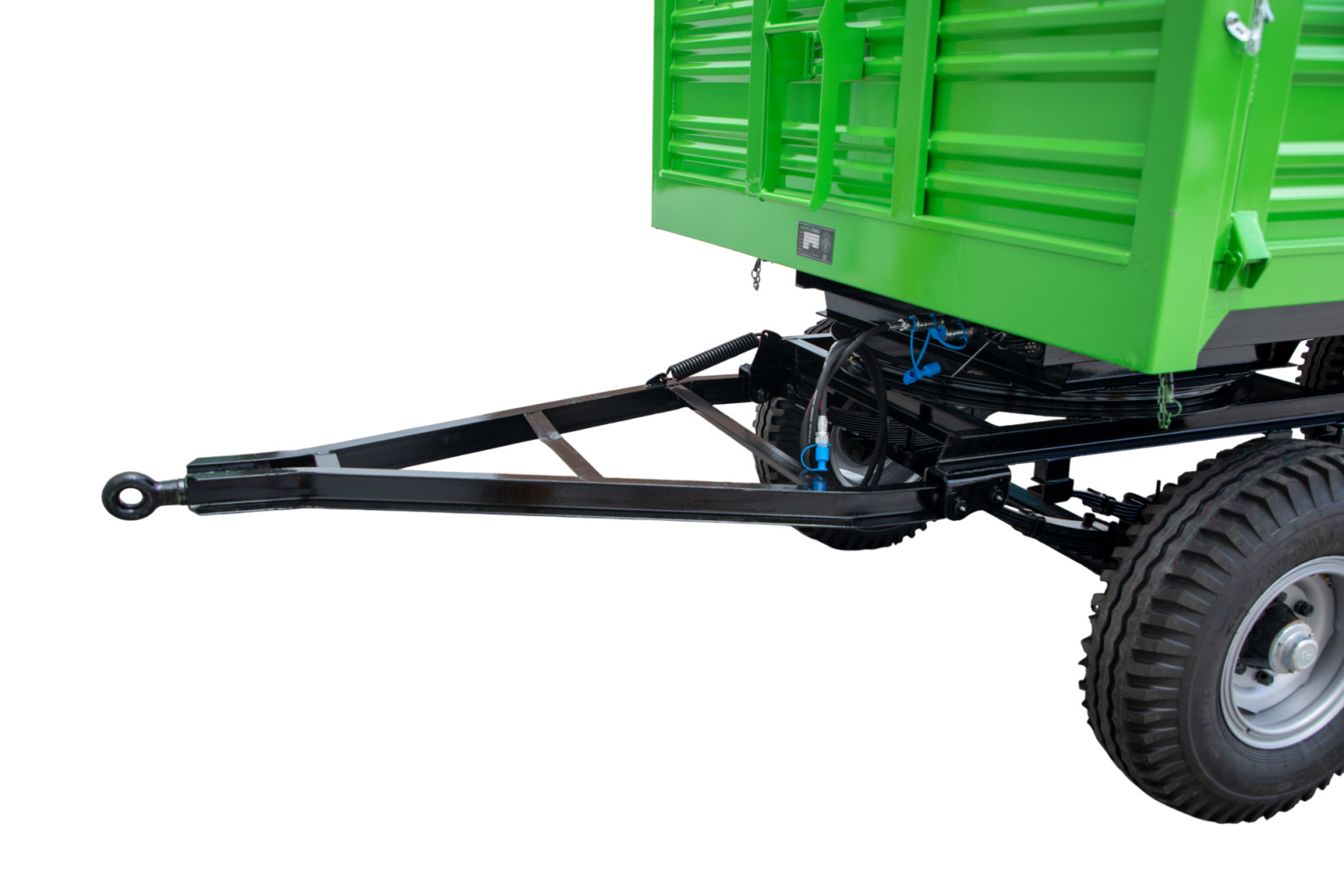

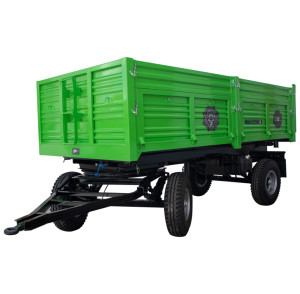

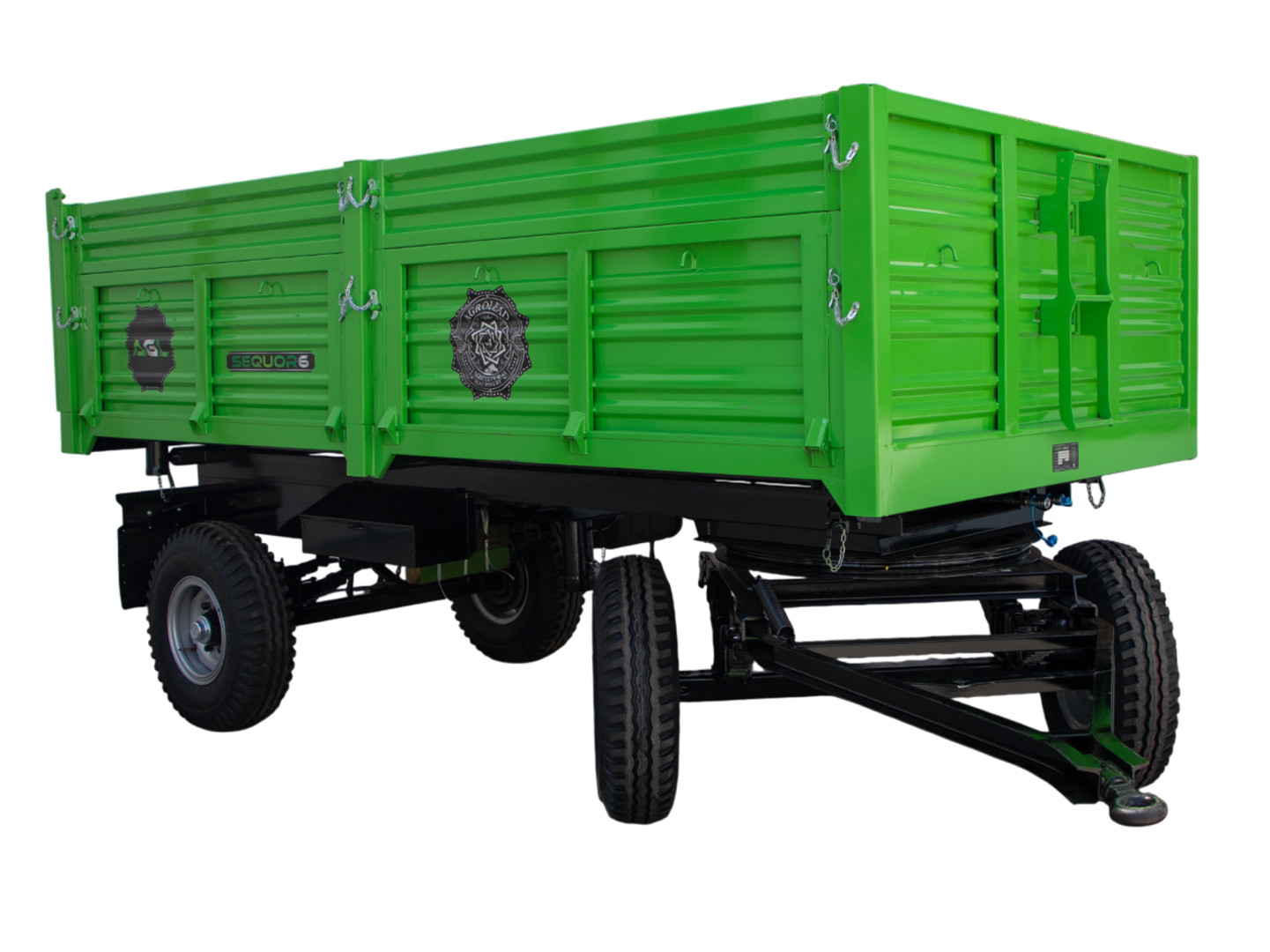

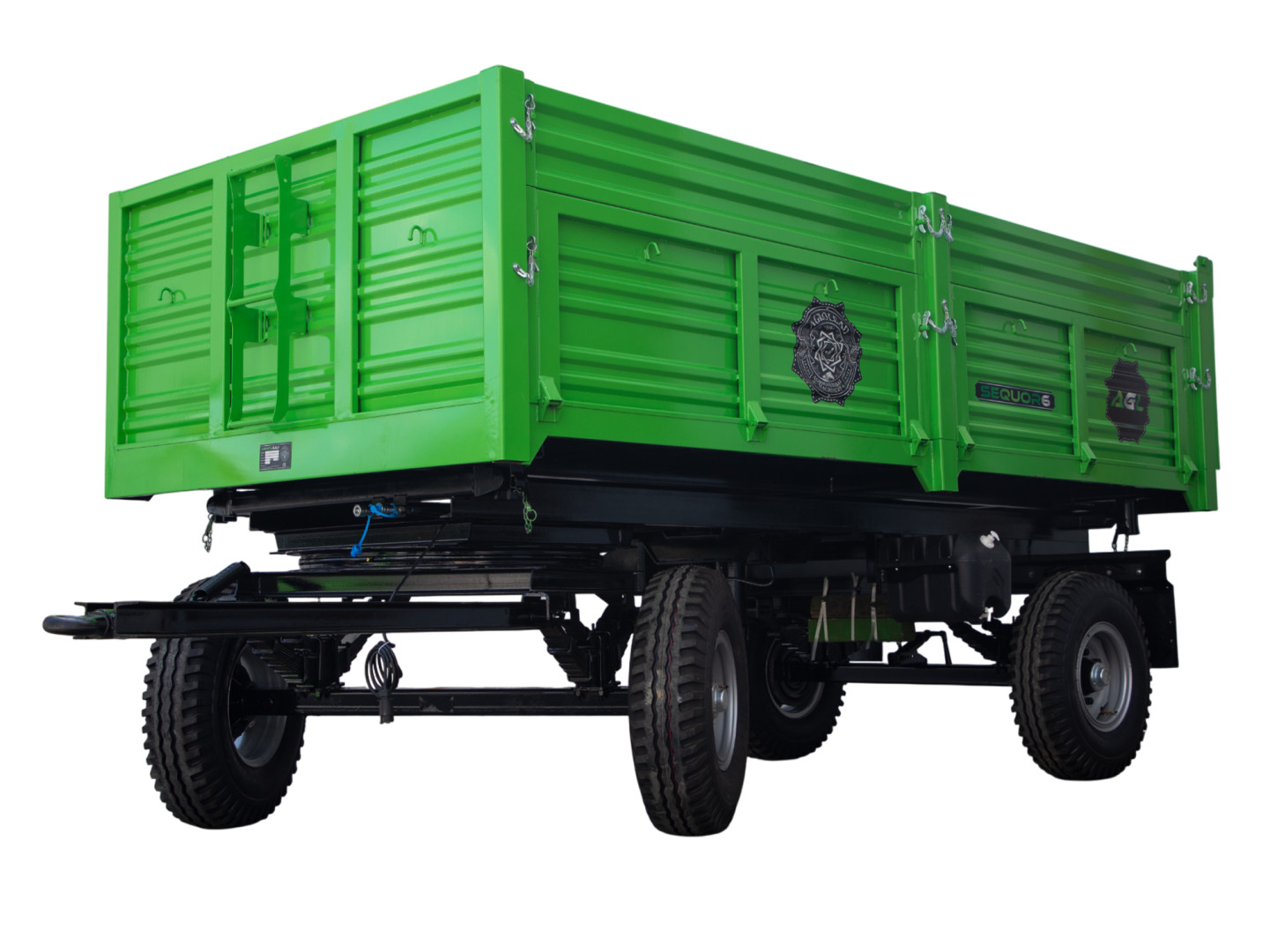

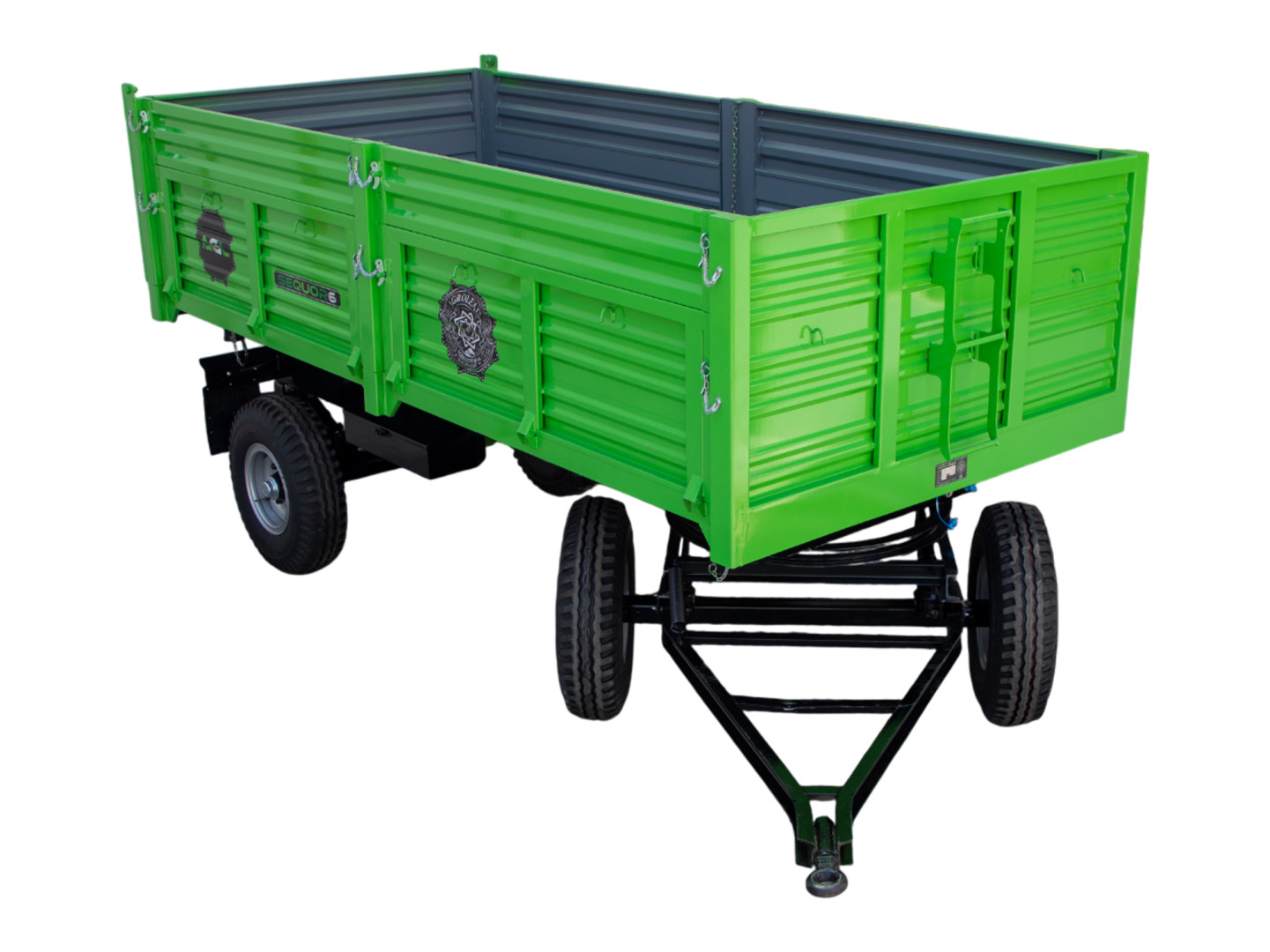

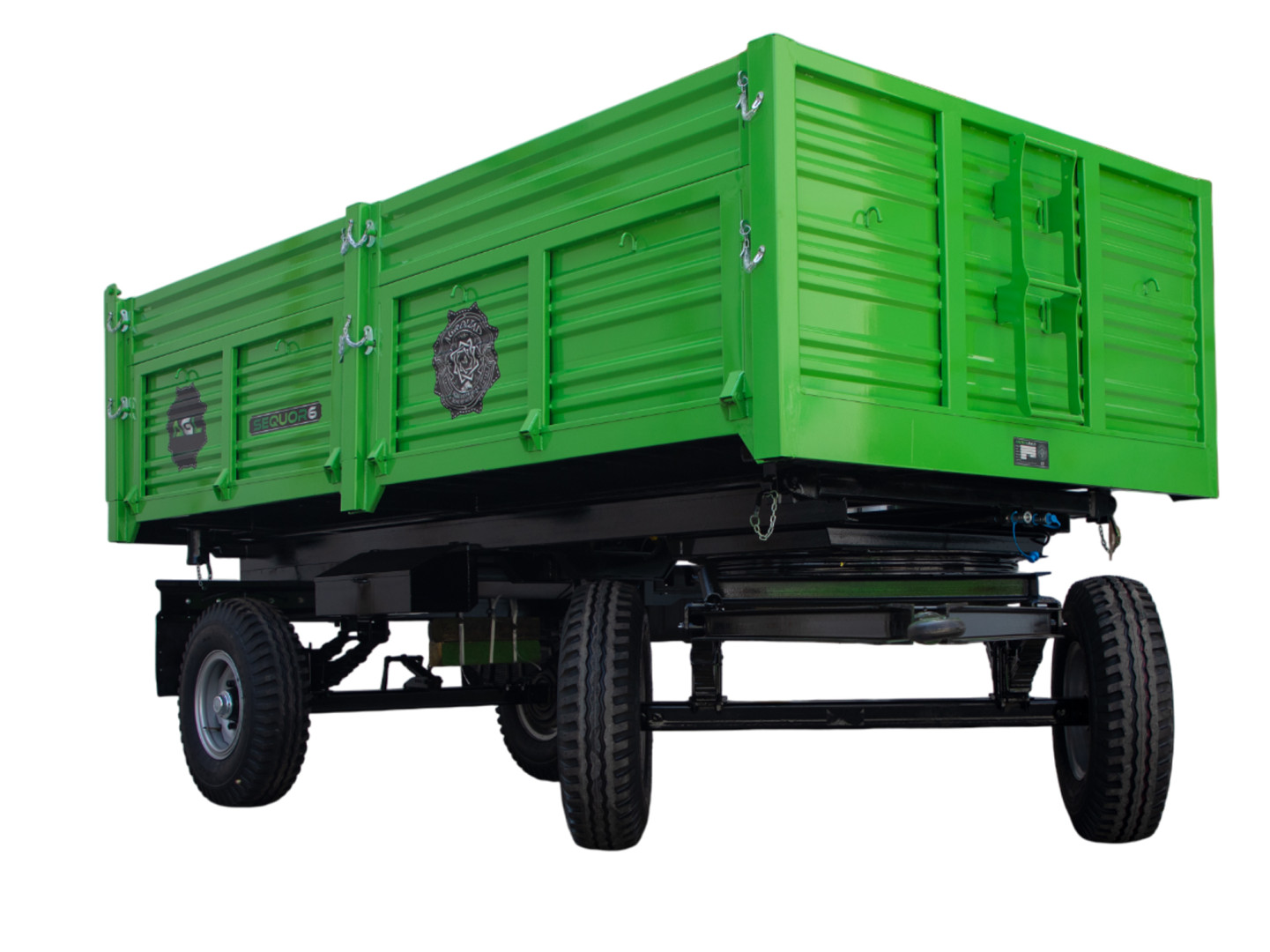

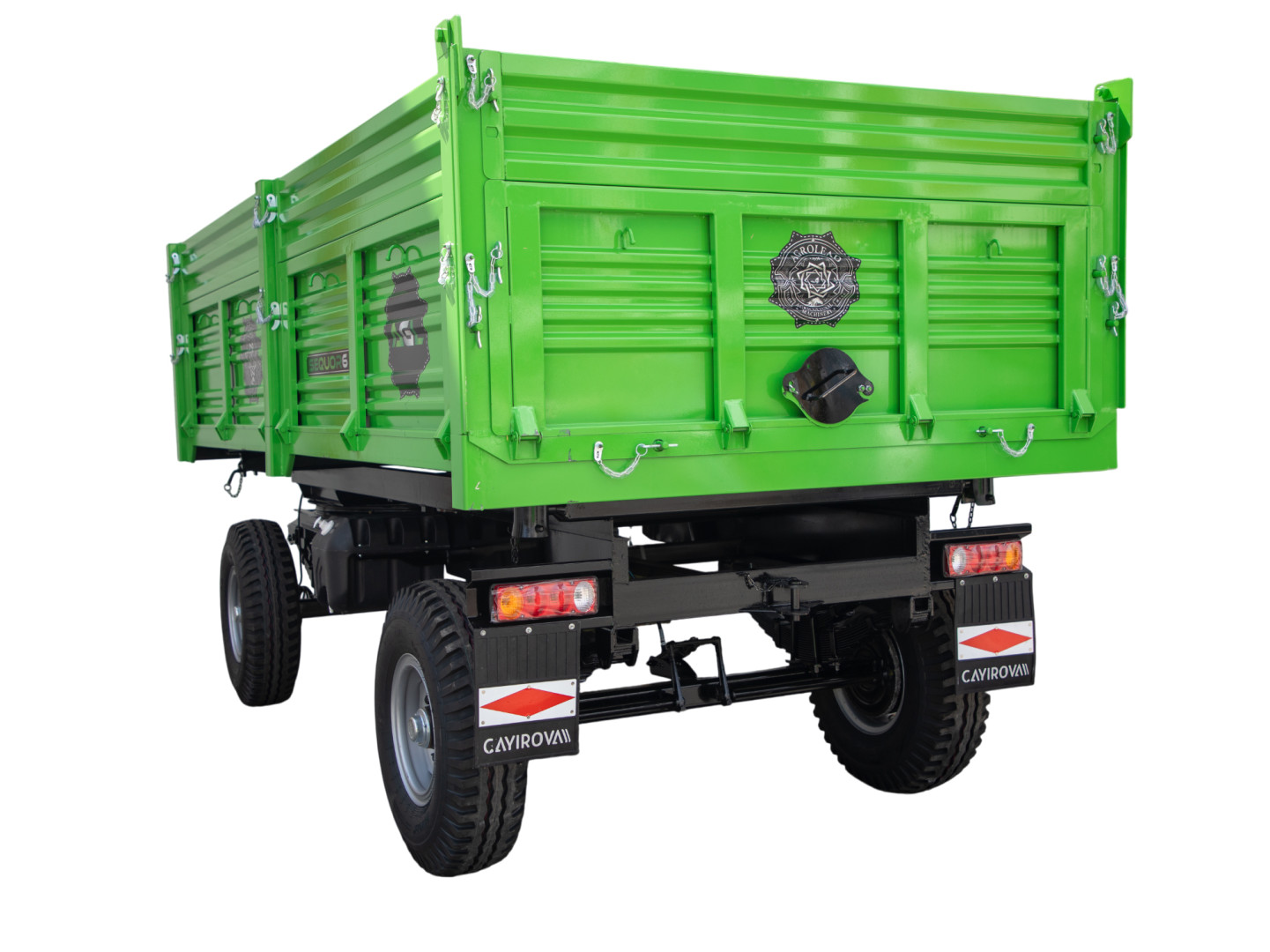

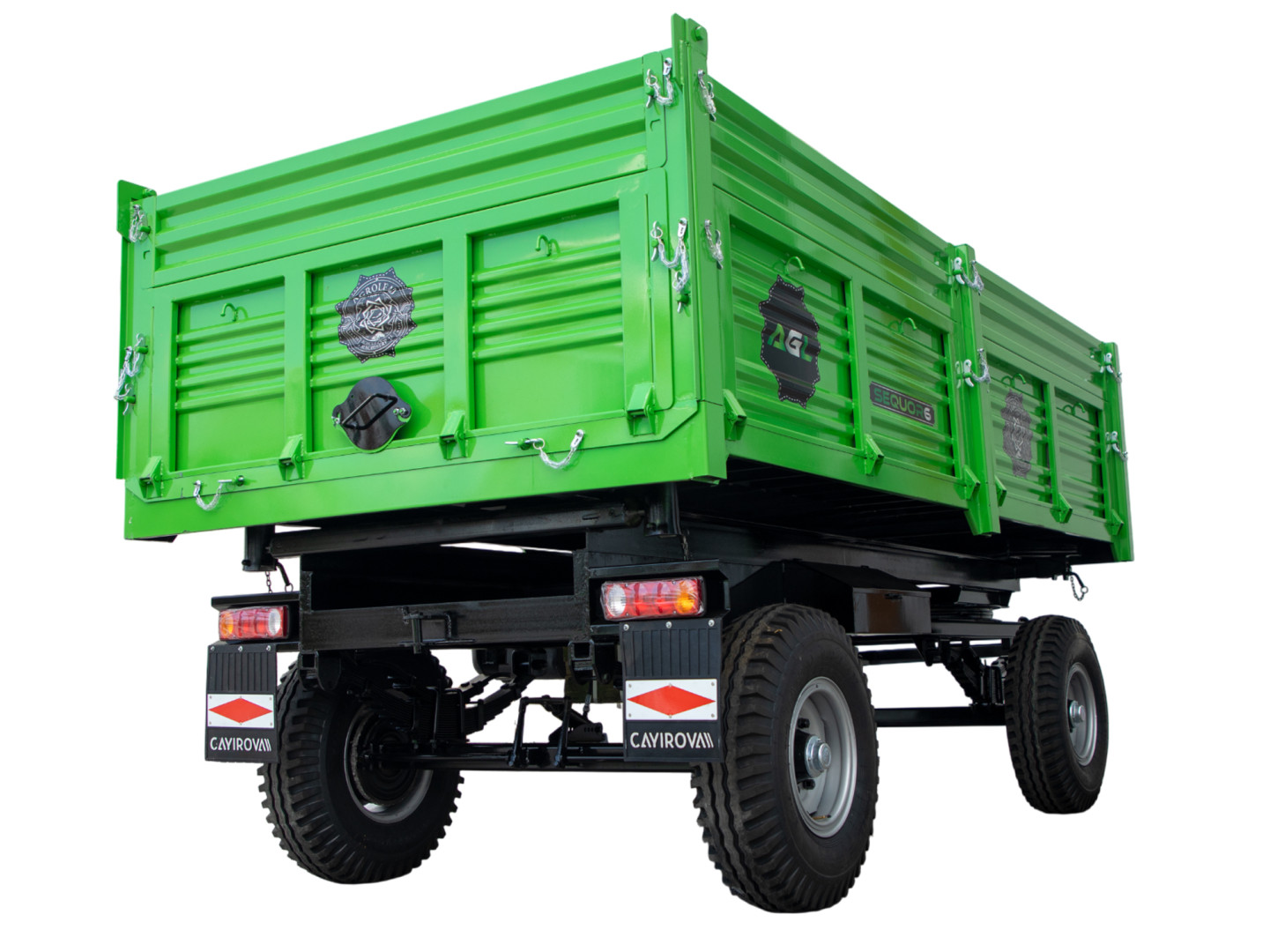

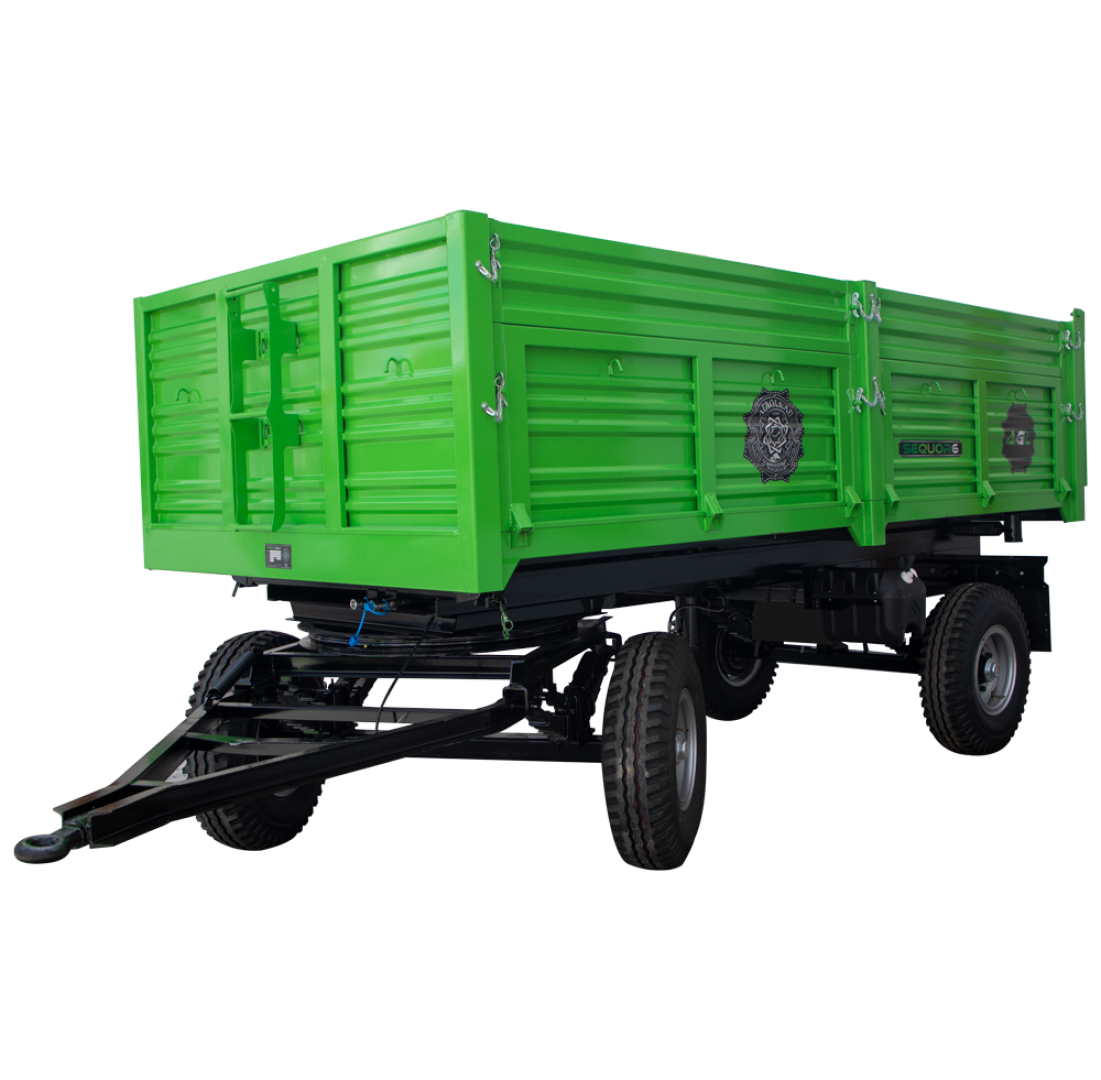

Sequor Double Axle Agricultural Trailers are intended for transport of various materials, in particular agricultural produce where precise tightness is required. Sequor trailers are manufactured as rear tipping standard and equipped with hydraulic brake system. We also offer 3-way tipping, air circuit brake system as options. Payload capacities are from 4 ton up to 10 ton. Standard features of Sequor trailers are as listed below ;
*Reinforced 3 mm Steel Flooring
*2,0 mm Sideboards
*St-52 Quality Steel Axle
*Hydraulic Brake

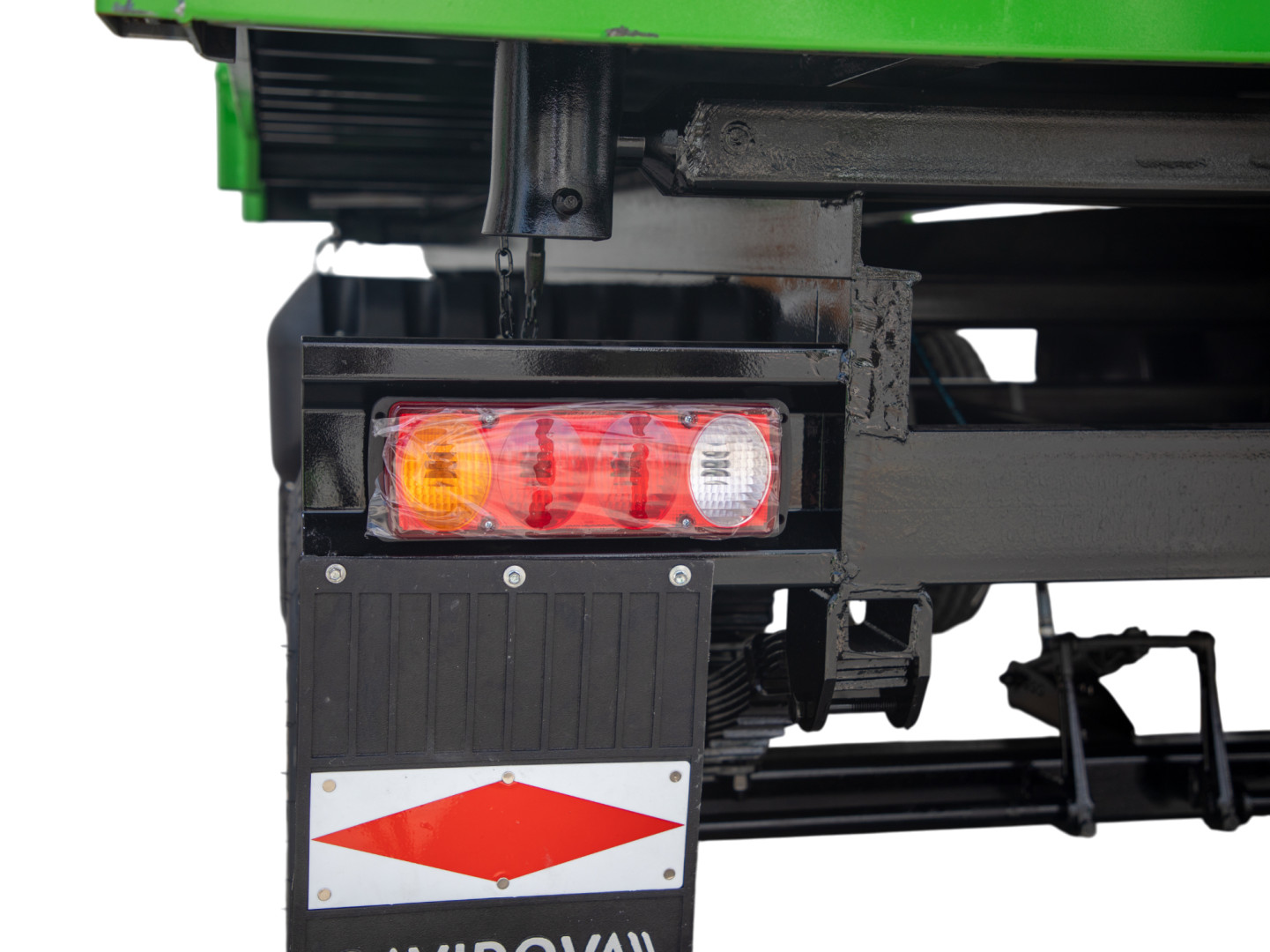

*12V Electrical System And Lamp
*Steel-Casting Drum-Brake
*Rear or Right-Left Damper System

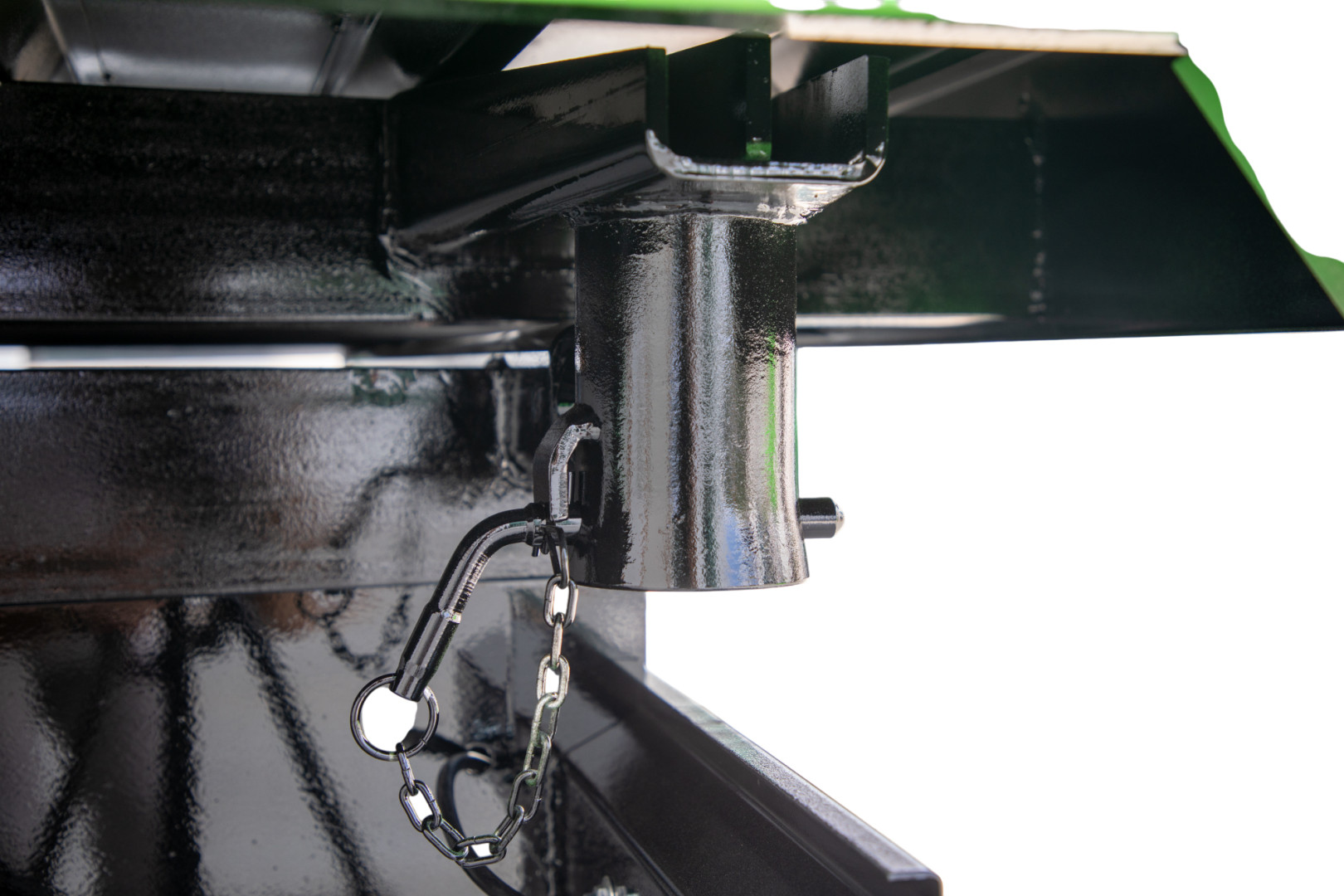

*Jack With Transmission

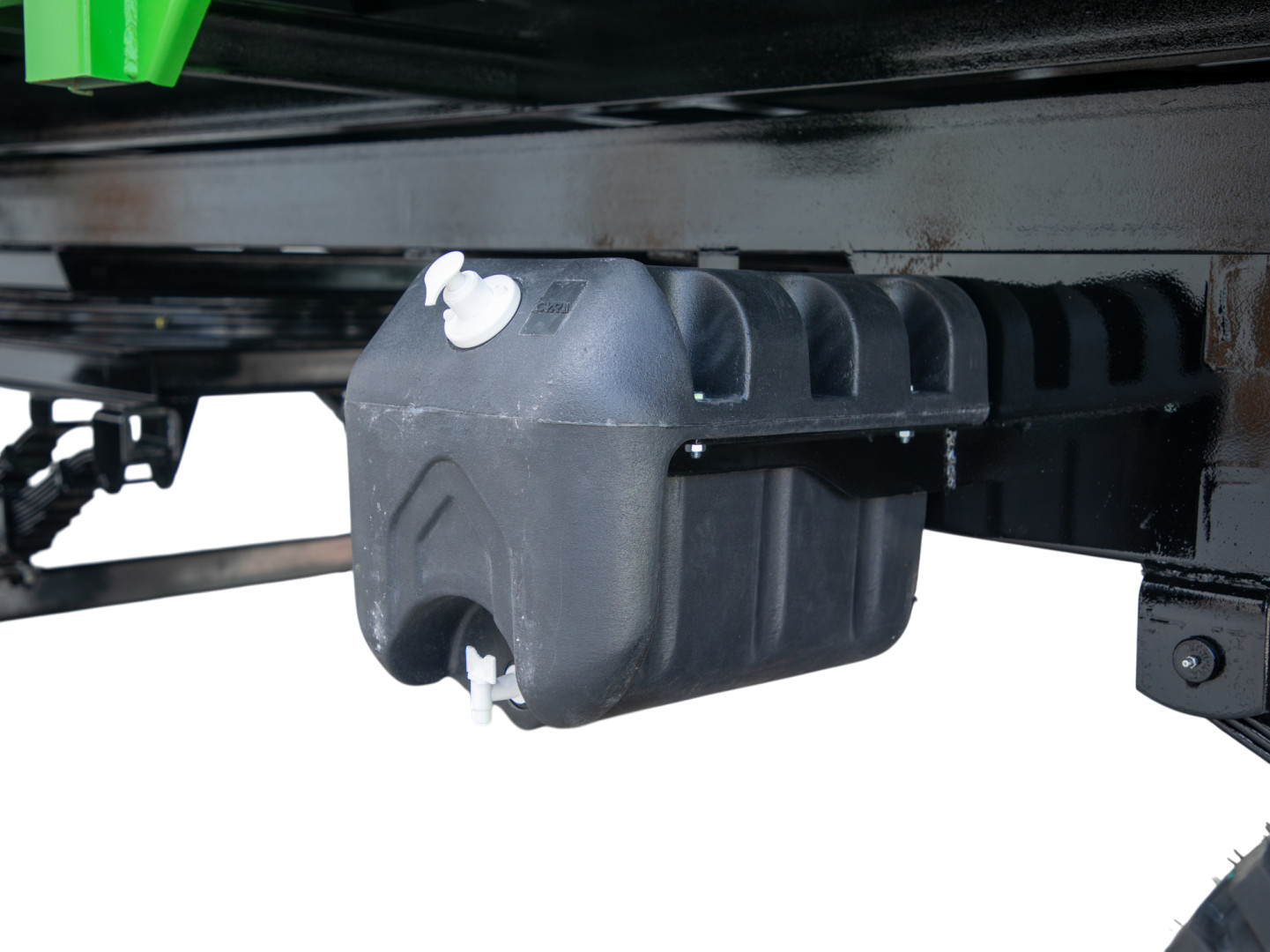

*Water Tank
*Tool-Box

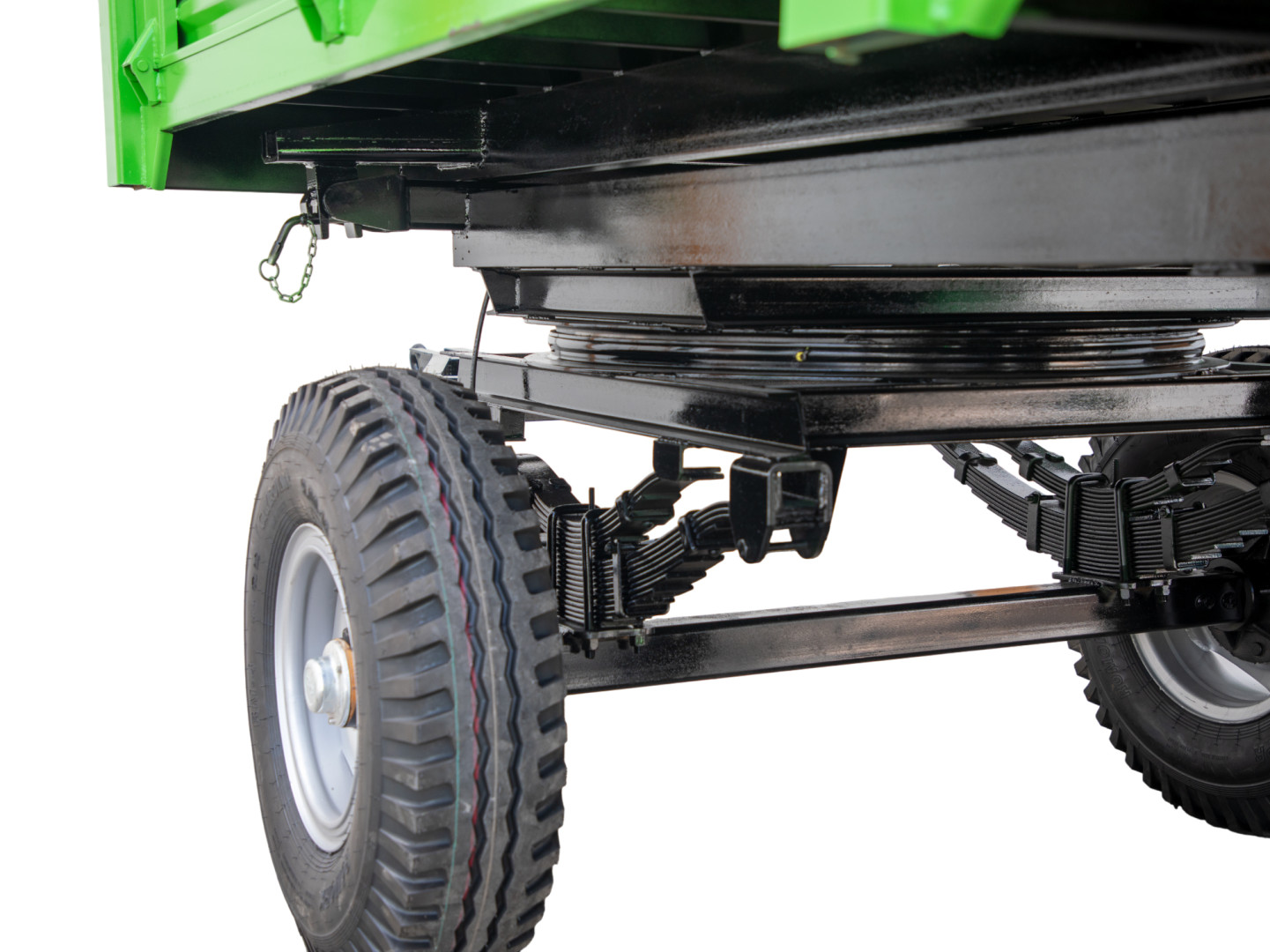

*Leaf Spring or Parabolic Leaf Suspension
| TECHNICAL SPECIFICATIONS | UNIT | MODEL | ||||
|---|---|---|---|---|---|---|
| SEQUOR 4 | SEQUOR 5 | SEQUOR 6 | SEQUOR 8 | SEQUOR 10 | ||
| Capacity | ton | 4 | 5 | 6 | 8 | 10 |
| Axle | type | Double | Double | Double | Double | Double |
| Length | cm | 400 | 400 | 430 | 450 | 480 |
| Width | cm | 200 | 200 | 200 | 250 | 210 |
| Side Board Height | cm | 50+25 | 60+30 | 60+30 | 60+25+25 | 60+30+30 |
| Weight | kg | 1800 | 2100 | 2400 | 2600 | 2900 |
| Tyre Size | inch | 7.50/16 | 900/16 | 900/16 | 12.5/80 | 12.5/80 |
| Ground Clearance | cm | 95 | 95 | 95 | 95 | 95 |
| TECHNICAL SPECIFICATIONS | UNIT | SEQUOR 10 |
|---|---|---|
| Capacity | ton | 10 |
| Axle | type | Double |
| Length | cm | 480 |
| Width | cm | 210 |
| Side Board Height | cm | 60+30+30 |
| Weight | kg | 2900 |
| Tyre Size | inch | 12.5/80 |
| Ground Clearance | cm | 95 |
| TECHNICAL SPECIFICATIONS | UNIT | SEQUOR 4 |
|---|---|---|
| Capacity | ton | 4 |
| Axle | type | Double |
| Length | cm | 400 |
| Width | cm | 200 |
| Side Board Height | cm | 50+25 |
| Weight | kg | 1800 |
| Tyre Size | inch | 7.50/16 |
| Ground Clearance | cm | 95 |
| TECHNICAL SPECIFICATIONS | UNIT | SEQUOR 5 |
|---|---|---|
| Capacity | ton | 5 |
| Axle | type | Double |
| Length | cm | 400 |
| Width | cm | 200 |
| Side Board Height | cm | 60+30 |
| Weight | kg | 2100 |
| Tyre Size | inch | 900/16 |
| Ground Clearance | cm | 95 |

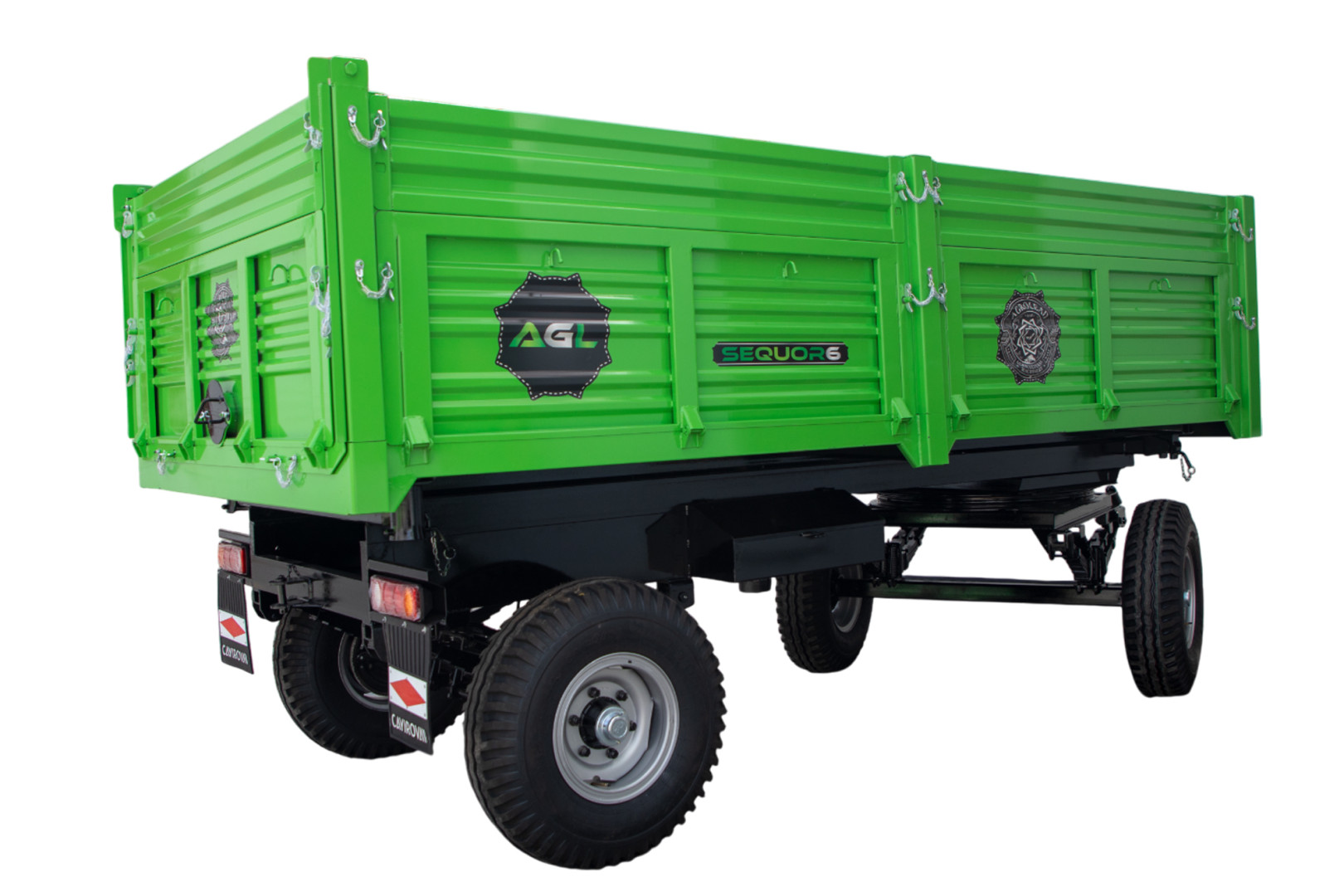

| TECHNICAL SPECIFICATIONS | UNIT | SEQUOR 6 |
|---|---|---|
| Capacity | ton | 6 |
| Axle | type | Double |
| Length | cm | 430 |
| Width | cm | 200 |
| Side Board Height | cm | 60+30 |
| Weight | kg | 2400 |
| Tyre Size | inch | 900/16 |
| Ground Clearance | cm | 95 |
| TECHNICAL SPECIFICATIONS | UNIT | SEQUOR 8 |
|---|---|---|
| Capacity | ton | 8 |
| Axle | type | Double |
| Length | cm | 450 |
| Width | cm | 250 |
| Side Board Height | cm | 60+25+25 |
| Weight | kg | 2600 |
| Tyre Size | inch | 12.5/80 |
| Ground Clearance | cm | 95 |
