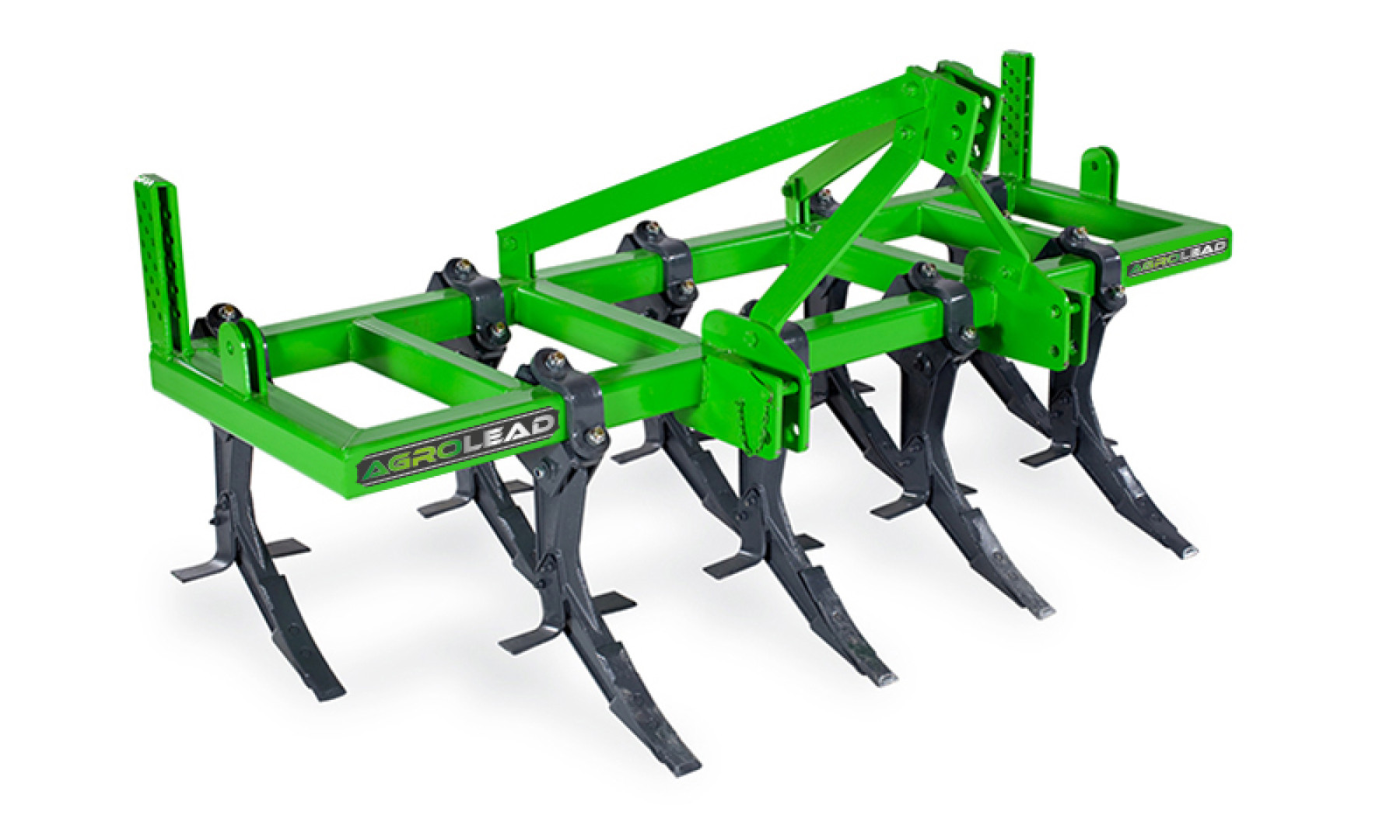

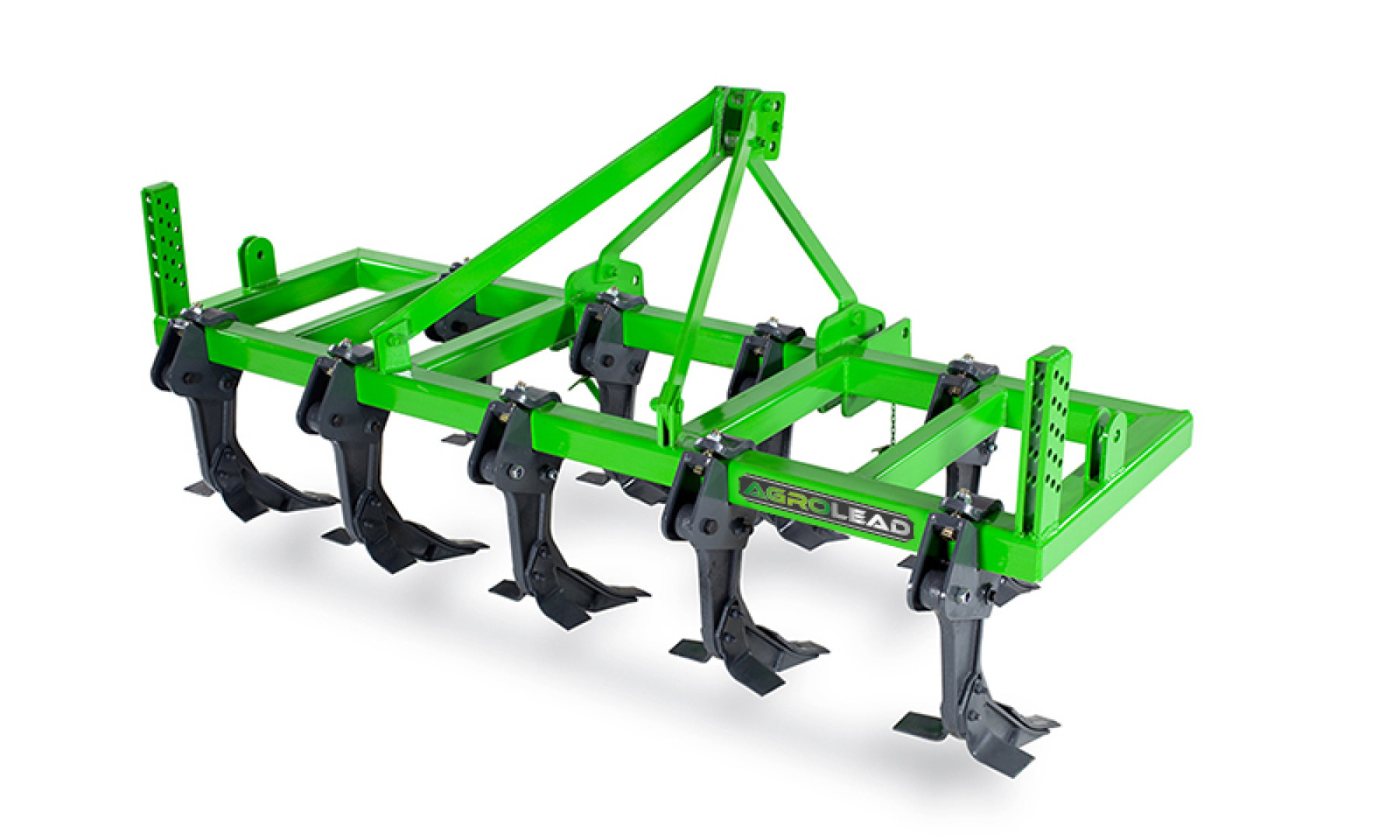

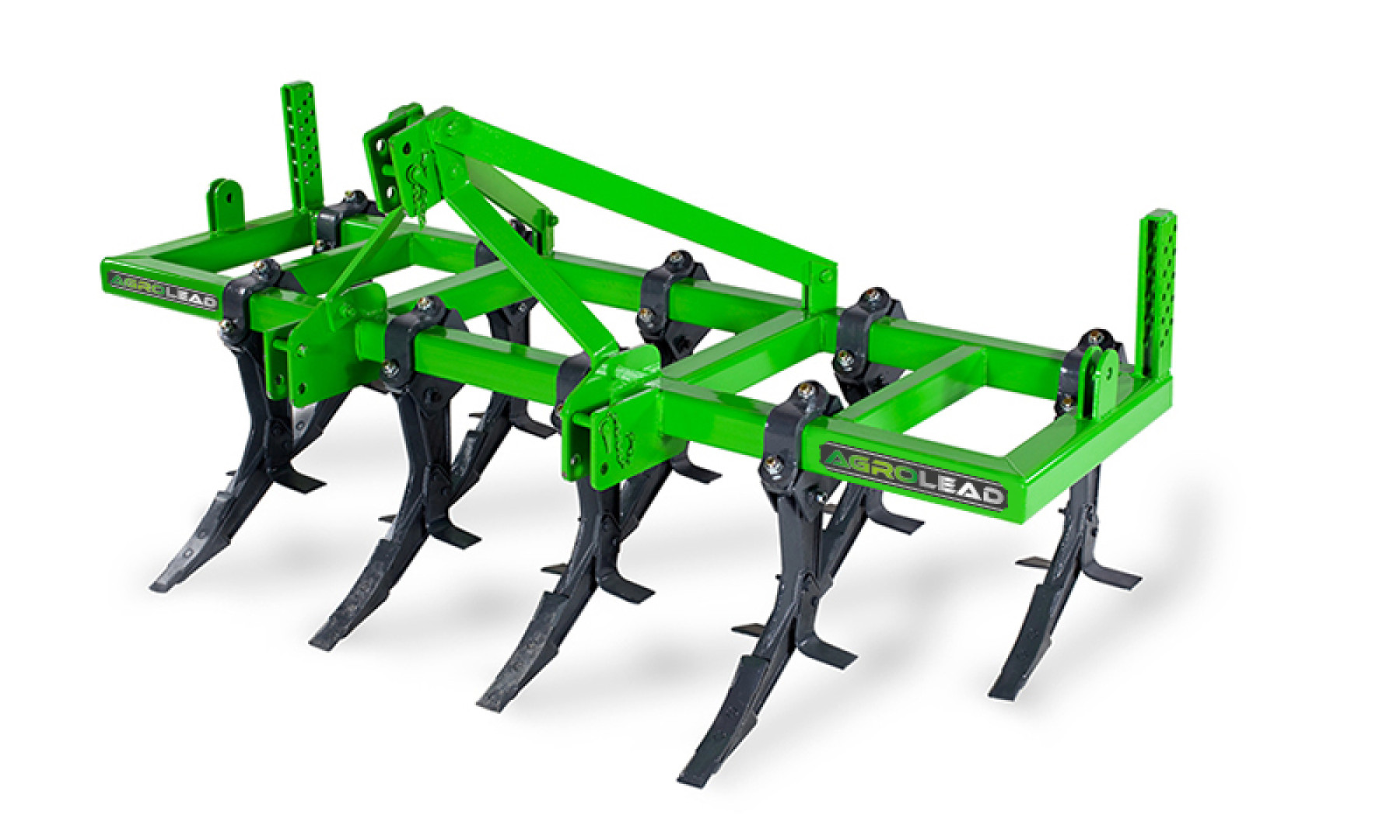

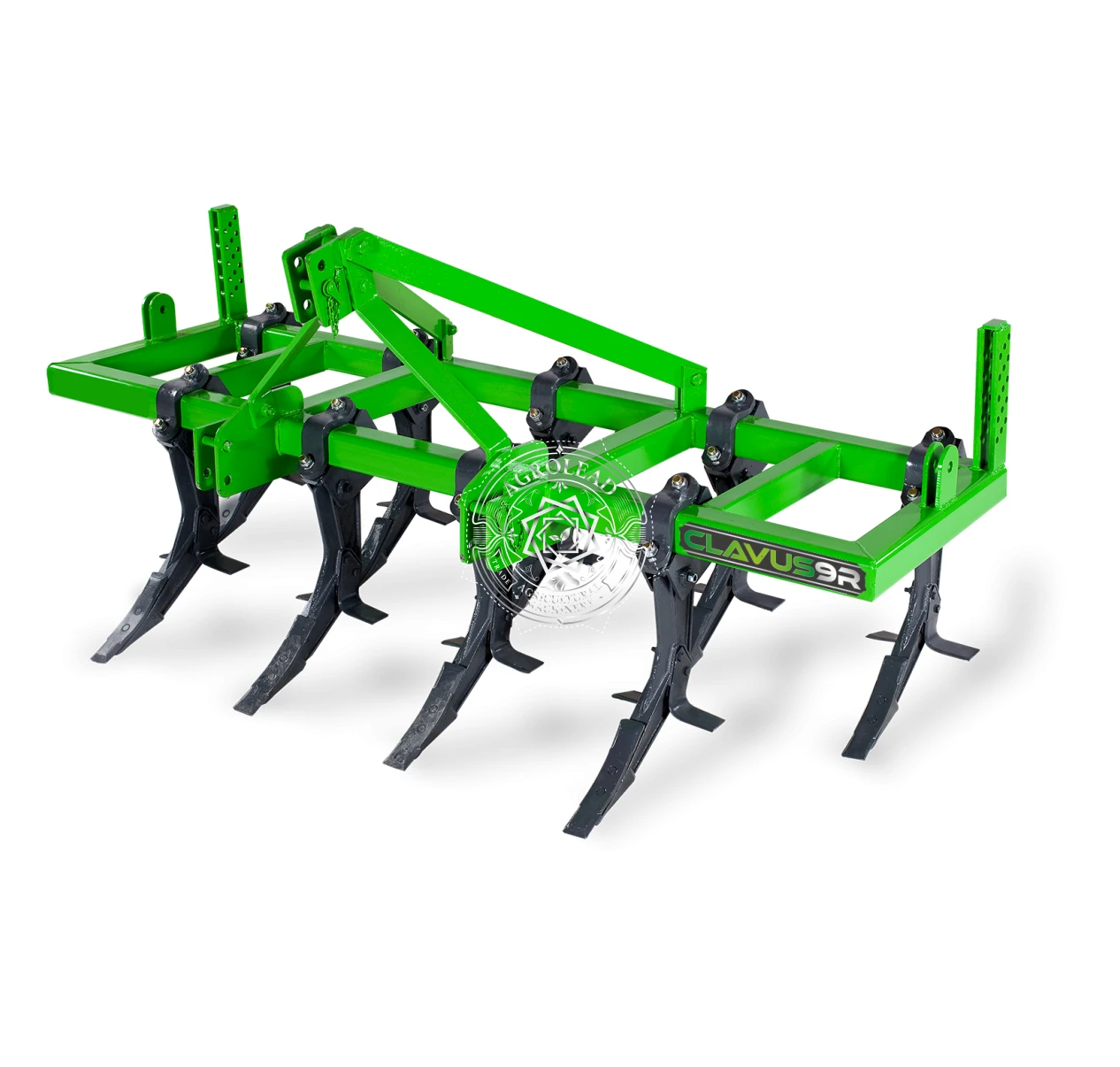

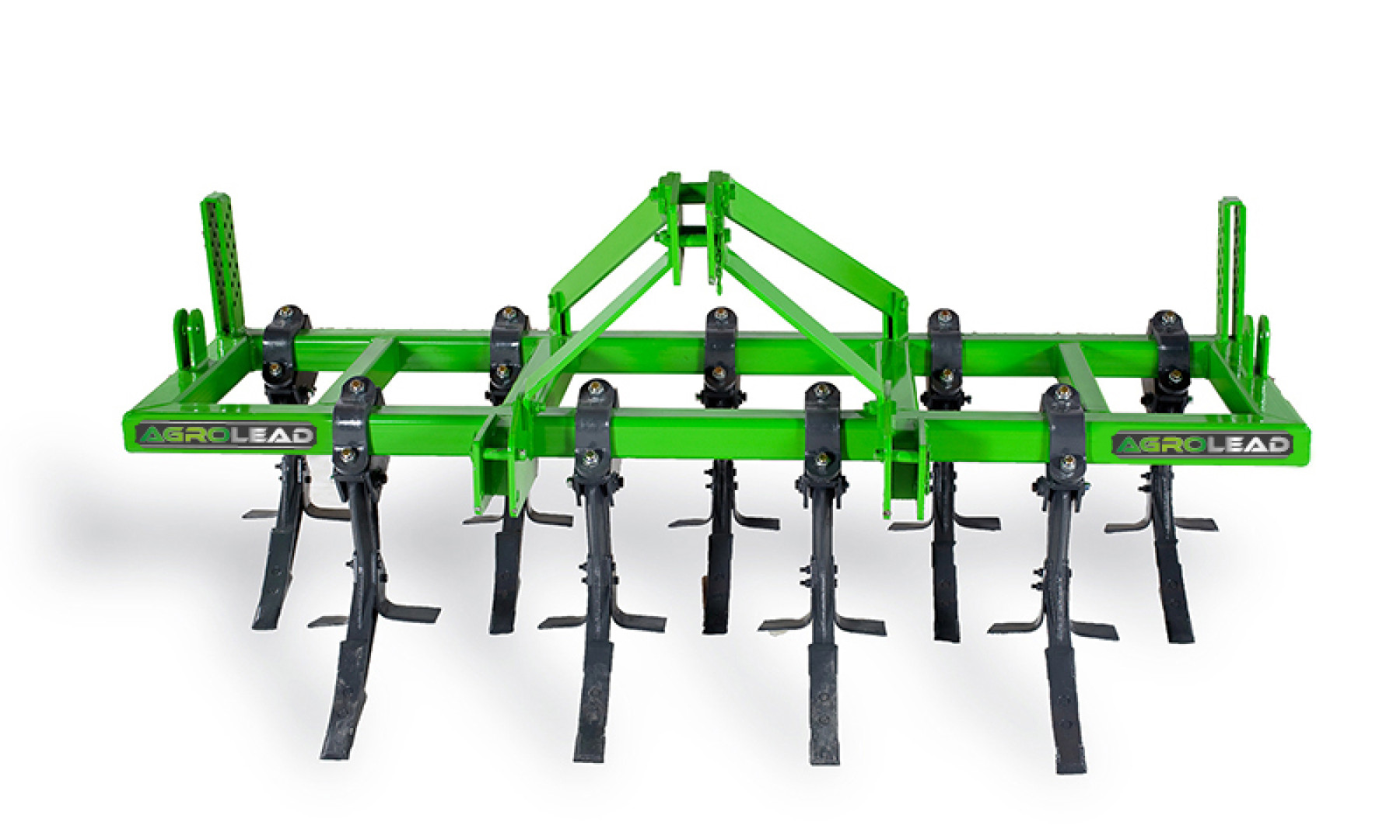

Clavus Chisels are available in 5 to17 tines that creates a difference from its’ similar. Moreover, no soldered steel rolled iron is used in the chassis and special alloyed steel cast used for tines. Breaking the soil surface which was formed by ploughing for a long time, processing the soil without tipping and airing are the main functions of the chisel type plough. In this type plough, safety pins come into action in case of sudden pressure and prevent the tractor and the chassis against possible damage. The tines are designed for getting the maximum performance from tractor power by giving them the most appropriate submersion angle.
| TECHNICAL SPECIFICATIONS | UNIT | MODEL | ||||||
|---|---|---|---|---|---|---|---|---|
| CLAVUS 5 | CLAVUS 7 | CLAVUS 9 | CLAVUS 11 | CLAVUS 13 | CLAVUS 15 | CLAVUS 17 | ||
| Number Of Tines | pcs | 5 | 7 | 9 | 11 | 13 | 15 | 17 |
| Working Width | cm | 128 | 191 | 235 | 289 | 341 | 391 | 441 |
| Total Width | cm | 157 | 220 | 270 | 320 | 370 | 420 | 470 |
| Length Without Roller | cm | 110 | 110 | 110 | 120 | 120 | 120 | 120 |
| Length With Roller | cm | 187 | 187 | 187 | 197 | 197 | 197 | 197 |
| Total Height | cm | 133 | 133 | 133 | 133 | 133 | 133 | 133 |
| T7 Working Depth / Weight | cm - kg | 68 / 29.3 | 68 / 29.3 | 68 / 29.3 | 68 / 29.3 | 68 / 29.3 | 68 / 29.3 | 68 / 29.3 |
| T4 Working Depth / Weight | cm - kg | 48 / 18 | 48 / 18 | 48 / 18 | 48 / 18 | 48 / 18 | 48 / 18 | 48 / 18 |
| Weight Without Roller | kg | 400 | 450 | 560 | 700 | 850 | 1050 | 1200 |
| Weight With Roller | kg | 565 | 650 | 800 | 970 | 1160 | 1375 | 1590 |
| Frame | mm | 100 x 100 x 8 | 100 x 100 x 8 | 100 x 100 x 8 | 100 x 100 x 8 | 100 x 100 x 8 | 100 x 100 x 8 | 100 x 100 x 8 |
| Required Power | hp | 60 - 70 | 70 - 80 | 80 - 90 | 90 - 100 | 100-110 | 110 - 120 | 120 - 130 |
| TECHNICAL SPECIFICATIONS | UNIT | CLAVUS 11 |
|---|---|---|
| Number Of Tines | pcs | 11 |
| Working Width | cm | 289 |
| Total Width | cm | 320 |
| Length Without Roller | cm | 120 |
| Length With Roller | cm | 197 |
| Total Height | cm | 133 |
| T7 Working Depth / Weight | cm - kg | 68 / 29.3 |
| T4 Working Depth / Weight | cm - kg | 48 / 18 |
| Weight Without Roller | kg | 700 |
| Weight With Roller | kg | 970 |
| Frame | mm | 100 x 100 x 8 |
| Required Power | hp | 90 - 100 |
| TECHNICAL SPECIFICATIONS | UNIT | CLAVUS 13 |
|---|---|---|
| Number Of Tines | pcs | 13 |
| Working Width | cm | 341 |
| Total Width | cm | 370 |
| Length Without Roller | cm | 120 |
| Length With Roller | cm | 197 |
| Total Height | cm | 133 |
| T7 Working Depth / Weight | cm - kg | 68 / 29.3 |
| T4 Working Depth / Weight | cm - kg | 48 / 18 |
| Weight Without Roller | kg | 850 |
| Weight With Roller | kg | 1160 |
| Frame | mm | 100 x 100 x 8 |
| Required Power | hp | 100-110 |
| TECHNICAL SPECIFICATIONS | UNIT | CLAVUS 15 |
|---|---|---|
| Number Of Tines | pcs | 15 |
| Working Width | cm | 391 |
| Total Width | cm | 420 |
| Length Without Roller | cm | 120 |
| Length With Roller | cm | 197 |
| Total Height | cm | 133 |
| T7 Working Depth / Weight | cm - kg | 68 / 29.3 |
| T4 Working Depth / Weight | cm - kg | 48 / 18 |
| Weight Without Roller | kg | 1050 |
| Weight With Roller | kg | 1375 |
| Frame | mm | 100 x 100 x 8 |
| Required Power | hp | 110 - 120 |
| TECHNICAL SPECIFICATIONS | UNIT | CLAVUS 17 |
|---|---|---|
| Number Of Tines | pcs | 17 |
| Working Width | cm | 441 |
| Total Width | cm | 470 |
| Length Without Roller | cm | 120 |
| Length With Roller | cm | 197 |
| Total Height | cm | 133 |
| T7 Working Depth / Weight | cm - kg | 68 / 29.3 |
| T4 Working Depth / Weight | cm - kg | 48 / 18 |
| Weight Without Roller | kg | 1200 |
| Weight With Roller | kg | 1590 |
| Frame | mm | 100 x 100 x 8 |
| Required Power | hp | 120 - 130 |
| TECHNICAL SPECIFICATIONS | UNIT | CLAVUS 5 |
|---|---|---|
| Number Of Tines | pcs | 5 |
| Working Width | cm | 128 |
| Total Width | cm | 157 |
| Length Without Roller | cm | 110 |
| Length With Roller | cm | 187 |
| Total Height | cm | 133 |
| T7 Working Depth / Weight | cm - kg | 68 / 29.3 |
| T4 Working Depth / Weight | cm - kg | 48 / 18 |
| Weight Without Roller | kg | 400 |
| Weight With Roller | kg | 565 |
| Frame | mm | 100 x 100 x 8 |
| Required Power | hp | 60 - 70 |
| TECHNICAL SPECIFICATIONS | UNIT | CLAVUS 7 |
|---|---|---|
| Number Of Tines | pcs | 7 |
| Working Width | cm | 191 |
| Total Width | cm | 220 |
| Length Without Roller | cm | 110 |
| Length With Roller | cm | 187 |
| Total Height | cm | 133 |
| T7 Working Depth / Weight | cm - kg | 68 / 29.3 |
| T4 Working Depth / Weight | cm - kg | 48 / 18 |
| Weight Without Roller | kg | 450 |
| Weight With Roller | kg | 650 |
| Frame | mm | 100 x 100 x 8 |
| Required Power | hp | 70 - 80 |
| TECHNICAL SPECIFICATIONS | UNIT | CLAVUS 9 |
|---|---|---|
| Number Of Tines | pcs | 9 |
| Working Width | cm | 235 |
| Total Width | cm | 270 |
| Length Without Roller | cm | 110 |
| Length With Roller | cm | 187 |
| Total Height | cm | 133 |
| T7 Working Depth / Weight | cm - kg | 68 / 29.3 |
| T4 Working Depth / Weight | cm - kg | 48 / 18 |
| Weight Without Roller | kg | 560 |
| Weight With Roller | kg | 800 |
| Frame | mm | 100 x 100 x 8 |
| Required Power | hp | 80 - 90 |
