Commander Disc Tiller

Commander Disc Tiller

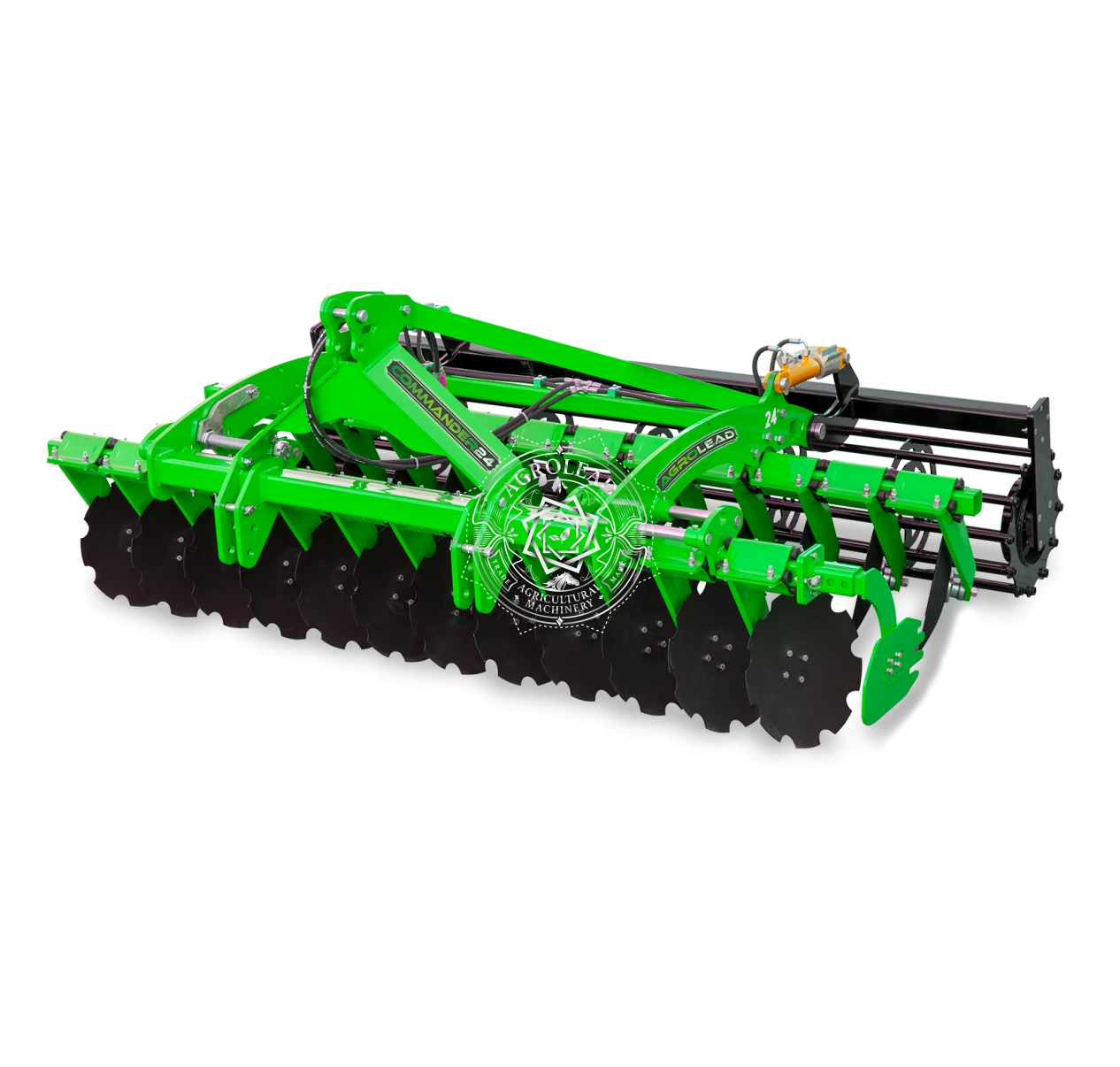

Commander Disc Tiller (Speed Disc) performs superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains. Breaking and mixing procedures are done more efficiently due to the independent disc structure and machine construction;  each disc operates individually due to the bearing and tine design. When rubber cushions which are on each disc are stuck on an obstacle, breaking and damages on the chassis are removed because of forward-backward movements of the disc. It is effected less from the surface roughness of the field. It almost gives no harm to the field leveling. Furthermore, the roller mounted on the chassis steps on the soil lifted by the discs at the same time and minimizes the humidity loss after the operation. The machine can be used in heavy soils easily. Commanders are produced as fixed frames which are ranging from 2 mts up to 4 and hydraulic foldable frames that are ranging from 4 mts up to 6 mts. Trailing System is an optional feature of the machine to provide easy operation on fields and transporation on traffic. Machine can be equipped with one of cage,string caged,knife ring,disc, and tooth packer rollers according to the customer demands.

TECHNICAL SPECIFICATIONSUNITMODEL
COMMANDER 16COMMANDER 20COMMANDER 24COMMANDER 28COMMANDER 32
Disc Numberpcs1620242832
Disc Diametermm510 x 5510 x 5510 x 5510 x 5510 x 5
Dist. Between Disccm2525252525
No.Of Beds On Crankpcs1620242832
Working Widthcm200250300350400
Total Widthcm230280330380430
Total Lenghtcm250250250250250
Total Heightcm145145145145145
Weight With Rollerkg12501300135015501600
Required Powerhp60-7070-8080-9090-100110-120
TECHNICAL SPECIFICATIONSUNITCOMMANDER 16
Disc Numberpcs16
Disc Diametermm510 x 5
Dist. Between Disccm25
No.Of Beds On Crankpcs16
Working Widthcm200
Total Widthcm230
Total Lenghtcm250
Total Heightcm145
Weight With Rollerkg1250
Required Powerhp60-70
TECHNICAL SPECIFICATIONSUNITCOMMANDER 20
Disc Numberpcs20
Disc Diametermm510 x 5
Dist. Between Disccm25
No.Of Beds On Crankpcs20
Working Widthcm250
Total Widthcm280
Total Lenghtcm250
Total Heightcm145
Weight With Rollerkg1300
Required Powerhp70-80
TECHNICAL SPECIFICATIONSUNITCOMMANDER 24
Disc Numberpcs24
Disc Diametermm510 x 5
Dist. Between Disccm25
No.Of Beds On Crankpcs24
Working Widthcm300
Total Widthcm330
Total Lenghtcm250
Total Heightcm145
Weight With Rollerkg1350
Required Powerhp80-90
TECHNICAL SPECIFICATIONSUNITCOMMANDER 28
Disc Numberpcs28
Disc Diametermm510 x 5
Dist. Between Disccm25
No.Of Beds On Crankpcs28
Working Widthcm350
Total Widthcm380
Total Lenghtcm250
Total Heightcm145
Weight With Rollerkg1550
Required Powerhp90-100
TECHNICAL SPECIFICATIONSUNITCOMMANDER 32
Disc Numberpcs32
Disc Diametermm510 x 5
Dist. Between Disccm25
No.Of Beds On Crankpcs32
Working Widthcm400
Total Widthcm430
Total Lenghtcm250
Total Heightcm145
Weight With Rollerkg1600
Required Powerhp110-120
