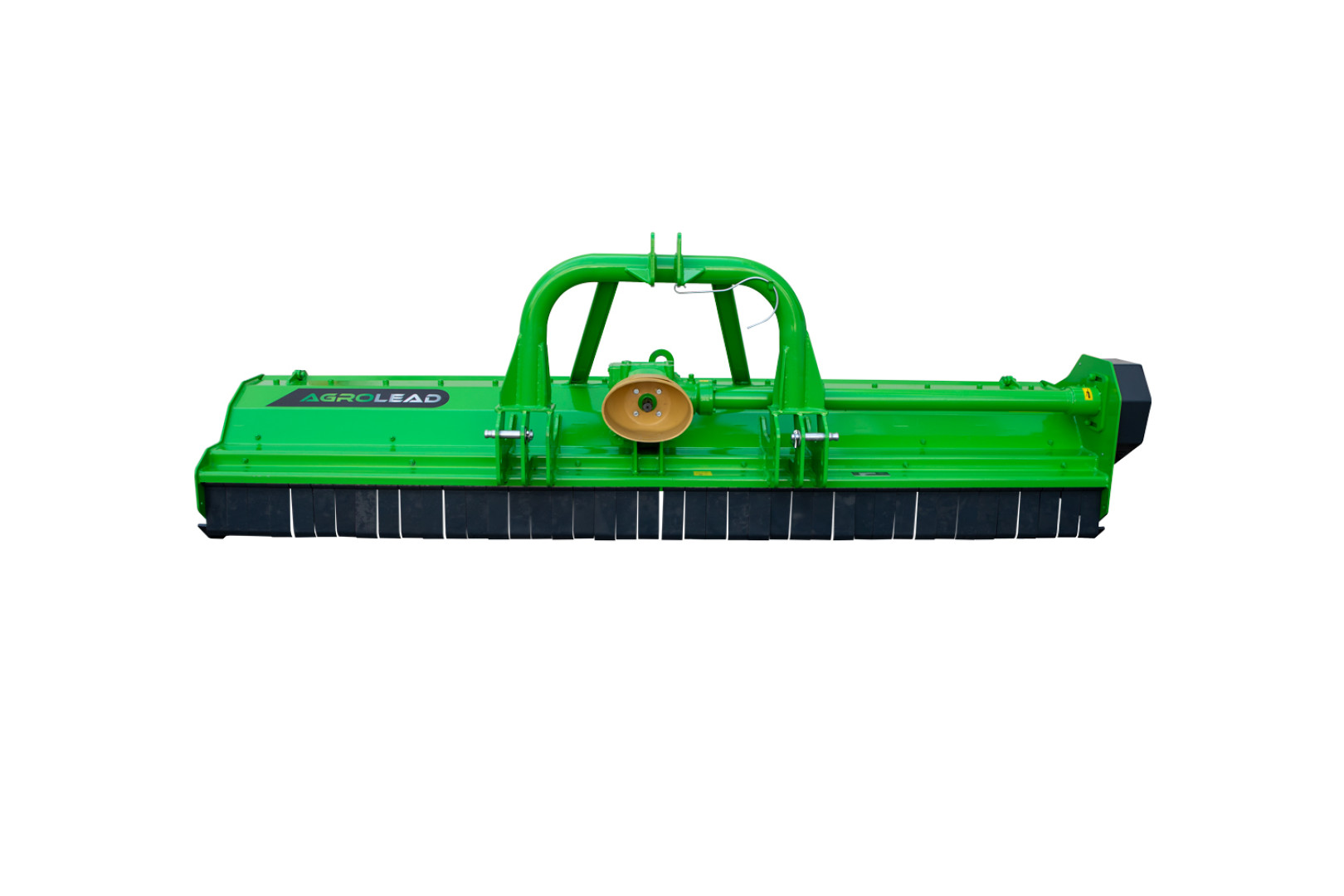

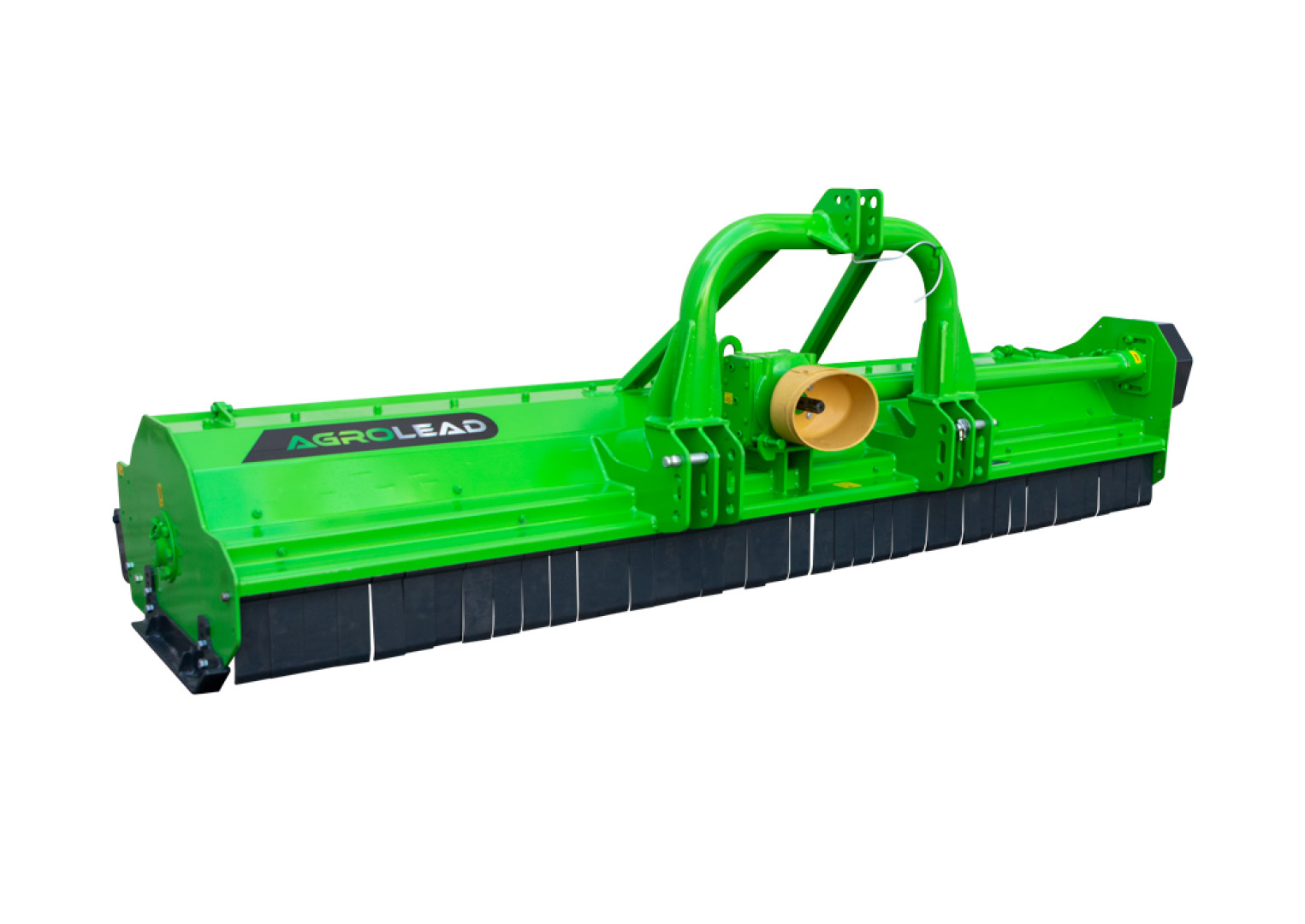

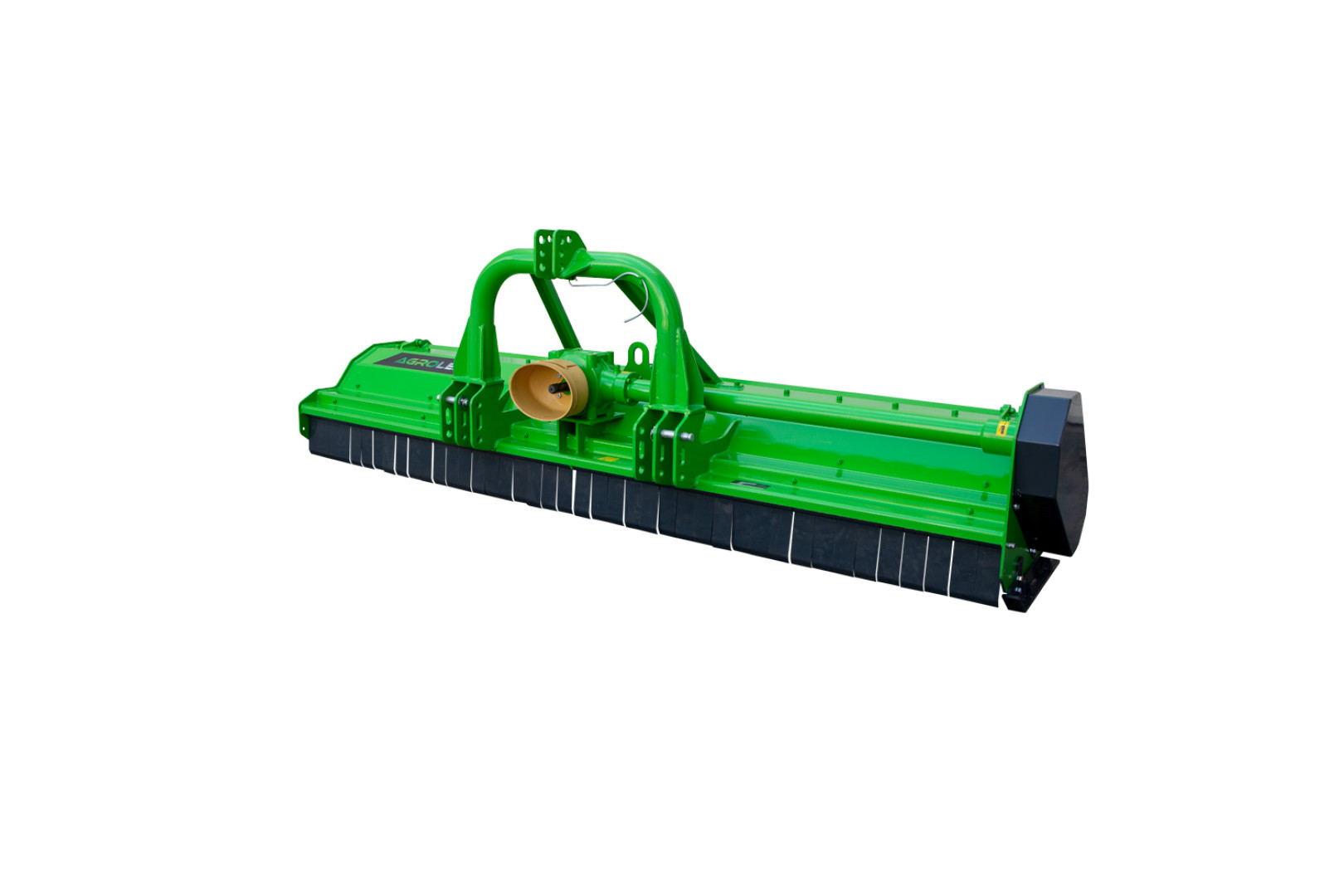

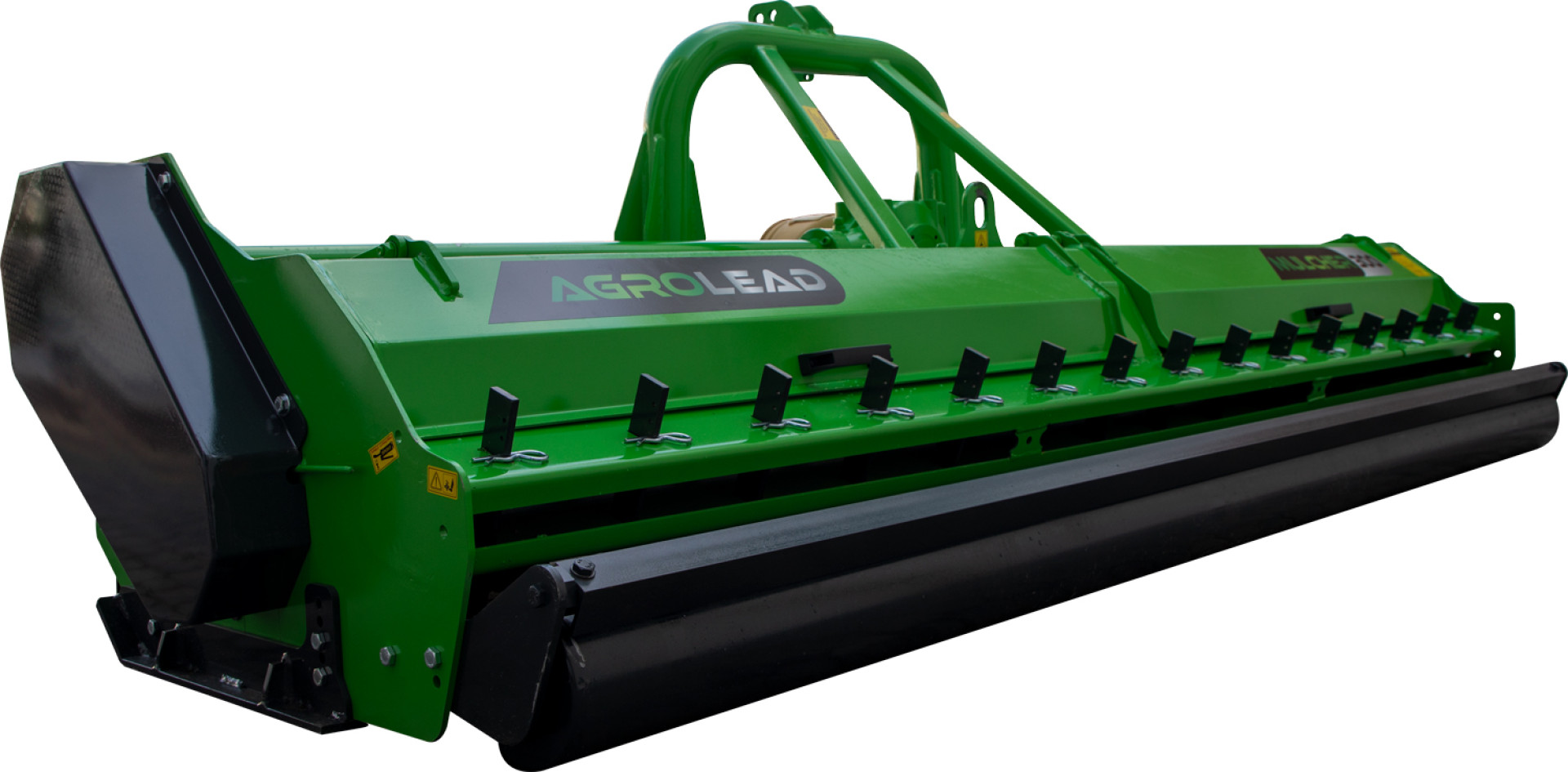

Mulcher Flail Mulcher

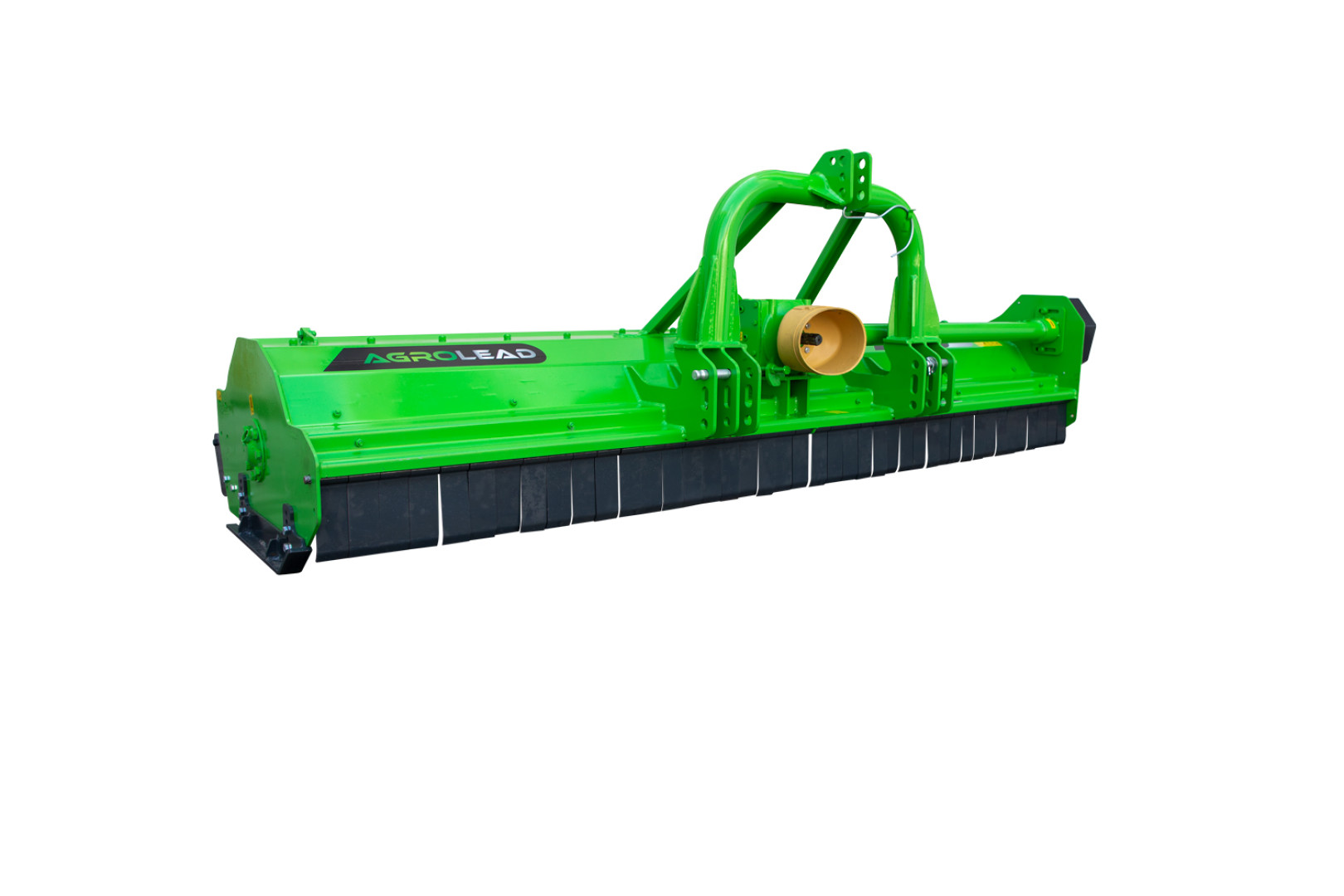

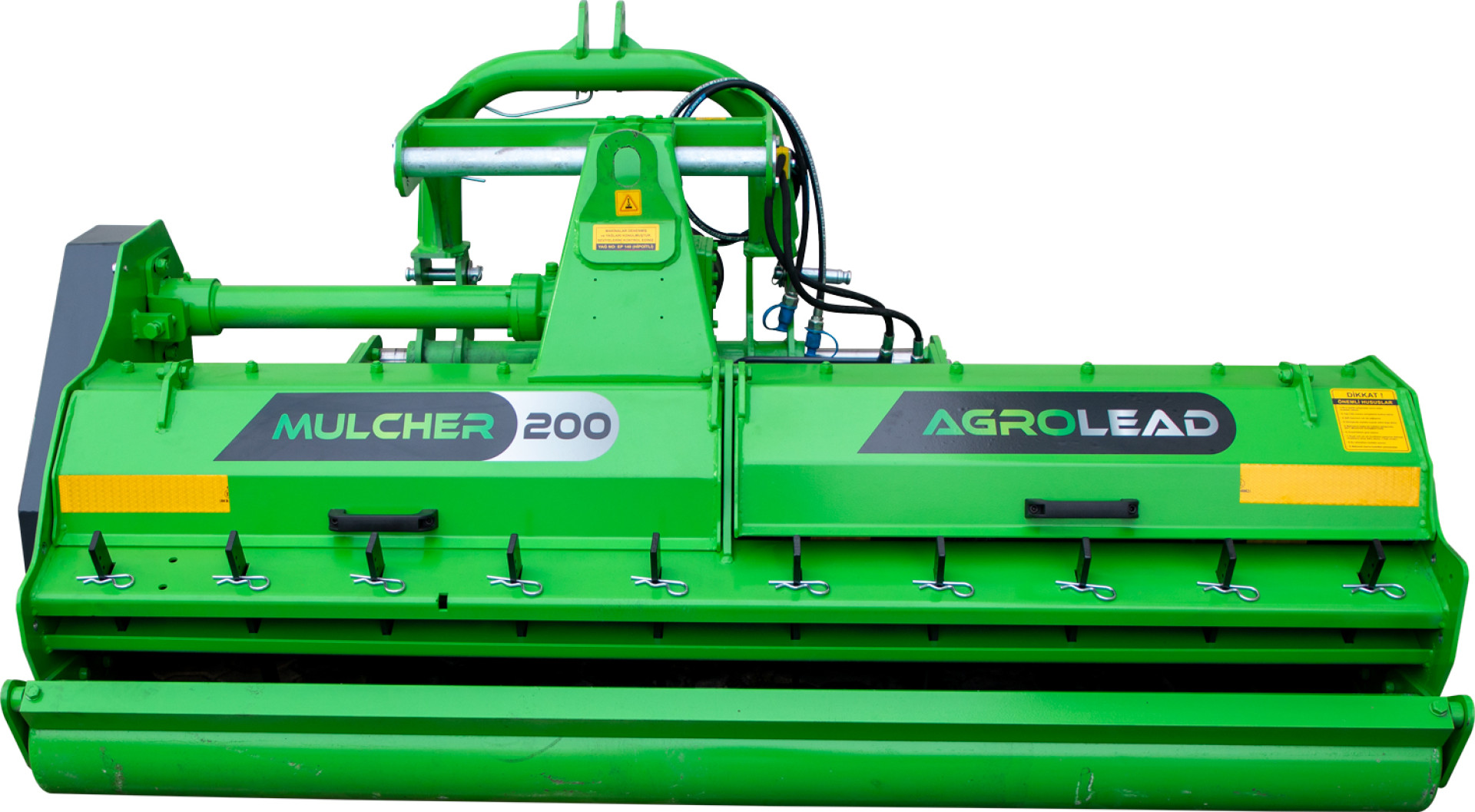

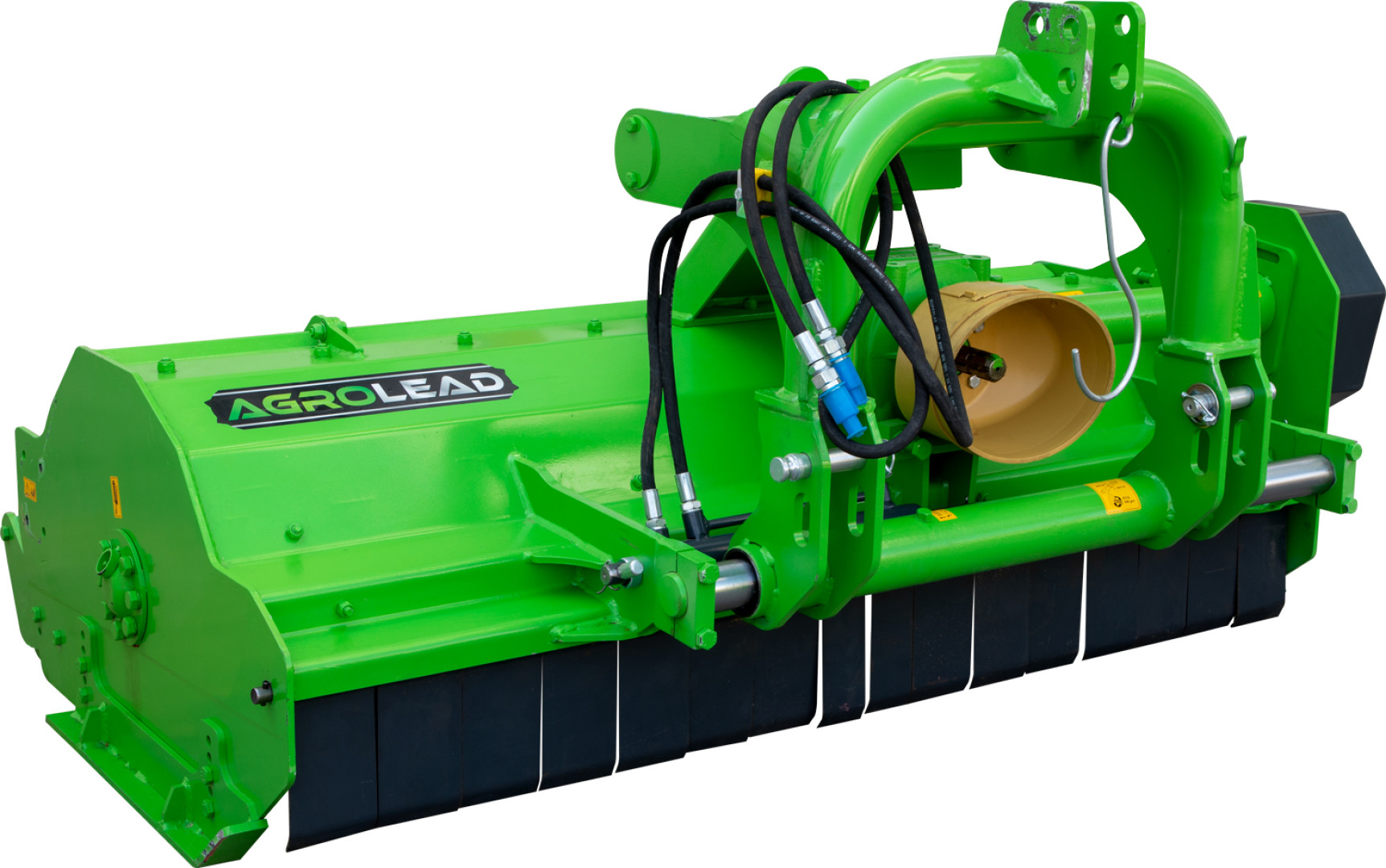

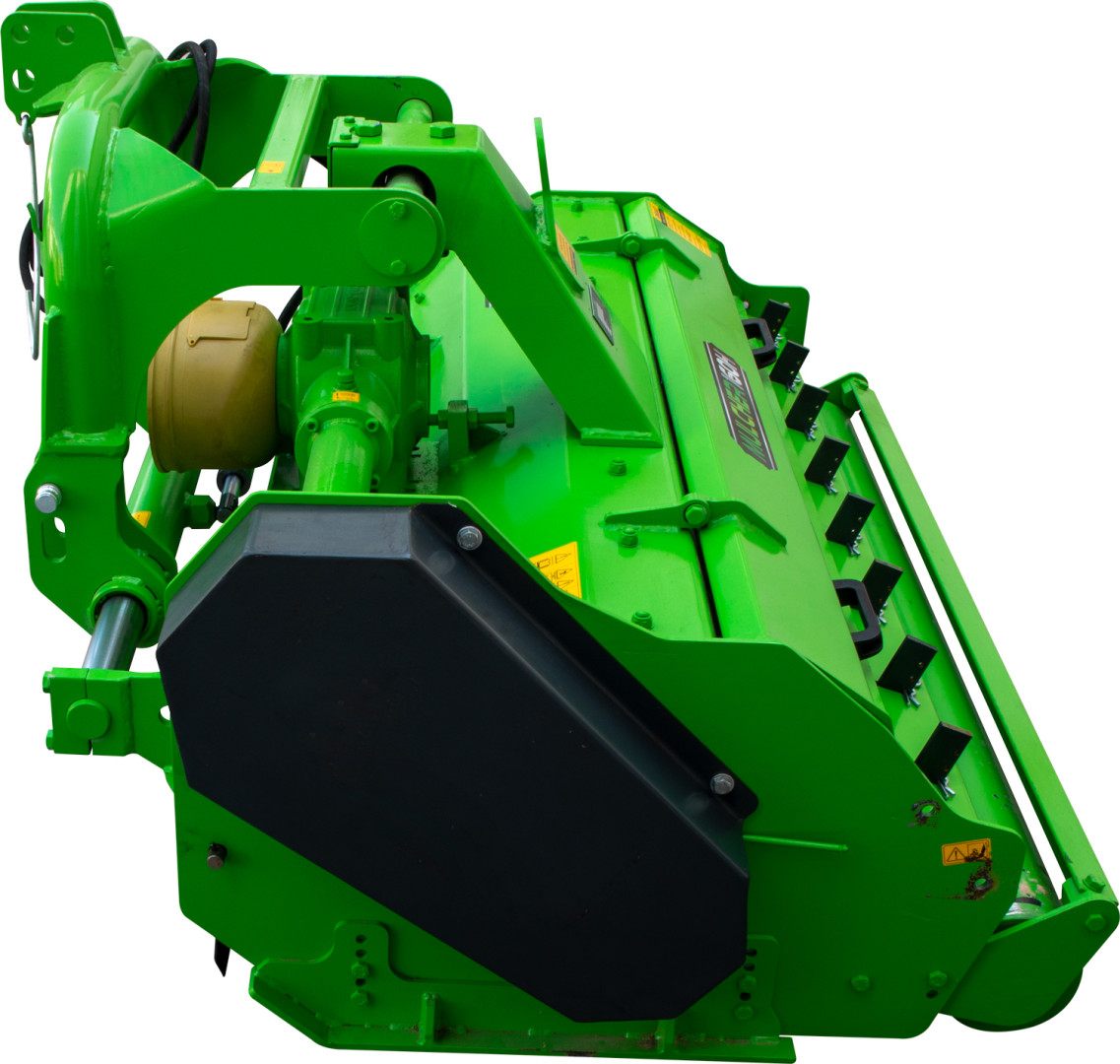

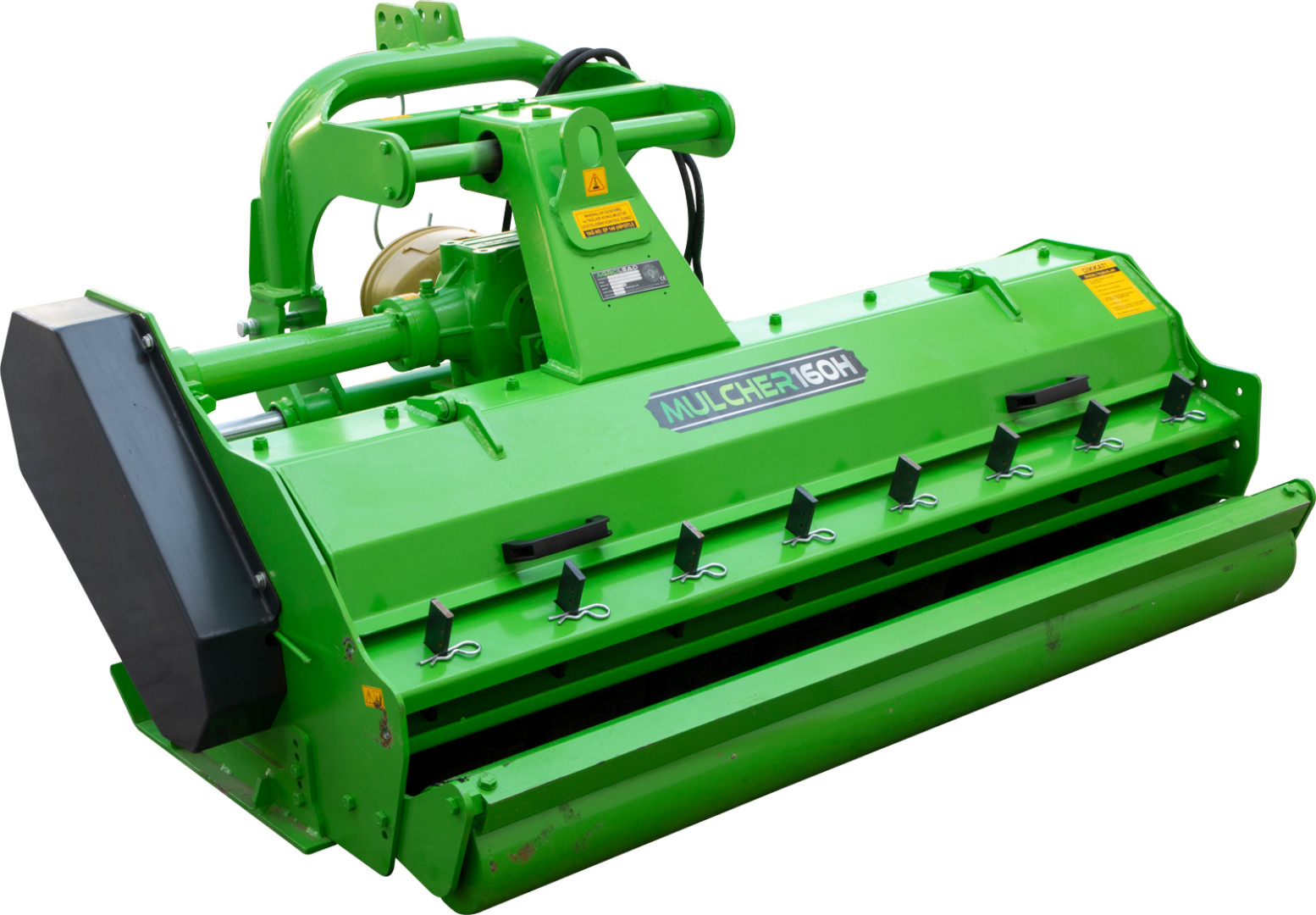

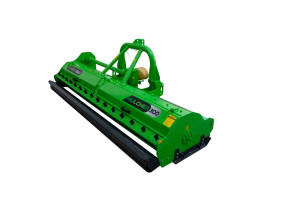

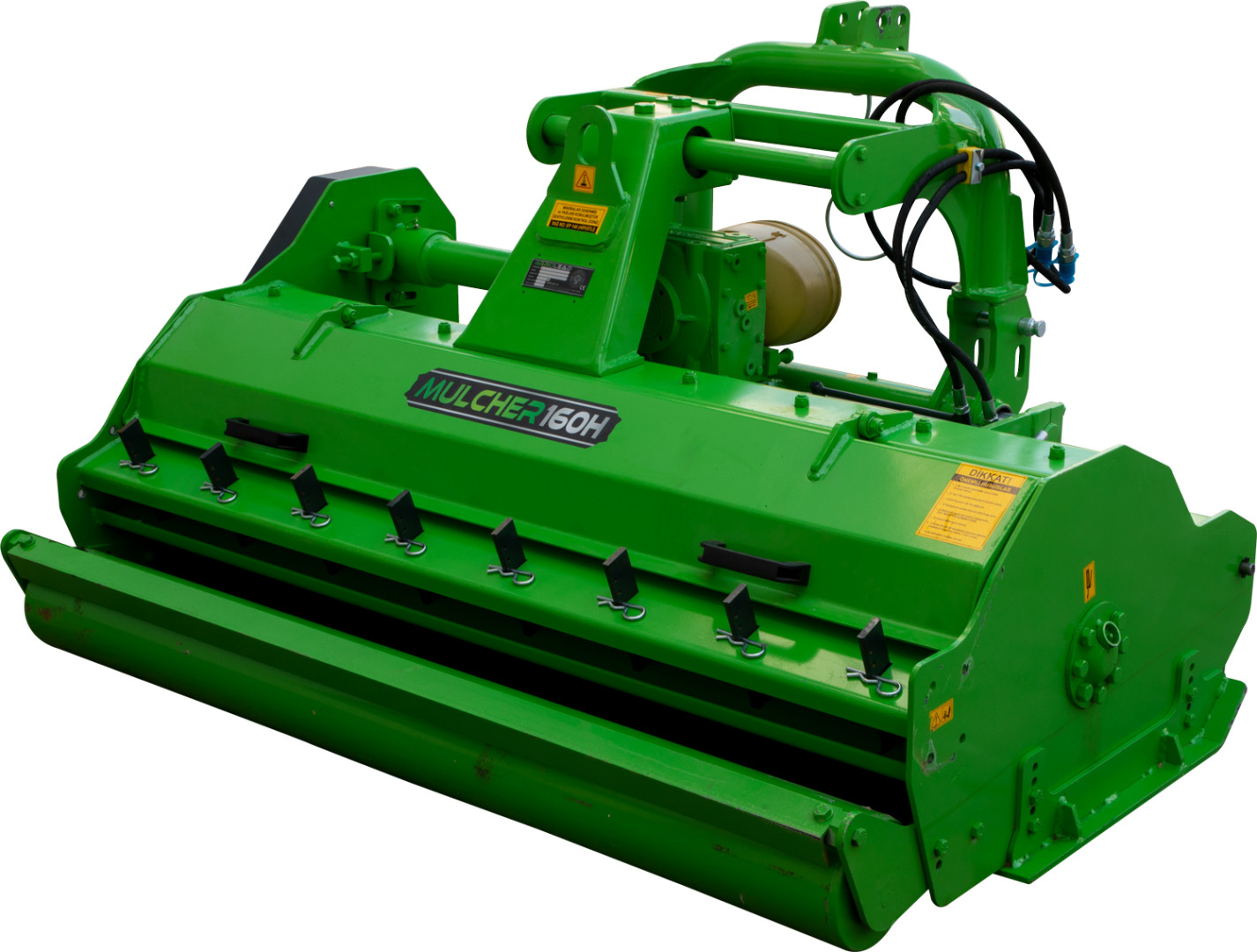

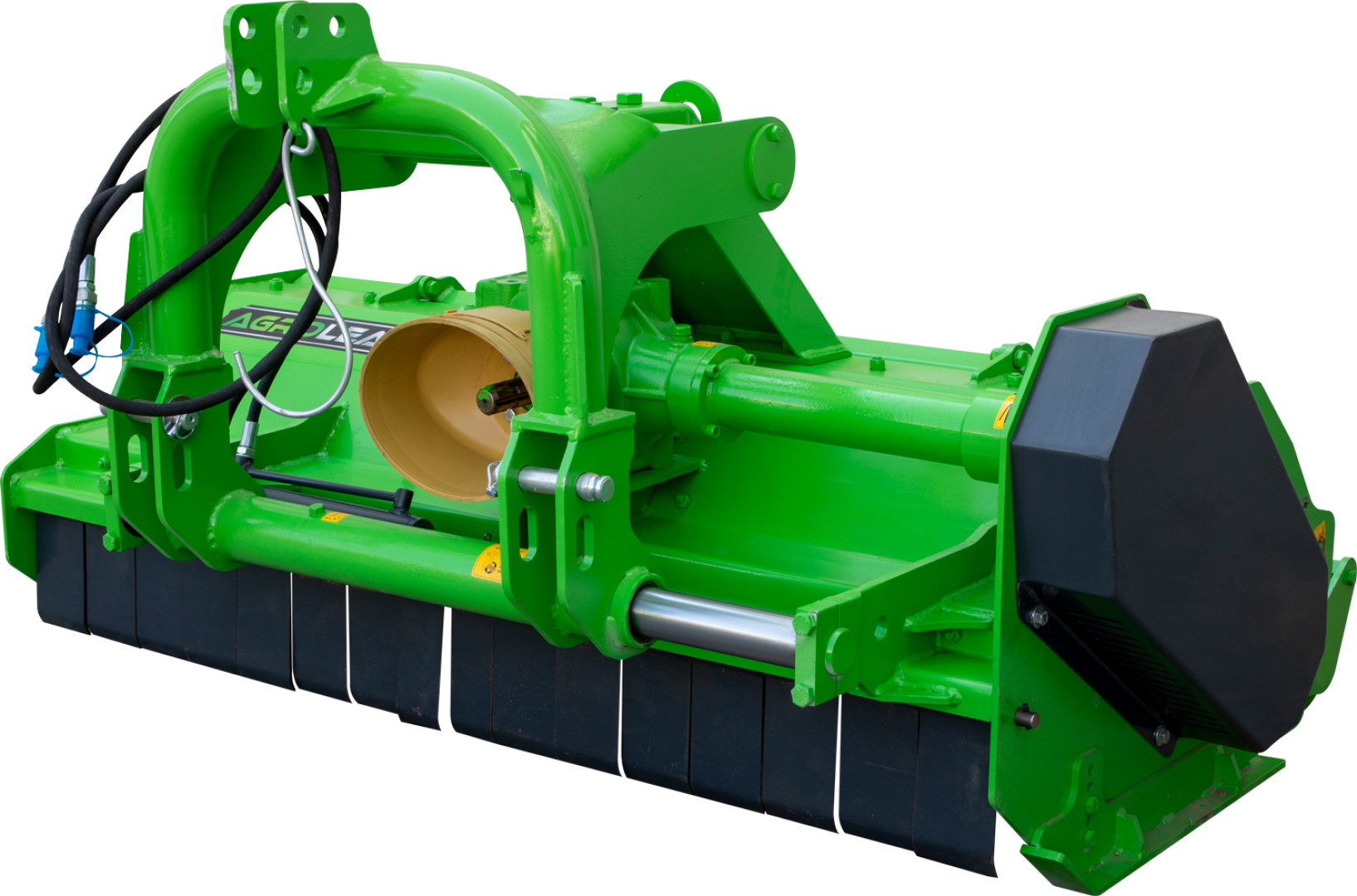

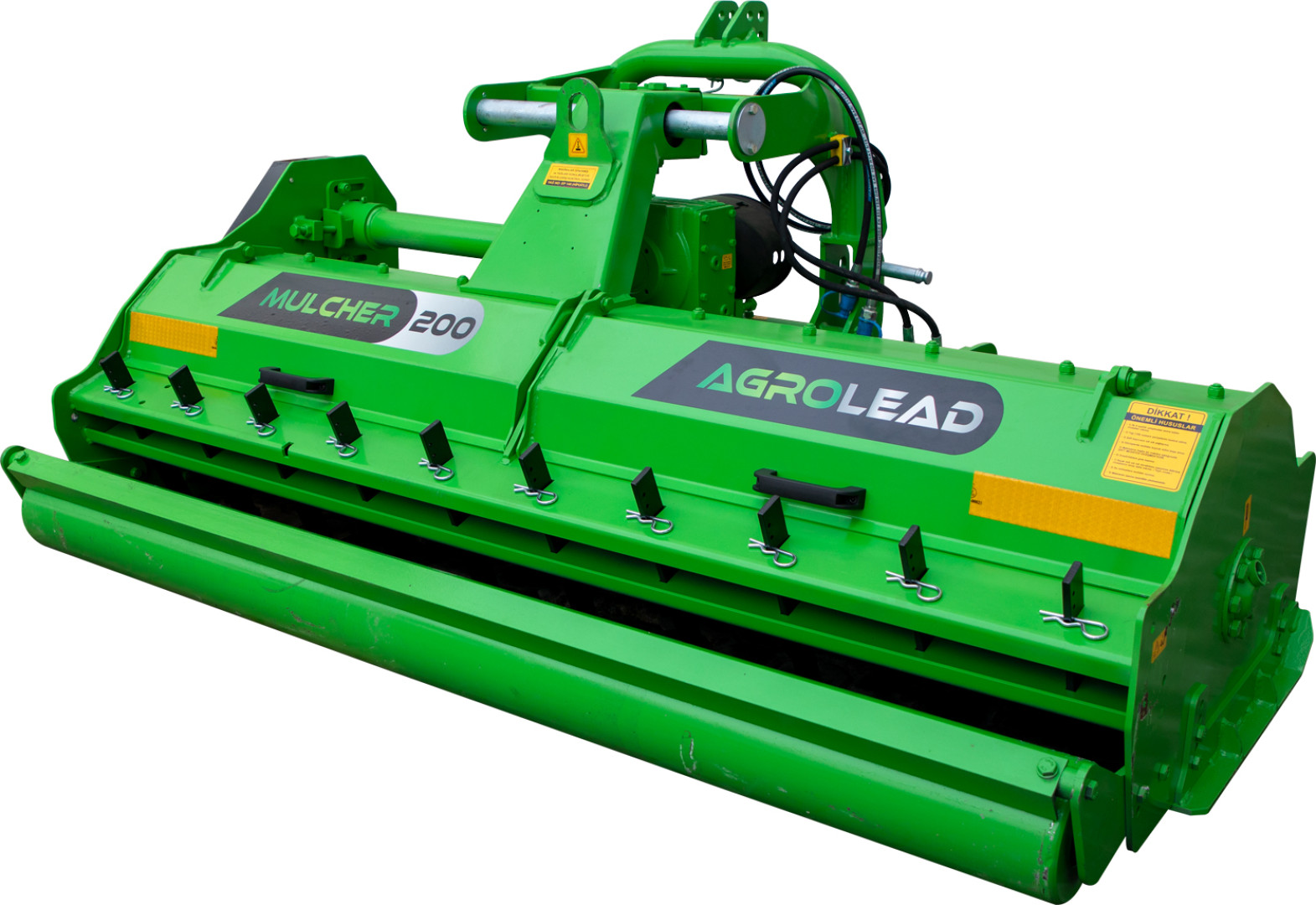

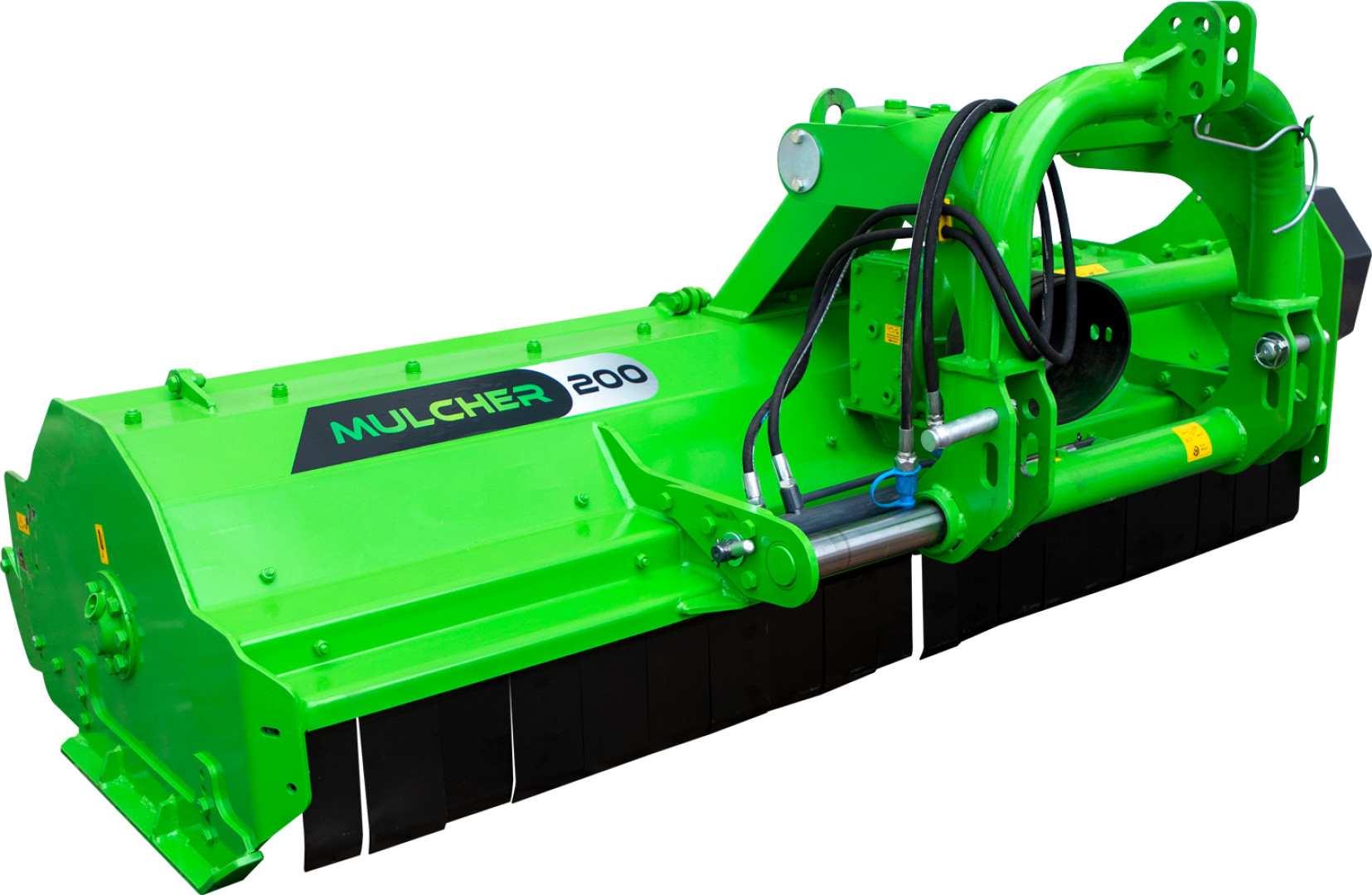

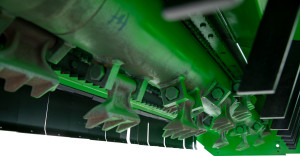

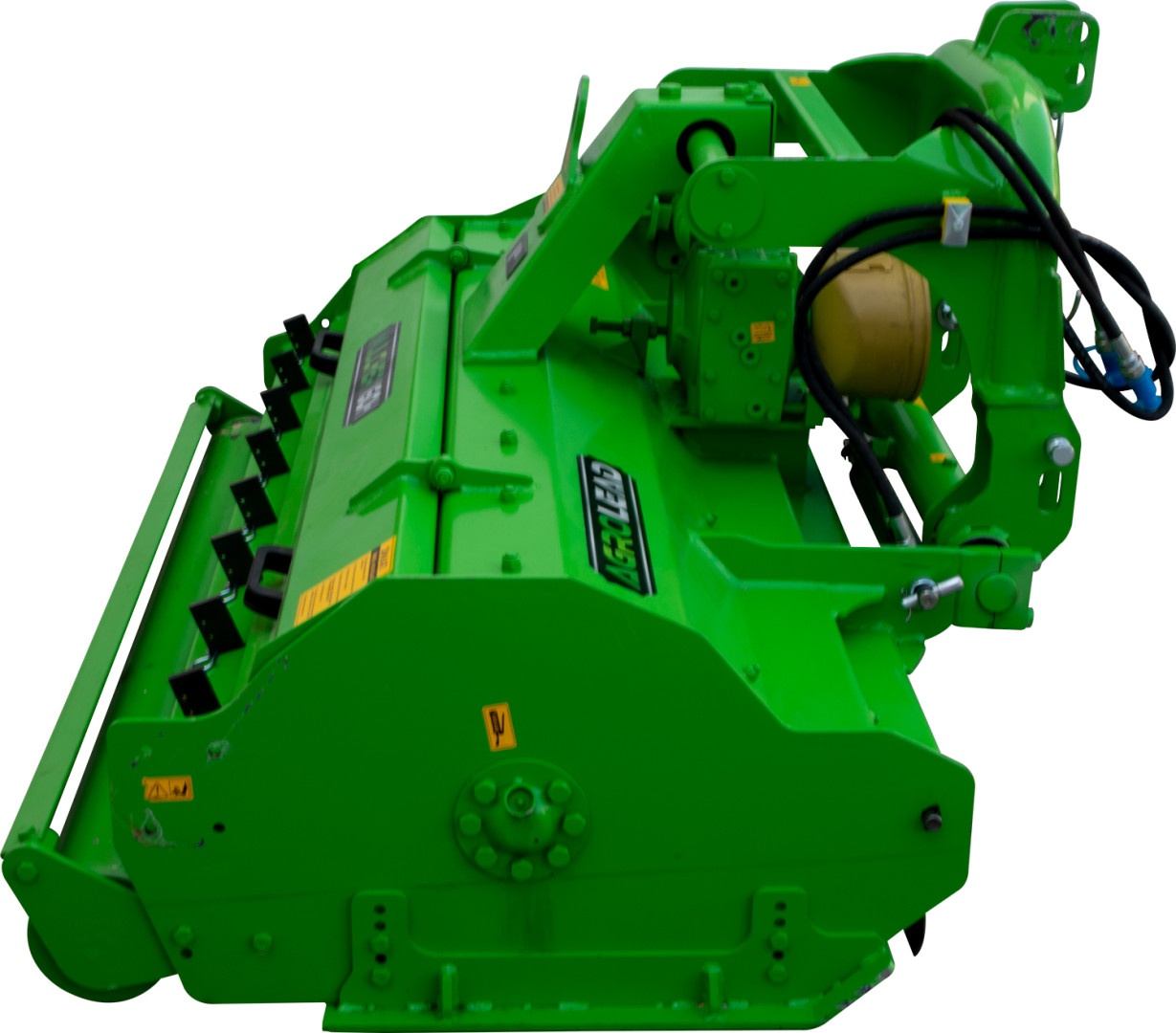

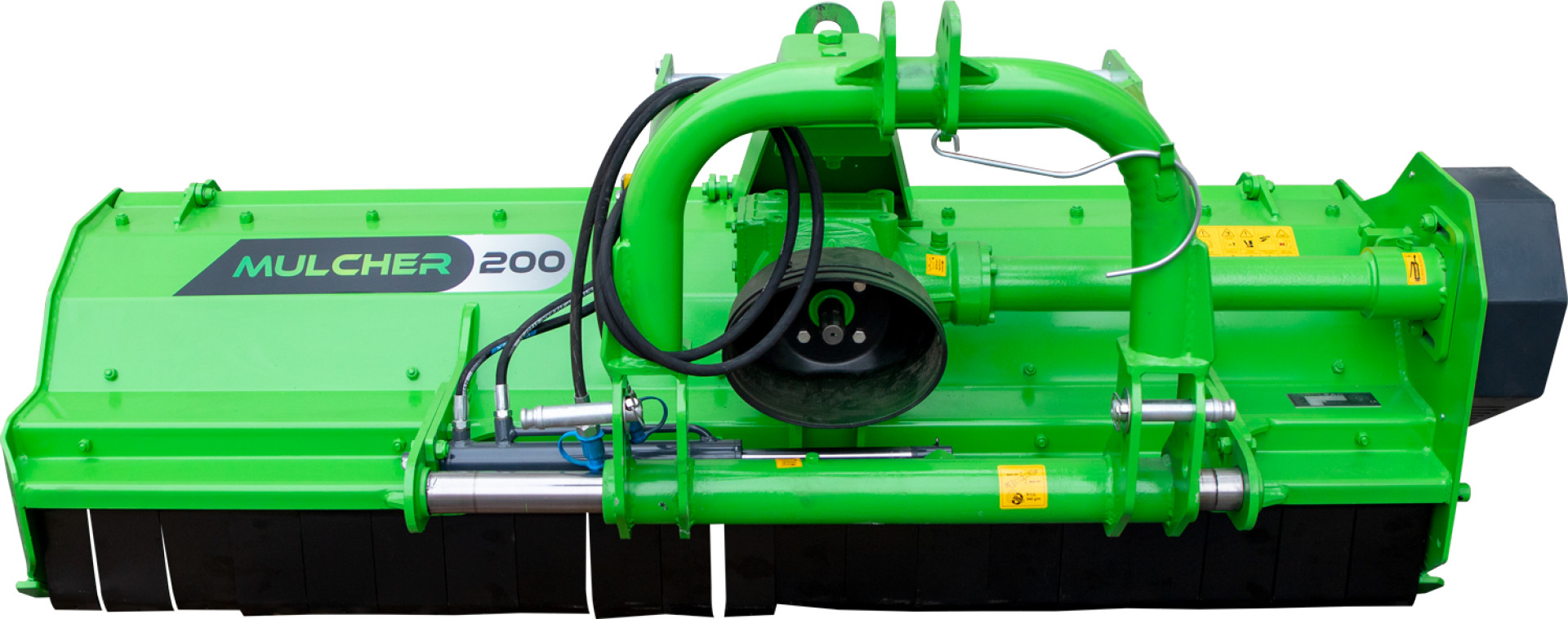

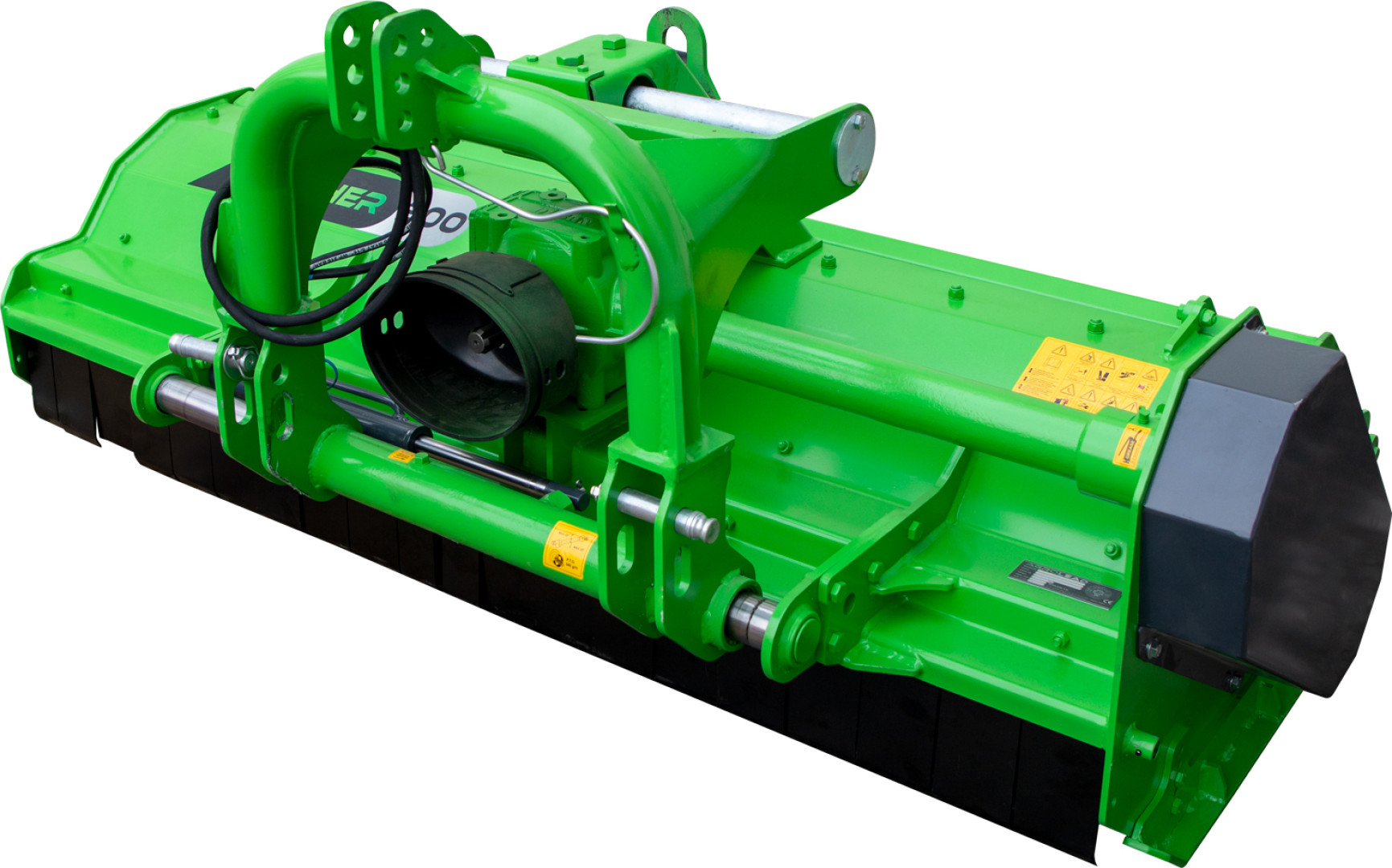

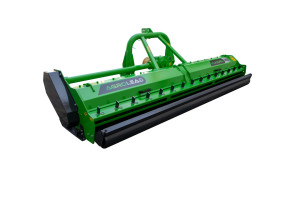

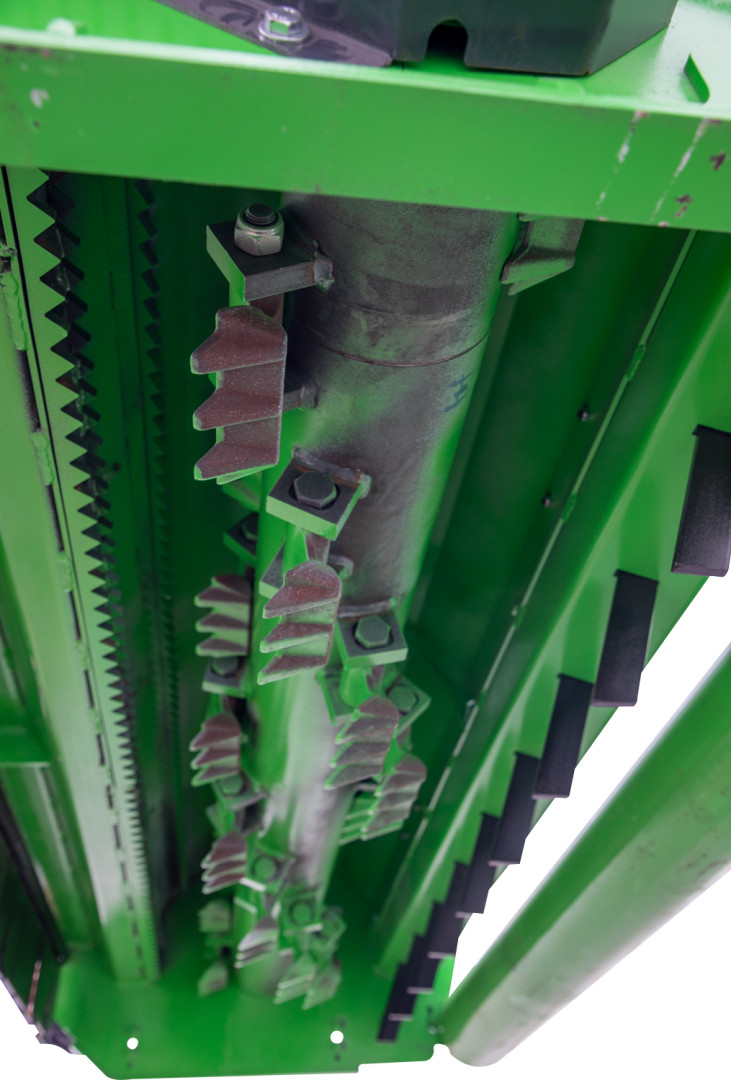

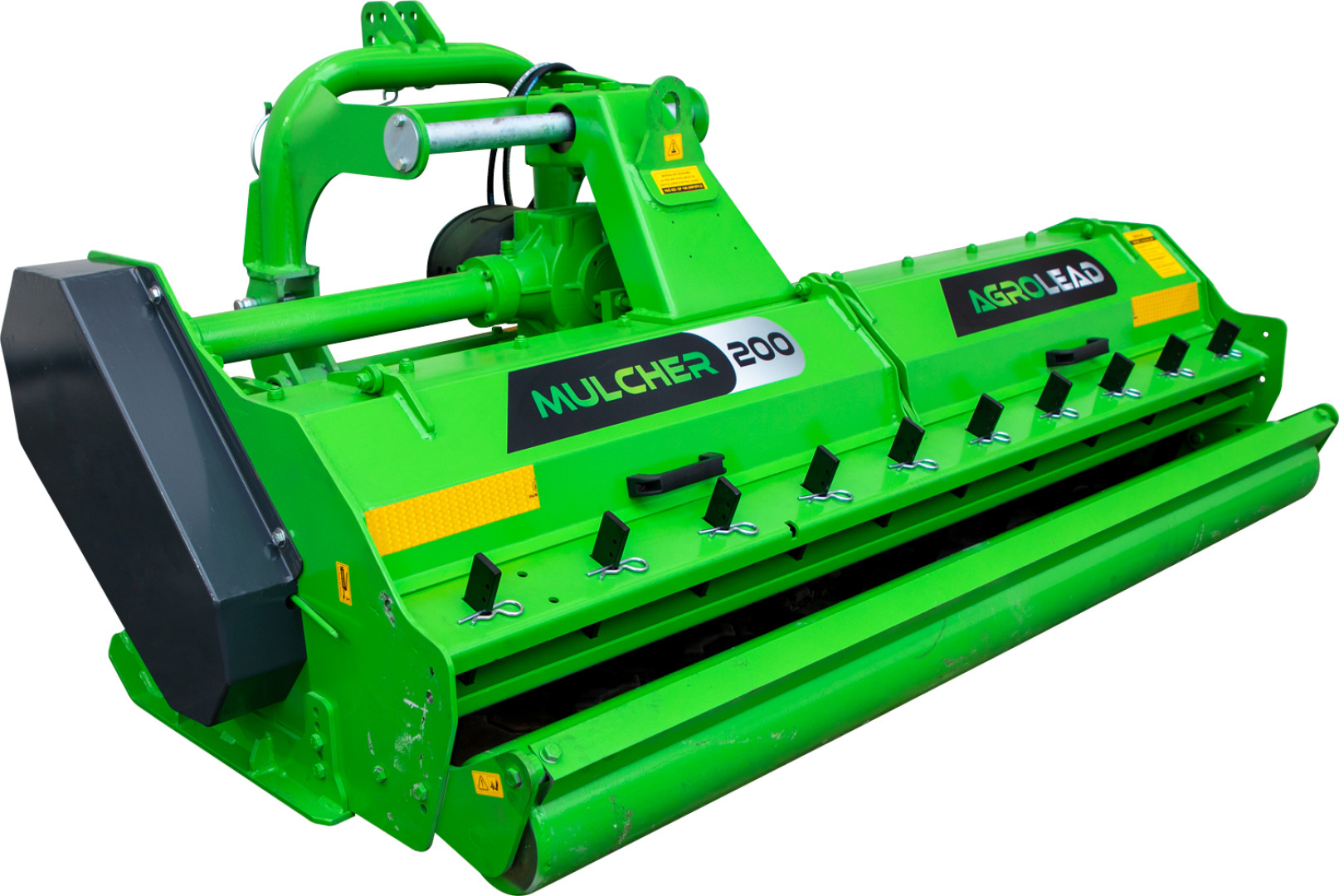

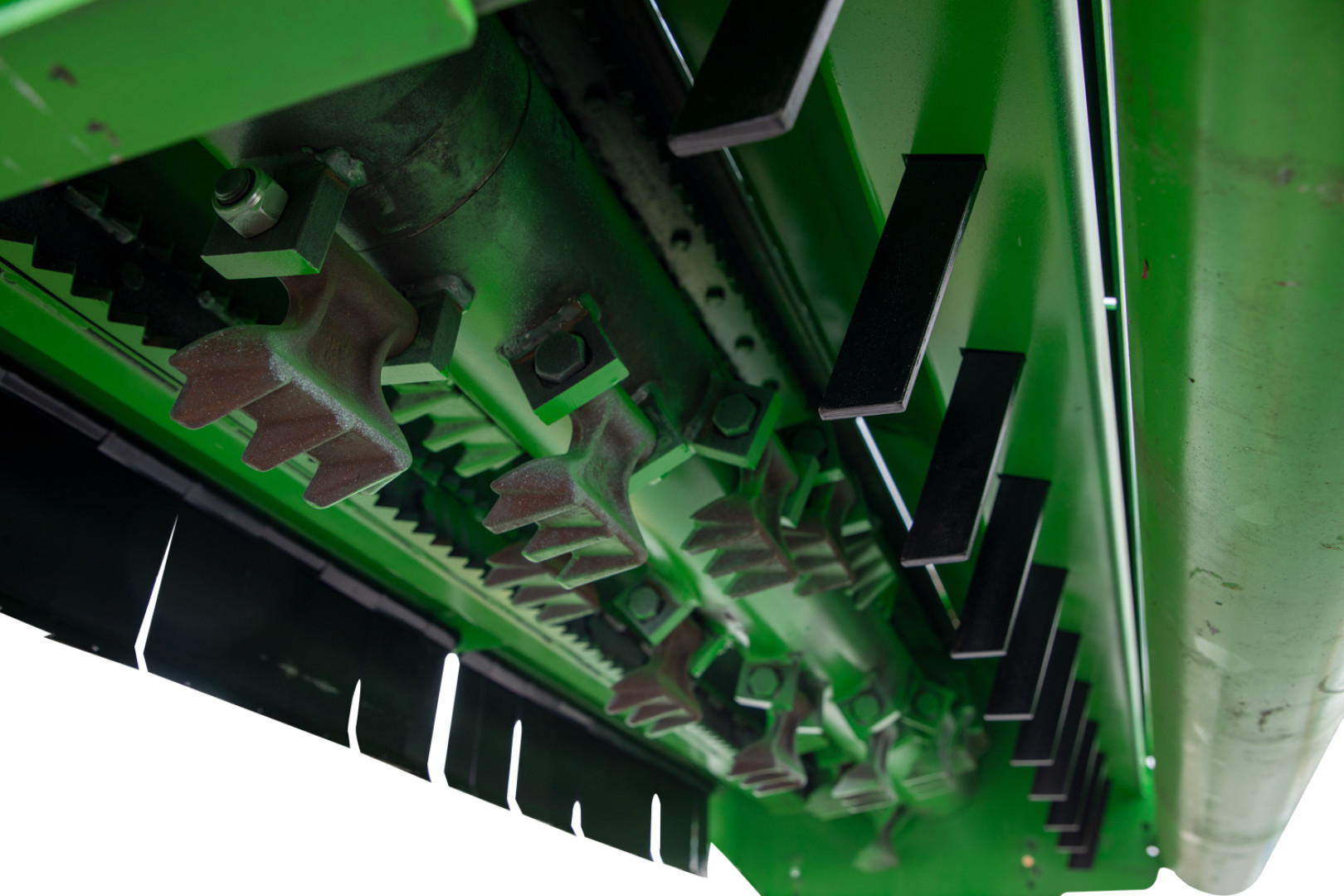

Mulchers are driven by the tractor power take-off unit and connected to it with three-point linkage system.They take 540 rpm power from tractor and increase it 1800 rpm by using a gearbox and a belt pulley sytem and can easily cut the stalks of the plants such as wheat sunflower, cotton, unshelled rice,tobacco and thicket and the branches of the pruned fruit trees and vine shots performs the recycling of them asorganic fertilizer. It preserves the cutting height, strength of the hummers and balance sensitivity even though the surface of the soil is rugged thanks to its skids on the sides and its roller at the back. Agrolead Flail Mulchers are produced as Fixed Type and Hydraulic Shifting Types.

TECHNICAL SPECIFICATIONS	UNIT	MODEL
TECHNICAL SPECIFICATIONS	UNIT	MULCHER 140	MULCHER 160	MULCHER 185	MULCHER 210	MULCHER 240	MULCHER 260	MULCHER 300
Working Width	cm	140	160	185	210	240	260	300
Number of Hammer	pcs	16	18	20	22	24	26	34
Rotation	rpm	540	540	540	540	540	540	1000
Width	mm	1528	1782	2040	2290	2542	2542	3200
Length	mm	1275	1275	1275	1275	1275	1275	1320
Height	mm	900	900	900	900	900	900	1000
Weight	kg	510	540	640	700	760	800	1050
Required Power	hp	35-40	40-45	45-50	50-55	55-65	70-80	90-100

TECHNICAL SPECIFICATIONS	UNIT	MULCHER 140
Working Width	cm	140
Number of Hammer	pcs	16
Rotation	rpm	540
Width	mm	1528
Length	mm	1275
Height	mm	900
Weight	kg	510
Required Power	hp	35-40

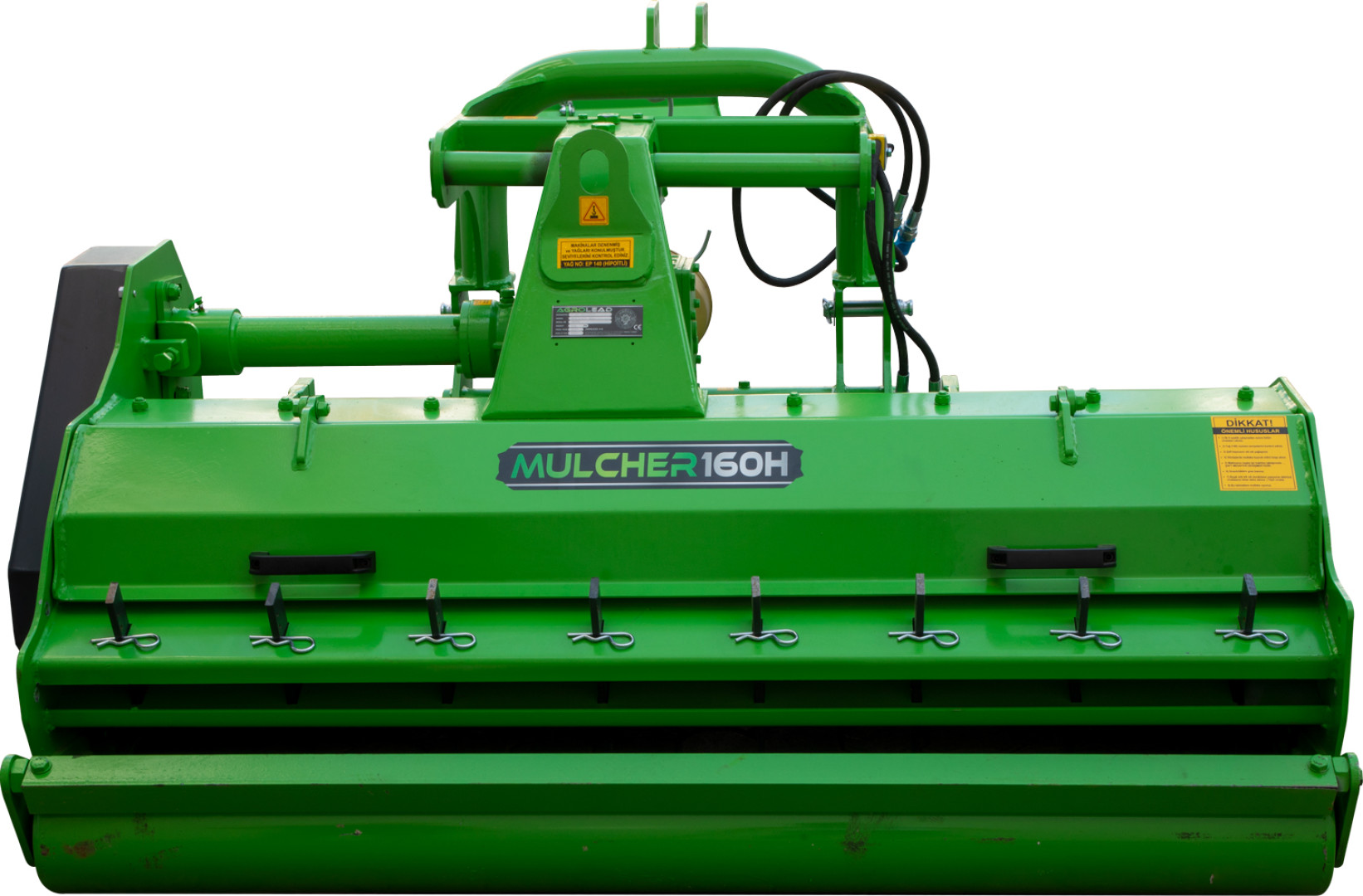

TECHNICAL SPECIFICATIONS	UNIT	MULCHER 160
Working Width	cm	160
Number of Hammer	pcs	18
Rotation	rpm	540
Width	mm	1782
Length	mm	1275
Height	mm	900
Weight	kg	540
Required Power	hp	40-45

TECHNICAL SPECIFICATIONS	UNIT	MULCHER 185
Working Width	cm	185
Number of Hammer	pcs	20
Rotation	rpm	540
Width	mm	2040
Length	mm	1275
Height	mm	900
Weight	kg	640
Required Power	hp	45-50

TECHNICAL SPECIFICATIONS	UNIT	MULCHER 210
Working Width	cm	210
Number of Hammer	pcs	22
Rotation	rpm	540
Width	mm	2290
Length	mm	1275
Height	mm	900
Weight	kg	700
Required Power	hp	50-55

TECHNICAL SPECIFICATIONS	UNIT	MULCHER 240
Working Width	cm	240
Number of Hammer	pcs	24
Rotation	rpm	540
Width	mm	2542
Length	mm	1275
Height	mm	900
Weight	kg	760
Required Power	hp	55-65

TECHNICAL SPECIFICATIONS	UNIT	MULCHER 260
Working Width	cm	260
Number of Hammer	pcs	26
Rotation	rpm	540
Width	mm	2542
Length	mm	1275
Height	mm	900
Weight	kg	800
Required Power	hp	70-80

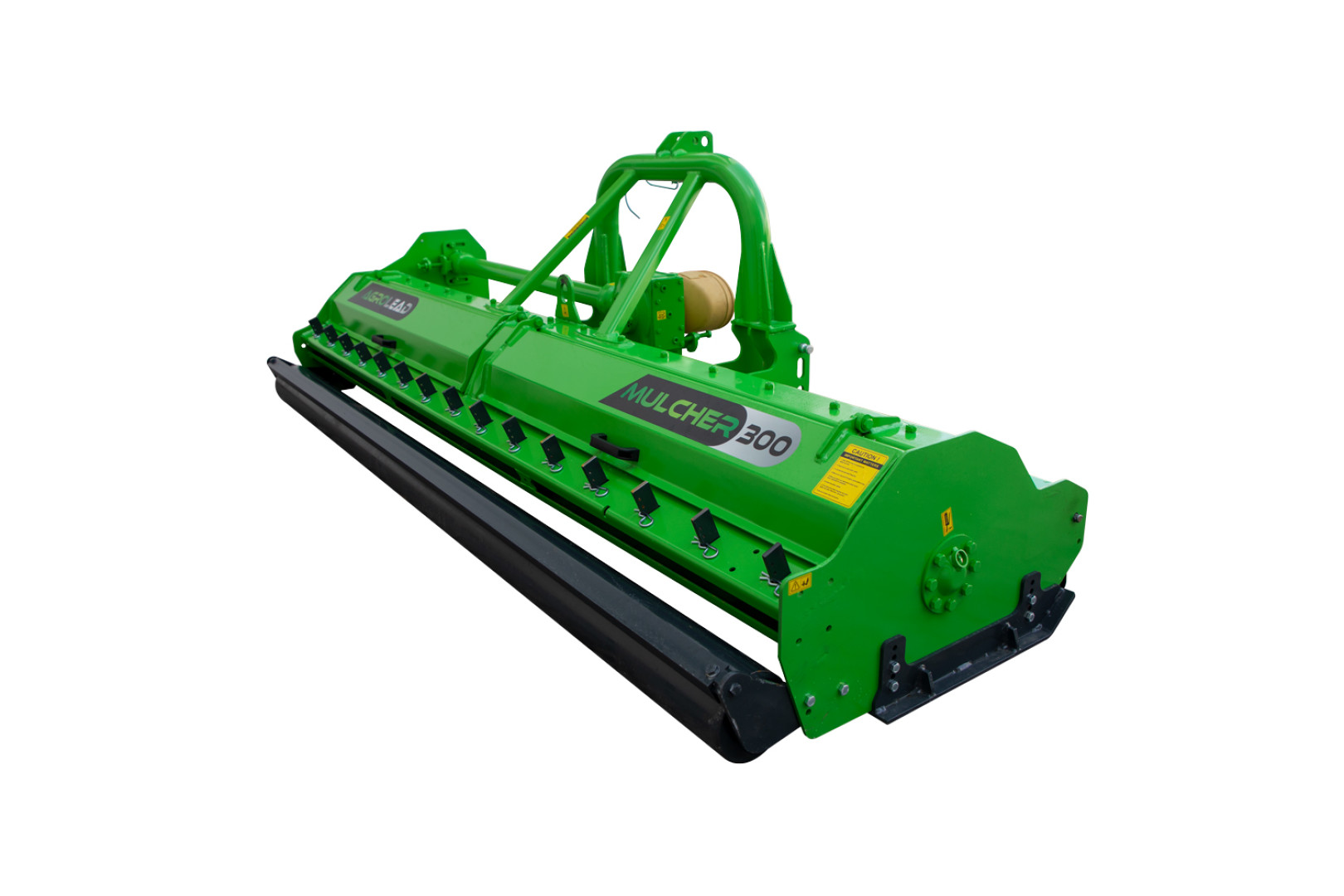

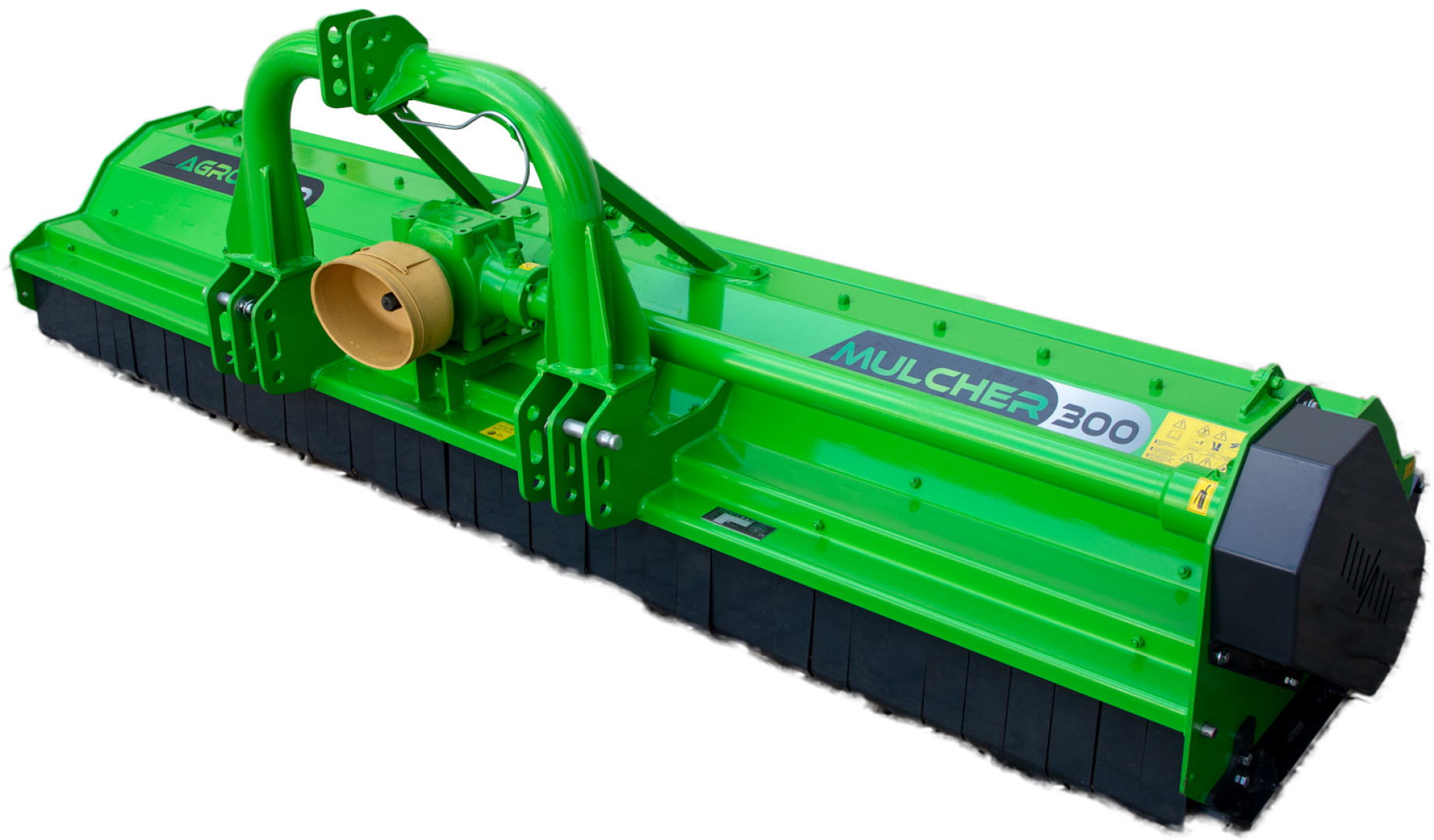

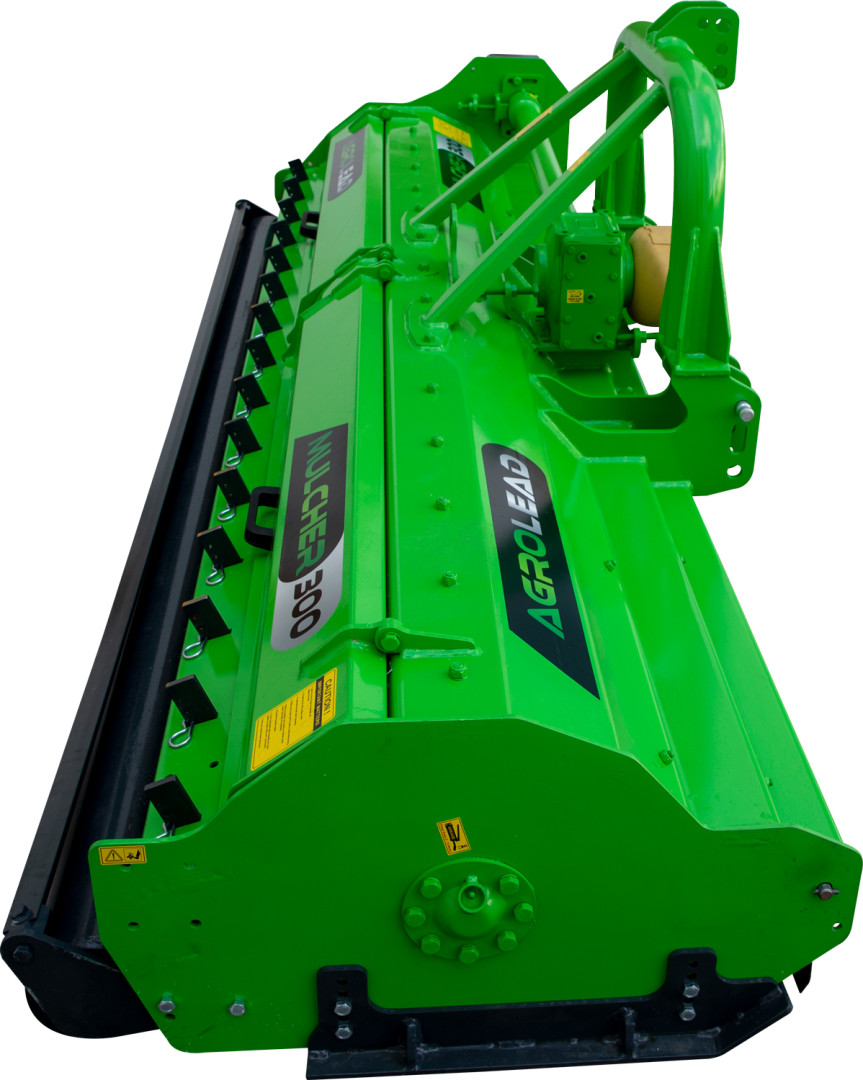

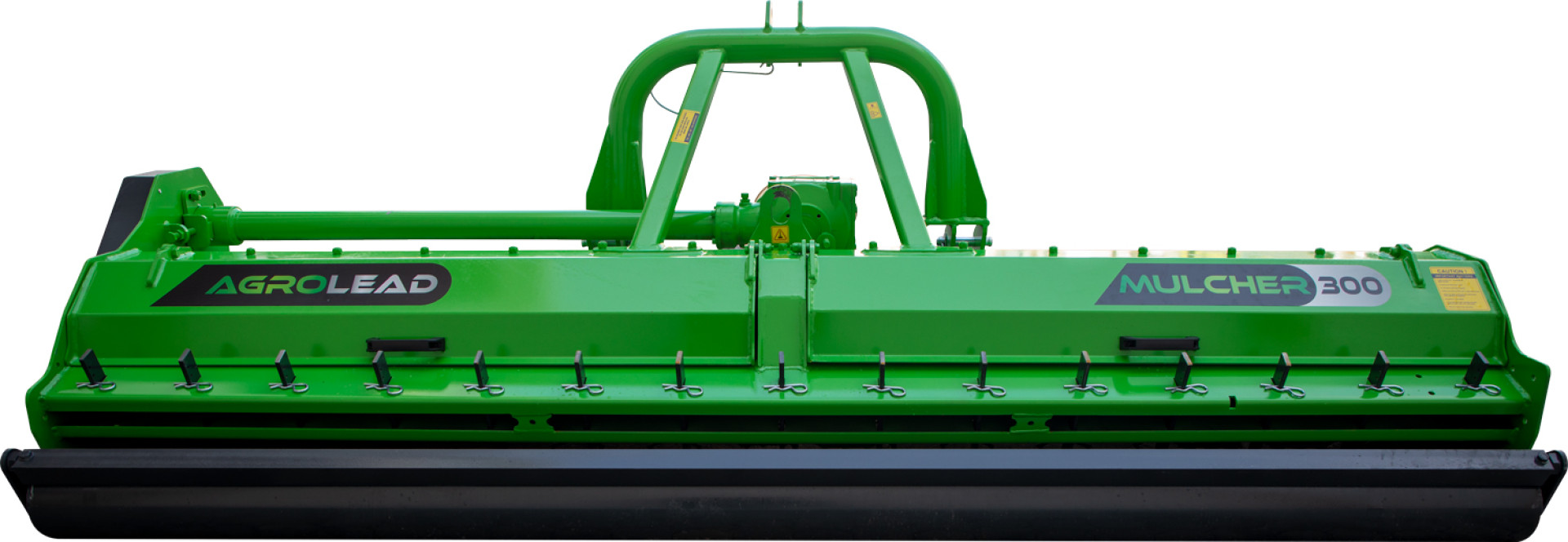

TECHNICAL SPECIFICATIONS	UNIT	MULCHER 300
Working Width	cm	300
Number of Hammer	pcs	34
Rotation	rpm	1000
Width	mm	3200
Length	mm	1320
Height	mm	1000
Weight	kg	1050
Required Power	hp	90-100
