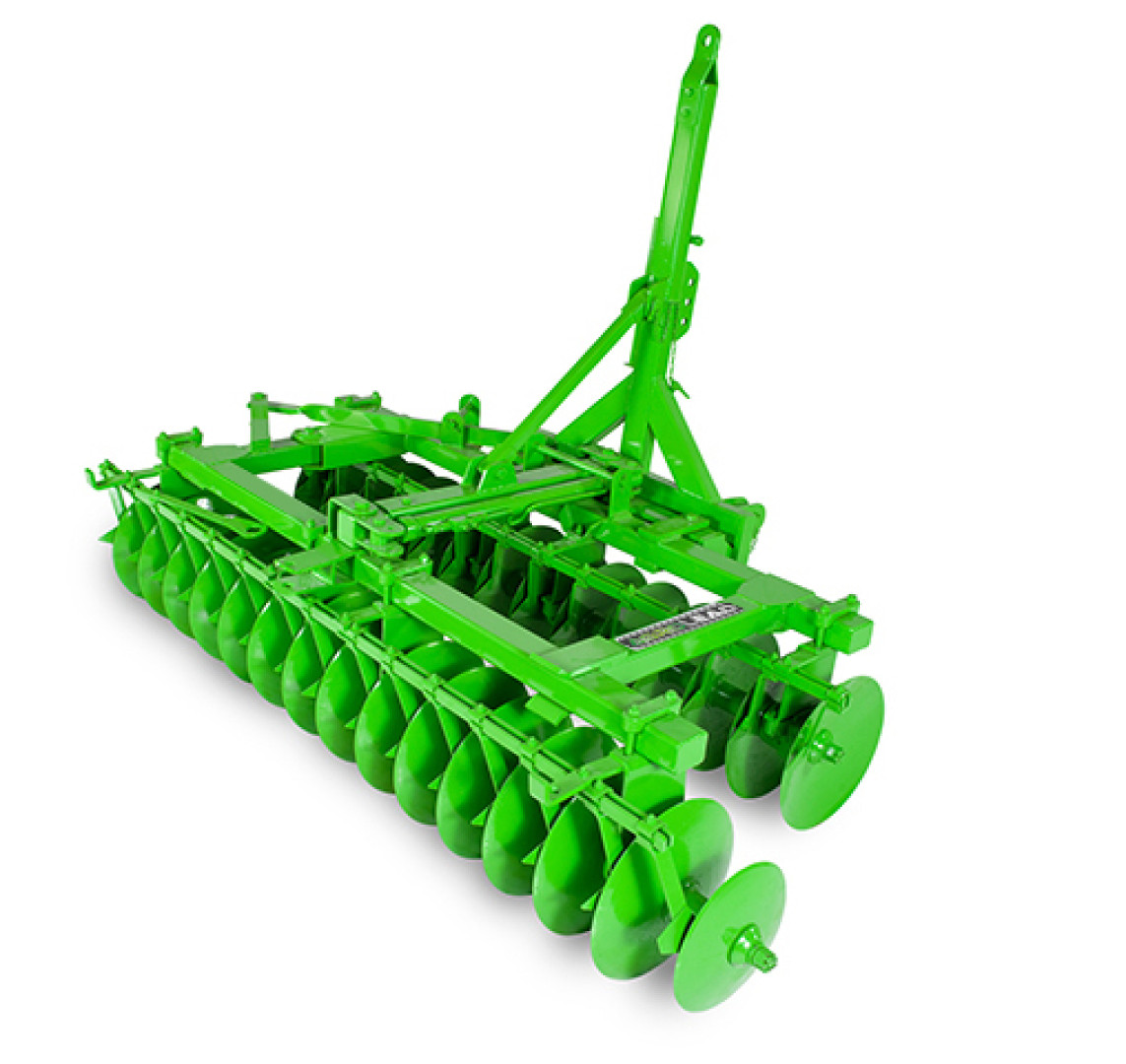

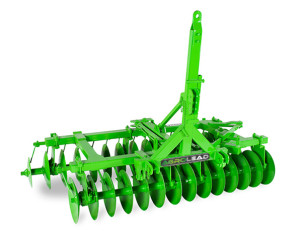

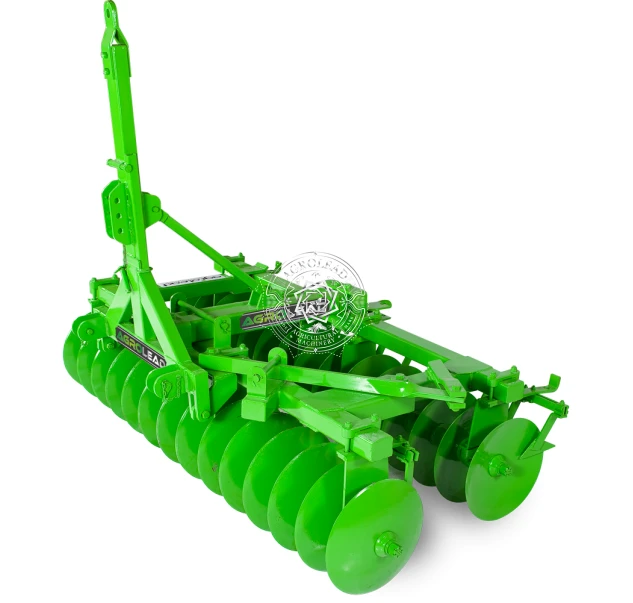

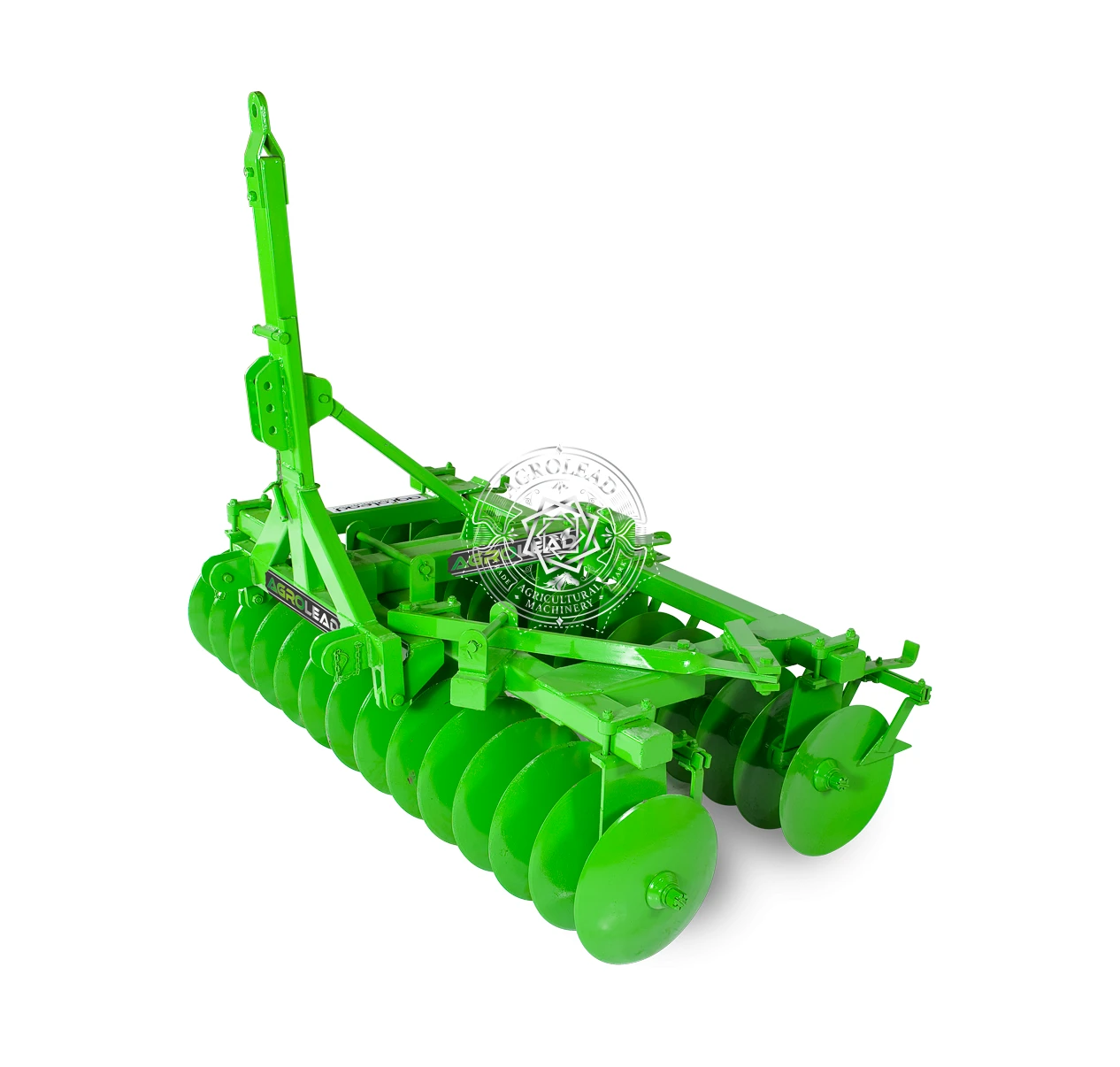

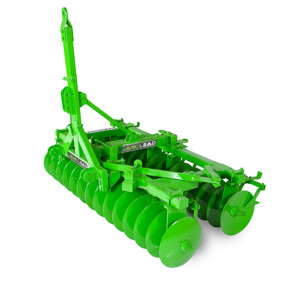

Orbis V type trailed and mounted Off Set Disc Harrows are a kind of soil cultivation machine which is used to prepare seed bed by breaking the clods after the pulley and mixing the soil. Operations such as dissecting the plant residues and weeds and breaking the duff layer can be performed with V type towed and loop offset disc harrows. The most significant superiority from secondary soil cultivation tools is usable within wide humidity limits of the soil.
| TECHNICAL SPECIFICATIONS | UNIT | MODEL | |||||
|---|---|---|---|---|---|---|---|
| ORBIS 20 | ORBIS 24 | ORBIS 28 | ORBIS 32 | ORBIS 36 | ORBIS 40 | ||
| Number Of Disc | pcs | 20 | 24 | 28 | 32 | 36 | 40 |
| Disc Diameter | cm | 46x3.5 | 46x3.5 | 46x3.5 | 46x3.5 | 46x3.5 | 46x3.5 |
| Dist. Between Disc | cm | 18 | 18 | 18 | 18 | 18 | 18 |
| No.Of Beds On Crank | pcs | 8 | 8 | 8 | 12 | 12 | 12 |
| Working Width | cm | 180 | 216 | 252 | 288 | 324 | 360 |
| Total Width | cm | 223 | 258 | 293 | 328 | 363 | 398 |
| Total Length | cm | 147 | 147 | 147 | 147 | 147 | 147 |
| Total Height | cm | 205 | 205 | 205 | 205 | 205 | 205 |
| Frame | mm | 100x80x5 | 100x80x5 | 100x80x5 | 100x100x6 | 100x100x6 | 100x100x6 |
| Weight 560 mm disc | kg | 610 | 660 | 710 | 765 | 935 | 985 |
| Weight 610 mm disc | kg | 640 | 700 | 750 | 820 | 1040 | 1095 |
| Min. hp | hp | 50-55 | 55 - 60 | 60 - 70 | 70 - 80 | 80-90 | 90-100 |
| TECHNICAL SPECIFICATIONS | UNIT | ORBIS 20 |
|---|---|---|
| Number Of Disc | pcs | 20 |
| Disc Diameter | cm | 46x3.5 |
| Dist. Between Disc | cm | 18 |
| No.Of Beds On Crank | pcs | 8 |
| Working Width | cm | 180 |
| Total Width | cm | 223 |
| Total Length | cm | 147 |
| Total Height | cm | 205 |
| Frame | mm | 100x80x5 |
| Weight 560 mm disc | kg | 610 |
| Weight 610 mm disc | kg | 640 |
| Min. hp | hp | 50-55 |
| TECHNICAL SPECIFICATIONS | UNIT | ORBIS 24 |
|---|---|---|
| Number Of Disc | pcs | 24 |
| Disc Diameter | cm | 46x3.5 |
| Dist. Between Disc | cm | 18 |
| No.Of Beds On Crank | pcs | 8 |
| Working Width | cm | 216 |
| Total Width | cm | 258 |
| Total Length | cm | 147 |
| Total Height | cm | 205 |
| Frame | mm | 100x80x5 |
| Weight 560 mm disc | kg | 660 |
| Weight 610 mm disc | kg | 700 |
| Min. hp | hp | 55 - 60 |
| TECHNICAL SPECIFICATIONS | UNIT | ORBIS 28 |
|---|---|---|
| Number Of Disc | pcs | 28 |
| Disc Diameter | cm | 46x3.5 |
| Dist. Between Disc | cm | 18 |
| No.Of Beds On Crank | pcs | 8 |
| Working Width | cm | 252 |
| Total Width | cm | 293 |
| Total Length | cm | 147 |
| Total Height | cm | 205 |
| Frame | mm | 100x80x5 |
| Weight 560 mm disc | kg | 710 |
| Weight 610 mm disc | kg | 750 |
| Min. hp | hp | 60 - 70 |
| TECHNICAL SPECIFICATIONS | UNIT | ORBIS 32 |
|---|---|---|
| Number Of Disc | pcs | 32 |
| Disc Diameter | cm | 46x3.5 |
| Dist. Between Disc | cm | 18 |
| No.Of Beds On Crank | pcs | 12 |
| Working Width | cm | 288 |
| Total Width | cm | 328 |
| Total Length | cm | 147 |
| Total Height | cm | 205 |
| Frame | mm | 100x100x6 |
| Weight 560 mm disc | kg | 765 |
| Weight 610 mm disc | kg | 820 |
| Min. hp | hp | 70 - 80 |
| TECHNICAL SPECIFICATIONS | UNIT | ORBIS 36 |
|---|---|---|
| Number Of Disc | pcs | 36 |
| Disc Diameter | cm | 46x3.5 |
| Dist. Between Disc | cm | 18 |
| No.Of Beds On Crank | pcs | 12 |
| Working Width | cm | 324 |
| Total Width | cm | 363 |
| Total Length | cm | 147 |
| Total Height | cm | 205 |
| Frame | mm | 100x100x6 |
| Weight 560 mm disc | kg | 935 |
| Weight 610 mm disc | kg | 1040 |
| Min. hp | hp | 80-90 |
| TECHNICAL SPECIFICATIONS | UNIT | ORBIS 40 |
|---|---|---|
| Number Of Disc | pcs | 40 |
| Disc Diameter | cm | 46x3.5 |
| Dist. Between Disc | cm | 18 |
| No.Of Beds On Crank | pcs | 12 |
| Working Width | cm | 360 |
| Total Width | cm | 398 |
| Total Length | cm | 147 |
| Total Height | cm | 205 |
| Frame | mm | 100x100x6 |
| Weight 560 mm disc | kg | 985 |
| Weight 610 mm disc | kg | 1095 |
| Min. hp | hp | 90-100 |
