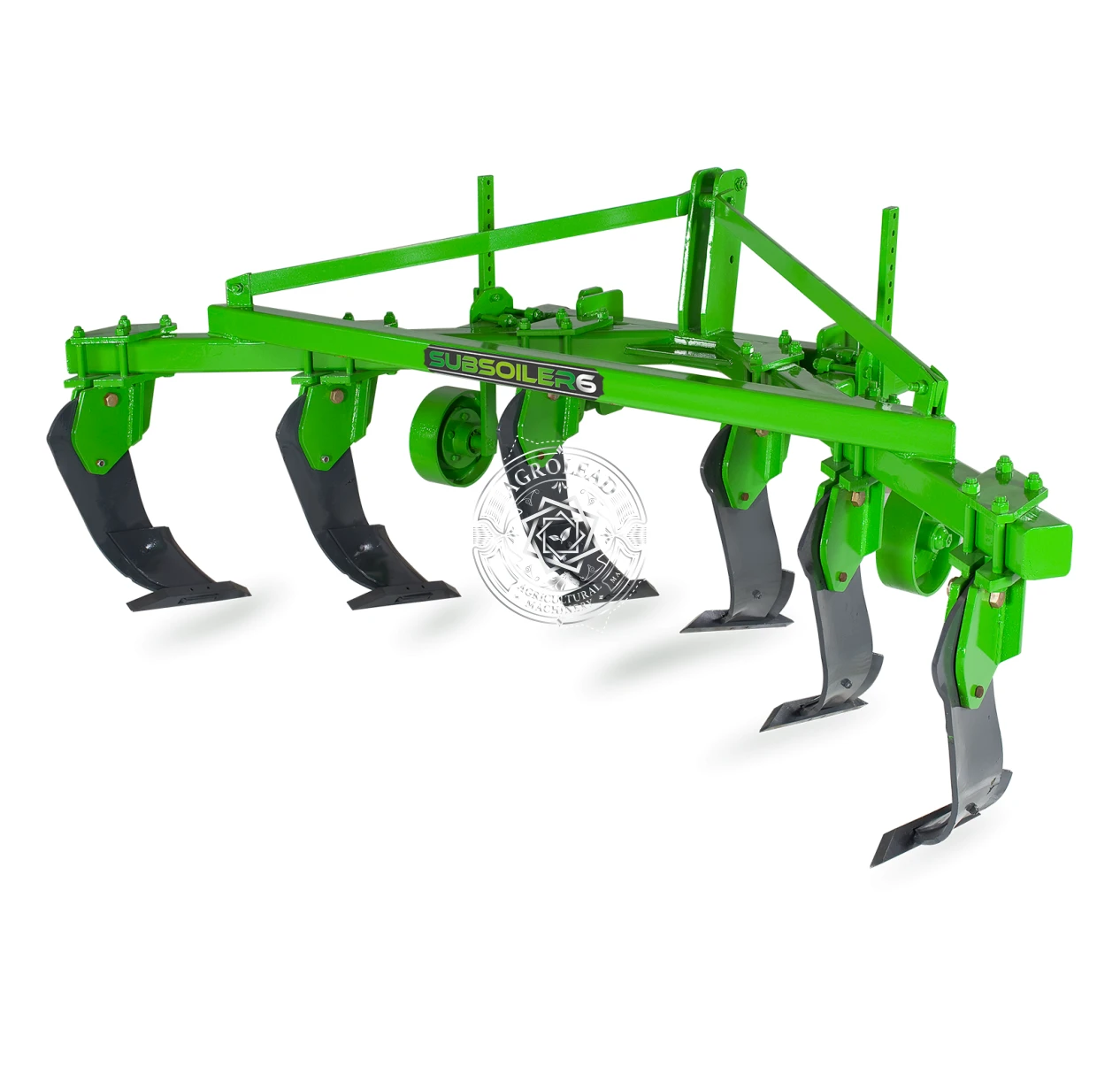

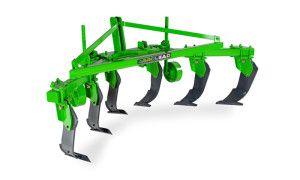

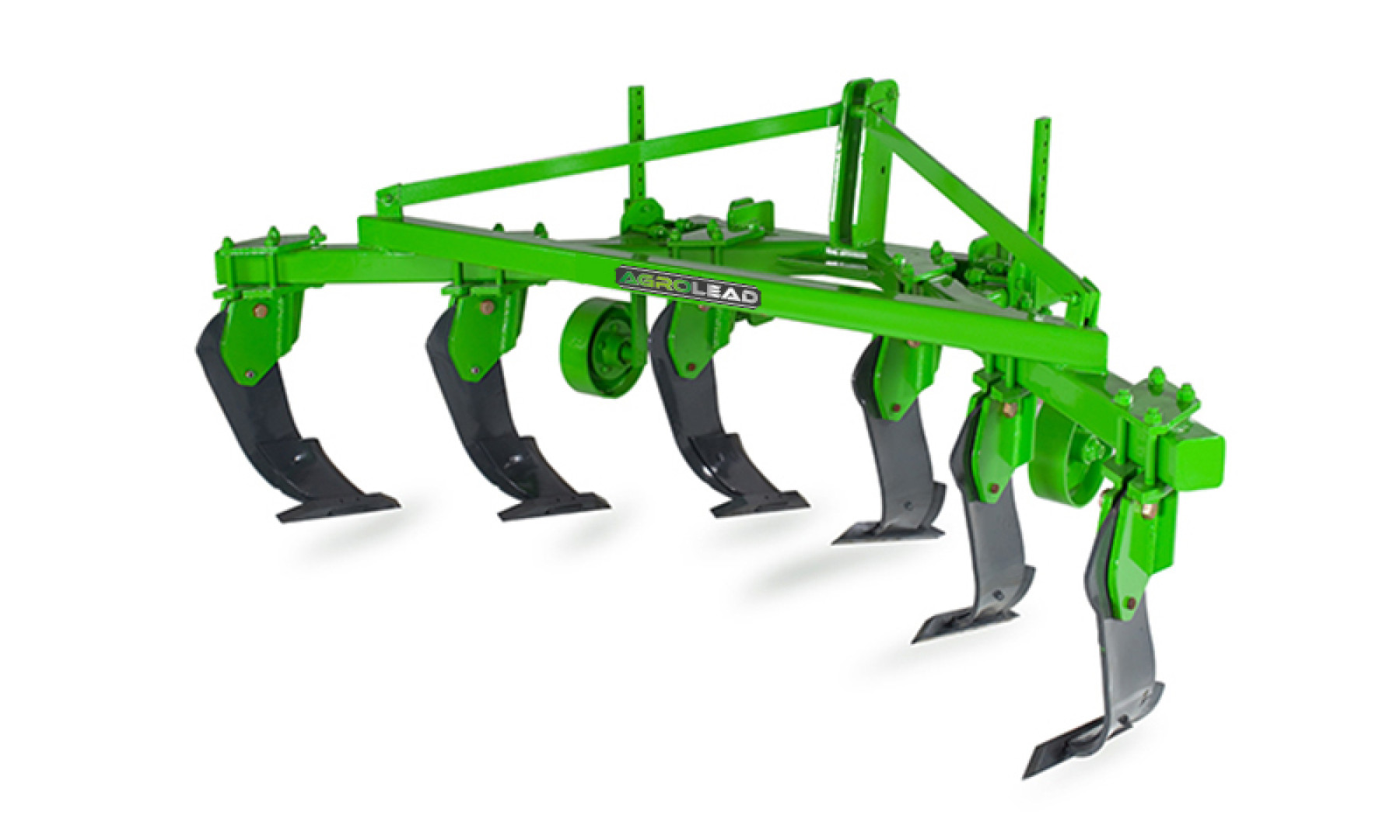

Our Subsoilers are manufactured under the guarantee of AGROLEAD. Subsoiler is a mounted type machine which cultivates the soil without leaving any raw soil between the tines due to the stand structure and by breaking the lower plow layer without carrying the infertile soil in the lower layer up to the top. Cultivation with a high operation depth can be performed with the subsoiler. It provides soil aeration, water retraction to the bottom by preventing rain water to stay on the surface and protection of the soil humidity and convenient going down to the plant roots by breaking the hard layer. Yield is increased by this operation.
| TECHNICAL SPECIFICATIONS | UNIT | MODEL | ||||
|---|---|---|---|---|---|---|
| SUBSOILER 2 | SUBSOILER 4 | SUBSOILER 6 | SUBSOILER 8 | SUBSOILER 10 | ||
| Number Of Tines | pcs | 2 | 4 | 6 | 8 | 10 |
| Distance Between Tines | cm | 50 | 50 | 50 | 50 | 50 |
| Working Width | cm | 80 | 180 | 280 | 380 | 500 |
| Total Width | cm | 110 | 214 | 320 | 420 | 530 |
| Total Length | cm | 80 | 103 | 145 | 186 | 230 |
| Total Hight | cm | 150 | 150 | 150 | 150 | 150 |
| Working Depth | cm | 30-70 | 30-70 | 30-70 | 30-70 | 30-70 |
| Frame | mm | 120 x 120 x 8 | 120 x 120 x 8 | 120 x 120 x 8 | 120 x 120 x 8 | 120 x 120 x 8 |
| Weight Without Roller | kg | 500 | 740 | 950 | 1510 | 1885 |
| Weight With Roller | kg | 760 | 1260 | 1720 | 2540 | 3175 |
| Required Power | hp | 70-80 | 100-110 | 150-170 | 190-230 | 240-270 |
| TECHNICAL SPECIFICATIONS | UNIT | SUBSOILER 10 |
|---|---|---|
| Number Of Tines | pcs | 10 |
| Distance Between Tines | cm | 50 |
| Working Width | cm | 500 |
| Total Width | cm | 530 |
| Total Length | cm | 230 |
| Total Hight | cm | 150 |
| Working Depth | cm | 30-70 |
| Frame | mm | 120 x 120 x 8 |
| Weight Without Roller | kg | 1885 |
| Weight With Roller | kg | 3175 |
| Required Power | hp | 240-270 |
| TECHNICAL SPECIFICATIONS | UNIT | SUBSOILER 2 |
|---|---|---|
| Number Of Tines | pcs | 2 |
| Distance Between Tines | cm | 50 |
| Working Width | cm | 80 |
| Total Width | cm | 110 |
| Total Length | cm | 80 |
| Total Hight | cm | 150 |
| Working Depth | cm | 30-70 |
| Frame | mm | 120 x 120 x 8 |
| Weight Without Roller | kg | 500 |
| Weight With Roller | kg | 760 |
| Required Power | hp | 70-80 |
| TECHNICAL SPECIFICATIONS | UNIT | SUBSOILER 4 |
|---|---|---|
| Number Of Tines | pcs | 4 |
| Distance Between Tines | cm | 50 |
| Working Width | cm | 180 |
| Total Width | cm | 214 |
| Total Length | cm | 103 |
| Total Hight | cm | 150 |
| Working Depth | cm | 30-70 |
| Frame | mm | 120 x 120 x 8 |
| Weight Without Roller | kg | 740 |
| Weight With Roller | kg | 1260 |
| Required Power | hp | 100-110 |
| TECHNICAL SPECIFICATIONS | UNIT | SUBSOILER 6 |
|---|---|---|
| Number Of Tines | pcs | 6 |
| Distance Between Tines | cm | 50 |
| Working Width | cm | 280 |
| Total Width | cm | 320 |
| Total Length | cm | 145 |
| Total Hight | cm | 150 |
| Working Depth | cm | 30-70 |
| Frame | mm | 120 x 120 x 8 |
| Weight Without Roller | kg | 950 |
| Weight With Roller | kg | 1720 |
| Required Power | hp | 150-170 |
| TECHNICAL SPECIFICATIONS | UNIT | SUBSOILER 8 |
|---|---|---|
| Number Of Tines | pcs | 8 |
| Distance Between Tines | cm | 50 |
| Working Width | cm | 380 |
| Total Width | cm | 420 |
| Total Length | cm | 186 |
| Total Hight | cm | 150 |
| Working Depth | cm | 30-70 |
| Frame | mm | 120 x 120 x 8 |
| Weight Without Roller | kg | 1510 |
| Weight With Roller | kg | 2540 |
| Required Power | hp | 190-230 |
