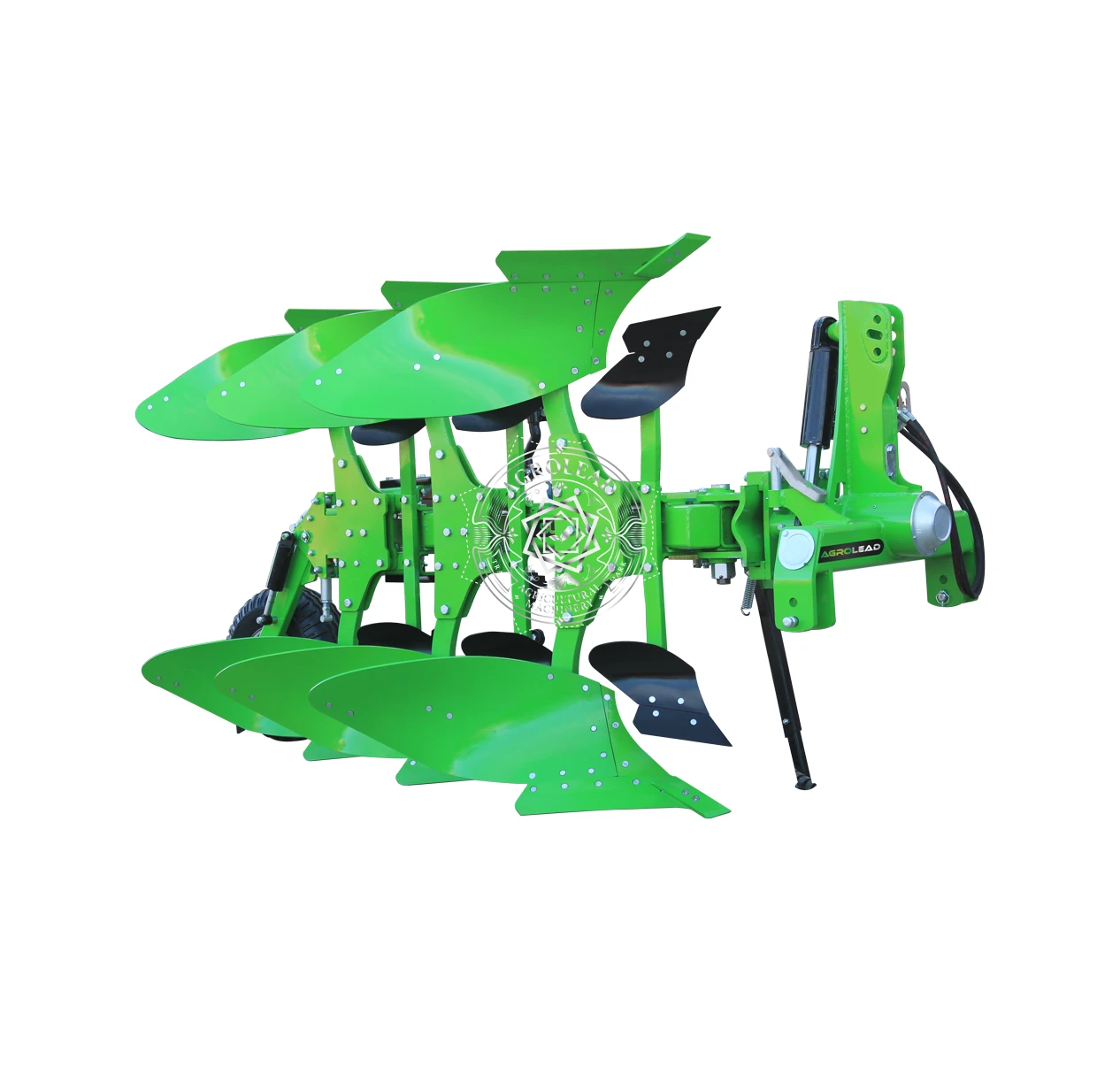

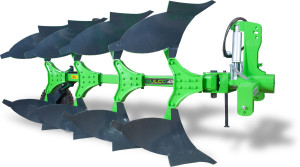

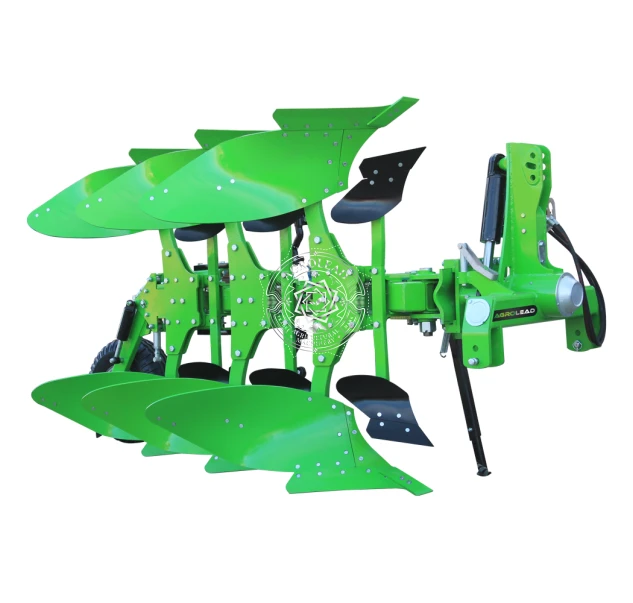

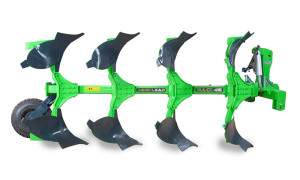

Sulco Reversible Plough

Sulco Reversible Plough

Sulco Reversible Plough have justified pride of serving farmers special raw materials profile that provides elasticity for the reversible plough as well as heat treatment processed poles as a first and impact resistant mouldboard non-catching mud in European standards. It is very practical to adjust and use through hydraulic overturning. With this model, farmers do not need to turn around the field, instead, return can be made on same line line which leads time saving and fuel increasing. Sulco Reversible Ploughs ranging from 2 to 6 furrows enables hydraulic setting of working widths from 30 to 50 cm from tractor cabin through hydraulic cylinder. The wide spacing of the wedges in our plough allows ploughing materials such as weeds and straw even in narrow versions without collecting them. Through depth adjustment wheel using the plough on land and transport position is very easy to adjust. High-strength, heat-treated pins and bushings are used in all critical points and connected areas to prevent wear and impact breakage. Sulco ploughs can optionally be fitted with cutting discs, skimmers and manure breaker.

TECHNICAL SPECIFICATIONSUNITMODEL
SULCO 216SULCO 316SULCO 416SULCO 516SULCO 616
Number of Furrowspcs23456
Furrow Sizeinch1616161616
Underbeam Clearancecm8585858585
Interbody Depthcm9595959595
Working Widthcm30-35-40-4530-35-40-4530-35-40-4530-35-40-4530-35-40-45
Working Depthcm3636363636
Total Lenghtmm19502700335040004650
Total Widthmm16001600160016001600
Total Heightcm155155155155155
Space Between Furrowscm9595959595
Required Powerhp70-8080-9090-110110-150150+
Total Weightkg747945117213701570
TECHNICAL SPECIFICATIONSUNITSULCO 216
Number of Furrowspcs2
Furrow Sizeinch16
Underbeam Clearancecm85
Interbody Depthcm95
Working Widthcm30-35-40-45
Working Depthcm36
Total Lenghtmm1950
Total Widthmm1600
Total Heightcm155
Space Between Furrowscm95
Required Powerhp70-80
Total Weightkg747
TECHNICAL SPECIFICATIONSUNITSULCO 316
Number of Furrowspcs3
Furrow Sizeinch16
Underbeam Clearancecm85
Interbody Depthcm95
Working Widthcm30-35-40-45
Working Depthcm36
Total Lenghtmm2700
Total Widthmm1600
Total Heightcm155
Space Between Furrowscm95
Required Powerhp80-90
Total Weightkg945
TECHNICAL SPECIFICATIONSUNITSULCO 416
Number of Furrowspcs4
Furrow Sizeinch16
Underbeam Clearancecm85
Interbody Depthcm95
Working Widthcm30-35-40-45
Working Depthcm36
Total Lenghtmm3350
Total Widthmm1600
Total Heightcm155
Space Between Furrowscm95
Required Powerhp90-110
Total Weightkg1172
TECHNICAL SPECIFICATIONSUNITSULCO 516
Number of Furrowspcs5
Furrow Sizeinch16
Underbeam Clearancecm85
Interbody Depthcm95
Working Widthcm30-35-40-45
Working Depthcm36
Total Lenghtmm4000
Total Widthmm1600
Total Heightcm155
Space Between Furrowscm95
Required Powerhp110-150
Total Weightkg1370
TECHNICAL SPECIFICATIONSUNITSULCO 616
Number of Furrowspcs6
Furrow Sizeinch16
Underbeam Clearancecm85
Interbody Depthcm95
Working Widthcm30-35-40-45
Working Depthcm36
Total Lenghtmm4650
Total Widthmm1600
Total Heightcm155
Space Between Furrowscm95
Required Powerhp150+
Total Weightkg1570
